Sand and Dust Test Chamber

Sand and Dust Test Chamber has an excellent quality, corrosion resistant sand test chamber <br>that test the stability, quality, reactivity and characteristics of product against the sand <br>and dust exposed environmental conditions. The test chamber is carefully designed as per the <br>CE and ISO standards and provides protection against current leakage, overload, over-current, <br>short circuit, over temperature, motor overheating, over pressure for safe and precise results.

Eleanor96
Download Presentation

Sand and Dust Test Chamber

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

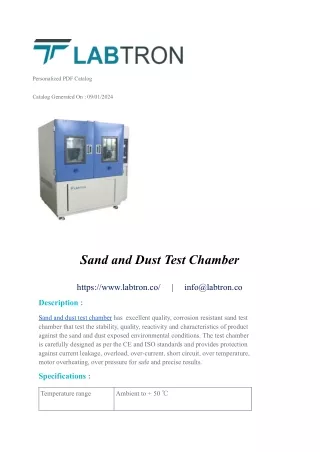

  1. Personalized PDF Catalog Catalog Generated On : 09/01/2024 Sand and Dust Test Chamber https://www.labtron.co/ | info@labtron.co Description : Sand and dust test chamber has excellent quality, corrosion resistant sand test chamber that test the stability, quality, reactivity and characteristics of product against the sand and dust exposed environmental conditions. The test chamber is carefully designed as per the CE and ISO standards and provides protection against current leakage, overload, over-current, short circuit, over temperature, motor overheating, over pressure for safe and precise results. Specifications : Temperature range Ambient to + 50 ℃

  2. Relative Humidity < 30 % RH Normal wire diameter 50 um Normal width of a gap 75 um between wire The Talcum powder 2 kg ~ 4 kg / m3 amount Fight time 0 ~ 99 H 59 M Fan cycle time 0 ~ 99 H 59 M Specimen power outlet Dust-proof socket AC220V 16A Equipped with a pressure gauge, air filter, Vacuum system pressure regulator, connecting tube Enclosed alloy low-noise motor, multi-vane Circulating fan centrifugal fan Heating system Independent Nichrome electronic heating system Internal dimensions 800 × 1000 × 1000 mm Overall dimensions 1040 × 1450 × 1960 mm Nominal power 5500 W Power supply 380 V 50 Hz

  3. Features : PID programmable controller with LCD touch screen display Circulatory pump system uses effective dust re-cycle blowing Uses enclosed heater to keep dust dry Made up of corrosion resistant stainless steel material Protection against current leakage, overload, over-current, short circuit, over temperature, motor overheating, over pressure Applications : Used to test the products quality such as electronic, plastic products, electrical appliances, metals, chemicals, building materials, aerospace, medical care, food and beverages.

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
