  1. PCR A technique to make a lot of DNA from only a little!

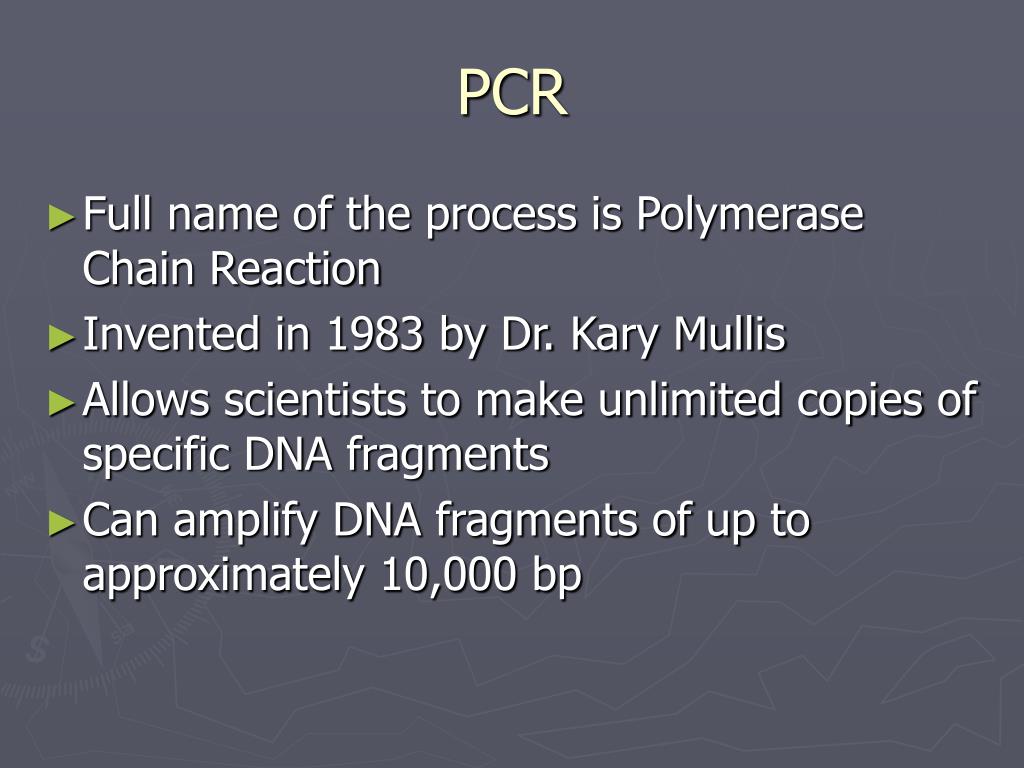

  2. PCR • Full name of the process is Polymerase Chain Reaction • Invented in 1983 by Dr. Kary Mullis • Allows scientists to make unlimited copies of specific DNA fragments • Can amplify DNA fragments of up to approximately 10,000 bp

  3. PCR Two problems exist for scientists to make a visual analysis of a specific DNA locus (site or location): • Must first isolate the specific locus from all the other millions of sites in chromosomes • Must amplify (duplicate) the locus so that you can see it on the gel

  4. PCR Requirements • Template DNA (what you extract) • Primers • DNA polymerase • DNTP (deoxyribonucleoside triphosphates) or the A’s, T’s, C’s, and G’s • Thermal Cycler

  5. PCR Requirements Primers • Short segments of DNA 20-30 bp long which “bracket” the desired DNA segment • One primer is a complement “forward” primer to produce DNA strand from left to right while one is a “reverse” primer that is for right to left strand A T T C G C G A A A T G T T G G G C A A C A G G T A C T C T A G C G C T T T AC C A G G T A C T C T A A G C G C T T T A C A A C C C G T T G T C C A T G A G A T

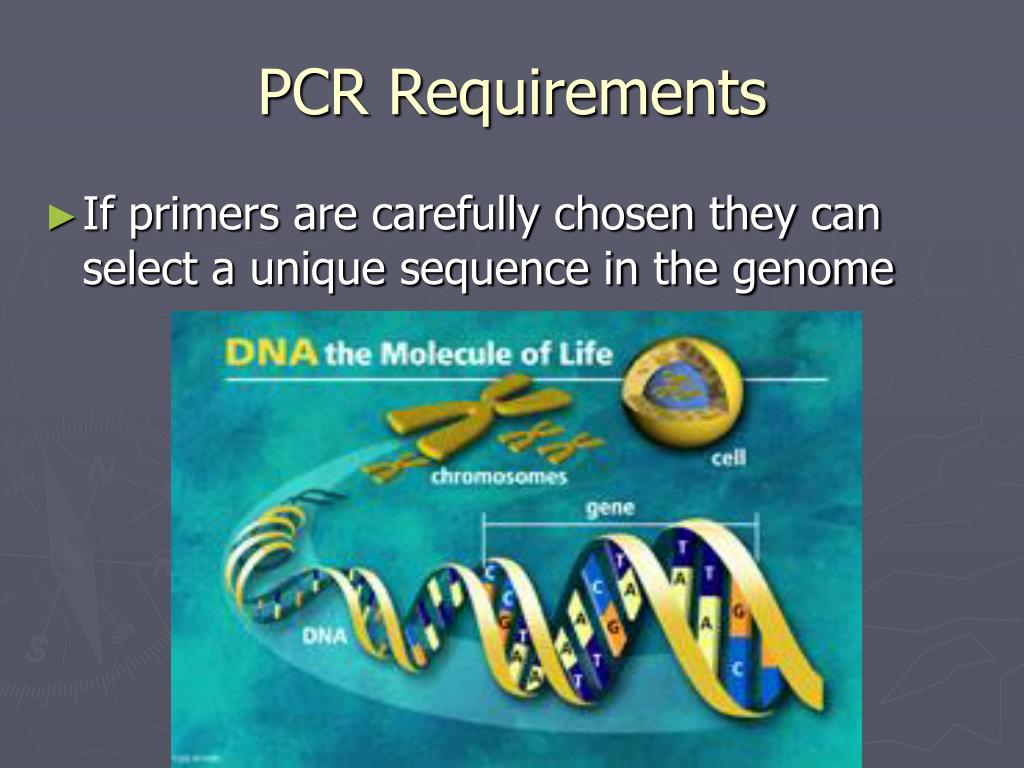

  6. PCR Requirements • If primers are carefully chosen they can select a unique sequence in the genome

  7. PCR Requirements Heat stable DNA polymerase • Most commonly use Taq polymerase – • Thermus aquaticus (a bacteria found around hot springs) • Is an enzyme that helps form new bonds between the nucleotides in new strands of bacteria A T T C G C G A A A T G T T G G G C A A C A G G T A C T C T A G C G C T T T AC C A G G T A C T C T A A G C G C T T T A C A A C C C G T T G T C C A T G A G A T

  8. PCR Requirements DNTP’s • Deoxyribonucleoside triphosphates – • Nitrogen bases: adenine, thymine, cytosine, and guanine • These DNTP’s attach to the exposed complementary bases of the original DNA A T T C G C G A A A T G T T G G G C A A C A G G T A C T C T A G C G C T T T AC A A C C C G T T G T C C A T G A G A T A T T C G C G A A A T G T T G G G C A A C A G G T A C T C T A A G C G C T T T A C A A C C C G T T G T C C A T G A G A T

  9. PCR Requirements Ready to go PCR Beads • For convenience, we use PCR beads which contain freeze-dried DNTP’s and Taq polymerase enzyme • All we add to them are the primer mix and template DNA **Note** These beads are veryexpensive – Almost $2.00 per bead!!! So don’t mess it up!!

  10. PCR: The Steps of the Process • 3 phases for each cycle (these vary slightly from one protocol to another) • Denaturing: (94-95°C) DNA strands separate into single strands • Annealing: (58°C) Primers anneal (attach) to the separated DNA strands • Extending: (72°C) New complementary strands are made as the Taq enzyme helps to form bonds with the DNTP’s

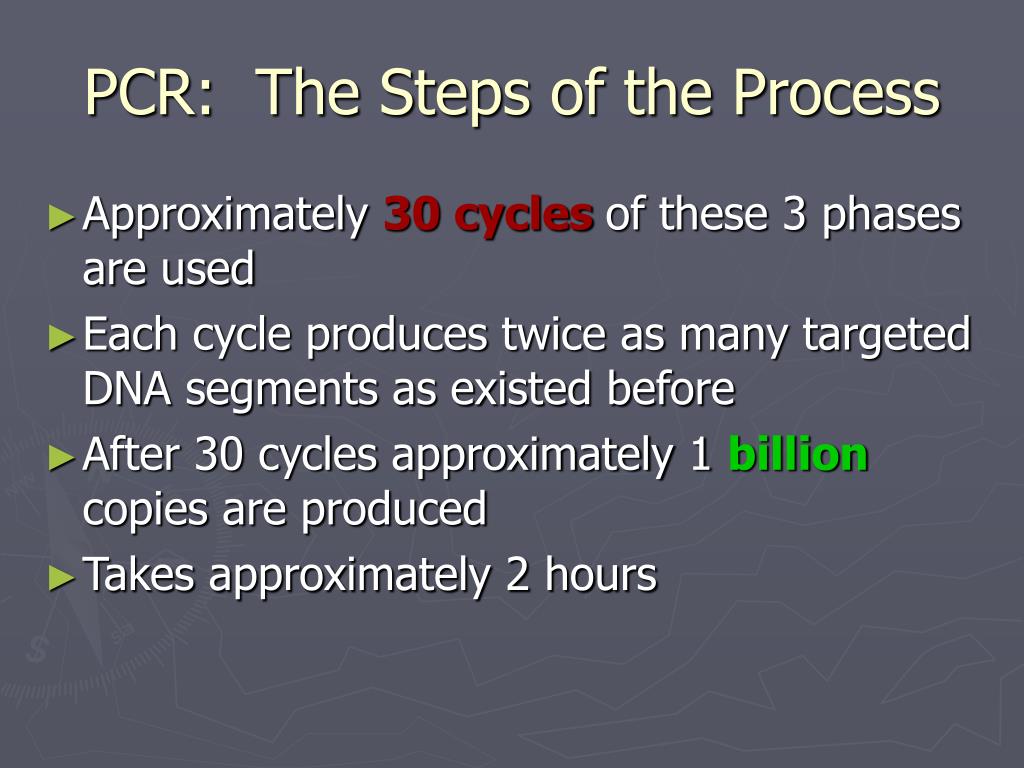

  11. PCR: The Steps of the Process • Approximately 30 cycles of these 3 phases are used • Each cycle produces twice as many targeted DNA segments as existed before • After 30 cycles approximately 1 billion copies are produced • Takes approximately 2 hours

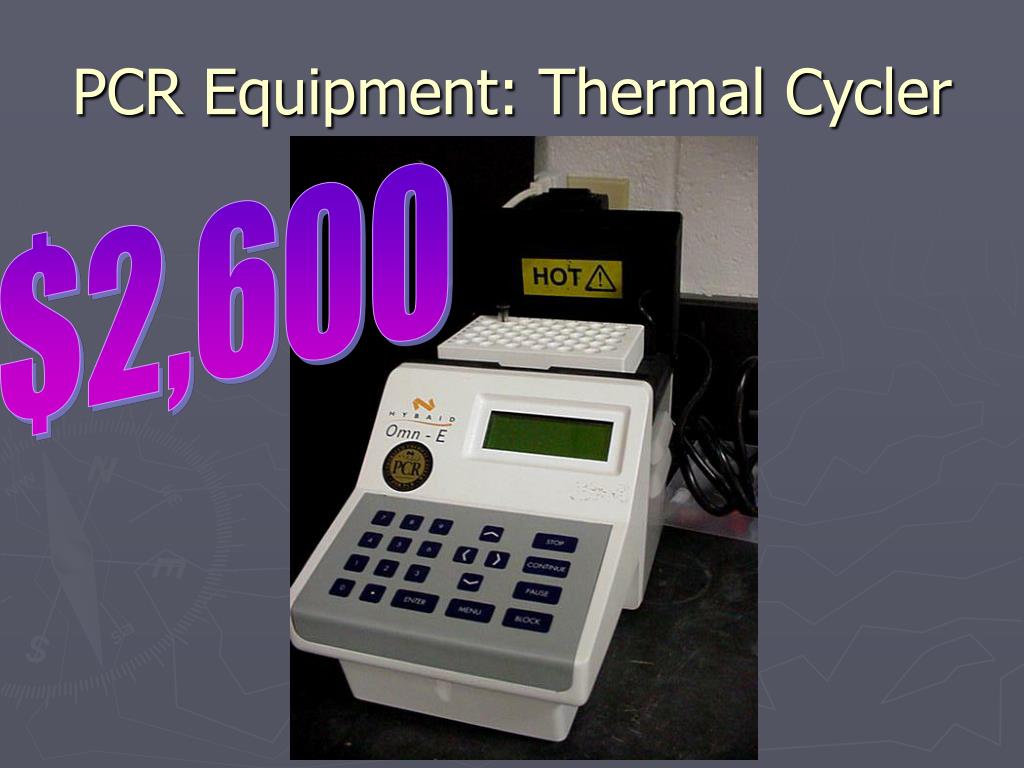

  12. PCR Equipment: Thermal Cycler $2,600

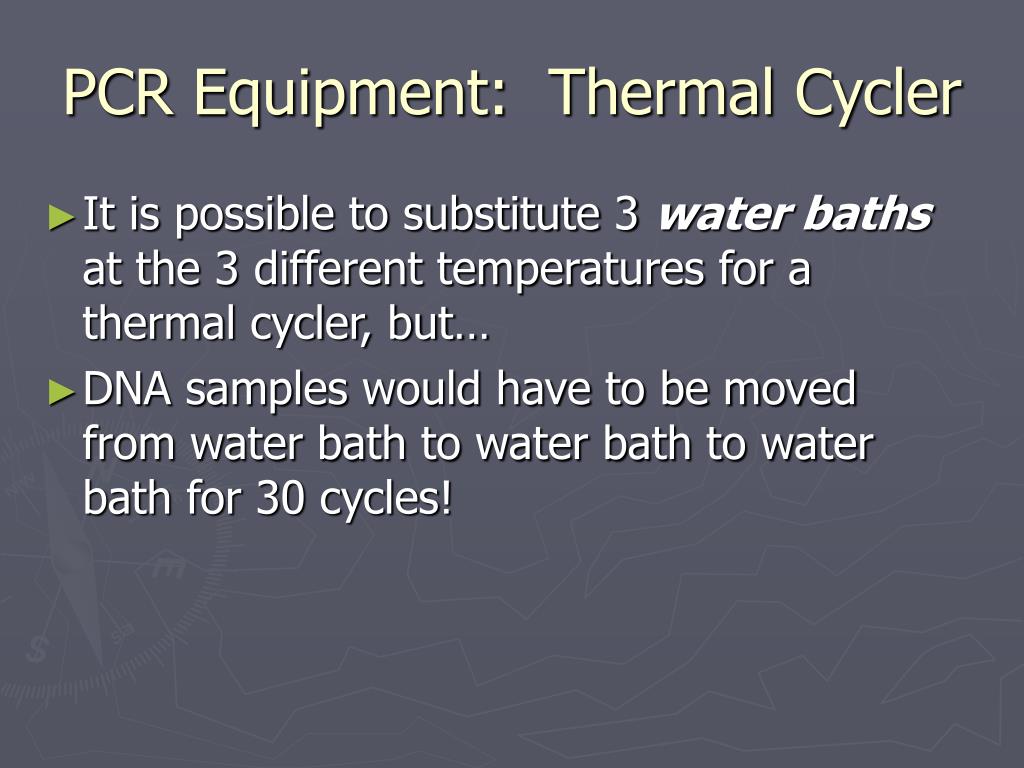

  13. PCR Equipment: Thermal Cycler • It is possible to substitute 3 water baths at the 3 different temperatures for a thermal cycler, but… • DNA samples would have to be moved from water bath to water bath to water bath for 30 cycles!

  14. PCR Activity: Paper PCR • Use strips of paper to create 4 cycles of a PCR reaction. • Color code the reactions as follows: • Red: Template DNA strand (40 bp) • Write the following sequence on one red strip: A C G A T T G G G C C A A T A T A C G C G T G A T G T T C G A A G A G A C T

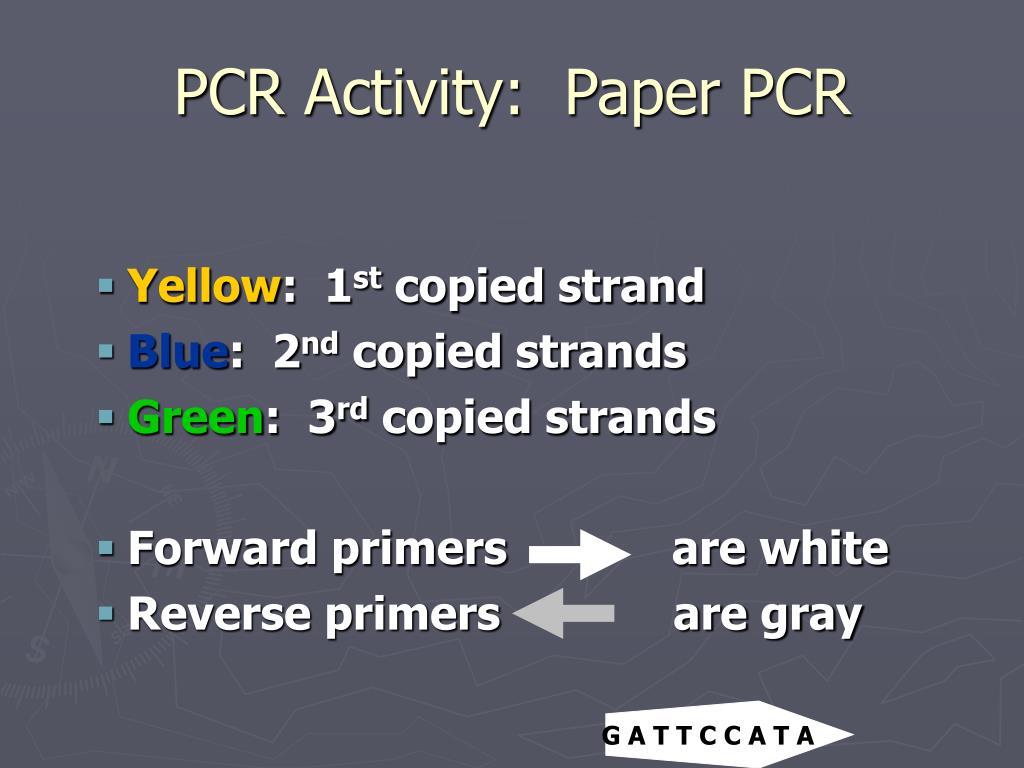

  15. PCR Activity: Paper PCR • Yellow: 1st copied strand • Blue: 2nd copied strands • Green: 3rd copied strands • Forward primers are white • Reverse primers are gray G A T T C C A T A

  16. Steps of DNA Isolation: • 10 mL of saline, swish, spit, use 1mL of this. • Centrifuged • Poured off saline & then resuspended • Removed 30 uL and added to 100 uL of Chelex to absorb cell debris and ions. • Boiled for 10 minutes. • Withdrew 30 uL & stored in new tube.

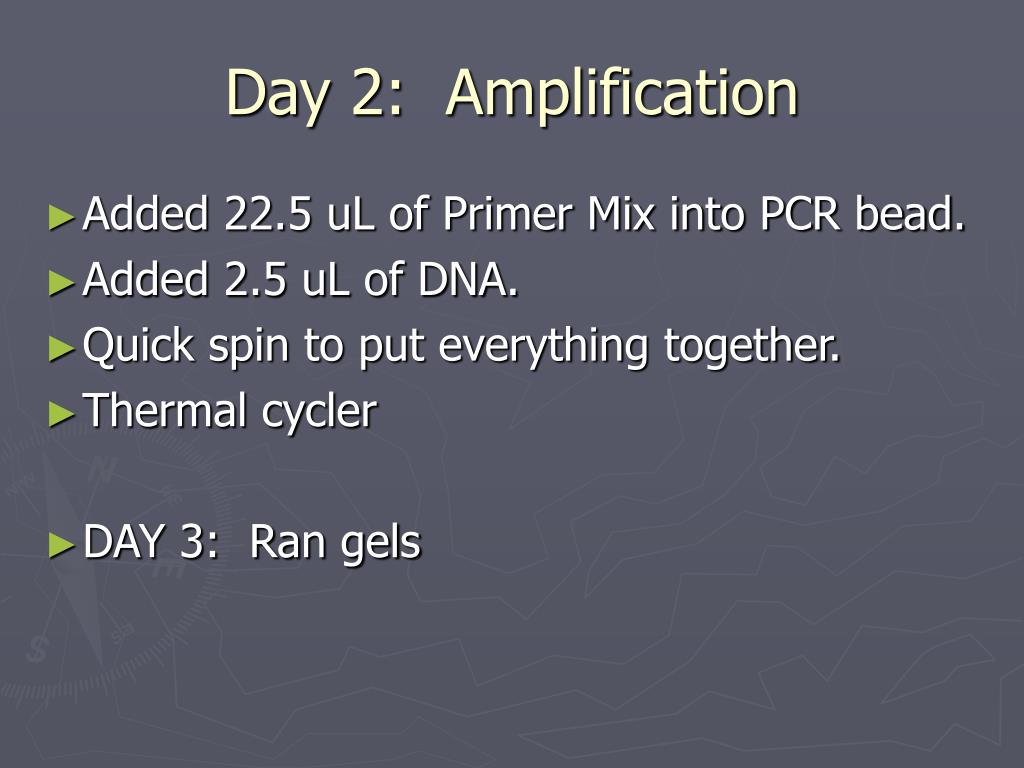

  17. Day 2: Amplification • Added 22.5 uL of Primer Mix into PCR bead. • Added 2.5 uL of DNA. • Quick spin to put everything together. • Thermal cycler • DAY 3: Ran gels
