Metadata & Taxonomies for a More Flexible Information Architecture

Metadata & Taxonomies for a More Flexible Information Architecture. Information Architecture Summit March 16, 2002 Amy J. Warner, Ph.D. warneramyj@yahoo.com. Outline. What I’ll cover: Metadata and IA. Metadata schema. Vocabulary development. Underlying themes: Standards. Reality.

agostino
Download Presentation

Metadata & Taxonomies for a More Flexible Information Architecture

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Metadata & Taxonomies for a More Flexible Information Architecture Information Architecture Summit March 16, 2002 Amy J. Warner, Ph.D. warneramyj@yahoo.com

  2. Outline • What I’ll cover: • Metadata and IA. • Metadata schema. • Vocabulary development. • Underlying themes: • Standards. • Reality. • Some IR (information retrieval) issues. Amy J. Warner, Ph.D.

  3. What is Metadata? Metadata is structured data which describes the characteristics of a resource. It shares many similar characteristics to the cataloguing that takes place in libraries, museums and archives. Chris Taylor University of Queensland Amy J. Warner, Ph.D.

  4. Types & Functions of Metadata Introduction to Metadata, Getty Information Institute Amy J. Warner, Ph.D.

  5. Confusing Terminology • Controlled vocabularies • Subject Headings: traditionally employed in libraries to tag (index) the topics of books and other library materials • Thesauri: traditionally employed in abstracting & indexing services to tag (index) the topics of journal articles and other scholarly material in a given subject area (e.g. medicine, engineering) • Taxonomies: the classification of different organisms into mutually exclusive categories based on phylum  species Amy J. Warner, Ph.D.

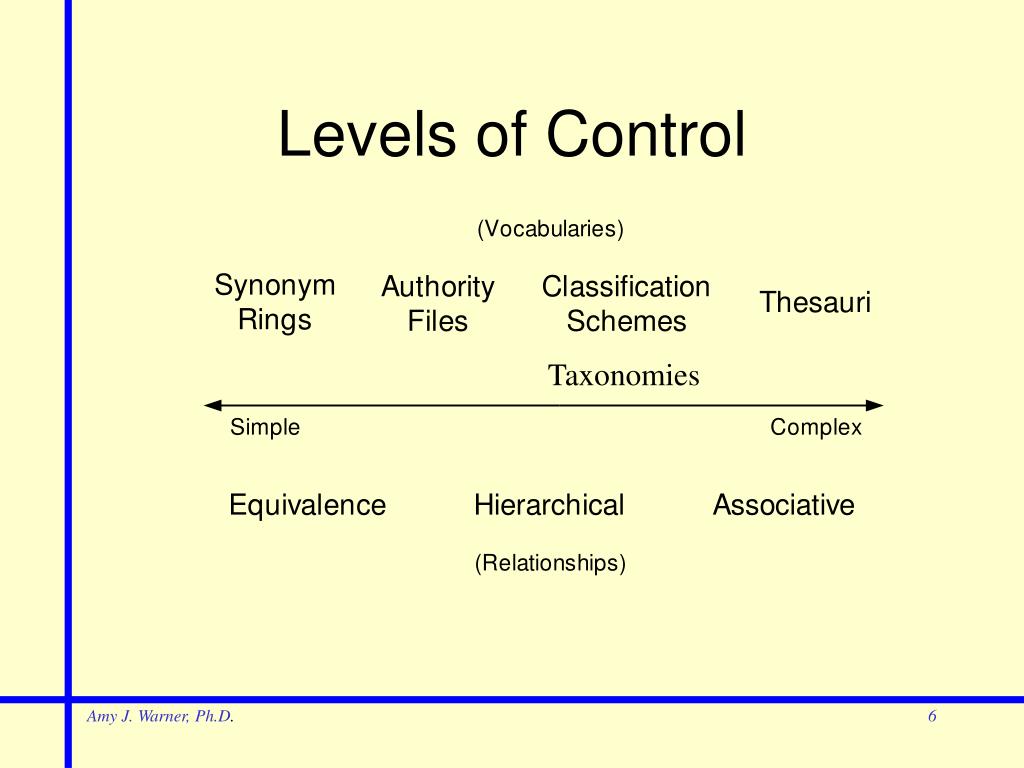

  6. Levels of Control Taxonomies Amy J. Warner, Ph.D.

  7. Users Business Context Content Metadata & IA Determine how target audience(s) search for and use information Identify patterns in content Determine how stakeholders want to organize &present their information Amy J. Warner, Ph.D.

  8. IA ‘Generations’ • ‘Brochureware’ • Pages served from database • Metadata-driven website CMS Amy J. Warner, Ph.D.

  9. http://…. Metadata Records Metadata in Metadata-Driven Websites Author Title DocType Audience URL J. Jones xxxx White Paper Employees http://... Content Amy J. Warner, Ph.D.

  10. Two Parts to Generating a Metadata Schema • Decisions about indexable parameters (attributes, aspects) of documents; this corresponds to fields in the database records. • Decisions about the elements (terms, descriptors, subject headings, tags) that these fields contain. Amy J. Warner, Ph.D.

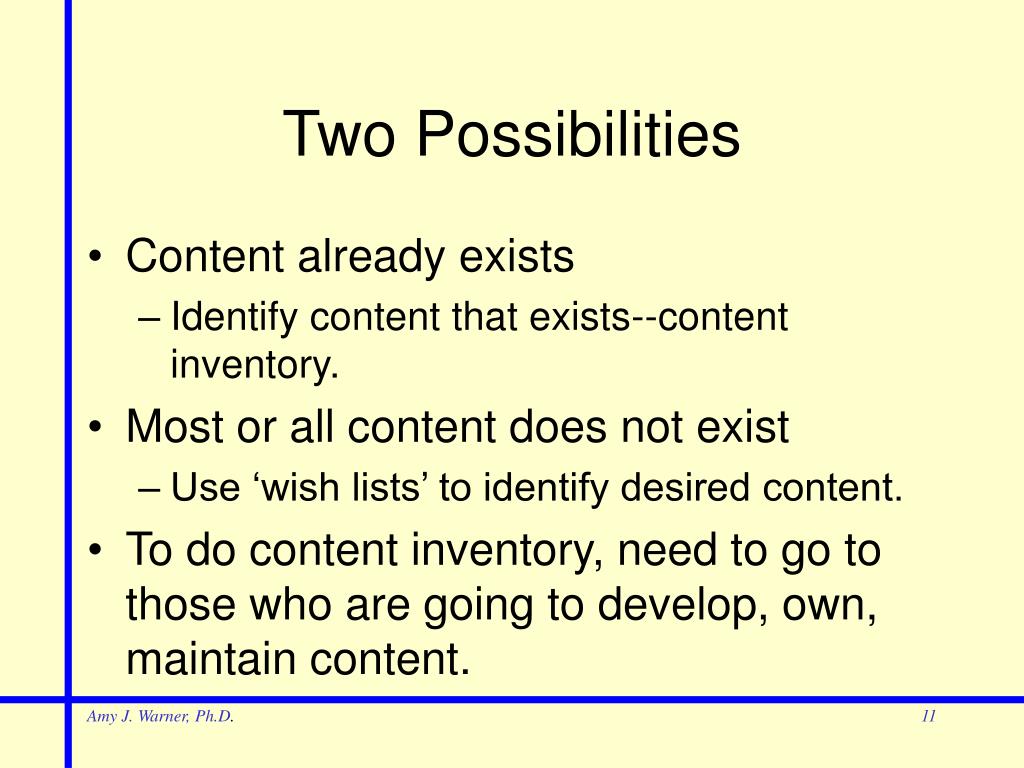

  11. Two Possibilities • Content already exists • Identify content that exists--content inventory. • Most or all content does not exist • Use ‘wish lists’ to identify desired content. • To do content inventory, need to go to those who are going to develop, own, maintain content. Amy J. Warner, Ph.D.

  12. Content Analysis • Look for patterns, similarities: • logical--themes, sensitivity, specialization. • physical--formats, dynamic vs. static (dated vs. rarely updated). • Look for relationships--note connections between content (parent-child, sibling, dependencies. • Begin to create groupings. Amy J. Warner, Ph.D.

  13. Generating a Metadata Table • The beginning of a metadata-driven website. • Determine the major indexable parameters or attributes for each major document type in your sample. • Determine what major types of rules or general guidelines your indexing system will follow for each attribute. • Create an X-by-Y table. • Put indexable attributes on the X axis and the rules on the Y axis. • Fill in the decisions you make about each rule application in the individual cells of the table. Amy J. Warner, Ph.D.

  14. Metadata Table Amy J. Warner, Ph.D.

  15. User and Stakeholder Involvement • When organizing content, start with the content, generate the metadata, and then evaluate with users and stakeholders. • When organizing entities (i.e. products, projects) where content is not the major focus, start with stakeholders and users to determine metadata. Amy J. Warner, Ph.D.

  16. Identify Terms • Published Reference Materials • Thesauri, classification schemes, encyclopedias, dictionaries, glossaries, indexes. • Content • Representative sample of web site / intranet. • Users • Search log analysis, surveys, interviews. • Experts • Authors, subject experts. Amy J. Warner, Ph.D.

  17. Organize Terms • Define preferred terms. • Link synonyms and variants.Synonym Rings • Group preferred terms by subject. • Identify broader and narrower terms.Taxonomies / Hierarchies • Identify related terms.Thesauri Amy J. Warner, Ph.D.

  18. Variant Terms Variant terms provide the user with entry points into the vocabulary. Synonyms (same meaning): cats USE felines helicopters USE whirlybirds Lexical Variants (different word forms): paediatrics USE pediatrics BK USE Burger King Quasi-Synonyms (treated as equivalent): generic posting: beagle USE dog antonyms/continuum: wetness USE dryness Amy J. Warner, Ph.D.

  19. Term Specificity Assuming a good entry vocabulary, increased term specificity allows for improved precision without hurting recall (but costs grow fast). Vocabulary AVocabulary B United States United States California San Diego Amy J. Warner, Ph.D.

  20. Compound Terms Article Title: “Software for Information Architects” Amy J. Warner, Ph.D.

  21. Facets of a Topic Facets of Documents Topic Audience Intellectual Level Form Type Language Date etc. Things (entities) Concepts Processes People Organizations Occupations etc. Facets Aspects of Documents to Index Controlled Vocabular(ies) Amy J. Warner, Ph.D.

  22. Facet Analysis • Facets come from content inventory, intuition, and users. • Break domain into logical categories or chunks based on how documents need to be managed (both for system and for search). Amy J. Warner, Ph.D.

  23. Polyhierarchy • Strict Hierarchies • Each term appears in only one place in the hierarchy. • Essential for placement of physical objects. • Polyhierarchies • Terms cross-listed in multiple categories • Accepts complex nature of reality. Amy J. Warner, Ph.D.

  24. Polyhierarchy Medical Subject Headings (MeSH) • Compound terms neededto manage 6 milliondocuments in Medline. • High level ofpre-coordinationforces polyhierarchy. • Terms may havemore than one BT. Amy J. Warner, Ph.D.

  25. Facets, Coordination, Specificity Amy J. Warner, Ph.D.

  26. Semantic Relationships • Equivalence: • Use/Used For (USE/UF) • Leads from variants to preferred e.g., prams: USE baby carriages Amy J. Warner, Ph.D.

  27. Semantic Relationships • Hierarchical: • Broader Term/Narrower Term (BT/NT) • Types • Generic (class/species, inheritance) Vertebrata NT Amphibia • Whole-Part (associative unless exclusive) Ear NT Vestibular Apparatus • Instance (proper name) Seas NT Mediterranean Sea Amy J. Warner, Ph.D.

  28. Semantic Relationships • Associative: • Related Term (RT, See Also) • Non-hierarchical and non-equivalent • Relation should be “strongly implied” e.g., hammers RT nails Amy J. Warner, Ph.D.

  29. Associative Relationships • Field of Study and Object of Study: • Forestry RT Forests • Process and its Agent: • Temperature Control RT Thermostat • Concepts and their Properties: • Poisons RT Toxicity • Action and Product of Action: • Weaving RT Cloth • Concepts Linked by Causal Dependence: • Bereavement RT Death Amy J. Warner, Ph.D.

  30. Leveraging the Thesaurus • User Interface: • Generate browsable indexes (site-wide, sub-site, specialized authority lists). • Enable Field-Specific Searching (filters, zones, sorting). • Support personalization (map profile to vocabulary). • Behind the Scenes: • Enable efficient content management. • Support decentralized tagging. Amy J. Warner, Ph.D.

  31. Uses of Metadata-Driven Website • Routing • Search • Navigation Amy J. Warner, Ph.D.

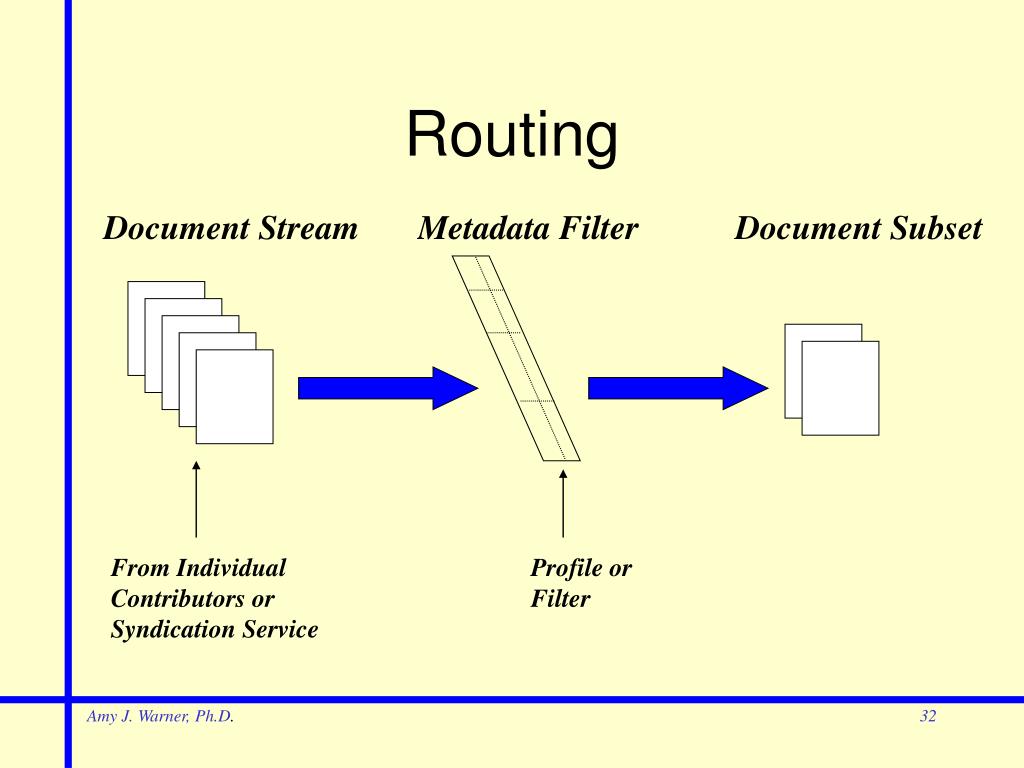

  32. Routing Document Stream Metadata Filter Document Subset From Individual Contributors or Syndication Service Profile or Filter Amy J. Warner, Ph.D.

  33. Generalizations about Routing • Can be ‘push’ or ‘pull’. • Can be driven by various metadata elements (e.g., audience, topic, etc.). • May have both internal and external metadata schemes to consider; mapping may be an important issue. Amy J. Warner, Ph.D.

  34. Metadata Records Searching Searching User Query Databases Document Subset http://…. Amy J. Warner, Ph.D.

  35. Epicurious.com Amy J. Warner, Ph.D.

  36. Epicurious, First Facet Browse > Picnics Amy J. Warner, Ph.D.

  37. Epicurious.com Facets Main Ingredients Season/Occasion Beans, Beef, Berries, Cheese, Chocolate, Citrus, Dairy, Eggs, Fish, Fruits, Garlic, Ginger, Grains, Greens, Herbs,Lamb,Mushrooms,Mustard, Nuts, Olives,Onions,Pasta,Peppers,Pork,Potatoes, Poultry, Rice, Shellfish,Tomatoes, Vegetables Christmas,Easter,Fall,Fourth of July, Hanukkah,New Years,Picnics,Spring, Summer,Superbowl,Thanksgiving, Valentine's Day,Winter Cuisine Course/Dish African,American,Asian,Caribbean,Eastern European,French,Greek,Indian,Italian,Jewish, Mediterranean,Mexican,Middle Eastern, Scandinavian,Spanish Appetizers,Bread,Breakfast,Brunch, Condiments,Cookies,Desserts,Hors D'oeuvres,Main Dish,Salads,Sandwiches, Sauces,Side Dish,Snacks,Soup,Vegetables Preparation Method Advance,Bake,Broil,Fry,Grill,Marinade, Microwave,No Cook,Poach,Quick,Roast, Sauté,Slow Cook,Steam,Stir Fry Amy J. Warner, Ph.D.

  38. Epicurious, Second Facet Browse > Picnics > Poultry Amy J. Warner, Ph.D.

  39. Integration of Search and Browse Amy J. Warner, Ph.D.

  40. Integration of Search and Browse Amy J. Warner, Ph.D.

  41. Amazon.com Advanced Search Amy J. Warner, Ph.D.

  42. Generalizations about Search & Navigation • The relationship between the metadata and search engine capabilities is crucial. • Controlled vocabulary and keyword searching are often both enabled. • Navigation and search are often both provided as complements to each other. Amy J. Warner, Ph.D.

  43. Contact: Amy J. Warner, Ph.D. warneramyj@yahoo.com Questions?? Amy J. Warner, Ph.D.
