ECE 545 Project 2 Specification Part II

1. ECE 545 Project 2Specification Part II

2. Tips & Hints (1) Each entity and each package should be placed in a different file. The name of each file should be exactly the same as the name of an entity or package it contains. Arrange entity names in the bottom-up order (the top-most entity at the end of the list) and define this list in your script using the command blocks = { entity1, entity2, …, entityN}

3. Tips & Hints (2) Use only one clock in your entire design. Use an identical name for the clock signal in all your entities and packages (including declarations of components). Use the same clock name in all clock-related commands of your script, such as create_clock, set_clock_transition, etc.

4. Tips & Hints (3) • Avoid advanced features, such as: • multiple clocks, • gated clocks, • multicycle paths, • circular feedback loops containing only • combinational logic. Although these features are supported by Synopsys, their correct use requires additional knowledge and experience that are beyond the scope of ECE 545.

5. Tips & Hints (4) Create a project directory in your main user directory. Create the following subdirectories in the project directory: db, docs, log, reports, scripts, tb, vhdl. Place all your synthesizable source files in the vhdl directory, and your testbench files in the tb directory. Place your scripts in the script directory. Define at least the following directories close to the beginning of your script: src_directory, report_directory, db_directory.

6. Tips & Hints (5) Do not change values of the constraint conditions specified using the following script commands: set_max_fanout 100 block set_clock_latency 0.1 find(clock, "clock") set_clock_transition 0.01 find(clock, "clock") set_clock_uncertainty -setup 0.1 find(clock, "clock") set_clock_uncertainty -hold 0.1 find(clock, "clock") set_load 0 all_outputs() set_input_delay 1.0 -clock clock -max all_inputs() set_output_delay -max 1.0 -clock clock all_outputs() set_wire_load_model -library tcb013ghptc -name "TSMC8K_Fsg_Conservative" You can change a clock name within these commands if necessary. These constraints are required to be the same for all students.

7. Tips & Hints (6) Change your current directory to your log directory before you execute design_analyzer. After executing your script within design_analyzer, analyze the contents of log files generated in the directory log. These files contain the exact description of warnings and errors generated during synthesis. Please do your best to eliminate all errors and majority of warnings generated by the scripts and written to the log files.

8. Project DeliverablesTask 1 Source codes of all synthesizable files you have developed in order to meet the project specification. Description of any changes you have had to make in these codes in order to a. get your codes synthesized using Synopsys with TSMC libraries, b. eliminate all synthesis errors and minimize the number of synthesis warnings.

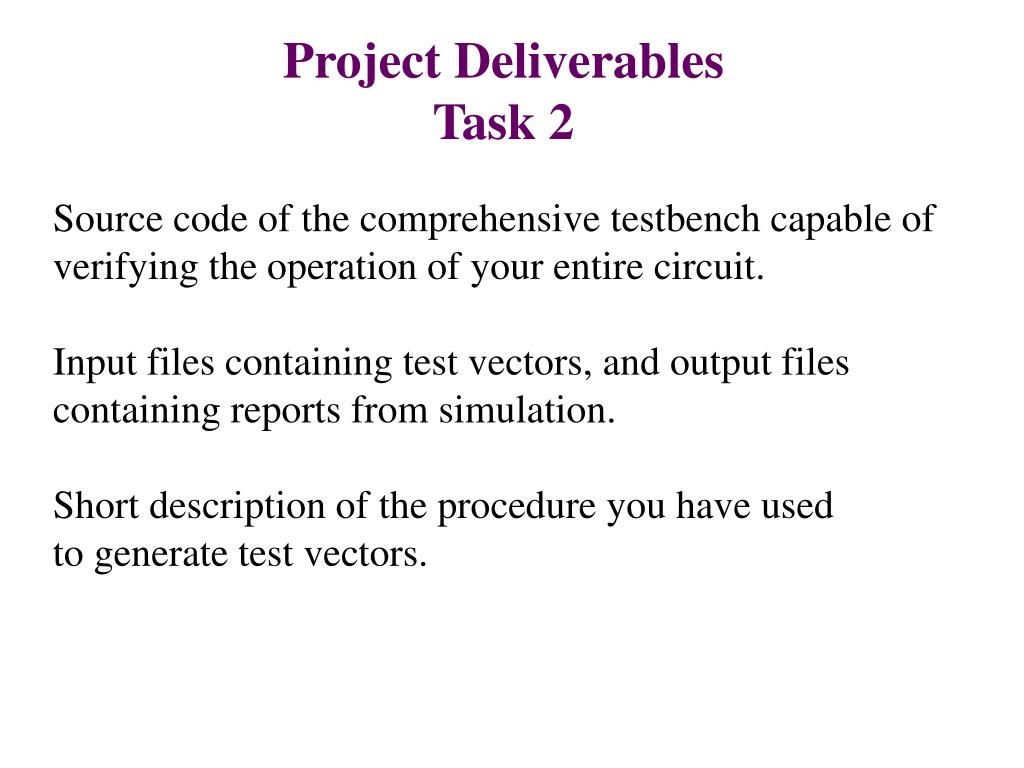

9. Project DeliverablesTask 2 Source code of the comprehensive testbench capable of verifying the operation of your entire circuit. Input files containing test vectors, and output files containing reports from simulation. Short description of the procedure you have used to generate test vectors.

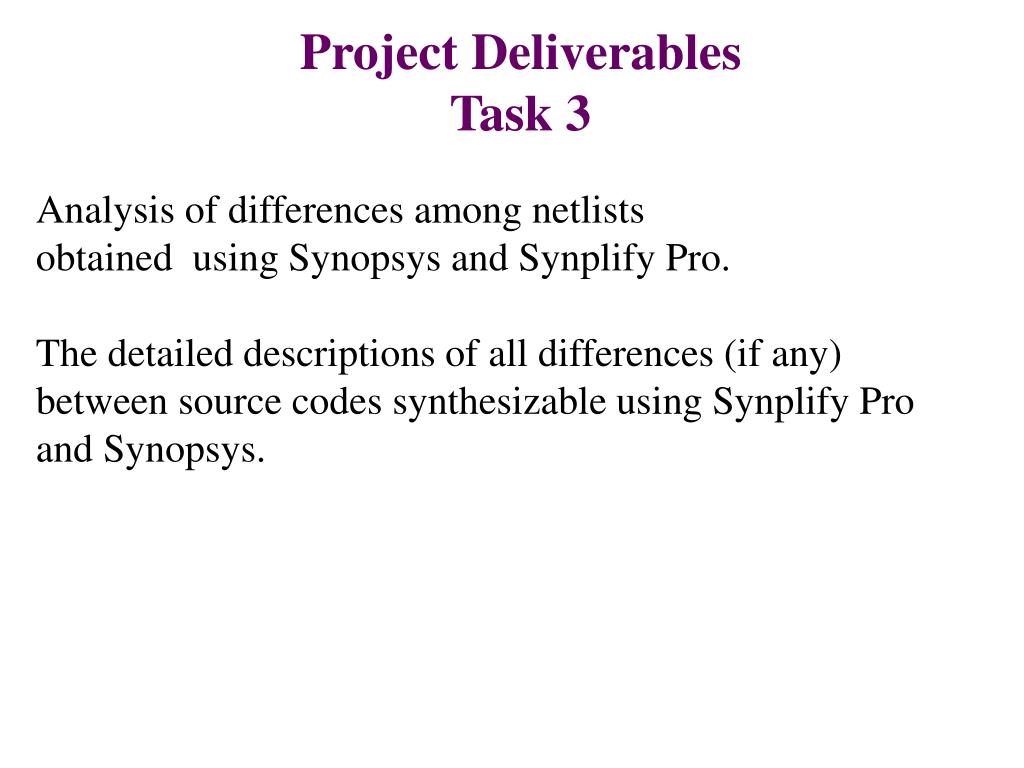

10. Project DeliverablesTask 3 Analysis of differences among netlists obtained using Synopsys and Synplify Pro. The detailed descriptions of all differences (if any) between source codes synthesizable using Synplify Pro and Synopsys.

11. Project delivarables Task 4 • The detailed timing and area results obtained for • all synthesized circuits, including • maximum clock frequency • critical path • maximum encryption/decryption throughput • area • ratio: maximum encryption/decryption throughput • divided by area. • The detailed discussion of the obtained results, • containing the best possible explanation of differences • among results obtained for all analyzed cases.
