  1. Stuxnet

  2. Summary • What is Stuxnet? • Industial Control Systems • The target/s of Stuxnet. • How Stuxnet spreads. • The impact of Stuxnet on PLC’s

  3. Stuxnet: Overview • June 2010: A worm targeting Siemens WinCC industrial control system. • Targets high speed variable-frequency programmable logic motor controllers from just two vendors: Vacon (Finland) and FararoPaya (Iran) • Only when the controllers are running at 807Hz to 1210Hz. Makes the frequency of those controllers vary from 1410Hz to 2Hz to 1064Hz.

  4. Industrial Control Systems (ICS) • ICS are operated by a specialized assembly like code on programmable logic controllers (PLCs). • The PLCs are programmed typically from Windows computers. • The ICS are not connected to the Internet. • ICS usually consider availability and ease of maintenance first and security last.

  5. Seimens SIMATIC PLCs

  6. How it works. • Transferred through USB sticks. • Designed to be spread to non-online machines • Windows Explorer LNK file exploit • When scanned, it dropped a large .dll file containing the malicious code onto the computer. • Uses two stolen certificates to prevent unauthorized-access alarms. • Realtek Semiconductors • JMicron Technology Corp • Both in Taiwan, in close vicinity.

  7. How it works cont’d… • Each time Stuxnet infected a system, it “phoned home” to one of two domains: • www.mypremierfutbol.com • www.todaysfutbol.com • hosted on servers in Malaysia and Denmark • Included internal & external IP addresses, OS, and if the machine was running step7 • Stuxnet would spread from system to system within a LAN until it found a PLC. • The original s7otbxdx.dll is responsible for handling PLC block exchange between the programming device and the PLC. • By replacing this .dll file with its own, Stuxnet is able to perform the following actions: • Monitor PLC blocks being written to and read from the PLC. • Infect a PLC by inserting its own blocks

  8. Stuxnet Overview • Components used • Multiple Zero-day exploits • Windows rootkit • PLC rootkit (first ever) • Antivirus evasion • Peer-to-Peer updates • Signed driver with a valid certificate • Command and control interface • Stuxnet consists of a large .dll file • Designed to sabotage industrial processes controlled by Siemens SIMATIC WinCC and PCS 7 systems.

  9. PLC Man-in-the-middle Attack

  10. Nuclear Centrifuge Technology • Uranium-235 separation efficiency is critically dependent on the centrifuges’ speed of rotation • Separation is theoretically proportional to the peripheral speed raised to the 4th power. So any increase in peripheral speed is helpful. • That implies you need strong tubes, but brute strength isn’t enough: centrifuge designs also run into problems with “shaking” as they pass through naturally resonant frequencies • “shaking” at high speed can cause catastrophic failures to occur. www.fas.org/programs/ssp/nukes/fuelcycle/centrifuges/engineering.html

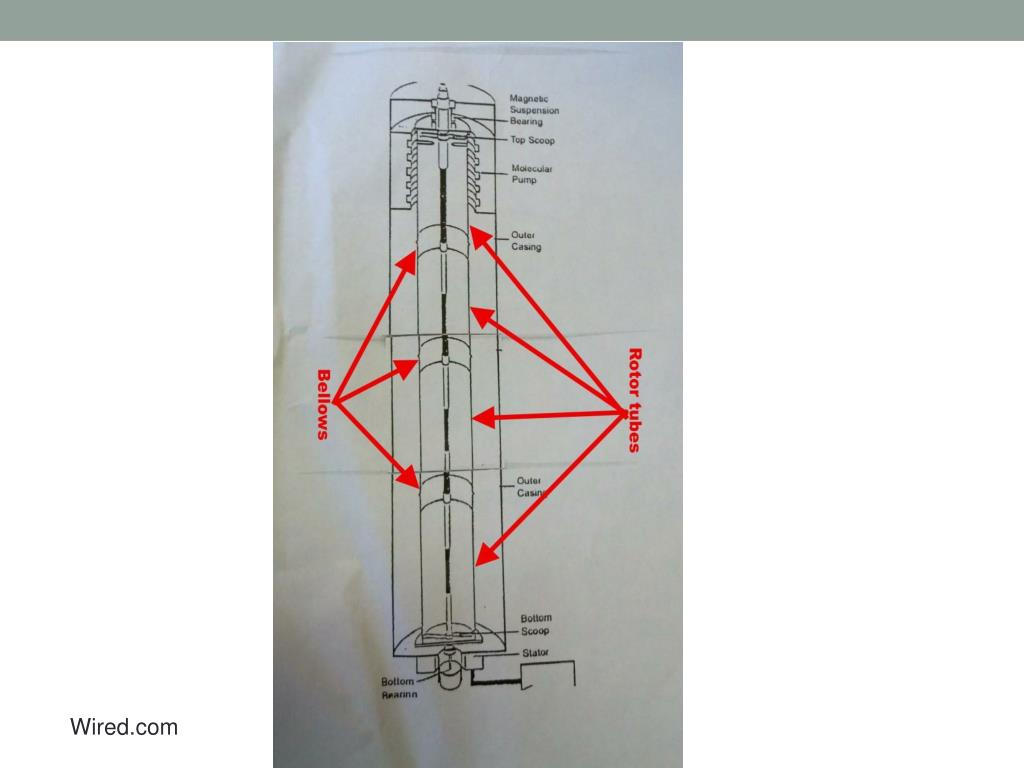

  11. Wired.com

  12. Stuxnet Infection Statistics • Infected Hosts 29 September 2010, From Symantec

  13. Let’s watch it happen! • http://www.youtube.com/watch?v=cf0jlzVCyOI

  14. The Targets
