Molecular Biology Techniques

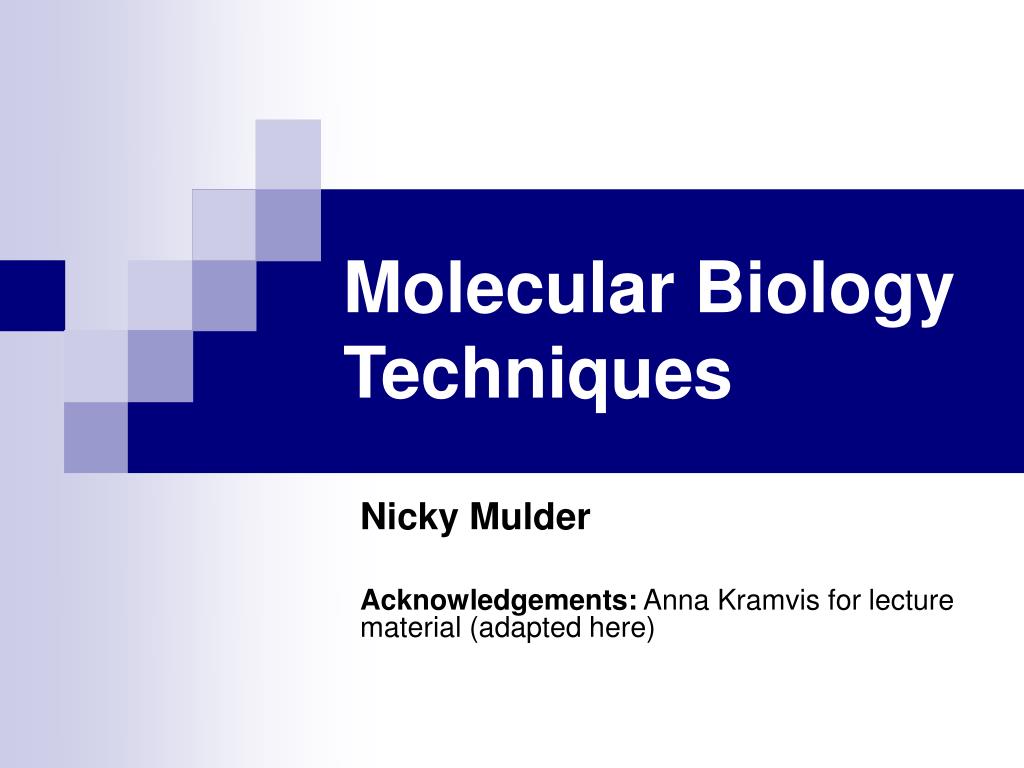

1. Molecular Biology Techniques Nicky Mulder Acknowledgements: Anna Kramvis for lecture material (adapted here)

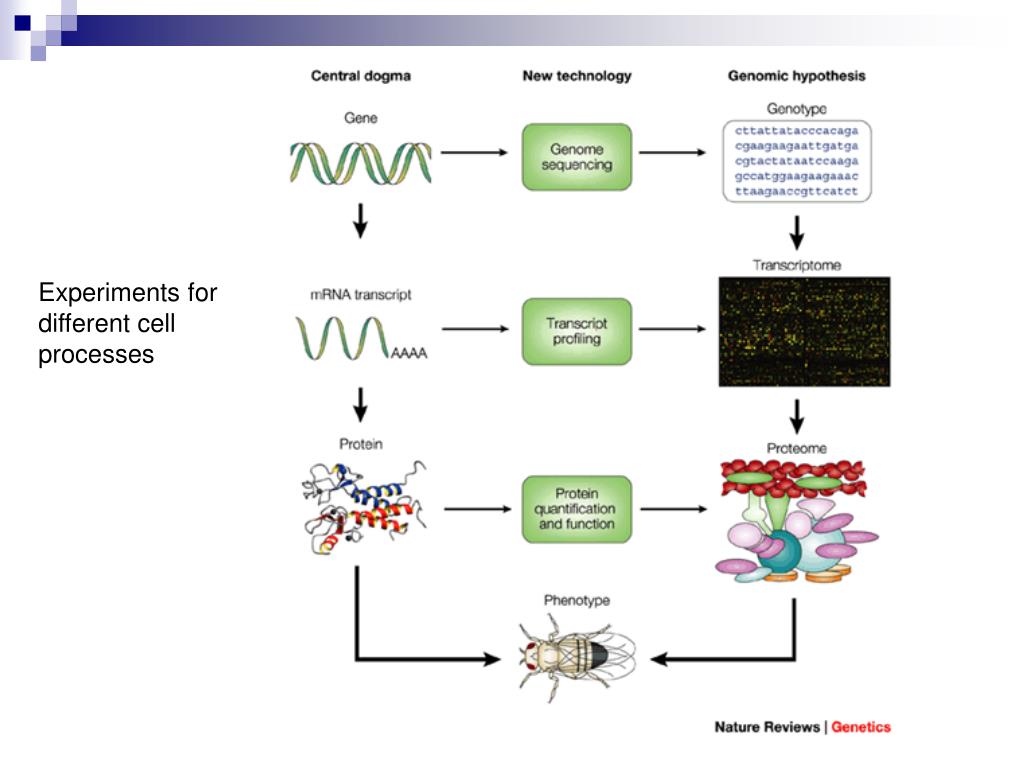

2. Experiments for different cell processes

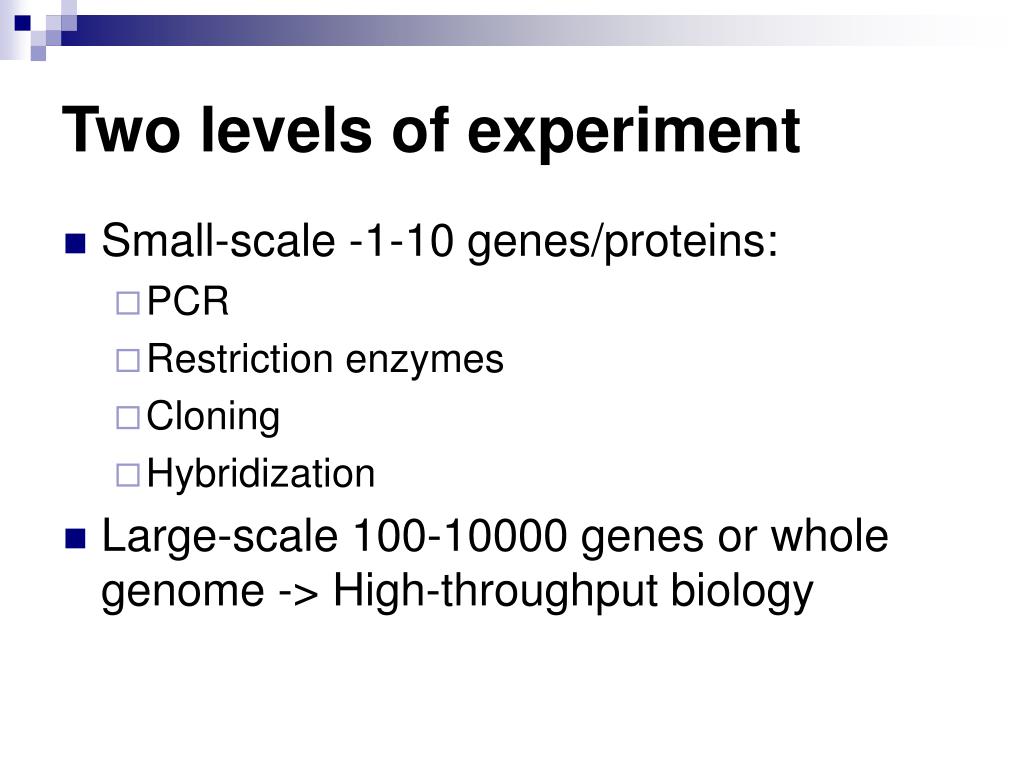

3. Two levels of experiment • Small-scale -1-10 genes/proteins: • PCR • Restriction enzymes • Cloning • Hybridization • Large-scale 100-10000 genes or whole genome -> High-throughput biology

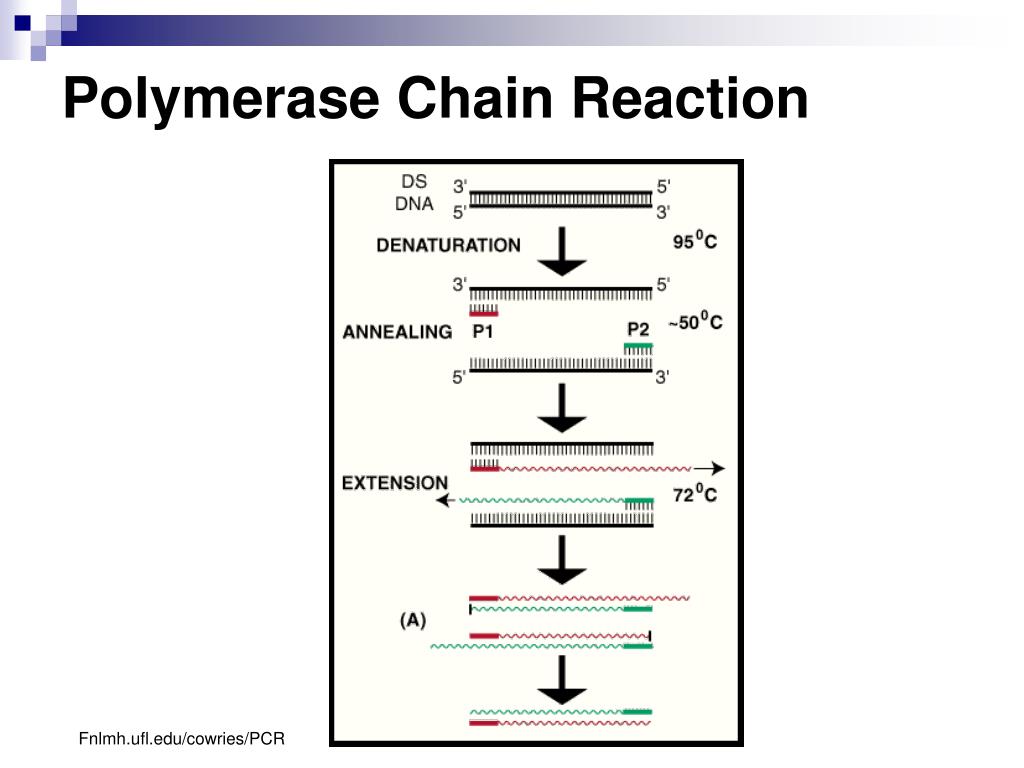

4. Polymerase Chain Reaction Fnlmh.ufl.edu/cowries/PCR

5. Agarose gel electrophoresis • Agarose is used to form a gel • Gel is placed in solution with an anode and cathode • DNA has net negative charge from sugar-phosphate backbone –migrates towards anode • Migration speed is determined by size • Run DNA with some markers of known size • Visualized by ethidium bromide –flouresces in UV light

6. Results on a gel

7. Restriction enzymes • Restriction enzymes recognize specific or defined 4 to 8 base pairsequences on DNA and cut

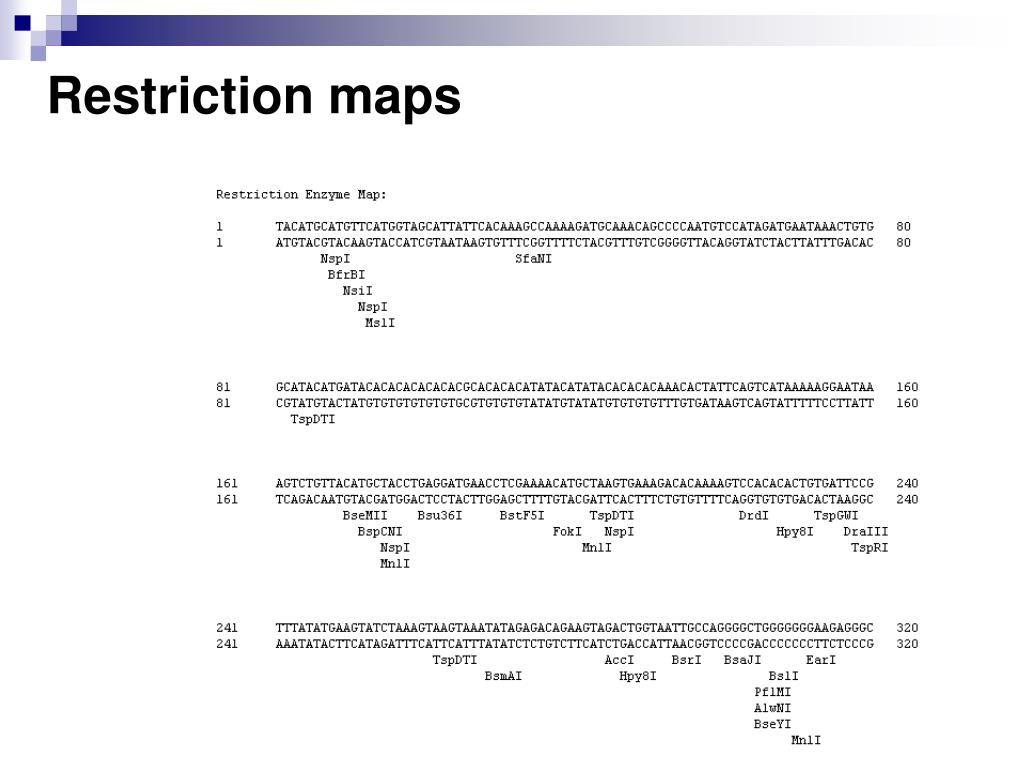

8. Restriction maps

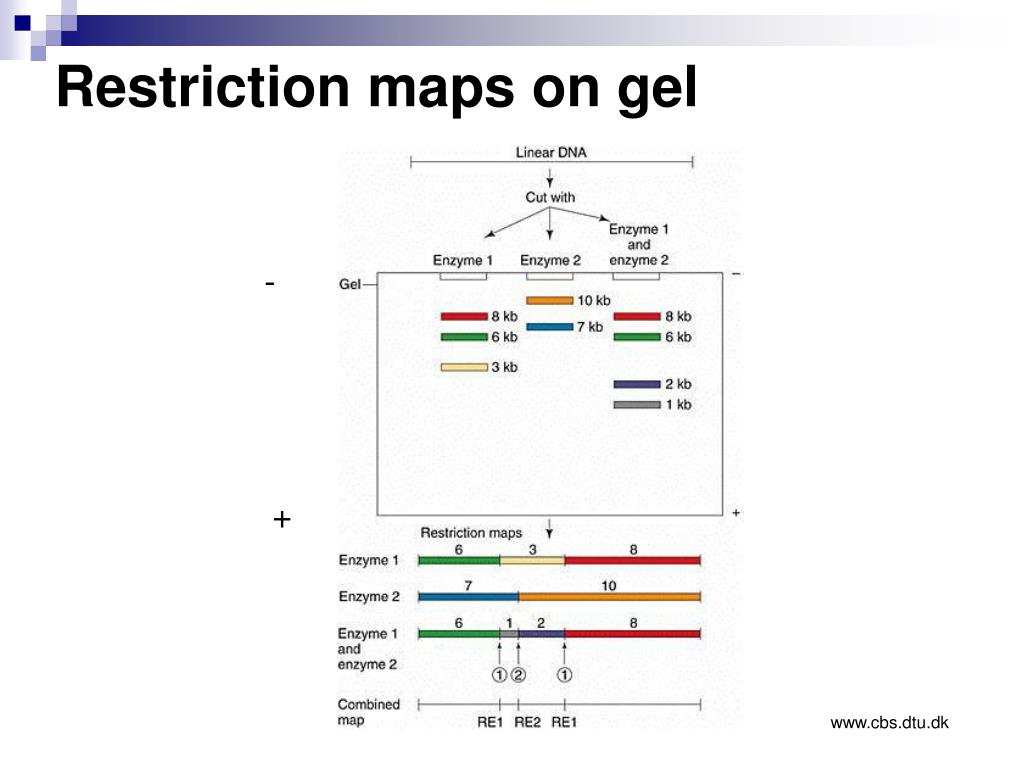

9. Restriction maps on gel - + www.cbs.dtu.dk

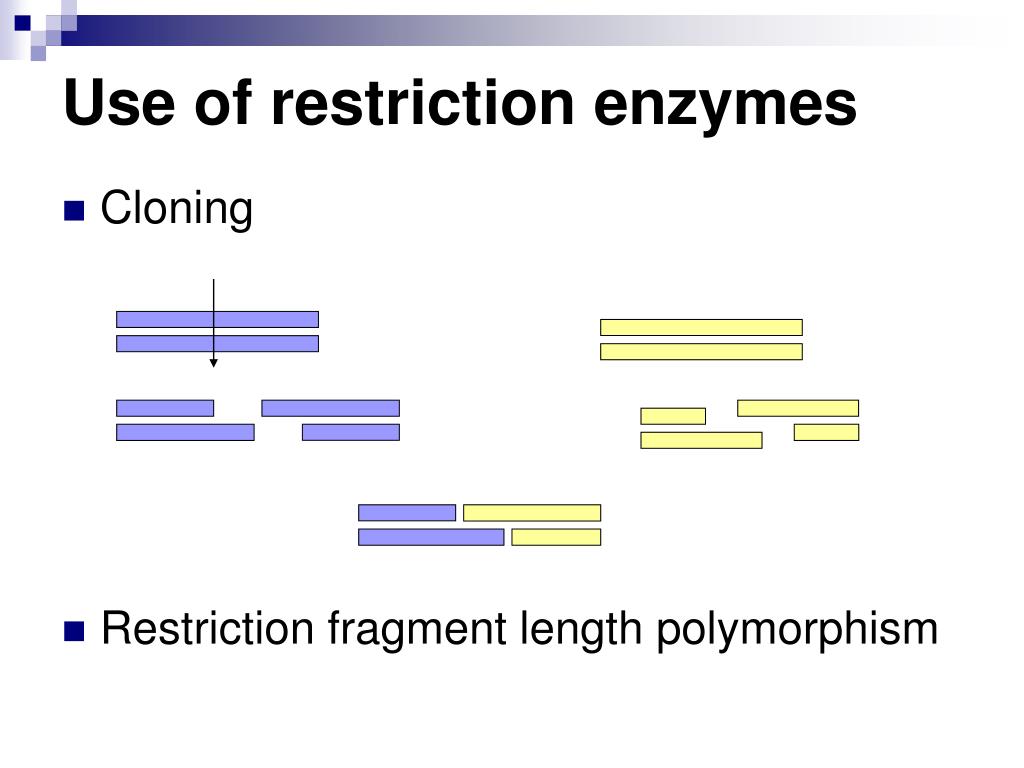

10. Use of restriction enzymes • Cloning • Restriction fragment length polymorphism

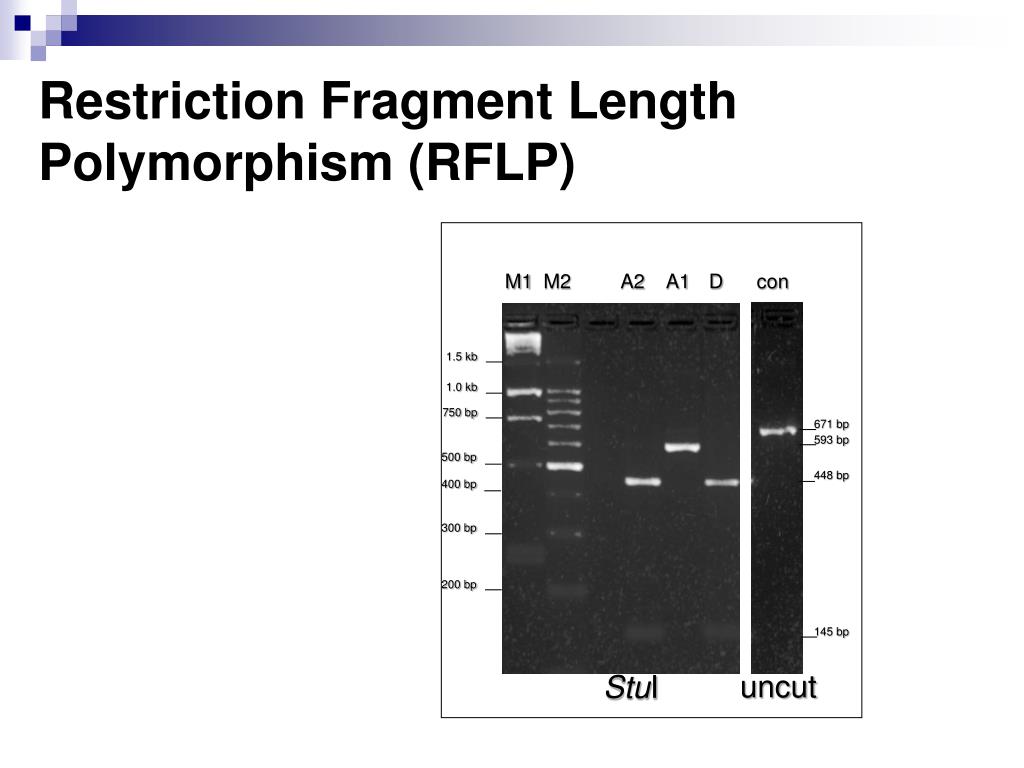

11. Restriction Fragment Length Polymorphism (RFLP) M1 M2 A2 A1 D con 1.5 kb 1.0 kb 750 bp 671 bp 593 bp 500 bp 448 bp 400 bp 300 bp 200 bp 145 bp uncut StuI

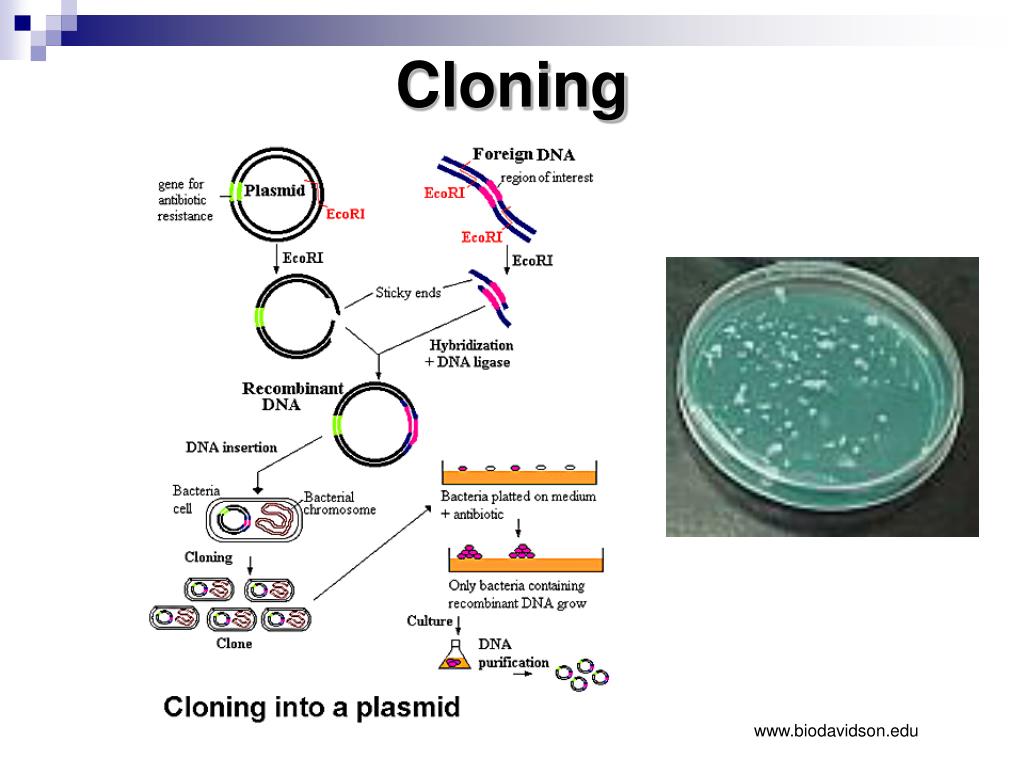

12. Cloning www.biodavidson.edu

13. Cloning vectors Features: Antibiotic resistance gene Another marker gene (lacZ*) Specific promoter Multiple cloning site *Lac Z gene, encodes beta-galactosidase- causes bacteria expressing the gene to appear blue when grown on a medium that containing X-gal

14. Other vectors • Bacterial artificial chromosomes • Yeast artificial chromosomes • Organism-specific vectors • Expression vectors

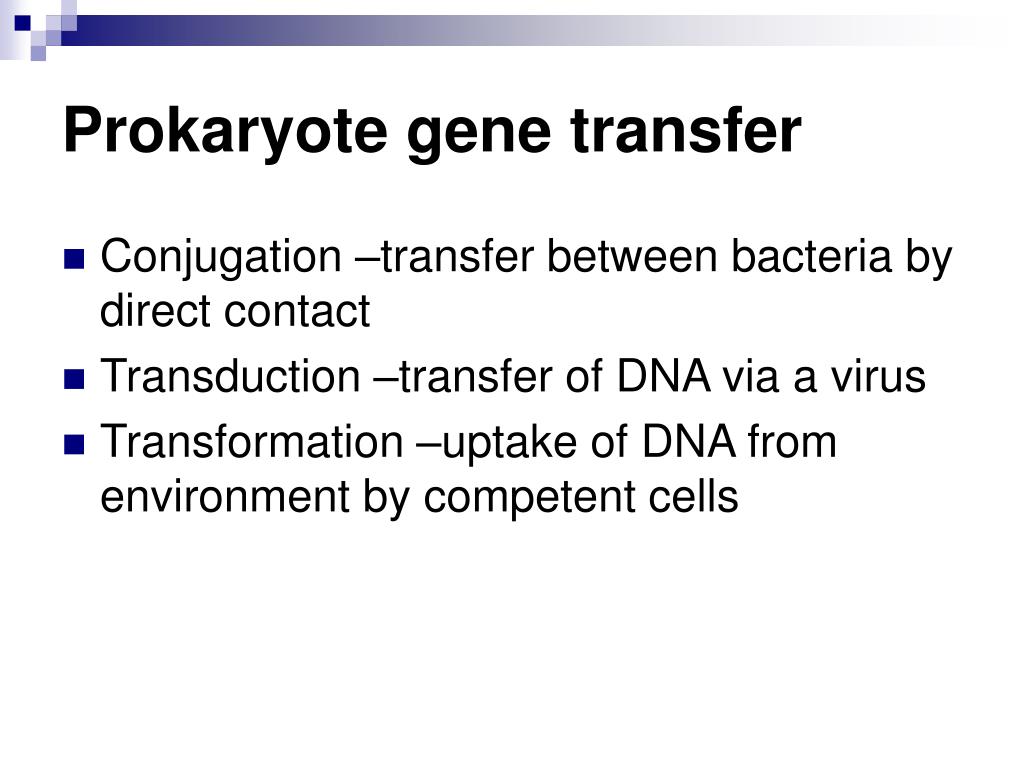

15. Prokaryote gene transfer • Conjugation –transfer between bacteria by direct contact • Transduction –transfer of DNA via a virus • Transformation –uptake of DNA from environment by competent cells

16. Southern Hybridization

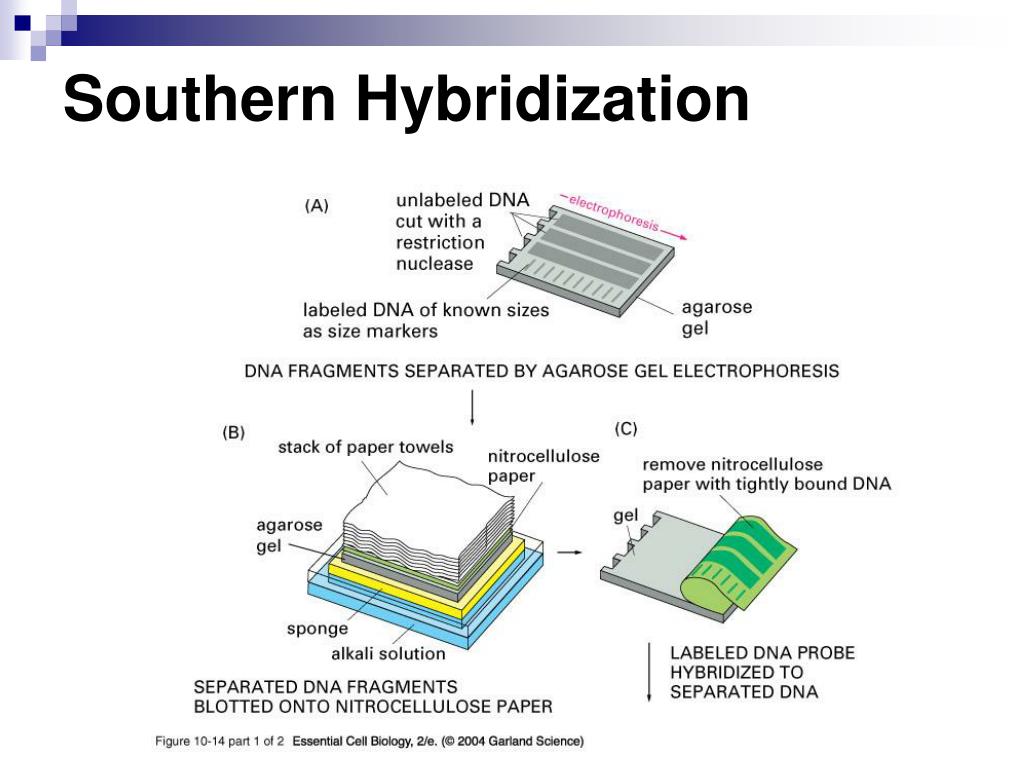

17. http://www.cdc.gov/ncidod/eid/vol6no1/images/vanderpoel1b.gifhttp://www.cdc.gov/ncidod/eid/vol6no1/images/vanderpoel1b.gif

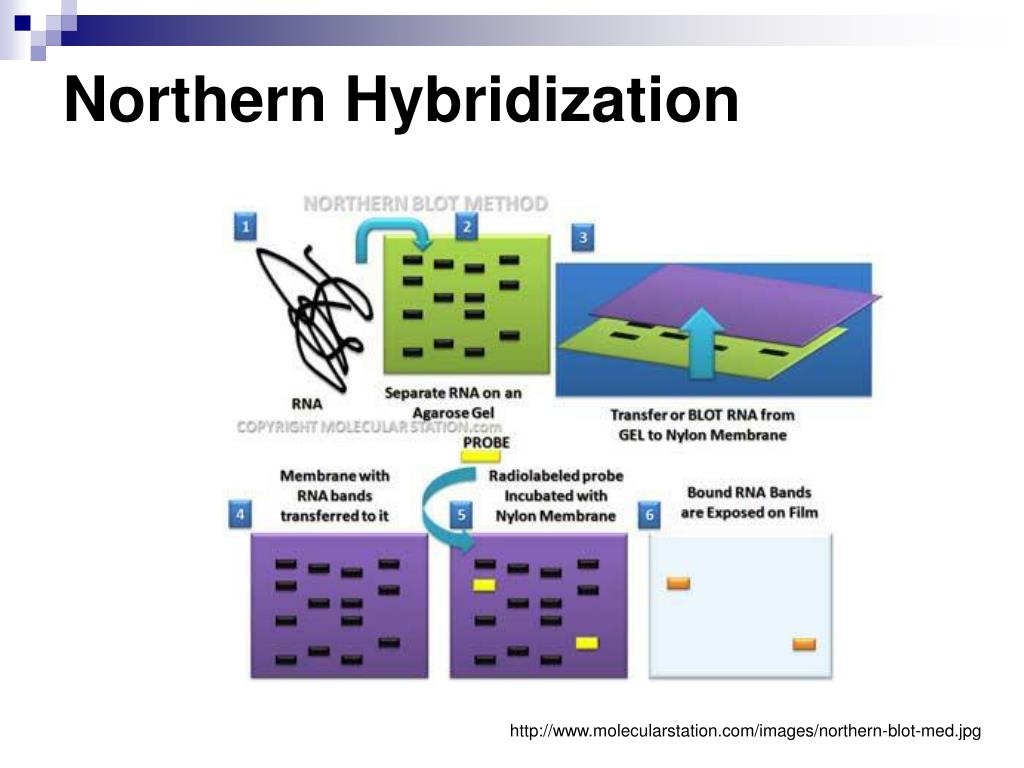

18. Northern Hybridization http://www.molecularstation.com/images/northern-blot-med.jpg

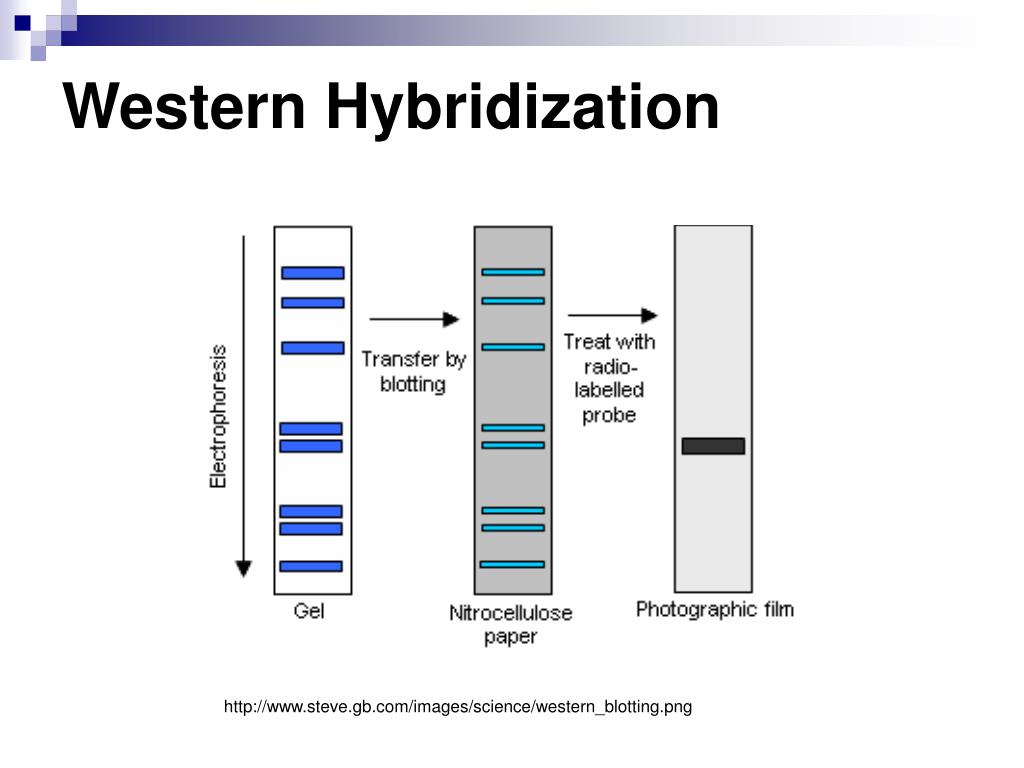

19. Western Hybridization http://www.steve.gb.com/images/science/western_blotting.png

20. High-throughput biology • Move away from single gene focus and bottom-up approach • Studying multiple genes at once • Using new technologies • Moving from genotype to phenotype • Trying to find function of sets of genes: Functional genomics

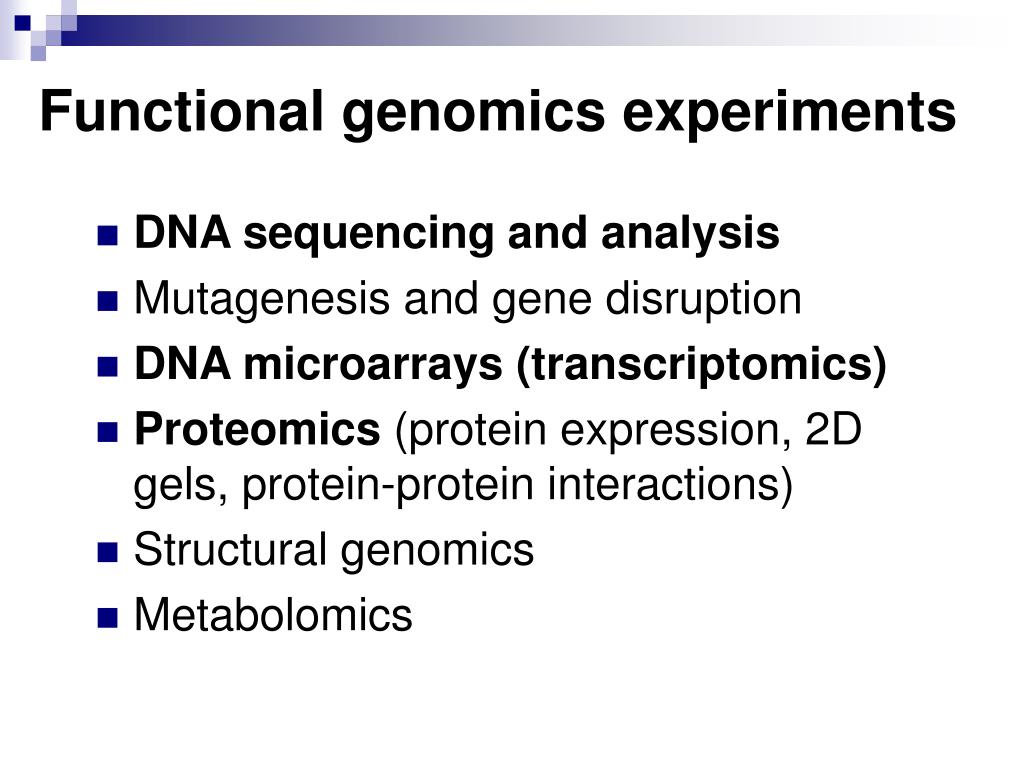

21. Functional genomics experiments • DNA sequencing and analysis • Mutagenesis and gene disruption • DNA microarrays (transcriptomics) • Proteomics (protein expression, 2D gels, protein-protein interactions) • Structural genomics • Metabolomics

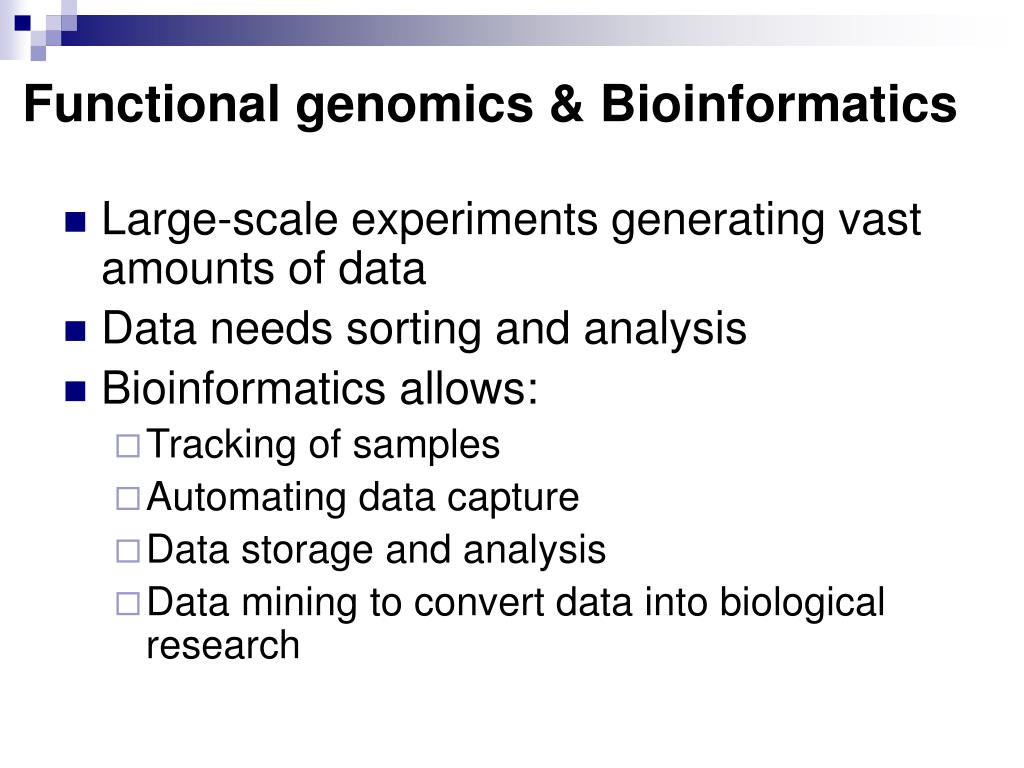

22. Functional genomics & Bioinformatics • Large-scale experiments generating vast amounts of data • Data needs sorting and analysis • Bioinformatics allows: • Tracking of samples • Automating data capture • Data storage and analysis • Data mining to convert data into biological research

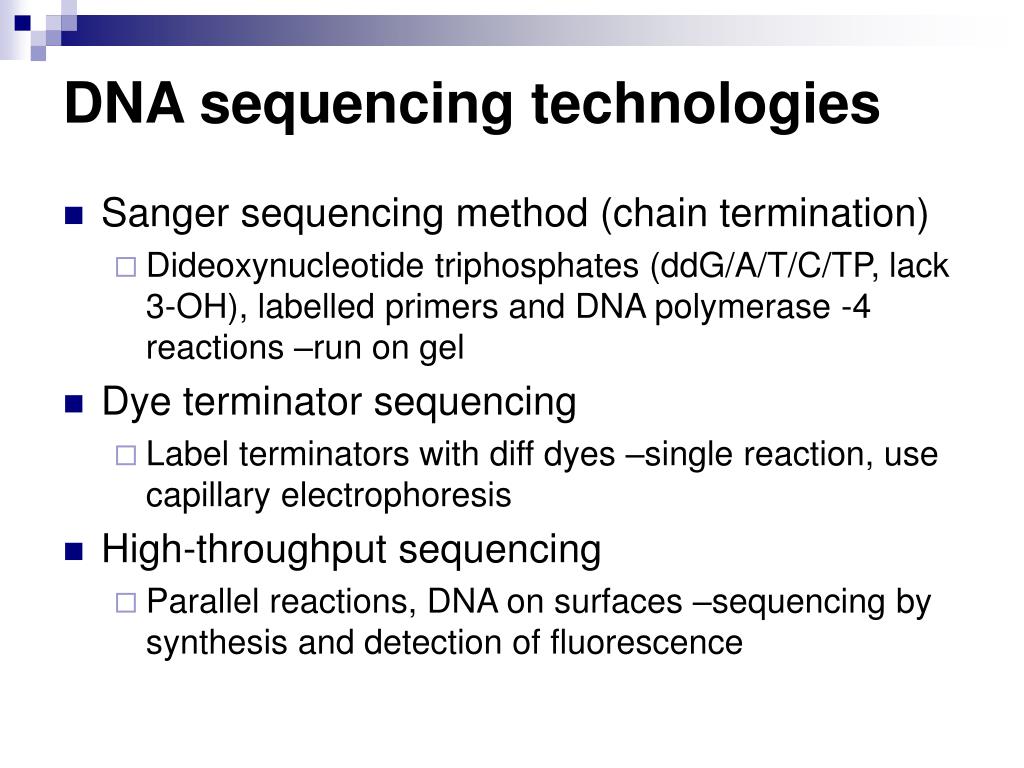

23. DNA sequencing technologies • Sanger sequencing method (chain termination) • Dideoxynucleotide triphosphates (ddG/A/T/C/TP, lack 3-OH), labelled primers and DNA polymerase -4 reactions –run on gel • Dye terminator sequencing • Label terminators with diff dyes –single reaction, use capillary electrophoresis • High-throughput sequencing • Parallel reactions, DNA on surfaces –sequencing by synthesis and detection of fluorescence

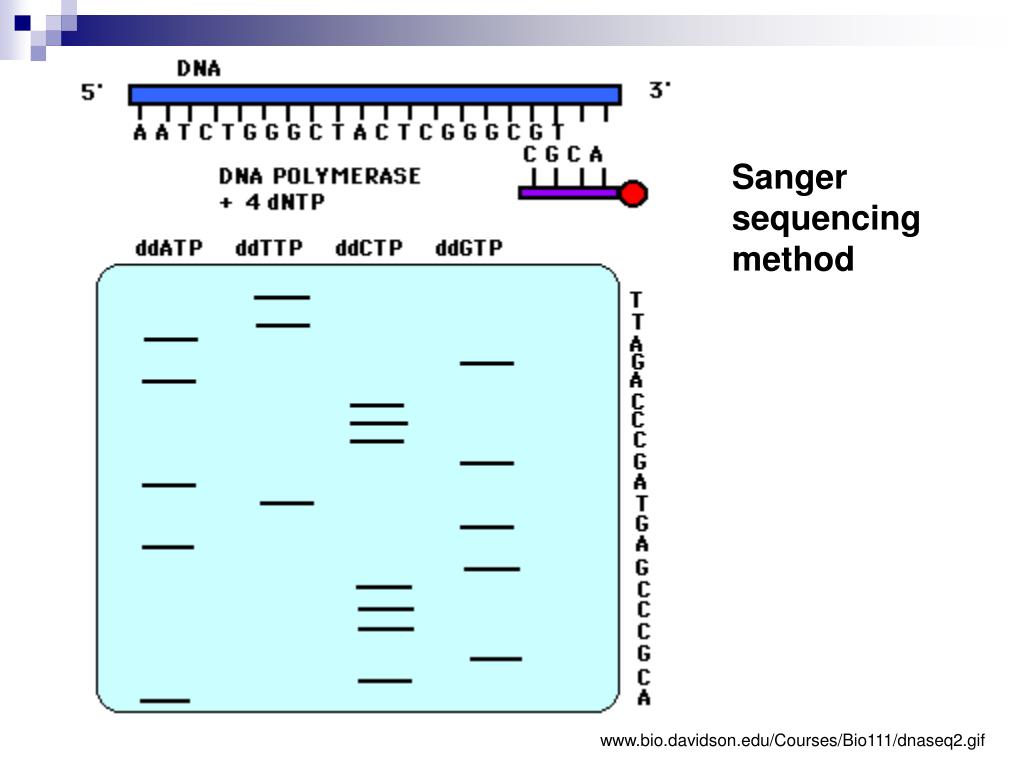

24. Sanger sequencing method www.bio.davidson.edu/Courses/Bio111/dnaseq2.gif

25. Automated sequencing

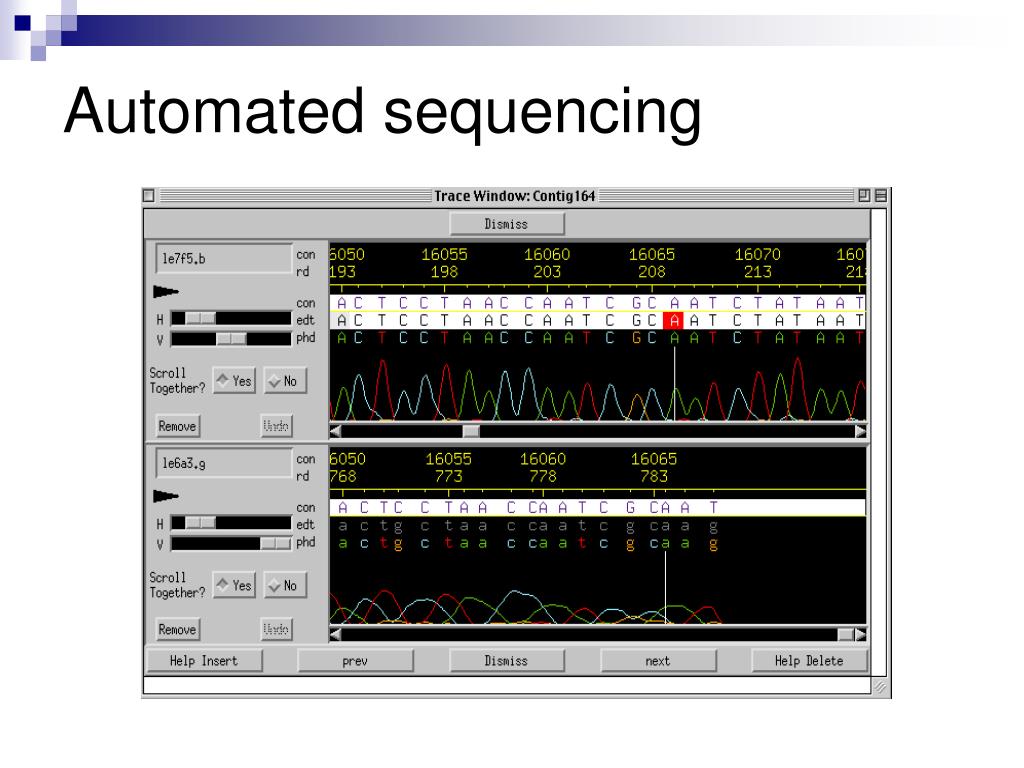

26. Automated sequencing

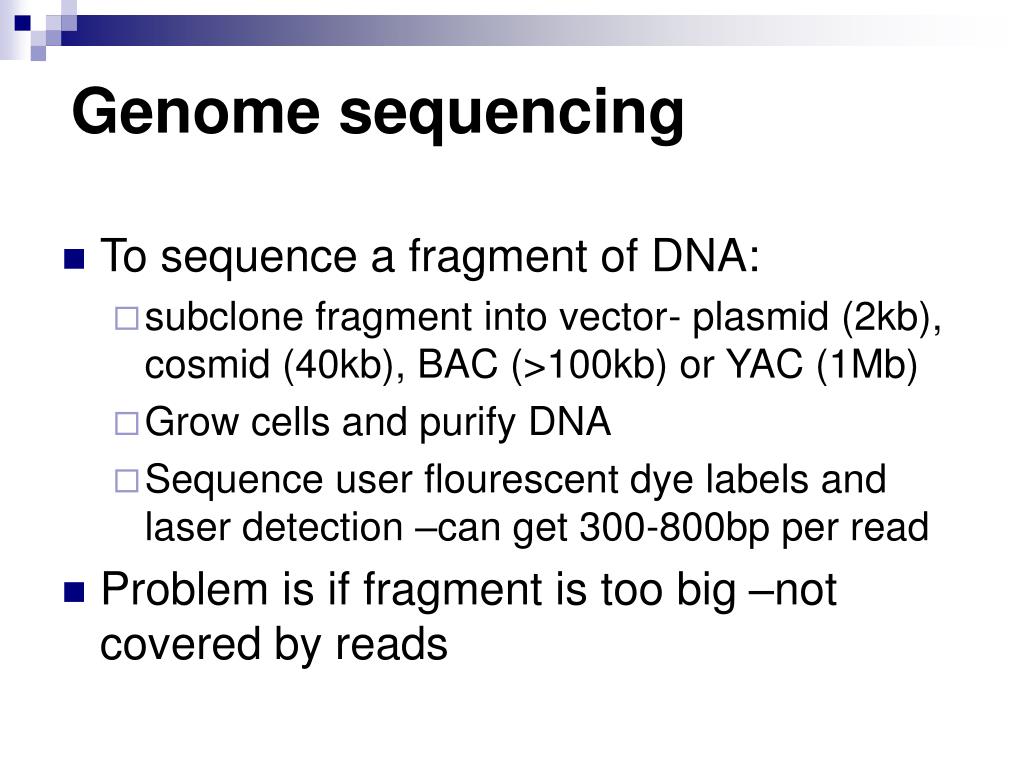

27. Genome sequencing • To sequence a fragment of DNA: • subclone fragment into vector- plasmid (2kb), cosmid (40kb), BAC (>100kb) or YAC (1Mb) • Grow cells and purify DNA • Sequence user flourescent dye labels and laser detection –can get 300-800bp per read • Problem is if fragment is too big –not covered by reads

28. Whole genome shotgun • Need to fragment the DNA, sequence the pieces and then assemble them • Need to over-sample to get good overlaps • May still get gaps using this approach, but can design new primers for additional sequencing • Repeats are an issue –can cause incorrect assembly • Shotgun sequencing works for small genomes like bacterial genomes

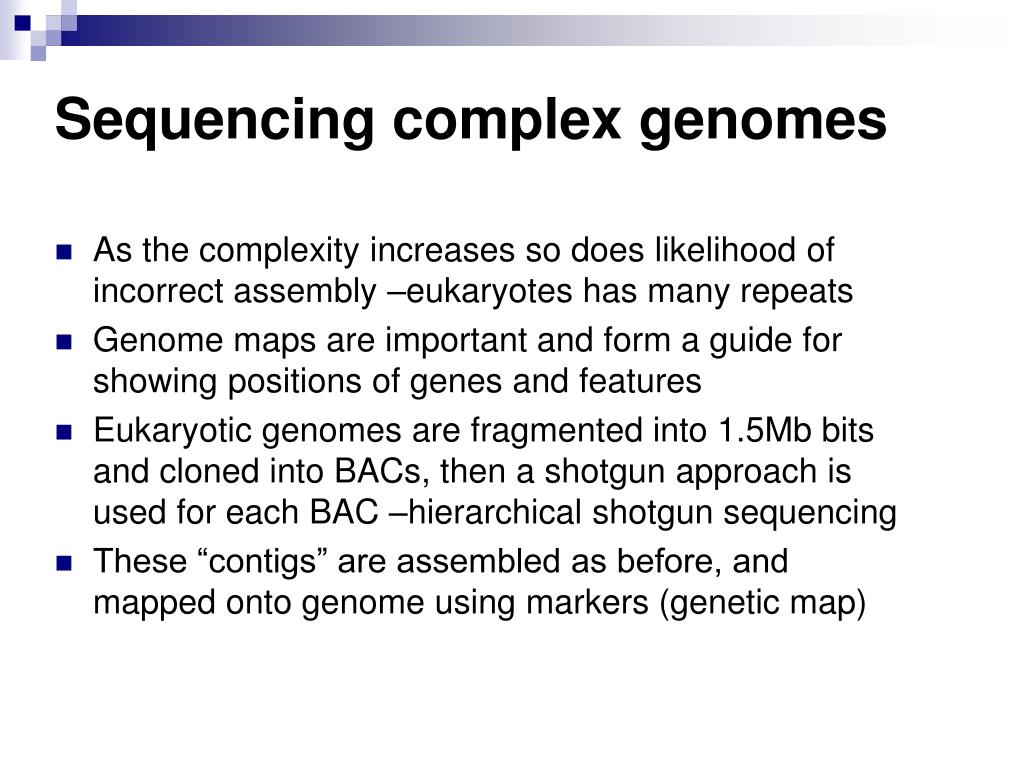

29. Sequencing complex genomes • As the complexity increases so does likelihood of incorrect assembly –eukaryotes has many repeats • Genome maps are important and form a guide for showing positions of genes and features • Eukaryotic genomes are fragmented into 1.5Mb bits and cloned into BACs, then a shotgun approach is used for each BAC –hierarchical shotgun sequencing • These “contigs” are assembled as before, and mapped onto genome using markers (genetic map)

30. Hierarchical shotgun sequencing International Human Genome Sequencing Consortium, 2001, Nature 409, pg 860-921.

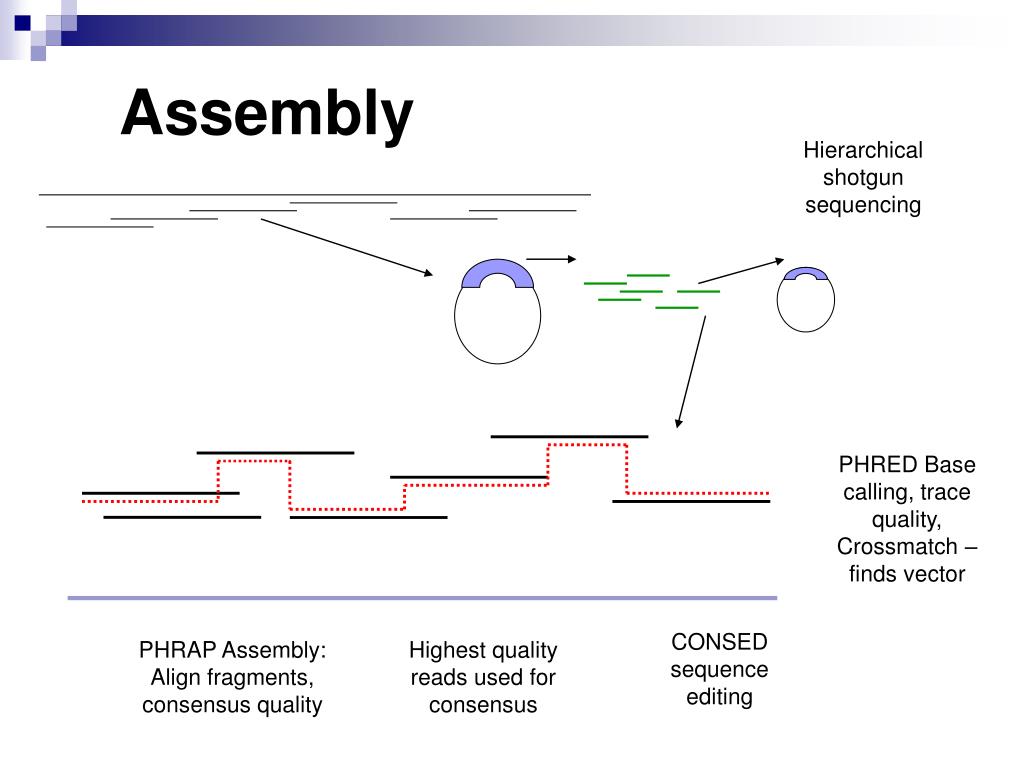

31. Assembly Hierarchical shotgun sequencing PHRED Base calling, trace quality, Crossmatch –finds vector CONSED sequence editing PHRAP Assembly: Align fragments, consensus quality Highest quality reads used for consensus

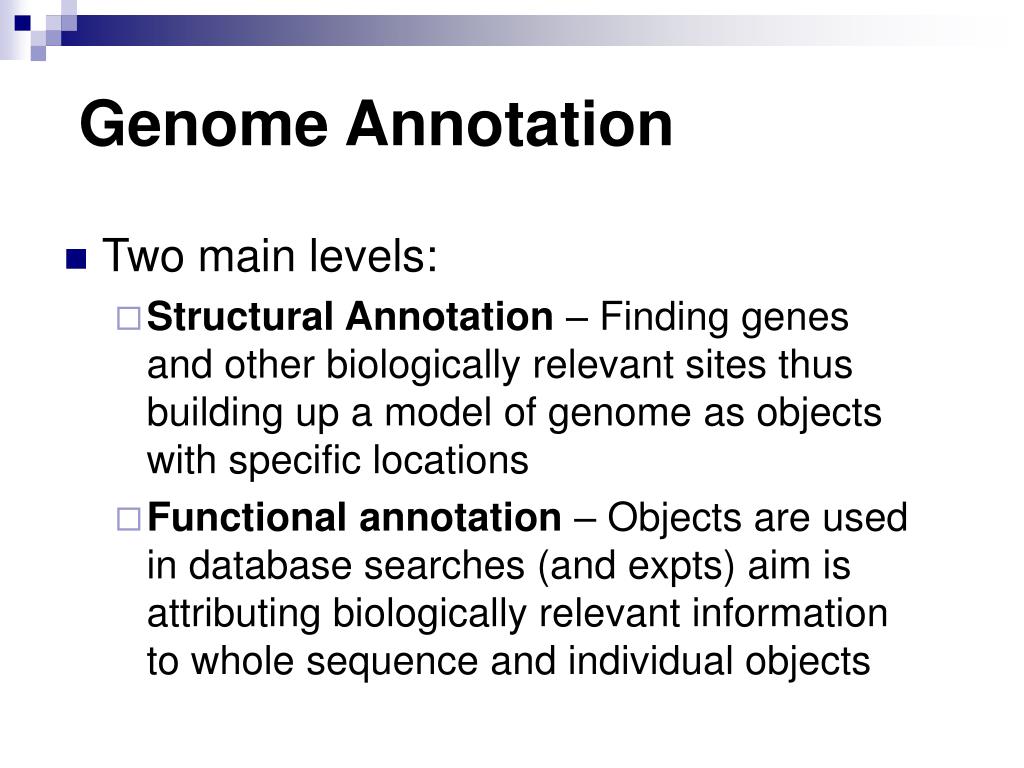

32. Genome Annotation • Two main levels: • Structural Annotation – Finding genes and other biologically relevant sites thus building up a model of genome as objects with specific locations • Functional annotation – Objects are used in database searches (and expts) aim is attributing biologically relevant information to whole sequence and individual objects

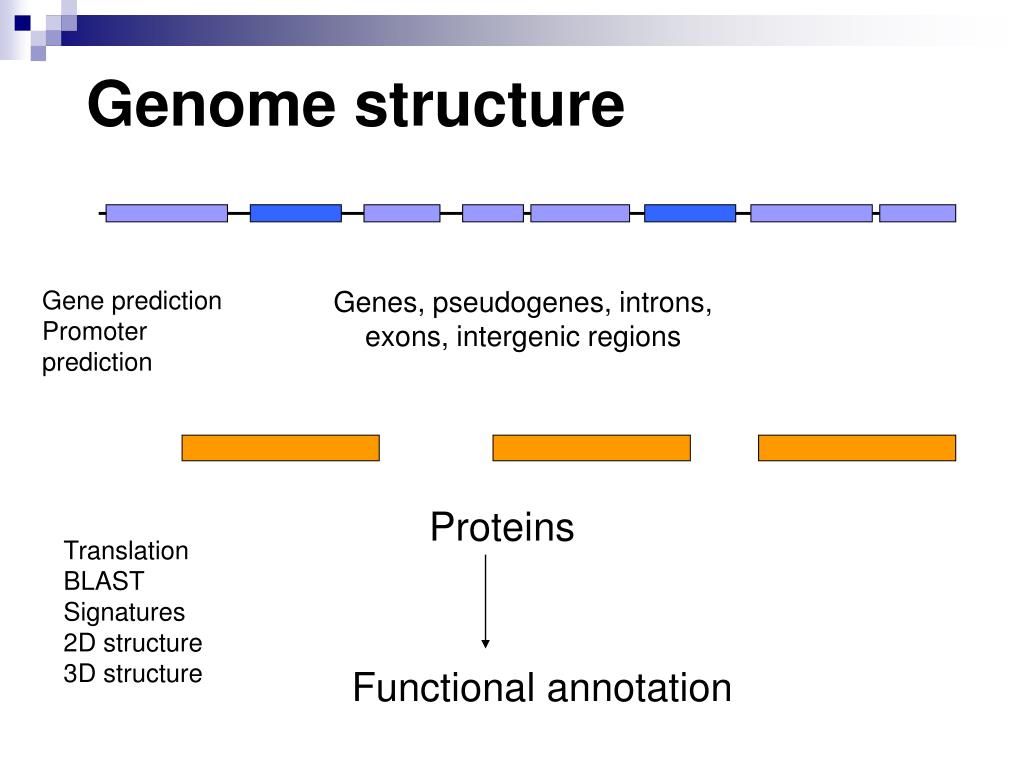

33. Genome structure Gene prediction Promoter prediction Genes, pseudogenes, introns, exons, intergenic regions Proteins Translation BLAST Signatures 2D structure 3D structure Functional annotation

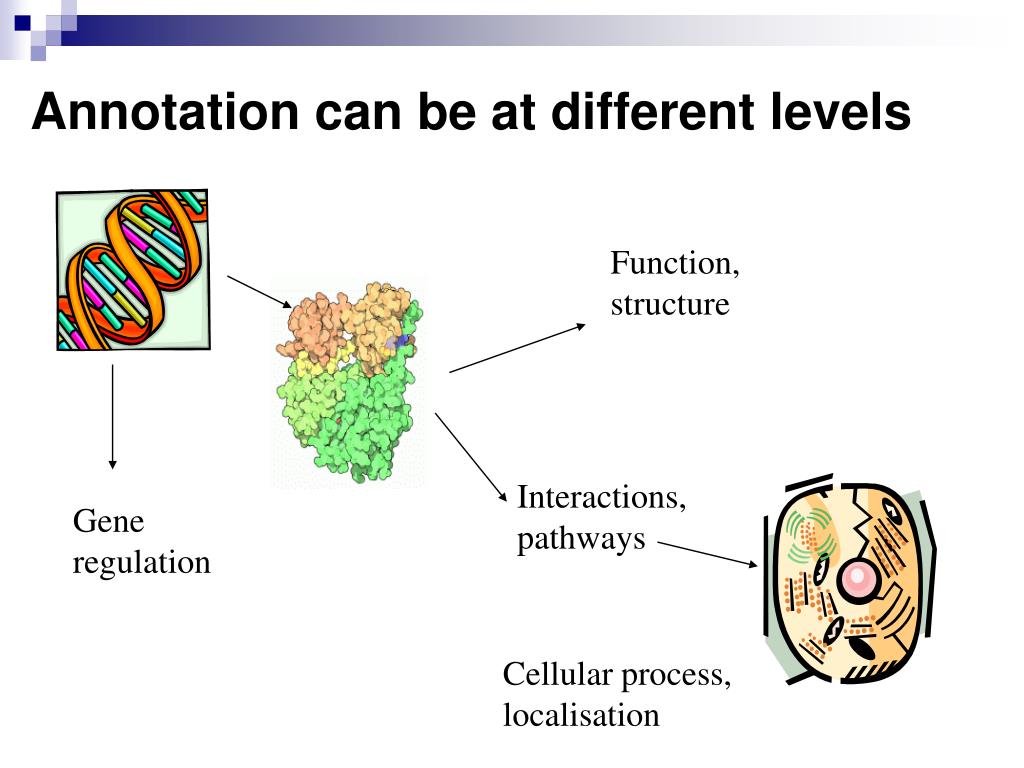

34. Annotation can be at different levels Function, structure Interactions, pathways Gene regulation Cellular process, localisation

35. Gene expression -Transcriptomics • Microarrays • ChIP on chip (Chromatin IP on microarrays)

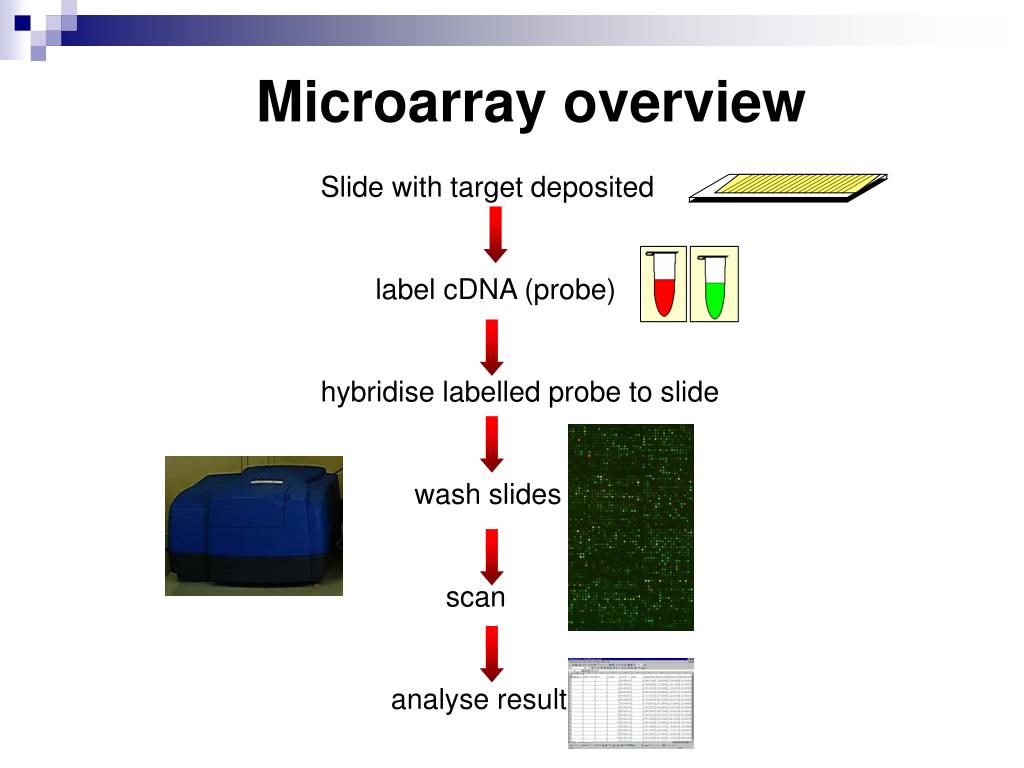

36. Microarray overview Slide with target deposited label cDNA (probe) hybridise labelled probe to slide wash slides scan analyse results

37. Experimental design Image processing Normalization Pre-processing Data analysis Data mining Microarray data analysis

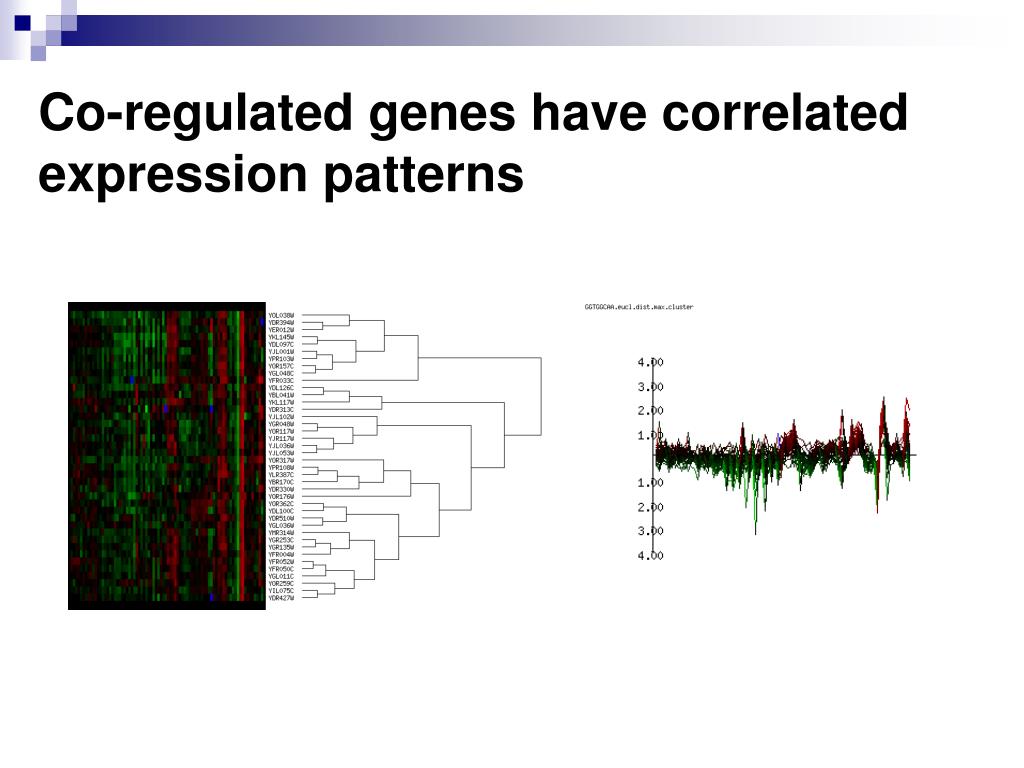

38. Co-regulated genes have correlated expression patterns

39. Data mining Add gene identifiers Add gene descriptions Add GO terms -AB02387 -SB07593 -AA00498 -AC008742 -AB083121 -GO0003456 -GO0006783 -GO0142291 -GO0054198 -GO0000234 -RNA polymerase -Glycosyl hydrolase -Phosphofructokinase -Transcription factor -Glucose transporter Map onto pathways

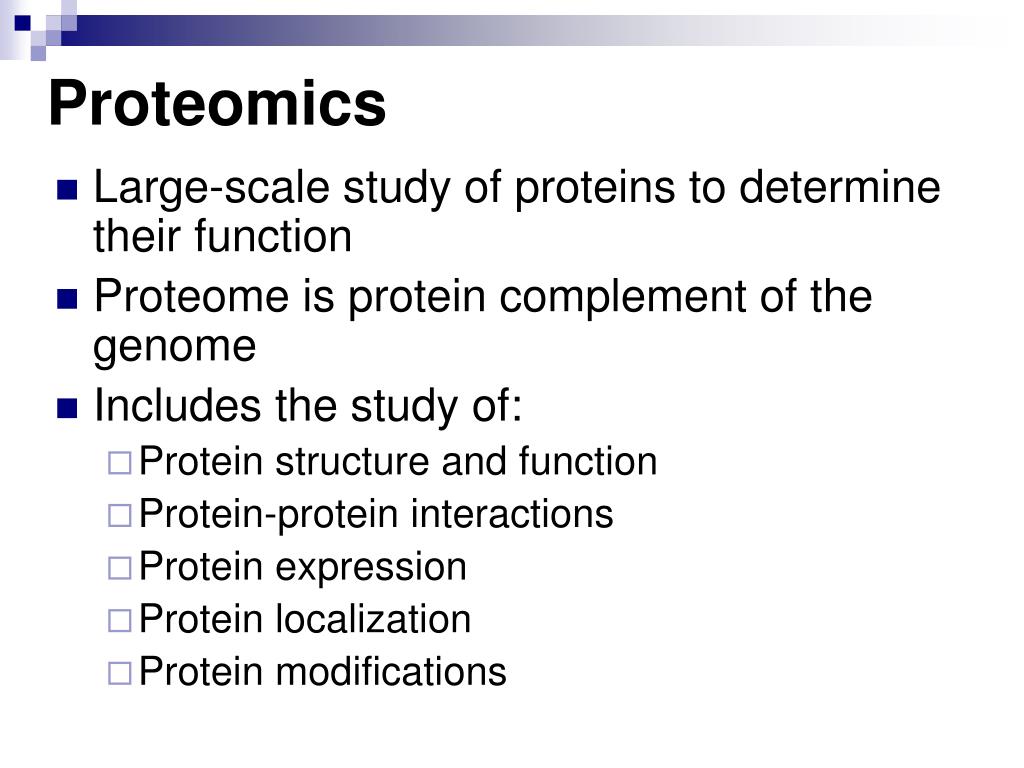

40. Proteomics • Large-scale study of proteins to determine their function • Proteome is protein complement of the genome • Includes the study of: • Protein structure and function • Protein-protein interactions • Protein expression • Protein localization • Protein modifications

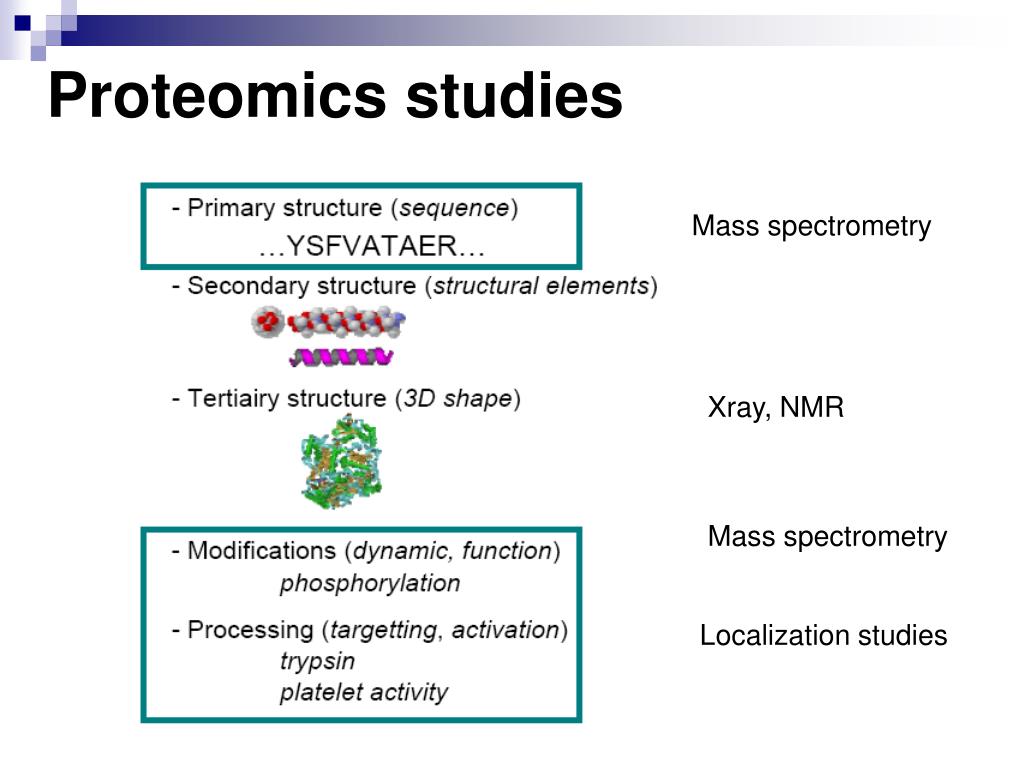

41. Proteomics studies Mass spectrometry Xray, NMR Mass spectrometry Localization studies

42. Sample preparation Protein separation Protein selection Protein identification Workflow of a proteomics experiment Sample can be from patient cohort, cell selection, fraction, etc. Different separation techniques, e.g. 2-D PAGE, HPLC, ICAT, etc. Depends on separation method Usually mass spectrometry

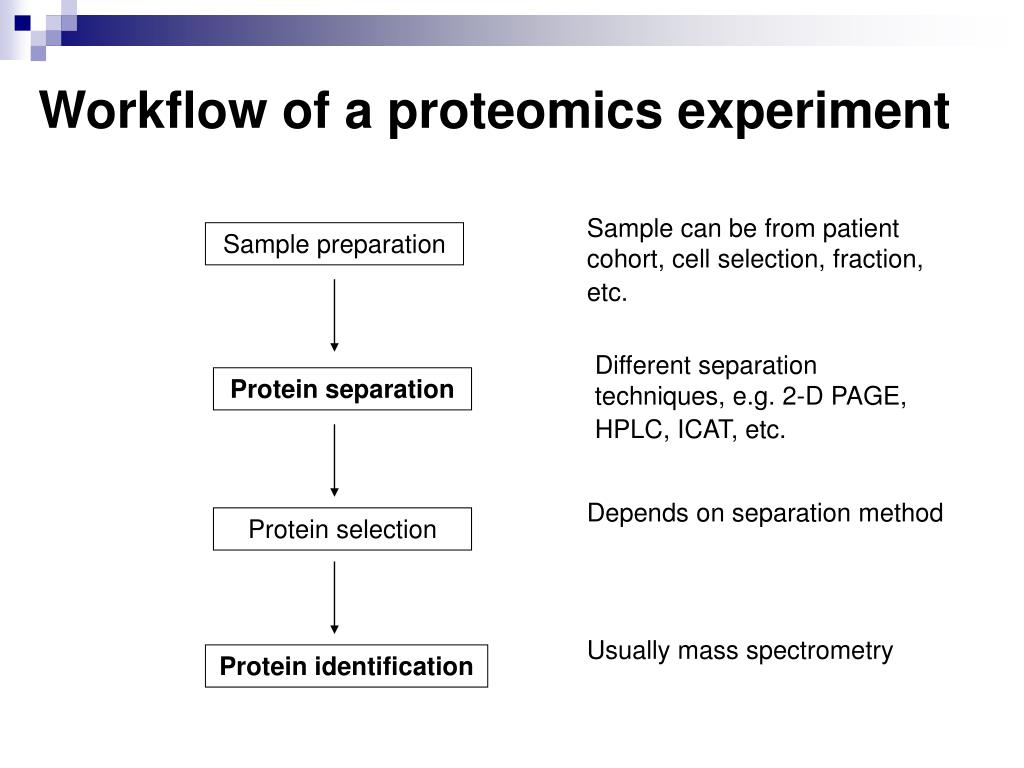

43. Protein separation • 2D PAGE • Gel-free systems: • ICAT • HPLC Mass spec –digest proteins further

44. Protein separation -2D PAGE Size gradient pH gradient

45. Bioinformatics component • Sample tracking • Image capture • Image analysis and comparison: • Measuring intensities • Removing background noise • Finding difference between gels

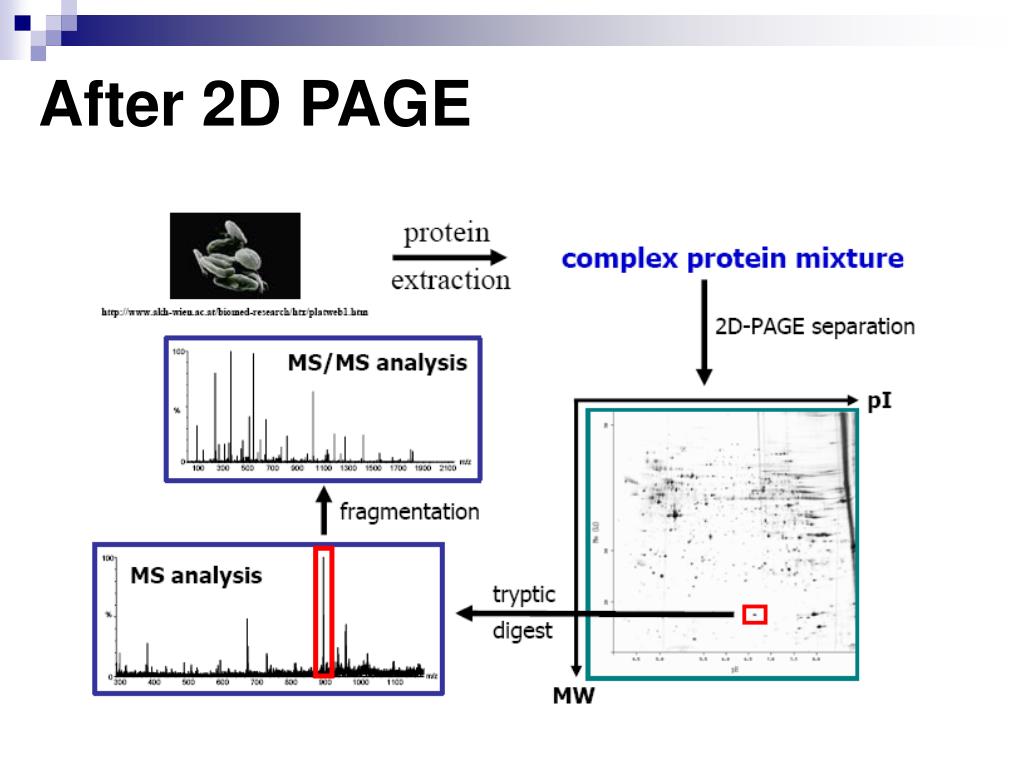

46. After 2D PAGE

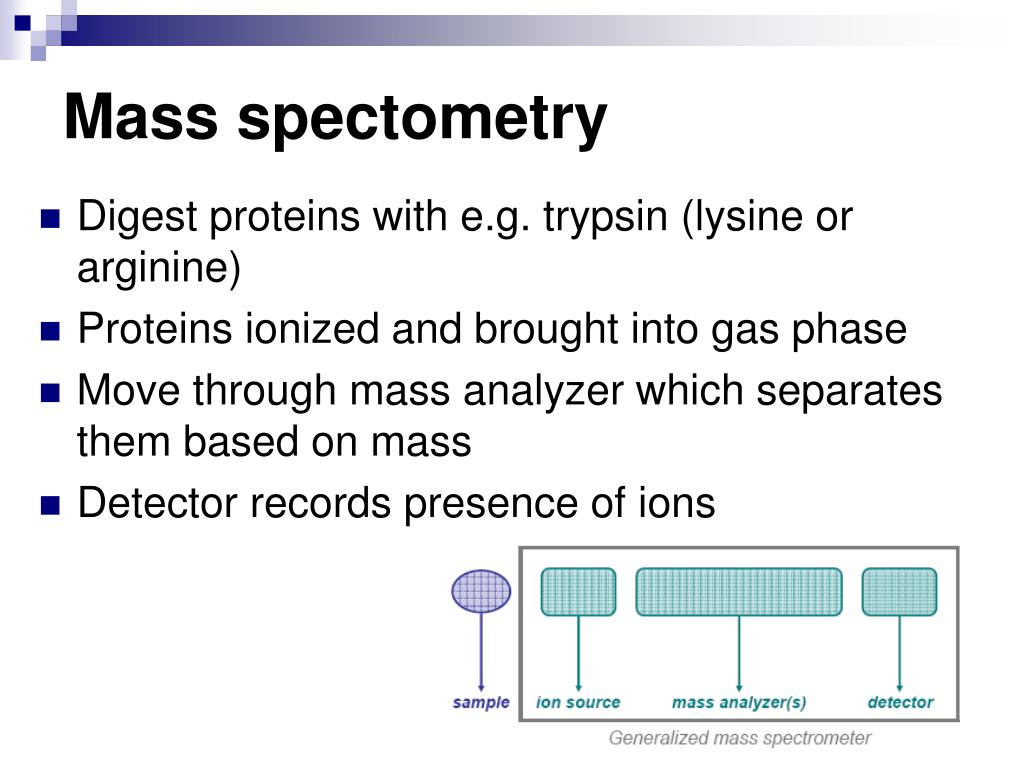

47. Mass spectometry • Digest proteins with e.g. trypsin (lysine or arginine) • Proteins ionized and brought into gas phase • Move through mass analyzer which separates them based on mass • Detector records presence of ions

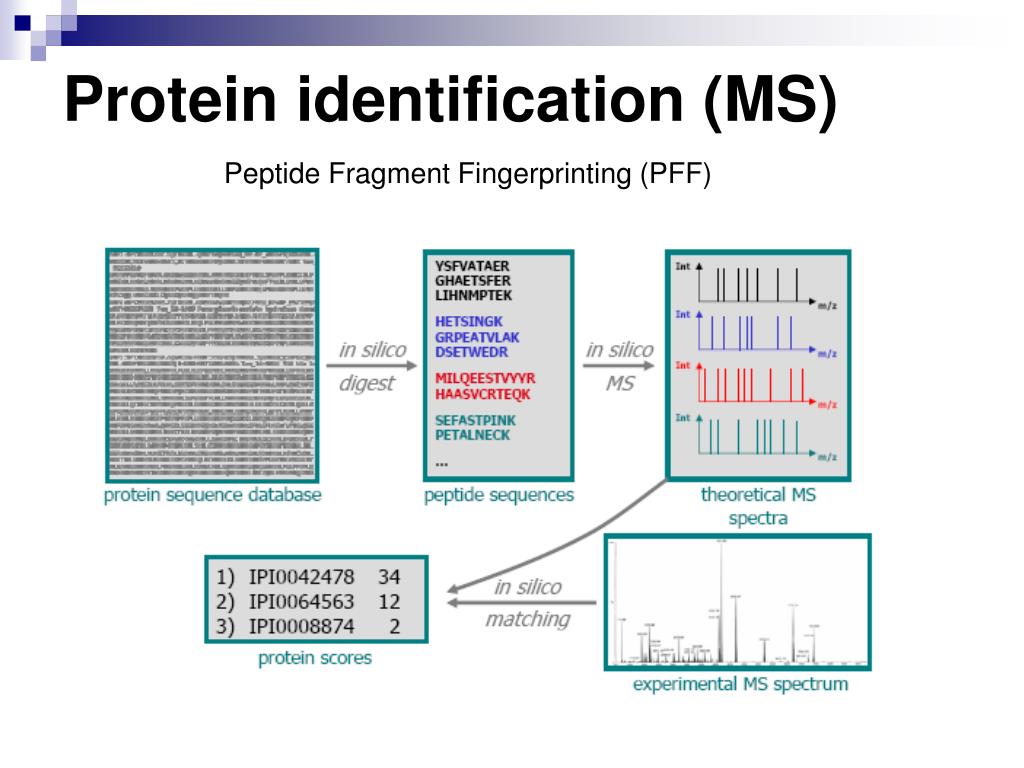

48. Protein identification (MS) Peptide Fragment Fingerprinting (PFF)

49. MS/MS or Tandem MS

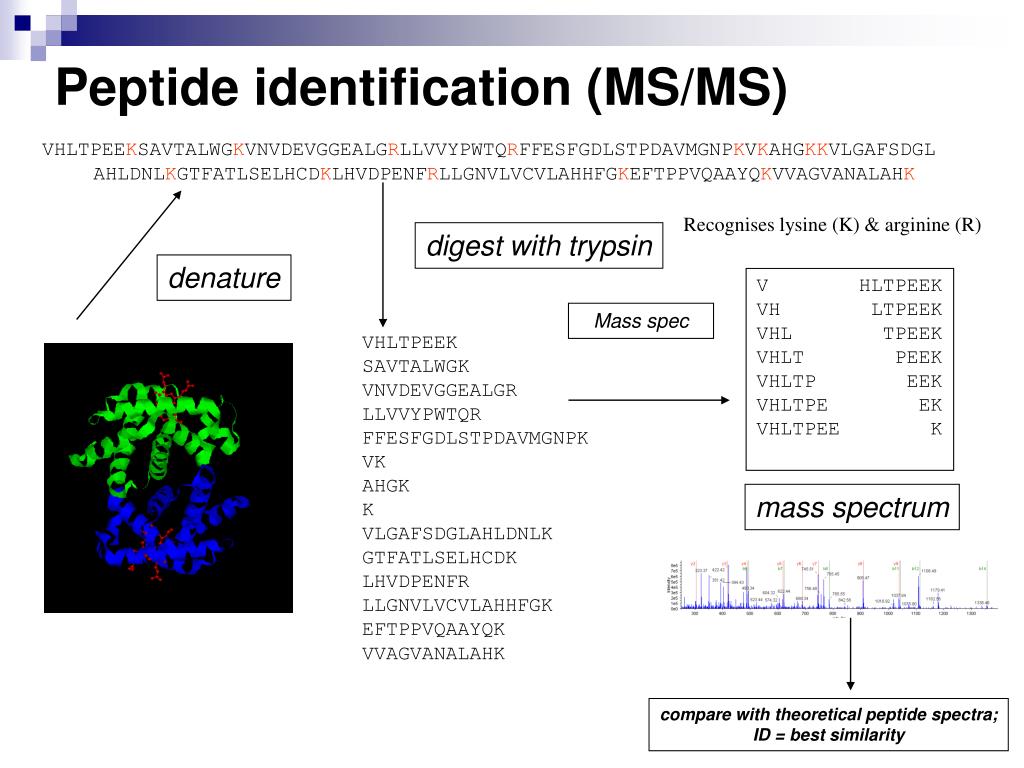

50. Peptide identification (MS/MS) VHLTPEEKSAVTALWGKVNVDEVGGEALGRLLVVYPWTQRFFESFGDLSTPDAVMGNPKVKAHGKKVLGAFSDGLAHLDNLKGTFATLSELHCDKLHVDPENFRLLGNVLVCVLAHHFGKEFTPPVQAAYQKVVAGVANALAHK Recognises lysine (K) & arginine (R) digest with trypsin denature V HLTPEEK VH LTPEEK VHL TPEEK VHLT PEEK VHLTP EEK VHLTPE EK VHLTPEE K Mass spec VHLTPEEK SAVTALWGK VNVDEVGGEALGR LLVVYPWTQR FFESFGDLSTPDAVMGNPK VK AHGK K VLGAFSDGLAHLDNLK GTFATLSELHCDK LHVDPENFR LLGNVLVCVLAHHFGK EFTPPVQAAYQK VVAGVANALAHK mass spectrum compare with theoretical peptide spectra; ID = best similarity
