  1. Emory University Inexact Methods for PDE-Constrained Optimization Frank Edward Curtis Northwestern University Joint work with Richard Byrd and Jorge Nocedal February 12, 2007

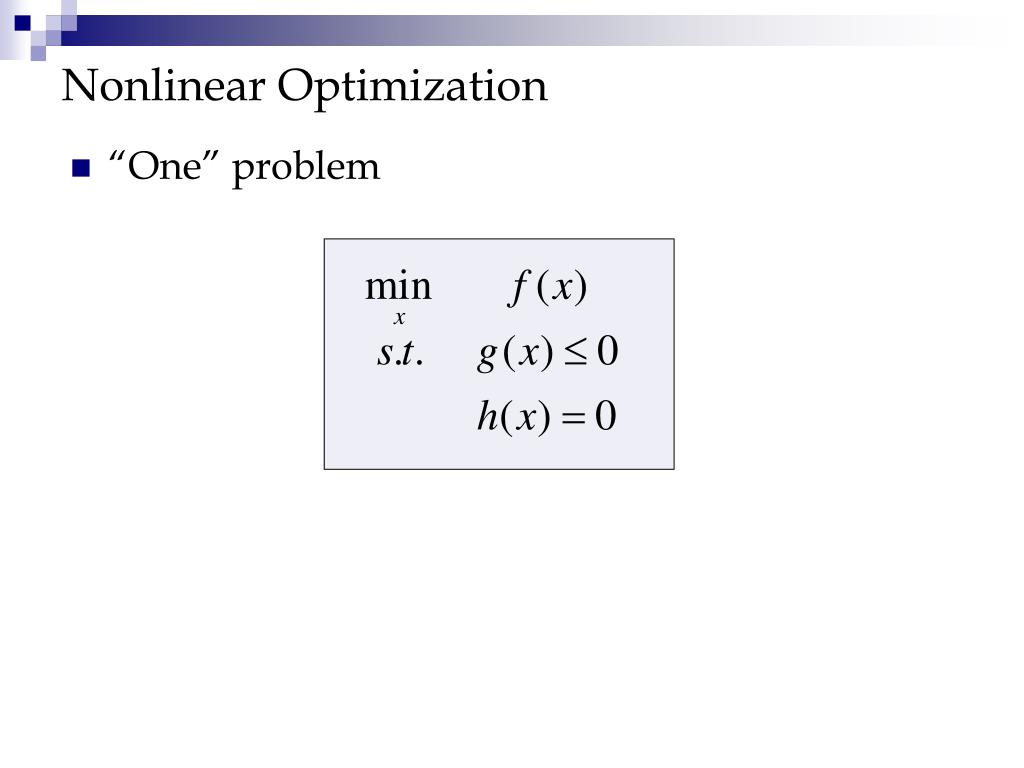

  2. Nonlinear Optimization • “One” problem

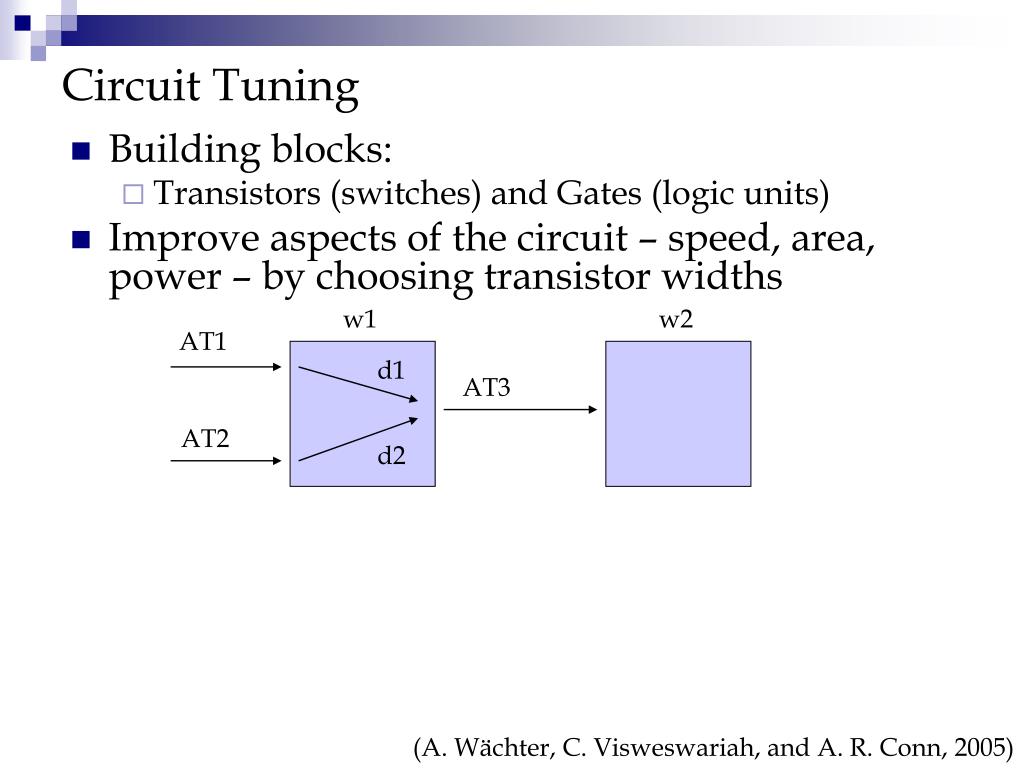

  3. Circuit Tuning • Building blocks: • Transistors (switches) and Gates (logic units) • Improve aspects of the circuit – speed, area, power – by choosing transistor widths w1 w2 AT1 d1 AT3 AT2 d2 (A. Wächter, C. Visweswariah, and A. R. Conn, 2005)

  4. Circuit Tuning • Building blocks: • Transistors (switches) and Gates (logic units) • Improve aspects of the circuit – speed, area, power – by choosing transistor widths w1 w2 AT1 d1 AT3 AT2 d2 • Formulate an optimization problem (A. Wächter, C. Visweswariah, and A. R. Conn, 2005)

  5. Strategic Bidding in Electricity Markets • Independent operator collects bids and sets production schedule and “spot price” to minimize cost to consumers (Pereira, Granville, Dix, and Barroso, 2004)

  6. Strategic Bidding in Electricity Markets • Independent operator collects bids and sets production schedule and “spot price” to minimize cost to consumers • Electricity production companies “bid” on how much they will charge for one unit of electricity (Pereira, Granville, Dix, and Barroso, 2004)

  7. Strategic Bidding in Electricity Markets • Independent operator collects bids and sets production schedule and “spot price” to minimize cost to consumers • Electricity production companies “bid” on how much they will charge for one unit of electricity • Bilevel problem • Equivalent to MPCC • Hard geometry! (Pereira, Granville, Dix, and Barroso, 2004)

  8. Challenges for NLP algorithms • Very large problems • Numerical noise • Availability of derivatives • Degeneracies • Difficult geometries • Expensive function evaluations • Real-time solutions needed • Integer variables • Negative curvature

  9. Outline • Problem Formulation • Equality constrained optimization • Sequential Quadratic Programming • Inexact Framework • Unconstrained optimization and nonlinear equations • Stopping conditions for linear solver • Global Behavior • Merit function and sufficient decrease • Satisfying first order conditions • Numerical Results • Model inverse problem • Accuracy tradeoffs • Final Remarks • Future work • Negative curvature

  10. Outline • Problem Formulation • Equality constrained optimization • Sequential Quadratic Programming • Inexact Framework • Unconstrained optimization and nonlinear equations • Stopping conditions for linear solver • Global Behavior • Merit function and sufficient decrease • Satisfying first order conditions • Numerical Results • Model inverse problem • Accuracy tradeoffs • Final Remarks • Future work • Negative curvature

  11. Equality constrained optimization Goal: solve the problem e.g., minimize the difference between observed and expected behavior, subject to atmospheric flow equations (Navier-Stokes)

  12. Equality constrained optimization Goal: solve the problem Define: the derivatives Define: the Lagrangian Goal: solve KKT conditions

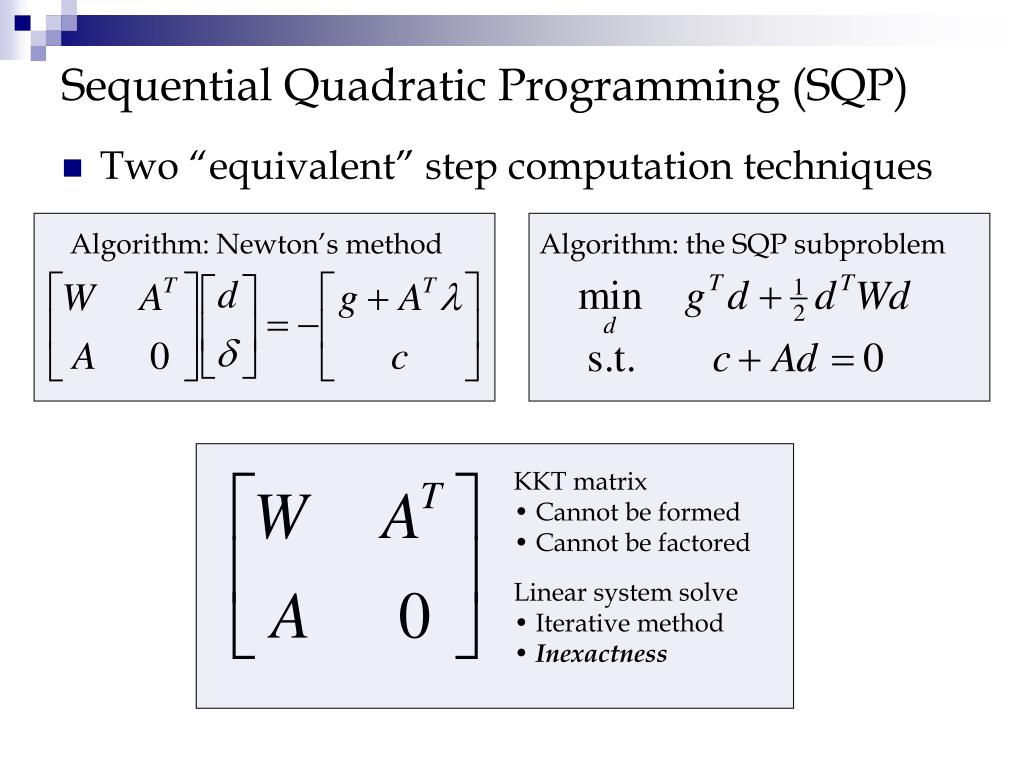

  13. Sequential Quadratic Programming (SQP) • Two “equivalent” step computation techniques Algorithm: Newton’s method Algorithm: the SQP subproblem

  14. Sequential Quadratic Programming (SQP) • Two “equivalent” step computation techniques Algorithm: Newton’s method Algorithm: the SQP subproblem • KKT matrix • Cannot be formed • Cannot be factored

  15. Sequential Quadratic Programming (SQP) • Two “equivalent” step computation techniques Algorithm: Newton’s method Algorithm: the SQP subproblem • KKT matrix • Cannot be formed • Cannot be factored • Linear system solve • Iterative method • Inexactness

  16. Outline • Problem Formulation • Equality constrained optimization • Sequential Quadratic Programming • Inexact Framework • Unconstrained optimization and nonlinear equations • Stopping conditions for linear solver • Global Behavior • Merit function and sufficient decrease • Satisfying first order conditions • Numerical Results • Model inverse problem • Accuracy tradeoffs • Final Remarks • Future work • Negative curvature

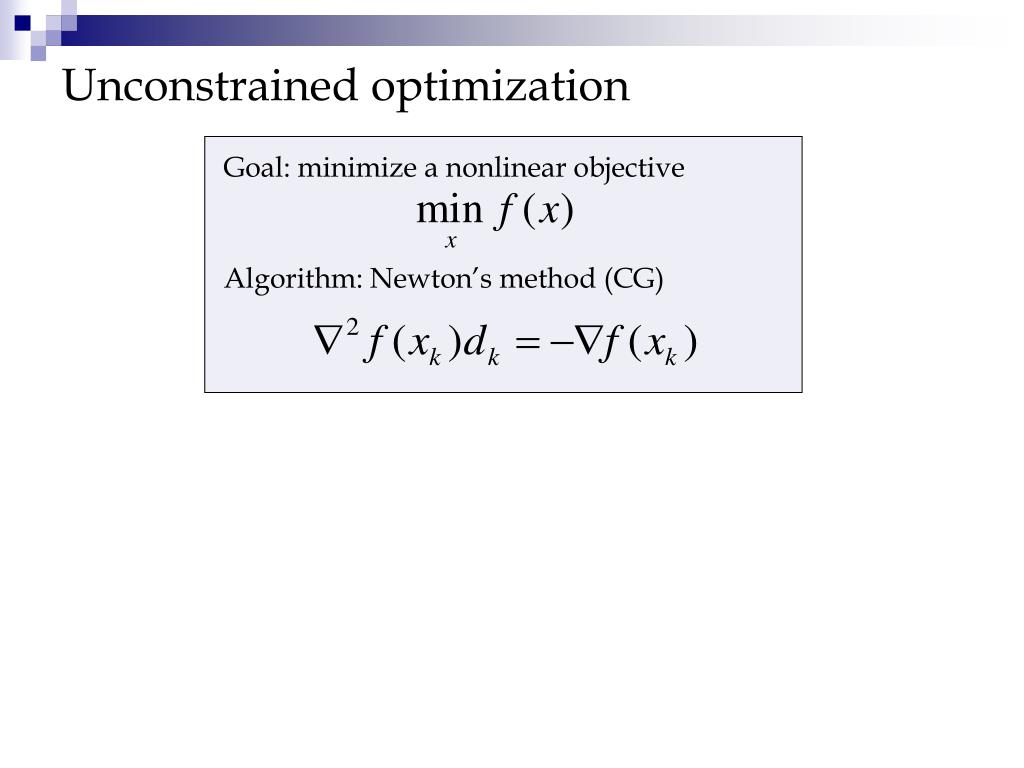

  17. Unconstrained optimization Goal: minimize a nonlinear objective Algorithm: Newton’s method (CG)

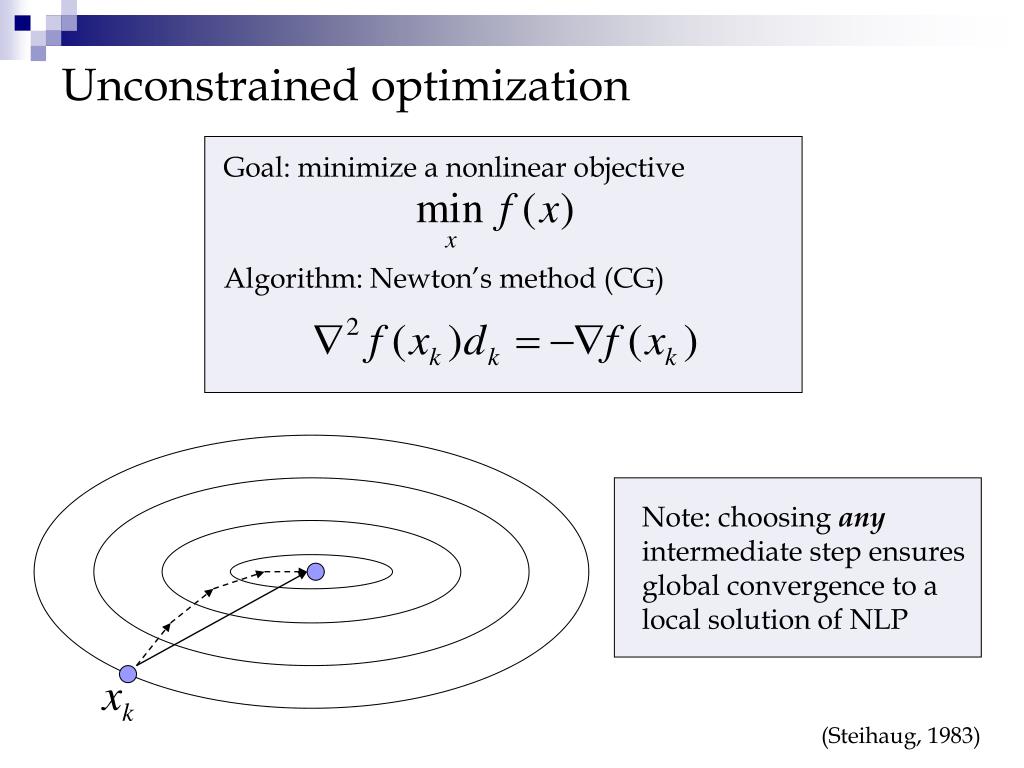

  18. Unconstrained optimization Goal: minimize a nonlinear objective Algorithm: Newton’s method (CG) Note: choosing any intermediate step ensures global convergence to a local solution of NLP (Steihaug, 1983)

  19. Nonlinear equations Goal: solve a nonlinear system Algorithm: Newton’s method

  20. Nonlinear equations Goal: solve a nonlinear system Algorithm: Newton’s method any step with and ensures descent (Dembo, Eisenstat, and Steihaug, 1982) (Eisenstat and Walker, 1994)

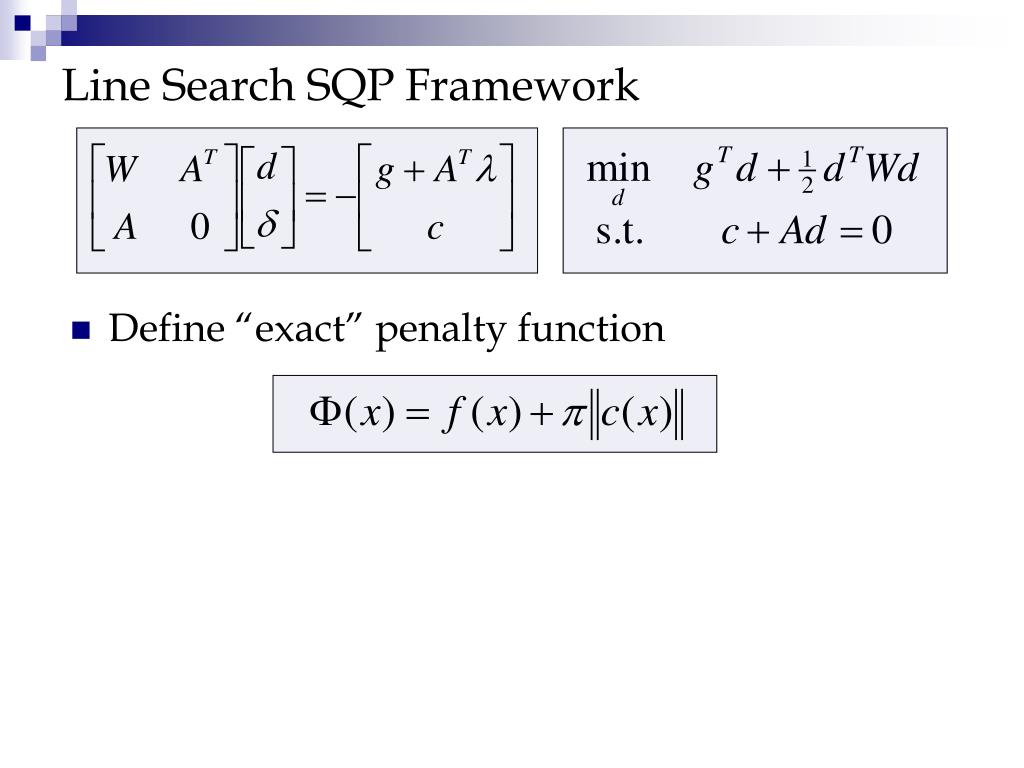

  21. Line Search SQP Framework • Define “exact” penalty function

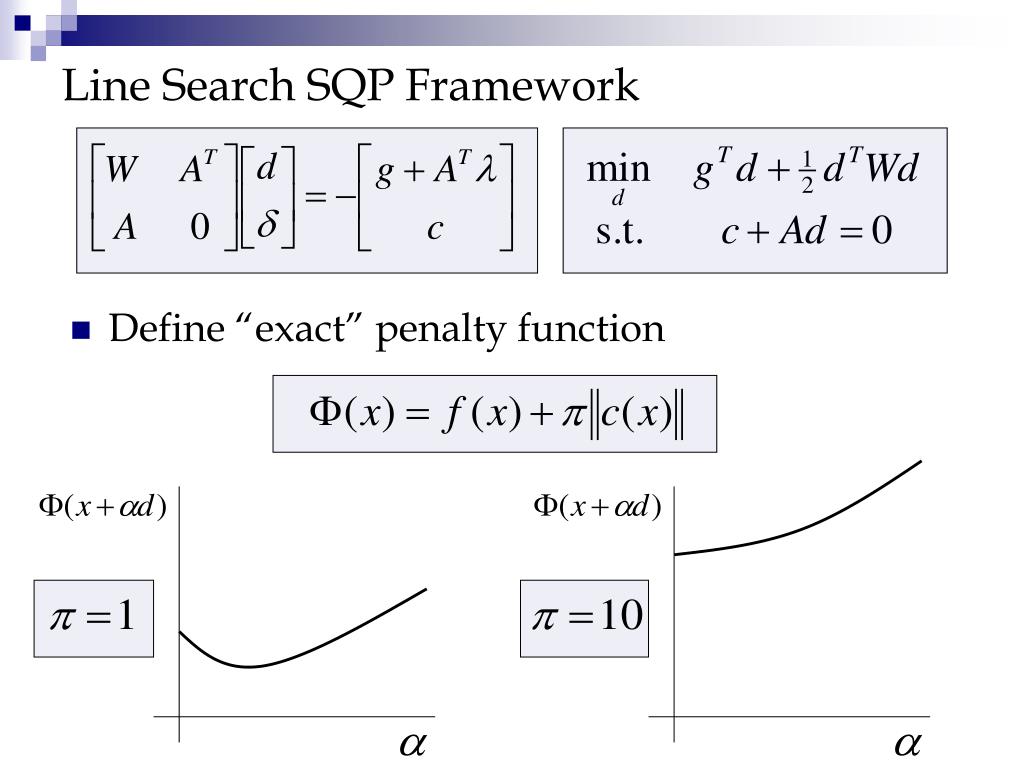

  22. Line Search SQP Framework • Define “exact” penalty function

  23. Algorithm Outline (exact steps) • for k = 0, 1, 2, … • Compute step by… • Set penalty parameter to ensure descent on… • Perform backtracking line search to satisfy… • Update iterate

  24. Exact Case

  25. Exact Case Exact step minimizes the objective on the linearized constraints

  26. Exact Case Exact step minimizes the objective on the linearized constraints … which may lead to an increase in the model objective

  27. Quadratic/linear model of merit function • Create model • Quantify reduction obtained from step

  28. Quadratic/linear model of merit function • Create model • Quantify reduction obtained from step

  29. Exact Case Exact step minimizes the objective on the linearized constraints … which may lead to an increase in the model objective

  30. Exact Case Exact step minimizes the objective on the linearized constraints … which may lead to an increase in the model objective … but this is ok since we can account for this conflict by increasing the penalty parameter

  31. Exact Case Exact step minimizes the objective on the linearized constraints … which may lead to an increase in the model objective … but this is ok since we can account for this conflict by increasing the penalty parameter

  32. Algorithm Outline (exact steps) • for k = 0, 1, 2, … • Compute step by… • Set penalty parameter to ensure descent on… • Perform backtracking line search to satisfy… • Update iterate

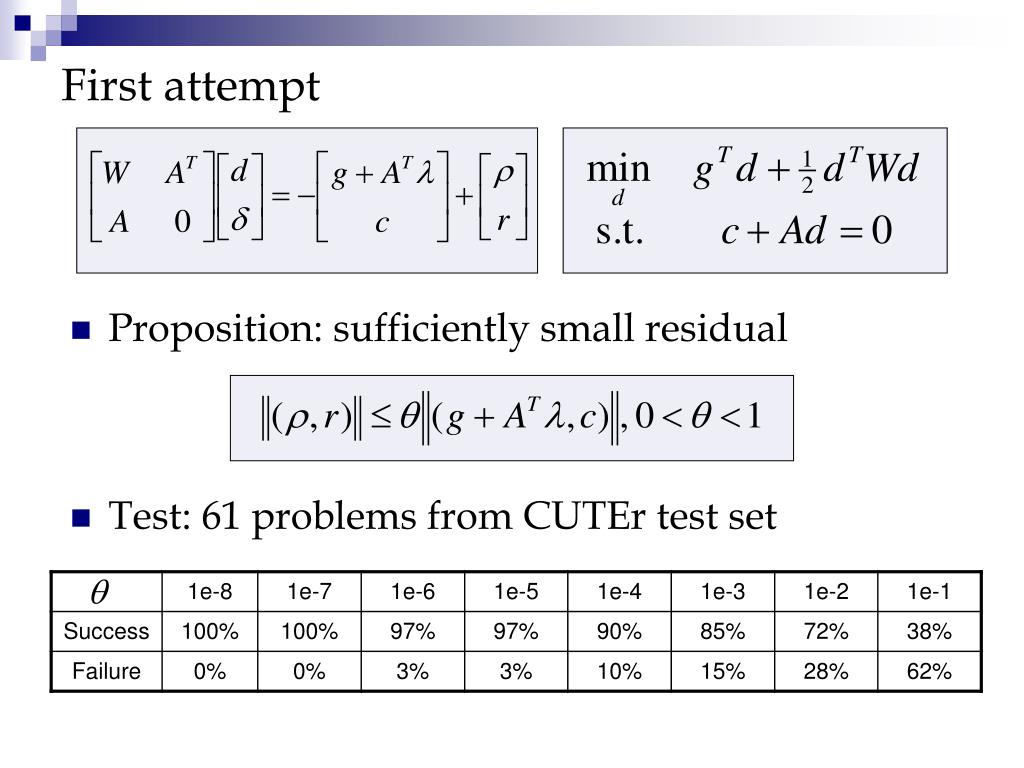

  33. First attempt • Proposition: sufficiently small residual • Test: 61 problems from CUTEr test set

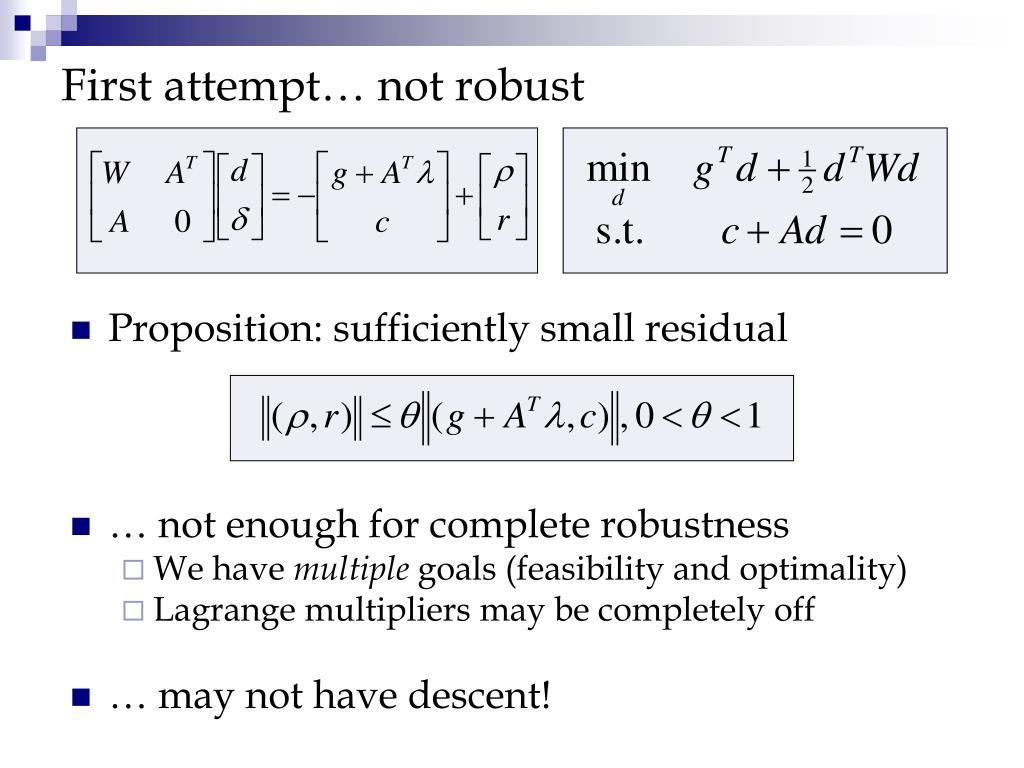

  34. First attempt… not robust • Proposition: sufficiently small residual • … not enough for complete robustness • We have multiple goals (feasibility and optimality) • Lagrange multipliers may be completely off • … may not have descent!

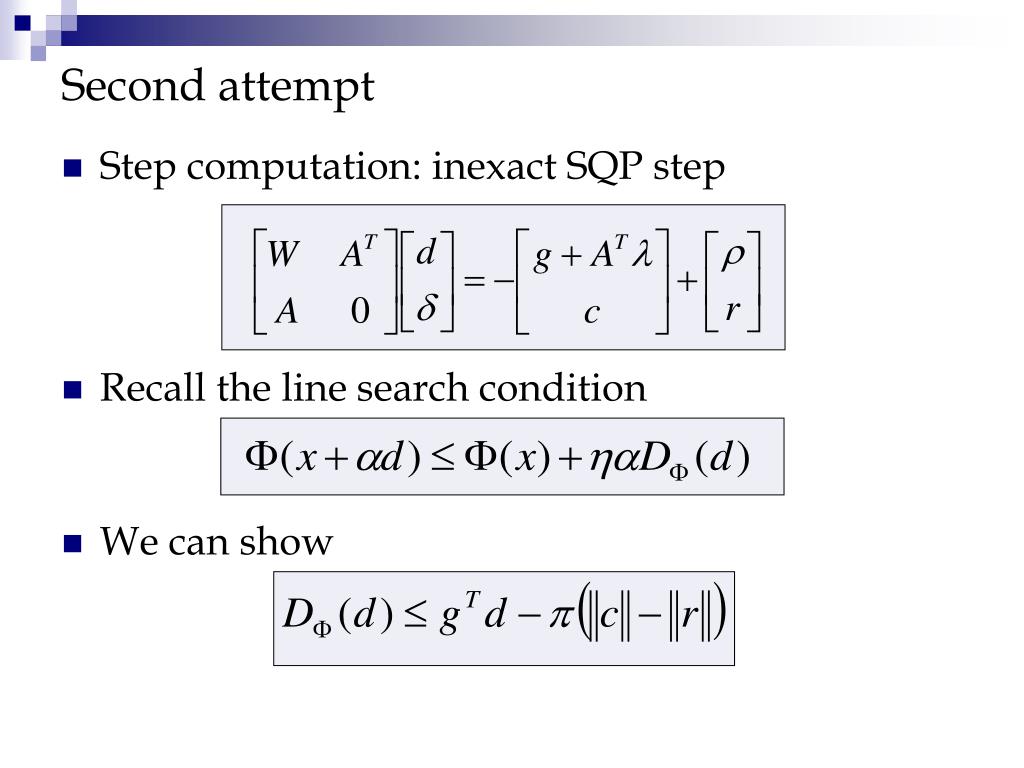

  35. Second attempt • Step computation: inexact SQP step • Recall the line search condition • We can show

  36. Second attempt • Step computation: inexact SQP step • Recall the line search condition • We can show ... but how negative should this be?

  37. Algorithm Outline (exact steps) • for k = 0, 1, 2, … • Compute step • Set penalty parameter to ensure descent • Perform backtracking line search • Update iterate

  38. Algorithm Outline (inexact steps) • for k = 0, 1, 2, … • Compute step and set penalty parameter to ensure descent and a stable algorithm • Perform backtracking line search • Update iterate

  39. Inexact Case

  40. Inexact Case

  41. Inexact Case Step is acceptable if for

  42. Inexact Case Step is acceptable if for

  43. Inexact Case Step is acceptable if for

  44. Algorithm Outline • for k = 0, 1, 2, … • Iteratively solve • Until • Update penalty parameter • Perform backtracking line search • Update iterate or

  45. Termination Test • Observe KKT conditions

  46. Outline • Problem Formulation • Equality constrained optimization • Sequential Quadratic Programming • Inexact Framework • Unconstrained optimization and nonlinear equations • Stopping conditions for linear solver • Global Behavior • Merit function and sufficient decrease • Satisfying first order conditions • Numerical Results • Model inverse problem • Accuracy tradeoffs • Final Remarks • Future work • Negative curvature

  47. Assumptions • The sequence of iterates is contained in a convex set and the following conditions hold: • the objective and constraint functions and their first and second derivatives are bounded • the multiplier estimates are bounded • the constraint Jacobians have full row rank and their smallest singular values are bounded below by a positive constant • the Hessian of the Lagrangian is positive definite with smallest eigenvalue bounded below by a positive constant

  48. Sufficient Reduction to Sufficient Decrease • Taylor expansion of merit function yields • Accepted step satisfies

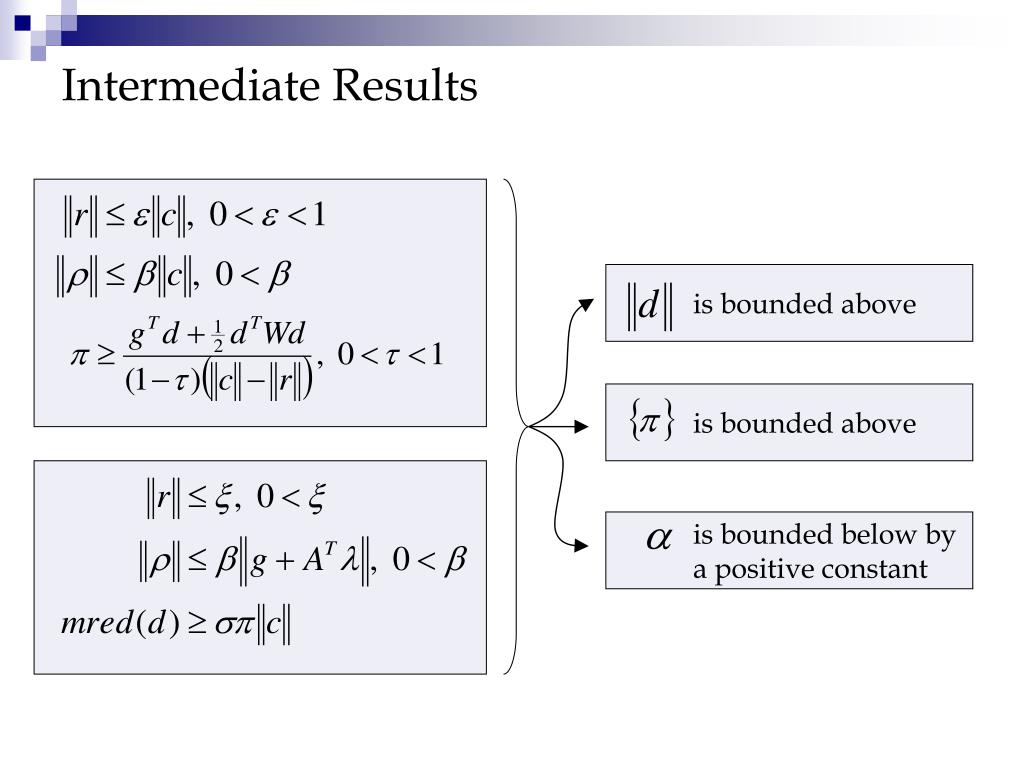

  49. Intermediate Results is bounded above is bounded above is bounded below by a positive constant

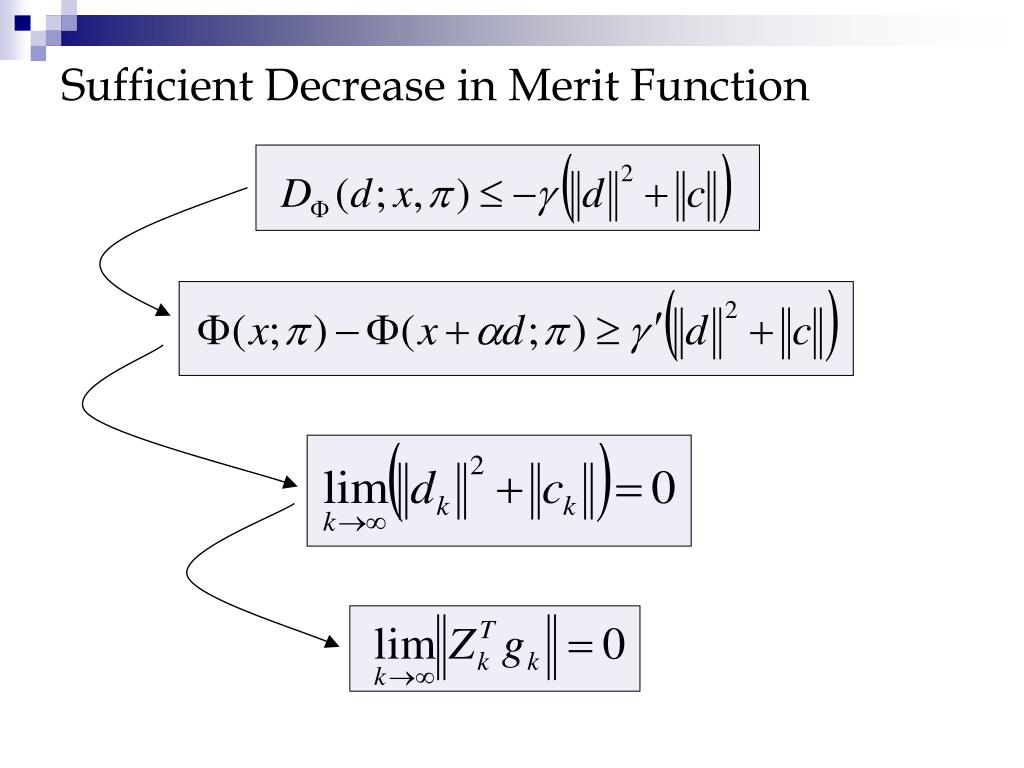

  50. Sufficient Decrease in Merit Function
