  1. 2D Transformation

  2. 2D Transformation • Transformation changes an object’s: • Position (Translation) • Size (Scaling) • Orientation (Rotation) • Shape (Deformation) • Transformation is done by a sequence of matrix operations applied on vertices.

  3. Vector Representation • If we define a 2D vector as: • A transformation in general can be defined as:

  4. Transformation: Translation • Given a position (x, y) and an • offset vector (tx, ty):

  5. Transformation: Translation • To translatethe whole shape:

  6. Transformation: Rotation • Default rotation center: origin

  7. Transformation: Rotation • If We rotate around the origin, • How to rotate a vector (x,y) by an angle of θ? • If we assume:

  8. Transformation: Rotation Before Rotation After Rotation

  9. Transformation: Rotation • To translatethe whole shape:

  10. Transformation: Scaling • Change the object size by a factor of s: (4, 2) (2, 1) s= 2 (-2, -1) (-4, -2)

  11. Transformation: Scaling • But when the object is not center at origin (10, 6) (5, 3) s= 2 (6, 4) (3, 2) (2, 2) (1, 1)

  12. Transformation: Scaling • Isotropic (uniform) scaling • Anistropic (non-uniform) scaling or or

  13. Summary • Translation: • Rotation • Scaling

  14. Summary • Translation: • Rotation • Scaling We use the homogenous coordinate to make sure transformations have the same form.

  15. Why use 3-by-3 matrices? • Transformations now become the consistent. • Represented by as matrix-vector multiplication. • We can stack transformations using matrix multiplications.

  16. Some math… • Two vectors are orthogonal if:

  17. A Quiz

  18. Some math… • A matrix is orthogonal if • and only if:

  19. Some math… • A matrix M is orthogonal if and only if: Diagonal Matrix

  20. Some math… • A vector is normalized if:

  21. Some math… • A matrix is orthonormal • if and only if: Ortho: Normalized:

  22. Some math… • A matrix M is orthonormal if and only if: Identity Matrix

  23. Examples • A 2D rotational matrix is orthonormal: Ortho: Normalized:

  24. Examples • Is a 2D scaling matrix orthonormal? (if sx, sy is not 1) Ortho: Normalized:

  25. Summary 2D Transformation (2-by-2 matrix) 2D Transformation (3-by-3 matrix)

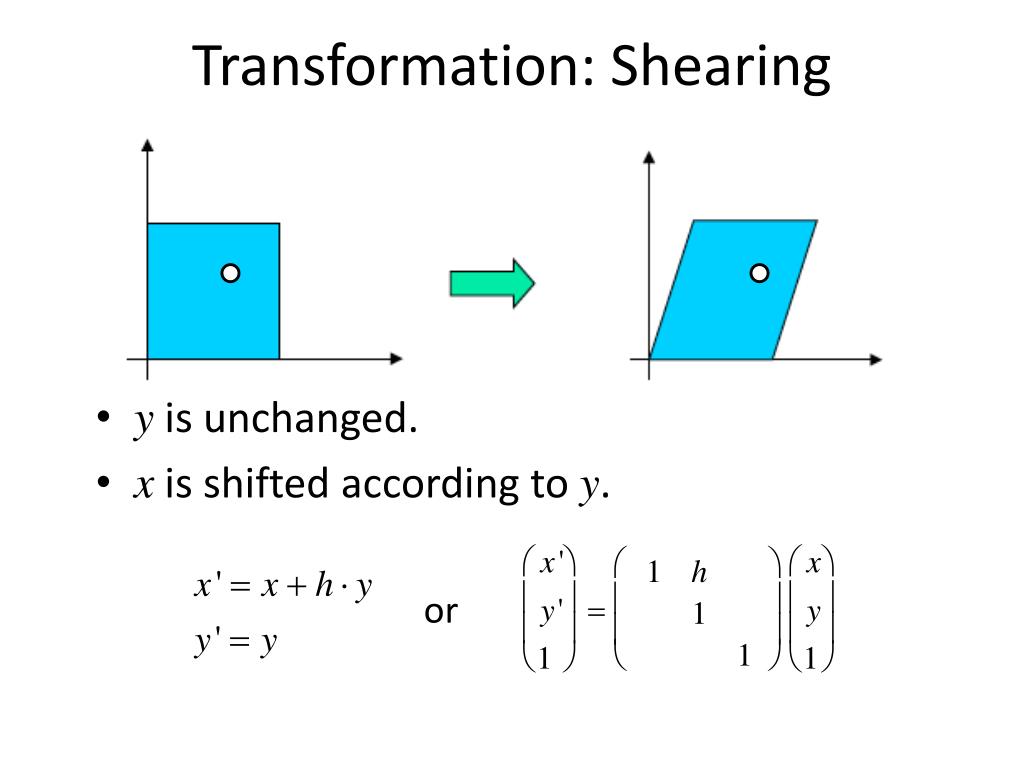

  26. Transformation: Shearing • y is unchanged. • x is shifted according to y. or

  27. Transformation: Shearing or

  28. Facts about shearing • Any 2D rotation matrix can be defined as the multiplication of three shearing matrices. • Shearing doesn’t change the object area. • Shearing can be defined as: • rotation->scaling->rotation

  29. In fact, • Without translation,any 2D transformationmatrix can be defined as: • Rotation->Scaling->rotation Orthonormal Orthonormal Diagonal Singular Value Decomposition (SVD)

  30. Another fact • Same thing when using homogenous coordinates: Orthonormal Orthonormal Diagonal

  31. Conclusion • Translation, rotation, and scaling are three basic transformations. • The combination of these can represent any transformation in 2D. • That’s why OpenGL only defines these three.

  32. Rotation Revisit Rotate about the origin Rotate about any center?

  33. Arbitrary Rotation (ox, oy) = Step 1: Translate (ox, oy) Step 1: Translate (-ox, -oy) Step2: Rotate (θ)

  34. Scaling Revisit (10, 6) (6, 4) (2, 2) (5, 3) (10, 6) (3, 2) (1, 1) (3, 2)

  35. Arbitrary Scaling (ox, oy) = Step 1: Translate (ox, oy) Step 1: Translate (-ox, -oy) Step2: Scale(sx, sy) (ox, oy) can be arbitrary too!

  36. Rigid Transformation • A rigid transformation is: • Rotation and translation are rigid transformation. • Any combination of them is also rigid. Orthonormal Matrix

  37. Affine Transformation • An affine transformation is: • Rotation, scaling, translation are affine transformation. • Any combination of them (e.g., shearing) is also affine. • Any affine transformation can be decomposed into: • Translation->Rotation->Scaling->Rotation (Last) (First)

  38. We can also compose matrix Translation Scaling Rotation Translation M1 M2 M3 M4 v v’ v’ = (M1 (M2(M3 (M4 v)))) v’ = M v

  39. Some Math • Matrix multiplications are associative: • Matrix multiplications are not commutative: • Some exceptions are: • Translation X Translation • Scaling X Scaling • Rotation X Rotation • Uniform scaling X Rotation

  40. For example • Rotation and translationare not commutative: Orders are important!

  41. How OpenGL handles transformation • All OpenGL transformations are in 3D. • We can ignore z-axis to do 2D transformation.

  42. For example • 3D Translation • 2D Translation glTranslatef(tx, ty, tz) glTranslatef(tx, ty, 0)

  43. For example • 3D Rotation • 2D Rotation glTranslatef(angle, axis_x, axis_y, axis_z) glTranslatef(angle, 0, 0, 1) Z-axis (0, 0, 1) to toward you

  44. OpenGL uses two matrices: Each object’s local coordinate ModelView Matrix Each object’s World coordinate For example: Projection Matrix gluOrtho2D(…) Screen coordinate

  45. How OpenGL handles transformation • So you need to let OpenGL know which matrix to transform: • You can reset the matrix as: glMatrixMode(GL_MODELVIEW); glLoadIdentity();

  46. For Example Xcode time!
