Hybrid Protein Model Quality Assessment

Hybrid Protein Model Quality Assessment. Jianlin Cheng Computer Science Department & Informatics Institute University of Missouri, Columbia, MO, USA. MULTICOM-CLUSTER: Automated Hybrid Quality Assessment. 1. Predict the quality of each single CASP8 model. ModelEvaluator. Model.

alexandra
Download Presentation

Hybrid Protein Model Quality Assessment

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Hybrid Protein Model Quality Assessment Jianlin Cheng Computer Science Department & Informatics Institute University of Missouri, Columbia, MO, USA

  2. MULTICOM-CLUSTER: Automated Hybrid Quality Assessment 1. Predict the quality of each single CASP8 model ModelEvaluator Model • Sequence-Based Prediction: • Secondary Structure • Solvent Accessibility • Contact Map 2. Select top 5 ranked models as references Matching Scores 3. Compare each model with reference models –> average global quality Support Vector Machine 4. Superimpose each model with reference models -> local quality Predicted GDT-TS score

  3. MULTICOM-CLUSTER: Automated Hybrid Quality Assessment 1. Predict the quality of each single CASP8 model 2. Select top 5 ranked models as references 3. Compare each model with reference models –> average global quality 4. Superpose each model with reference models -> local quality . . .

  4. MULTICOM-CLUSTER: Automated Hybrid Quality Assessment TM-Score 1. Predict the quality of each single CASP8 model A V E R A G E 2. Select top 5 ranked models as references 3. Compare each model with reference models –> average global quality 4. Superpose each model with reference models -> local quality . . .

  5. MULTICOM-CLUSTER: Automated Hybrid Quality Assessment 1. Predict the quality of each single CASP8 model Calculate Distance 2. Select top 5 models as references 3. Compare each model with reference models –> average global quality 4. Superpose each model with reference models -> local quality

  6. MULTICOM: Human Hybrid Quality Assessment 1. Predict the quality of each single CASP8 model Meta Analysis • Download CASP8 QA predictions • Calculate average predicted quality score of each model • Rank models by average scores 2. Select top 5 models as references 3. Compare each model with reference models –> average global quality 4. Superpose each model with reference models -> local quality

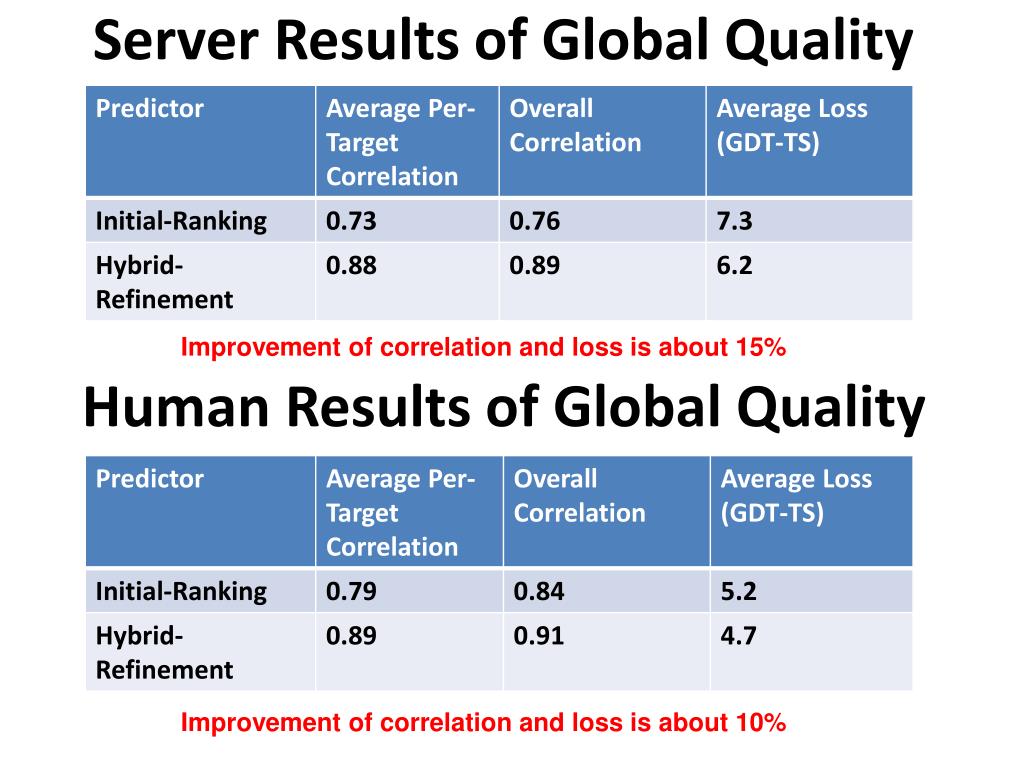

  7. Server Results of Global Quality Improvement of correlation and loss is about 15% Human Results of Global Quality Improvement of correlation and loss is about 10%

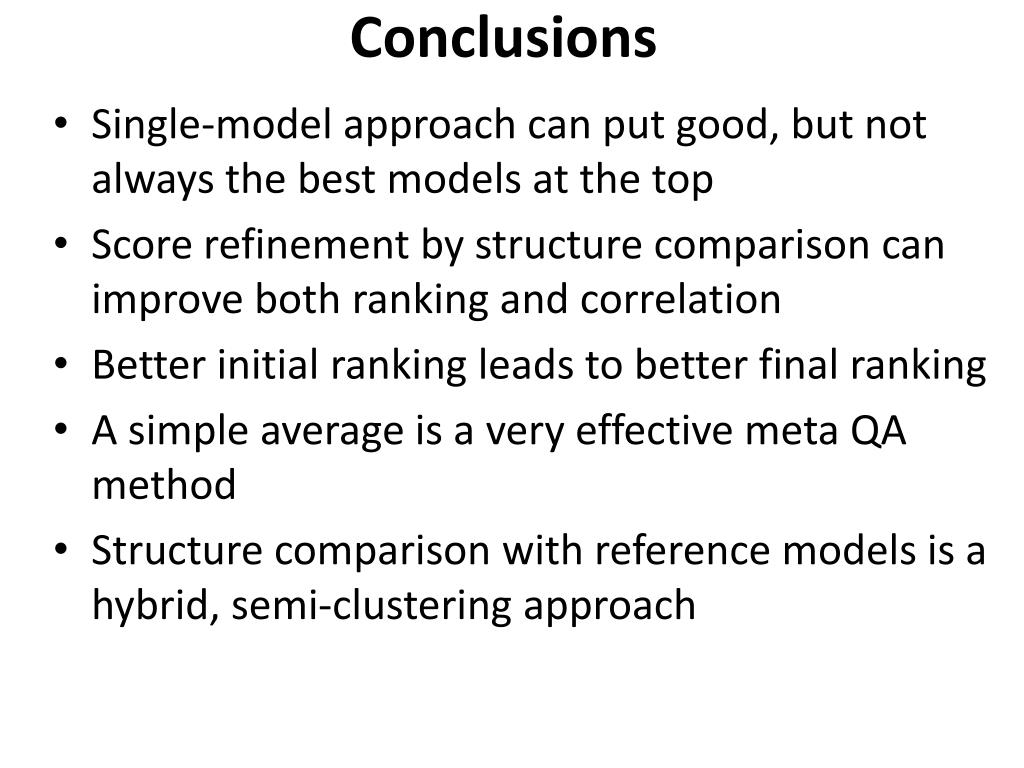

  8. Conclusions • Single-model approach can put good, but not always the best models at the top • Score refinement by structure comparison can improve both ranking and correlation • Better initial ranking leads to better final ranking • A simple average is a very effective meta QA method • Structure comparison with reference models is a hybrid, semi-clustering approach

  9. Acknowledgements • CASP8 organizers and assessors • CASP8 participants • MU colleagues: Dong Xu, Toni Kazic • My group: Zheng Wang Allison Tegge Xin Deng
