  1. Bottleneck Routing Games on Grids Costas Busch RajgopalKannan Alfred Samman Department of Computer Science Louisiana State University

  2. Talk Outline Introduction Basic Game Channel Game Extensions

  3. 2-d Grid: nodes • Used in: • Multiprocessor architectures • Wireless mesh networks • can be extended to d-dimensions

  4. Each player corresponds to a pair of source-destination Edge Congestion Bottleneck Congestion:

  5. A player may selfishly choose an alternative path with better congestion Player Congestion Player Congestion: Maximum edge congestion along its path

  6. Routing is a collection of paths, one path for each player Utility function for player : congestion of selected path Social cost for routing : bottleneck congestion

  7. We are interested in Nash Equilibriums where every player is locally optimal Metrics of equilibrium quality: Price of Stability Price of Anarchy is optimal coordinated routing with smallest social cost

  8. number of dimension changes plus source and destination Bends :

  9. Basic congestion games on grids Price of Stability: Price of Anarchy: even with constant bends

  10. Better bounds with bends Channel games: Path segments are separated according to length range Price of anarchy: Optimal solution uses at most bends

  11. There is a (non-game) routing algorithm with bends and approximation ratio Optimal solution uses arbitrary number of bends Final price of anarchy:

  12. Solution without channels: Split Games channels are implemented implicitly in space Similar poly-log price of anarchy bounds

  13. Some related work: Price of Anarchy Definition Koutsoupias, Papadimitriou [STACS’99] Price of Anarchy for sum of congestion utilities [JACM’02] Arbitrary Bottleneck games [INFOCOM’06], [TCS’09]: Price of Anarchy NP-hardness

  14. Talk Outline Introduction Basic Game Channel Game Extensions

  15. Stability is proven through a potential function defined over routing vectors: number of players with congestion

  16. In best response dynamics a player move improves lexicographically the routing vector Player Congestion

  17. Before greedy move After greedy move

  18. Existence of Nash Equilibriums Greedy moves give lower order routings Eventually a local minimum for every player is reached which is a Nash Equilibrium

  19. Price of Stability Lowest order routing : • Is a Nash Equilibrium • Achieves optimal social cost

  20. Price of Anarchy Optimal solution Nash Equilibrium High! Price of anarchy:

  21. Talk Outline Introduction Basic Game Channel Game Extensions

  22. channels Channel holds path segments of length in range: Row:

  23. different channels same channel Congestion occurs only with path segments in same channel

  24. Consider an arbitrary Nash Equilibrium Path of player maximum congestion in path

  25. In optimal routing : Optimal path of player must have a special edge with congestion Since otherwise:

  26. In Nash Equilibrium social cost is:

  27. First expansion Special Edges in optimal paths of

  28. First expansion

  29. Second expansion Special Edges in optimal paths of

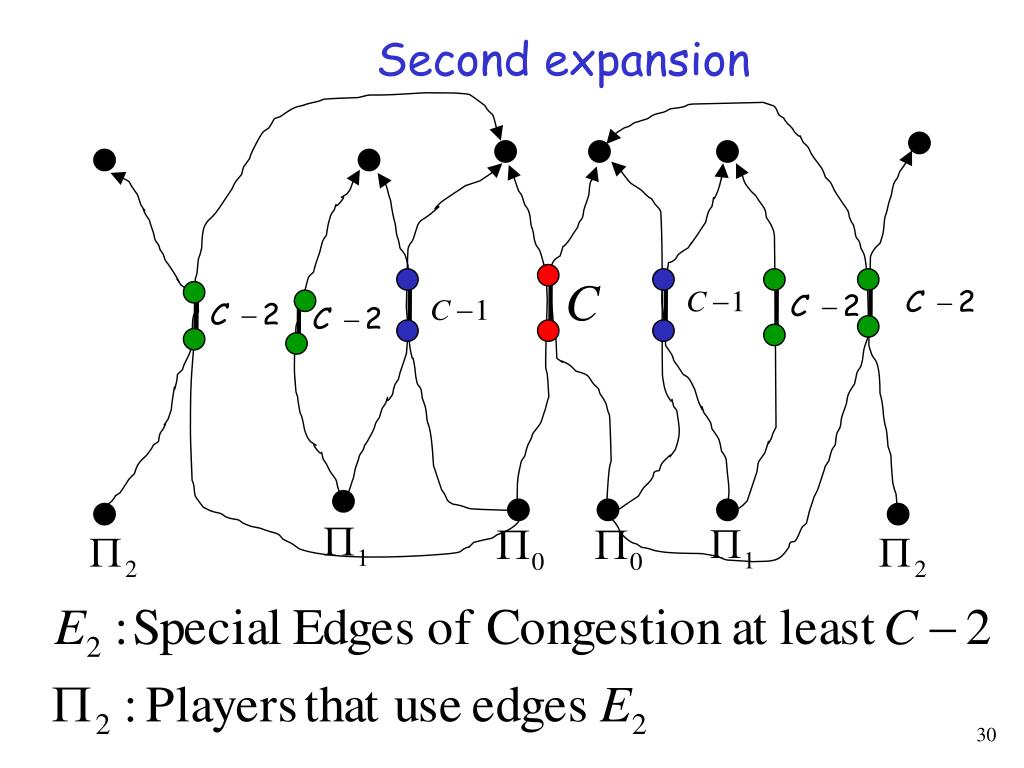

  30. Second expansion

  31. In a similar way we can define: We obtain expansion sequences:

  32. Redefine expansion:

  33. If then constant k Contradiction

  34. Therefore: Price of anarchy:

  35. Tightness of Price of Anarchy Nash Equilibrium Optimal solution Price of anarchy:

  36. Talk Outline Introduction Basic Game Channel Game Extensions

  37. Split game Price of anarchy:

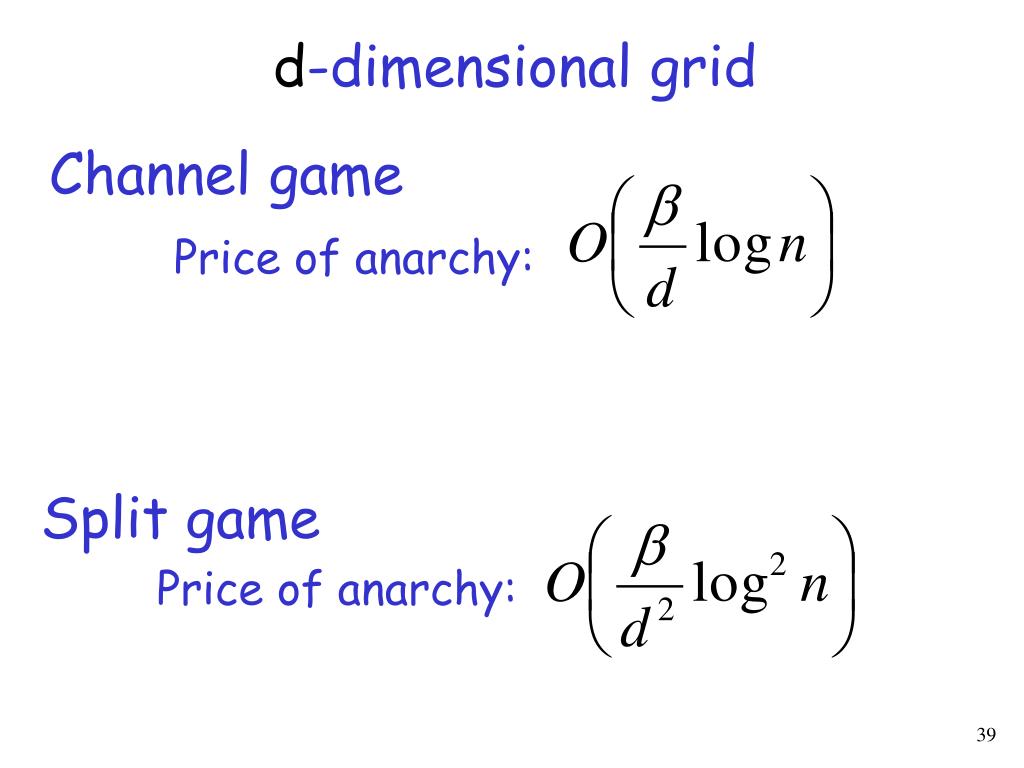

  38. d-dimensional grid Channel game Price of anarchy: Split game Price of anarchy:
