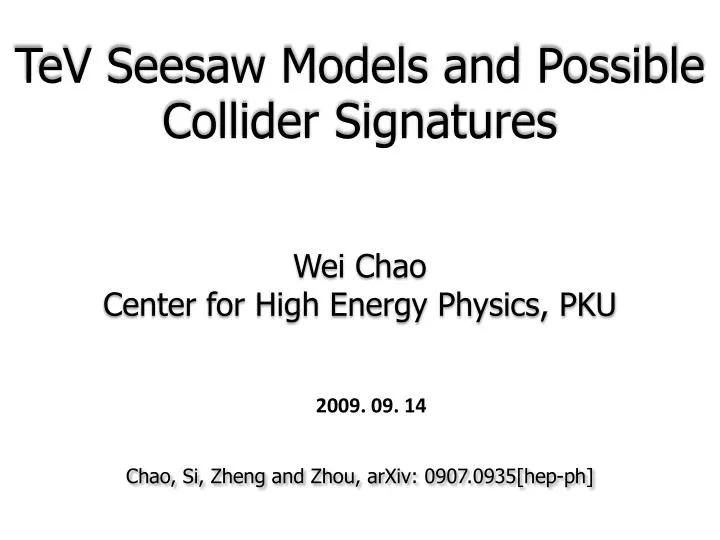

1. TeV Seesaw Models and Possible Collider Signatures Wei Chao Center for High Energy Physics, PKU 2009. 09. 14 Chao, Si, Zheng and Zhou, arXiv: 0907.0935[hep-ph]

2. “Grand unified” neutrino spectrum in the universe

3. p, He … , K    Evidence for neutrino oscillation （Ashieet al., PRL 04）  oscillation decay decoherence Confirmed by K2Kand MINOS.

4. Evidence for Neutrino Oscillations Confirmed by KamLAND

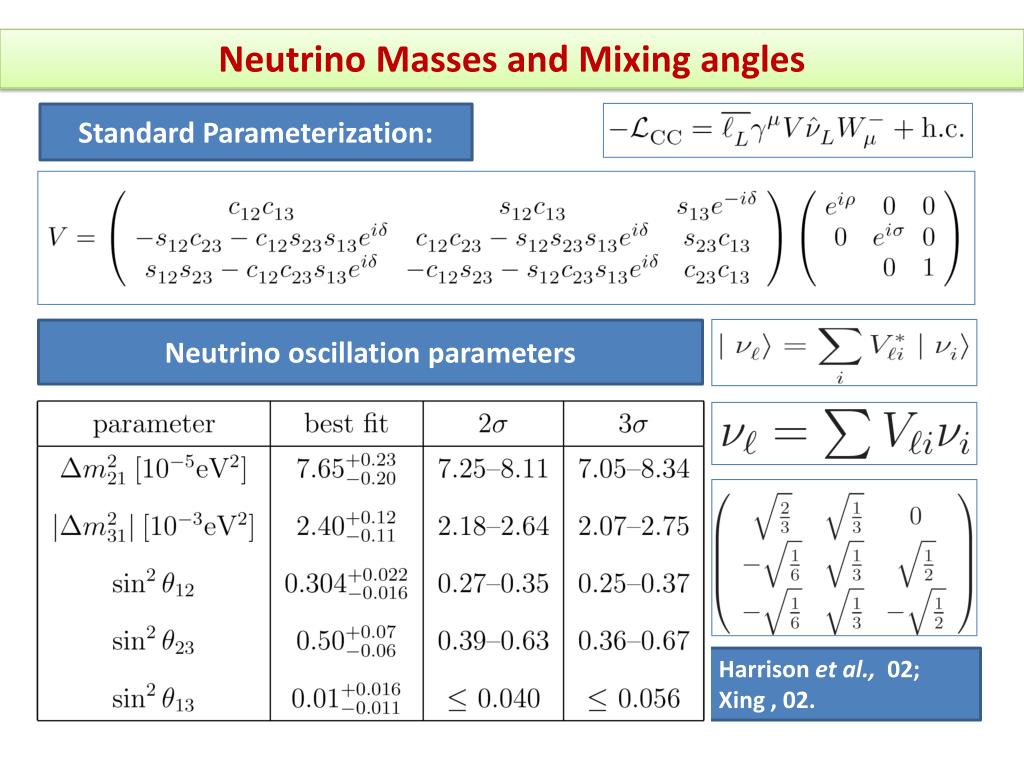

5. Neutrino Masses and Mixing angles Standard Parameterization: Neutrino oscillation parameters Harrison et al., 02; Xing , 02.

6. Neutrino mass models • Masses for Charged Fermions: • Higgs Mechanism; • Yukawa Interactions. • No right-handed neutrinos; • Only one Higgs doublet; • No non-renormalizable terms. • Mν=0； • Global U(1)3 flavor symmetry: Le, Lμ，Lτ .

7. Dirac VS Majorana Extra dimension Seesaw mechanism;radiativecorrections. Conserve L ; violate Le ，Lμ，Lτ. Violate L， Le ，Lμ，Lτ。

8. Radiative corrections Singly charged scalar singlet + scalar doublet Babu（88） Zee（80） Two scalar singlets Ma （98） Higgs doublet + right-handed Majorana neutrinos + Z2

9. Seesaw mechanisms SU(2)LFermion singlet Minkowski（77） SU(2)L scalar triplet Magg， Wetterich（80） SU(2) Lfermion triplet Foot，Lew， He，Joshi（89）

10. Integrating out heavy Particles ν mass term Kinematic term NC • Non-unitary • Zero-distance effect • New CP-violating phases CC

11. TeV Seesaw Models: 1. natural one Inverse seesaw model: SM+6 gauge singlets Full Lagrangian The only term that breaks lepton number explicitly; when μ=0 the lepton number is conserved . Light Neutrino mass matrix:

12. Charged current interactions: Effective lepton mixing matrix: Scale of unitarity violation: Dirac neutrinos when μ=0: Pseudo-Dirac neutrinos: Collider Signatures for heavy particles: √ ×

13. TeV Seesaw Models: 2. unnatural one Dirac neutrino mass matrix and masses of heavy Majorana neutrinos have the following relationship: Buchmueller, Greub（91）… Mν=0 at the tree level Non-zero neutrino masses come from perturbative effects or one loop radiative corrections:

14. Conventional type-I seesaw TeV –scale seesaw model 1015 GeV 1 TeV 10-2 eV 10-2 eV 100 GeV 100 GeV Unitarity violation for MNS matrix:10-2 Unitarity violation for MNS matrix:10-26 Big enough

15. A realistic TeV-scale seesaw model SM + I Higgs triplet + 2 right-handed Majorana neutrinos: Conventional type-I seesaw mechanism （1） 0 + small Conventional type I+II seesaw mechanism （2） small + small Similar to type-II seesaw mechanism （3） small + 0 Type-II term : responsible for generating neutrino masses Type-I term: totally structure cancellation leading to appreciable collider signatures Big numbers cancellation （4） big — big

16. Symmetry of the model: Flavor symmetry Full Lagrangian

17. Mass Matrix for charged leptons: Neutrino mass matrices:

18. In assumption that v1=v2=v3, charged lepton mass matrix can be written as Setting u1=u3=0: Neutrino masses:

19. Collider Signatures for heavy Majorana neutrinos σ∝ |R|4, highly suppressed σ∝ |R|2 ·BR, N Produced on resonance • Two heavy Majorana neutrinos !

20. Numerical results 3•2 complex matrix R can be parameterized by 6 rotation angles and 6 phases ---Xing, PLB 2008 Antush, et al JHEP 06 A typical input : |R ei|2=1.25 ×10-7; |Rμi|2=|RƮi|2=5 ×10-3

24. Concluding remarks • A mini review on neutrino mass models. • A realistic TeV scale seesaw model is proposed. • Collider signatures of heavy Majorana neutrinos • are discussed. • Further work is necessary to construct a natural • and testable neutrino mass model. 谢谢
