  1. CPSC 533 Reinforcement Learning Paul Melenchuk Eva Wong Winson Yuen Kenneth Wong

  2. Outline • Introduction • Passive Learning in an Known Environment • Passive Learning in an Unknown Environment • Active Learning in an Unknown Environment • Exploration • Learning an Action Value Function • Generalization in Reinforcement Learning • Genetic Algorithms and Evolutionary Programming • Conclusion • Glossary

  3. Introduction In which we examine how an agent can learn from success and failure, reward and punishment.

  4. Introduction • Learning to ride a bicycle: • The goal given to the Reinforcement Learning system is simply to ride the bicycle without falling over • Begins riding the bicycle and performs a series of actions that result in the bicycle being tilted 45 degrees to the right Photo:http://www.roanoke.com/outdoors/bikepages/bikerattler.html

  5. Introduction • Learning to ride a bicycle: • RL system turns the handle bars to the LEFT • Result: CRASH!!! • Receives negative reinforcement • RL system turns the handle bars to the RIGHT • Result: CRASH!!! • Receives negative reinforcement

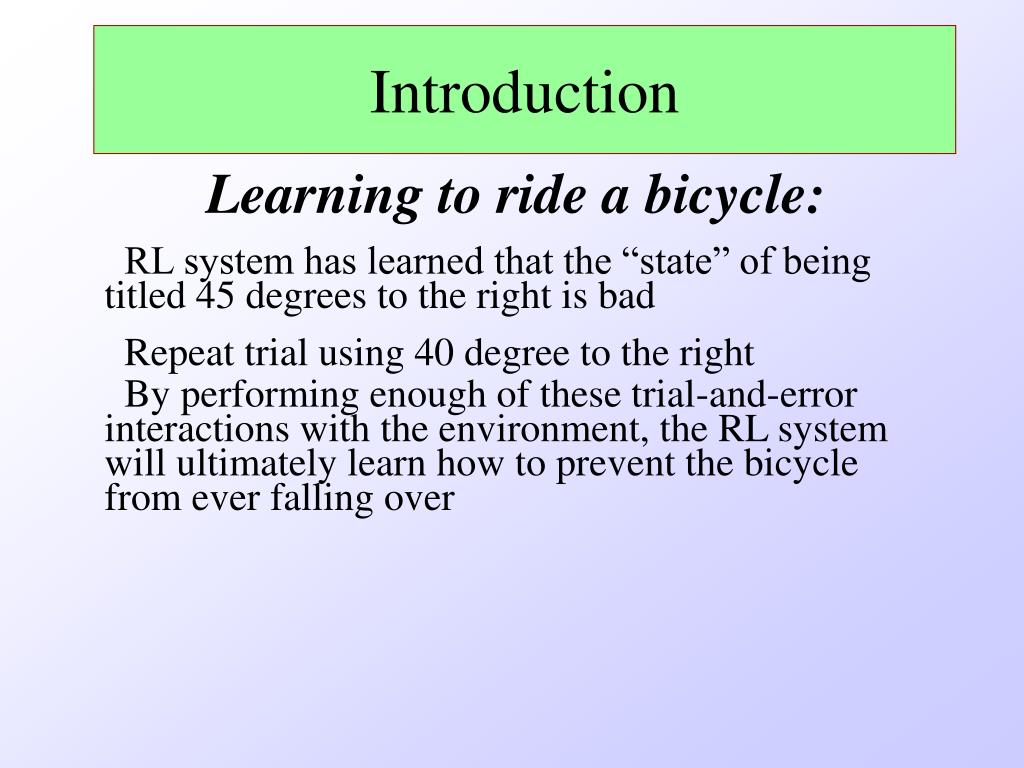

  6. Introduction • Learning to ride a bicycle: • RL system has learned that the “state” of being titled 45 degrees to the right is bad • Repeat trial using 40 degree to the right • By performing enough of these trial-and-error interactions with the environment, the RL system will ultimately learn how to prevent the bicycle from ever falling over

  7. Passive Learning in a Known Environment Passive Learner: A passive learner simply watches the world going by, and tries to learn the utility of being in various states. Another way to think of a passive learner is as an agent with a fixed policy trying to determine its benefits.

  8. Passive Learning in a Known Environment In passive learning, the environment generates state transitions and the agent perceives them. Consider an agent trying to learn the utilities of the states shown below:

  9. Passive Learning in a Known Environment • Agent can move {North, East, South, West} • Terminate on reading [4,2] or [4,3]

  10. Passive Learning in a Known Environment Agent is provided: Mi j =a model given the probability of reaching from state i to state j

  11. Passive Learning in a Known Environment • the object is to use this information about rewards to learn the expected utility U(i) associated with each nonterminal state i • Utilities can be learned using 3 approaches • 1) LMS (least mean squares) • 2) ADP (adaptive dynamic programming) • 3) TD (temporal difference learning)

  12. Passive Learning in a Known Environment LMS (Least Mean Squares) Agent makes random runs (sequences of random moves) through environment [1,1]->[1,2]->[1,3]->[2,3]->[3,3]->[4,3] = +1 [1,1]->[2,1]->[3,1]->[3,2]->[4,2] = -1

  13. Passive Learning in a Known Environment • LMS • Collect statistics on final payoff for each state • (eg. when on [2,3], how often reached +1 vs -1 ?) • Learner computes average for each state • Provably converges to • true expected value (utilities) • (Algorithm on page 602, Figure 20.3)

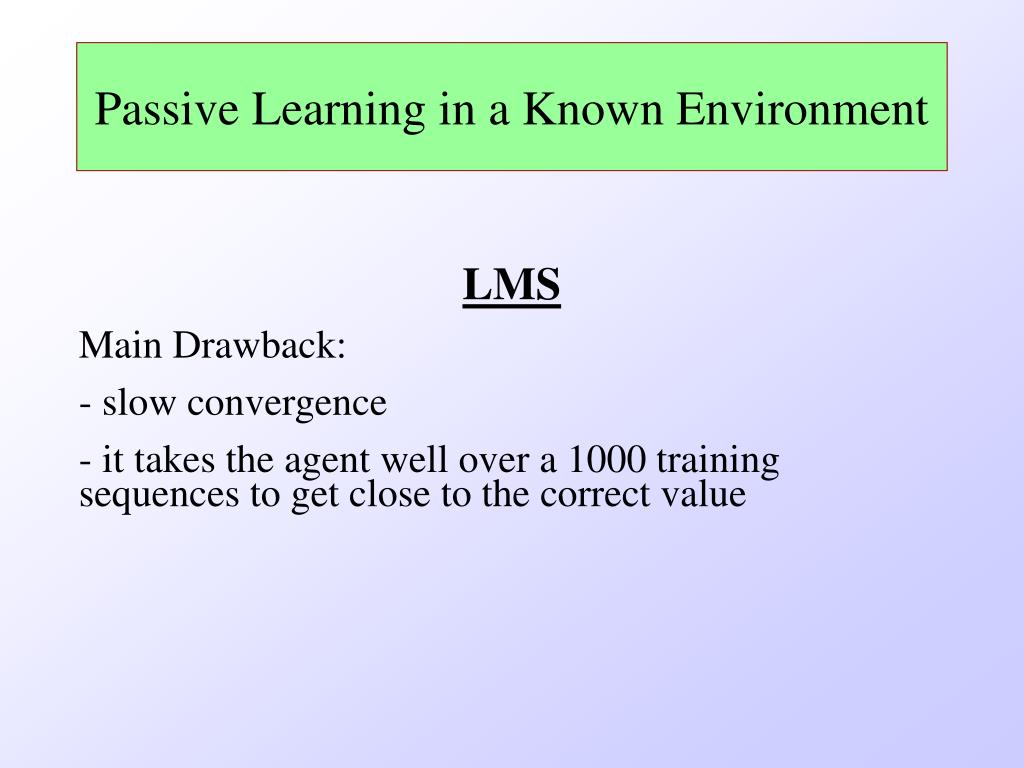

  14. Passive Learning in a Known Environment LMS Main Drawback: - slow convergence - it takes the agent well over a 1000 training sequences to get close to the correct value

  15. Passive Learning in a Known Environment ADP (Adaptive Dynamic Programming) Uses the value or policy iteration algorithm to calculate exact utilities of states given an estimated model

  16. Passive Learning in a Known Environment ADP In general: - R(i) is reward of being in state i (often non zero for only a few end states) - Mij is the probability of transition from state i to j

  17. Passive Learning in a Known Environment ADP • Consider U(3,3) • U(3,3) = 0.33 x U(4,3) + 0.33 x U(2,3) + 0.33 x U(3,2) • = 0.33 x 1.0 + 0.33 x 0.0886 + 0.33 x -0.4430 • = 0.2152

  18. Passive Learning in a Known Environment • ADP • makes optimal use of the local constraints on utilities of states imposed by the neighborhood structure of the environment • somewhat intractable for large state spaces

  19. Passive Learning in a Known Environment TD (Temporal Difference Learning) The key is to use the observed transitions to adjust the values of the observed states so that they agree with the constraint equations

  20. Passive Learning in a Known Environment • TD Learning • Suppose we observe a transition from state i to state j U(i) = -0.5 and U(j) = +0.5 • Suggests that we should increase U(i) to make it agree better with it successor • Can be achieved using the following updating rule

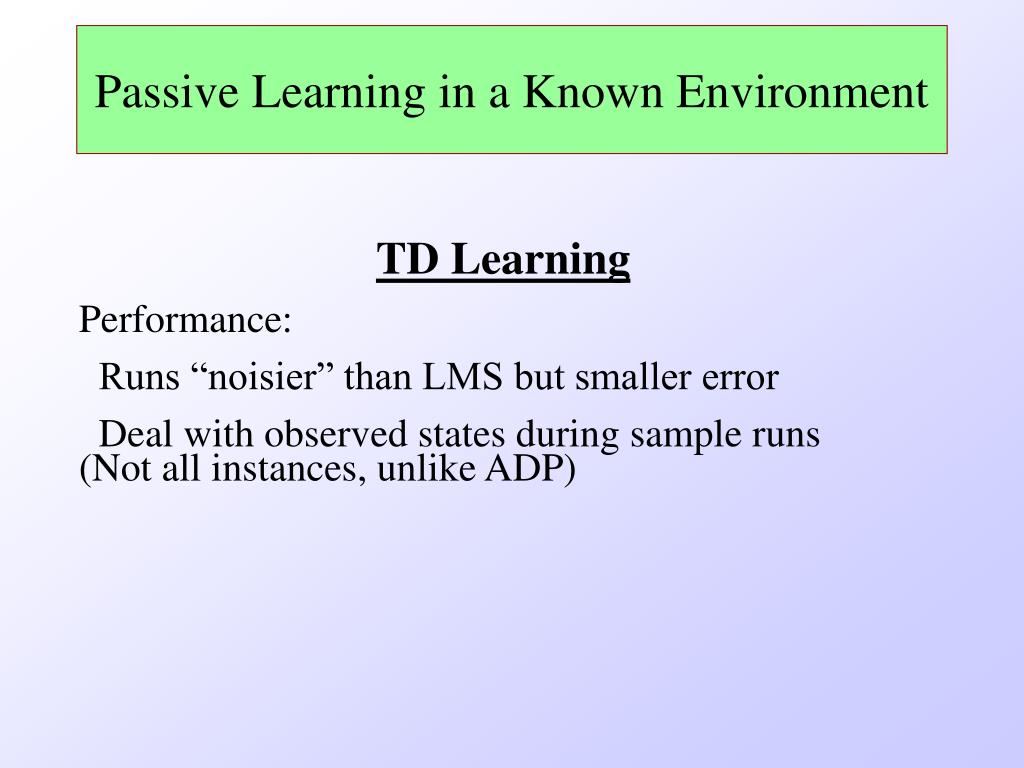

  21. Passive Learning in a Known Environment • TD Learning • Performance: • Runs “noisier” than LMS but smaller error • Deal with observed states during sample runs (Not all instances, unlike ADP)

  22. Passive Learning in an Unknown Environment Least Mean Square(LMS) approach and Temporal-Difference(TD) approach operate unchanged in an initially unknown environment. Adaptive Dynamic Programming(ADP) approach adds a step that updates an estimated model of the environment.

  23. Passive Learning in an Unknown Environment ADP Approach • The environment model is learned by direct observation of transitions • The environment model M can be updated by keeping track of the percentage of times each state transitions to each of its neighbors

  24. Passive Learning in an Unknown Environment ADP & TD Approaches • The ADP approach and the TD approach are closely related • Both try to make local adjustments to the utility estimates in order to make each state “agree” with its successors

  25. Passive Learning in an Unknown Environment Minor differences : • TD adjusts a state to agree with its observed successor • ADP adjusts the state to agree with all of the successors Important differences : • TD makes a single adjustment per observed transition • ADP makes as many adjustments as it needs to restore consistency between the utility estimates U and the environment model M

  26. Passive Learning in an Unknown Environment To make ADP more efficient : • directly approximate the algorithm for value iteration or policy iteration • prioritized-sweeping heuristic makes adjustments to states whose likely successors have just undergone a large adjustment in their own utility estimates Advantage of the approximate ADP : • efficient in terms of computation • eliminate long value iterations occur in early stage

  27. Active Learning in an Unknown Environment An active agent must consider : • what actions to take • what their outcomes may be • how they will affect the rewards received

  28. Active Learning in an Unknown Environment Minor changes to passive learning agent : • environment model now incorporates the probabilities of transitions to other states given a particular action • maximize its expected utility • agent needs a performance element to choose an action at each step

  29. Active Learning in an Unknown Environment Active ADP Approach • need to learn the probability Maij of a transition instead of Mij • the input to the function will include the action taken

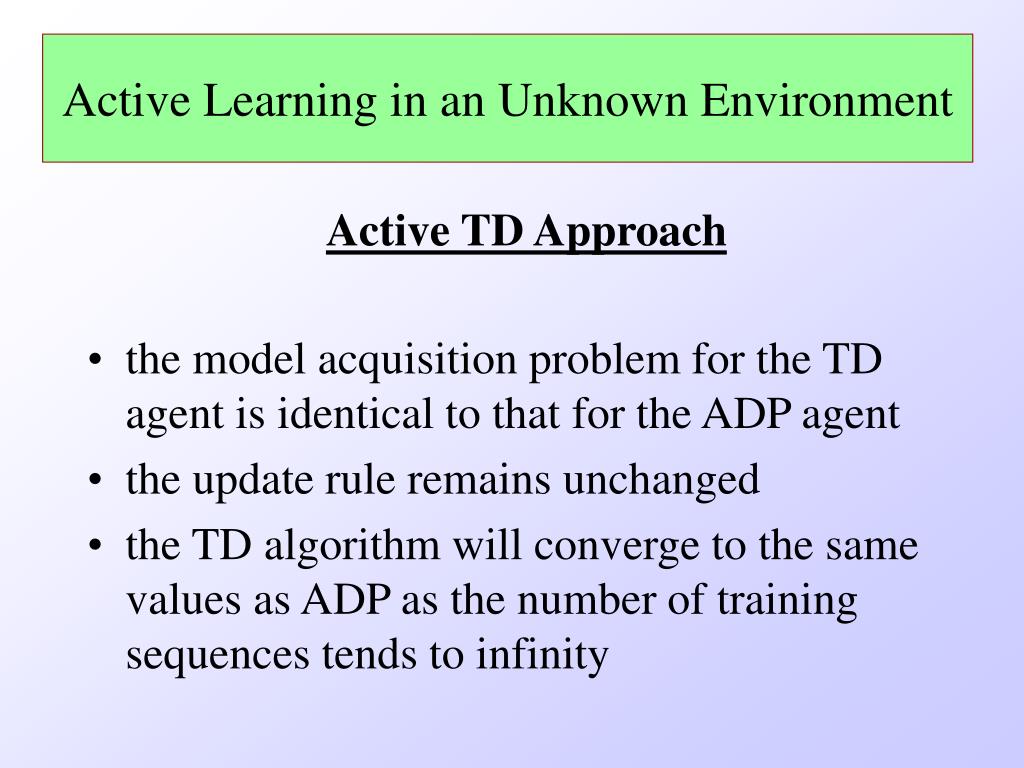

  30. Active Learning in an Unknown Environment Active TD Approach • the model acquisition problem for the TD agent is identical to that for the ADP agent • the update rule remains unchanged • the TD algorithm will converge to the same values as ADP as the number of training sequences tends to infinity

  31. Exploration Learning also involves the exploration of unknown areas Photo:http://www.duke.edu/~icheese/cgeorge.html

  32. Exploration • An agent can benefit from actions in 2 ways • immediate rewards • received percepts

  33. Exploration Wacky Approach Vs. Greedy Approach -0.038 0.089 0.215 -0.443 -0.165 -0.418 -0.544 -0.772

  34. Exploration The Bandit Problem Photos: www.freetravel.net

  35. Exploration The Exploration Function a simple example u= expected utility (greed) n= number of times actions have been tried(wacky) R+ = best reward possible

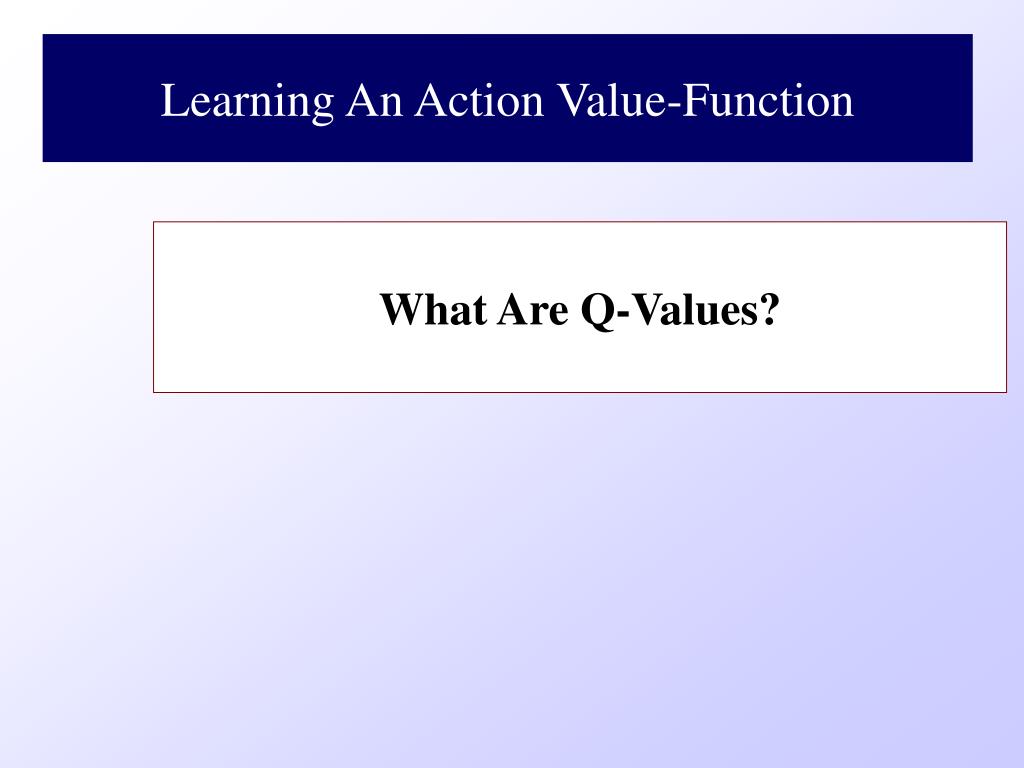

  36. Learning An Action Value-Function What Are Q-Values?

  37. Learning An Action Value-Function The Q-Values Formula

  38. Learning An Action Value-Function The Q-Values Formula Application -just an adaptation of the active learning equation

  39. Learning An Action Value-Function The TD Q-Learning Update Equation - requires no model - calculated after each transition from state .i to j

  40. Learning An Action Value-Function The TD Q-Learning Update Equation in Practice The TD-Gammon System(Tesauro) Program:Neurogammon - attempted to learn from self-play and implicit representation

  41. Generalization In Reinforcement Learning Explicit Representation • we have assumed that all the functions learned by the agents(U,M,R,Q) are represented in tabular form • explicit representation involves one output value for each input tuple.

  42. Generalization In Reinforcement Learning Explicit Representation • good for small state spaces, but the time to convergence and the time per iteration increase rapidly as the space gets larger • it may be possible to handle 10,000 states or more • this suffices for 2-dimensional, maze-like environments

  43. Generalization In Reinforcement Learning Explicit Representation • Problem: more realistic worlds are out of question • eg. Chess & backgammon are tiny subsets of the real world, yet their state spaces contain on the order of 10 to 10 states. So it would be absurd to suppose that one must visit all these states in order to learn how to play the game. 120 50

  44. Generalization In Reinforcement Learning Implicit Representation • Overcome the explicit problem • a form that allows one to calculate the output for any input, but that is much more compact than the tabular form.

  45. Generalization In Reinforcement Learning Implicit Representation • For example , an estimated utility function for game playing can be represented as a weighted linear function of a set of board features f1………fn: U(i) = w1f1(i)+w2f2(i)+….+wnfn(i)

  46. Generalization In Reinforcement Learning Implicit Representation • The utility function is characterized by n weights. • A typical chess evaluation function might only have 10 weights, so this is enormous compression

  47. Generalization In Reinforcement Learning Implicit Representation • enormous compression : achieved by an implicit representation allows the learning agents to generalize from states it has visited to states it has not visited • the most important aspect : it allows for inductive generalization over input states. • Therefore, such method are said to perform input generalization

  48. Mendel is a four-legged spider-like creature • he has goals and desires, rather than instructions • through trial and error, he programs himself to satisfy those desires • he is born not even knowing how to walk, and he has to learn to identify all of the deadly things in his environment • he has two basic drives; move and avoid pain (negative reinforcement) Game-playing : Galapagos

  49. player has no direct control over Mendel • player turns various objects on and off and activates devices in order to guide him • player has to let Mendel die a few times, otherwise he’ll never learn • each death proves to be a valuable lesson as the more experienced Mendel begins to avoid the things that cause him pain Developer : Anark Software. Game-playing :Galapagos

  50. Generalization In Reinforcement Learning Input Generalisation • The cart pole problem: • set up the problem of balancing a long pole upright on the top of a moving cart.
