  1. Upscaling of Geocellular Models for Flow Simulation Louis J. Durlofsky Department of Petroleum Engineering, Stanford University ChevronTexaco ETC, San Ramon, CA

  2. Acknowledgments • Yuguang Chen (Stanford University) • Mathieu Prevost (now at Total) • Xian-Huan Wen (ChevronTexaco) • Yalchin Efendiev (Texas A&M) (photo by Eric Flodin)

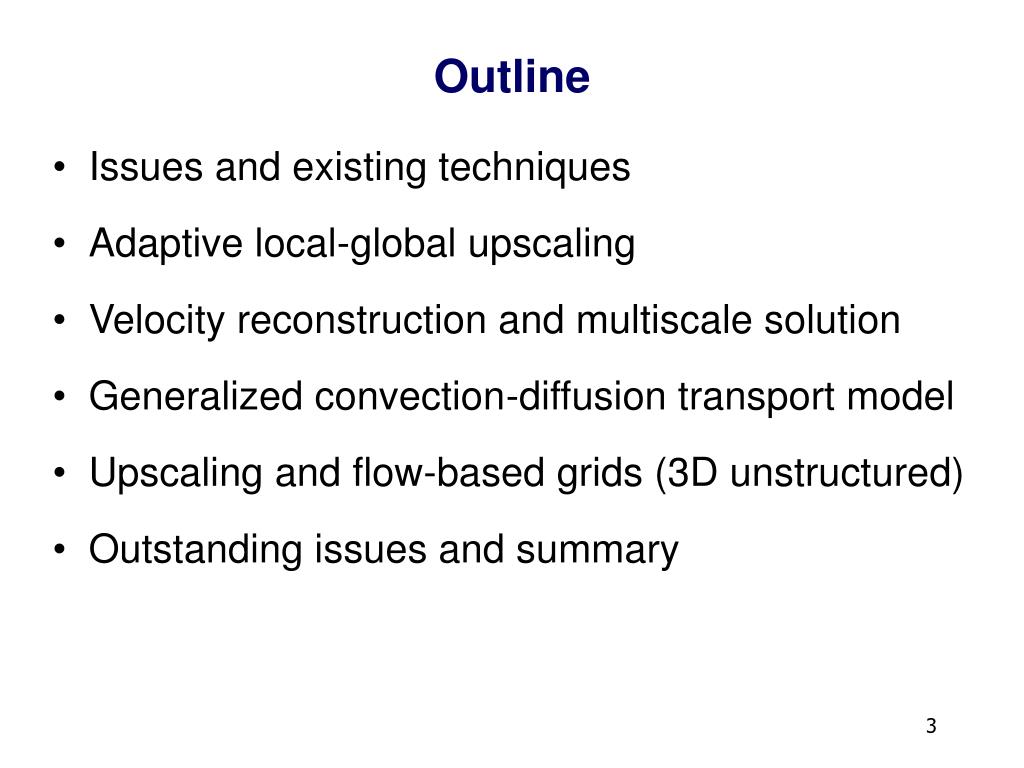

  3. Outline • Issues and existing techniques • Adaptive local-global upscaling • Velocity reconstruction and multiscale solution • Generalized convection-diffusion transport model • Upscaling and flow-based grids (3D unstructured) • Outstanding issues and summary

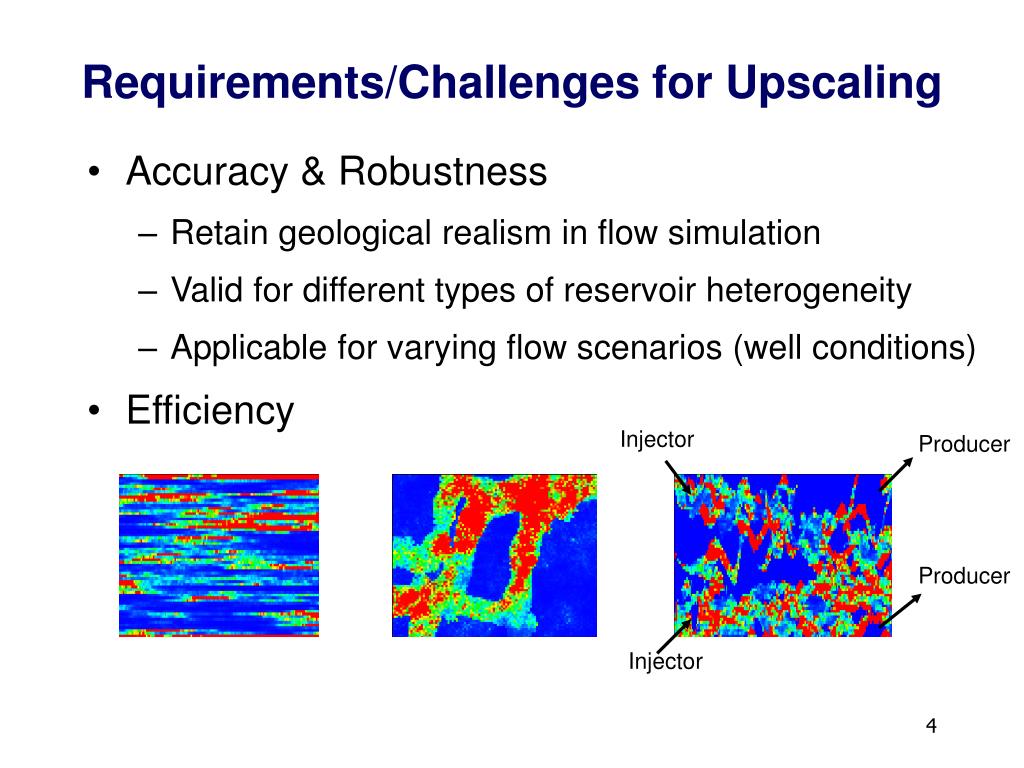

  4. Requirements/Challenges for Upscaling Injector Producer Producer Injector • Accuracy & Robustness • Retain geological realism in flow simulation • Valid for different types of reservoir heterogeneity • Applicable for varying flow scenarios (well conditions) • Efficiency

  5. Existing Upscaling Techniques • Single-phase upscaling: flow(Q /p) • Local and global techniques (kk* or T*) • Multiphase upscaling: transport(oil cut) • Pseudo relative permeability model (krjkrj*) • “Multiscale” modeling • Upscaling of flow (pressure equation) • Fine scale solution of transport (saturation equation)

  6. Local Upscaling to Calculate k* • Local BCs assumed: constant pressure difference • Insufficient for capturing large-scale connectivity in highly heterogeneous reservoirs or Local Extended Local Solve (kp)=0 over local region for coarse scale k * or T* Global domain

  7. A New Approach Adaptive Local-Global Upscaling • New approach uses global coarse scalesolutions to determine appropriate boundary conditions for localk* or T* calculations • Efficiently captures effects of large scale flow • Avoids global fine scale simulation • Standard local upscaling methods unsuitable for highly heterogeneous reservoirs • Global upscaling methods exist, but require global fine scalesolutions (single-phase) and optimization

  8. Adaptive Local-Global Upscaling (ALG) Local fine scale calculation Local fine scale calculation Coarse pressure Coarse pressure Interpolated pressure gives Local BCs Interpolated pressure gives local BCs Coarse scale properties k* or T* and upscaled well index • Thresholding: Local calculations only in high-flow regions (computational efficiency) Well-driven global coarse flow y x

  9. Thresholding in ALG |qc| |qc|max Regions for Local calculations • Avoids nonphysical coarse scale properties (T *=q c/pc) • Coarse scale properties efficiently adapted to a given flow scenario Permeability Streamlines Coarse blocks • Identify high-flow region, >  (  0.1)

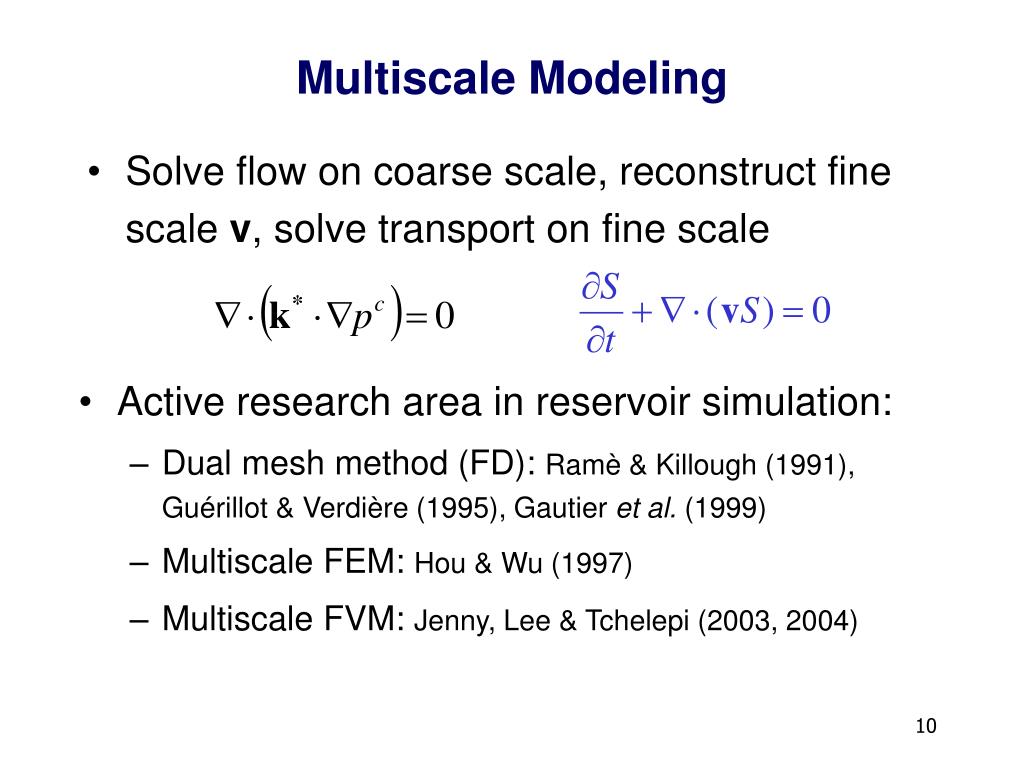

  10. Multiscale Modeling • Solve flow on coarse scale, reconstruct fine scale v, solve transport on fine scale • Active research area in reservoir simulation: • Dual mesh method (FD): Ramè & Killough (1991), Guérillot & Verdière (1995), Gautier et al. (1999) • Multiscale FEM: Hou & Wu (1997) • Multiscale FVM: Jenny, Lee & Tchelepi (2003, 2004)

  11. Reconstruction of Fine Scale Velocity Partition coarse flux to fine scale Solve local fine scale (kp)=0 Upscaling, global coarse scale flow Reconstructed fine scale v (downscaling) • Readily performed in upscaling framework

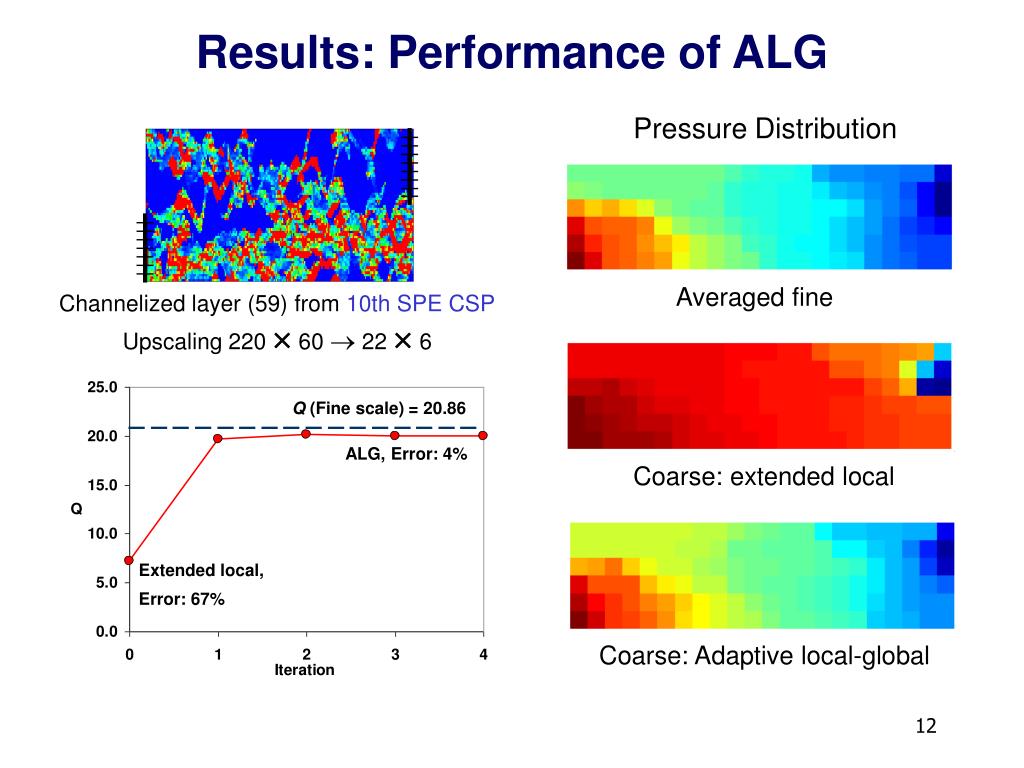

  12. Results: Performance of ALG Pressure Distribution Averaged fine Q (Fine scale) = 20.86 ALG, Error: 4% Coarse: extended local Extended local, Error: 67% Coarse: Adaptive local-global Channelized layer (59) from 10th SPE CSP Upscaling 220 60  22 6 Flow rate for specified pressure • Fine scale:Q =20.86 • Extended T*: Q = 7.17 • ALG upscaling: Q = 20.01

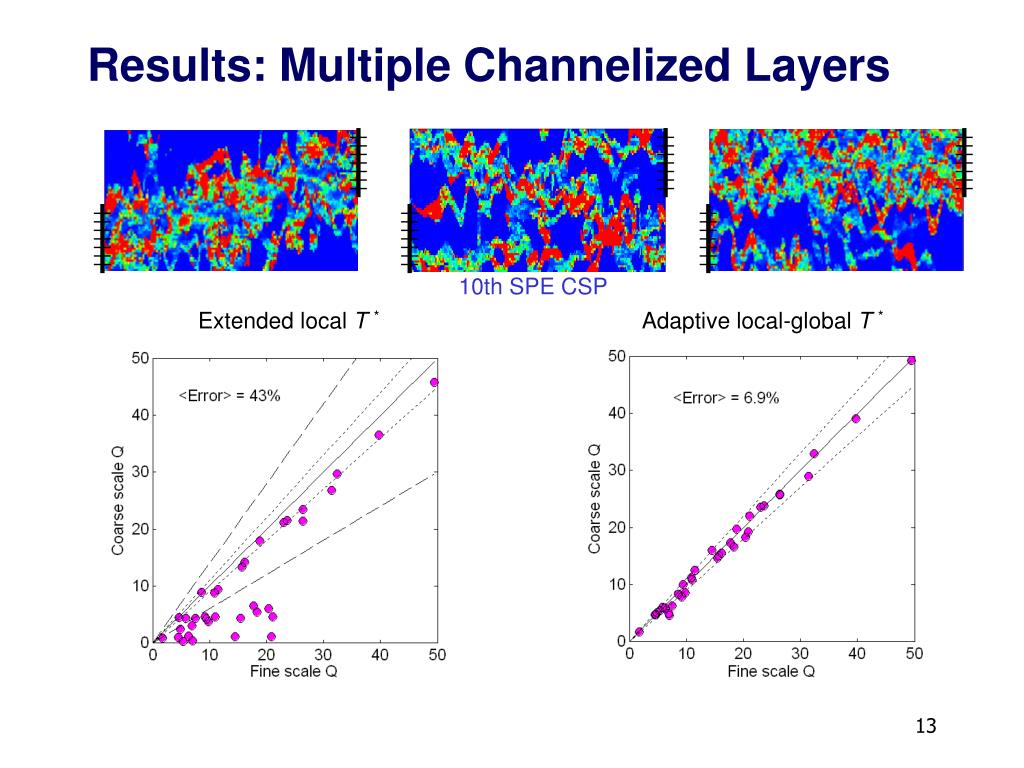

  13. Results: Multiple Channelized Layers Extended local T* Adaptive local-global T* 10th SPE CSP

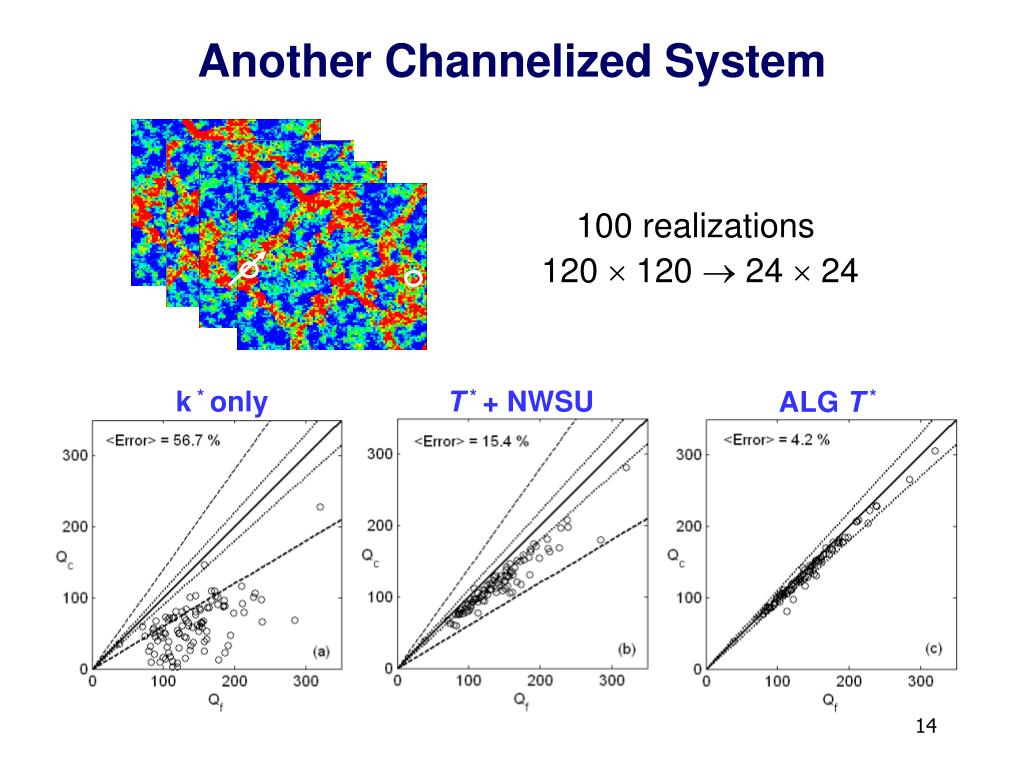

  14. Another Channelized System 100 realizations 120  120  24  24 k* only T* + NWSU ALG T*

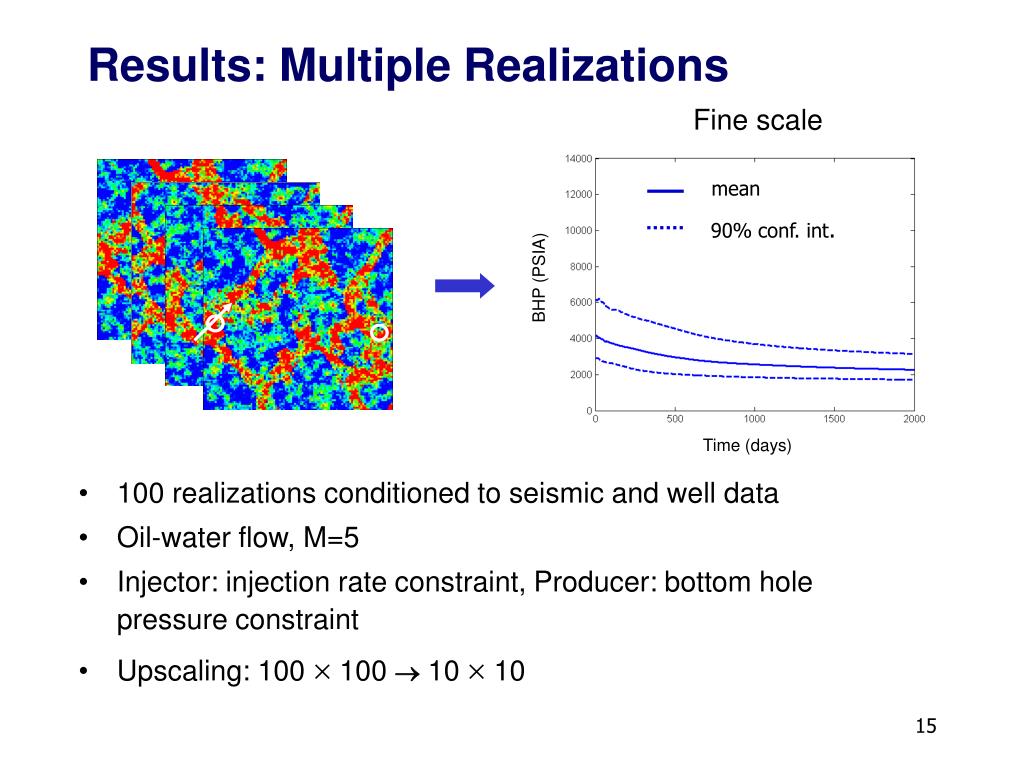

  15. Results: Multiple Realizations 100 realizations mean 90% conf. int. Fine scale • 100 realizations conditioned to seismic and well data • Oil-water flow, M=5 • Injector: injection rate constraint, Producer: bottom hole pressure constraint • Upscaling: 100  100  10  10 BHP (PSIA) Time (days)

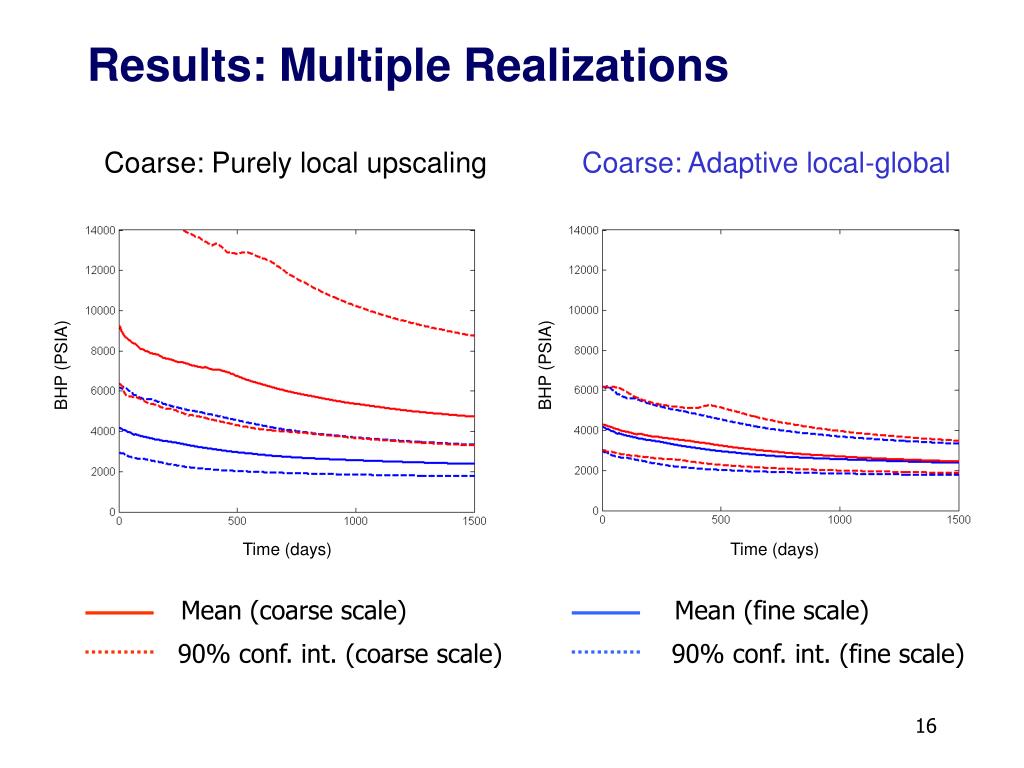

  16. Results: Multiple Realizations BHP (PSIA) BHP (PSIA) Time (days) Time (days) Coarse: Purely local upscaling Coarse: Adaptive local-global Mean(coarse scale) Mean (fine scale) 90% conf. int. (coarse scale) 90% conf. int. (fine scale)

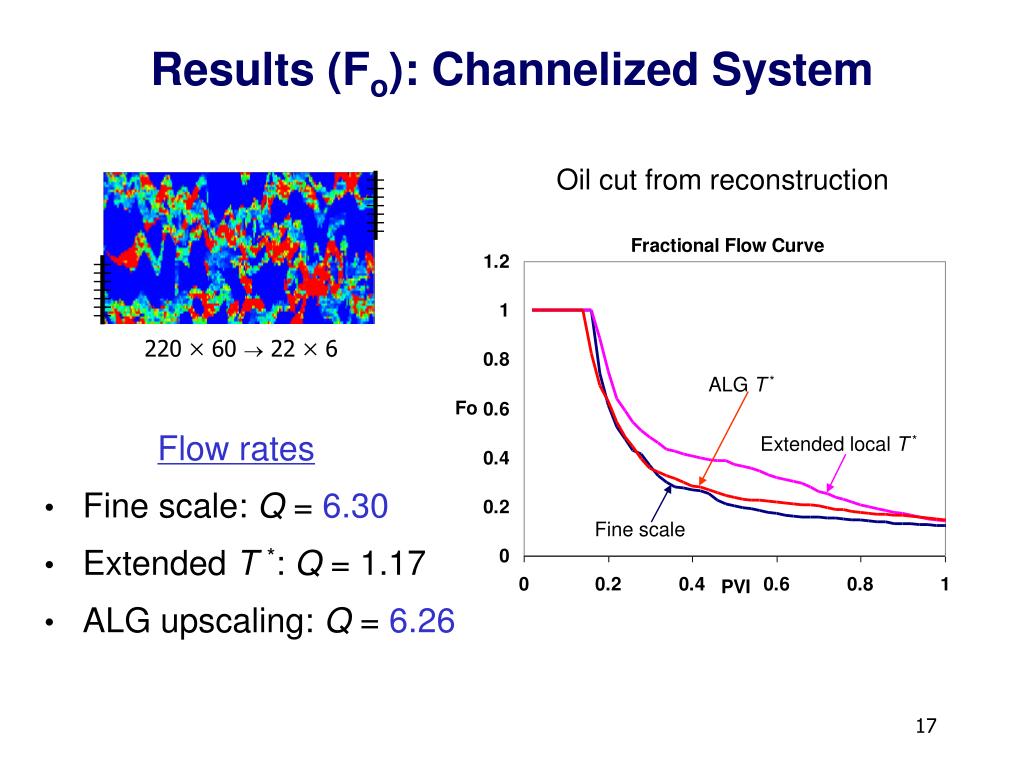

  17. Results (Fo): Channelized System Oil cut from reconstruction 220  60  22  6 ALG T* Flow rates • Fine scale:Q =6.30 • Extended T*: Q = 1.17 • ALG upscaling: Q = 6.26 Extended local T* Fine scale

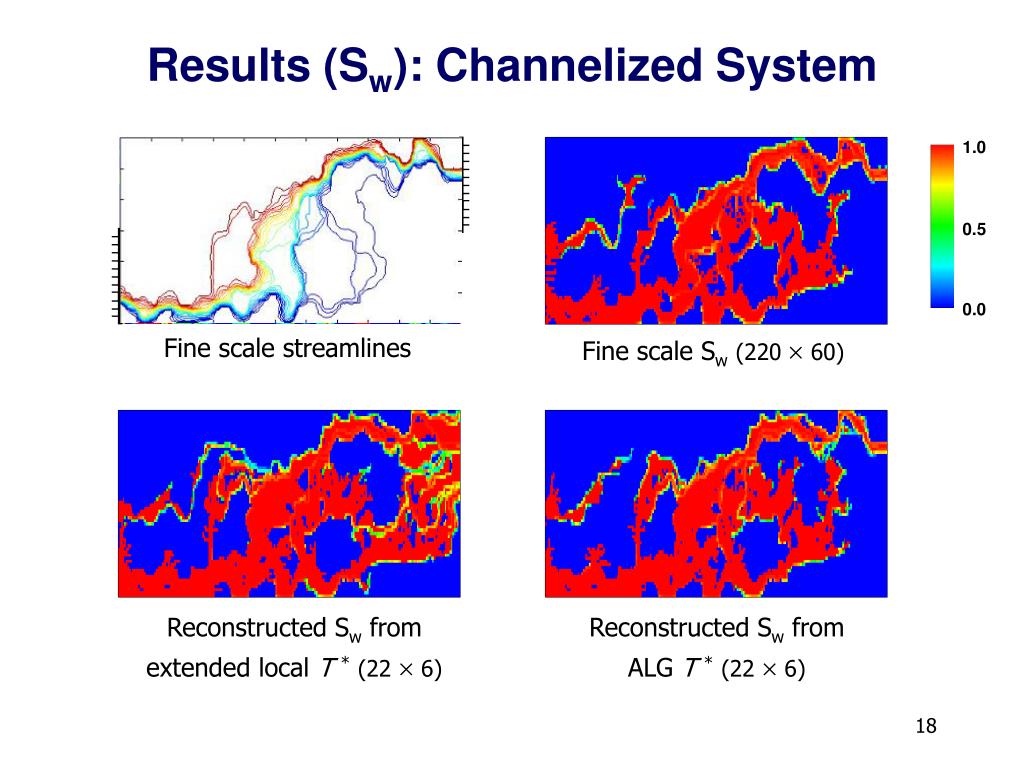

  18. Results (Sw): Channelized System Fine scale streamlines ReconstructedSwfrom ALG T *(22  6) 1.0 0.5 0.0 Fine scale Sw(220 60) ReconstructedSwfrom extended local T *(22  6)

  19. Results for 3D Systems (SPE 10) 50 channelized layers, 3 wells pinj=1, pprod=0 Typical layers Upscale from 6022050  124410 using different methods

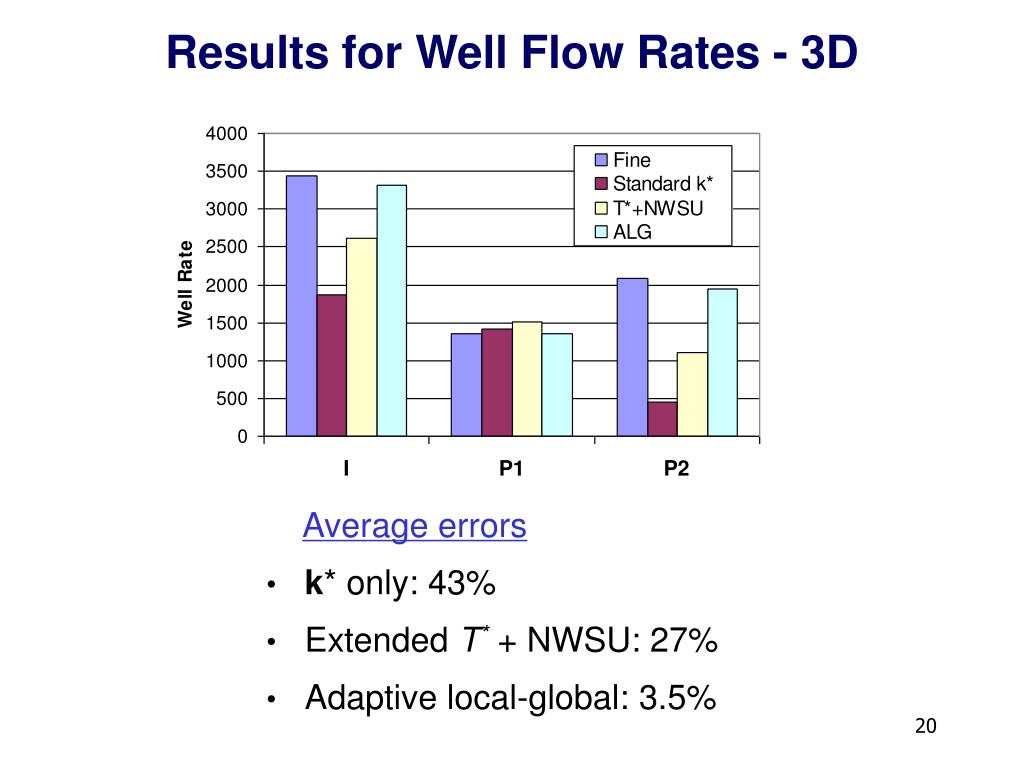

  20. Results for Well Flow Rates - 3D Average errors • k* only: 43% • Extended T* + NWSU: 27% • Adaptive local-global: 3.5%

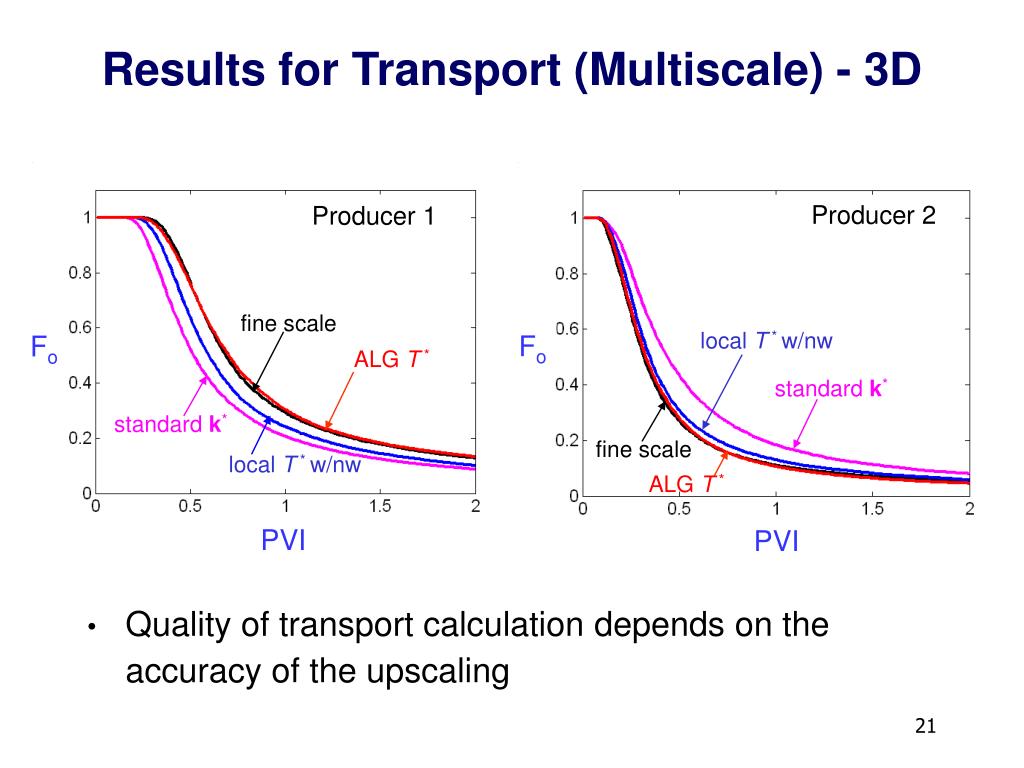

  21. Results for Transport (Multiscale) - 3D Producer 1 Producer 2 fine scale local T* w/nw Fo Fo ALG T* standard k* standard k* fine scale local T* w/nw ALG T* PVI PVI • Quality of transport calculation depends on the accuracy of the upscaling

  22. Velocity Reconstruction versus Subgrid Modeling • Multiscale methods carry fine and coarse grid information over the entire simulation • Subgrid modeling methods capture effects of fine grid velocity via upscaled transport functions: • - Pseudoization techniques • - Modeling of higher moments • - Generalized convection-diffusion model

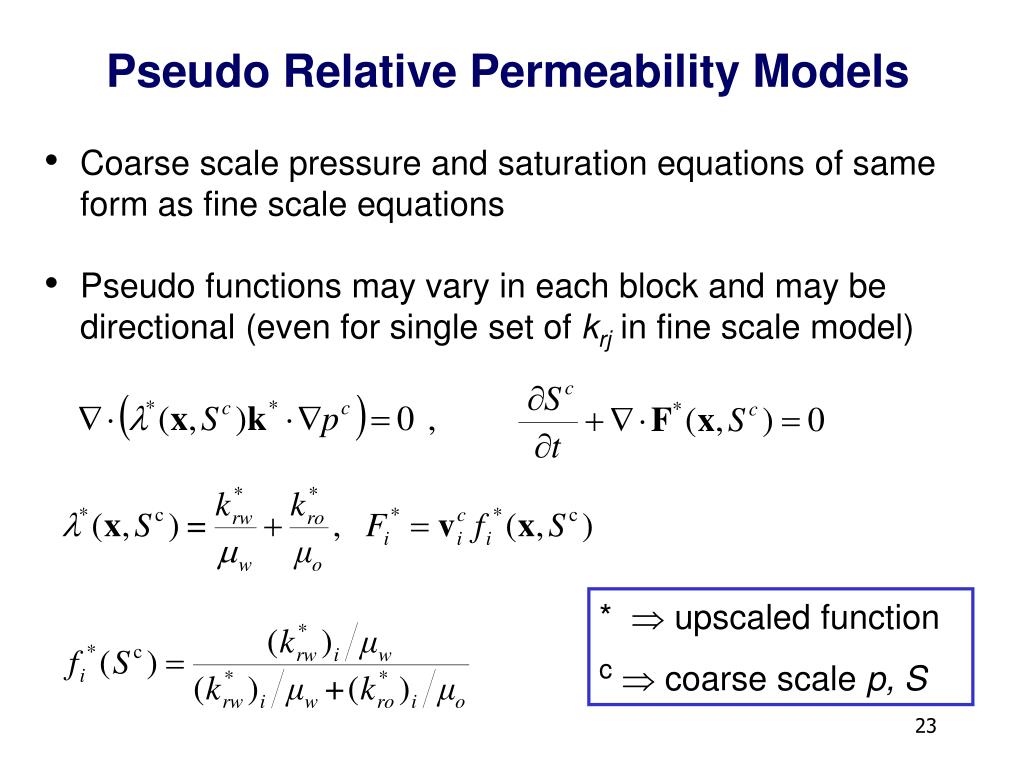

  23. Pseudo Relative Permeability Models • Coarse scale pressure and saturation equations of same form as fine scale equations • Pseudo functions may vary in each block and may be directional (even for single set of krj in fine scale model) *  upscaled function c coarse scale p, S

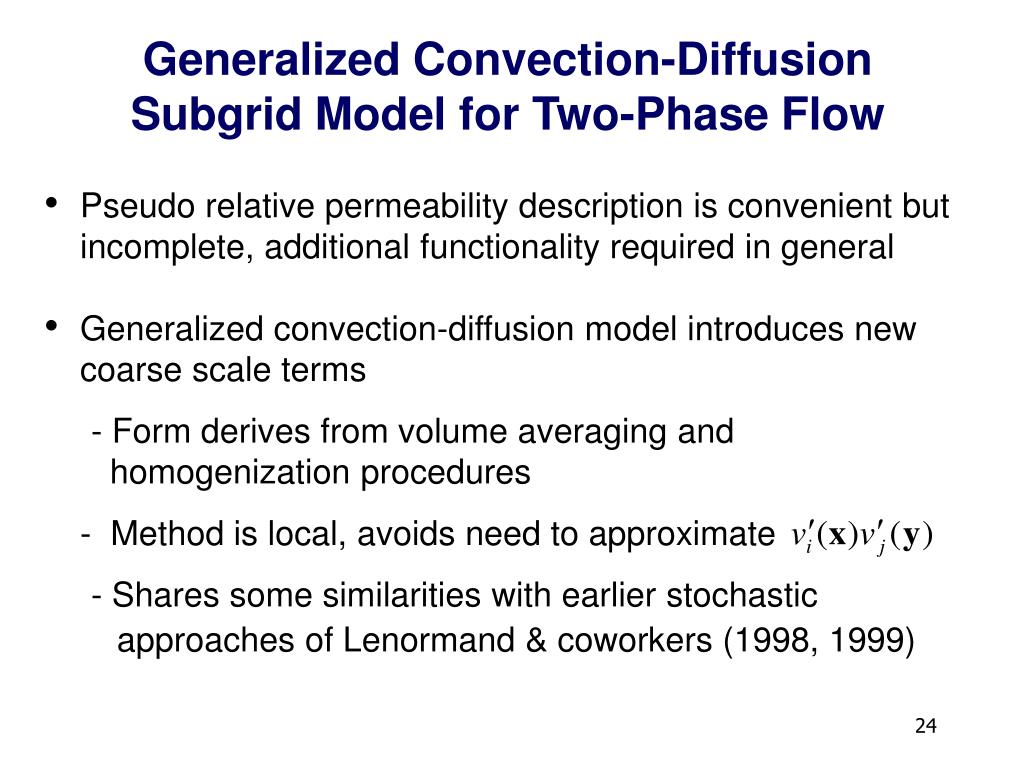

  24. Generalized Convection-Diffusion Subgrid Model for Two-Phase Flow • Pseudo relative permeability description is convenient but incomplete, additional functionality required in general • Generalized convection-diffusion model introduces new coarse scale terms • - Form derives from volume averaging and • homogenization procedures • - Method is local, avoids need to approximate • - Shares some similarities with earlier stochastic • approaches of Lenormand & coworkers (1998, 1999)

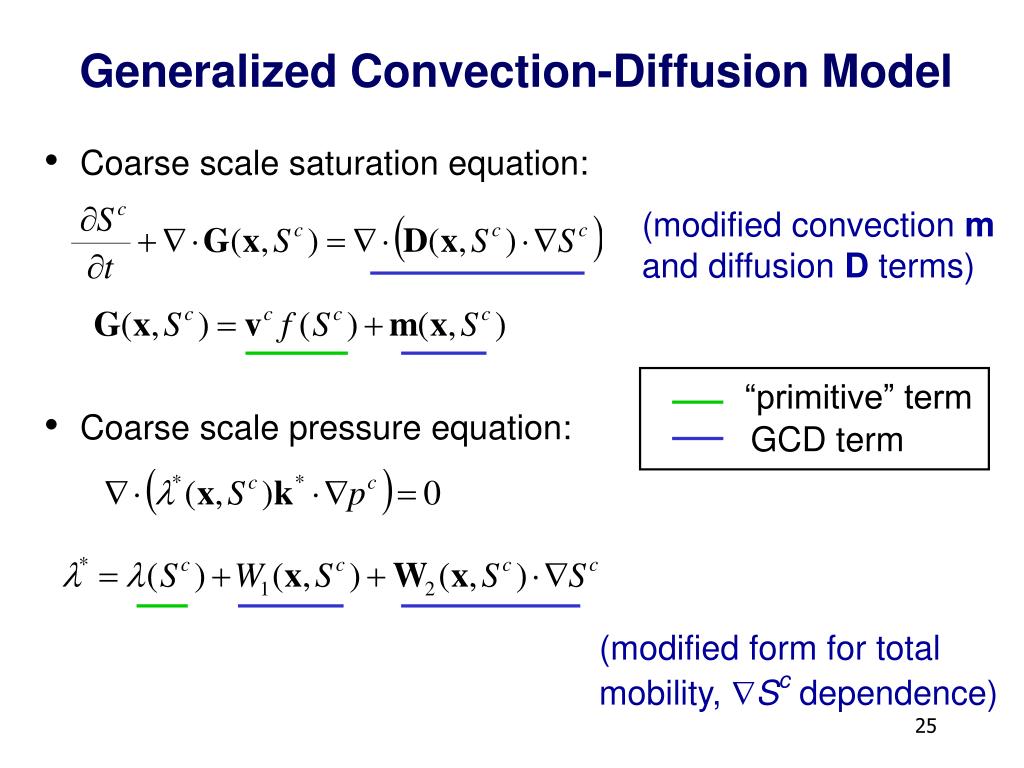

  25. “primitive” term GCD term Generalized Convection-Diffusion Model • Coarse scale saturation equation: (modified convection m and diffusion D terms) • Coarse scale pressure equation: (modified form for total mobility, Sc dependence)

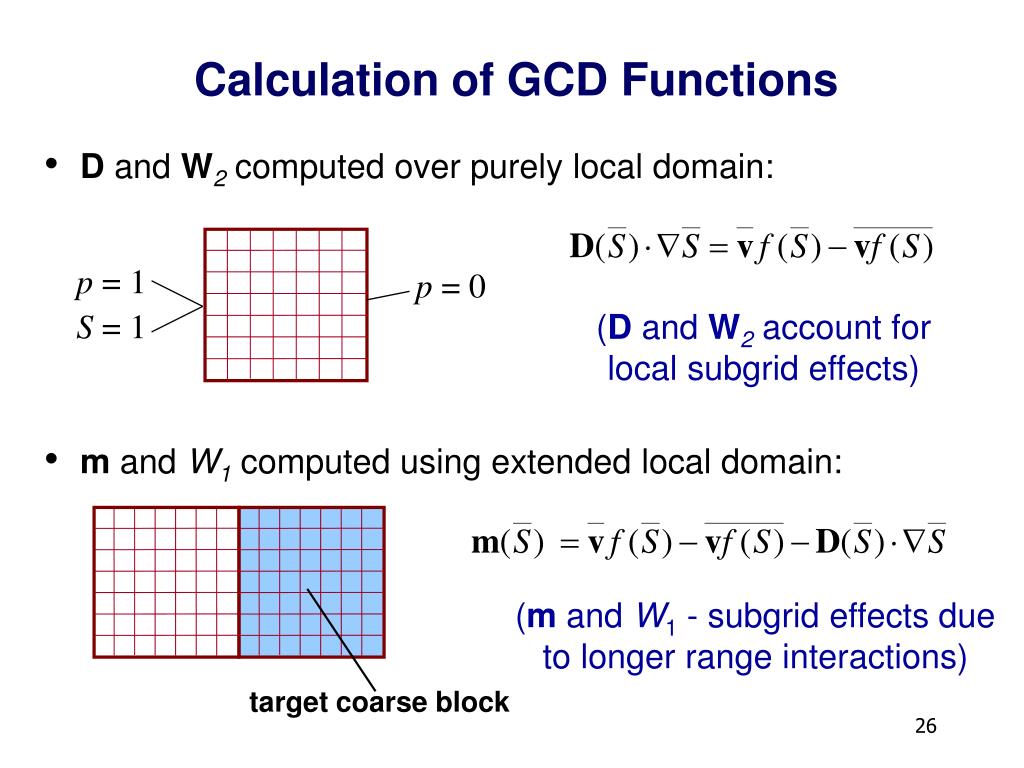

  26. p = 1 S = 1 p = 0 Calculation of GCD Functions • D and W2 computed over purely local domain: (D and W2 account for local subgrid effects) • m and W1 computed using extended local domain: (m and W1 - subgrid effects due to longer range interactions) target coarse block

  27. Solution Procedure • Generate fine model (100  100) of prescribed parameters • Form uniform coarse grid (10  10) and compute k* and directional GCD functions for each coarse block • Compute directional pseudo relative permeabilities via total mobility (Stone-type) method for each block • Solve saturation equation using second order TVD scheme, first order method for simulations with pseudo krj fine grid: lx lz Lx= Lz

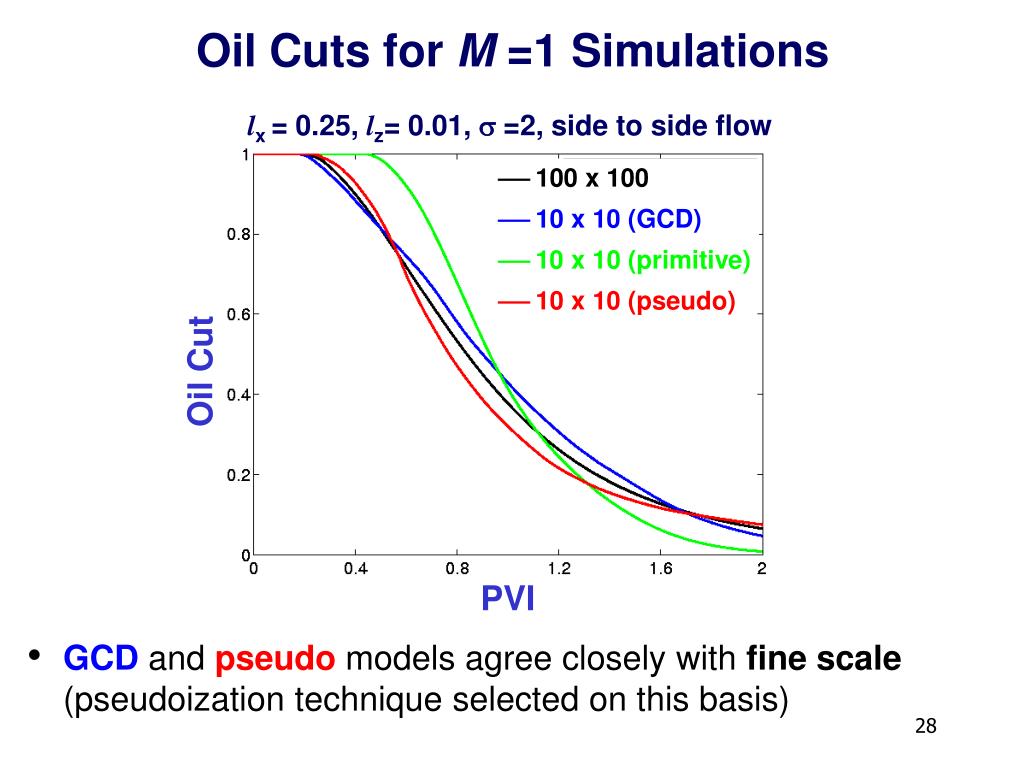

  28. lx = 0.25, lz= 0.01, s =2, side to side flow  100 x 100 10 x 10 (GCD) 10 x 10 (primitive) 10 x 10 (pseudo) Oil Cut PVI Oil Cuts for M =1 Simulations • GCD and pseudo models agree closely with fine scale (pseudoization technique selected on this basis)

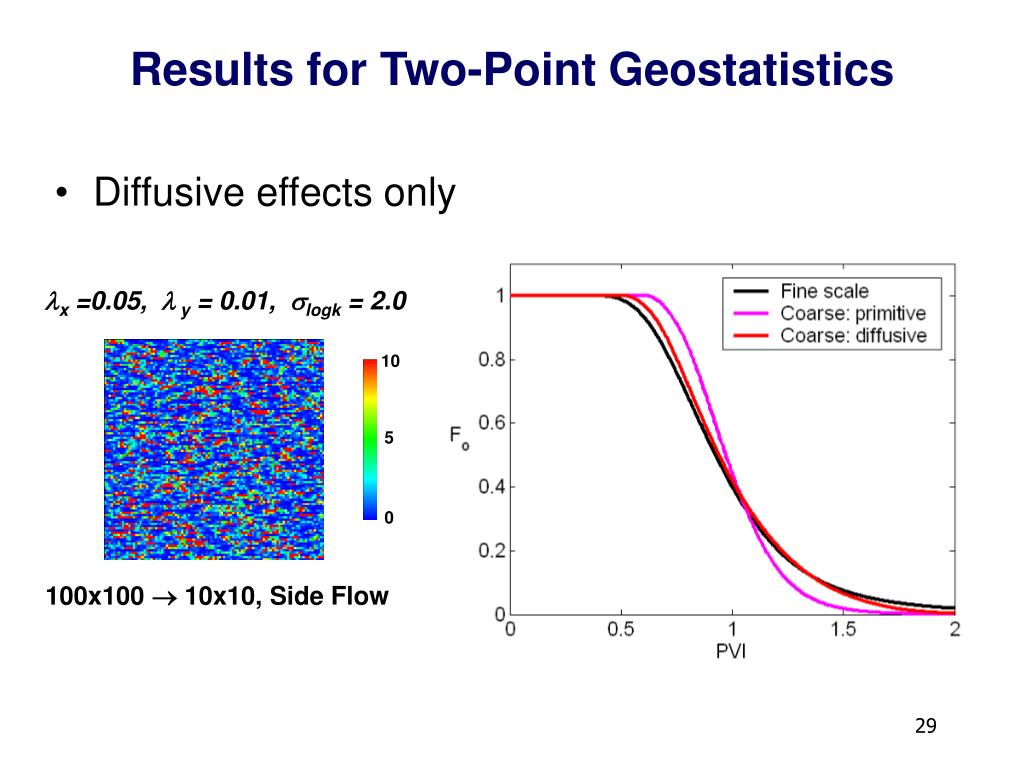

  29. Results for Two-Point Geostatistics • Diffusive effects only x =0.05,  y = 0.01, logk = 2.0 10 5 0 100x100  10x10, Side Flow

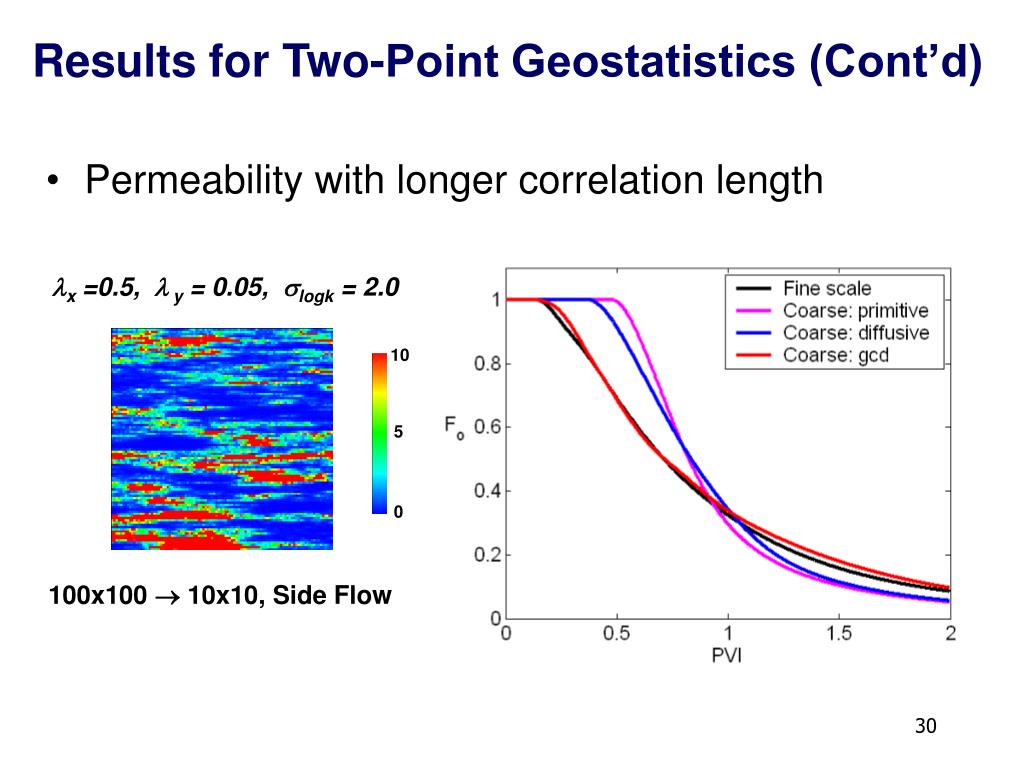

  30. Results for Two-Point Geostatistics (Cont’d) • Permeability with longer correlation length x =0.5,  y = 0.05, logk = 2.0 10 5 0 100x100  10x10, Side Flow

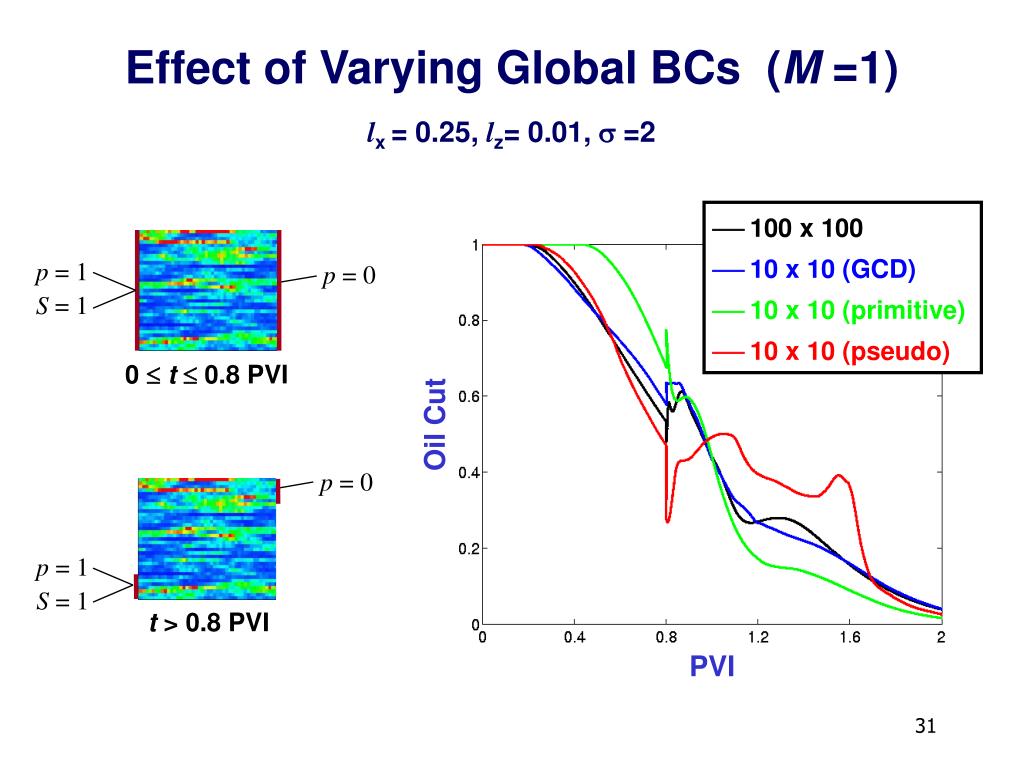

  31. p = 0 p = 0 Effect of Varying Global BCs (M =1) lx = 0.25, lz= 0.01, s =2  100 x 100 10 x 10 (GCD) 10 x 10 (primitive) 10 x 10 (pseudo) p = 1 S = 1 lx = 0.25, lz= 0.01, s =2 0  t  0.8 PVI Oil Cut p = 1 S = 1 t > 0.8 PVI PVI

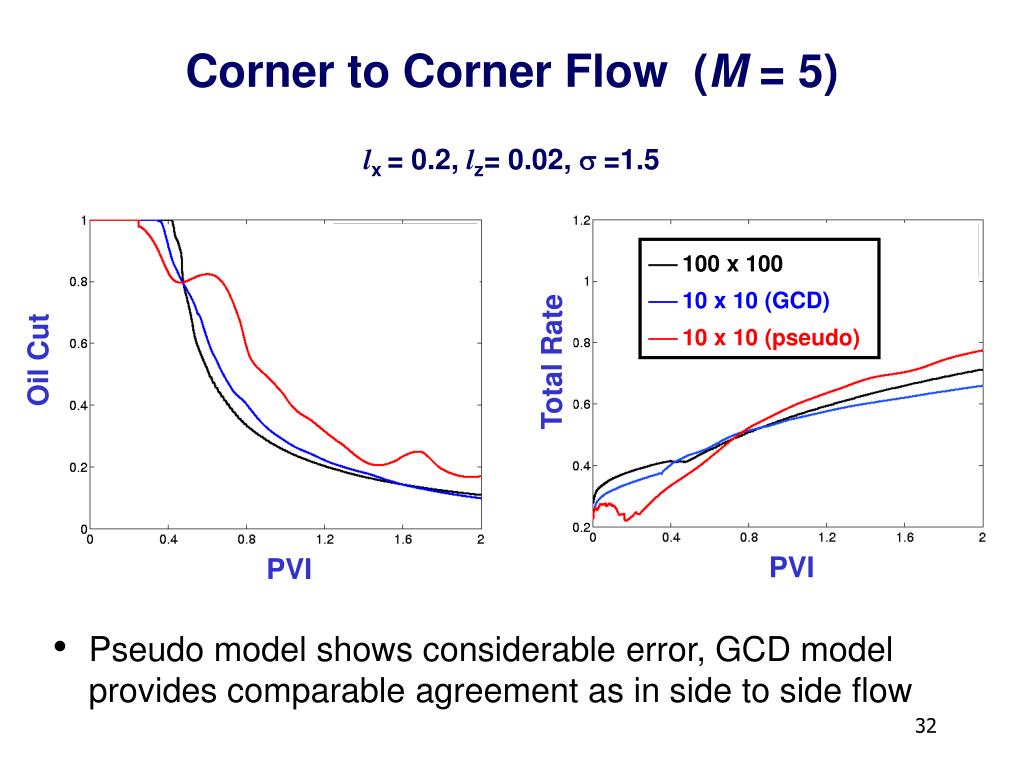

  32.  100 x 100 10 x 10 (GCD) 10 x 10 (pseudo) Oil Cut Total Rate PVI PVI Corner to Corner Flow (M = 5) lx = 0.2, lz= 0.02, s =1.5 • Pseudo model shows considerable error, GCD model provides comparable agreement as in side to side flow

  33.  100 x 100 10 x 10 (GCD) 10 x 10 (pseudo) Oil Cut Total Rate PVI PVI Effect of Varying Global BCs (M = 5) lx = 0.2, lz= 0.02, s =1.5 • Pseudo model overpredicts oil recovery, GCD model in close agreement

  34.  100 x 100 10 x 10 (GCD) 10 x 10 (pseudo) Total Rate Oil Cut PVI PVI Effect of Varying Global BCs (M = 5) lx = 0.5, lz= 0.02, s =1.5 • GCD model underpredicts peak in oil cut, otherwise tracks fine grid solution

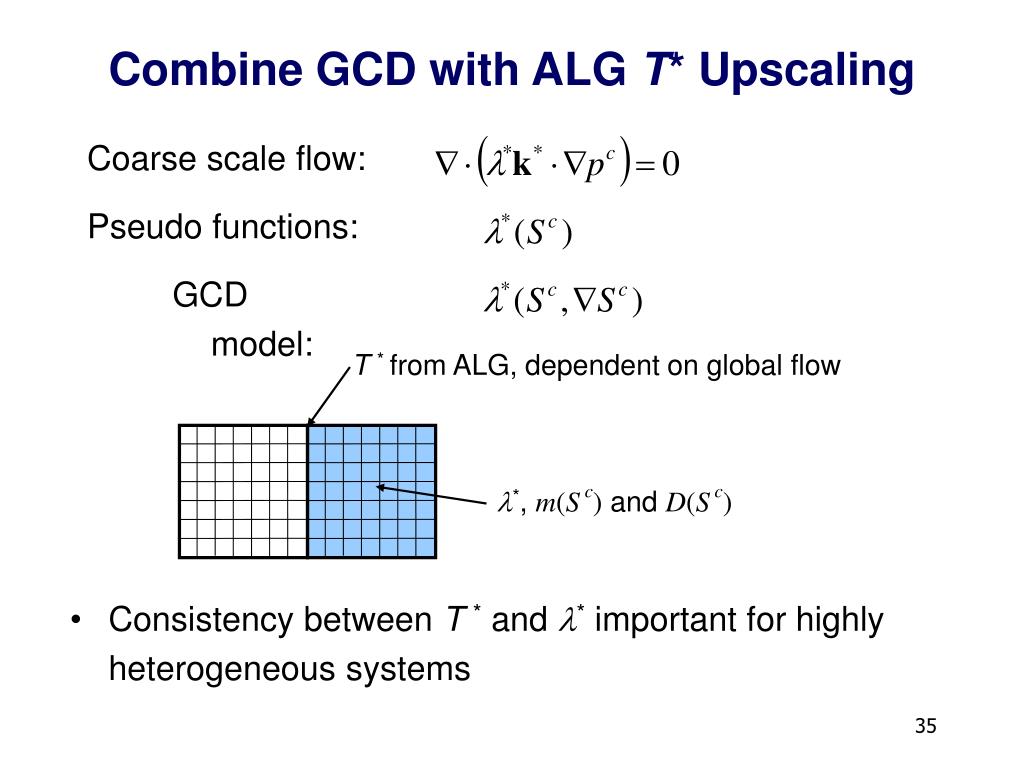

  35. Combine GCD with ALG T* Upscaling Coarse scale flow: Pseudo functions: GCD model: T* from ALG, dependent on global flow *, m(Sc) and D(Sc) • Consistency between T* and * important for highly heterogeneous systems

  36. ALG + Subgrid Model for Transport (GCD) • Stanford V model (layer 1) • Upscaling: 100130  1013 • Transport solved on coarse scale t  0.6 PVI t < 0.6 PVI flow rate oil cut

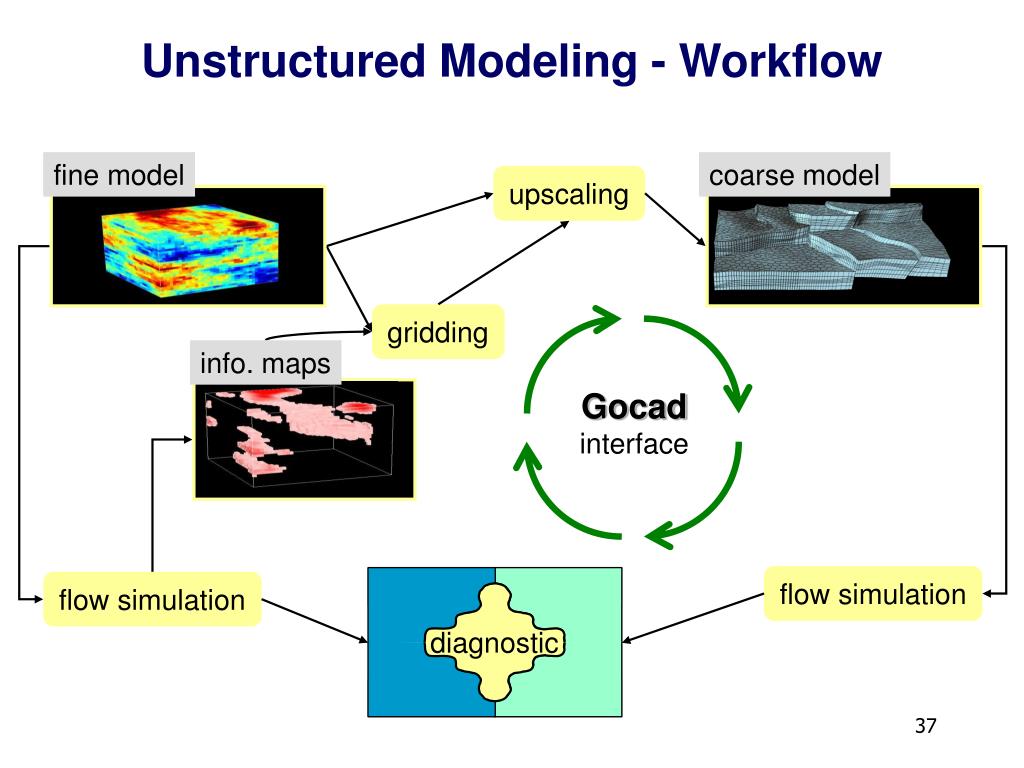

  37. diagnostic Unstructured Modeling - Workflow fine model coarse model upscaling gridding info. maps Gocad interface flow simulation flow simulation

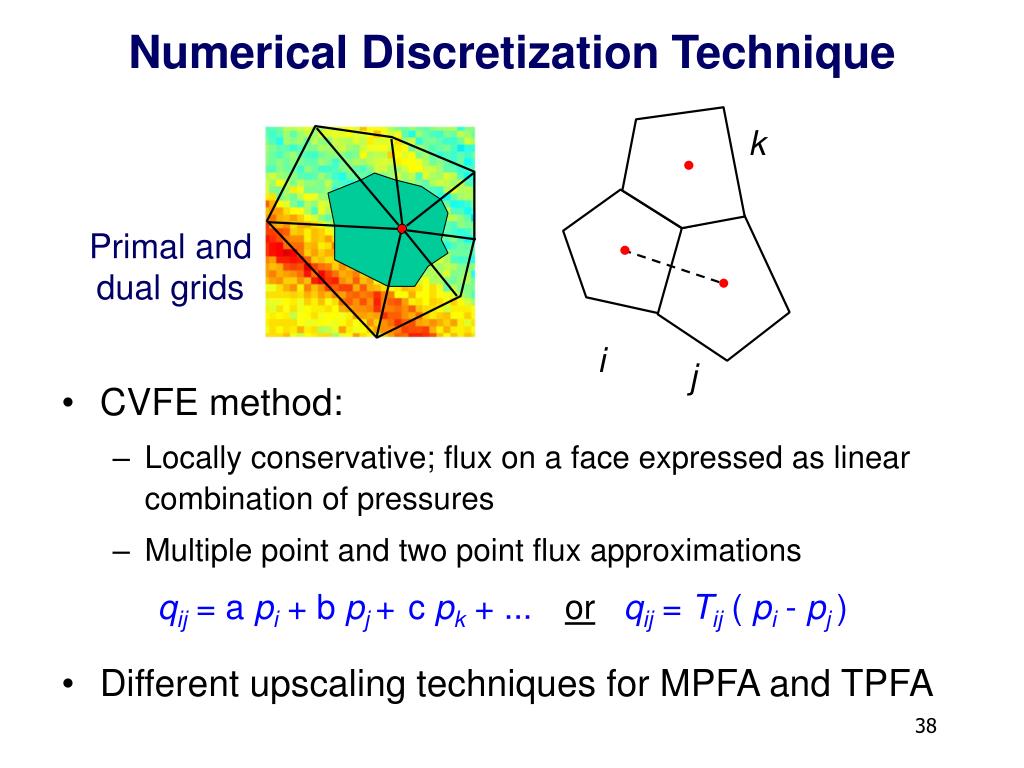

  38. k i j Numerical Discretization Technique Primal and dual grids • CVFE method: • Locally conservative; flux on a face expressed as linear combination of pressures • Multiple point and two point flux approximations • Different upscaling techniques for MPFA and TPFA qij = a pi + b pj +c pk + ... or qij = Tij ( pi - pj )

  39. 3D Transmissibility Upscaling (TPFA) Dual cells Primal grid connection p=1 fitted extended regions p=0 <qij> Tij*= - <pj> <pi> - cell j cell i

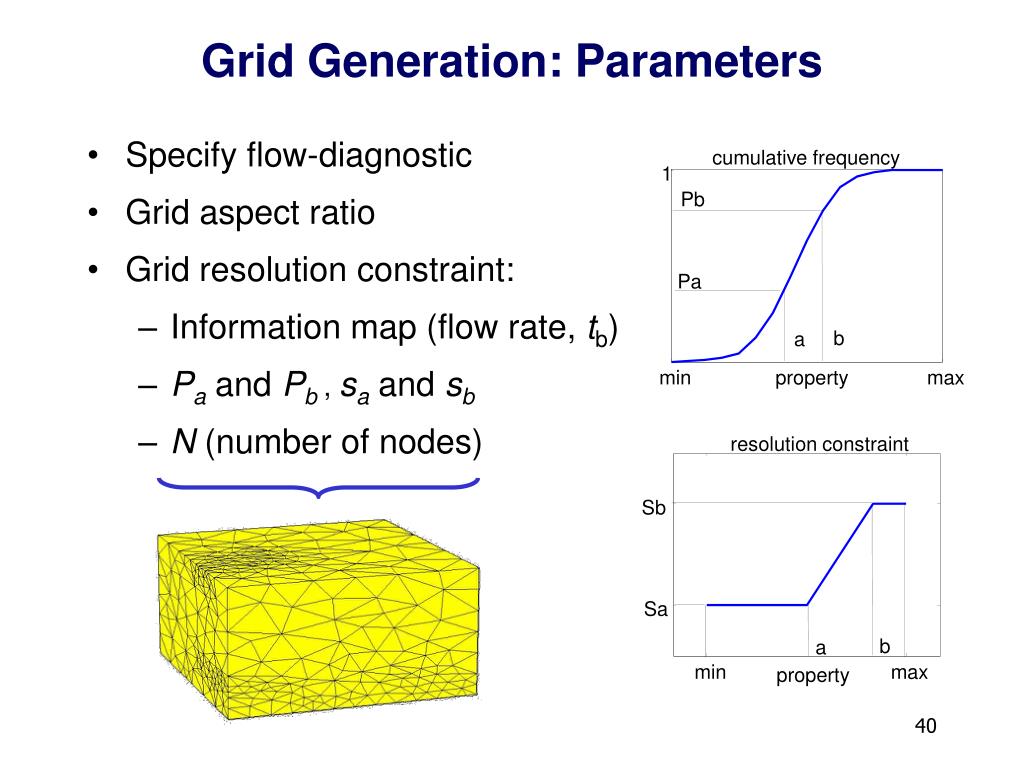

  40. cumulative frequency 1 Pb Pa b a min property max resolution constraint Sb Sa b a min max property Grid Generation: Parameters • Specify flow-diagnostic • Grid aspect ratio • Grid resolution constraint: • Information map (flow rate, tb) • Pa and Pb , sa and sb • N (number of nodes)

  41. Unstructured Gridding and Upscaling velocity grid density Upscaled k* (from Prevost, 2003)

  42. p=0 1 0. 5 p=1 0.25 Flow-Based Upscaling: Layered System • Layered system: 200 x 100 x 50 cells • Upscale permeability and transmissibility • Run k*-MPFA and T*-TPFA for M=1 • Compute errors in Q/Dp and L1 norm of Fw

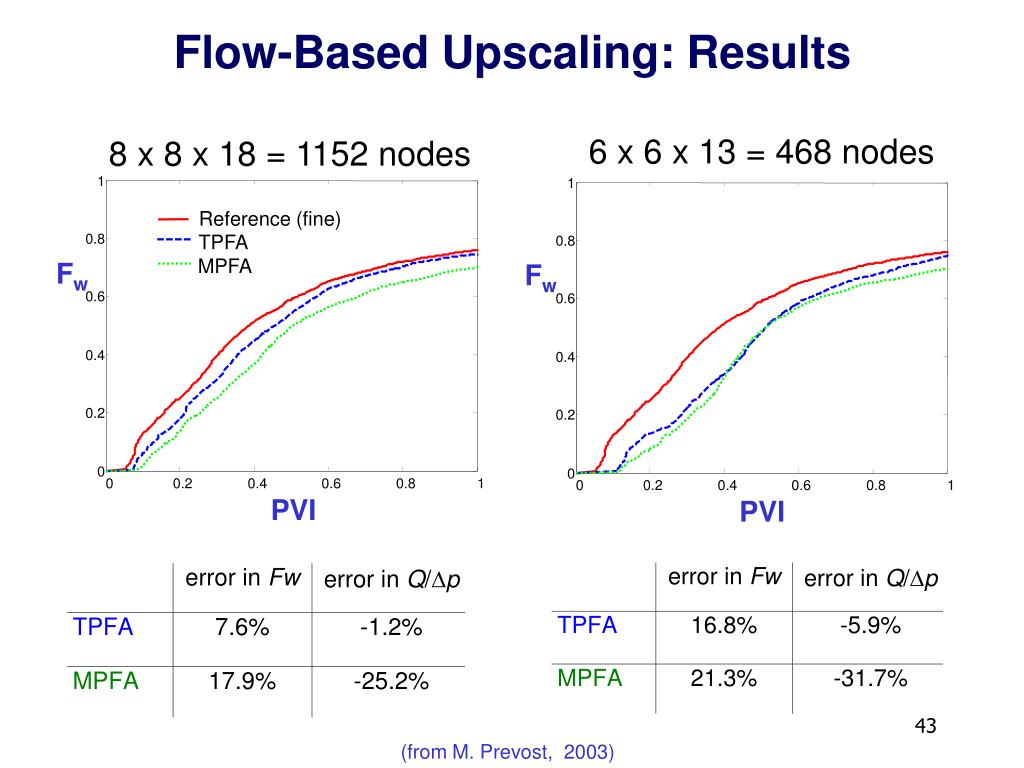

  43. Flow-Based Upscaling: Results 6 x 6 x 13 = 468 nodes 8 x 8 x 18 = 1152 nodes 1 1 Reference (fine) 0.8 TPFA 0.8 MPFA Fw Fw 0.6 0.6 0.4 0.4 0.2 0.2 0 0 0 0.2 0.4 0.6 0.8 1 0 0.2 0.4 0.6 0.8 1 PVI PVI (from M. Prevost, 2003)

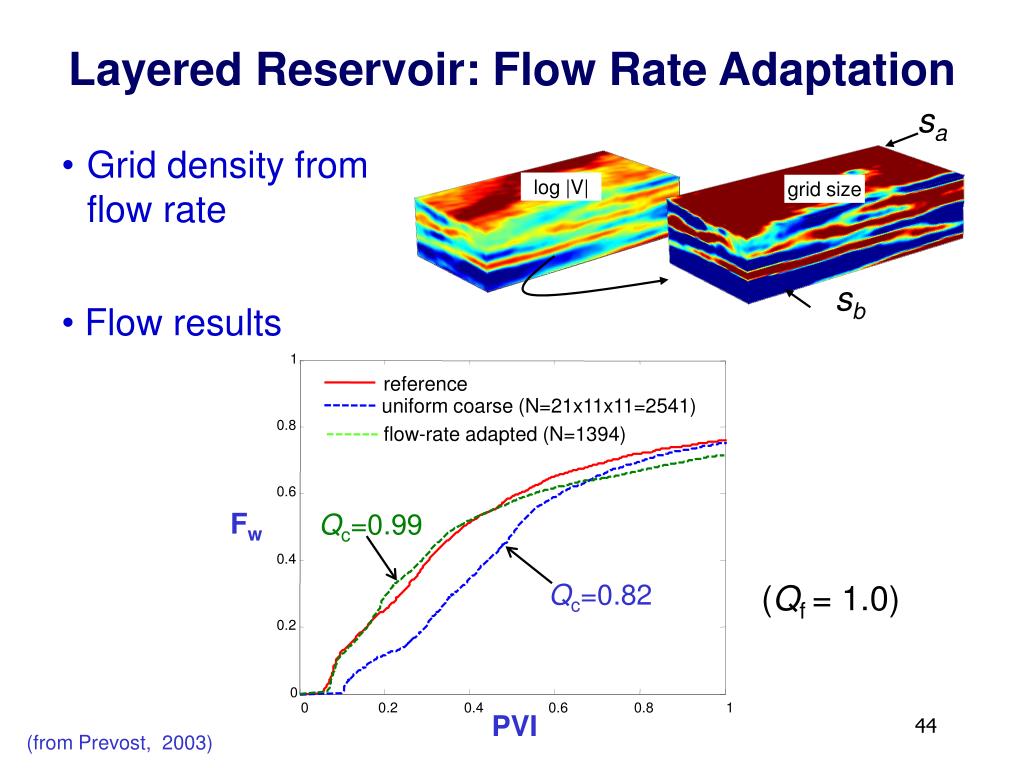

  44. sa log |V| grid size sb 1 reference uniform coarse (N=21x11x11=2541) 0.8 flow-rate adapted (N=1394) 0.6 Qc=0.99 Fw w F 0.4 Qc=0.82 0.2 0 0 0.2 0.4 0.6 0.8 1 PVI PVI Layered Reservoir: Flow Rate Adaptation • Grid density from flow rate • Flow results (Qf = 1.0) (from Prevost, 2003)

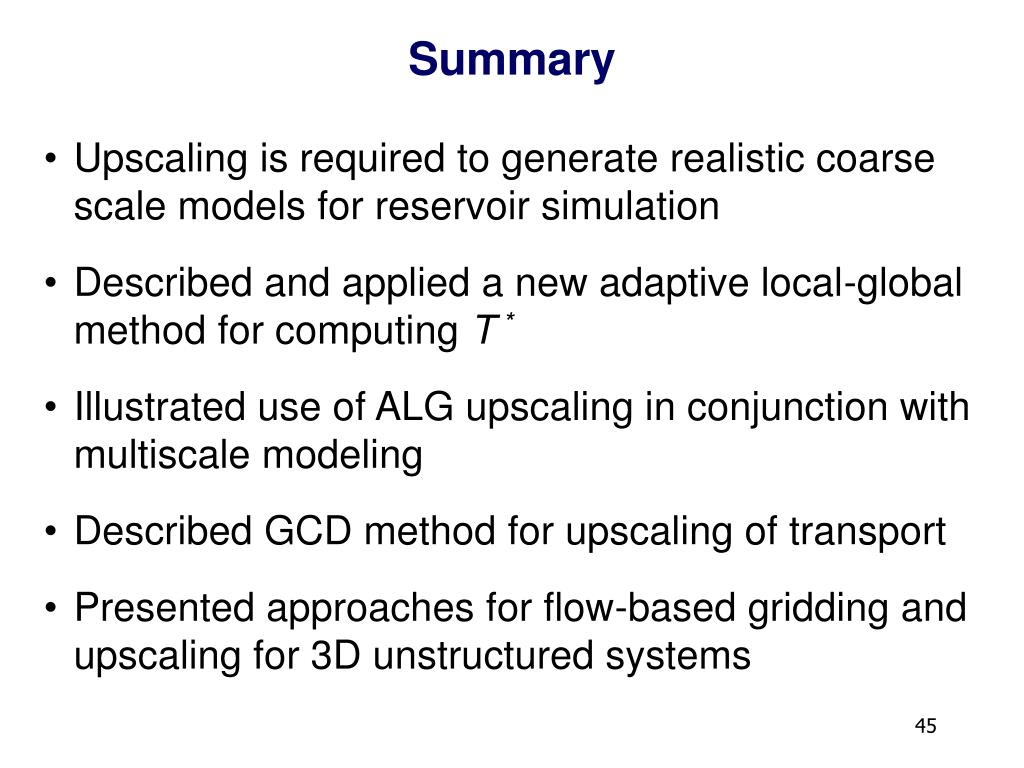

  45. Summary • Upscaling is required to generate realistic coarse scale models for reservoir simulation • Described and applied a new adaptive local-global method for computing T * • Illustrated use of ALG upscaling in conjunction with multiscale modeling • Described GCD method for upscaling of transport • Presented approaches for flow-based gridding and upscaling for 3D unstructured systems

  46. Future Directions • Hybridization of various upscaling techniques (e.g., flow-based gridding + ALG upscaling) • Further development for 3D unstructured systems • Linkage of single-phase gridding and upscaling approaches with two-phase upscaling methods • Dynamic updating of grid and coarse properties • Error modeling
