  1. Evidence-Based Model Checking Li Tan, Rance Cleaveland Presented by Arnab Ray Computer Science Department Stony Brook July 2002 Evidence-Based Verification

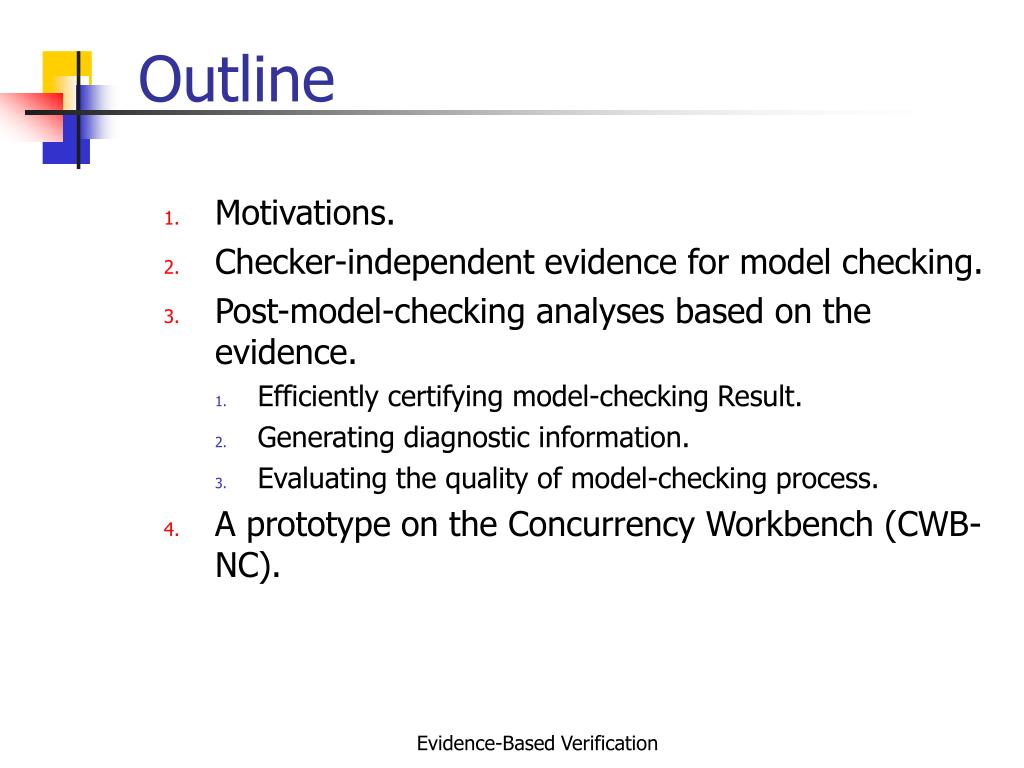

  2. Outline • Motivations. • Checker-independent evidence for model checking. • Post-model-checking analyses based on the evidence. • Efficiently certifying model-checking Result. • Generating diagnostic information. • Evaluating the quality of model-checking process. • A prototype on the Concurrency Workbench (CWB-NC). Evidence-Based Verification

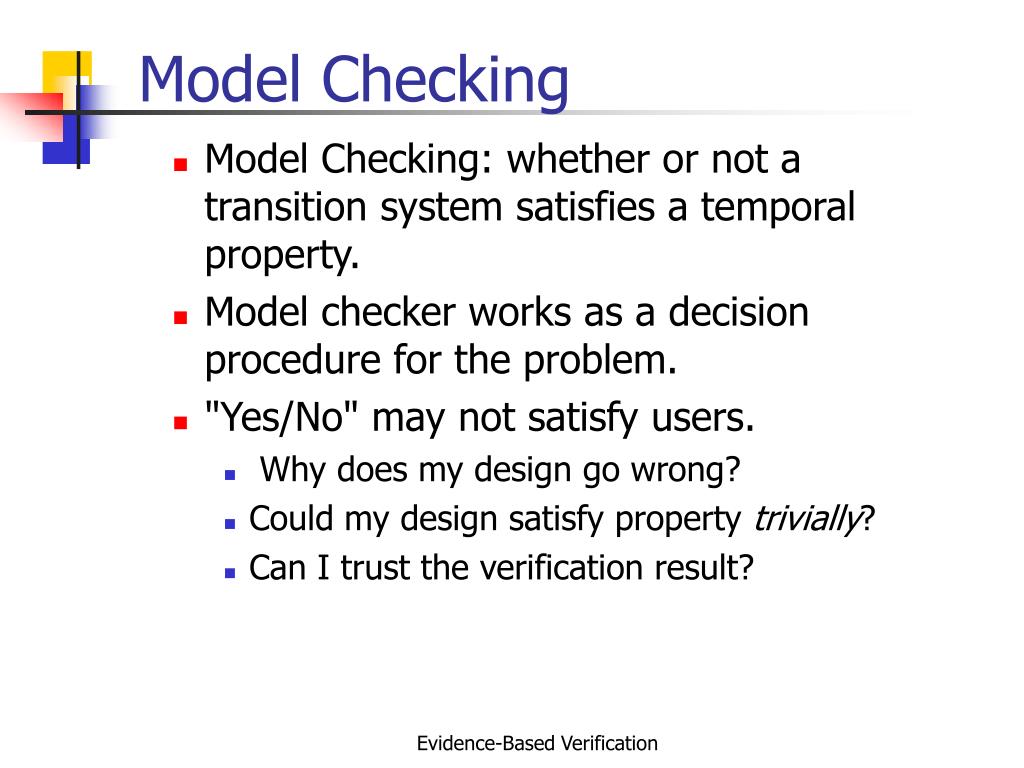

  3. Model Checking • Model Checking: whether or not a transition system satisfies a temporal property. • Model checker works as a decision procedure for the problem. • "Yes/No" may not satisfy users. • Why does my design go wrong? • Could my design satisfy property trivially? • Can I trust the verification result? Evidence-Based Verification

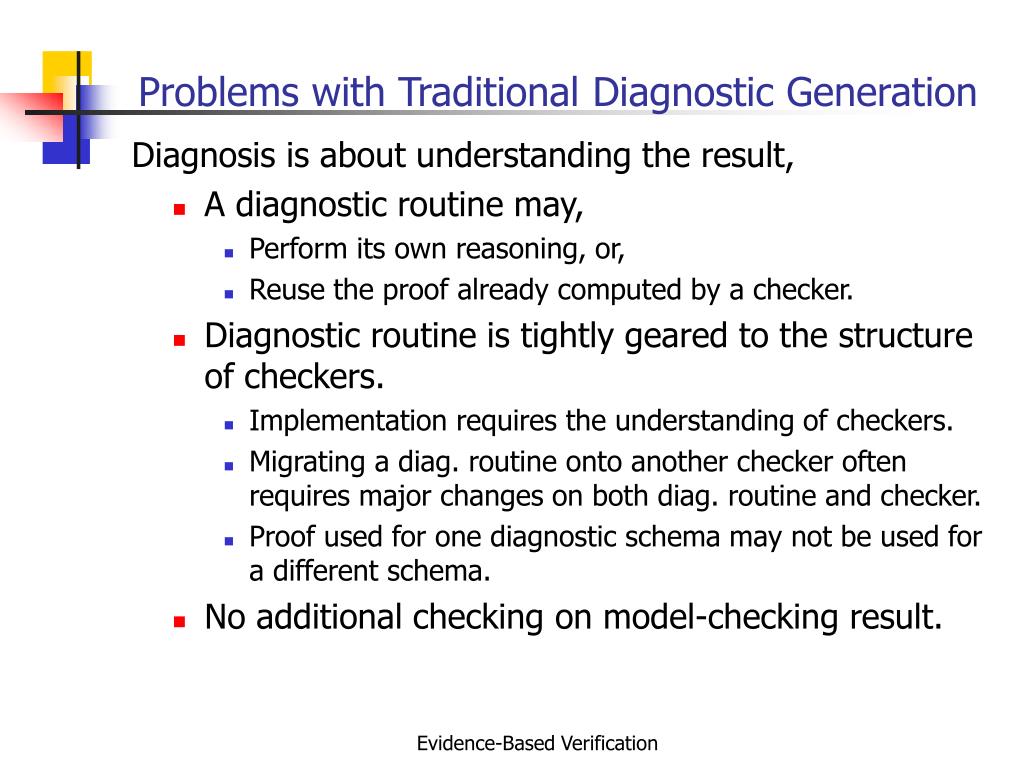

  4. Problems with Traditional Diagnostic Generation Diagnosis is about understanding the result, • A diagnostic routine may, • Perform its own reasoning, or, • Reuse the proof already computed by a checker. • Diagnostic routine is tightly geared to the structure of checkers. • Implementation requires the understanding of checkers. • Migrating a diag. routine onto another checker often requires major changes on both diag. routine and checker. • Proof used for one diagnostic schema may not be used for a different schema. • No additional checking on model-checking result. Evidence-Based Verification

  5. Invalid Proof Portable Proof of Correctness Evidence-Based Model Checking Let the result carry its own proof Diagnostic Schema 1 Diagnostic Schema 2 Diagnostic Schema m … Verifier Checker 1 Checker 2 Checker n … Evidence-Based Verification

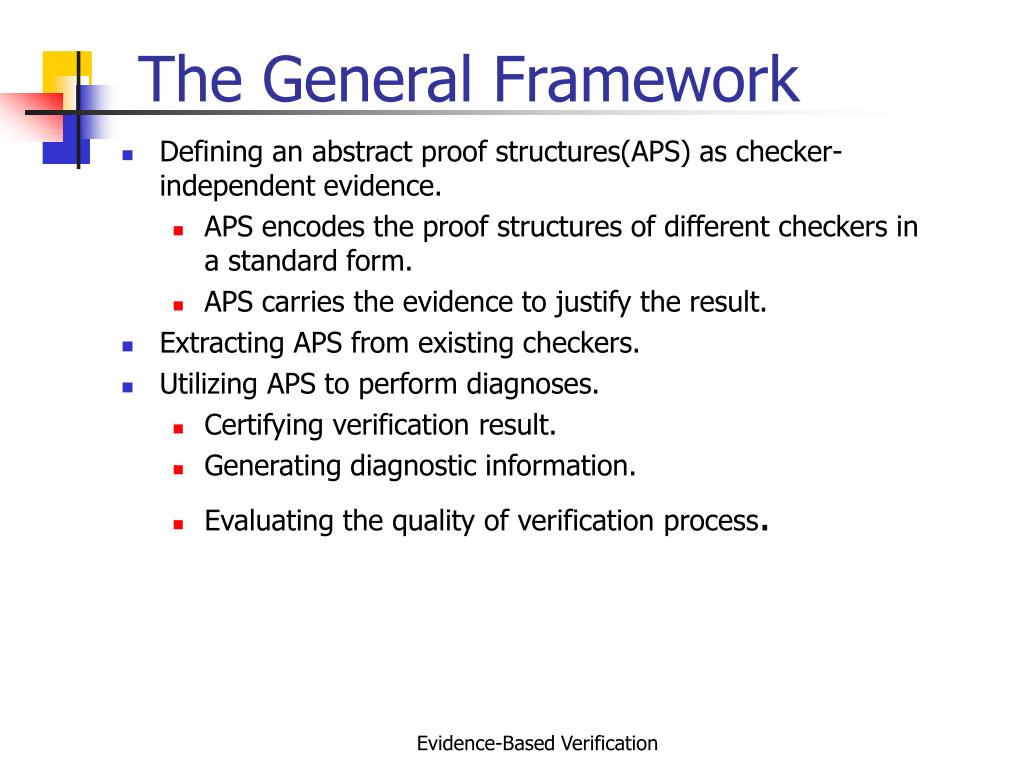

  6. The General Framework • Defining an abstract proof structures(APS) as checker-independent evidence. • APS encodes the proof structures of different checkers in a standard form. • APS carries the evidence to justify the result. • Extracting APS from existing checkers. • Utilizing APS to perform diagnoses. • Certifying verification result. • Generating diagnostic information. • Evaluating the quality of verification process. Evidence-Based Verification

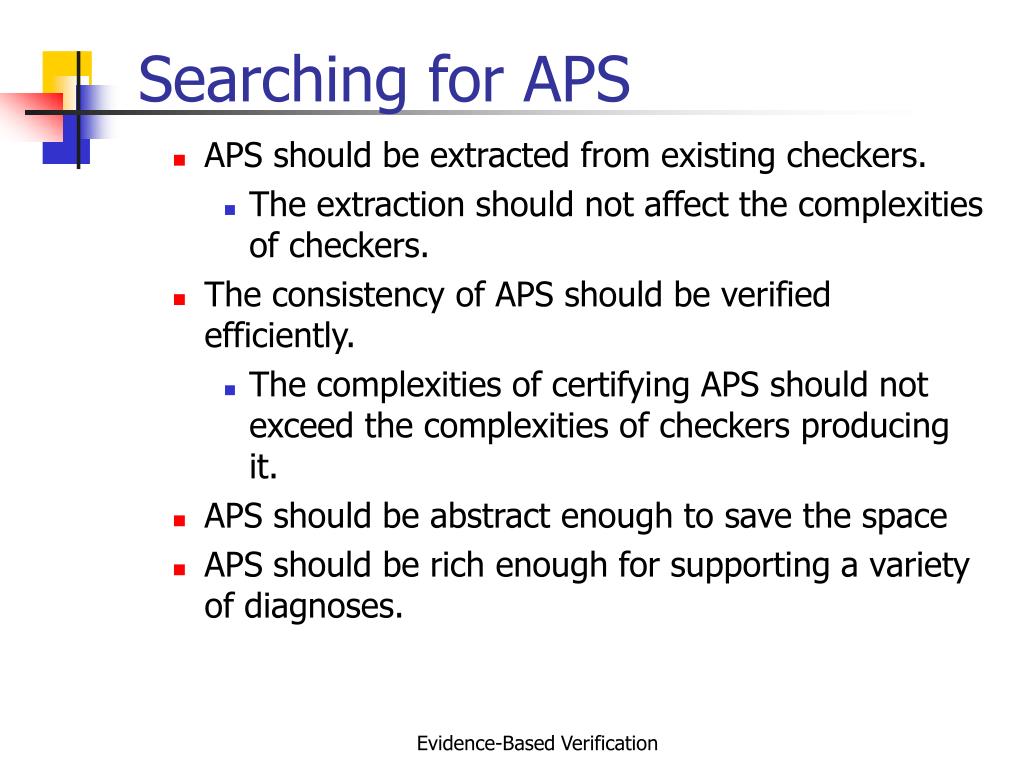

  7. Searching for APS • APS should be extracted from existing checkers. • The extraction should not affect the complexities of checkers. • The consistency of APS should be verified efficiently. • The complexities of certifying APS should not exceed the complexities of checkers producing it. • APS should be abstract enough to save the space • APS should be rich enough for supporting a variety of diagnoses. Evidence-Based Verification

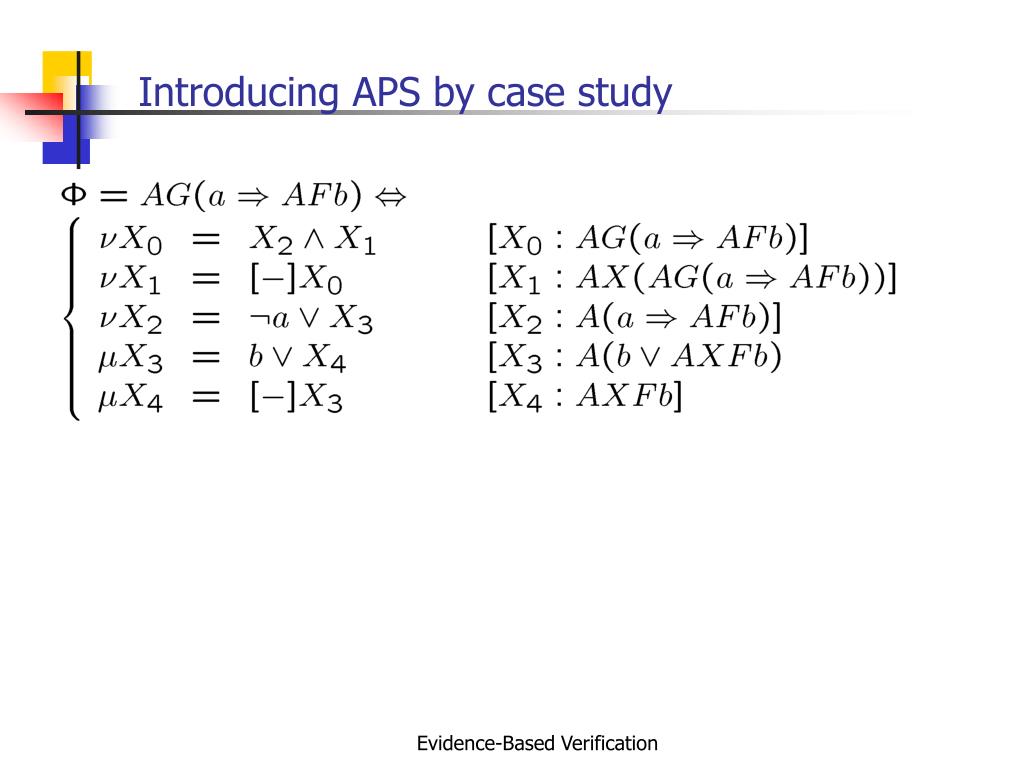

  8. Introducing APS by case study Evidence-Based Verification

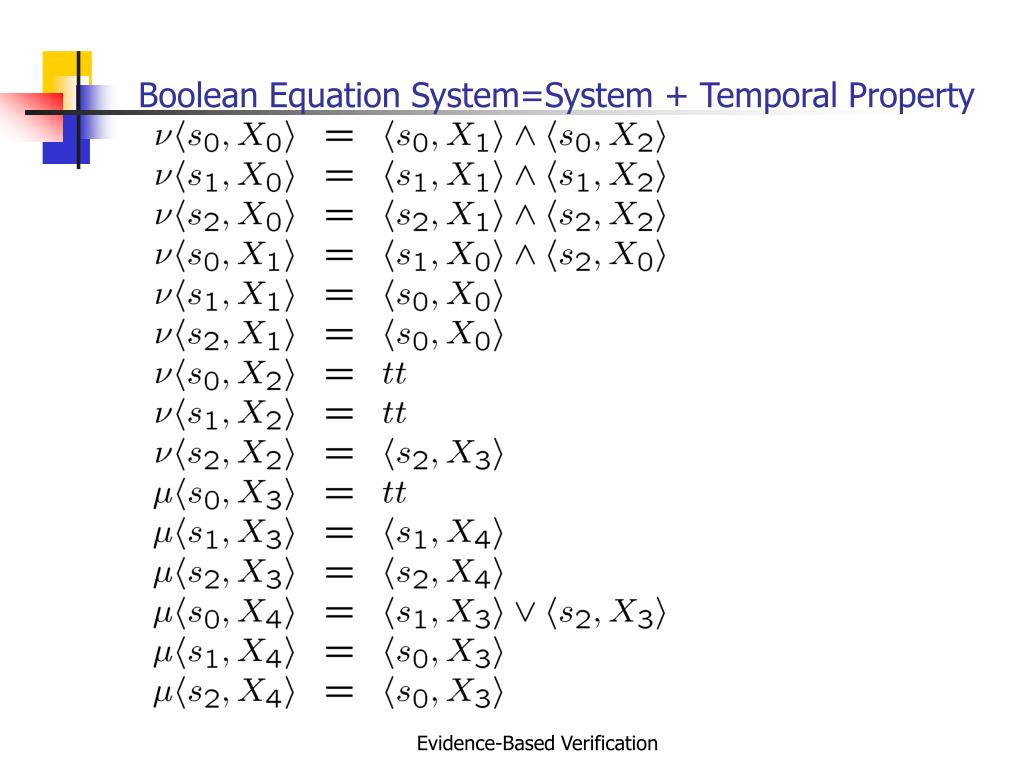

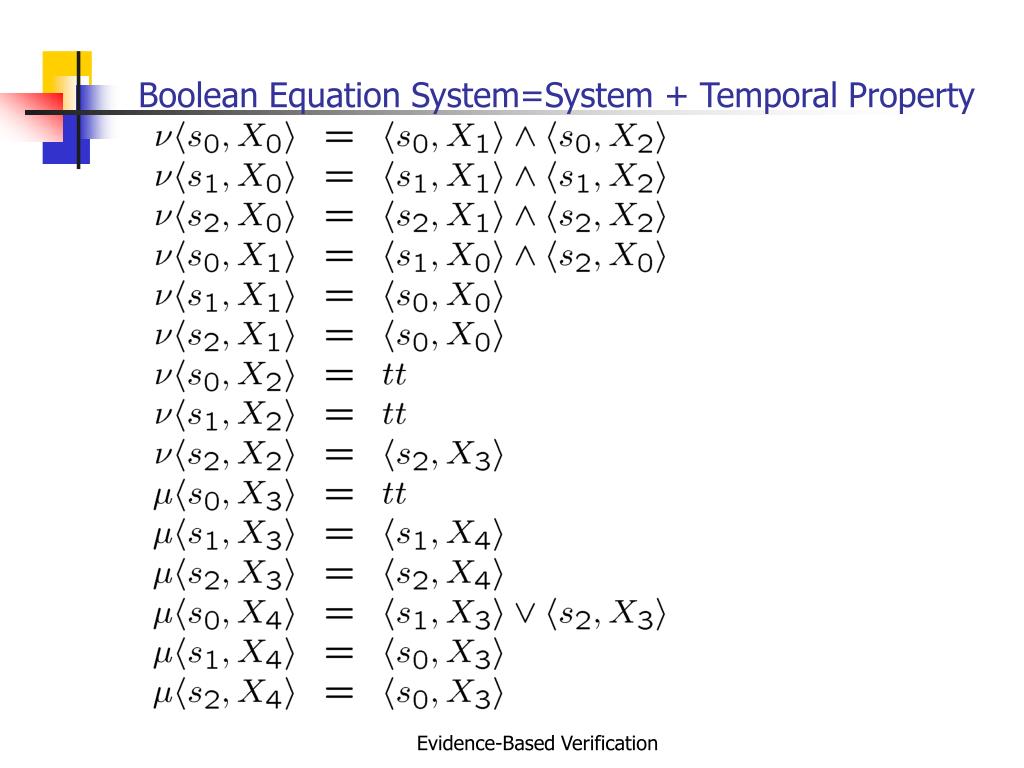

  9. Boolean Equation System=System + Temporal Property E=F+T: Evidence-Based Verification

  10. Boolean Equation System=System + Temporal Property E=F+T: Evidence-Based Verification

  11. Equation System: Semantics [E]: HX!HX is a function on environments Evidence-Based Verification

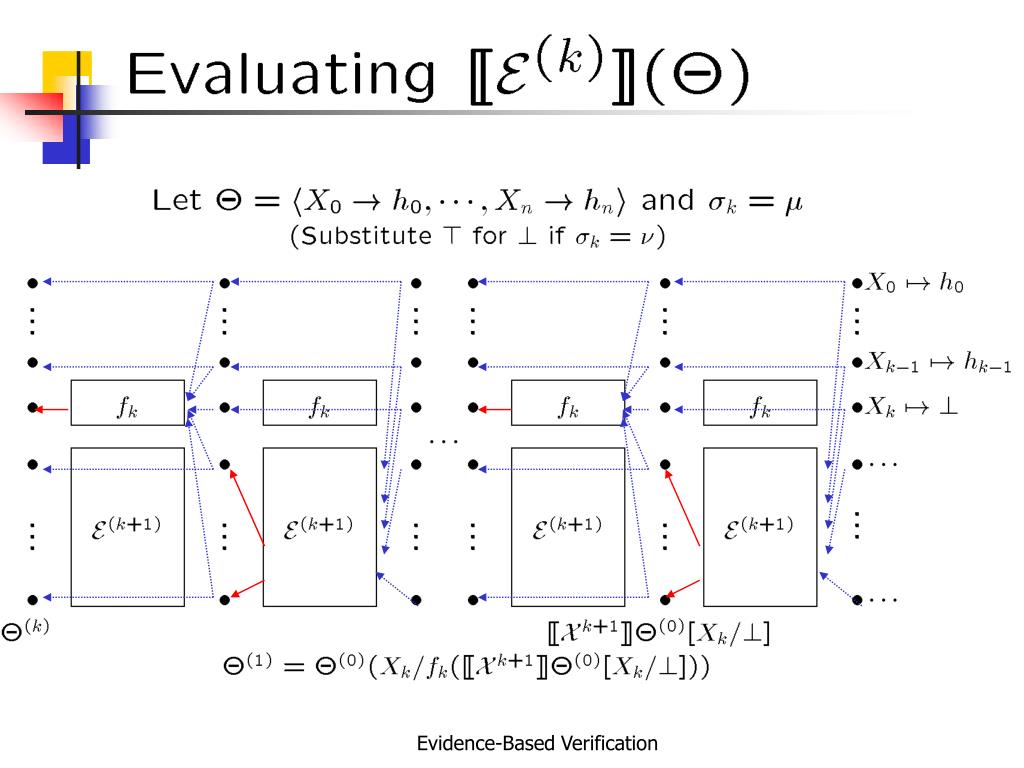

  12. Evidence-Based Verification

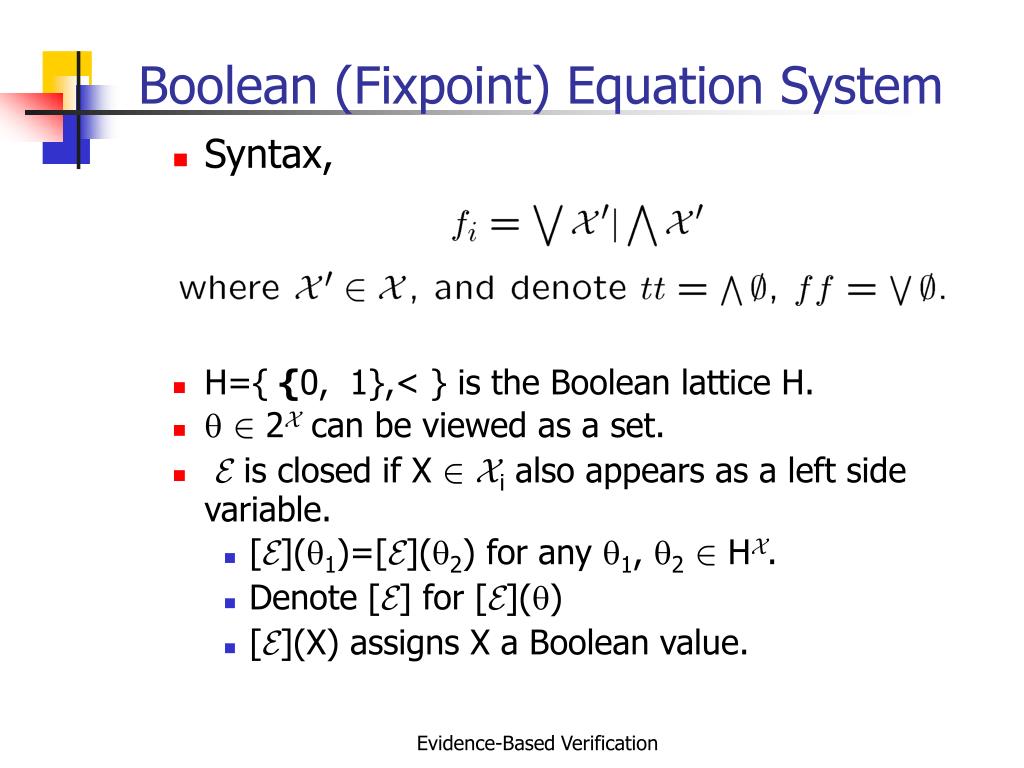

  13. Boolean (Fixpoint) Equation System • Syntax, • H={ {0, 1},< } is the Boolean lattice H. • q2 2X can be viewed as a set. • E is closed if X 2Xi also appears as a left side variable. • [E](q1)=[E](q2) for any q1, q22 HX. • Denote [E] for [E](q) • [E](X) assigns X a Boolean value. Evidence-Based Verification

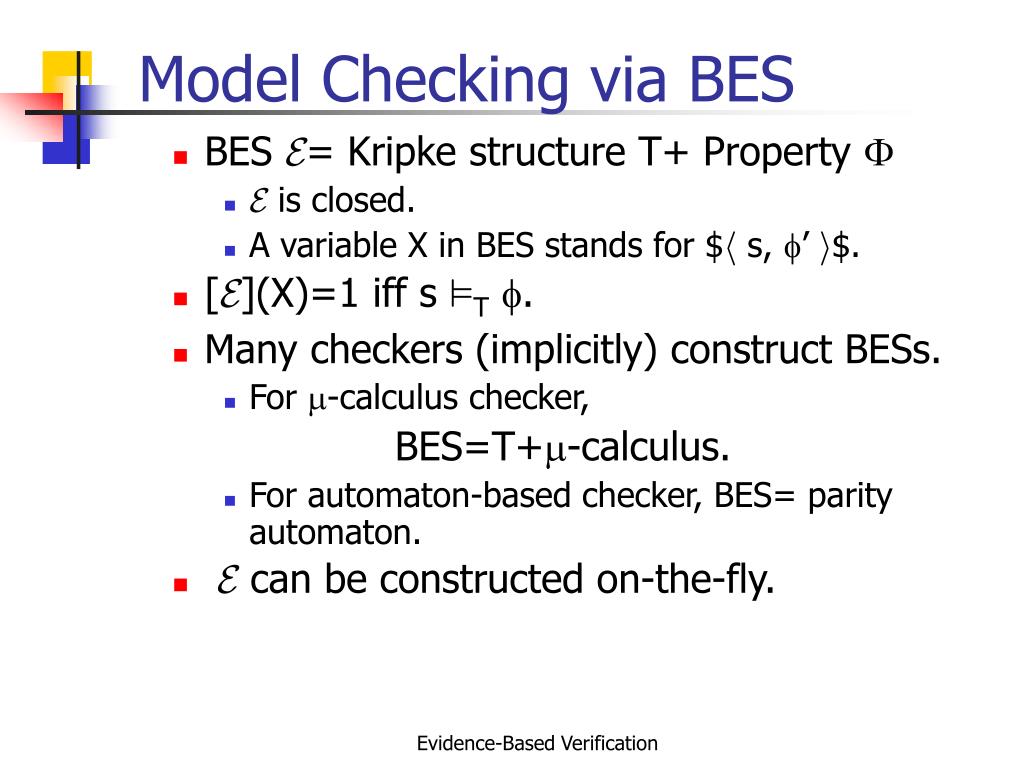

  14. Model Checking via BES • BES E= Kripke structure T+ Property F • E is closed. • A variable X in BES stands for $h s, f’ i$. • [E](X)=1 iff s ²Tf. • Many checkers (implicitly) construct BESs. • For m-calculus checker, BES=T+m-calculus. • For automaton-based checker, BES= parity automaton. • E can be constructed on-the-fly. Evidence-Based Verification

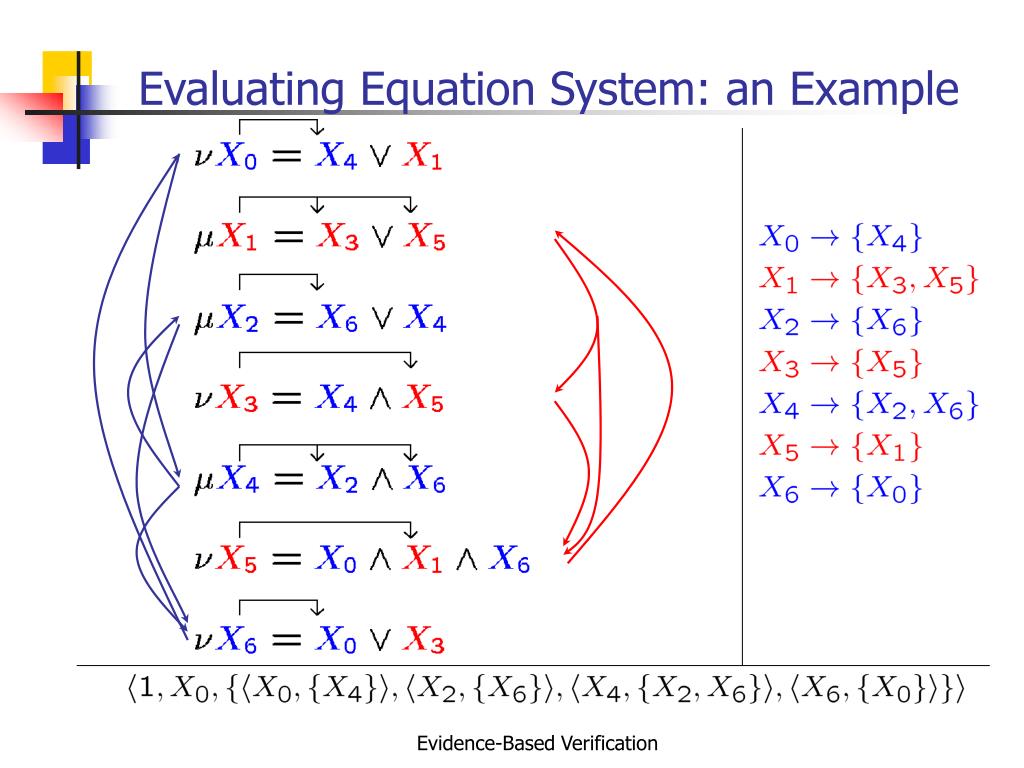

  15. Evaluating Equation System: an Example Evidence-Based Verification

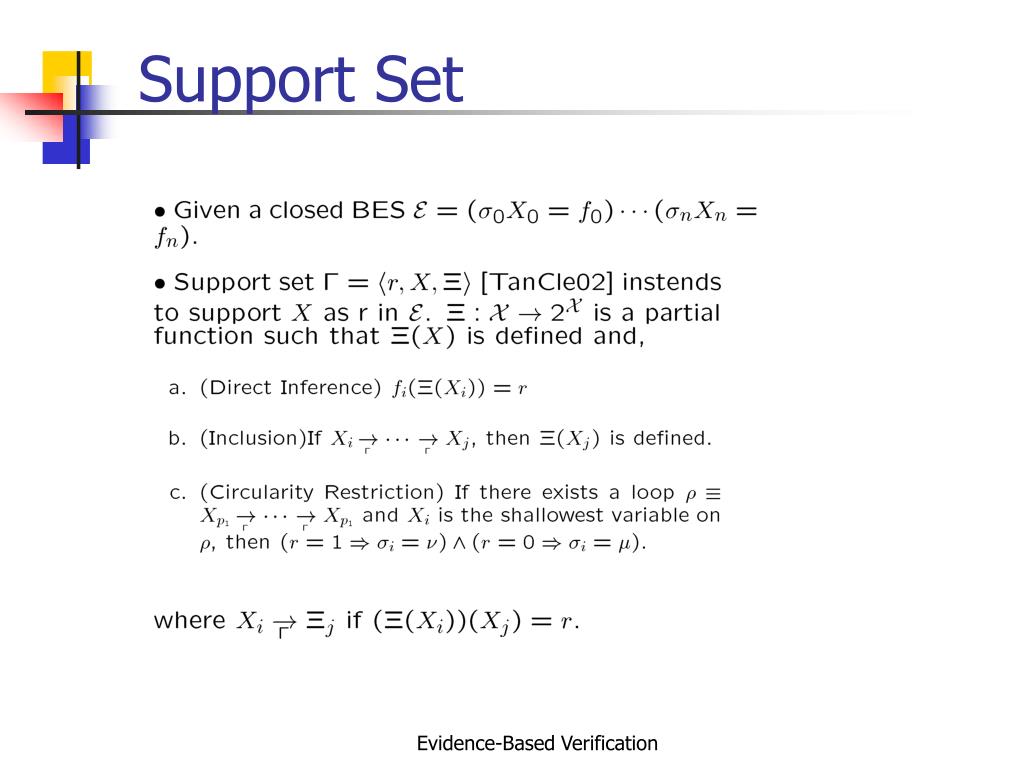

  16. Support Set Evidence-Based Verification

  17. Support Set (Continue) • By (a) and (b), support set implies a fixpoint solution for E. • By (c), support set respects the definition of least/or greatest fixpoints. • If r=1, no bad loop on . • If r=0, no good loop on . Theorem 1 [TanCle02] Let G=<r, X, X> be a support set for E, then [E](X)=r. Evidence-Based Verification

  18. Extracting Support Set The extraction is, • practical. Support sets can be extracted from a wide range of existing checkers, • Boolean-Graph algorithm [And92], Linear Alternation-Free algorithms[CleSte91], On-the-fly algorithms for full m-calculus LAFP [LRS98] and SLP [TanCle02b], Automaton-based model checkers([BhaCle96a] and [KVW00]). • efficient. The overhead doesn't exceed the original complexities of these checkers. • simply. It only need have dependency relations recorded. Evidence-Based Verification

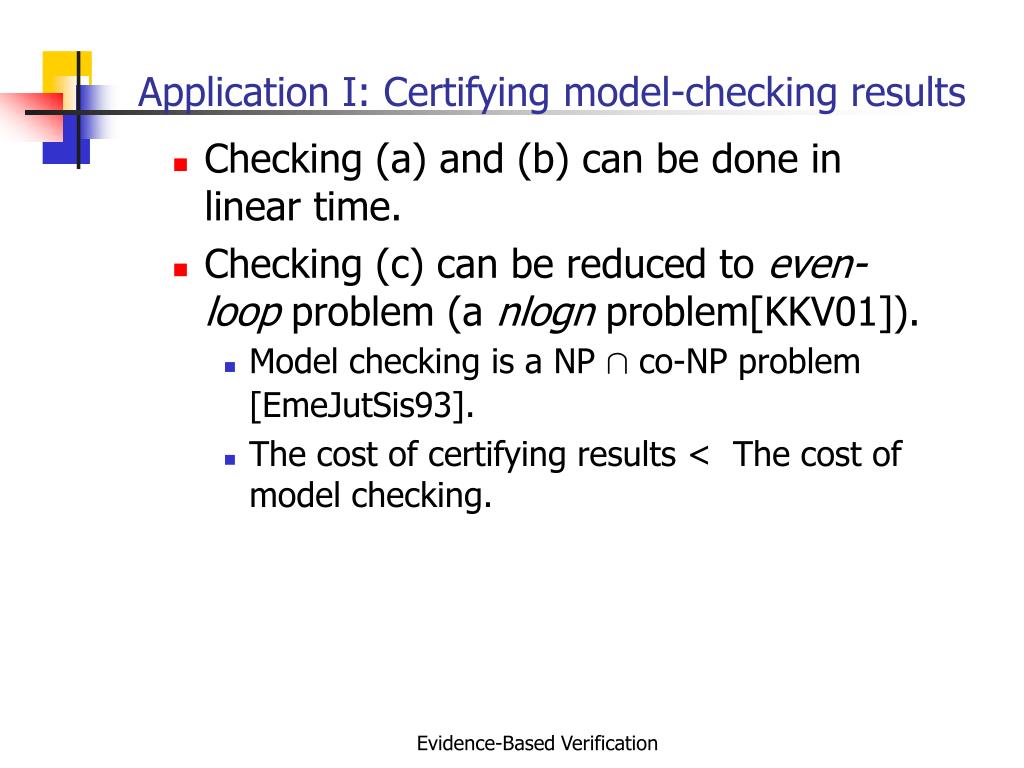

  19. Application I: Certifying model-checking results • Checking (a) and (b) can be done in linear time. • Checking (c) can be reduced to even-loop problem (a nlogn problem[KKV01]). • Model checking is a NP Å co-NP problem [EmeJutSis93]. • The cost of certifying results < The cost of model checking. Evidence-Based Verification

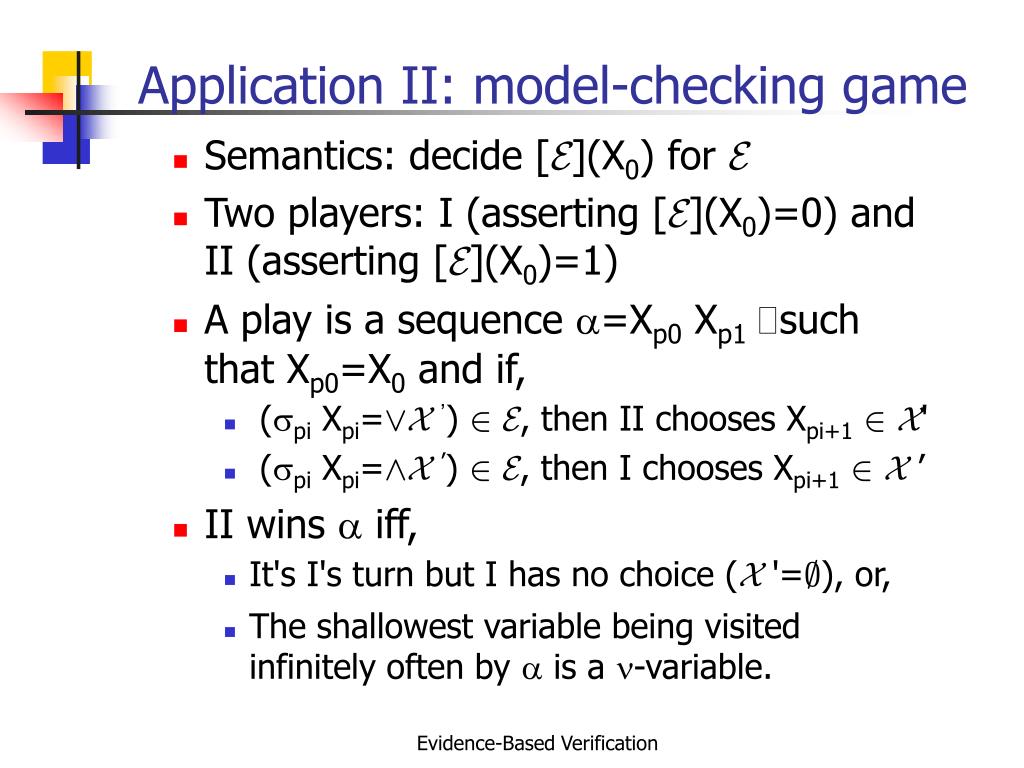

  20. Application II: model-checking game • Semantics: decide [E](X0) for E • Two players: I (asserting [E](X0)=0) and II (asserting [E](X0)=1) • A play is a sequence a=Xp0 Xp1…such that Xp0=X0 and if, • (spi Xpi=ÇX ’) 2E, then II chooses Xpi+12X' • (spi Xpi=ÆX ’) 2E, then I chooses Xpi+12X ’ • II wins a iff, • It's I's turn but I has no choice (X '=;), or, • The shallowest variable being visited infinitely often by a is a n-variable. Evidence-Based Verification

  21. MC Game as a Diagnostic Routine • MC game is a fair game. • ([E])(X0)=1 ) II has a winning strategy. • ([E])(X0)=0 ) I has a winning strategy. • Two physical players: computer and user. • When the model-checking result is, • Yes ) The computer plays as II while the user as I. • No ) The computer plays as I while the user as II. • The user is always a loser if the MC result is correct and the computer uses the right strategy. Evidence-Based Verification

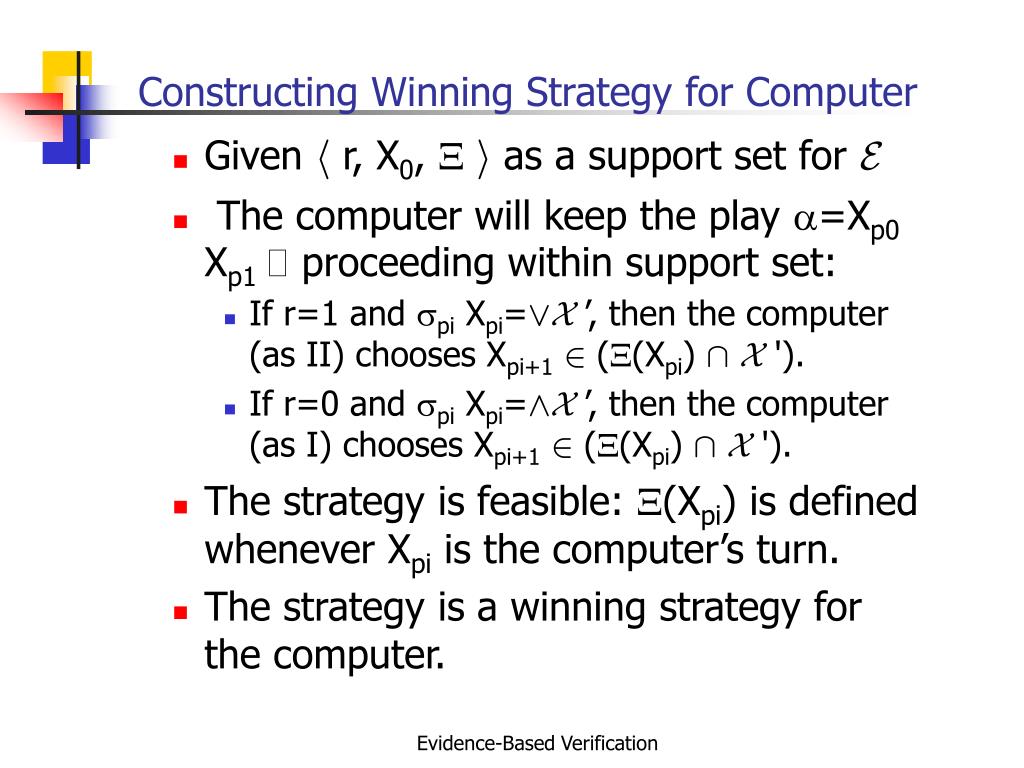

  22. Constructing Winning Strategy for Computer • Given h r, X0, Xi as a support set for E • The computer will keep the play a=Xp0 Xp1… proceeding within support set: • If r=1 and spi Xpi=ÇX ’, then the computer (as II) chooses Xpi+12 (X(Xpi) ÅX '). • If r=0 and spi Xpi=ÆX ’, then the computer (as I) chooses Xpi+12 (X(Xpi) ÅX '). • The strategy is feasible: X(Xpi) is defined whenever Xpi is the computer’s turn. • The strategy is a winning strategy for the computer. Evidence-Based Verification

  23. Evaluating Equation System: an Example Evidence-Based Verification

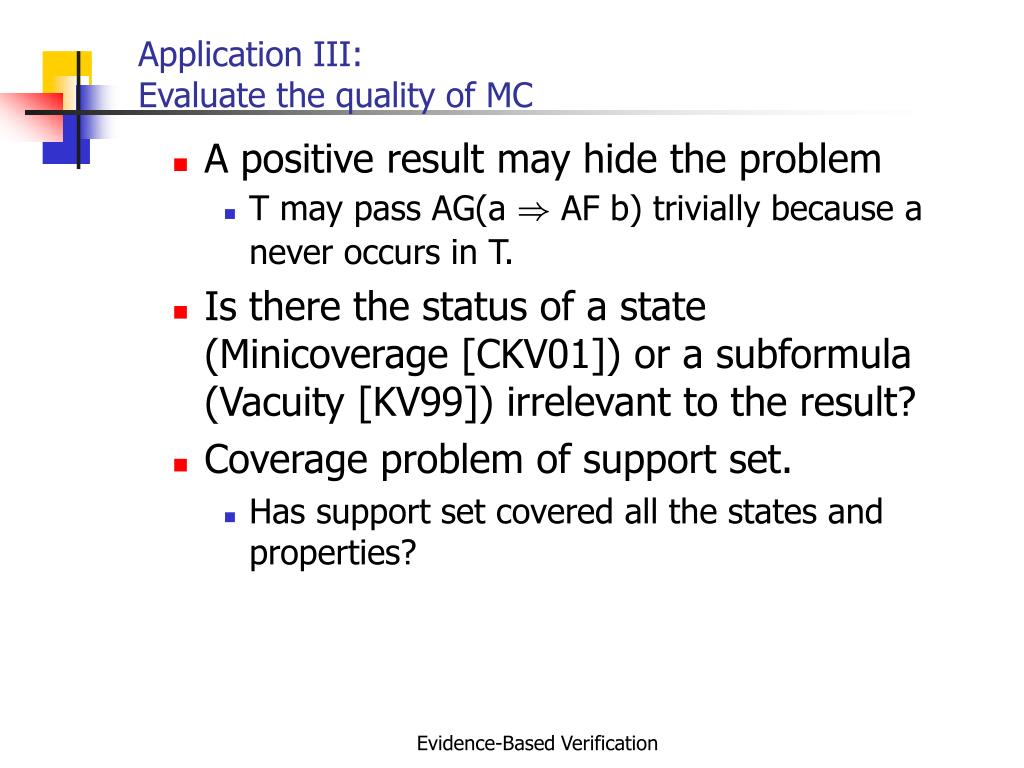

  24. Application III:Evaluate the quality of MC • A positive result may hide the problem • T may pass AG(a ) AF b) trivially because a never occurs in T. • Is there the status of a state (Minicoverage [CKV01]) or a subformula (Vacuity [KV99]) irrelevant to the result? • Coverage problem of support set. • Has support set covered all the states and properties? Evidence-Based Verification

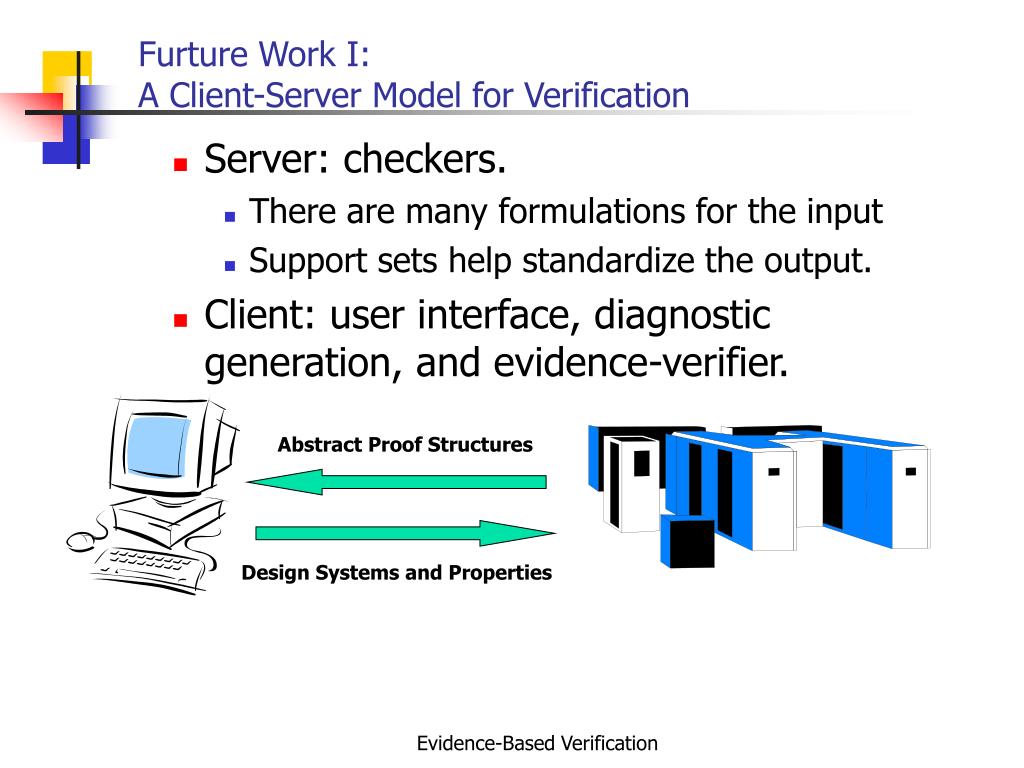

  25. Furture Work I:A Client-Server Model for Verification • Server: checkers. • There are many formulations for the input • Support sets help standardize the output. • Client: user interface, diagnostic generation, and evidence-verifier. Abstract Proof Structures Design Systems and Properties Evidence-Based Verification

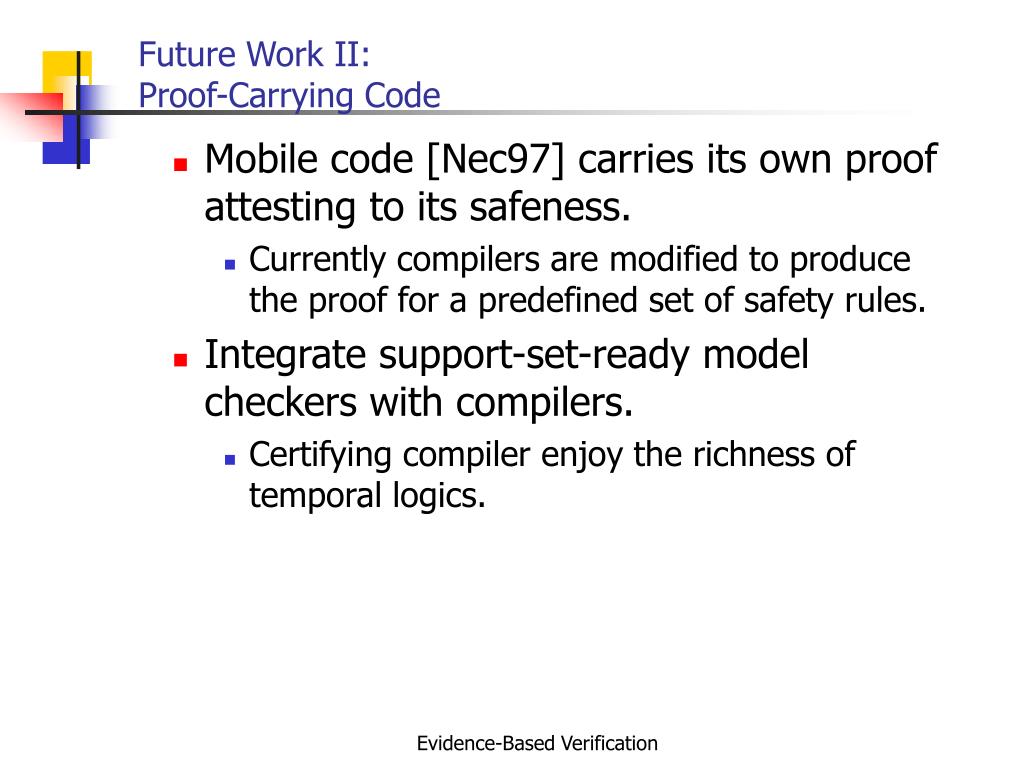

  26. Future Work II:Proof-Carrying Code • Mobile code [Nec97] carries its own proof attesting to its safeness. • Currently compilers are modified to produce the proof for a predefined set of safety rules. • Integrate support-set-ready model checkers with compilers. • Certifying compiler enjoy the richness of temporal logics. Evidence-Based Verification

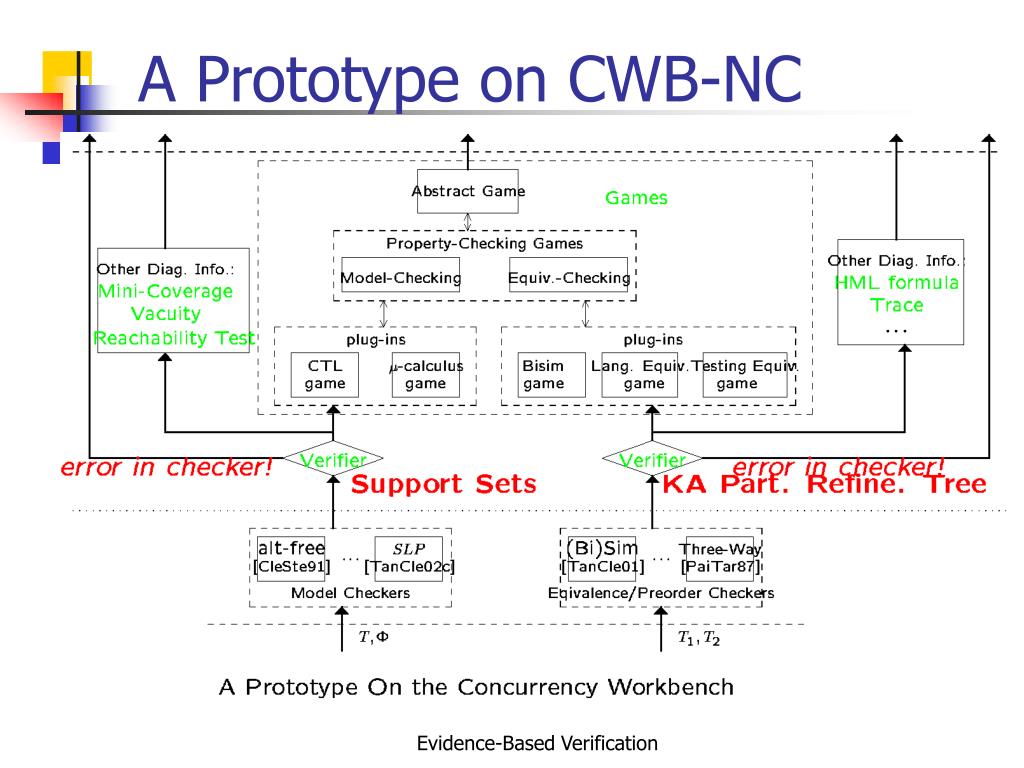

  27. A Prototype on CWB-NC Evidence-Based Verification

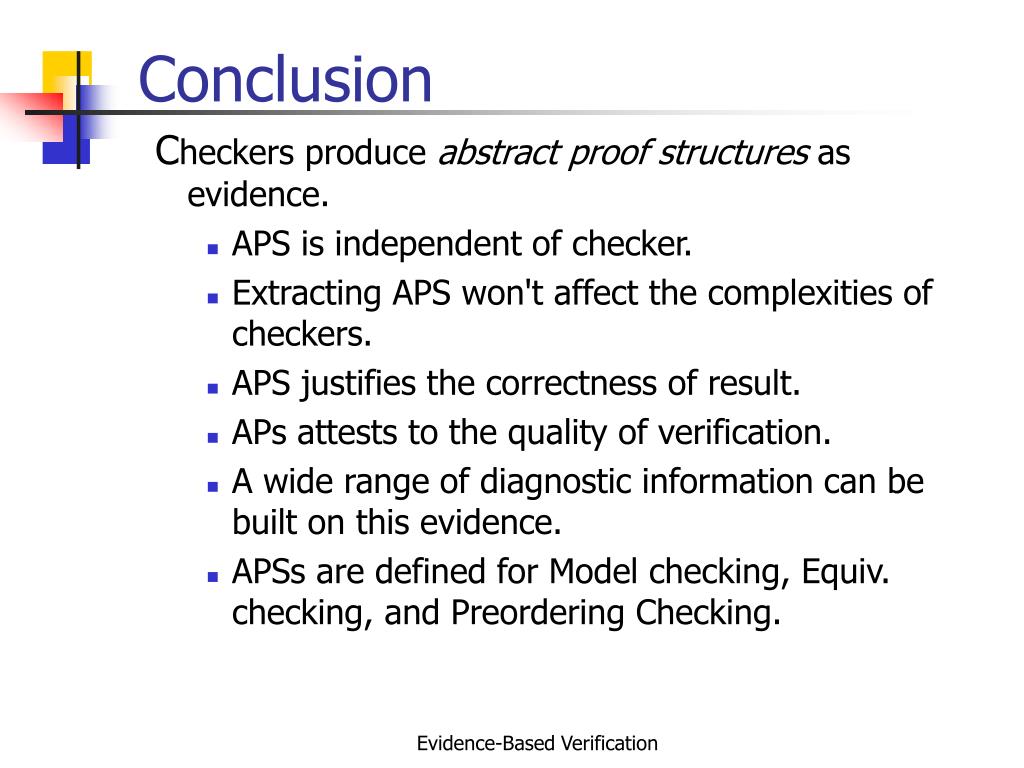

  28. Conclusion Checkers produce abstract proof structures as evidence. • APS is independent of checker. • Extracting APS won't affect the complexities of checkers. • APS justifies the correctness of result. • APs attests to the quality of verification. • A wide range of diagnostic information can be built on this evidence. • APSs are defined for Model checking, Equiv. checking, and Preordering Checking. Evidence-Based Verification
