  1. Carbohydrates and Structural Analysis of Polysaccharides Di Wu 2012-11-05

  2. Contents: • Introdution of carbohydrates • Monosaccharides • Oligosaccharides • Polysaccharides • Structure analysis of polysaccharides

  3. Introdution of carbohydrates

  4. Ah! sweet mystery of life . . . —Rida Johnson Young (lyrics) and Victor Herbert (music) “Ah! Sweet Mystery of Life,” 1910 I would feel more optimistic about a bright future for man if he spent less time proving that he can outwit Nature and more time tasting her sweetness and respecting her seniority. —E. B. White, “Coon Tree,” 1977

  5. Four Major Types of Biological Macromolecules

  6. Proteins: well defined Coded precisely by genes, hence monodisperse ~20 building block residues (amino acids) Standard peptide link (apart from proline) Normally tightly folded structures • Polysaccharides • Often poorly defined (although some can form helices) • Synthesised by enzymes without template – polydisperse, and generally larger • Many homopolymers, and rarely >3,4 different residues • Various links a(11), a(12), a(1-4),a(16), b(13), b(14)etc • Range of structures (rodcoil

  7. Carbohydrates: Polyhydroxy aldehydes or ketones, or substances that yield such compounds on hydrolysis. some also contain nitrogen, phosphorus, or sulfur. • (CH2O)n • 70-80% human energy needs (US~50%) • >90% dry matter of plants • Monomers and polymers • Functional properties • Sweetness • Chemical reactivity • Polymer functionality

  8. There are three major size classes of carbohydrates: • Monosaccharides– carbohydrates that cannot be hydrolyzed to simpler carbohydrates; eg. Glucose or fructose. • Oligosaccharides – carbohydrates that can be hydrolyzed into a few monosaccharide units; eg. Sucrose or lactose • Polysaccharides – carbohydrates that are polymeric sugars; eg Starch or cellulose

  9. Monosaccharides • 3-9 carbon atom sugars -(pentoses 5, hexoses 6 most common in plants) • have to be obtained by chemical reactions • only a few are free in plant -many as polysaccharides

  10. The structure and classification of some monosaccharides

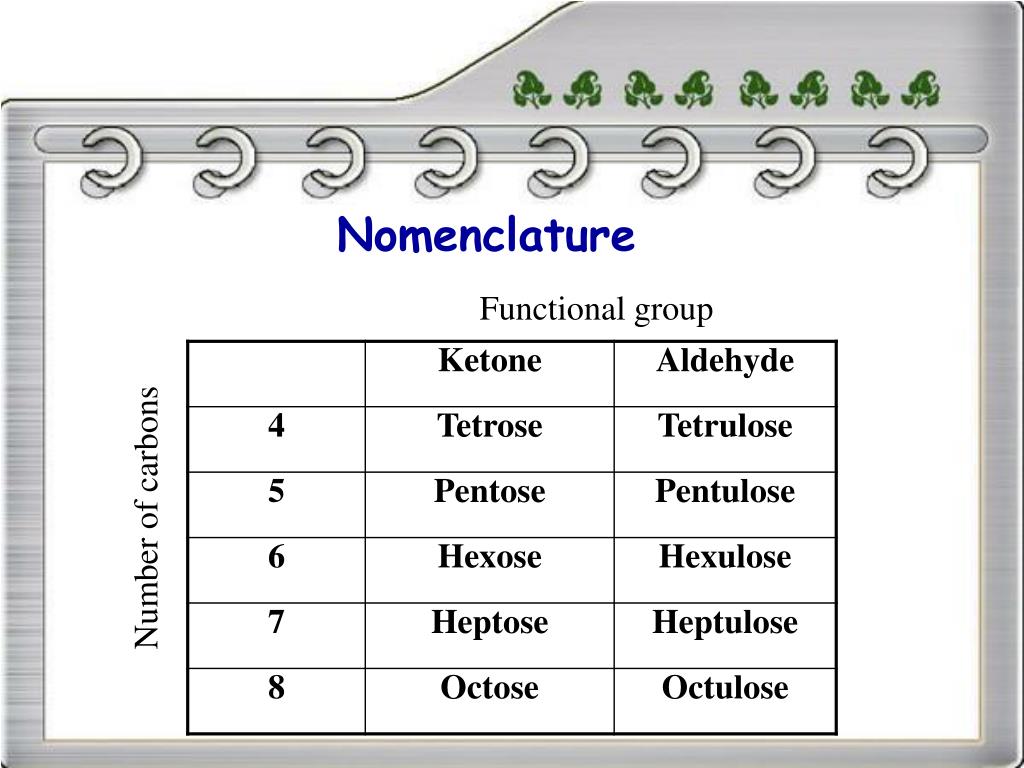

  11. Nomenclature Functional group Number of carbons

  12. Oligosaccharides • Composed of a few monosaccharide units by glycosidic link from C-1 of one unit and -OH of second unit • 13, 14, 1  6 links most common but 1  1 and 1  2 are possible • Links may be a or b • Link around glycosidic bond is fixed but anomeric forms on the other C-1 are still in equilibrium

  13. Synthesis

  14. Some Disaccharides maltose cellobiose (a-D-glucosyl-(1->4)-b-D-glucopyranose) (b-D-glucosyl-(1->4)-b-D-glucopyranose) lactose sucrose (b-D-galactosyl-(1->4)-b-D-glucopyranose) (a-D-glucosyl-(1->2)-b-D-fructofuranose)

  15. Higher Oligosaccharides

  16. Polysaccharides • Polysaccharides are complex carbohydrates made up • linked monosaccharide units. • Nomenclature: • Homopolysaccharide-a polysaccharide is made up of one type of monosaccharide unit • Heteropolysaccharide-a polysaccharide is made up of more than one type of monosaccharide unit • Starch and glycogen are storage molecules • Chitin and cellulose are structural molecules • Cell surface polysaccharides are recognition molecules

  17. Polisaccharides Sources of Polysaccharides • Microbial fermentation • Higher plants • seeds • tree extrudates, • marine plants, • Chemical modification of other polymers

  18. Some types of polysaccharides 1.Starch • Starch is a storage compound in plants, and made of glucose units • It is a homopolysaccharide made up of two components: amylose and amylopectin. • Most starch is 10-30% amylose and 70-90% amylopectin

  19. Amylose – a straight chain structure formed by 1,4glycosidic bonds between α-D-glucose molecules. Structure of Amylose Fraction of Starch

  20. Amylose • The amylose chain forms a helix. • This causes the blue colour change on reaction with iodine. • Amylose is poorly soluble in water, but forms micellar suspensions

  21. Amylopectin-a glucose polymer with mainly α -(14) linkages, but it also has branches formed by α -(16) linkages. Branches are generally longer than shown above. Structure of Amylopectin Fraction of Starch

  22. Amylopectin causes a red-violet colour change on reaction with iodine. • This change is usually masked by the much darker reaction of amylose to iodine. Amylopectin Amylopectin

  23. Starch therefore consists of amylose helices entangled on branches of amylopectin.

  24. 2 Glycogen • Storage polysaccharide in animals • Glycogen constitutes up to 10% of liver mass and 1-2% of muscle mass • Glycogen is stored energy for the organism • Similar in structure to amylopectin, only difference from starch: number of branches • Alpha(1,6) branches every 8-12 residues • Like amylopectin, glycogen gives a red-violet color with iodine

  25. glycogen

  26. 3 Cellulose • The β-glucose molecules are joined by condensation, i.e. the removal of water, forming β-(1,4) glycosidic linkages. • Note however that every second β -glucose molecule has to flip over to allow the bond to form. This produces a “heads-tails-heads” sequence. • The glucose units are linked into straight chains each 100-1000 units long. • Weak hydrogen bonds form between parallel chains binding them into cellulose microfibrils. • Cellulose microfibrils arrange themselves into thicker bundles called microfibrils. (These are usually referred to as fibres.) • The cellulose fibres are often “glued” together by other compounds such as hemicelluloses and calcium pectate to form complex structures such as plant cell walls.

  27. Cellulose

  28. 4 pectin Cell wall polysaccharide

  29. ‘smooth’ regions :Partial methylated or not methylated poly-a-(14)-D-galacturonic acid residues; ‘hairy’ regions: due to presence of alternating a -(12)-L-rhamnosyl-a -(14)-D-galacturonosyl sections containing branch-points with side chains (1 - 20 residues) of mainly L-arabinose and D-galactose

  30. Pectin Model

  31. RG-II

  32. Source: Cell walls of higher plants (citrus rind) • Structure: Largely a linear polymer of polygalacturonic acid with varying degrees of methyl esterification.  (Also some branches –HAIRY REGIONS) • >50% esterified is a high methoxy (HM) pectin • <50% esterified is a low methoxy (LM) pectin • Functional Properties: • Main use as gelling agent (jams, jellies) • dependent on degree of methylation • high methoxyl pectins gel through H-bonding and in presence of sugar and acid • low methoxyl pectins gel in the presence of Ca2+ (‘egg-box’ model) • Thickeners • Water binders • Stabilizers

  33. Other polysaccharides • Chitin (poly glucose amine), found in fungal cell walls and the exoskeletons of insects. • Callose (poly 1-3 glucose), found in the walls of phloem tubes. • Dextran (poly 1-2, 1-3 and 1-4 glucose), the storage polysaccharide in fungi and bacteria. • Inulin (poly fructose), a plant food store. • Agar (poly galactose sulphate), found in algae and used to make agar plates. • Murein (a sugar-peptide polymer), found in bacterial cell walls. • Lignin (a complex polymer), found in the walls of xylem cells, is the main component of wood.

  34. Information on polysaccharide structures --Monosaccharide component --Sugar linkage type --Sugar sequence --Monosaccharide configuration(αorβand D or L) --Molecular weight --Amount and position of substitute units --Degree of branching Structure analysis of polysaccharides

  35. Monosaccharide component The polysaccharide samples are hydrolyzed by HCl/MeOH and TFA, then analyzed by HPLC or GC HPLC: High pressure/performance liquid chromatography

  36. Sugar linkage type Chemical methods: Periodate Oxidation and Smith degradation Methylation analysis GC-MS: Gas chromatography-Mass spectrometer

  37. Physical methods: NMR(Nuclear Magnetic Resonance) • Sugar linkage type • Monosaccharide configuration • Substitute units • Degree of branching

  38. Physical methods: FT-IR (Fourier transform infrared spectroscopy) • Monosaccharide configuration • Substitute units

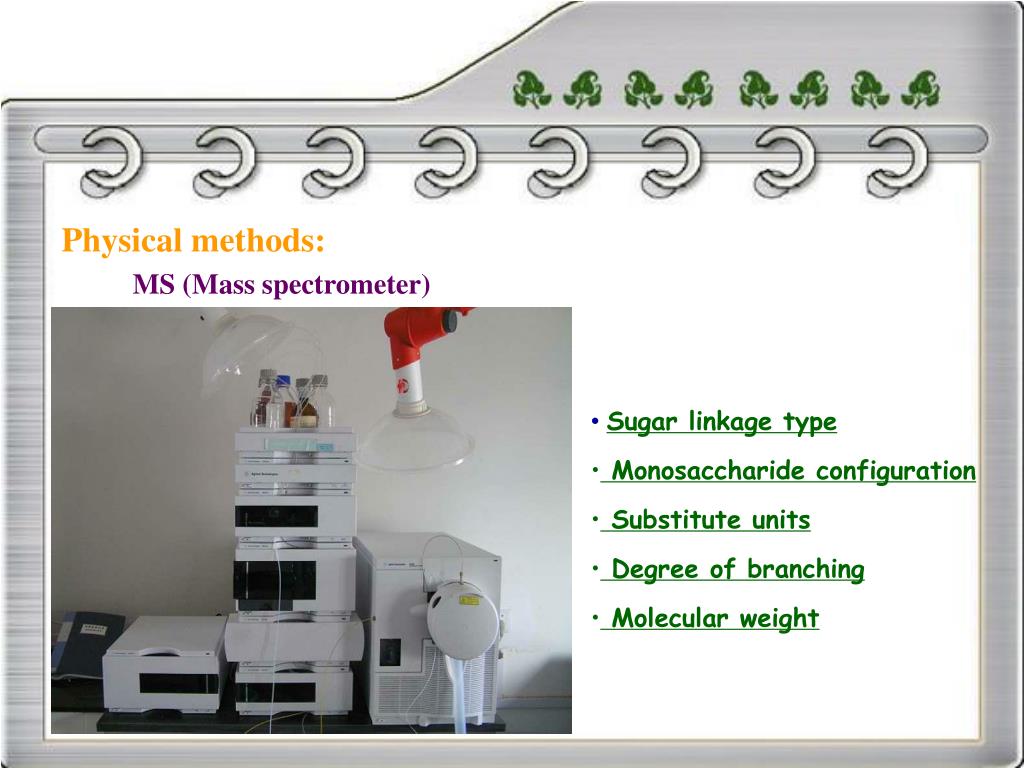

  39. Physical methods: MS (Mass spectrometer) • Sugar linkage type • Monosaccharide configuration • Substitute units • Degree of branching • Molecular weight

  40. Molecular weight

  41. Thank You! E-mail: wud073@nenu.edu.cn
