  1. Object-Oriented Persistence Techniques Using OSS By: Josh Schendel

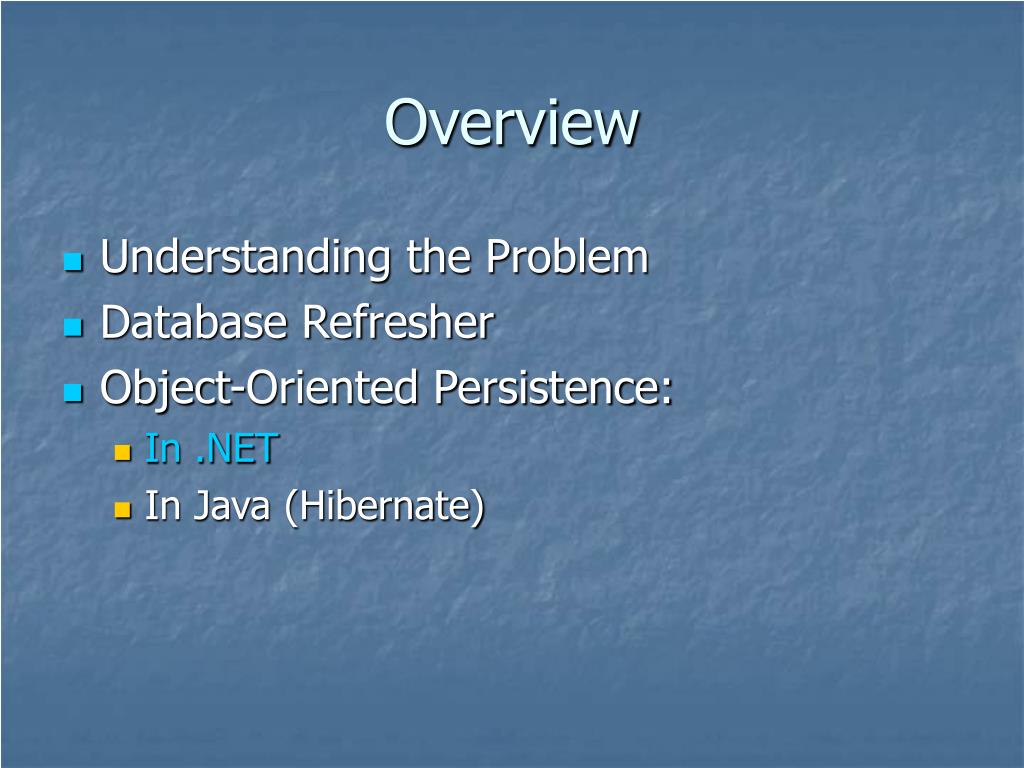

  2. Overview • Understanding the Problem • Database Refresher • Object-Oriented Persistence: • In .NET • In Java (Hibernate)

  3. Understanding the Problem “Software exists to solve a problem!” ~Every SE professor at this school Image from plg.uwaterloo.ca/ ~migod/fun/

  4. The Good Old Days • In the early days of programming: • Hardware presented limitations • Fewer clock cycles to solve the problem • Make best use of RAM and other resources • Efficiency was critical! • Programming teams were smaller • Many programs written by a single person • Maintenance generally consisted of bug-fixes Image from www.upss.com/menus.htm

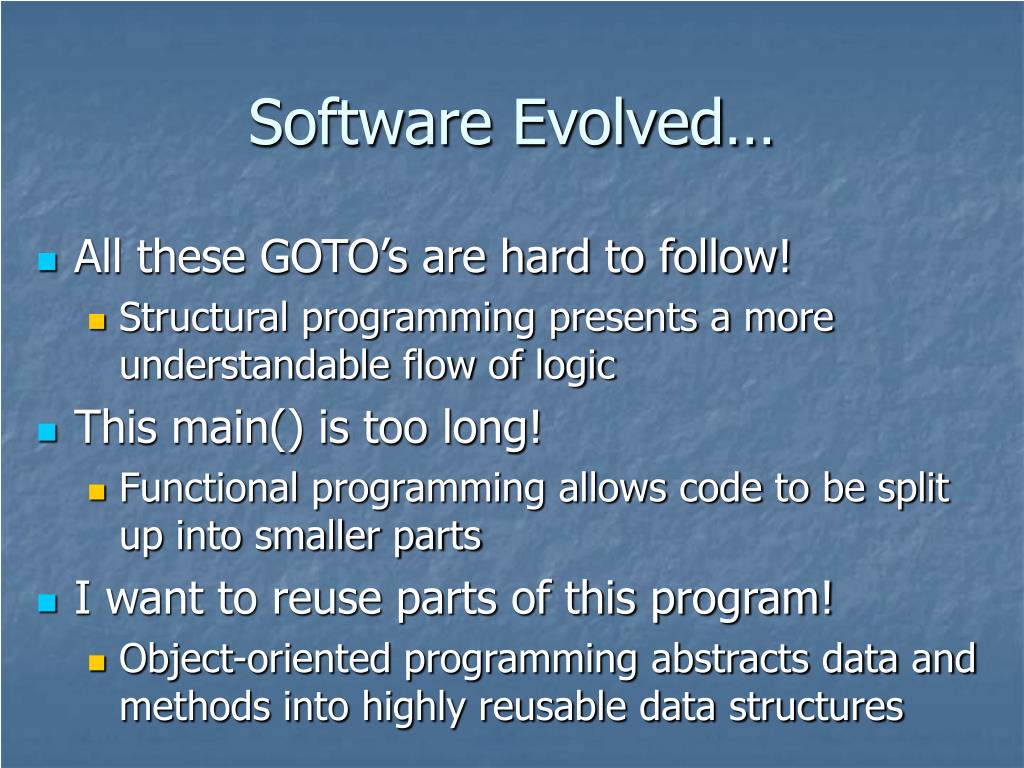

  5. Software Evolved… • All these GOTO’s are hard to follow! • Structural programming presents a more understandable flow of logic • This main() is too long! • Functional programming allows code to be split up into smaller parts • I want to reuse parts of this program! • Object-oriented programming abstracts data and methods into highly reusable data structures

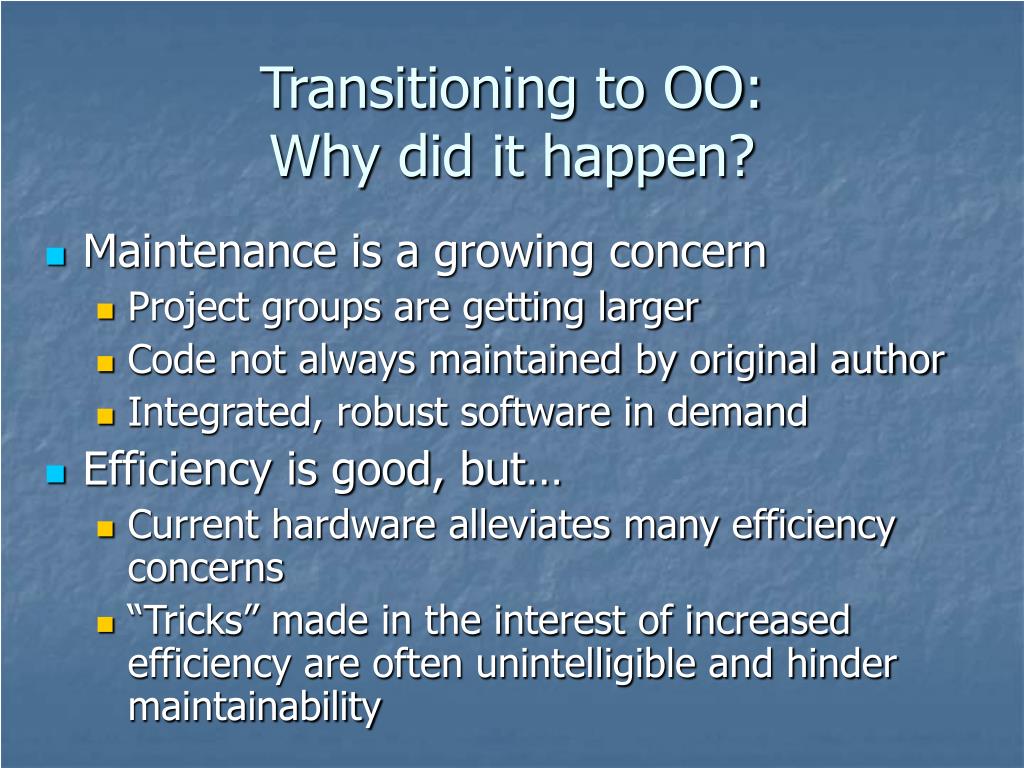

  6. Transitioning to OO:Why did it happen? • Maintenance is a growing concern • Project groups are getting larger • Code not always maintained by original author • Integrated, robust software in demand • Efficiency is good, but… • Current hardware alleviates many efficiency concerns • “Tricks” made in the interest of increased efficiency are often unintelligible and hinder maintainability

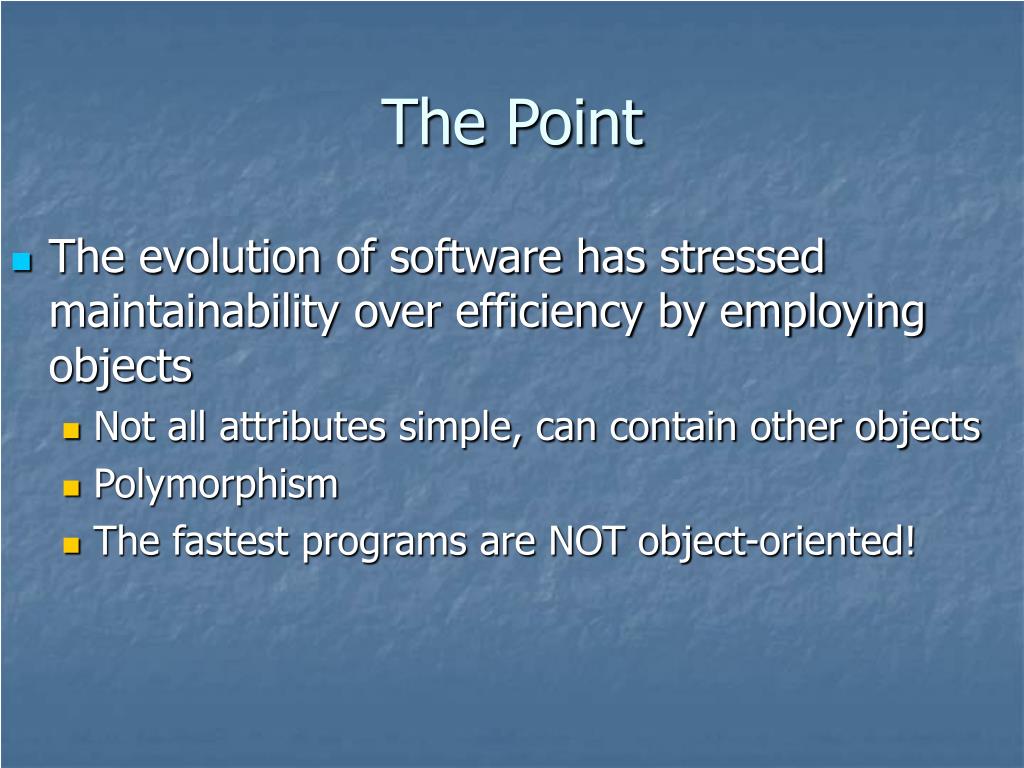

  7. The Point • The evolution of software has stressed maintainability over efficiency by employing objects • Not all attributes simple, can contain other objects • Polymorphism • The fastest programs are NOT object-oriented!

  8. The Point • The evolution of relational database software has stressed parallelization and scalability over object-oriented support • Transactional-based processing to allow multiprocessing without corruption of data • Many database packages charge based on multiprocessor utilizations • Can only store SIMPLE data types!! • Strings • Dates • Integers • …

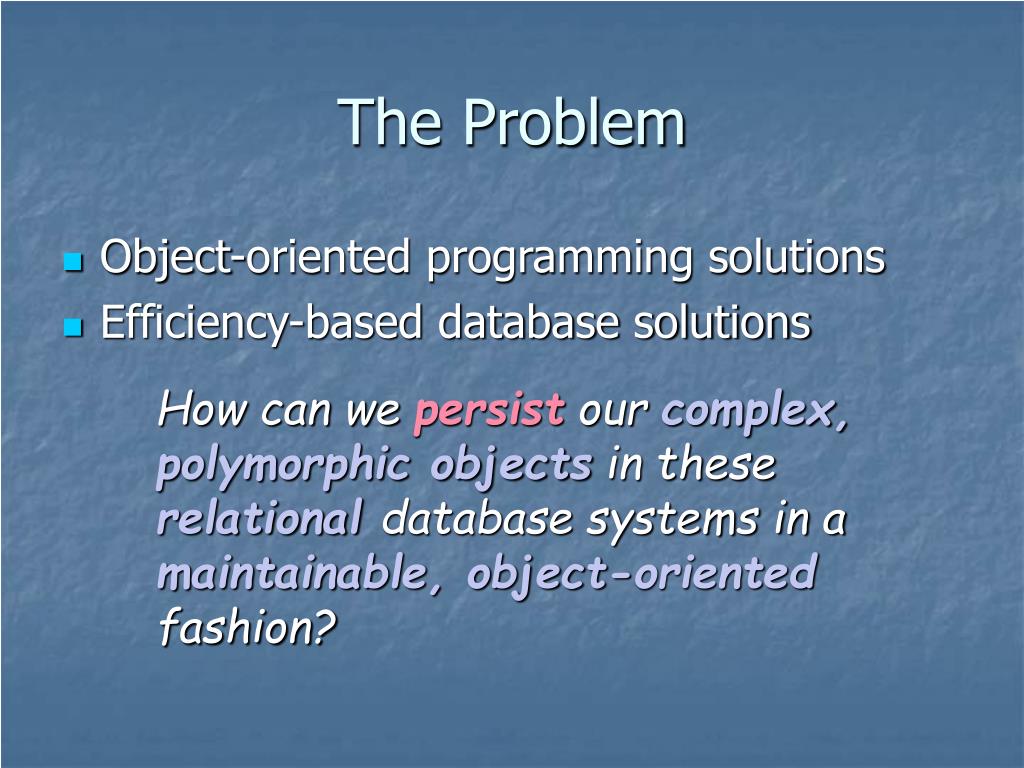

  9. The Problem • Object-oriented programming solutions • Efficiency-based database solutions How can we persist our complex, polymorphic objects in these relational database systems in a maintainable, object-oriented fashion?

  10. Overview • Understanding the Problem • Database Refresher • Object-Oriented Persistence: • In .NET • In Java (Hibernate)

  11. Umm… What’s Persistence? • 3 types of data in an application • Transient • Persistent • Detached Information from http://www.hibernate.org/hib_docs/v3/reference/en/html/objectstate.html

  12. Transient Data • Does not need to be “saved” or retained after program exits • Does not contribute significant amount of state to the object • Often temporary or derived information, and often local to a function

  13. Persistent Data • Needs to be “saved” or retained after program exits • Contributes a significant amount of state to the object • Often all private class variable for a data object contain persistent data • Persistent data used to reconstruct the saved object after it has been saved

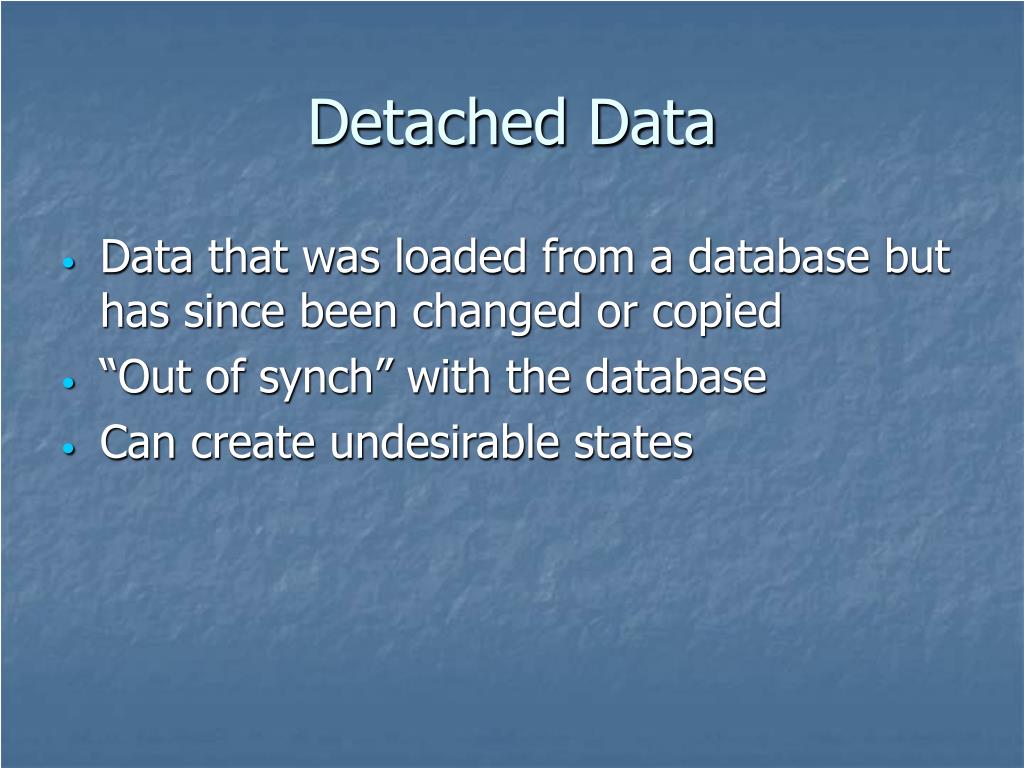

  14. Detached Data • Data that was loaded from a database but has since been changed or copied • “Out of synch” with the database • Can create undesirable states

  15. K, What’s a Relational Database? • “A relational database is a collection of data items organized as a set of formally-described tables from which data can be accessed or reassembled in many different ways without having to reorganize the database tables.”~http://searchoracle.techtarget.com/sDefinition/0,,sid41_gci212885,00.html

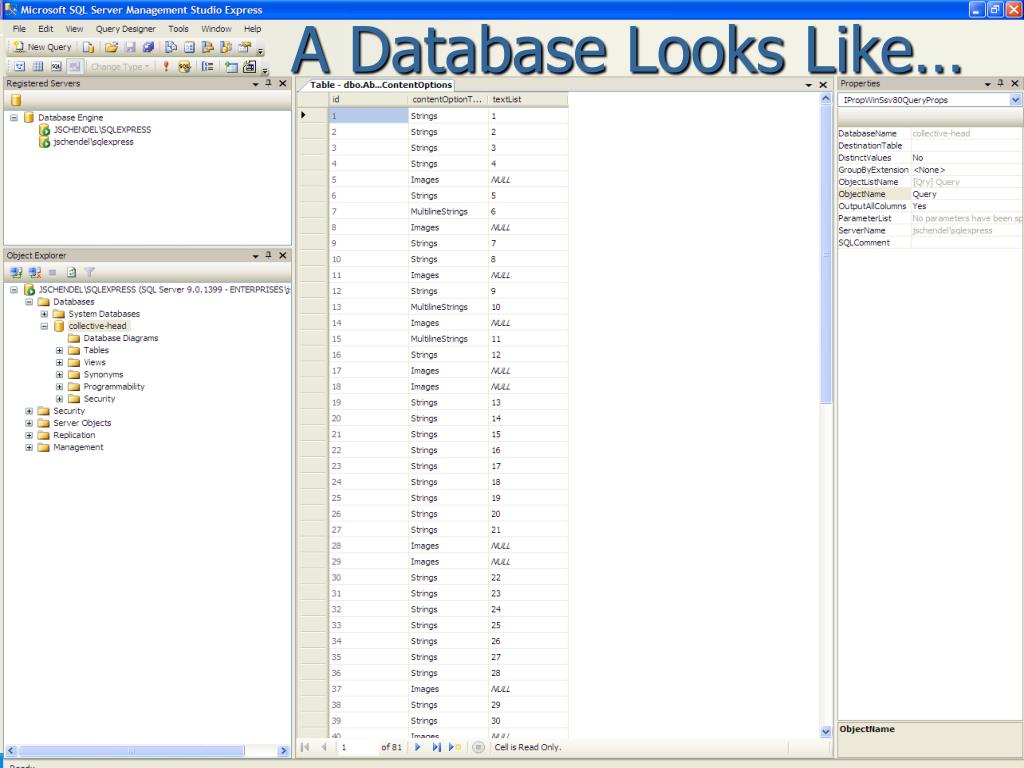

  16. A Database Looks Like…

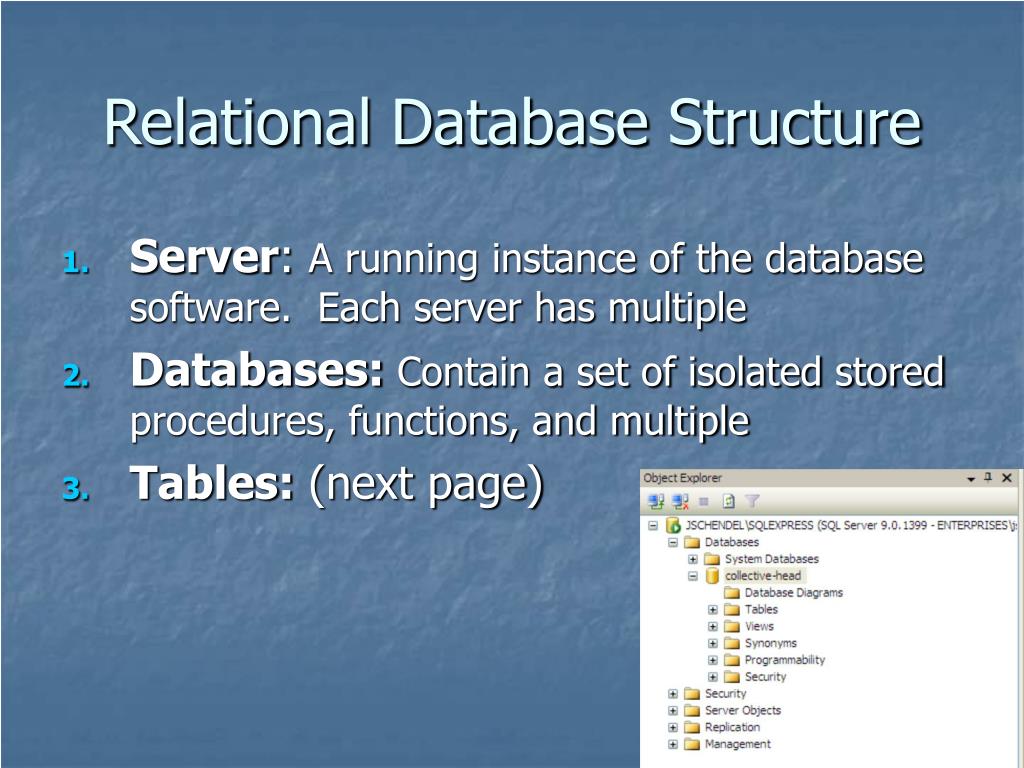

  17. Relational Database Structure • Server: A running instance of the database software. Each server has multiple • Databases: Contain a set of isolated stored procedures, functions, and multiple • Tables: (next page)

  18. Relational Database Structure • Table: An entity that stores a set of data. • Columns: Each stores a single attribute, or field • Rows:Each row is a “record”, or an instance of data in its corresponding table

  19. Tables…

  20. Normalization • Not all information about a system can be persisted in a single table • Not all information about a system is unrelated • Information is normalized across several tables • Related information is linked via keys

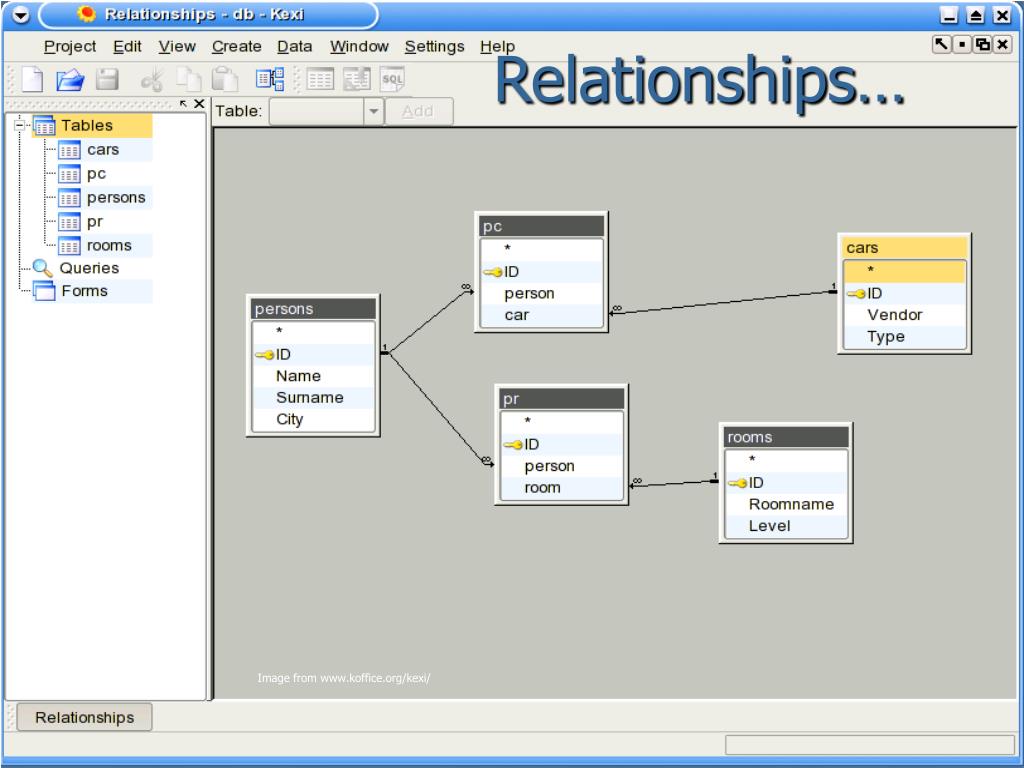

  21. Relationships… Image from www.koffice.org/kexi/

  22. Database Terms • Connection String: A string of characters that is used in establishing a connection to a database • SQL: “Structured Query Language”, a protocol used to specify information desired from a database • Join: A means of combining the contents of records from different tables based on certain criteria • Key: A field or set of fields on a table for which the table is constrained in such a way that no two records can coexist in the table with the same values Terms from Hibernate in Action

  23. Database Terms • Record: One row of a table or resultset. • Query: An instance of a SQL statement that has been sent to a database to be performed • Resultset: The results of a query. All desired fields of all records that fit the criteria in the query are returned • Serialization: The conversion of an object into a meaningfully formatted string for which the object could use to reload its state at the time of conversion Terms from Hibernate in Action

  24. Overview • Understanding the Problem • Database Refresher • Object-Oriented Persistence: • In .NET • In Java (Hibernate)

  25. 3-Tiered Development • Presentation Layer • GUI • Business Logic Layer • “Policy” layer • Monkeys! • Data/Services Layer • Database interactions *Focus is on making Data Layer as object-oriented as the rest of the system Picture and terms from http://www.officewizard.com/books/clientserver/ClientServerComputing.htm

  26. Challenges of an OO Data Layer • Normalization • Tables are split up to reduce redundant data • Challenges developer’s capacity to treat each table as an object • Composition • Objects contain other objects • Contained objects must be stored in separate table • Inheritance • Store inherited objects in • Separate table? • Same table, separate table for additional attributes? • Same table, make table include attributes for all descendents?

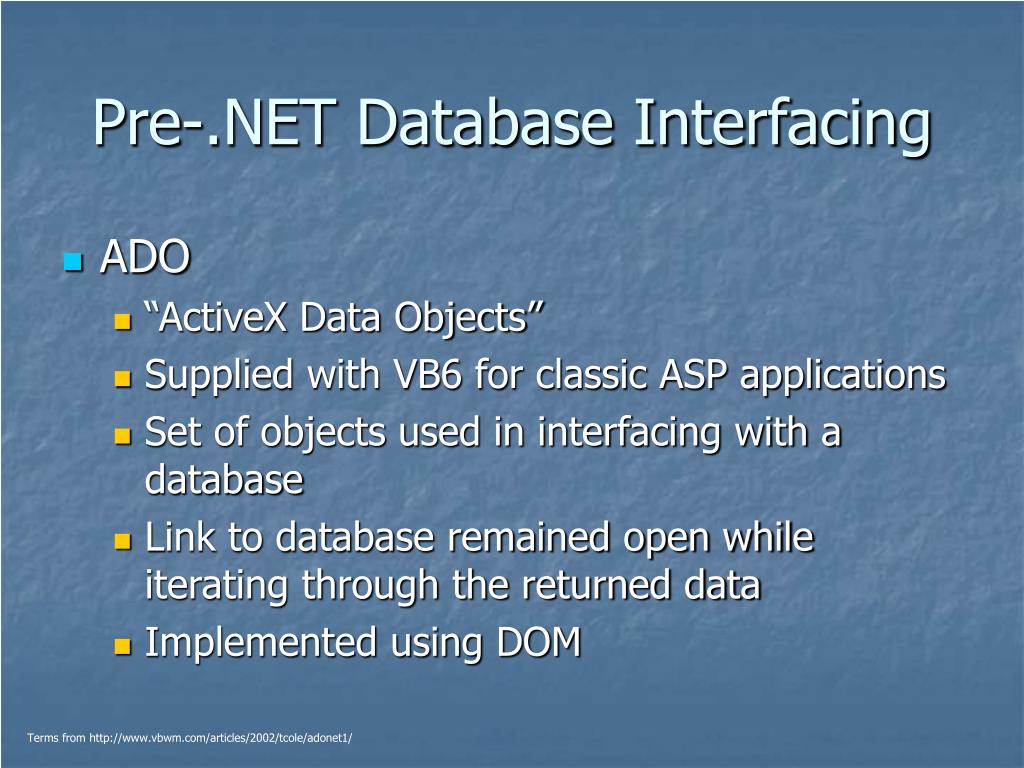

  27. Pre-.NET Database Interfacing • ADO • “ActiveX Data Objects” • Supplied with VB6 for classic ASP applications • Set of objects used in interfacing with a database • Link to database remained open while iterating through the returned data • Implemented using DOM Terms from http://www.vbwm.com/articles/2002/tcole/adonet1/

  28. .NET Database Interfacing • ADO.NET heavily revamps traditional ADO • Disconnected • On a transaction a connection is opened, data is retrieved, and connection is automatically closed • Saves server and database resources! • Implemented using XML • VERY easy for ADO.NET objects to read XML or to serialize contents into XML • Doesn’t assume “one size fits all” • DataReader • DataSet Terms from http://www.vbwm.com/articles/2002/tcole/adonet1/

  29. .NET Database Interfacing • DataReader • “Lightweight and quick” • Should be used for “quick and easy” database queries • Able to quickly and efficiently iterate over a resultset • Read-only • Often used to bind datagrids Terms from http://www.vbwm.com/articles/2002/tcole/adonet1/

  30. .NET Database Interfacing • DataSet • “Heavyweight but powerful” • Each query places the resultset in a “table” in the DataSet • Can join tables within the DataSet • Can “query” the DataSet directly to filter records • Quick and easy conversion to and from XML • Great for XML parsing and persistence! Terms from http://www.vbwm.com/articles/2002/tcole/adonet1/

  31. .NET Database Interfacing • DataAdapter • Mediates connection between DataReader/DataSet and the database • Stores important database information • Connection string • SQL query to be sent • Name of stored procedure (to be discussed) • Parameters Terms from http://www.vbwm.com/articles/2002/tcole/adonet1/

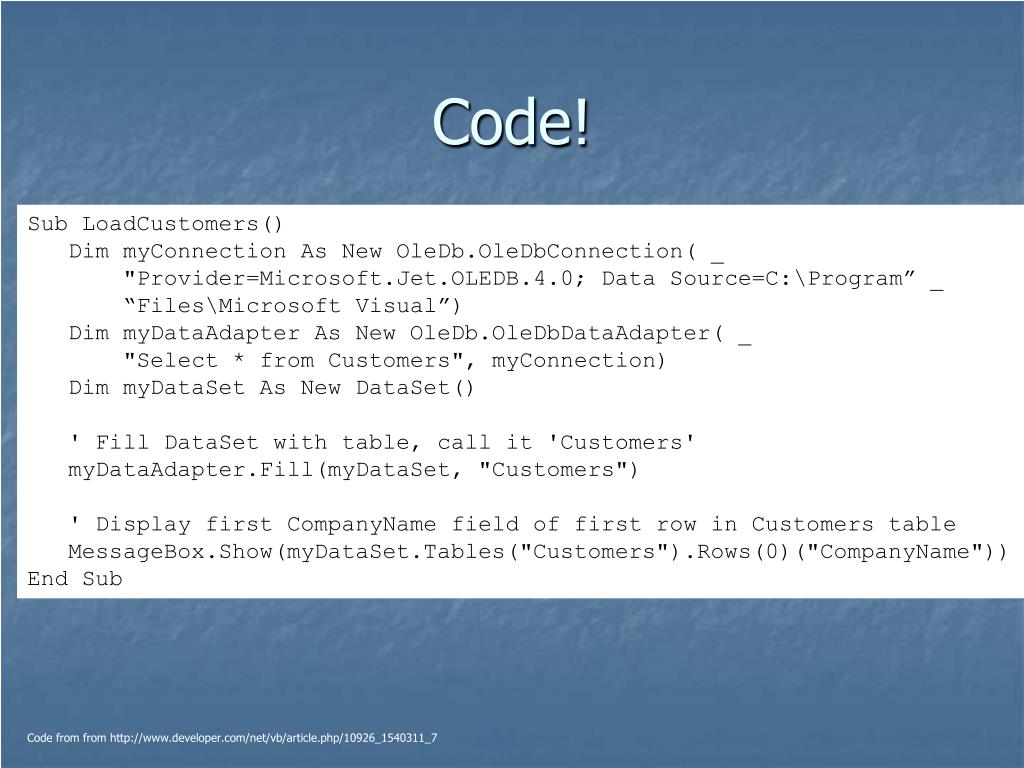

  32. Code! Sub LoadCustomers() Dim myConnection As New OleDb.OleDbConnection( _ "Provider=Microsoft.Jet.OLEDB.4.0; Data Source=C:\Program” _ “Files\Microsoft Visual”) Dim myDataAdapter As New OleDb.OleDbDataAdapter( _ "Select * from Customers", myConnection) Dim myDataSet As New DataSet() ' Fill DataSet with table, call it 'Customers' myDataAdapter.Fill(myDataSet, "Customers")   ' Display first CompanyName field of first row in Customers table MessageBox.Show(myDataSet.Tables("Customers").Rows(0)("CompanyName")) End Sub Code from from http://www.developer.com/net/vb/article.php/10926_1540311_7

  33. But Josh Doesn’t Like It Sub LoadCustomers() Dim myConnection As New OleDb.OleDbConnection( _ "Provider=Microsoft.Jet.OLEDB.4.0; Data Source=C:\Program” _ “Files\Microsoft Visual”) • Connection String • Hard coded • Connection Strings are volatile • Change when switch from development to production databases • Make private constant for the class? • Not good enough – Connection strings are generally constant throughout a project • Will end up redefining the same constant in every class • Solution: Project-wide constant Code from from http://www.developer.com/net/vb/article.php/10926_1540311_7

  34. But Josh Doesn’t Like It Sub LoadCustomers() Dim myConnection As New OleDb.OleDbConnection(CONSTANTS.CONN_STRING) Dim myDataAdapter As New OleDb.OleDbDataAdapter( _ "Select * from Customers", myConnection) Dim myDataSet As New DataSet() ' Fill DataSet with table, call it 'Customers' myDataAdapter.Fill(myDataSet, "Customers")   ' Display first CompanyName field of first row in Customers table MessageBox.Show(myDataSet.Tables("Customers").Rows(0)("CompanyName")) End Sub • Replaced hard-coded connection string Code from from http://www.developer.com/net/vb/article.php/10926_1540311_7

  35. But Josh Doesn’t Like It Sub LoadCustomers() Dim myConnection As New OleDb.OleDbConnection(CONSTANTS.CONN_STRING) Dim myDataAdapter As New OleDb.OleDbDataAdapter( _ "Select * from Customers", myConnection) • Query mixed in with the code! • Modern databases offer stored procedures to aid in partitioning the Data Layer • Stored procedures offer many advantages over formulating a query in-code Code from from http://www.developer.com/net/vb/article.php/10926_1540311_7

  36. Stored Procedures • Set of pre-written SQL statements that reside in the database • Code references the stored procedure instead of building the SQL statement • Advantages • Compilation • Maintainability Terms from http://www.vbwm.com/articles/2002/tcole/adonet1/

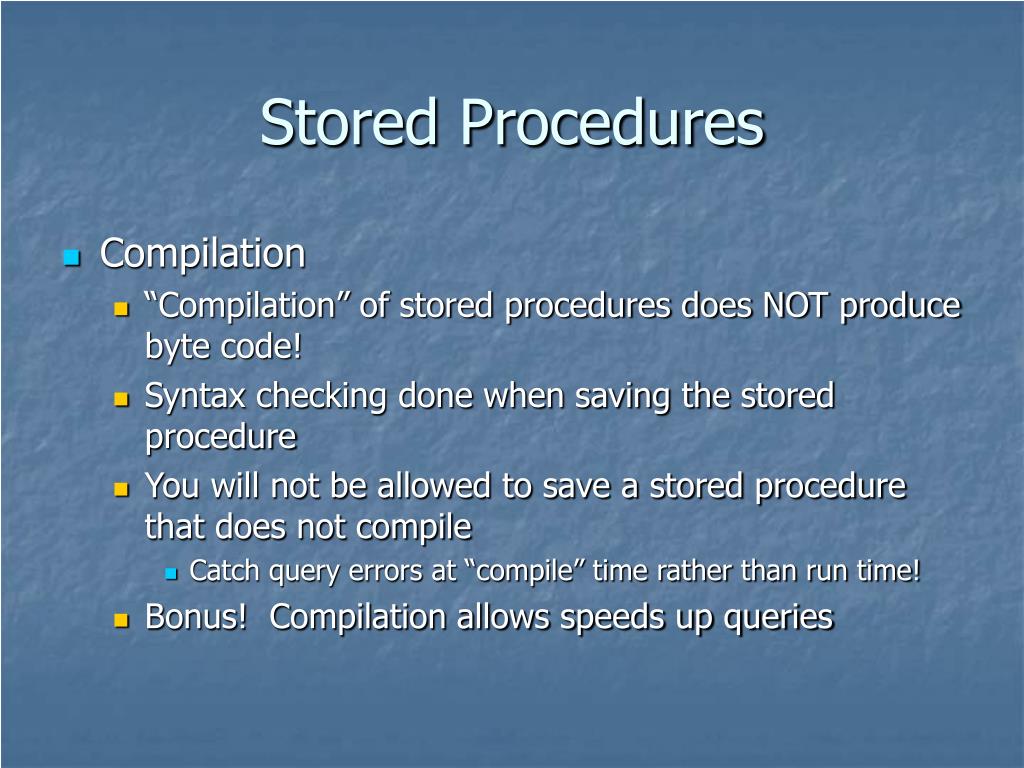

  37. Stored Procedures • Compilation • “Compilation” of stored procedures does NOT produce byte code! • Syntax checking done when saving the stored procedure • You will not be allowed to save a stored procedure that does not compile • Catch query errors at “compile” time rather than run time! • Bonus! Compilation allows speeds up queries

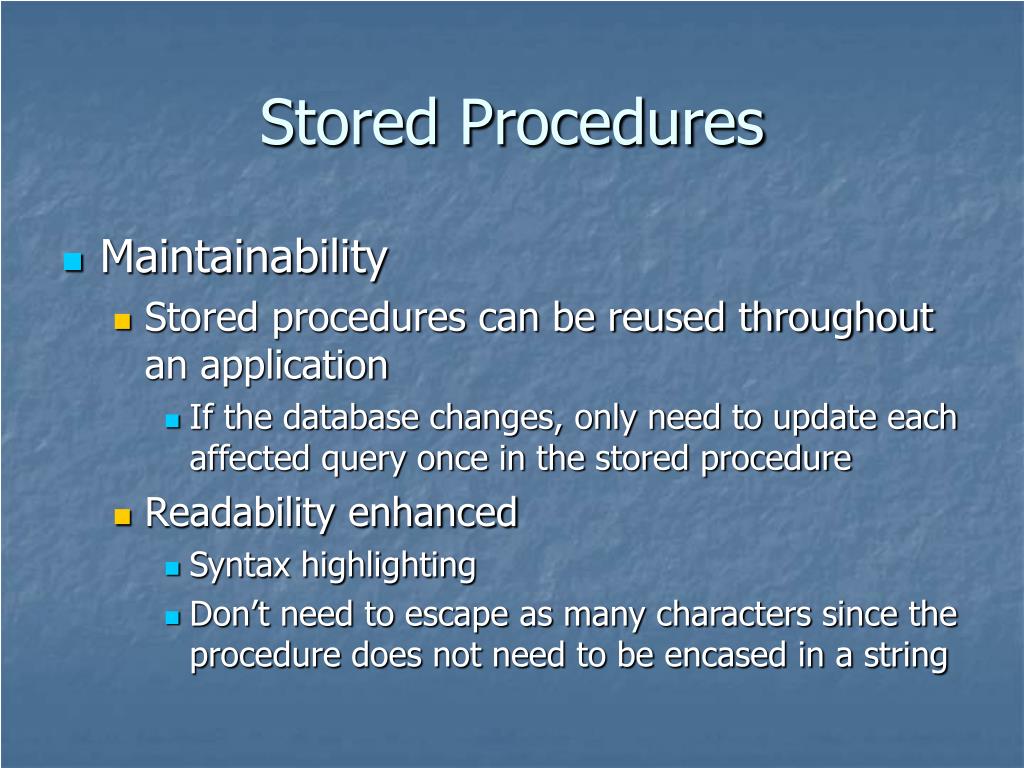

  38. Stored Procedures • Maintainability • Stored procedures can be reused throughout an application • If the database changes, only need to update each affected query once in the stored procedure • Readability enhanced • Syntax highlighting • Don’t need to escape as many characters since the procedure does not need to be encased in a string

  39. Stored Procedures

  40. But Josh Doesn’t Like It Sub LoadCustomers() Dim myConnection As New OleDb.OleDbConnection(CONSTANTS.CONN_STRING) Dim myDataAdapter As New OleDb.OleDbDataAdapter( _ “GET_CUSTOMERS” myConnection) myDataAdapter.SelectCommand.CommandType = CommandType.StoredProcedure; Dim myDataSet As New DataSet() ' Fill DataSet with table, call it 'Customers' myDataAdapter.Fill(myDataSet, "Customers")   ' Display first CompanyName field of first row in Customers table MessageBox.Show(myDataSet.Tables("Customers").Rows(0)("CompanyName")) End Sub • Replaced SQL with stored procedure Code from from http://www.developer.com/net/vb/article.php/10926_1540311_7

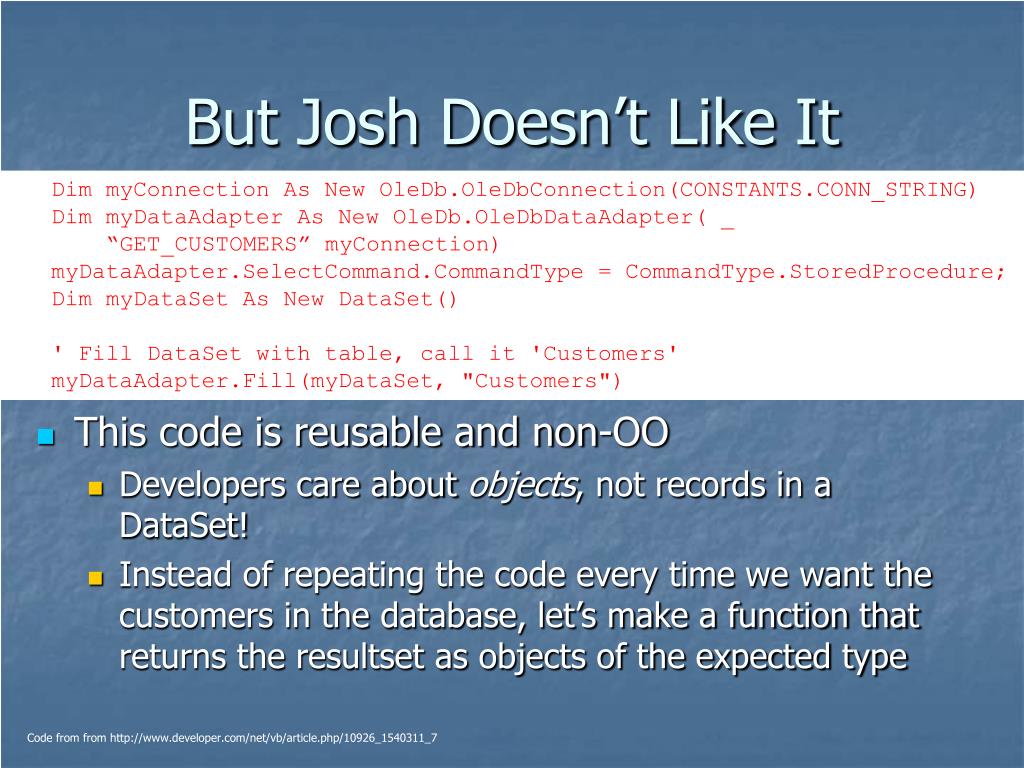

  41. But Josh Doesn’t Like It Dim myConnection As New OleDb.OleDbConnection(CONSTANTS.CONN_STRING) Dim myDataAdapter As New OleDb.OleDbDataAdapter( _ “GET_CUSTOMERS” myConnection) myDataAdapter.SelectCommand.CommandType = CommandType.StoredProcedure; Dim myDataSet As New DataSet() ' Fill DataSet with table, call it 'Customers' myDataAdapter.Fill(myDataSet, "Customers")   • This code is reusable and non-OO • Developers care about objects, not records in a DataSet! • Instead of repeating the code every time we want the customers in the database, let’s make a function that returns the resultset as objects of the expected type Code from from http://www.developer.com/net/vb/article.php/10926_1540311_7

  42. But Josh Doesn’t Like It Function getCustomer(ByVal id As Integer) As Customer Dim myConnection As New OleDb.OleDbConnection(CONSTANTS.CONN_STRING) Dim myDataAdapter As New OleDb.OleDbDataAdapter( _ “GET_CUSTOMER” myConnection) myDataAdapter.SelectCommand.CommandType = CommandType.StoredProcedure; myDataAdapter.Parameters.Add(“@id”, id) Dim myDataSet As New DataSet() ' Fill DataSet with table, call it 'Customers' myDataAdapter.Fill(myDataSet, "Customers")   String CompanyName = myDataSet.Tables(“Customers”) _ .Rows(0).Item(“CompanyName”) … Customer customer = new Customer (CompanyName, …) Return customer End Function • This code is reusable and non-OO • Developers care about objects, not records in a DataSet! • Instead of repeating the code every time we want the customers in the database, let’s make a function that returns the resultset as objects of the expected type Code from from http://www.developer.com/net/vb/article.php/10926_1540311_7

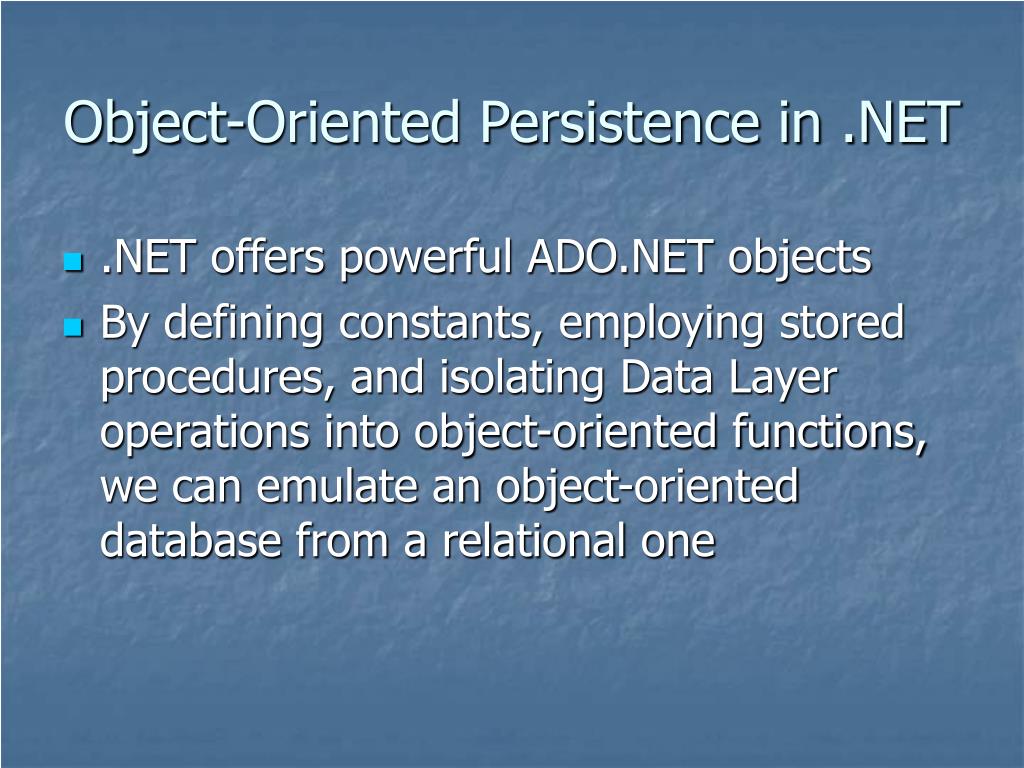

  43. Object-Oriented Persistence in .NET • .NET offers powerful ADO.NET objects • By defining constants, employing stored procedures, and isolating Data Layer operations into object-oriented functions, we can emulate an object-oriented database from a relational one

  44. Overview • Understanding the Problem • Database Refresher • Object-Oriented Persistence: • In .NET • In Java (Hibernate)

  45. Java Persistence • Wouldn’t it be great if all you had to do to save an object to the database was say session.save(customer);

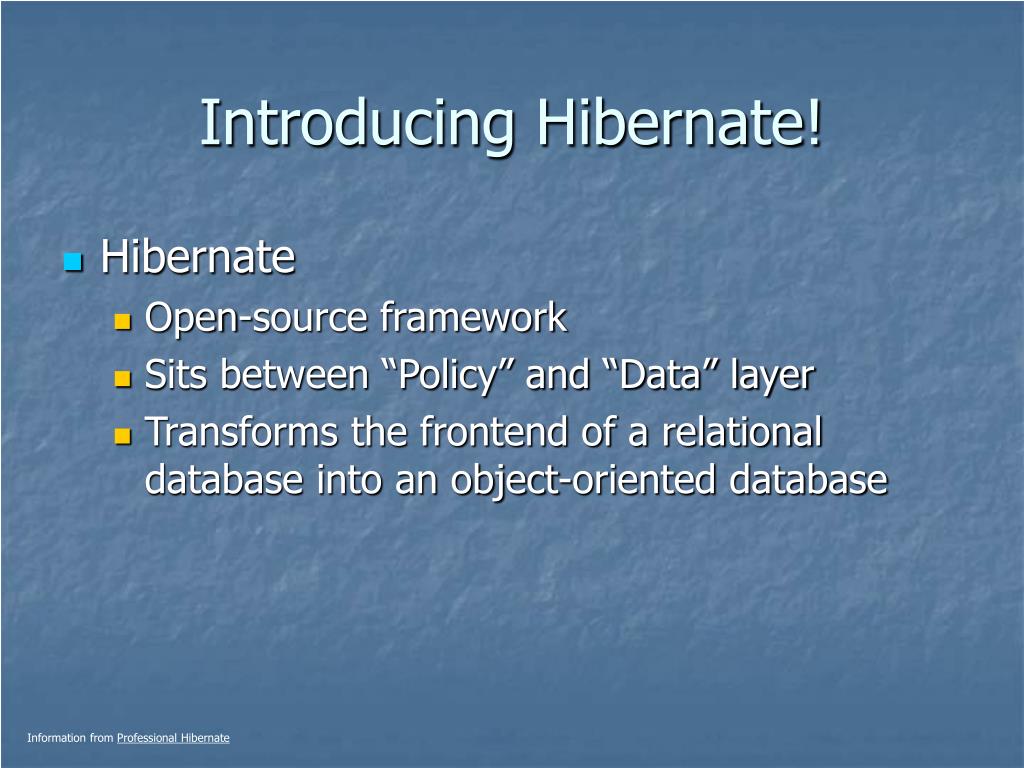

  46. Introducing Hibernate! • Hibernate • Open-source framework • Sits between “Policy” and “Data” layer • Transforms the frontend of a relational database into an object-oriented database Information from Professional Hibernate

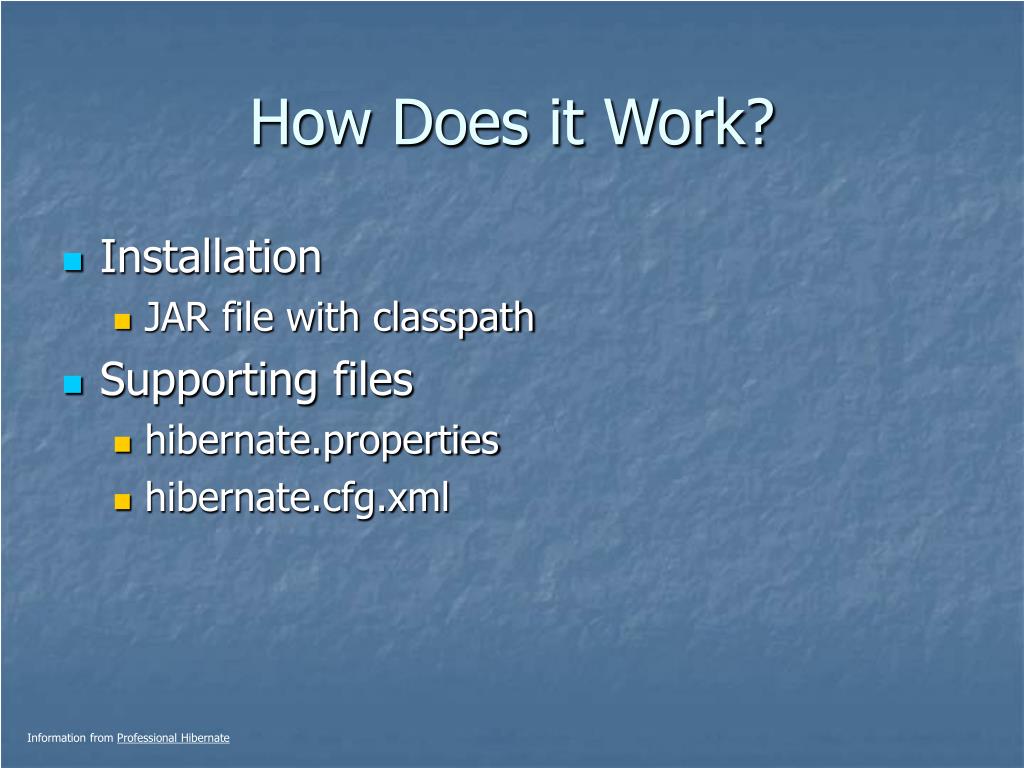

  47. How Does it Work? • Installation • JAR file with classpath • Supporting files • hibernate.properties • hibernate.cfg.xml Information from Professional Hibernate

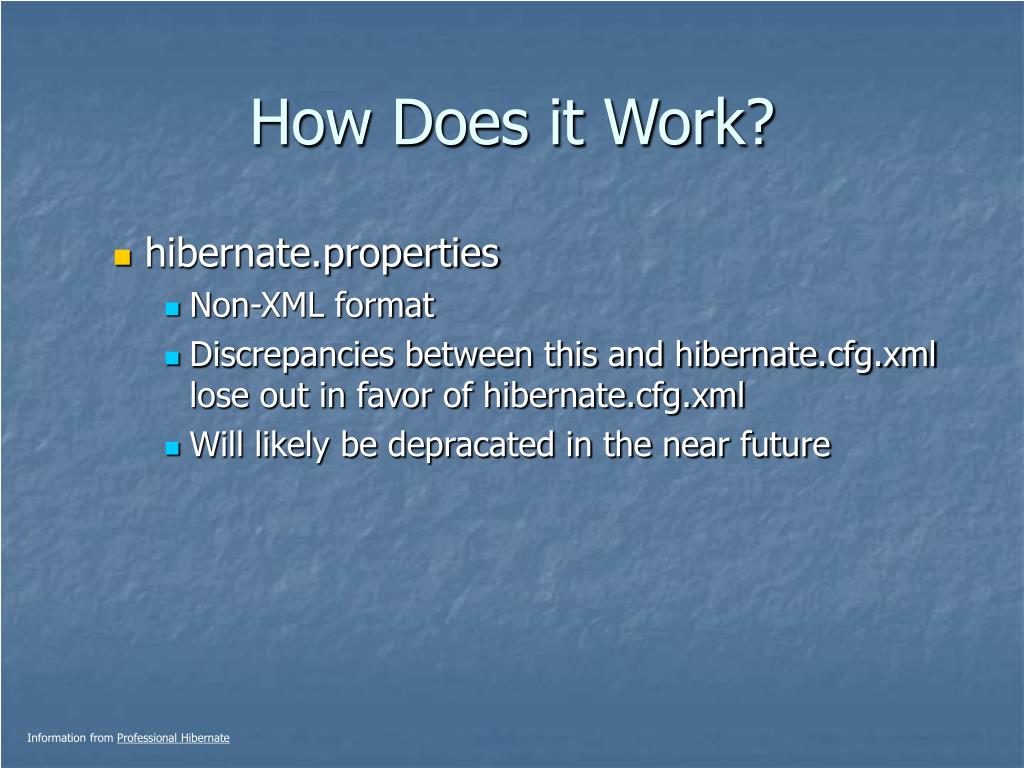

  48. How Does it Work? • hibernate.properties • Non-XML format • Discrepancies between this and hibernate.cfg.xml lose out in favor of hibernate.cfg.xml • Will likely be depracated in the near future Information from Professional Hibernate

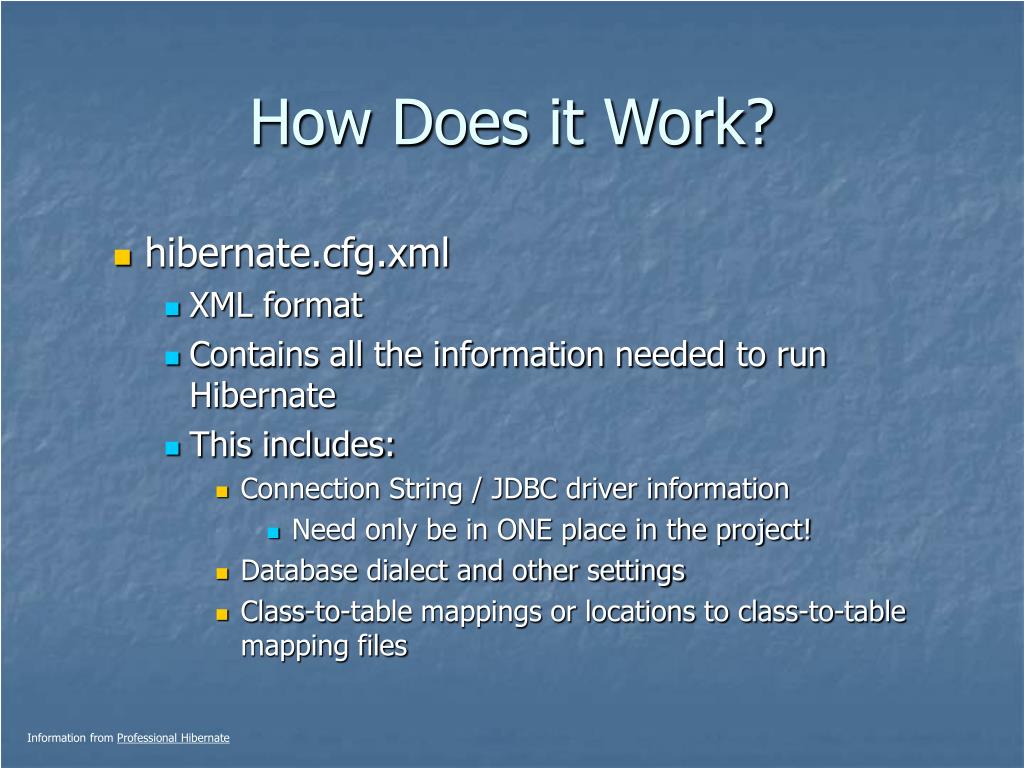

  49. How Does it Work? • hibernate.cfg.xml • XML format • Contains all the information needed to run Hibernate • This includes: • Connection String / JDBC driver information • Need only be in ONE place in the project! • Database dialect and other settings • Class-to-table mappings or locations to class-to-table mapping files Information from Professional Hibernate

  50. How Does it Work? • Database dialect • Dialect: A form of SQL that is constrained or contains proprietary keywords or formats that are specific to certain databases • Since Hibernate takes care of much of the SQL, it must know correct dialect for the database Information from Professional Hibernate
