  1. By: Z. S. Rezaei Structural comparison

  2. Structural comparison • Structural alignment • spectrumof structural alignment methods • The properties of output • Types of comparison • Algorithmic complexity • Representation of structures • Distance matrix • Methods • Alignment of large RNA molecules • The classes of scoring

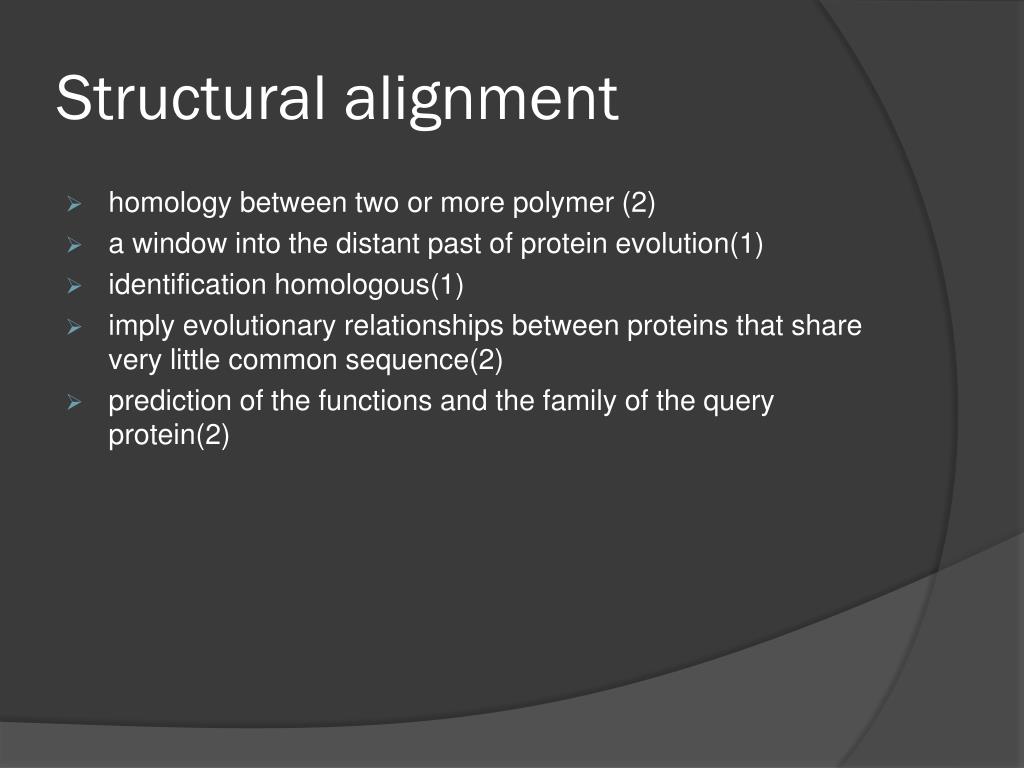

  3. Structural alignment • homology between two or more polymer (2) • a window into the distant past of protein evolution(1) • identification homologous(1) • imply evolutionary relationships between proteins that share very little common sequence(2) • prediction of the functions and the family of the query protein(2)

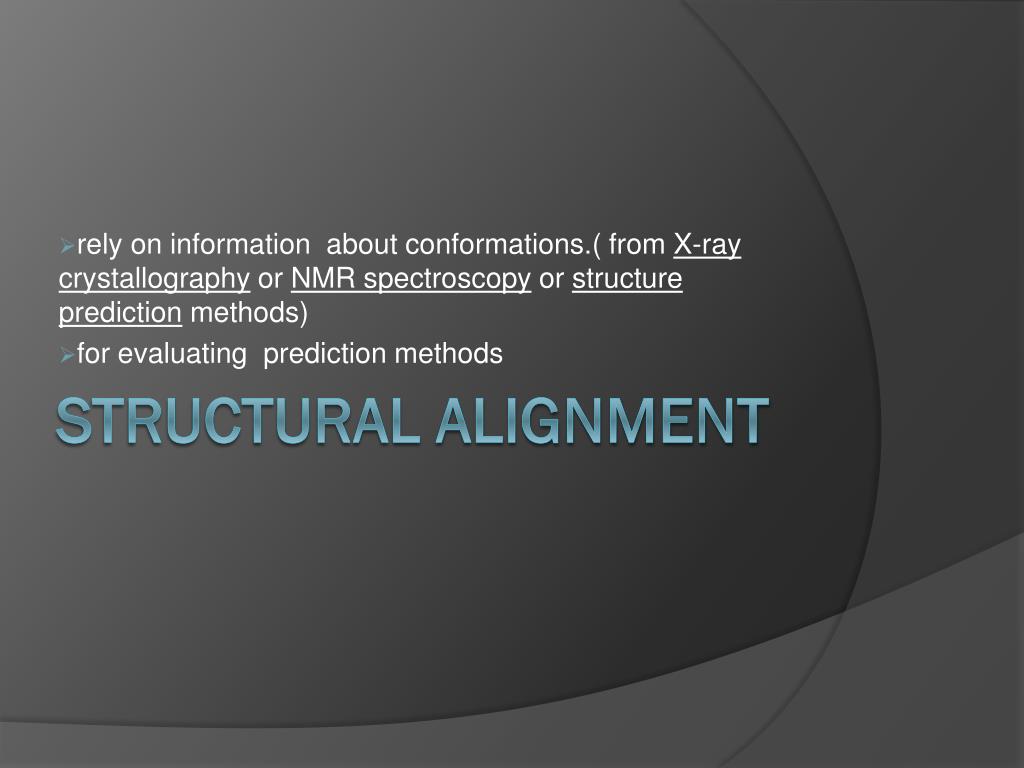

  4. rely on information about conformations.( from X-ray crystallography or NMR spectroscopyor structure predictionmethods) for evaluating prediction methods Structural alignment

  5. spectrumof structural alignment methods(1)

  6. The properties of out put • a superposition of the atomic coordinatesets and a minimal RMSD. • existence of multiple protein domains complicates the Structural alignment • a set of superposed three-dimensional coordinates for each input structure(2)

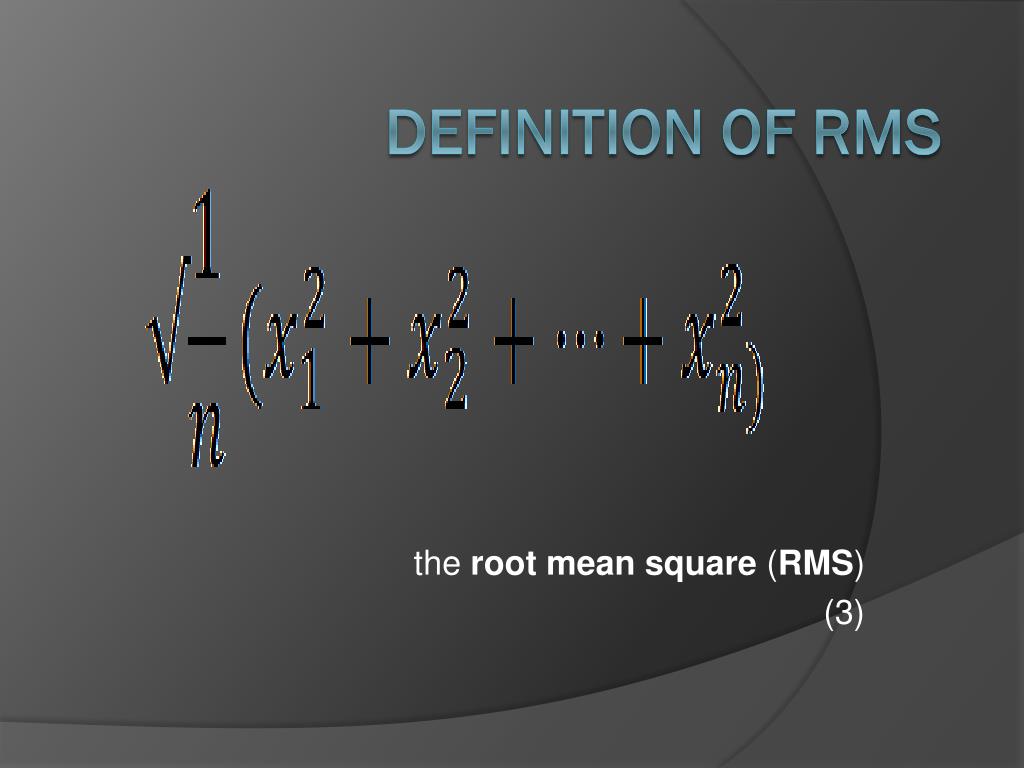

  7. the root mean square(RMS) (3) Definition of RMS

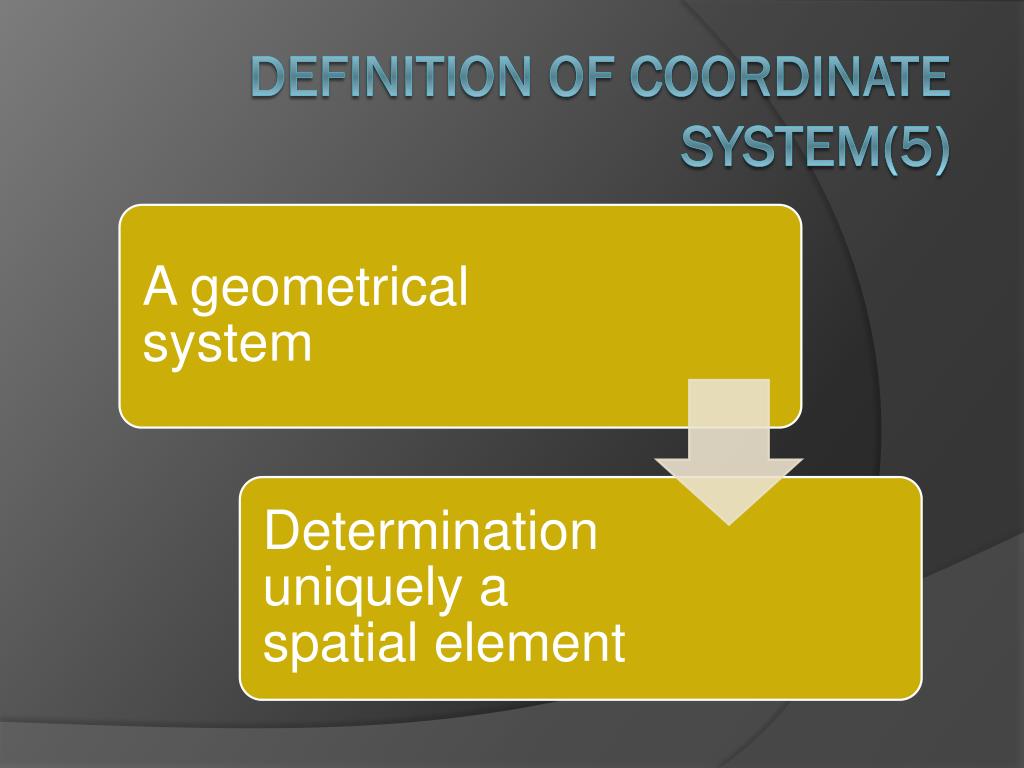

  8. Definition of coordinate system(5)

  9. Coordinate system • Spatial coordinate • Planar coordinate

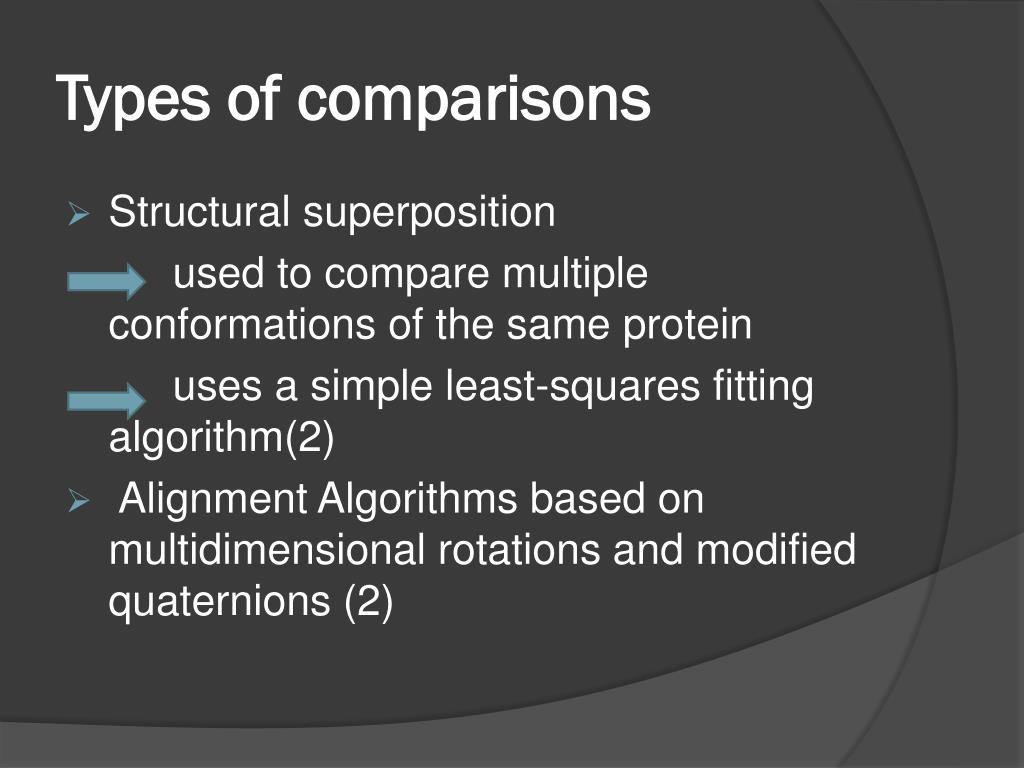

  10. Types of comparisons • Structuralsuperposition used to compare multiple conformations of the same protein uses a simple least-squares fitting algorithm(2) • Alignment Algorithms based on multidimensional rotations and modified quaternions (2)

  11. a number system In mathematics a quaternion as the quotient of two directed lines in a three-dimensional represented as the sum of a scalar and a vector (6) Definition of quaternion

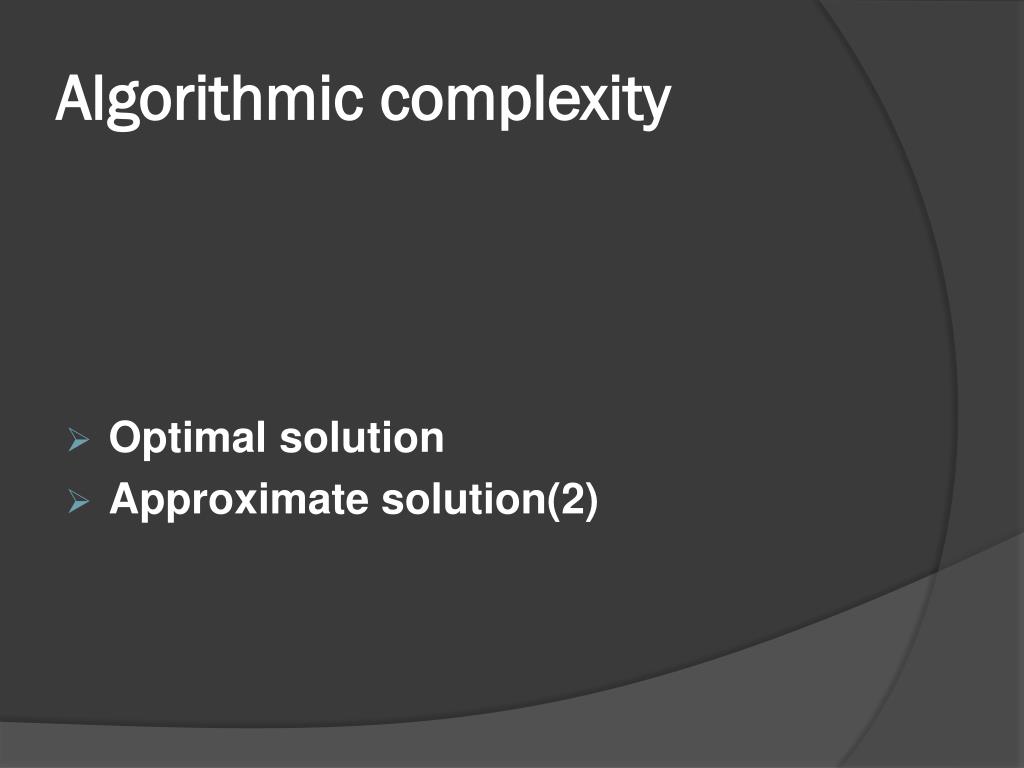

  12. Algorithmic complexity • Optimal solution • Approximate solution(2)

  13. Optimal solution • The optimal "threading" shown to be NP-complete • Strictly speaking, an optimal solution is only known for certain protein structure similarity measures • the algorithm for optimal solution is not practical(2)

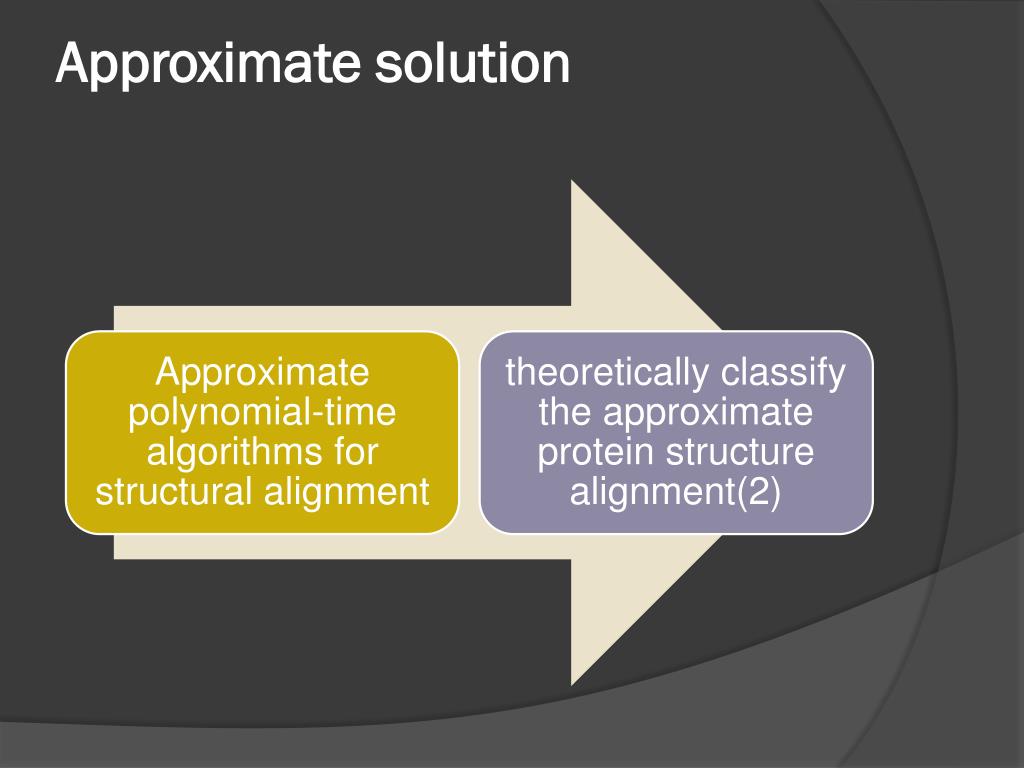

  14. Approximate solution

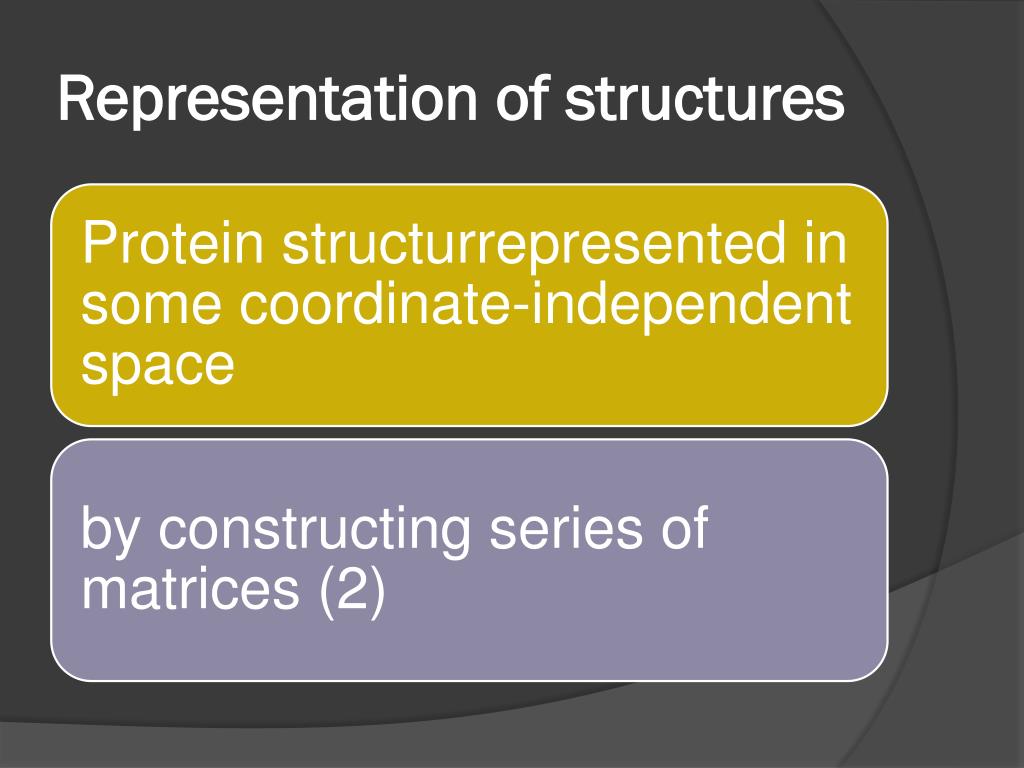

  15. Representation of structures

  16. distance matrix

  17. Methods(2) • DALI • Combinatorialextension(CE) • GANGSTA+ • MAMMOTH • ProBiS • RAPIDO • SABERTOOTH • SSAP • Spalign • TOPOFIT • SSM

  18. DALI • distance alignment matrix method • breaks the input structures into hexapeptide fragments and calculates a distance matrix • Distance matrix has two diagonals • conducted via a series of overlapping submatrices of size 6x6 • Submatrix matches are reassembled into a final alignment

  19. DALI • The original version used a Monte Carlo simulation • The DALI method has also been used to construct a database known as FSSP (Fold classification based on Structure-Structure alignment of Proteins, or Families of Structurally Similar Proteins) • There is an searchable database based on DALI as well as a downloadable program and web search based on a standalone version known as DaliLite.

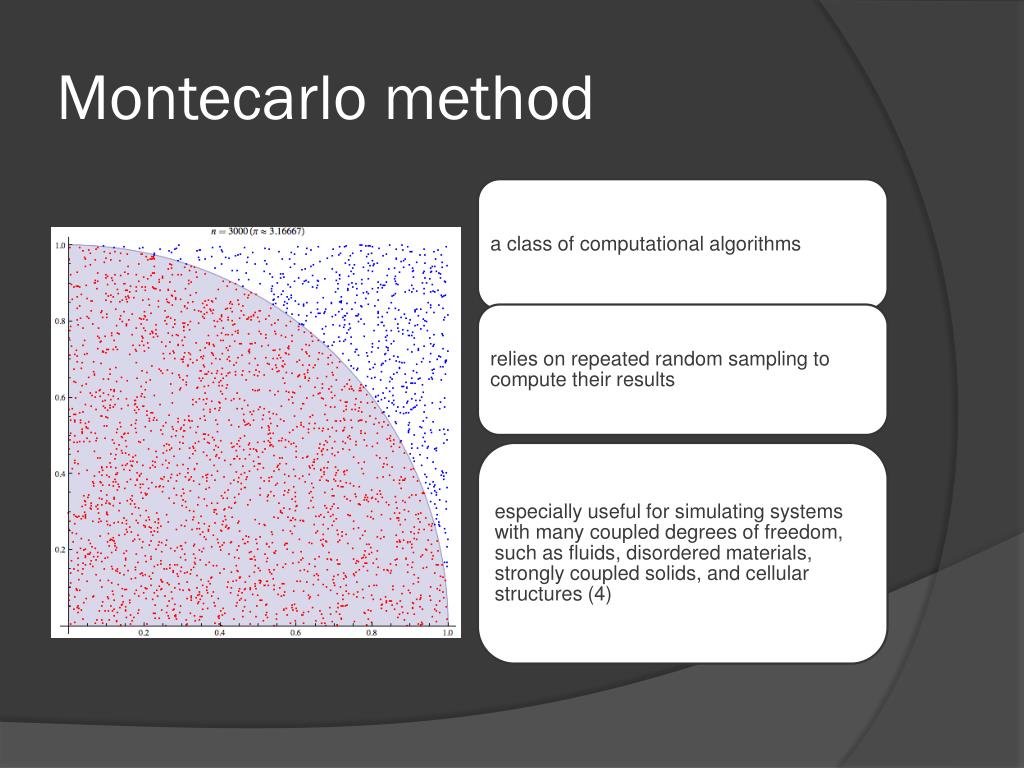

  20. Montecarlo method

  21. http://ehkinda.biocenter.helsinki.fi/dali_server/

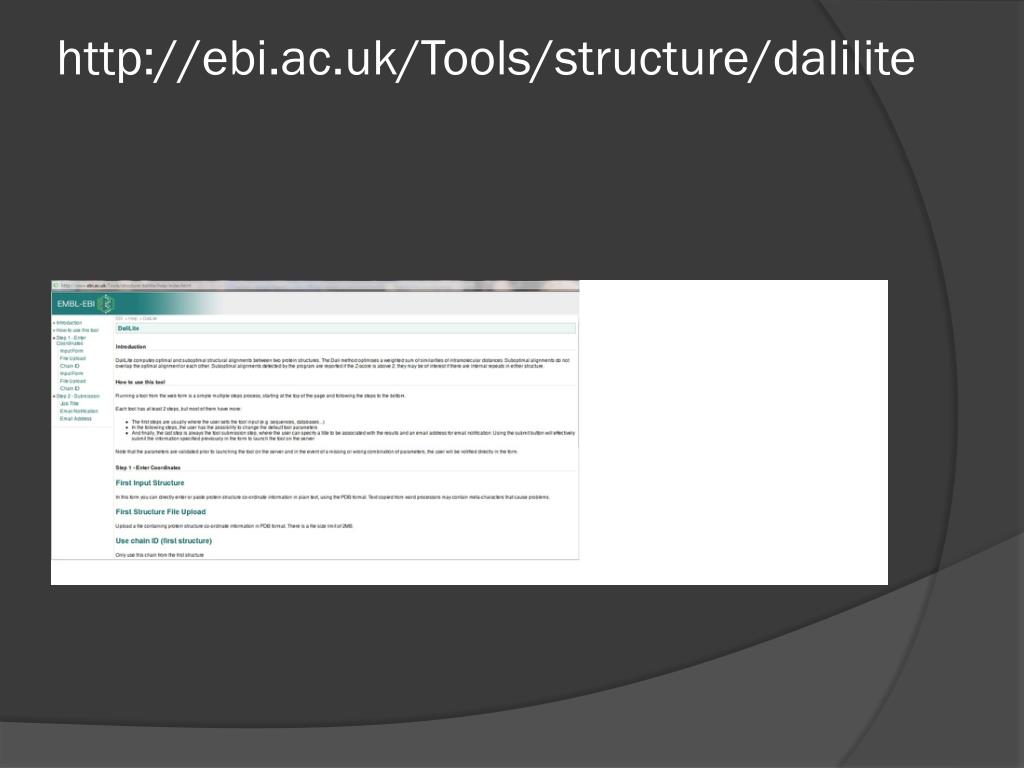

  22. http://ebi.ac.uk/Tools/structure/dalilite

  23. http://ebi.ac.uk/Tools/structure/dalilite

  24. http://ebi.ac.uk/Tools/structure/dalilite

  25. http://ebi.ac.uk/Tools/structure/dalilite

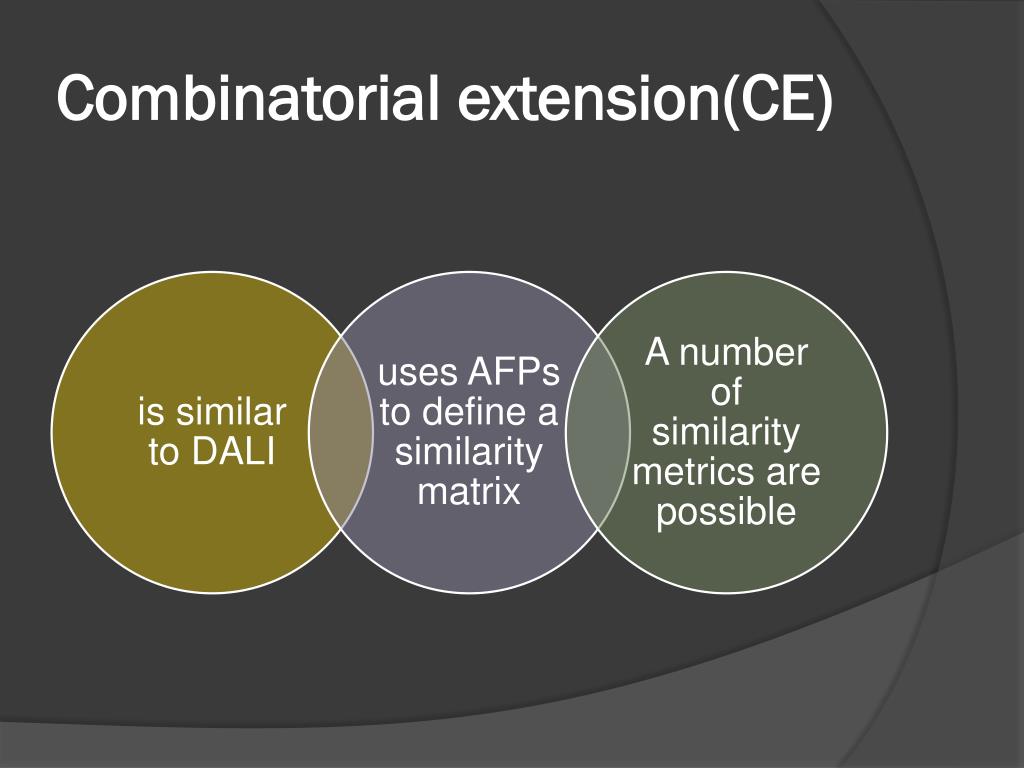

  26. Combinatorial extension(CE)

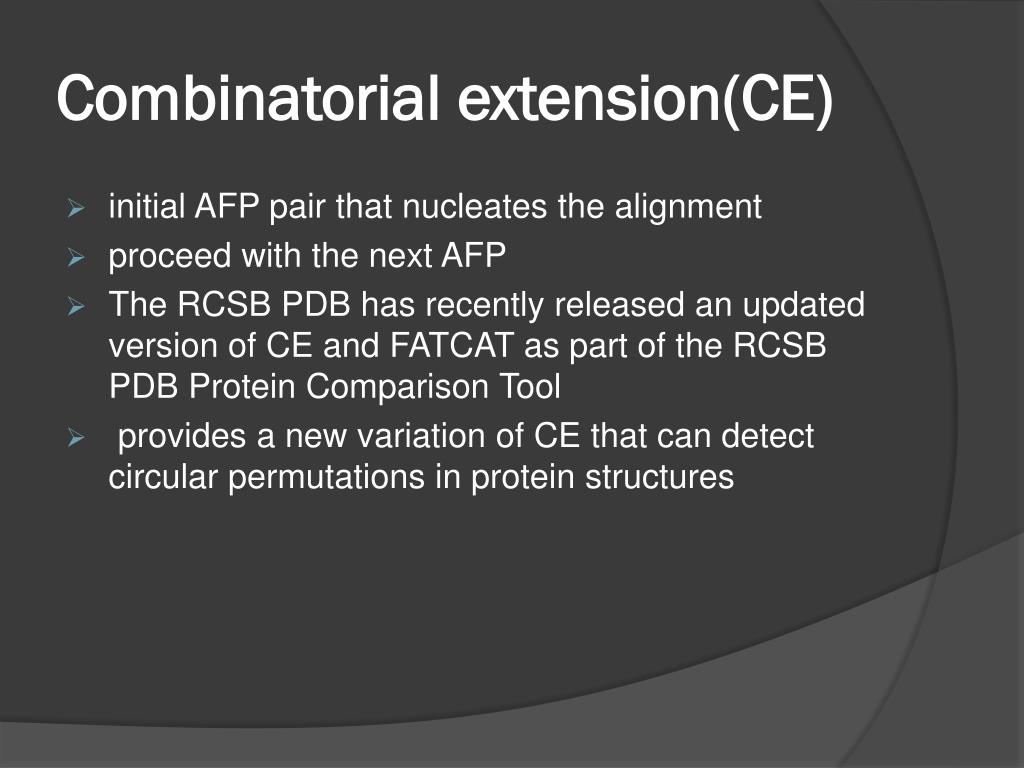

  27. Combinatorial extension(CE) • initial AFP pair that nucleates the alignment • proceed with the next AFP • The RCSB PDB has recently released an updated version of CE and FATCAT as part of the RCSB PDB Protein Comparison Tool • provides a new variation of CE that can detect circular permutations in protein structures

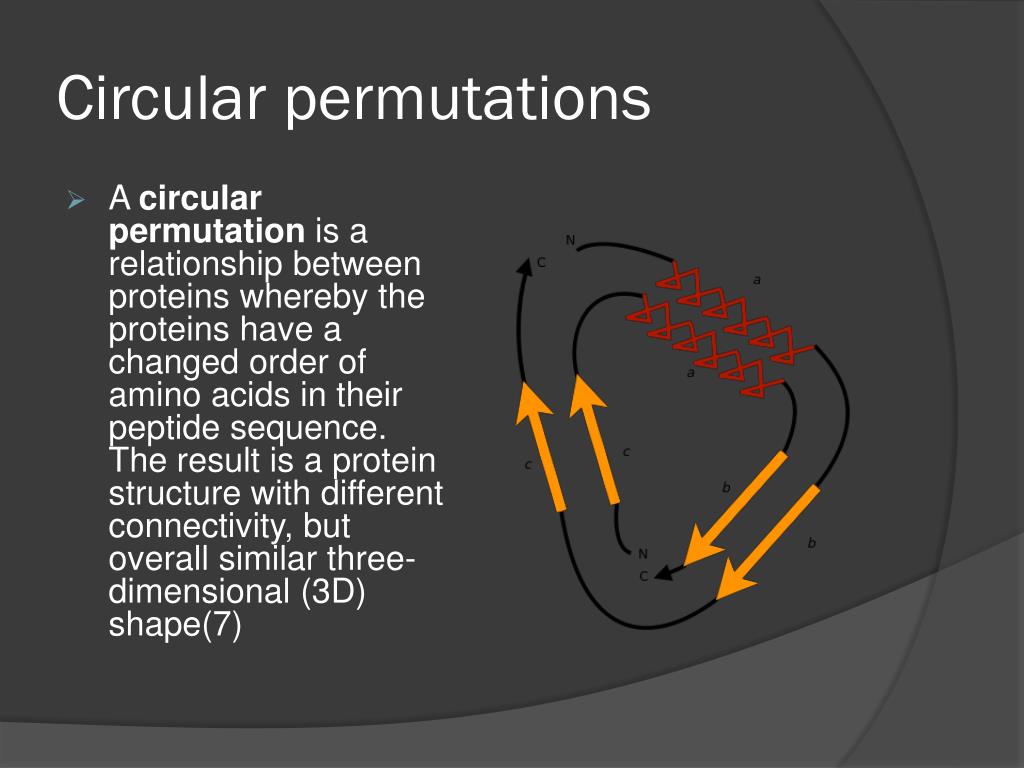

  28. Circular permutations • A circular permutation is a relationship between proteins whereby the proteins have a changed order of amino acids in their peptide sequence. The result is a protein structure with different connectivity, but overall similar three-dimensional (3D) shape(7)

  29. GANGSTA+ • A combinatorial algorithm for non-sequential structural alignment of proteins • searching for similarity in databases (http://agknapp.chemie.fu-berlin.de/gplus/) • evaluates based on contact maps and secondry structure

  30. MAMMOTH • MAtchingMolecular Models Obtained from Theory • For comparing models coming from structure prediction • decompose the protein structure into heptapeptides • The similarity score between two heptapeptides is calculated using a unit-vector RMS (URMS) method • These scores are stored in a similarity matrix • Derived from the likelihood of obtaining a given structural alignment by chance

  31. MAMMOTH-mult • extension of the MAMMOTH algorithm • is very fast • produces consistent and high quality structural alignments • produces structurally implied sequence alignments that can be further used for multiple-template homology modeling

  32. ProBiS • Protein Binding Sites. ProBiS • detects structurally similar sites on protein surfaces • compares the query protein to members of a database of protein 3D structures • Using an efficient maximum clique algorithm • Structural similarity scores are calculated for the query protein’s surface residues, and are expressed as different colors • used successfully for the detection of protein–protein, protein–small ligand and protein–DNA binding sites

  33. RAPIDO • Rapid Alignment of Proteins In terms of Domains • a web server for the 3D alignment of crystal • using an approach based on difference distance matrices • The Matching Fragment Pairs (MFPs) are then represented as nodes in a graph • nodes in graph are chained together to form an alignment by means of an algorithm for the identification of the longest path on a DAG (Directed Acyclic Graph). • The final step: improve the quality of the alignment

  34. SABERTOOTH • structural profiles to perform structural alignments • has favourable scaling of computation time with chain length • SABERTOOTH can be used online at http://www.fkp.tu-darmstadt.de/sabertooth/

  35. SSAP • Sequential Structure Alignment Program • uses double dynamic programming • constructs its vectors from the beta carbons for all residues except glycine • A series of matrices are constructed • Dynamic programming applied to each resulting matrix • matrices are then summed into a "summary" matrix to • Final dynamic programming is applied again to determine the overall structural alignment

  36. SSAP • originally produced only pairwise alignments • but has since been extended to multiple alignments as well • applied in an all-to-all fashion to produce a hierarchical fold classification scheme known as CATH (Class, Architecture, Topology, Homology) • construct the CATH Protein Structure Classification database

  37. SPalign • Based on a new size-independent score called SPscore for • The source code for SPalign and the server are available at http://sparks.informatics.iupui.edu/yueyang/server/SPalign/

  38. TOPOFIT • Based on Delaunay tessellation (DT) • identifies a feature point on the RMSD/Ne curve • topomax point • to detect conformational changes, topological differences in variable parts

  39. SSM • Secondary Structure Matching (SSM), or PDBeFold at the Protein Data Bank in Europe • uses graph matching followed by c-alpha alignment to compute alignments

  40. Recent Developments

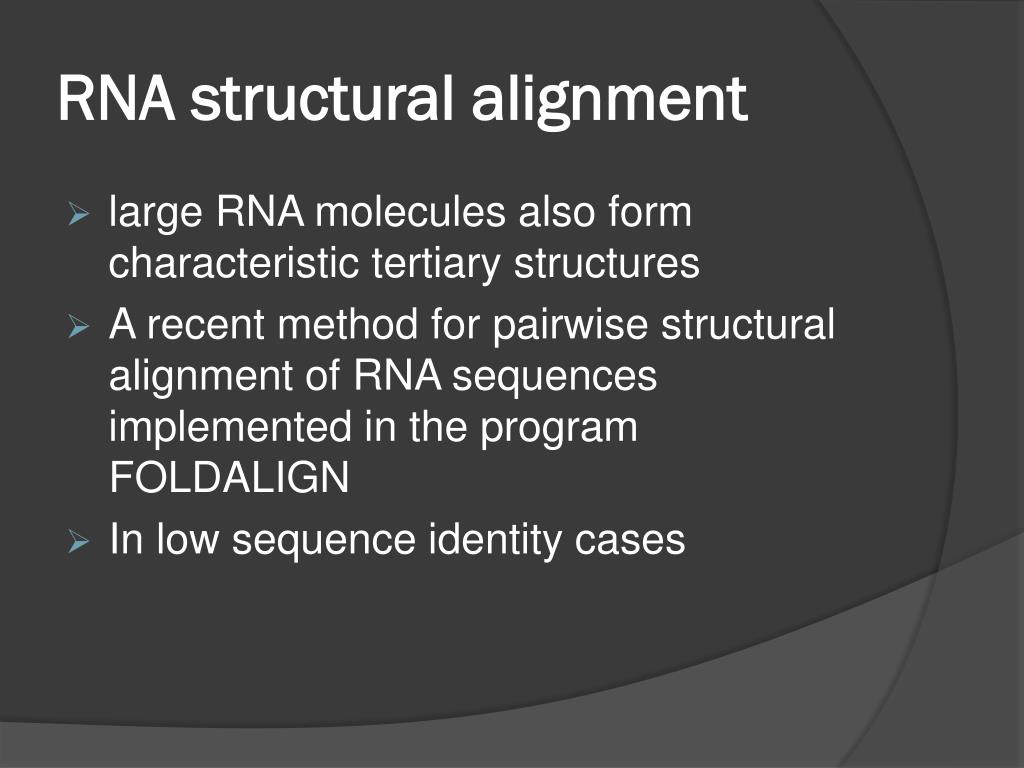

  41. RNA structural alignment • large RNA molecules also form characteristic tertiary structures • A recent method for pairwise structural alignment of RNA sequences implemented in the program FOLDALIGN • In low sequence identity cases

  42. (1)

  43. References • Hitomi Hasegawa and Liisa Holm: Advances and pitfalls of protein structural alignment, Current Opinion in Structural Biology 2009, 19:341–348 • en.wikipedia.org/wiki/structural_alignment software • Cartwright, Kenneth V (Fall 2007). "Determining the Effective or RMS Voltage of Various Waveforms without Calculus". Technology Interface8 (1): 20 pages • Anderson, H.L. (1986). "Metropolis, Monte Carlo and the MANIAC". Los Alamos Science14: 96–108 • Weisstein, Eric W., "Coordinate System" from MathWorld • Boris AbramovichRozenfelʹd (1988). The history of non-euclidean geometry: evolution of the concept of a geometric space. Springer. p. 385 • Cunningham, B. A.; Hemperly, J. J.; Hopp, T. P.; Edelman, G. M. (1979). "Favin versus concanavalin A: Circularly permuted amino acid sequences". Proceedings of the National Academy of Sciences of the United States of America76 (7): 3218–3222
