  1. AIPLA Recent Developments in U.S. Patent Claim Drafting: “Means plus Function” claims Tom EngellennerIP in Japan Committee MeetingAIPLA Mid-Winter Institute 2013

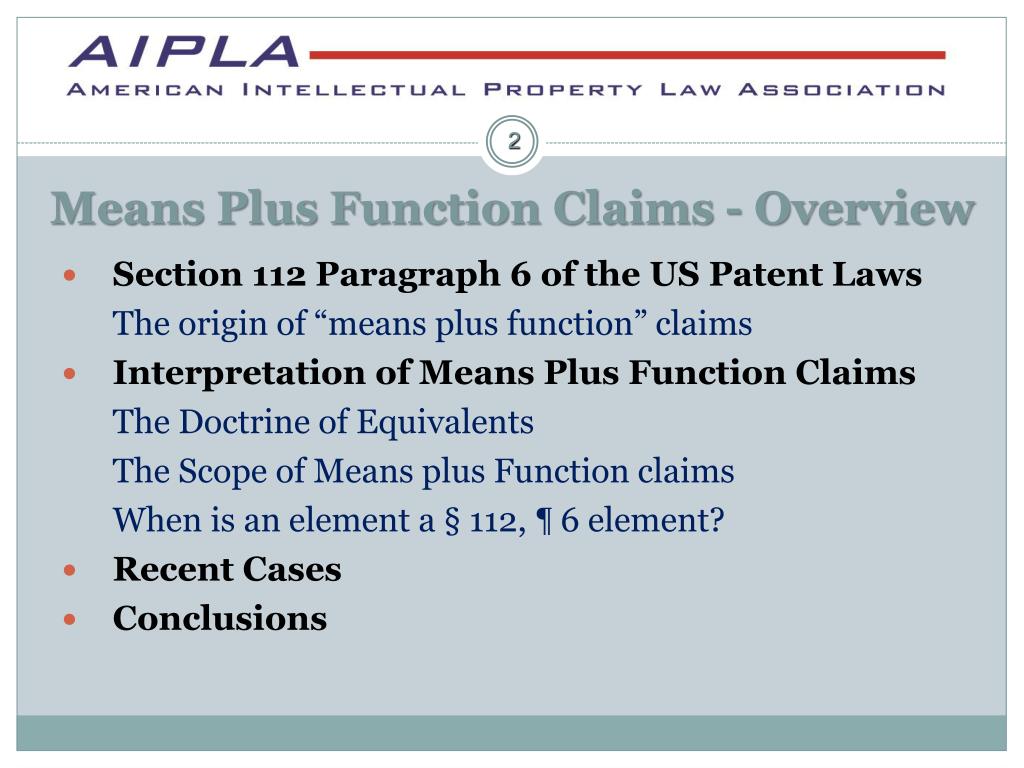

  2. Means Plus Function Claims - Overview • Section 112 Paragraph 6 of the US Patent Laws The origin of “means plus function” claims • Interpretation of Means Plus Function Claims The Doctrine of Equivalents The Scope of Means plus Function claims When is an element a § 112, ¶ 6 element? • Recent Cases • Conclusions

  3. A reaction to a Supreme Court decision Halliburton Oil Well Cement Co. v. Walker (1946): The patent in suit disclosed a resonator for tuning a receiver to particular frequency but claimed it as a "means ... for tuning said receiving means.” The Supreme Court in 1946 ruled that it was impermissible to describe "[ the] most crucial element in the 'new' combination in terms of what it will do rather than in terms of its own physical characteristics or its arrangement in the new combination apparatus.”

  4. §112, Paragraph 6 of the 1952 Patent Law Means plus function claims explicitly allowed An element in a claim for a combination may be expressed as a means or step for performing a specified function without the recital of structure, material, or acts in support thereof, and such claim shall be construed to cover the corresponding structure, material, or acts described in the specification and equivalents thereof.

  5. The Doctrine of Equivalents Means plus function claims are treated differently The Doctrine of Equivalents can expand a claim limitation to cover equivalents if the function-way-result test is met. § 112, ¶ 6 would appear to do the same but . . . not really. "an equivalent structure under § 112 ¶ 6 must have been available at the time of the issuance of the claim, whereas the doctrine of equivalents can capture after-arising technology developed after the issuance of the patent.” Welker Bearing v. PhD, Inc. (Fed. Cir. 2008)

  6. When is a claim element a §112 ¶6 means? • When a claim uses the term “means” there is a presumption that “means plus function” under § 112, ¶ 6 applies and if “means” is not used, one presumes § 112, ¶ 6 does not apply. • This presumption can be overcome if the term only recites function without reciting sufficient structure for performing that function. Terms like “mechanism” or “element” can be suspect in the regard. • Conversely, a “means” can avoid § 112, ¶ 6 category if the element does connote structure.

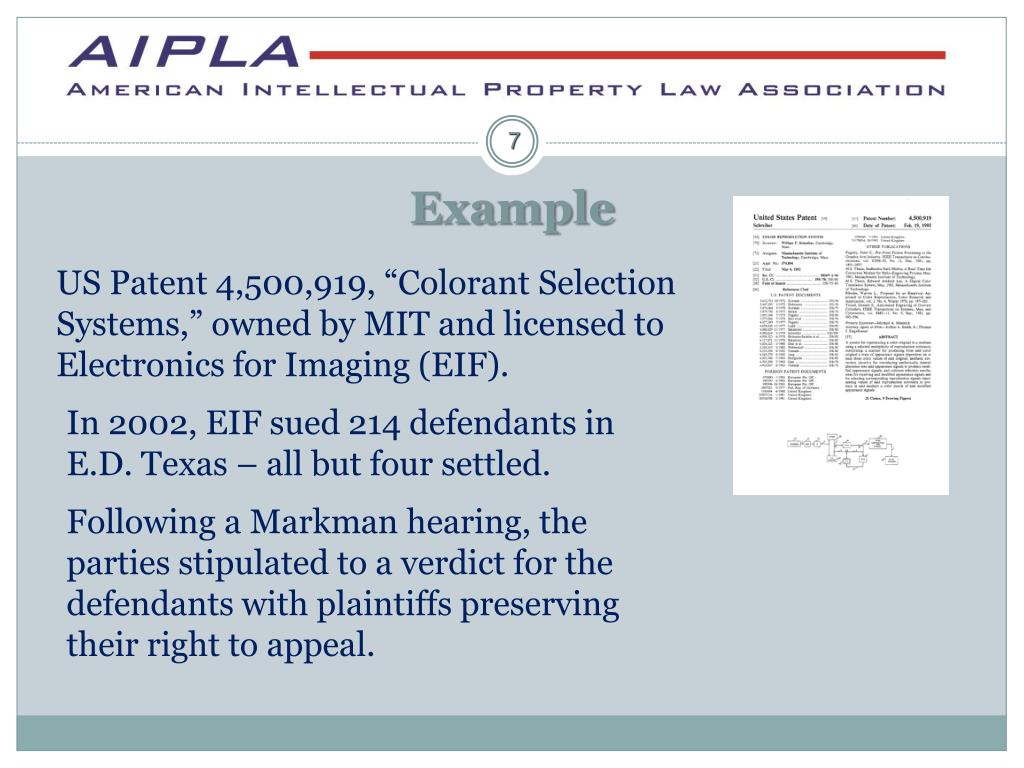

  7. Example US Patent 4,500,919, “Colorant Selection Systems,” owned by MIT and licensed to Electronics for Imaging (EIF). In 2002, EIF sued 214 defendants in E.D. Texas – all but four settled. Following a Markman hearing, the parties stipulated to a verdict for the defendants with plaintiffs preserving their right to appeal.

  8. Example MIT v Abacus Software 462 F 3d 1344 • a scannerforproducing from said color original a set of three tristimulus appearance signals dependent on the colors in said original. • Holding: A scanner should not be construed as a “means plus function” limitation because the term “scanner” has a recognized meaning in the art.

  9. Example MIT v Abacus Software 462 F 3d 1344 • aesthetic correction circuitry forinteractively introducing aesthetically desired alterations into said appearance signals to produce modified appearance signals. • Holding: the term “circuitry” should not be construed as a “means plus function” limitation because “the term ‘circuitry,’ by itself connotes structure.

  10. Example MIT v Abacus Software 462 F 3d 1344 • colorant selection mechanism forreceiving said modified appearance signals and for selecting corresponding reproduction signals . . . . • Holding: although the term “mechanism” benefits from the presumption that it is not a “means plus function” limitation, the presumption is overcome because the term does not connote sufficient structure.

  11. “Definiteness” is required in §112, ¶6 An element in a claim for a combination may be expressed as a means or step for performing a specified function without the recital of structure, material, or acts in support thereof, and such claim shall be construed to cover the corresponding structure, material, or acts described in the specification and equivalents thereof.

  12. Definiteness A patent claim cannot simply claim a functional result: . . . “the essence of my invention being the use of the motive power of the electric or galvanic current, which I call electro-magnetism, however developed for marking or printing intelligible characters, signs, or letters, at any distances” . . .

  13. 35 US Code 112, ¶s 1 and 2 • (a) The specification shall contain a written description of the invention, and of the manner and process of making and using it, in such full, clear, concise, and exact terms as to enable any person skilled in the art . . . . • (b) The specification shall conclude with [ ] claims particularly pointing out and distinctly claiming the subject matter . . . .

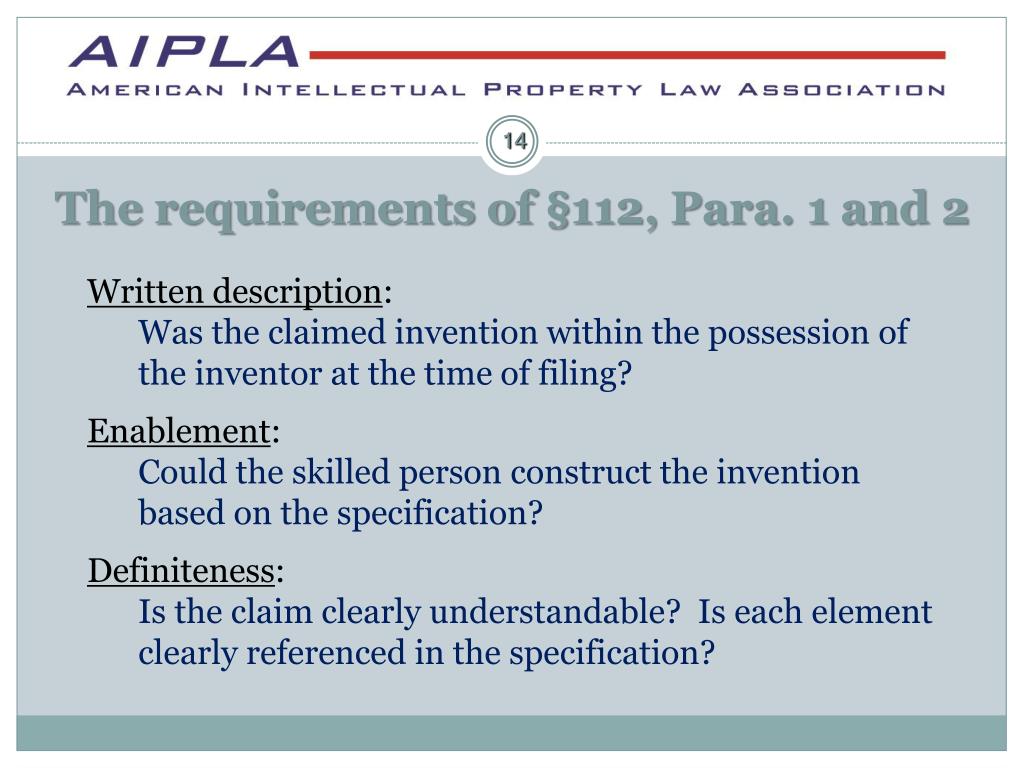

  14. The requirements of §112, Para. 1 and 2 Written description: Was the claimed invention within the possession of the inventor at the time of filing? Enablement: Could the skilled person construct the invention based on the specification? Definiteness: Is the claim clearly understandable? Is each element clearly referenced in the specification?

  15. Icon Health & Fitness v. Octane Fitness

  16. Icon Health & Fitness v. Octane Fitness Icon sued Octane for infringement of US Patent 6,019,710. The claims recited “a pair of stroke rails … hingedly connected to a corresponding foot rail; and means for connecting each stroke rail to the frame such that linear reciprocating displacement of the first end of each stroke rail results in displacement of the second end of each stroke rail in a substantially elliptical path . . .

  17. Icon Health & Fitness v. Octane Fitness Holding: “means for connecting” was a “means plus function” limitation and the doctrine of equvalents could not be read to encompass non-linear mechanisms that performed the same function. means for connecting each stroke rail to the frame such that linear reciprocating displacement of the first end of each stroke rail results in displacement of the second end of each stroke rail in a substantially elliptical path . . .:

  18. Flo Healthcare v. Kappos This case was an appeal from an inter partes reexamination proceeding on US Patent 6,721,178. At issue was the term: “height adjustment mechanism for altering the height of the horizontal tray.” Holding: The Board erred in finding the term height adjustment mechanism to be a means plus function limitation.

  19. Flo Healthcare v. Kappos “When the claim drafter has not signaled his intent to invoke § 112, ¶ 6 by using the term ‘means,’ we are unwilling to apply that provision without a showing that the limitation essentially is devoid of anything that can be construed as structure. . . . Thus, we will not apply § 112, ¶ 6 if the limitation contains a term that “is used in common parlance or by persons of skill in the pertinent art to designate structure.”

  20. Ergo Licensing v. CareFusion Ergo sued CareFusion for infringement of US Patent 5,507,412 that claimed IV infusion systems that metered and simultaneously delivered fluids from multiple sources. At issue was whether the terms “control means” and “programmable control means” were indefinite: The “control means” at issue in this case cannot be performed by a general-purpose computer without any special programming. The function of “controlling the adjusting means” requires more than merely plugging in a general-purpose computer. Rather, some special programming would be required . . . .

  21. The Dissent in the Ergo Licensing case Judge Newman took issue with the majority’s finding that the term “control means” was indefinite. She noted that the specification of this patent was no different than thousands of other patents on computer assisted procedures: • No party disputed that a person of ordinary skill in the field of metering systems could routinely instruct the control device how to perform the described control. . . . • The correct focus is whether one skilled in the art would have understood [the] structure capable of performing the function recited in the claim limitation.

  22. Lighting Ballast Control v. Universal Lighting Ballast Control sued Universal Lighting Technologies on U.S. Patent 5,436,529. At issue was whether a “voltage source means” was a “means plus function” limitation.

  23. Lighting Ballast Control v. Universal Holding: “A patentee may use a generic “means” expression to describe a claim element, but the applicant must indicate in the specification what structure constitutes the means. . . A patent must point out and distinctly claim the invention.” voltage source meansproviding a constant or variable magnitude DC voltage between the DC input terminals

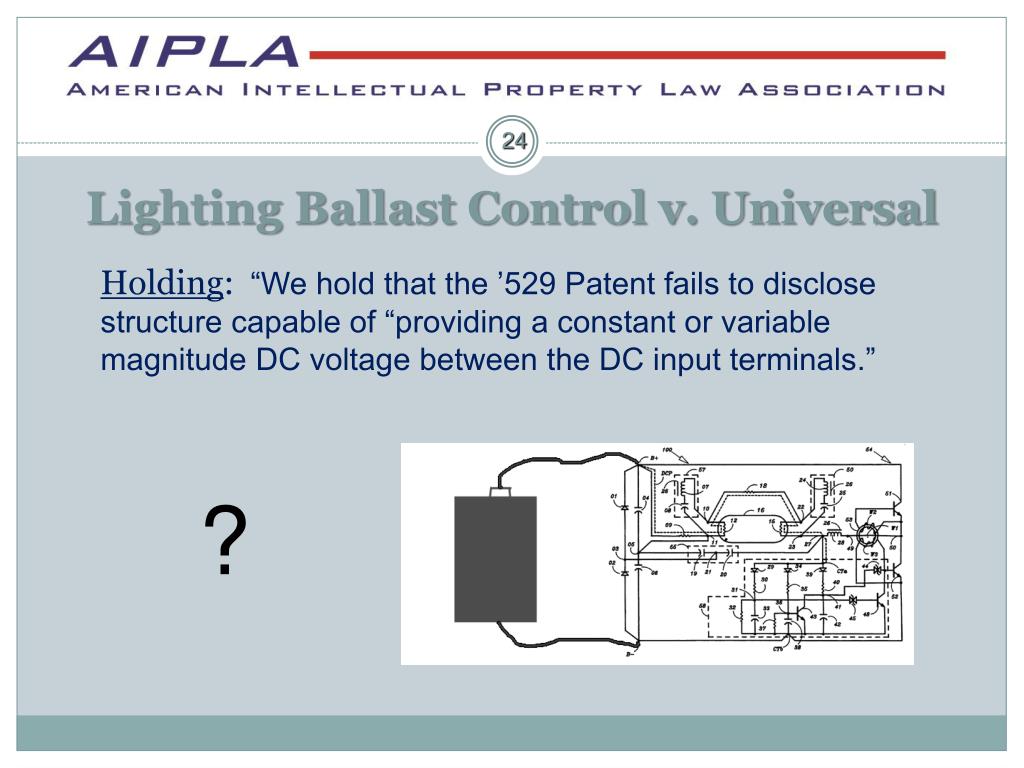

  24. Lighting Ballast Control v. Universal Holding: “We hold that the ’529 Patent fails to disclose structure capable of “providing a constant or variable magnitude DC voltage between the DC input terminals.” ?

  25. Conclusions • Avoid using the term “means” unless you really want the element to be interpreted under § 112, ¶ 6. • Even if you use a different term (like “mechanism”) avoid describing the element solely in terms of its function. • Whether or not you want an element to be interpreted under § 112, ¶ 6, make sure there is a corresponding structure. Every element of the claims should be shown in the drawings and enabled. A “controller” should be supported by a description of a mathematical formula, a flow chart or a discussion of the programming steps.

  26. Case citations and helpful resources • MIT v. Abacus Software, 462 F. 3d 1344 (2006) • Ergo Lighting v. Carefusion, CAFC Decision 2011-1229 • Flo Healthcare Solutions v. Kappos, CAFC Decision 2011-1476 • Icon Health & Fitness v. Octane Fitness, CAFC Decision 2011-1521 • Lighting Ballast Control v Universal Lighting, CAFC Decision 2012-1014 • USPTO Training Materials:http://www.uspto.gov/patents/law/exam/supp_112_exr_training_exs.pdf • Evan Finkel, Means-Plus-Function Claims in Light of Donaldson and Other Recent Case Developments , 10 Santa Clara Computer & High Tech. L.J. 267 (1994). Available at: http://digitalcommons.law.scu.edu/chtlj/vol10/iss2/1

  27. Thank you Tom Engellenner Pepper Hamilton, LLP 125 High Street Boston, MA 02110 617-204-5189
