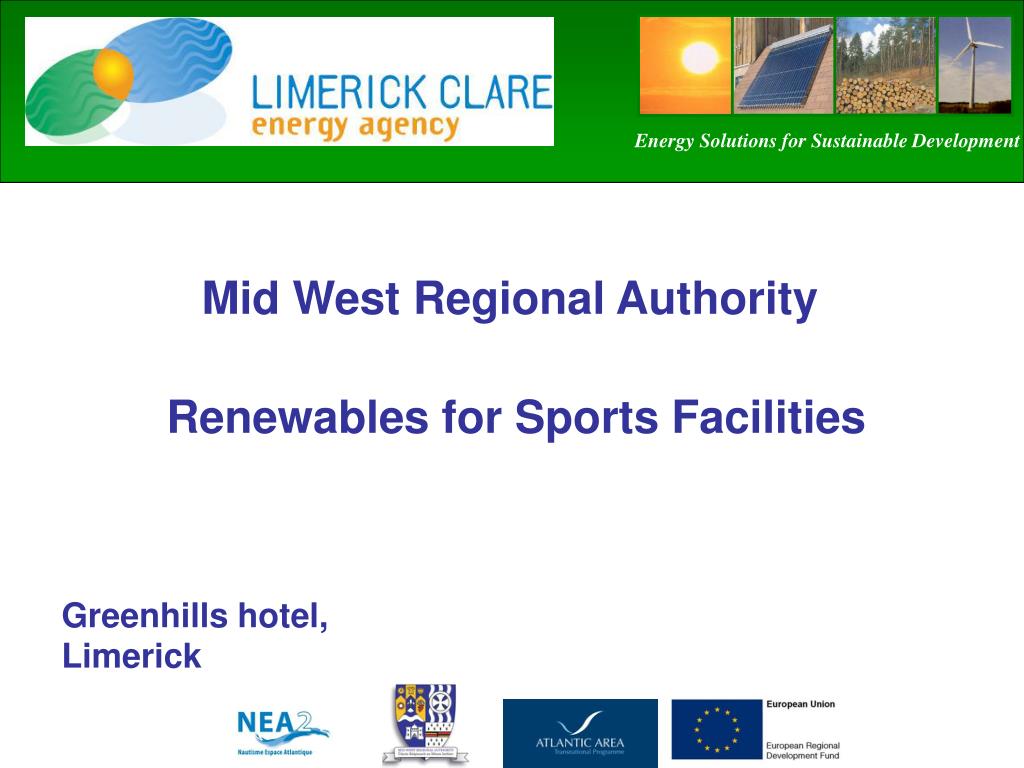

  1. Energy Solutions for Sustainable Development Mid West Regional Authority Renewables for Sports Facilities Greenhills hotel, Limerick

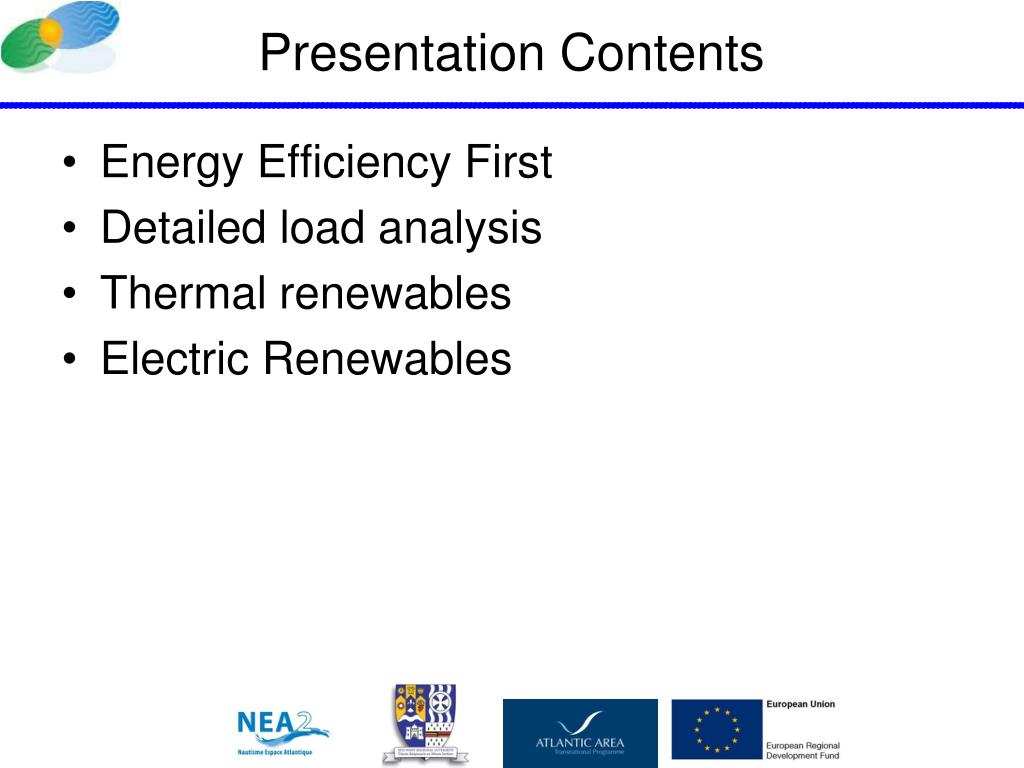

  2. Presentation Contents • Energy Efficiency First • Detailed load analysis • Thermal renewables • Electric Renewables

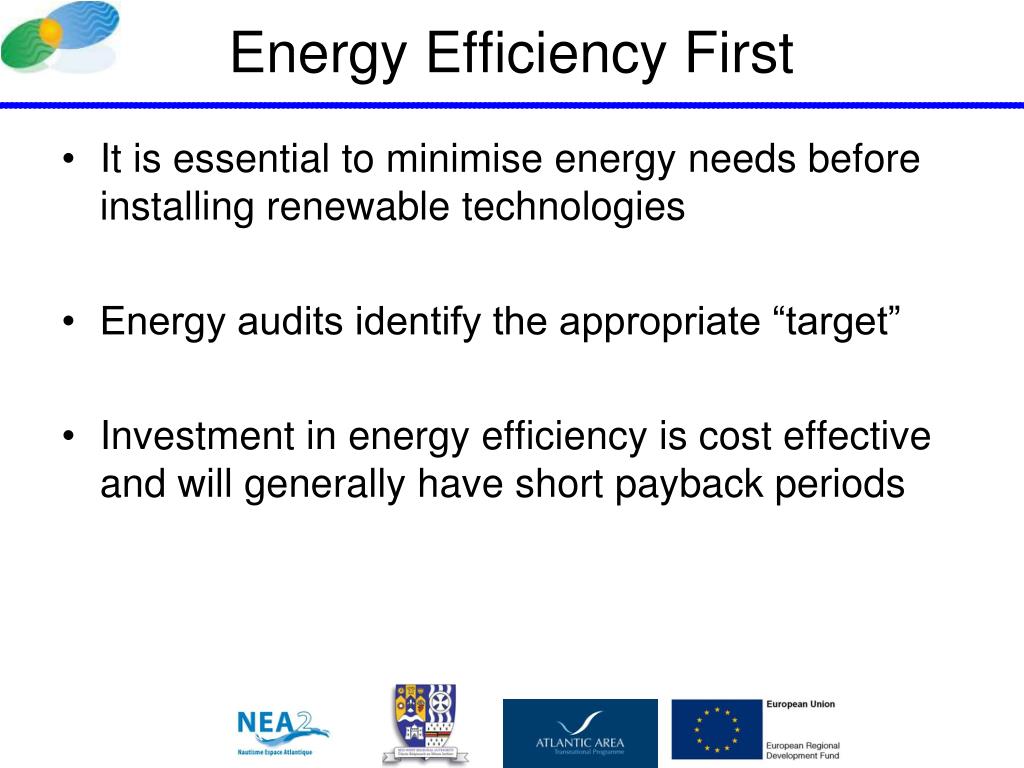

  3. Energy Efficiency First • It is essential to minimise energy needs before installing renewable technologies • Energy audits identify the appropriate “target” • Investment in energy efficiency is cost effective and will generally have short payback periods

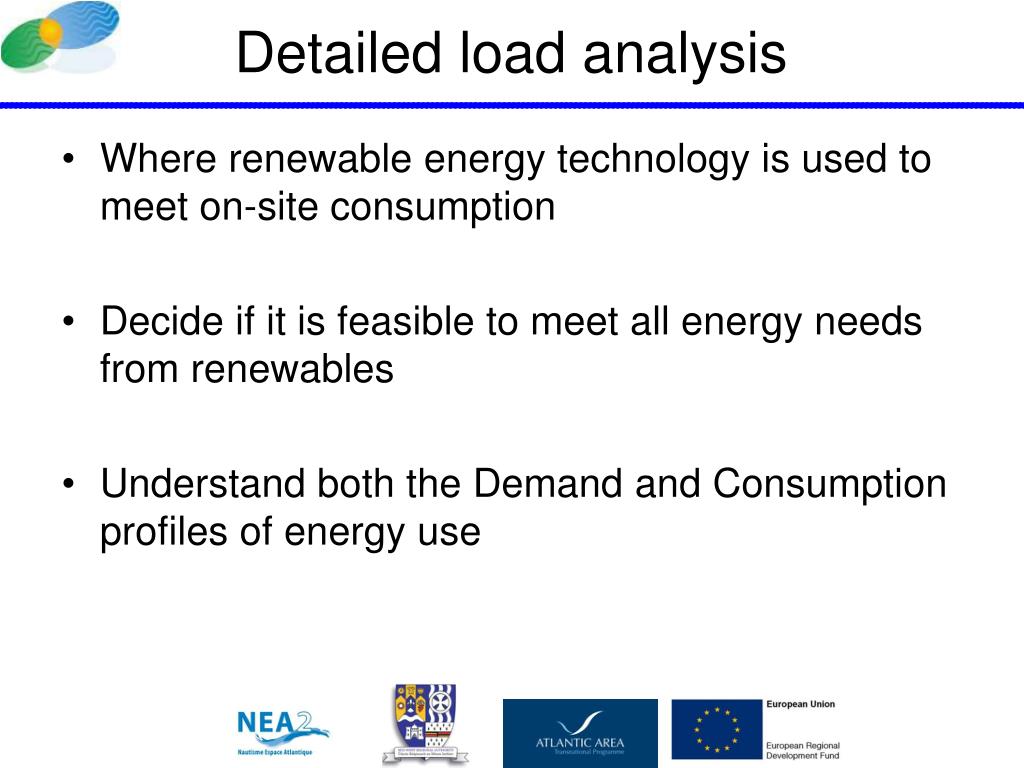

  4. Detailed load analysis • Where renewable energy technology is used to meet on-site consumption • Decide if it is feasible to meet all energy needs from renewables • Understand both the Demand and Consumption profiles of energy use

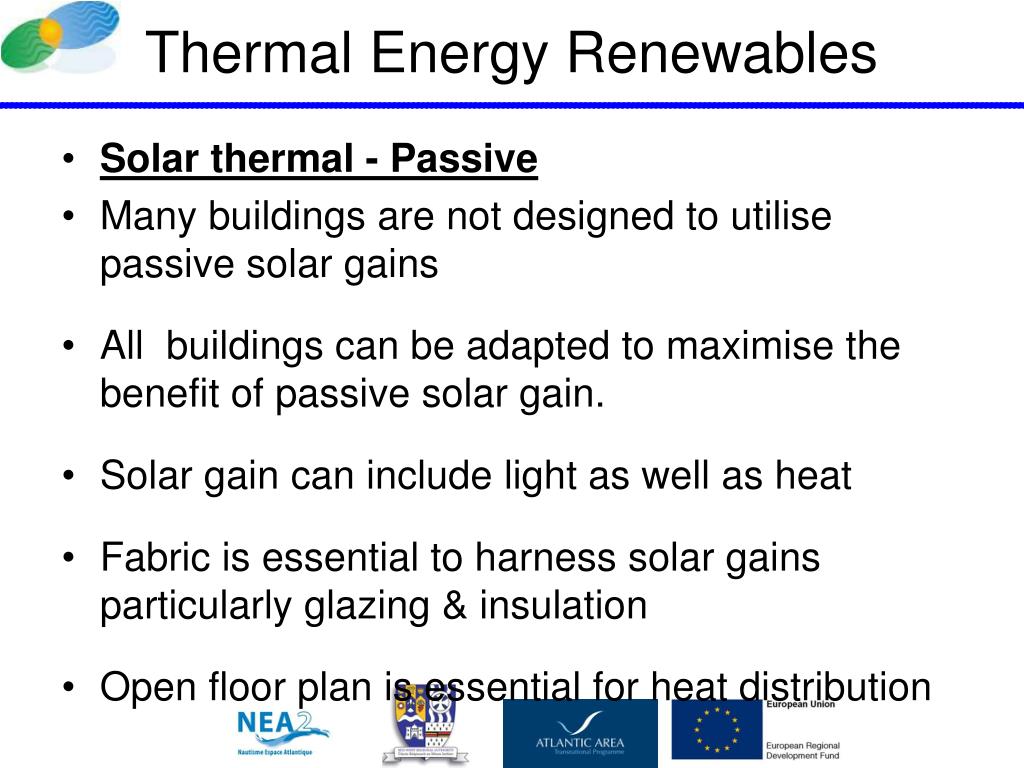

  5. Thermal Energy Renewables • Solar thermal - Passive • Many buildings are not designed to utilise passive solar gains • All buildings can be adapted to maximise the benefit of passive solar gain. • Solar gain can include light as well as heat • Fabric is essential to harness solar gains particularly glazing & insulation • Open floor plan is essential for heat distribution

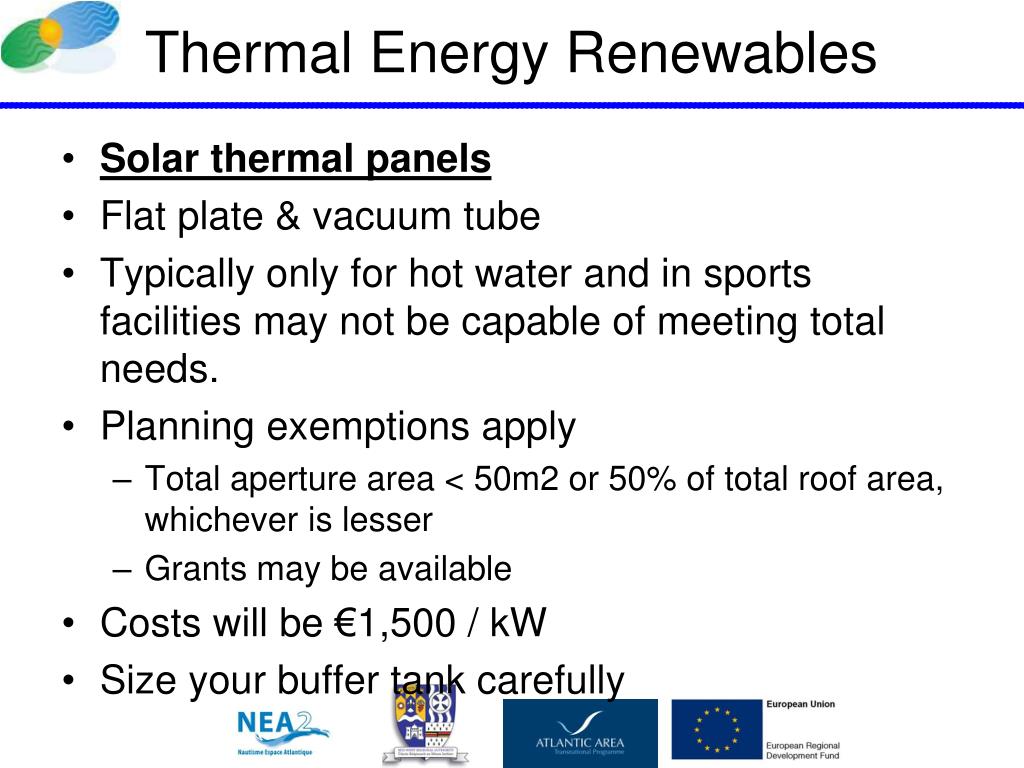

  6. Thermal Energy Renewables • Solar thermal panels • Flat plate & vacuum tube • Typically only for hot water and in sports facilities may not be capable of meeting total needs. • Planning exemptions apply • Total aperture area < 50m2 or 50% of total roof area, whichever is lesser • Grants may be available • Costs will be €1,500 / kW • Size your buffer tank carefully

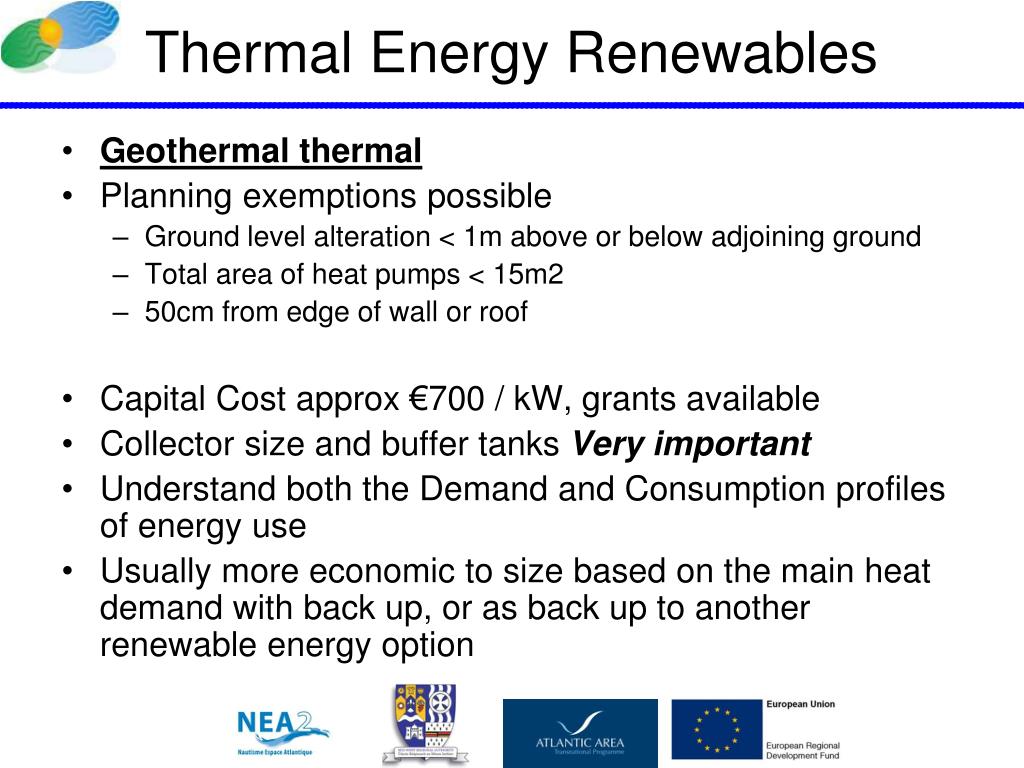

  7. Thermal Energy Renewables • Geothermal thermal • Planning exemptions possible • Ground level alteration < 1m above or below adjoining ground • Total area of heat pumps < 15m2 • 50cm from edge of wall or roof • Capital Cost approx €700 / kW, grants available • Collector size and buffer tanks Very important • Understand both the Demand and Consumption profiles of energy use • Usually more economic to size based on the main heat demand with back up, or as back up to another renewable energy option

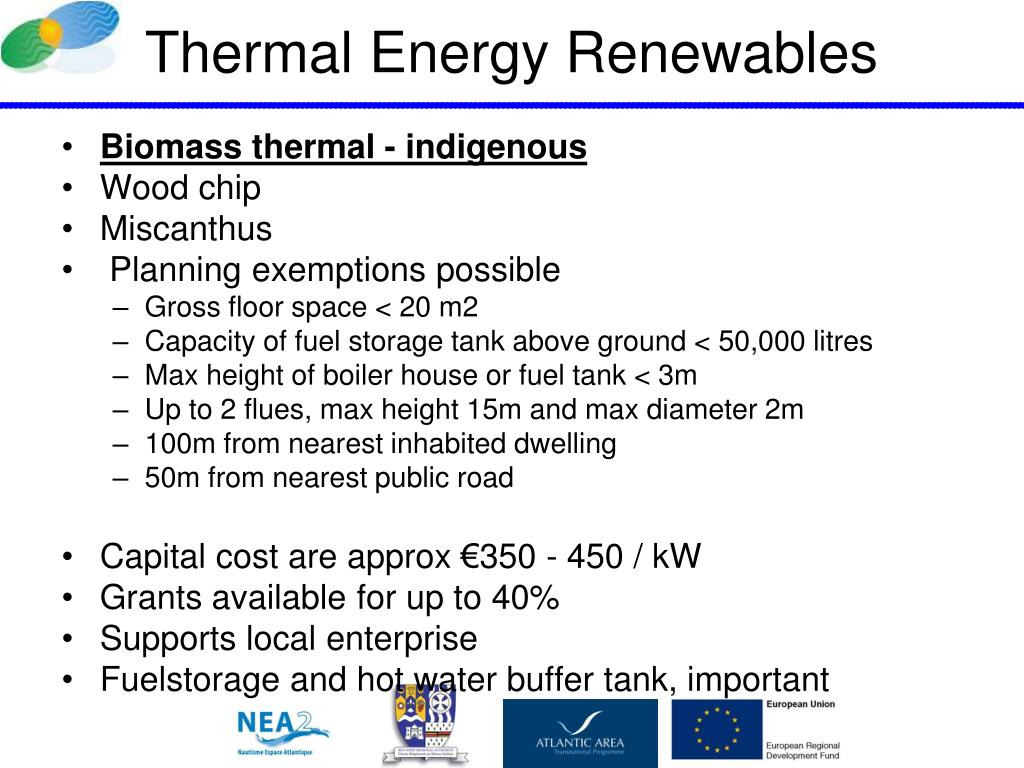

  8. Thermal Energy Renewables • Biomass thermal - indigenous • Wood chip • Miscanthus • Planning exemptions possible • Gross floor space < 20 m2 • Capacity of fuel storage tank above ground < 50,000 litres • Max height of boiler house or fuel tank < 3m • Up to 2 flues, max height 15m and max diameter 2m • 100m from nearest inhabited dwelling • 50m from nearest public road • Capital cost are approx €350 - 450 / kW • Grants available for up to 40% • Supports local enterprise • Fuelstorage and hot water buffer tank, important

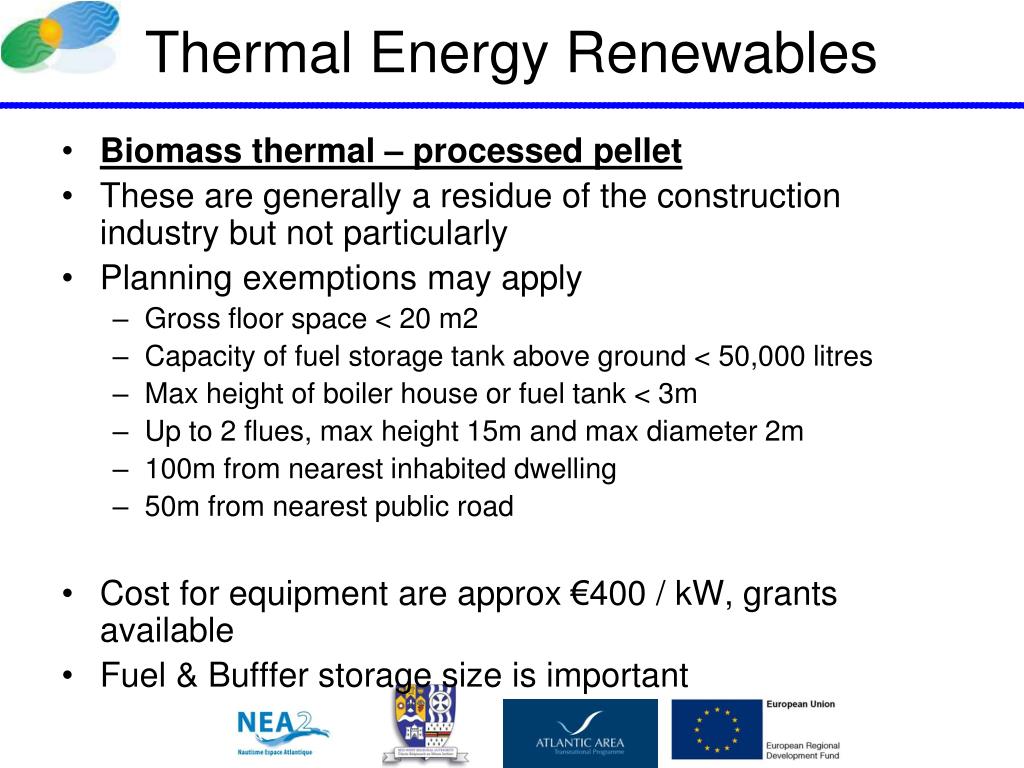

  9. Thermal Energy Renewables • Biomass thermal – processed pellet • These are generally a residue of the construction industry but not particularly • Planning exemptions may apply • Gross floor space < 20 m2 • Capacity of fuel storage tank above ground < 50,000 litres • Max height of boiler house or fuel tank < 3m • Up to 2 flues, max height 15m and max diameter 2m • 100m from nearest inhabited dwelling • 50m from nearest public road • Cost for equipment are approx €400 / kW, grants available • Fuel & Bufffer storage size is important

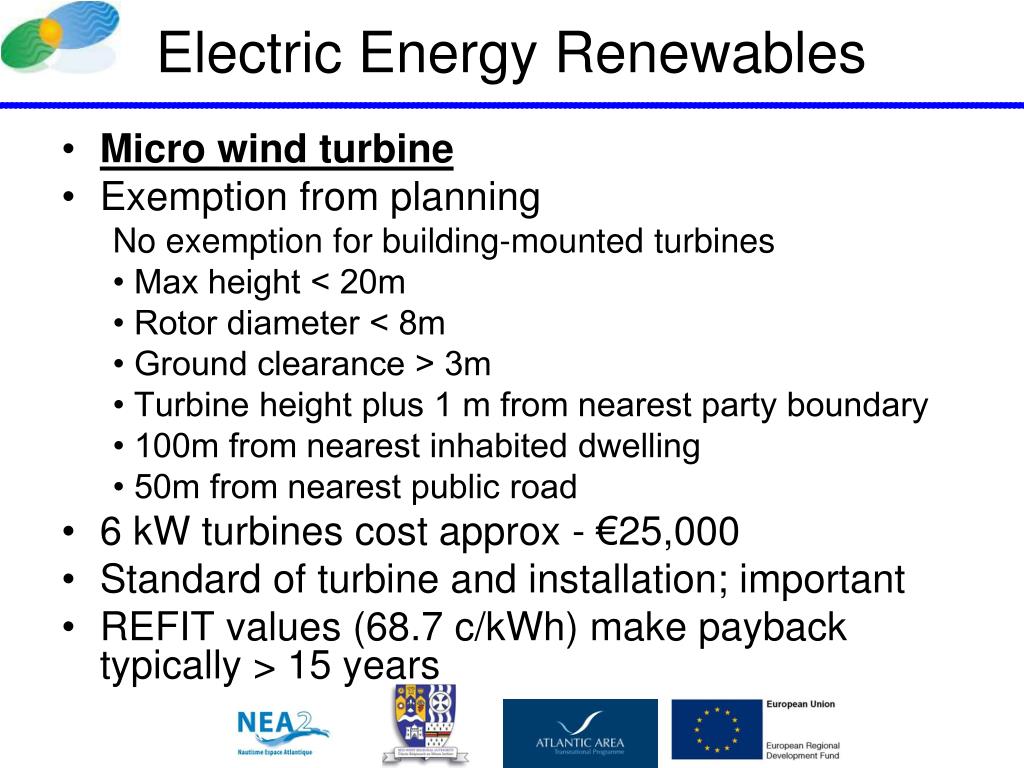

  10. Electric Energy Renewables • Micro wind turbine • Exemption from planning No exemption for building-mounted turbines • Max height < 20m • Rotor diameter < 8m • Ground clearance > 3m • Turbine height plus 1 m from nearest party boundary • 100m from nearest inhabited dwelling • 50m from nearest public road • 6 kW turbines cost approx - €25,000 • Standard of turbine and installation; important • REFIT values (68.7 c/kWh) make payback typically > 15 years

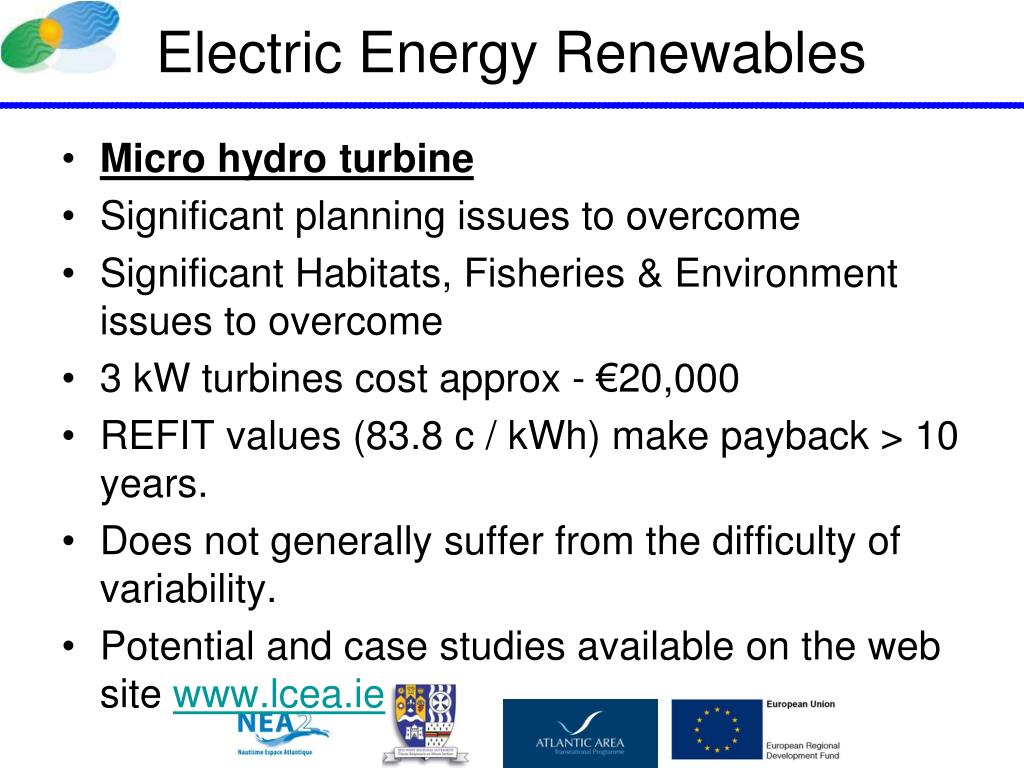

  11. Electric Energy Renewables • Micro hydro turbine • Significant planning issues to overcome • Significant Habitats, Fisheries & Environment issues to overcome • 3 kW turbines cost approx - €20,000 • REFIT values (83.8 c / kWh) make payback > 10 years. • Does not generally suffer from the difficulty of variability. • Potential and case studies available on the web site www.lcea.ie

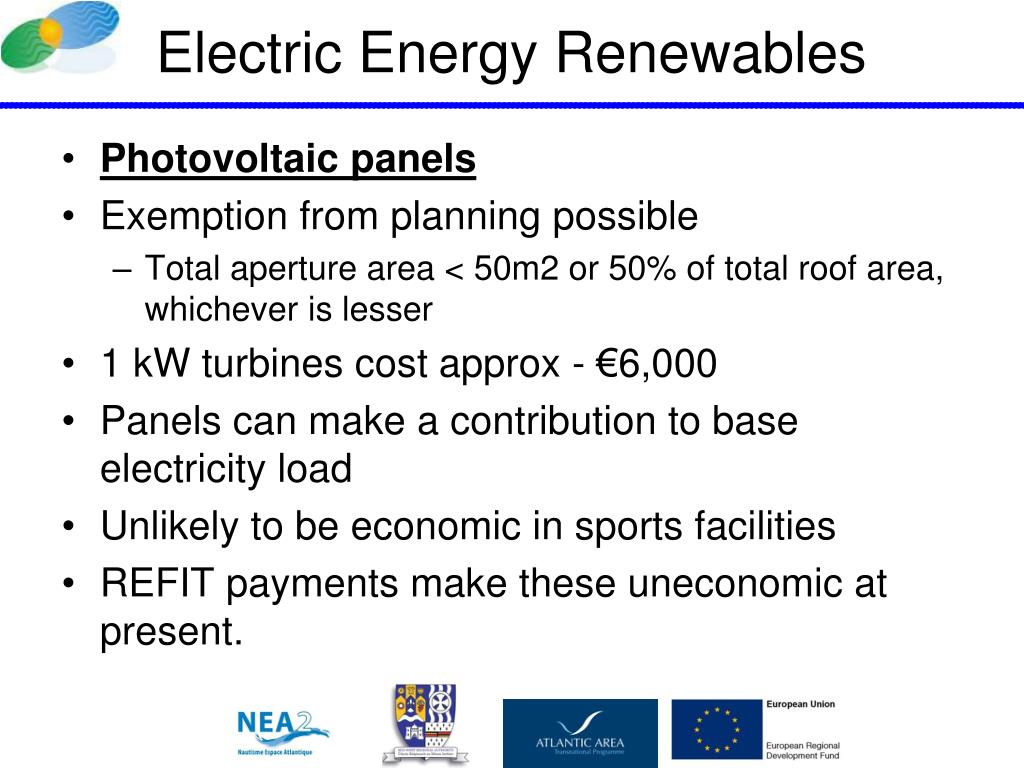

  12. Electric Energy Renewables • Photovoltaic panels • Exemption from planning possible • Total aperture area < 50m2 or 50% of total roof area, whichever is lesser • 1 kW turbines cost approx - €6,000 • Panels can make a contribution to base electricity load • Unlikely to be economic in sports facilities • REFIT payments make these uneconomic at present.

  13. Thank You Energy Solutions for Sustainable Development • Limerick Clare Energy Agency • Foundation Building • University of Limerick • Limerick • Pat Stephens • Manager • T: 061 234296 • E: info@lcea.ie • W: www.lcea.ie
