  1. Military University of Technology Warsaw, Poland Faculty of Electronics Institute of Radioelectronics Electronic compass designPrinciples of azimuth measurement and compass operation Author: Jakub Kazubek Tutor: Lt.Col. Piotr Kaniewski, PhD

  2. Earth’s magnetic field • Positions of the magnetic poles do not match the positions of geographic poles • The magnetic poles change their position with time • Earth’s field varies from less than 30µT to over 60µT

  3. The azimuth angle • The direction parallel, to Earth’s surface, component aligns with magnetic S-N direction • The azimuth can be calculated as:

  4. Magnetic field sensorsKMZ51 sensor • The compensation coil allows to compensate the external constant magnetic field • The flipping coil allows to flip internal magnetization vector sense

  5. Sensor offset voltage • Characteristics of the sensor depend on internal magnetization sense (a and b) • The offset voltage does not depend on the internal magnetization direction • The offset voltage depends on supply voltage and can change with time Assuming Earth’s field strength of 15 A/m, supply voltage +5V and maximum temperature differences of 100K: The offset voltage equals: 9mV The voltage caused by the external field is:1,2mV

  6. Offset measurement • Assume a constant external field Hx • Measure Vn voltage • Flip internal magnetization vector • Measure Vp voltage • The offset equals:

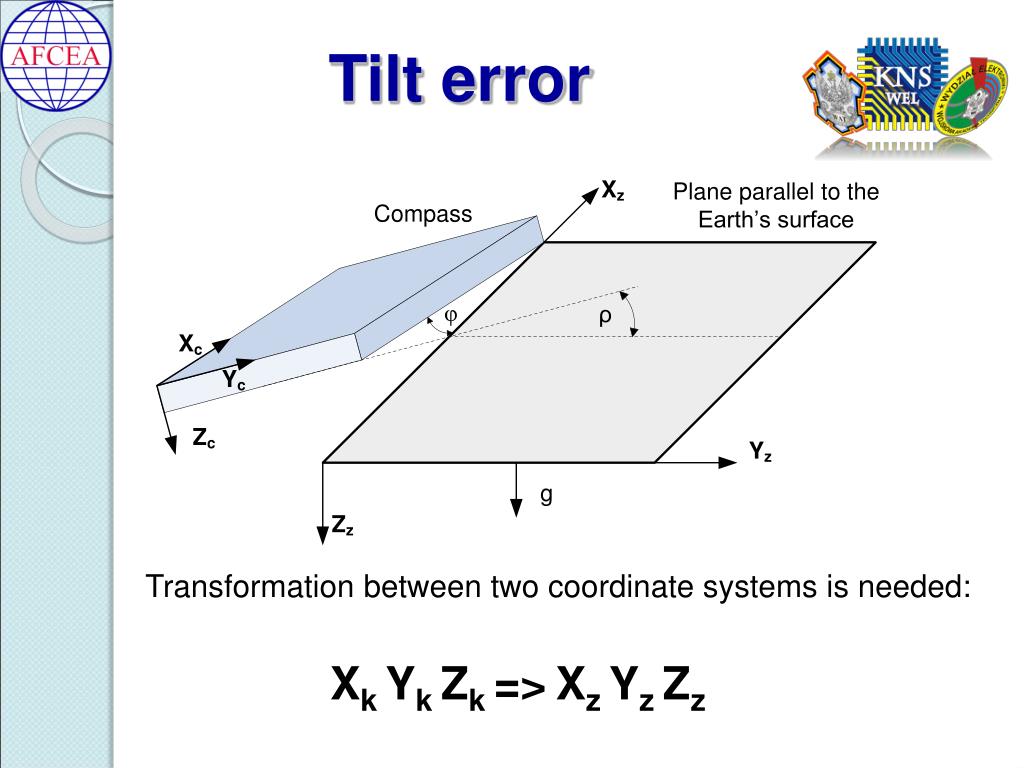

  7. Tilt error Transformation between two coordinate systems is needed: Xk Yk Zk =>Xz Yz Zz

  8. Tilt error Tilt error ε depends on: - tilt angle τ - magnetic inclination δ

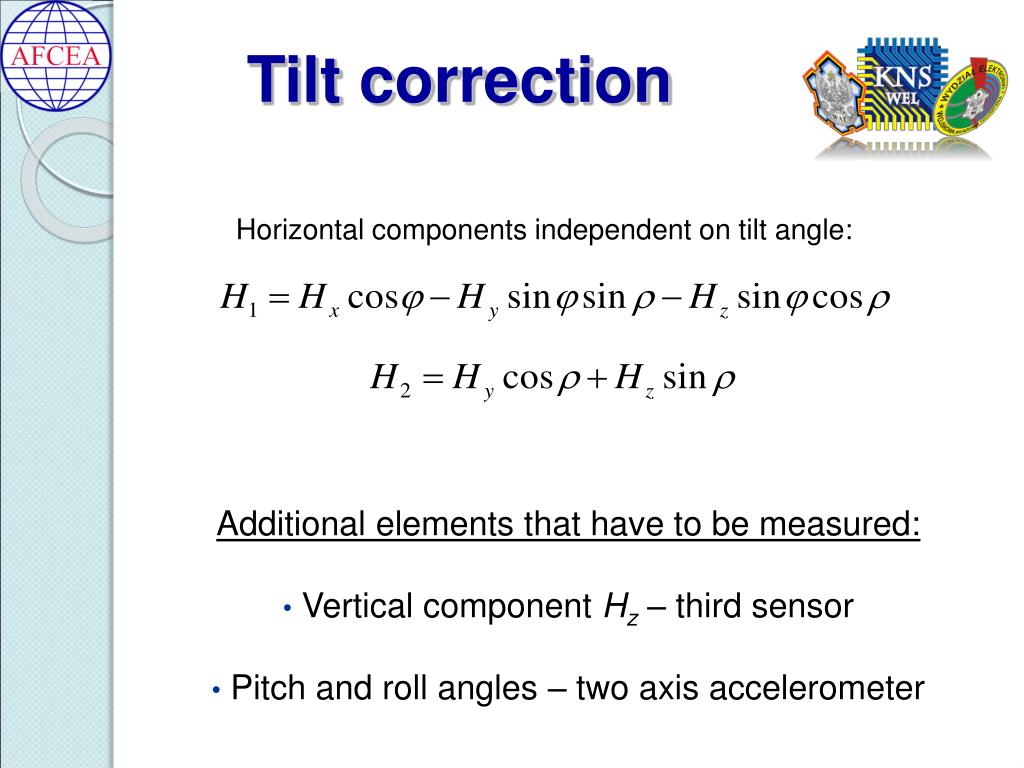

  9. Tilt correction Horizontal components independent on tilt angle: • Additional elements that have to be measured: • Vertical component Hz – third sensor • Pitch and roll angles – two axis accelerometer

  10. Block diagram

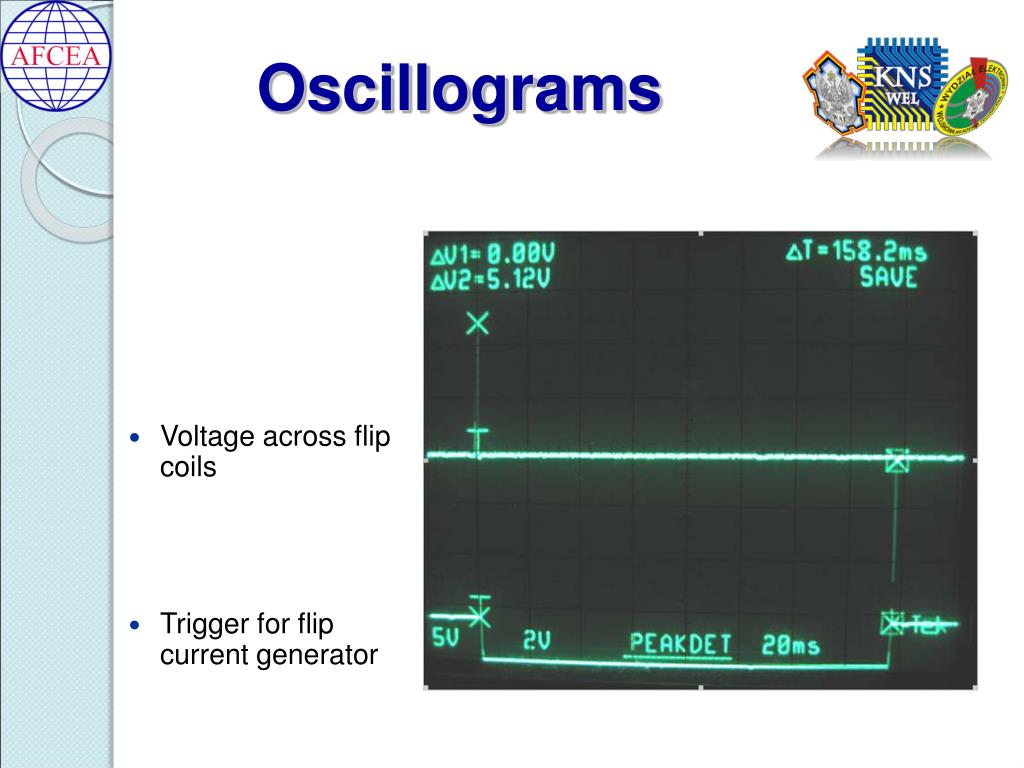

  11. Oscillograms • Voltage across flip coils • Trigger for flip current generator

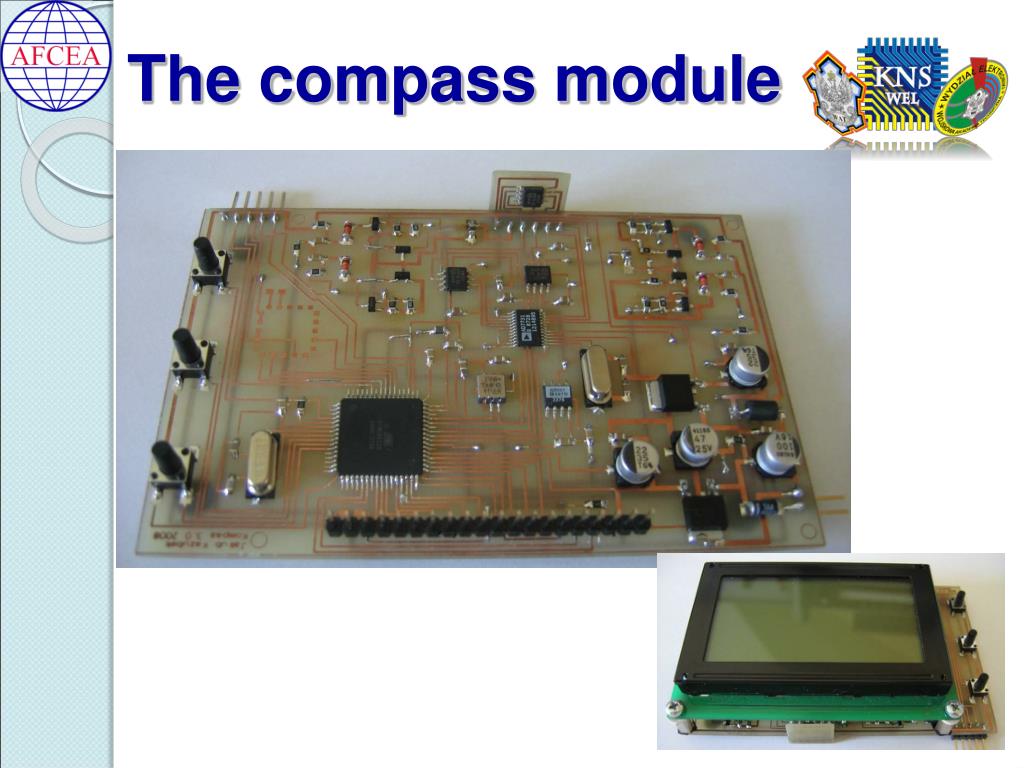

  12. The compass module

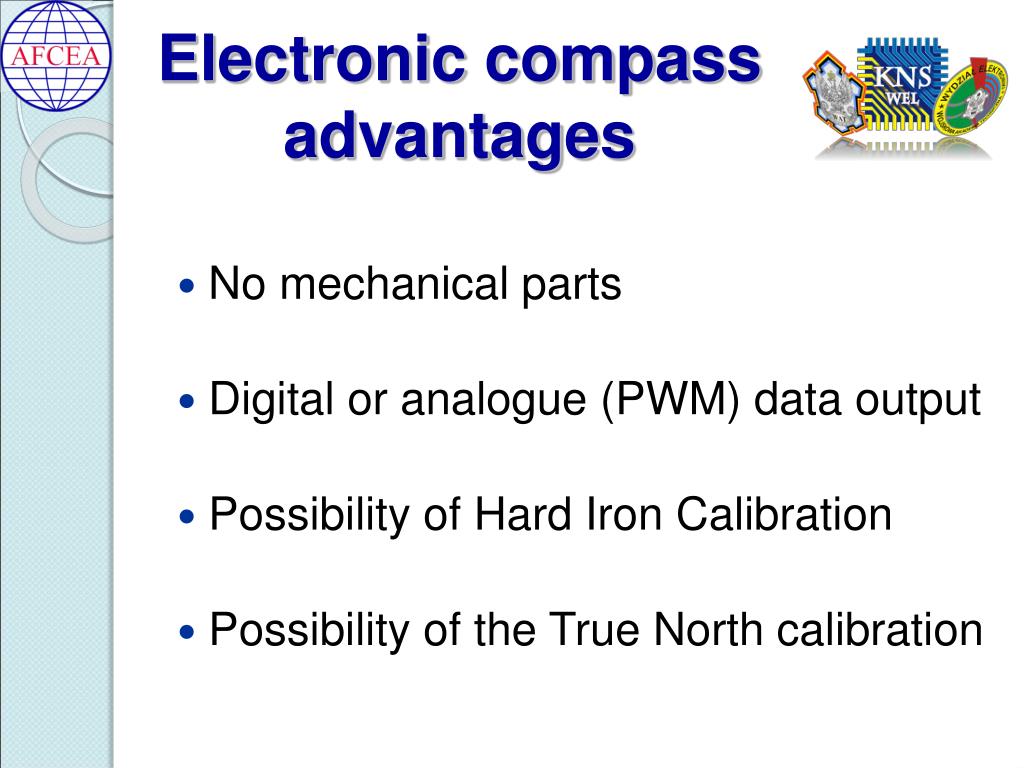

  13. Electronic compass advantages • No mechanical parts • Digital or analogue (PWM) data output • Possibility of Hard Iron Calibration • Possibility of the True North calibration

  14. Project development • Noise elimination • Implementation of the True North algorithm • Gyro correction • Software development

  15. Thank you for your attention
