  1. Chapter 15 Rebuilding the Linux Kernel • Preparing the Source Code • Locating the Source Code • Installing the Source Code • Read the Documentation • Configuring and Compiling the Linux Kernel Cleaning the Source Tree • Configuring the Linux Kernel Compiling the Linux Kernel • Using Loadable Kernel Modules • Installing the Kernel and Associated Files • Changing lilo.conf (RHEL) • grub.conf • Rebooting • Boot Loader • grub: The Linux Loader • Lilo: The Linux Loader (RHEL) • LOADLlN: A DOS-Based Linux Loader • dmesg: Display Kernel Messages

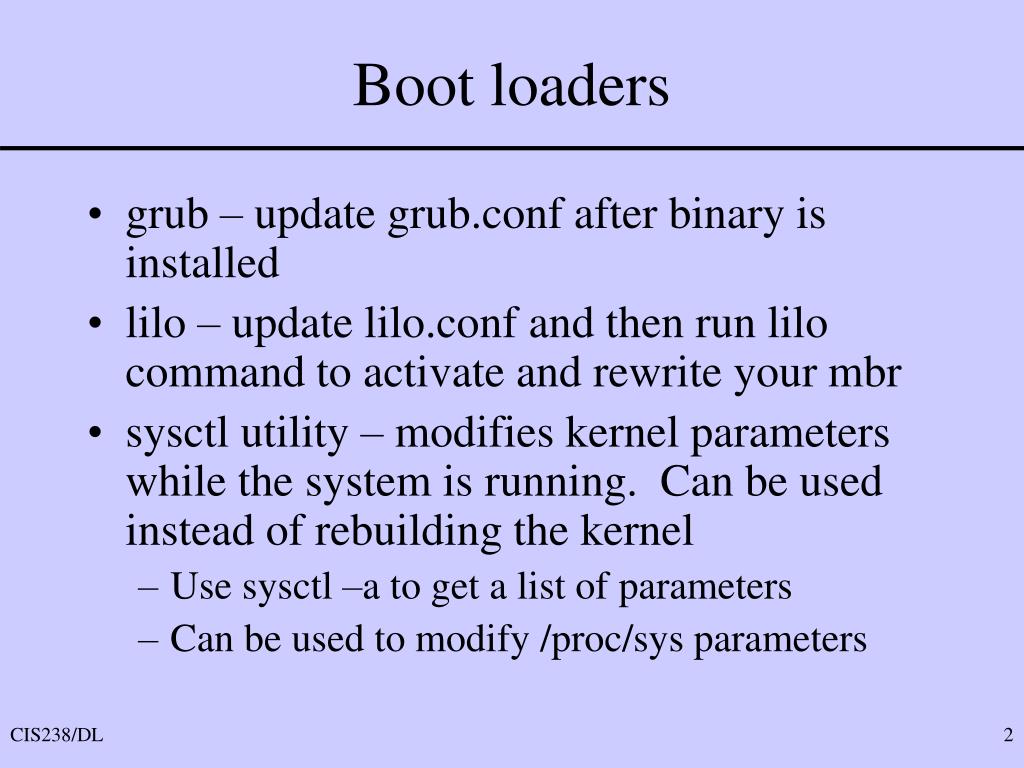

  2. Boot loaders • grub – update grub.conf after binary is installed • lilo – update lilo.conf and then run lilo command to activate and rewrite your mbr • sysctl utility – modifies kernel parameters while the system is running. Can be used instead of rebuilding the kernel • Use sysctl –a to get a list of parameters • Can be used to modify /proc/sys parameters

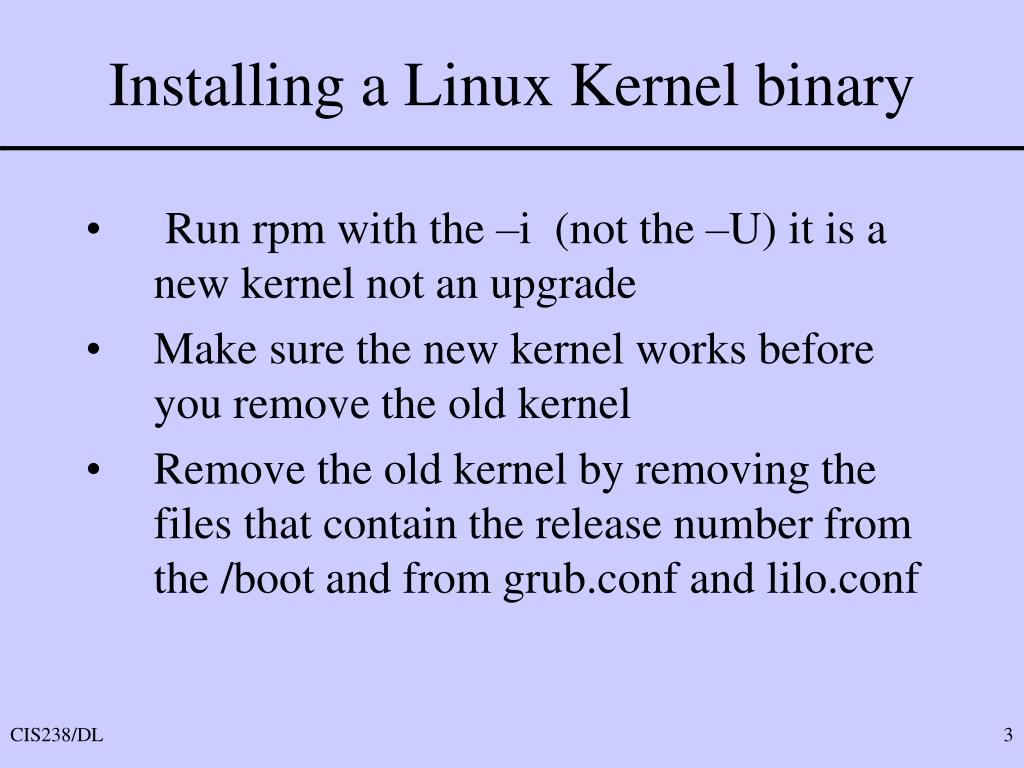

  3. Installing a Linux Kernel binary • Run rpm with the –i (not the –U) it is a new kernel not an upgrade • Make sure the new kernel works before you remove the old kernel • Remove the old kernel by removing the files that contain the release number from the /boot and from grub.conf and lilo.conf

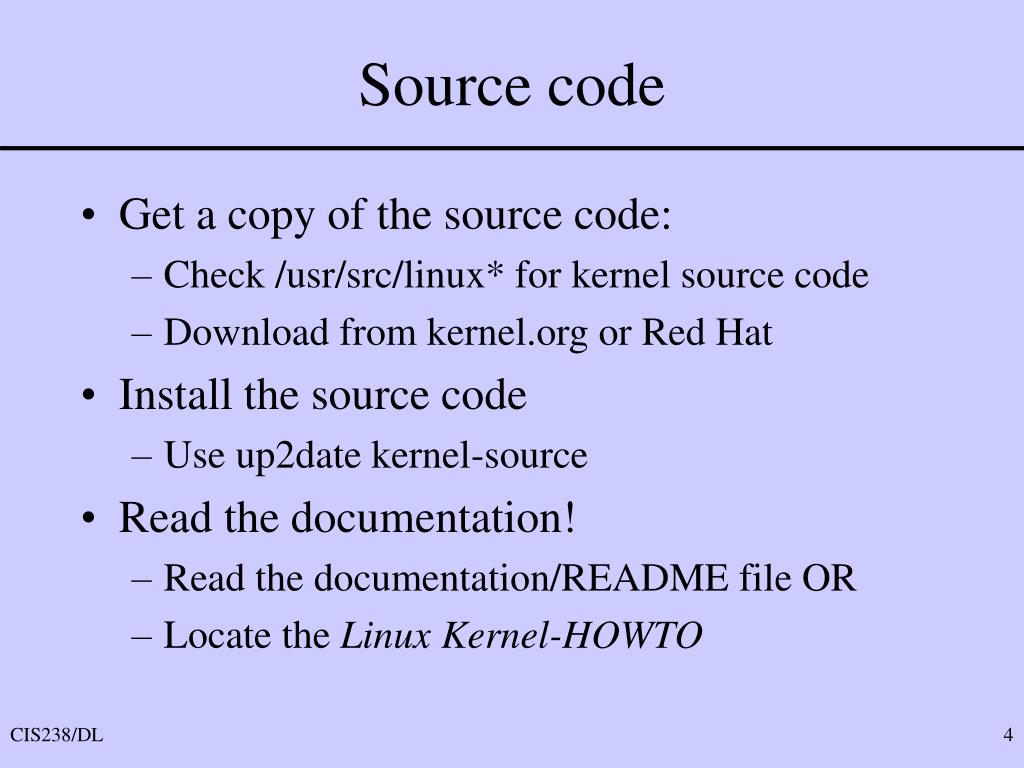

  4. Source code • Get a copy of the source code: • Check /usr/src/linux* for kernel source code • Download from kernel.org or Red Hat • Install the source code • Use up2date kernel-source • Read the documentation! • Read the documentation/README file OR • Locate the Linux Kernel-HOWTO

  5. Configuring and Compiling the kernel • Clean the source tree • # make mrproper • Configure the linux kernel • # make config • # LANG=C make menuconfig • # make xconfig

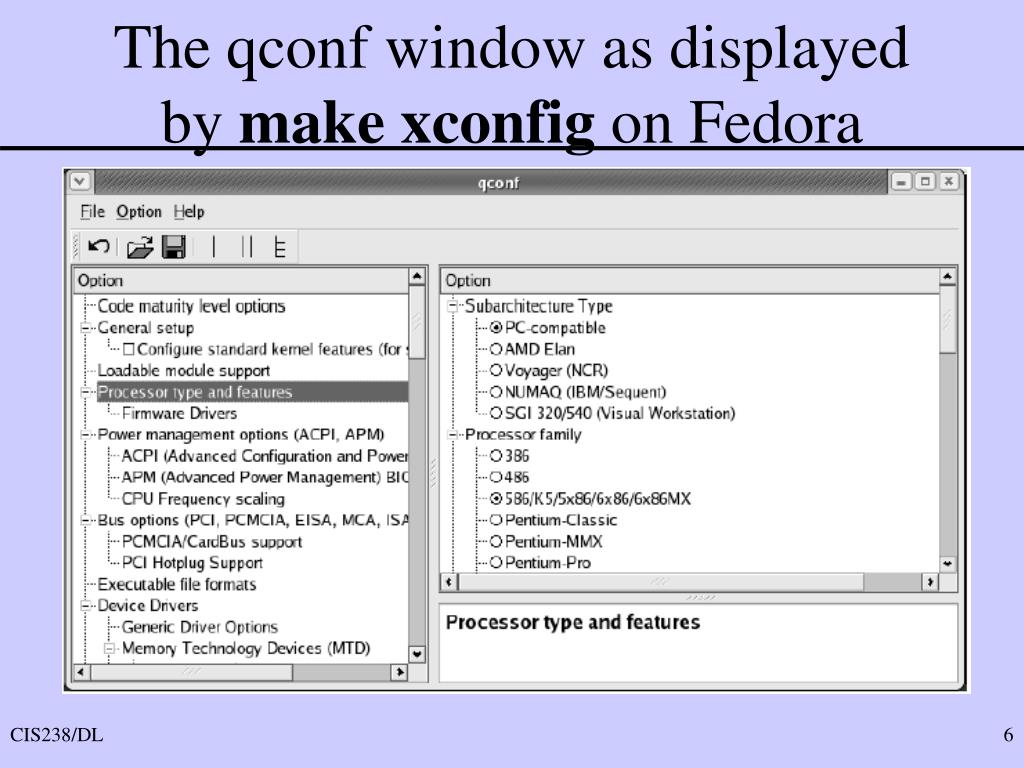

  6. The qconf window as displayed by make xconfig on Fedora

  7. The qconf Processor Type submenu

  8. ESTRAVERSION number • Use to prevent overwriting of older/other kernel information • Defaults to release number + custom

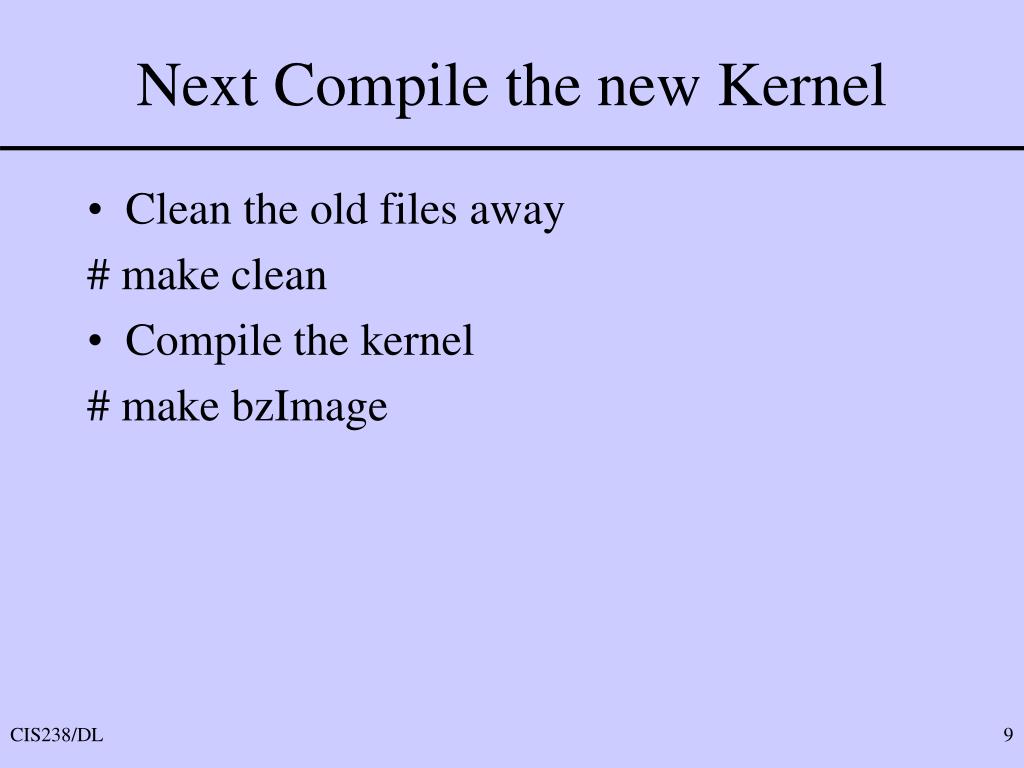

  9. Next Compile the new Kernel • Clean the old files away # make clean • Compile the kernel # make bzImage

  10. Using Loadable kernel modules # make modules # make modules_install • depmod - module dependencies • insmod – lists information about loaded modules • lsmod – list loaded modules information • modinfo – list module information • modprobe – loads, unloads modules and dependencies • rmmod – removes modules from kernel

  11. Installing the kernel • Copy the compiled kernel and associated files to the appropriate directory (/ or /boot) • Now execute: # make install • grub – update grub.conf after binary is installed • lilo – update lilo.conf and then run lilo command to activate and rewrite your mbr

  12. Rebooting and boot loaders • grub – update grub.conf after binary is installed, Grand Unified Boot Loader. • lilo – Linux loader, update lilo.conf and run lilo command to activate and rewrite your mbr • loadlin: is a DOS based utility that will load Linux from DOS • See Loadlin+Win95/98/ME mini-HOWTO or • elserv.ffm.fgan.de/~lermen

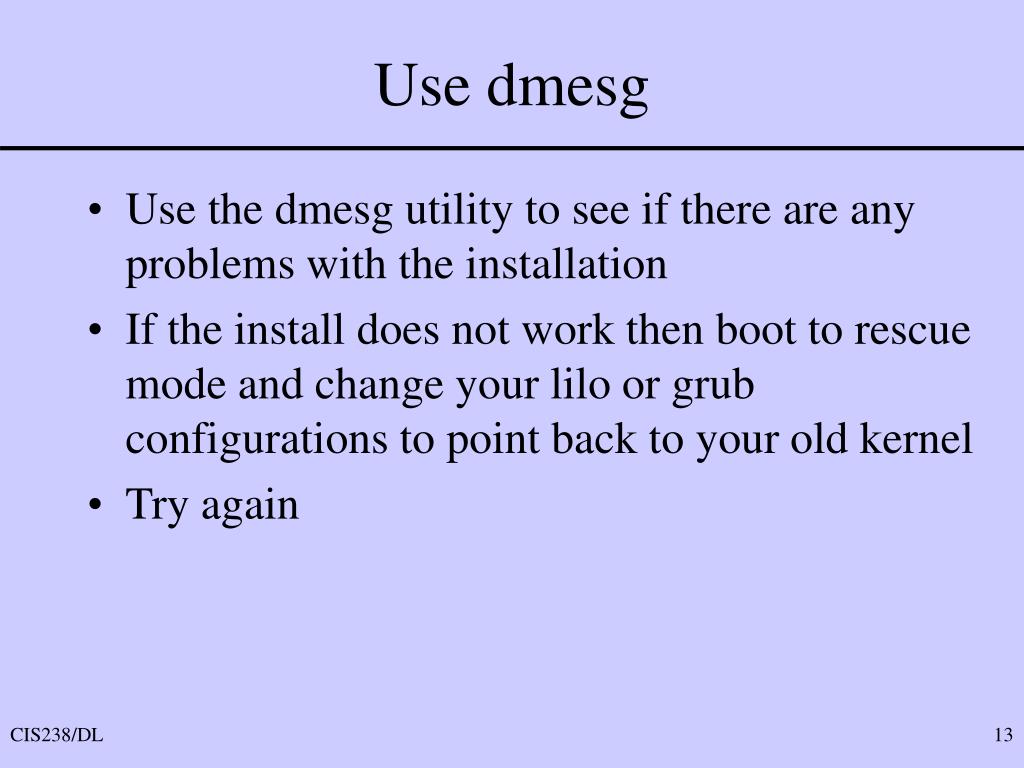

  13. Use dmesg • Use the dmesg utility to see if there are any problems with the installation • If the install does not work then boot to rescue mode and change your lilo or grub configurations to point back to your old kernel • Try again

  14. grub.conf # grub.conf generated by anaconda # Note that you do not have to rerun grub after making changes to this file # NOTICE: You have a /boot partition. This means that # all kernel and initrd paths are relative to /boot/, eg. # root (hd0,0) # kernel /vmlinuz-version ro root=/dev/hda2 # initrd /initrd-version.img # boot=/dev/hda default=0 timeout=10 splashimage=(hd0,0)/grub/splash.xpm.gz title Fedora Core (2.4.22-1.2199.nptl) root (hd0,0) kernel /vmlinuz-2.4.22-1.2199.nptl ro root=LABEL=/ rhgb initrd /initrd-2.4.22-1.2199.nptl.img title Fedora Core (2.4.22-1.2115.nptl) root (hd0,0) kernel /vmlinuz-2.4.22-1.2115.nptl ro root=LABEL=/ rhgb initrd /initrd-2.4.22-1.2115.nptl.img

  15. Any Questions?
