  1. Welcome to the Future Fully automated blood grouping system IH-1000

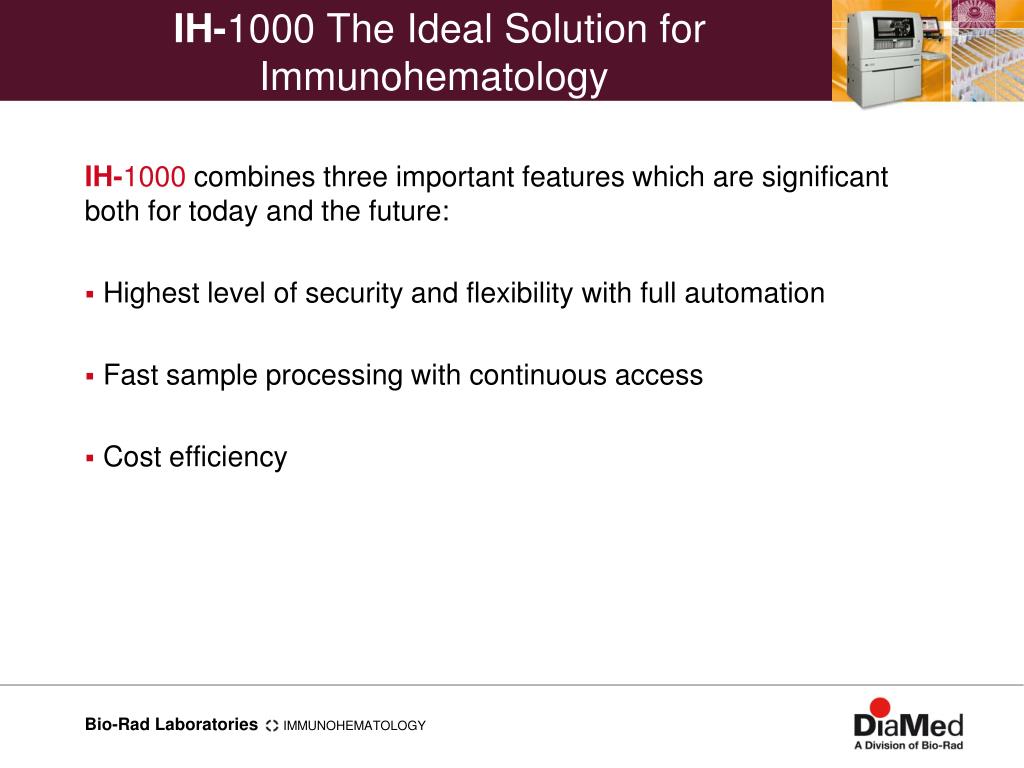

  2. IH-1000 The Ideal Solution for Immunohematology IH-1000 combines three important features which are significant both for today and the future: • Highest level of security and flexibility with full automation • Fast sample processing with continuous access • Cost efficiency

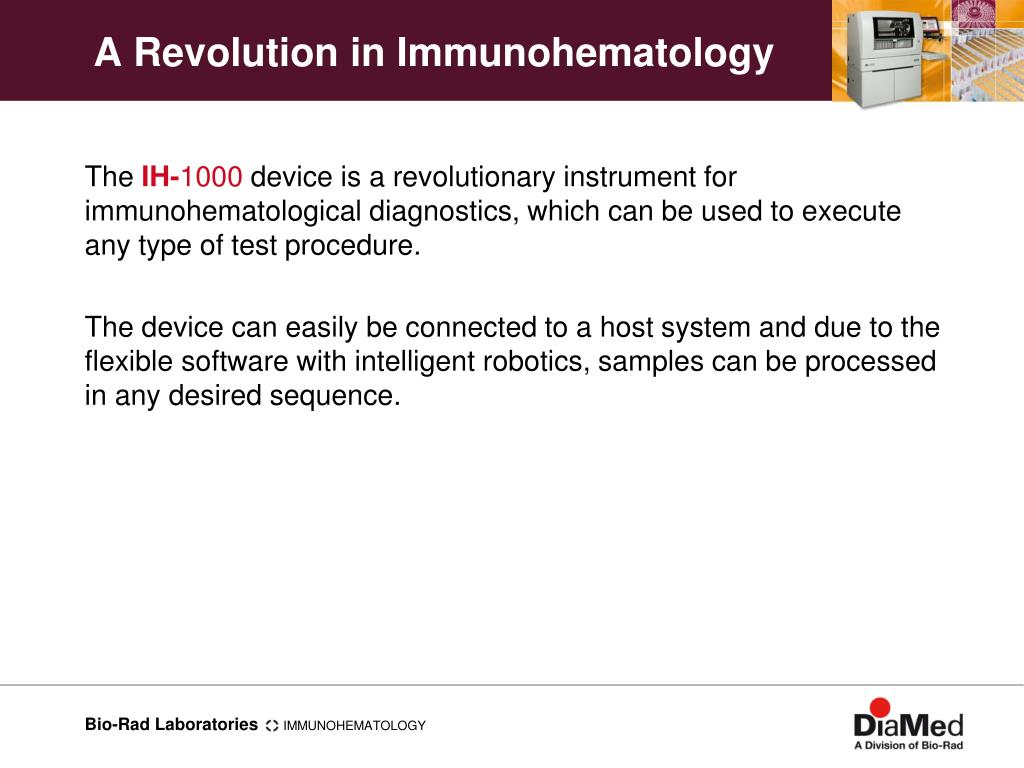

  3. A Revolution in Immunohematology • The IH-1000 device is a revolutionary instrument for immunohematological diagnostics, which can be used to execute any type of test procedure. • The device can easily be connected to a host system and due to the flexible software with intelligent robotics, samples can be processed in any desired sequence.

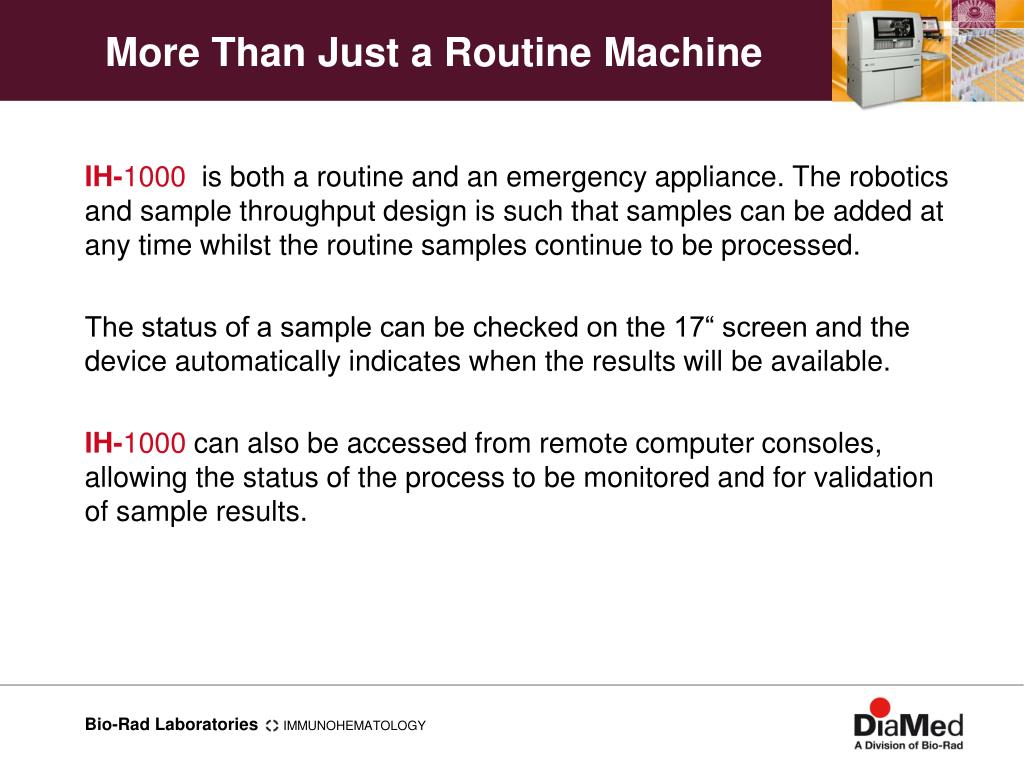

  4. More Than Just a Routine Machine • IH-1000 is both a routine and an emergency appliance. The robotics and sample throughput design is such that samples can be added at any time whilst the routine samples continue to be processed. • The status of a sample can be checked on the 17“ screen and the device automatically indicates when the results will be available. • IH-1000 can also be accessed from remote computer consoles, allowing the status of the process to be monitored and for validation of sample results.

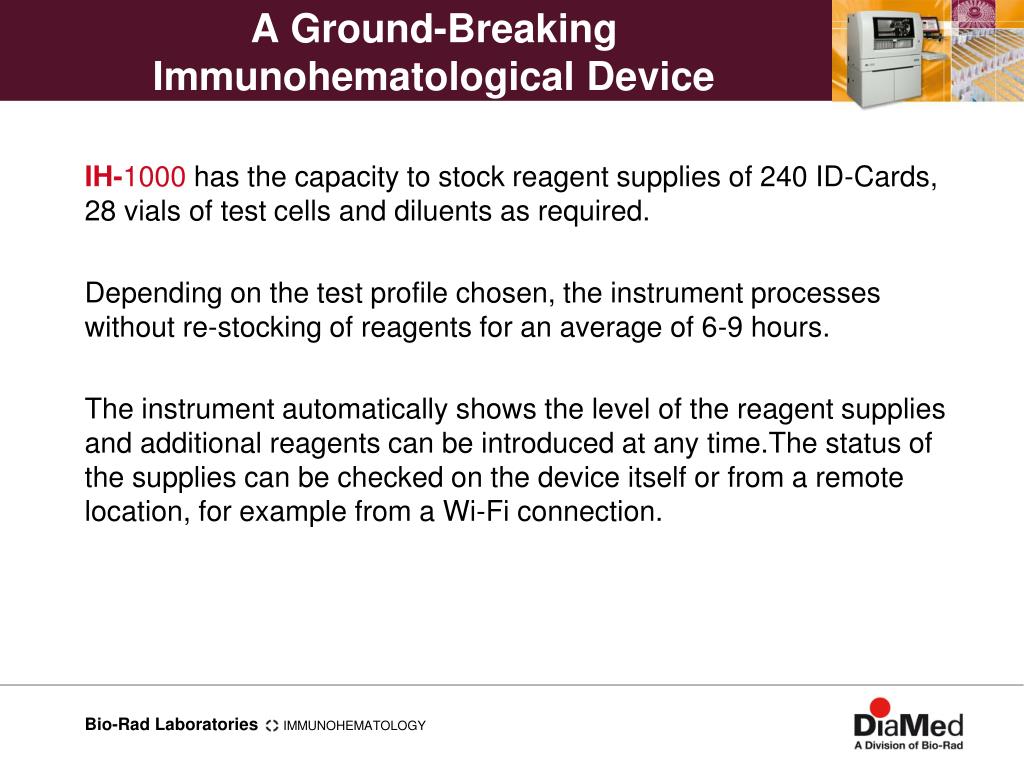

  5. A Ground-Breaking Immunohematological Device • IH-1000 has the capacity to stock reagent supplies of 240 ID-Cards, 28 vials of test cells and diluents as required. • Depending on the test profile chosen, the instrument processes without re-stocking of reagents for an average of 6-9 hours. • The instrument automatically shows the level of the reagent supplies and additional reagents can be introduced at any time.The status of the supplies can be checked on the device itself or from a remote location, for example from a Wi-Fi connection.

  6. Overview • Walk away • Stand alone instrument • Continuous sample loading • Continuous reagent loading • Priority samples (STAT) • Reagent stock • High throughput • Optimized for small blood volumes • Dispense verification • Easy-to-use • Full test menue • Wi-Fi • Touchsreen 17“ • Host connectivity • Internal & external validation

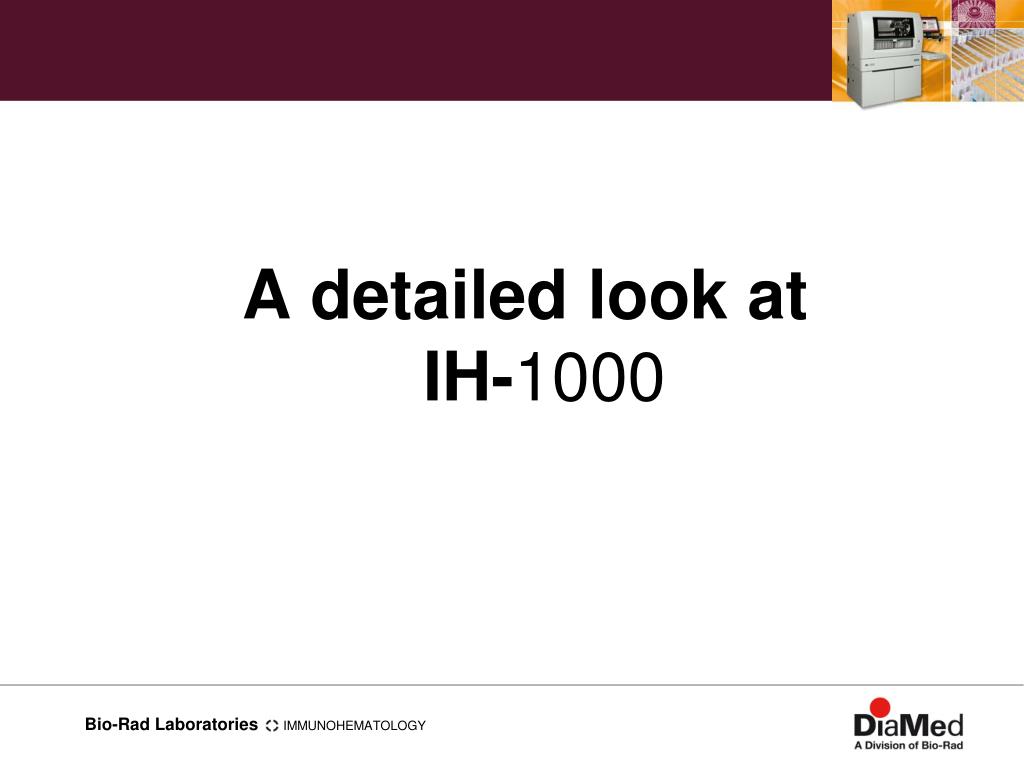

  7. A detailed look at IH-1000

  8. A detailed Look at IH-1000 Fully-automatic walk away system for ID-Cards Reagent stock for 240 ID-Cards, 28 test cells and diluent solutions Capability for up to 180 sample tubes Autonomy for 6-9 hours on average Real walk-away system for at least 2-3 hours Throughput up to 720 test per hour (~ 120 ID-Cards)

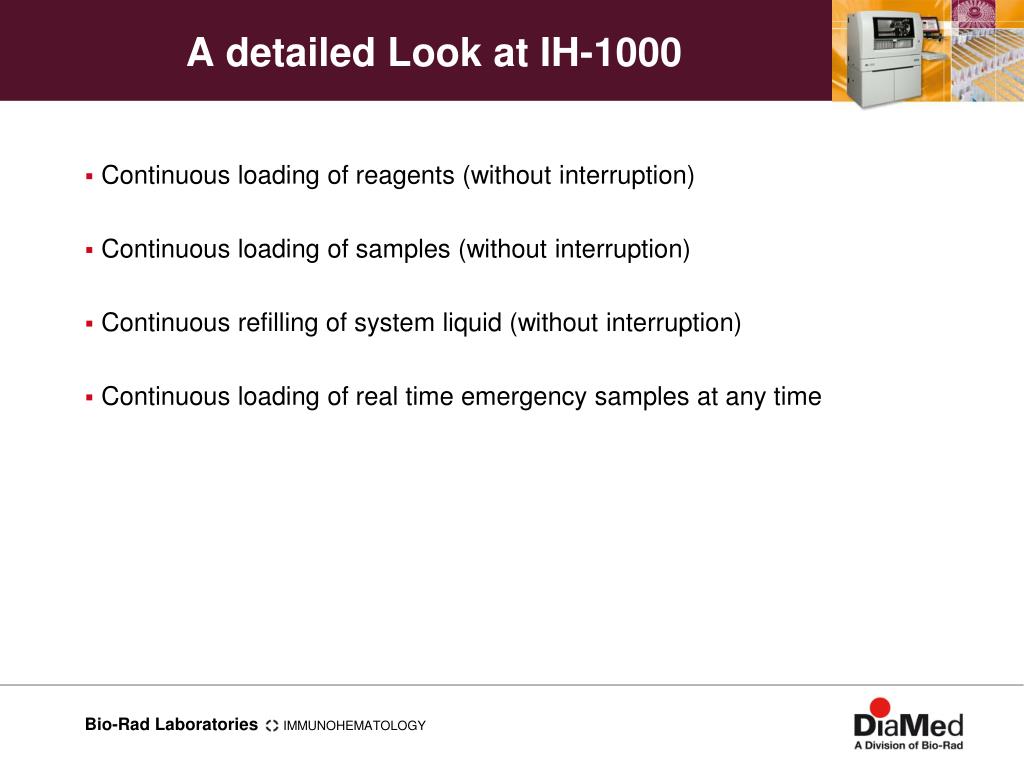

  9. A detailed Look at IH-1000 • Continuous loading of reagents (without interruption) • Continuous loading of samples (without interruption) • Continuous refilling of system liquid (without interruption) • Continuous loading of real time emergency samples at any time

  10. A detailed Look at IH-1000 Automated maintenance steps Integrated back-up systems Built-in computer with 17“ touchscreen Validation at the device and/or on one or more remote computers Wi-Fi connection for wireless computer connection possible Size (wide x depth x height): 180 x 82 x 170 cm Weight approx. 560 kg

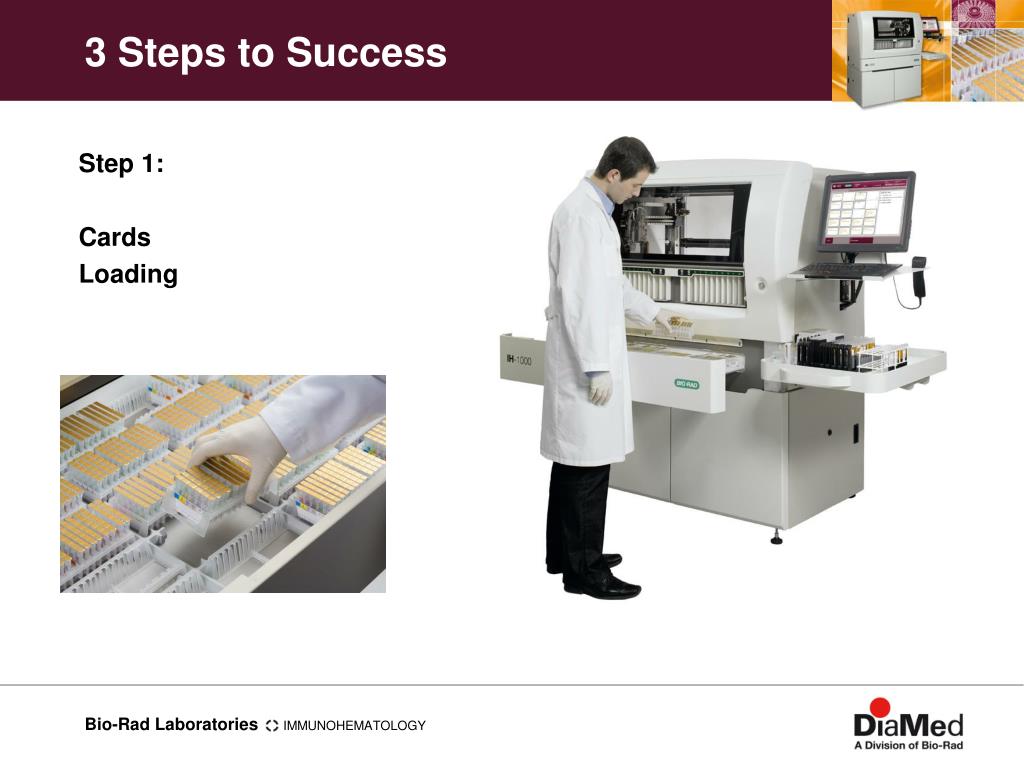

  11. 3 Steps to Success • Step 1: • Cards • Loading

  12. 3 Steps to Success • Step 2: • System Liquids • and Waste

  13. 3 Steps to Success • Step 3: • Sample & Reagent • Loading

  14. 3-2-1 Auto Start • No start button necessary • Auto start function • As soon as samples and reagents are on-board the system starts automatically • Sample by sample processing (first in – first out) • Therefore: Emergency sample processing always possible (no waiting time to start)

  15. The working horse • 2 independant pipetting stations • 3rd arm only for card transport • 3 centrifuges • Automated maintenance steps • Automatic tube diameter detection • Automatic tube decap check • Re-using partial used cards • Integrated back-up system (pipettors and centrifuges compensate each other)

  16. Intelligent Sample Handling • Different tube diameters can be used on the same rack • Automatic detection of the tube diameter • Automatic check for cap removal • Low volume optimization (min. volume 100µl) • Possibility for pediatric samples (tube in tube technology)

  17. Key features • Easy access design • Minimum training required ( installation + training ~ 3 hours) • Integrated sample preparation table • Real stand-alone system • Real emergency function • No system stop while maintaining system liquids • Integrated back up system

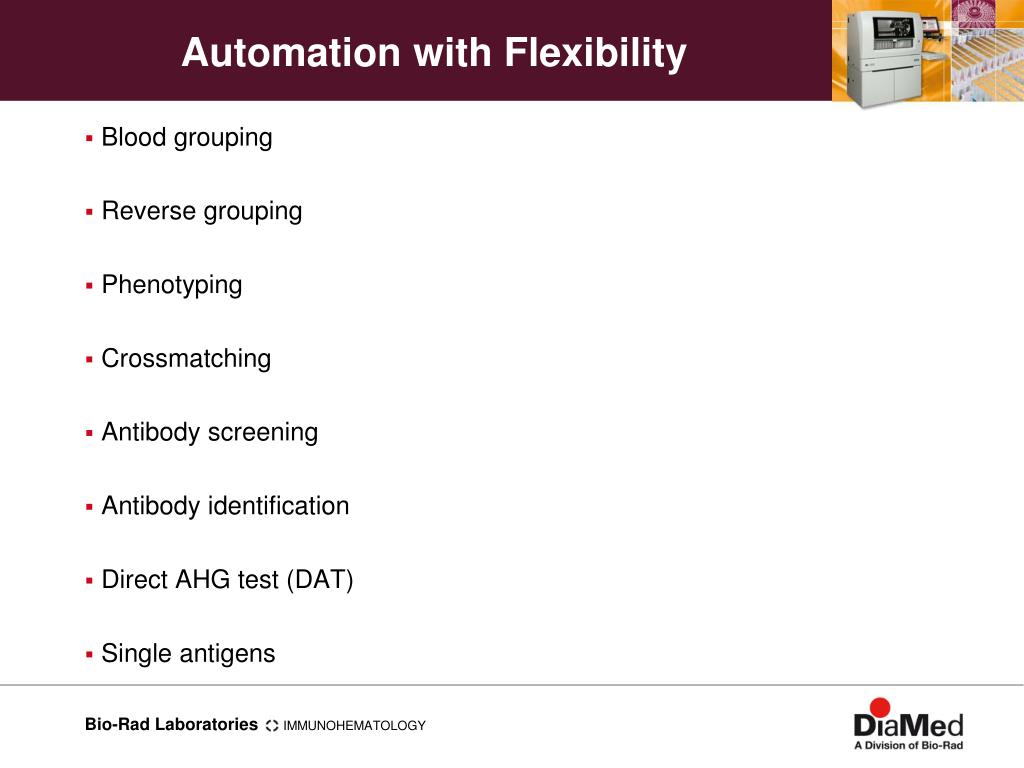

  18. Automation with Flexibility • Blood grouping • Reverse grouping • Phenotyping • Crossmatching • Antibody screening • Antibody identification • Direct AHG test (DAT) • Single antigens

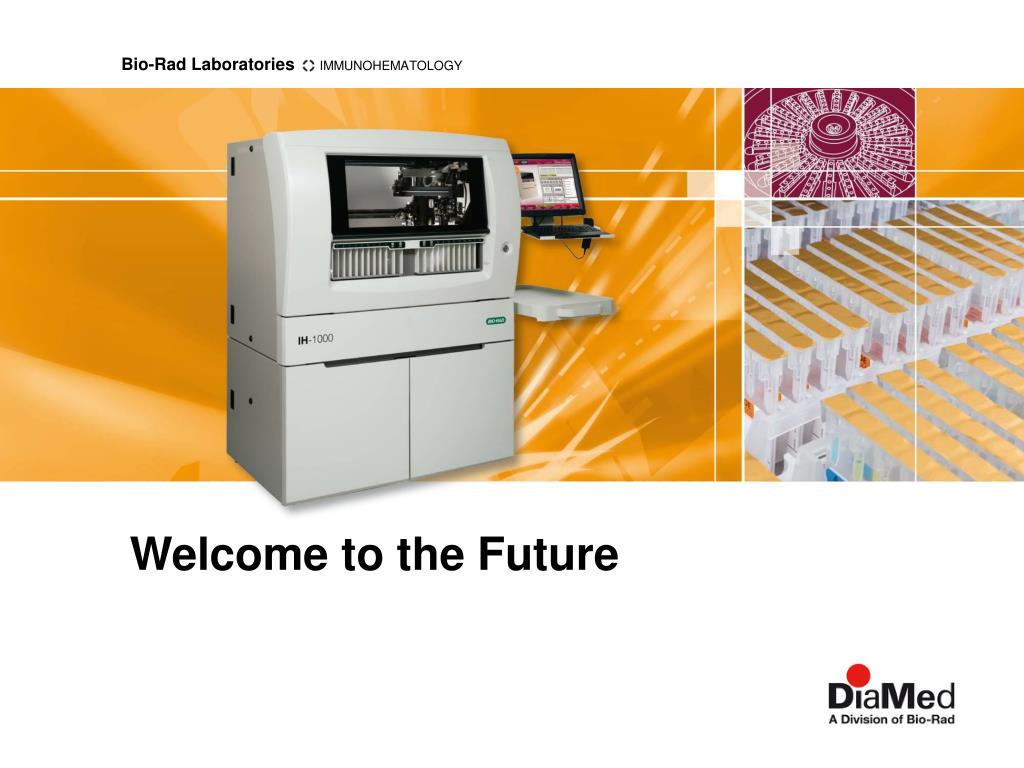

  19. Welcome to the Future
