  1. Dependable Products From A Dependable Company Since 1936

  2. L.E.S. Series VI • High Efficiency Condensing Boiler & Water Heater

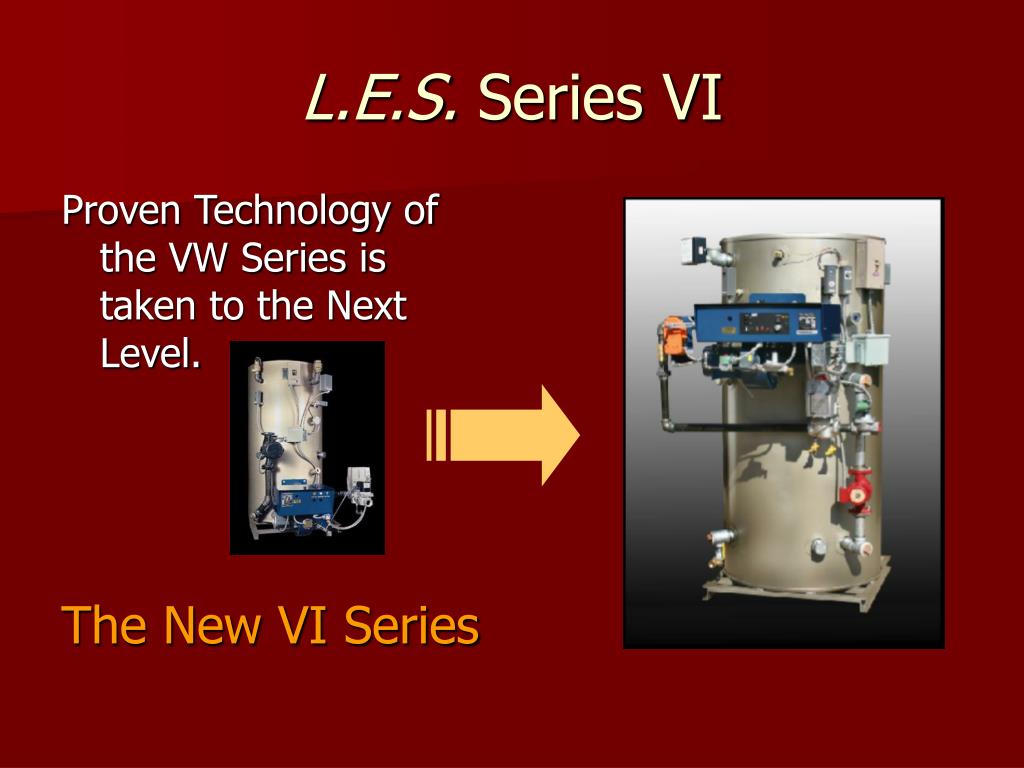

  3. L.E.S. Series VI Proven Technology of the VW Series is taken to the Next Level. The New VI Series

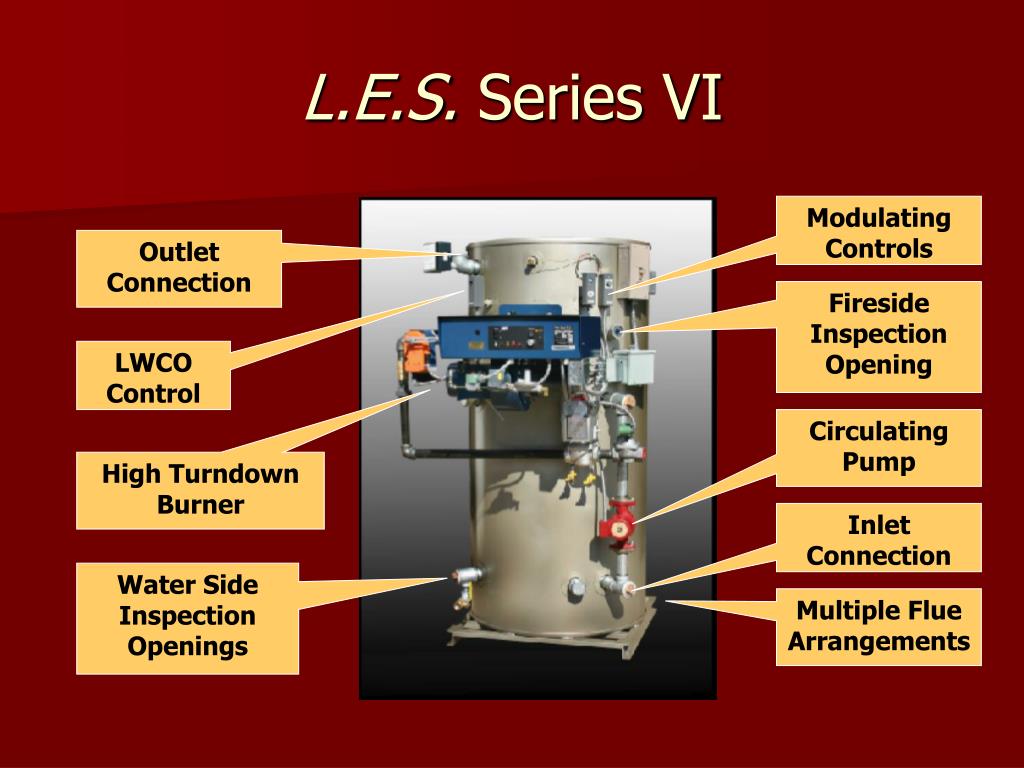

  4. L.E.S. Series VI Modulating Controls Outlet Connection Fireside Inspection Opening LWCO Control Circulating Pump High Turndown Burner Inlet Connection Water Side Inspection Openings Multiple Flue Arrangements

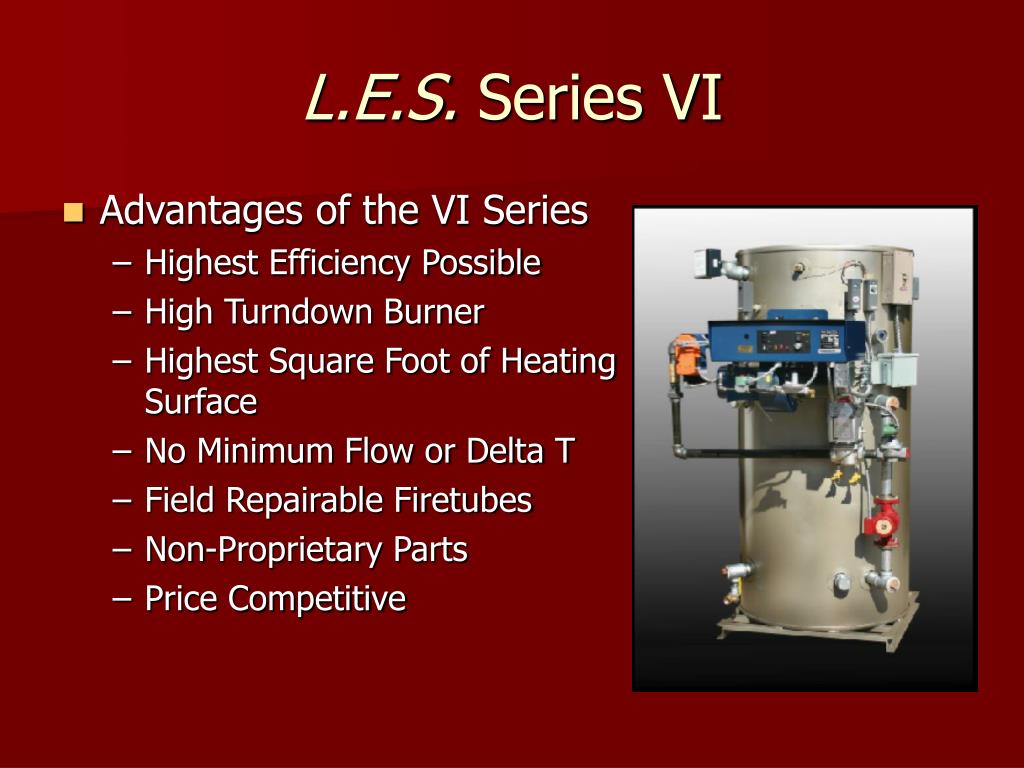

  5. L.E.S. Series VI • Advantages of the VI Series • Highest Efficiency Possible • High Turndown Burner • Highest Square Foot of Heating Surface • No Minimum Flow or Delta T • Field Repairable Firetubes • Non-Proprietary Parts • Price Competitive

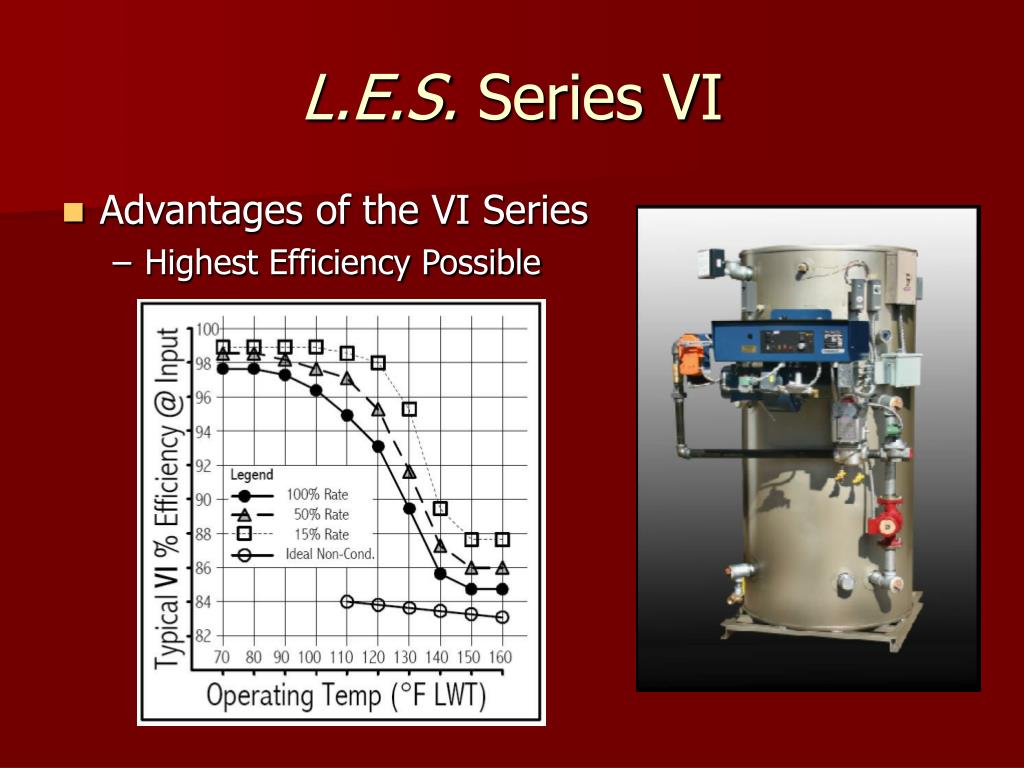

  6. L.E.S. Series VI • Advantages of the VI Series • Highest Efficiency Possible

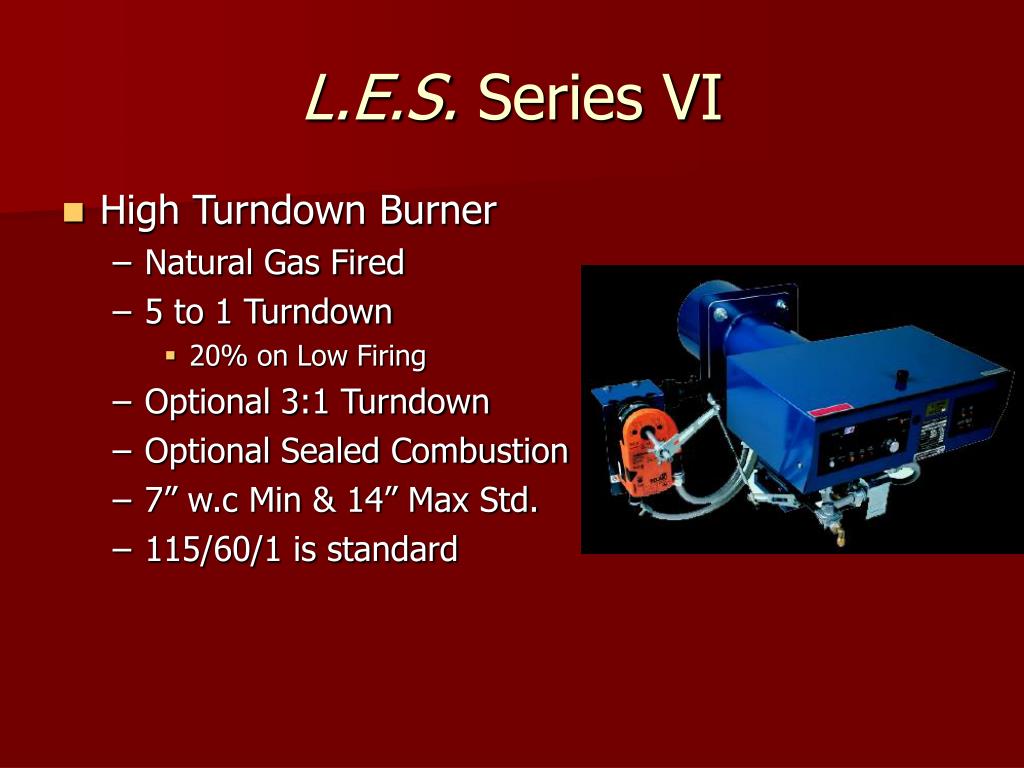

  7. L.E.S. Series VI • High Turndown Burner • Natural Gas Fired • 5 to 1 Turndown • 20% on Low Firing • Optional 3:1 Turndown • Optional Sealed Combustion • 7” w.c Min & 14” Max Std. • 115/60/1 is standard

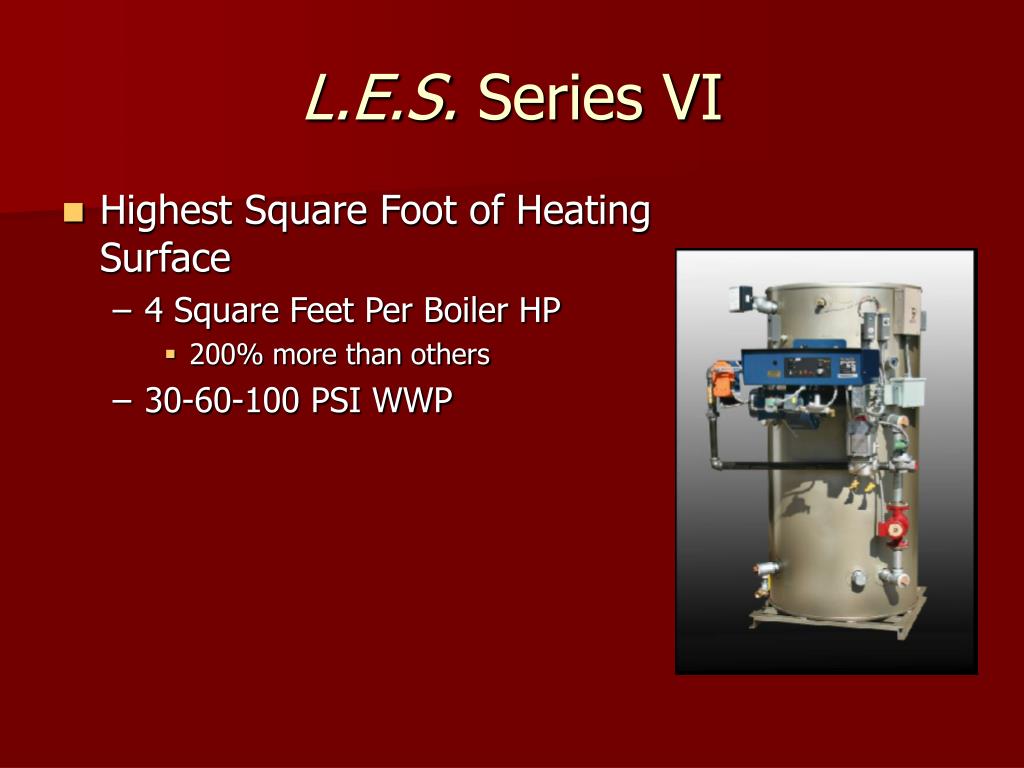

  8. L.E.S. Series VI • Highest Square Foot of Heating Surface • 4 Square Feet Per Boiler HP • 200% more than others • 30-60-100 PSI WWP

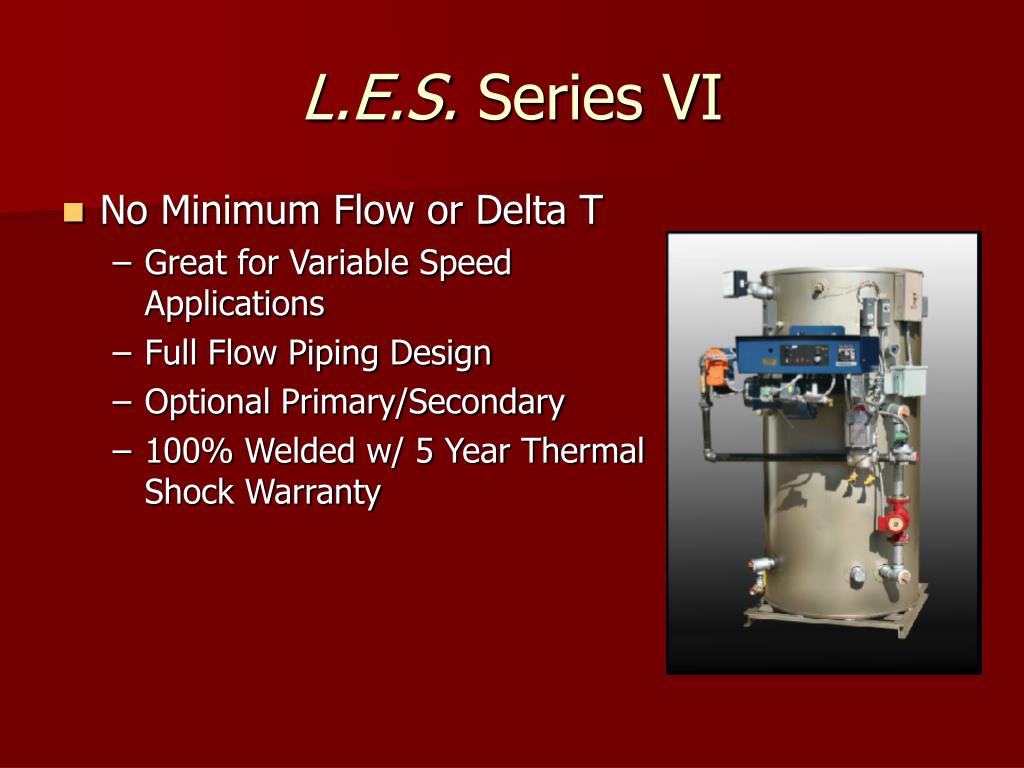

  9. L.E.S. Series VI • No Minimum Flow or Delta T • Great for Variable Speed Applications • Full Flow Piping Design • Optional Primary/Secondary • 100% Welded w/ 5 Year Thermal Shock Warranty

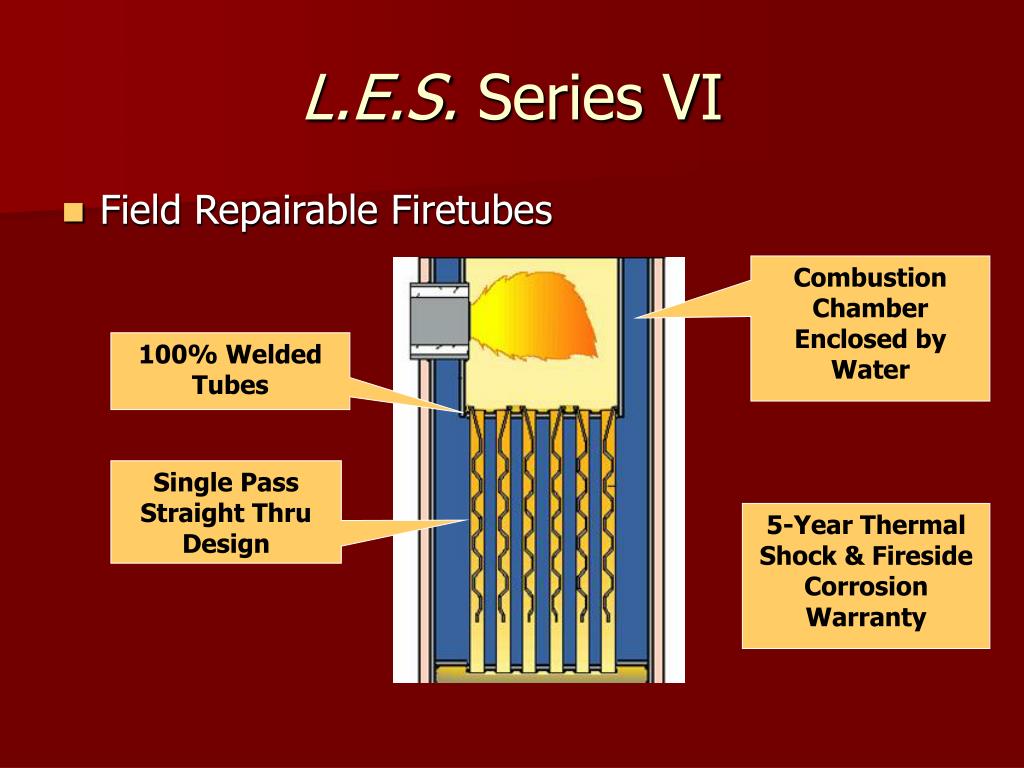

  10. L.E.S. Series VI • Field Repairable Firetubes Combustion Chamber Enclosed by Water 100% Welded Tubes Single Pass Straight Thru Design 5-Year Thermal Shock & Fireside Corrosion Warranty

  11. L.E.S. Series VI • Non-Proprietary Part • Burner and Controls • Steel Firetubes/Heat Exchanger • Operating Controls • Makes Service Easier & Faster • Lower Costs to service • Omaha Stocked Parts

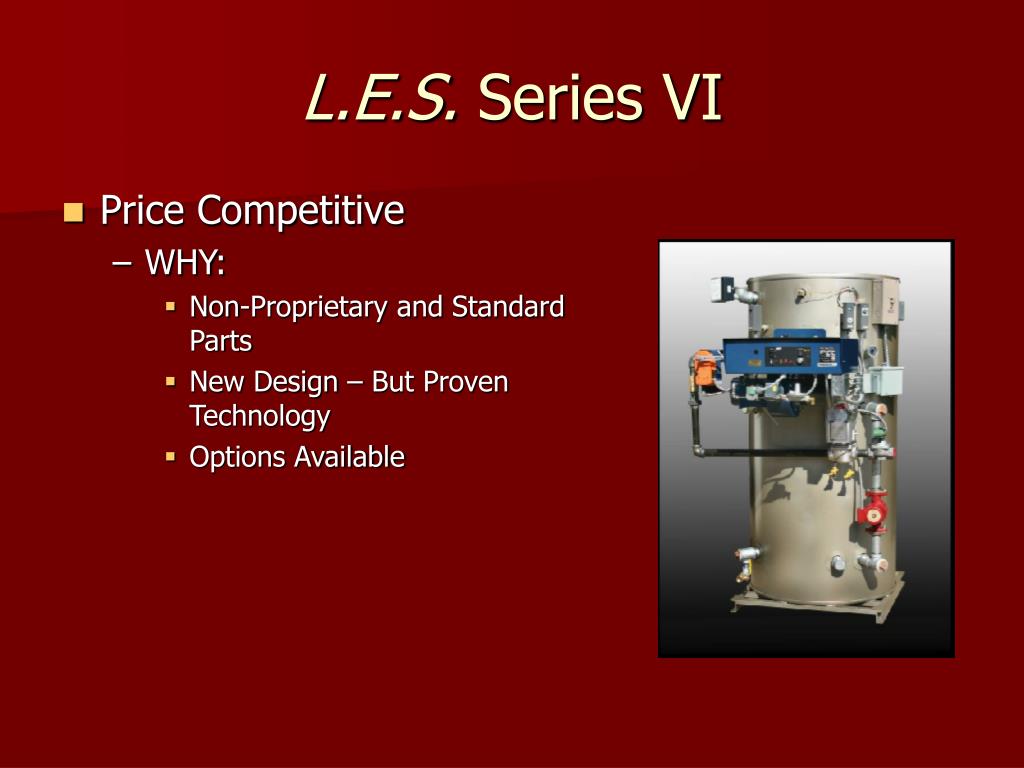

  12. L.E.S. Series VI • Price Competitive • WHY: • Non-Proprietary and Standard Parts • New Design – But Proven Technology • Options Available

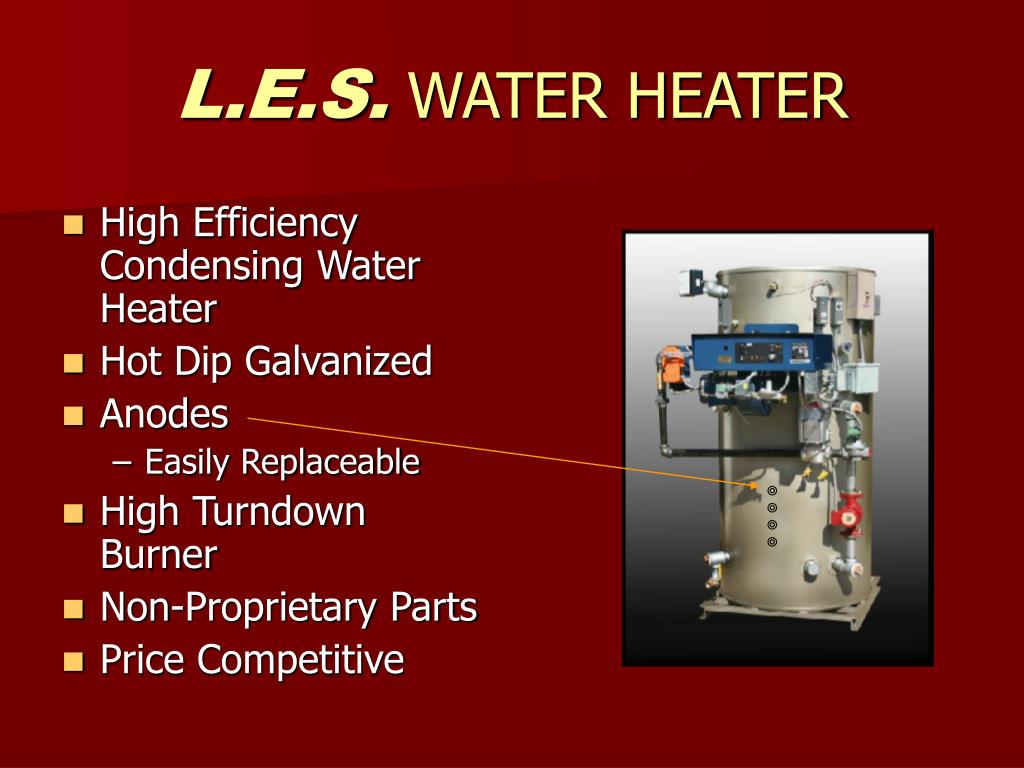

  13. L.E.S. WATER HEATER • High Efficiency Condensing Water Heater • Hot Dip Galvanized • Anodes • Easily Replaceable • High Turndown Burner • Non-Proprietary Parts • Price Competitive
