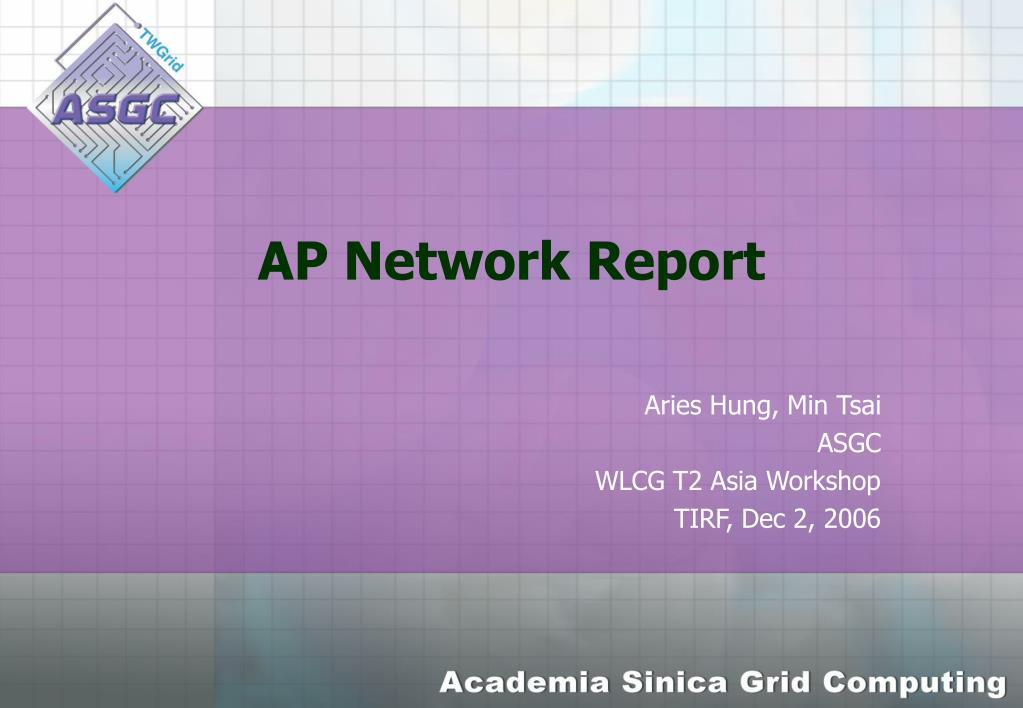

  1. AP Network Report Aries Hung, Min Tsai ASGC WLCG T2 Asia Workshop TIRF, Dec 2, 2006

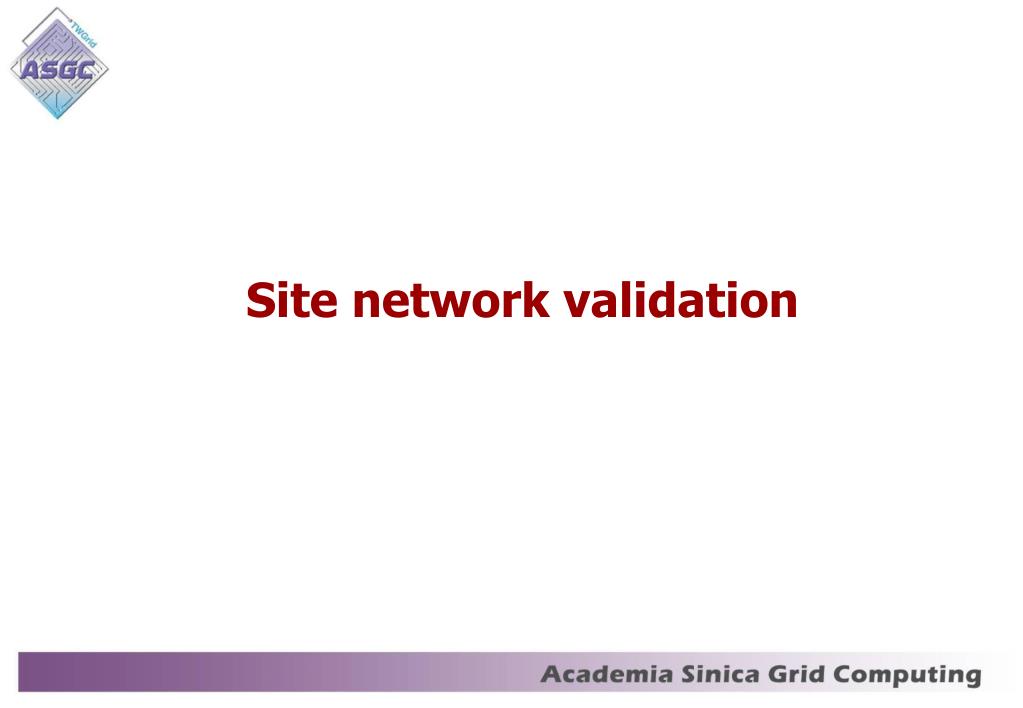

  2. Site network validation

  3. T0-T1-T2 network connectivity

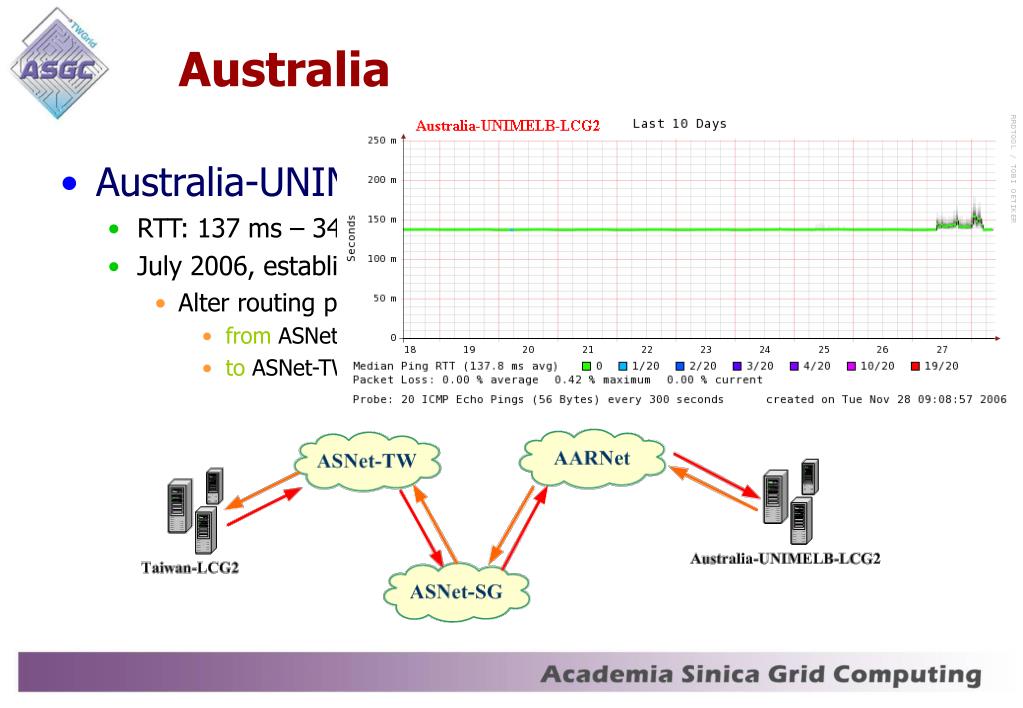

  4. Australia • Australia-UNIMELB-LCG2: • RTT: 137 ms – 340 via US • July 2006, establish peering with AARNet at Singapore. • Alter routing path • from ASNet-TW ASNet-US  AARNet  Australia-UNIMELB-LCG2 • to ASNet-TW  ASNet-SG  AARNet  Australia-UNIMELB-LCG2

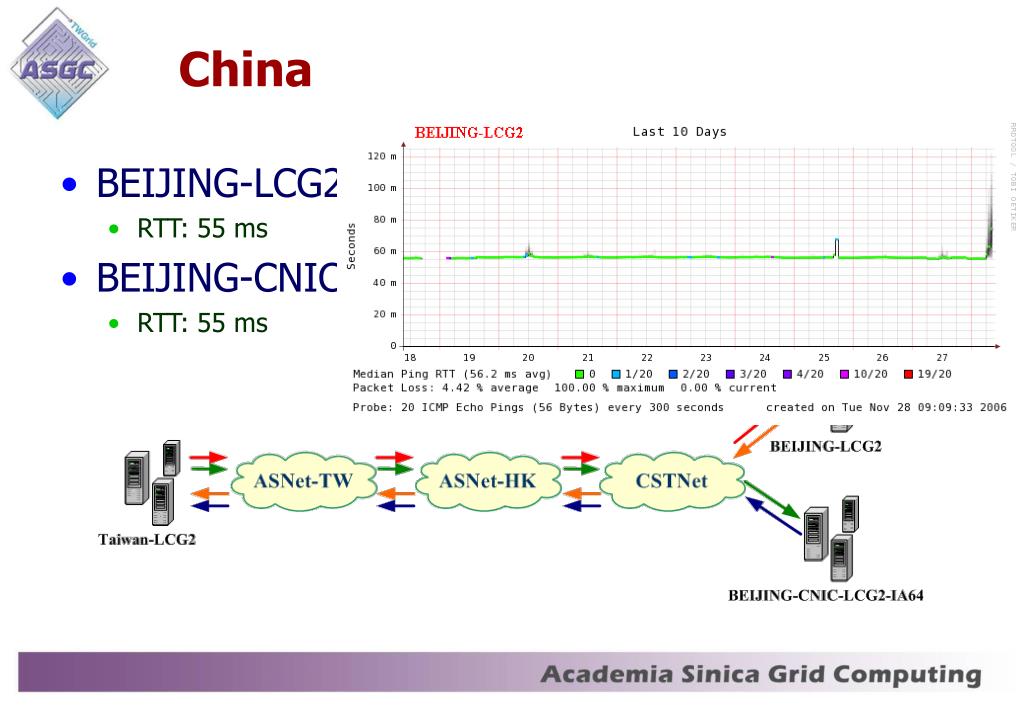

  5. China • BEIJING-LCG2 • RTT: 55 ms • BEIJING-CNIC-LCG2-IA64 • RTT: 55 ms

  6. India

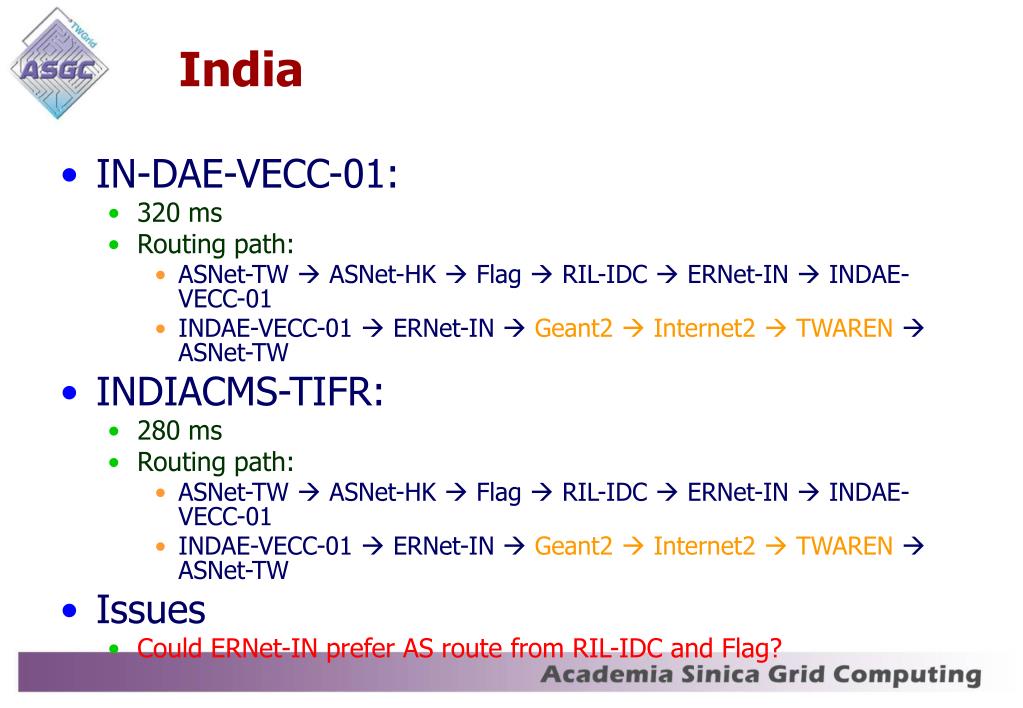

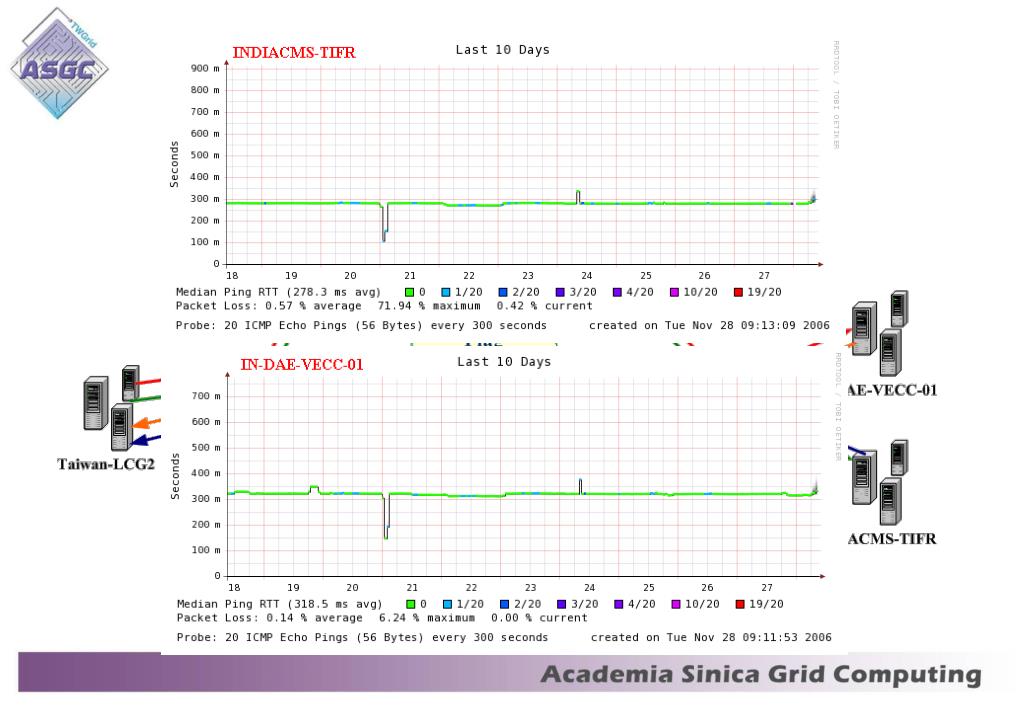

  7. India • IN-DAE-VECC-01: • 320 ms • Routing path: • ASNet-TW  ASNet-HK  Flag  RIL-IDC  ERNet-IN  INDAE-VECC-01 • INDAE-VECC-01  ERNet-IN  Geant2  Internet2  TWAREN  ASNet-TW • INDIACMS-TIFR: • 280 ms • Routing path: • ASNet-TW  ASNet-HK  Flag  RIL-IDC  ERNet-IN  INDAE-VECC-01 • INDAE-VECC-01  ERNet-IN  Geant2  Internet2  TWAREN  ASNet-TW • Issues • Could ERNet-IN prefer AS route from RIL-IDC and Flag?

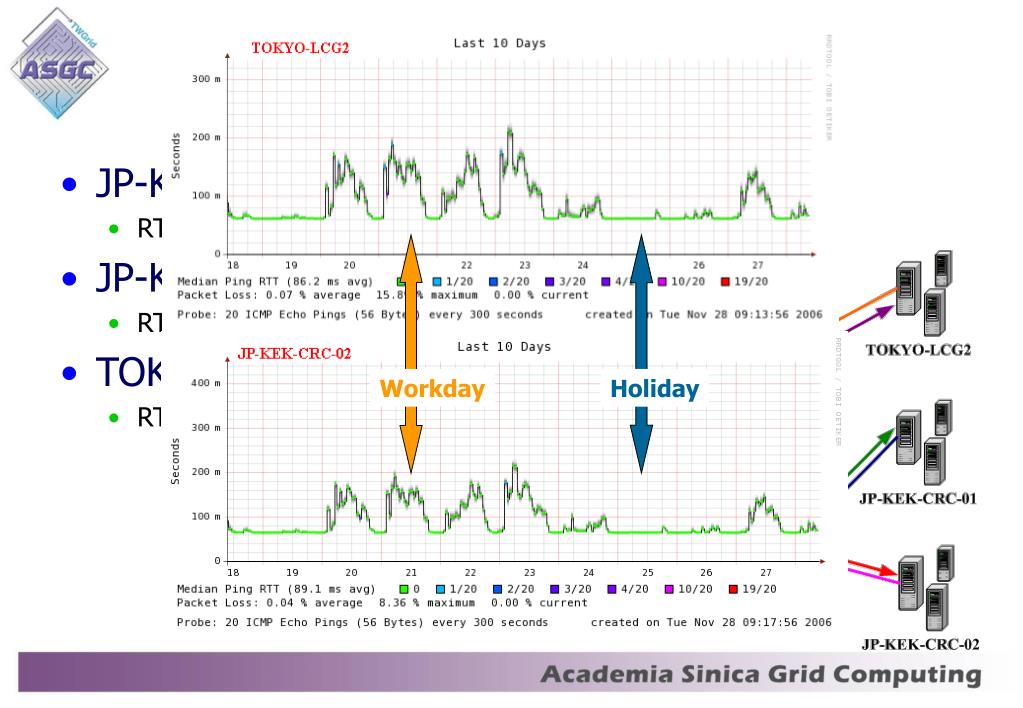

  8. Japan • JP-KEK-CRC-01: • RTT: 62 ms • JP-KEK-CRC-02: • RTT: 64 ms • TOKYO-LCG2: • RTT: 61 ms Workday Holiday

  9. Korea Workday Holiday • LCG_KNU: • RTT: 84 ms • Sep. 2006, alter route path of SE endpoint network segment (go through HK), RTT: 58 ms now. • Could 155.230.0.0/16 go through HK?

  10. Pakistan

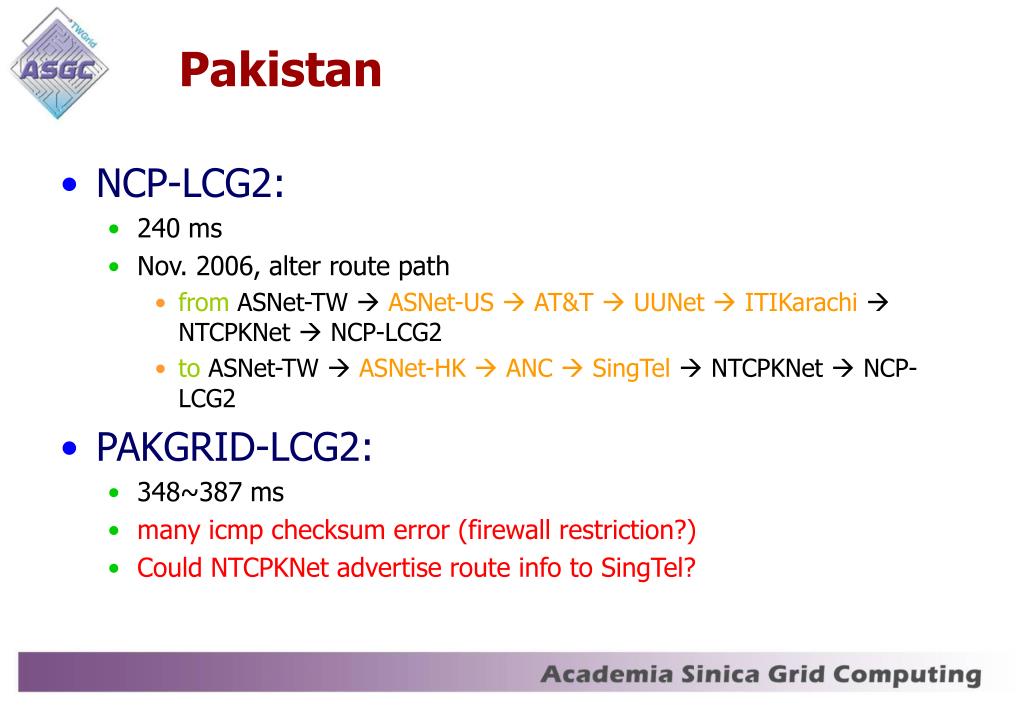

  11. Pakistan • NCP-LCG2: • 240 ms • Nov. 2006, alter route path • from ASNet-TW  ASNet-US  AT&T  UUNet  ITIKarachi  NTCPKNet  NCP-LCG2 • to ASNet-TW  ASNet-HK  ANC  SingTel  NTCPKNet  NCP-LCG2 • PAKGRID-LCG2: • 348~387 ms • many icmp checksum error (firewall restriction?) • Could NTCPKNet advertise route info to SingTel?

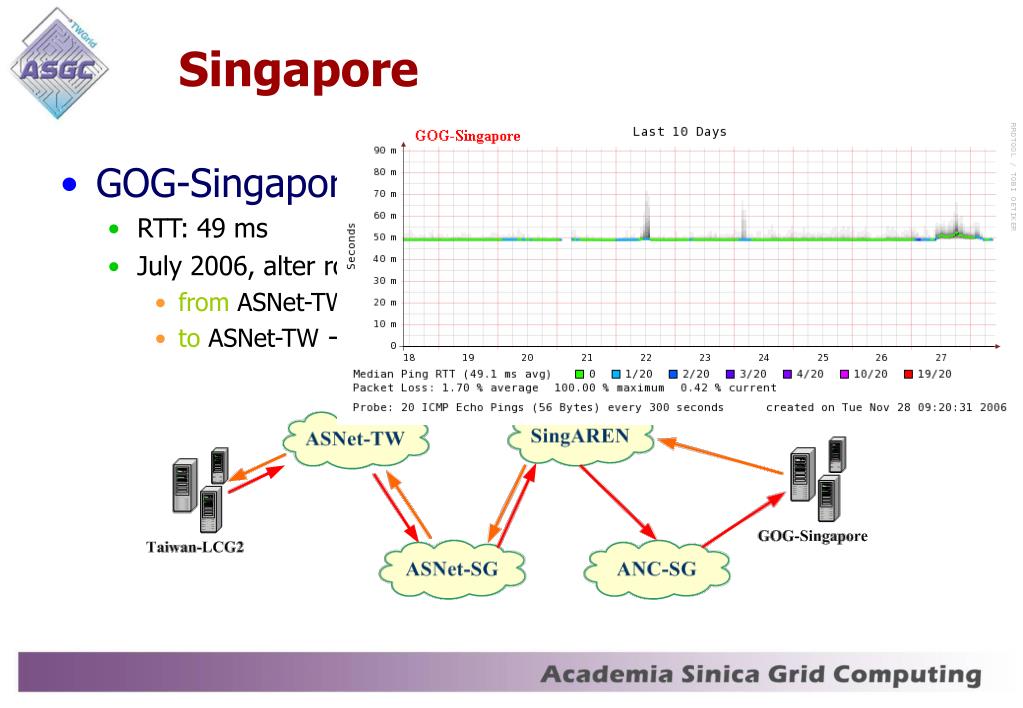

  12. Singapore • GOG-Singapore: • RTT: 49 ms • July 2006, alter routing path • from ASNet-TW  ASNet-HK  ANC-HK  ANC-SG  GOG-SingAREN • to ASNet-TW  ASNet-SG  SingAREN  ANC  GOG-SingAREN

  13. Taiwan

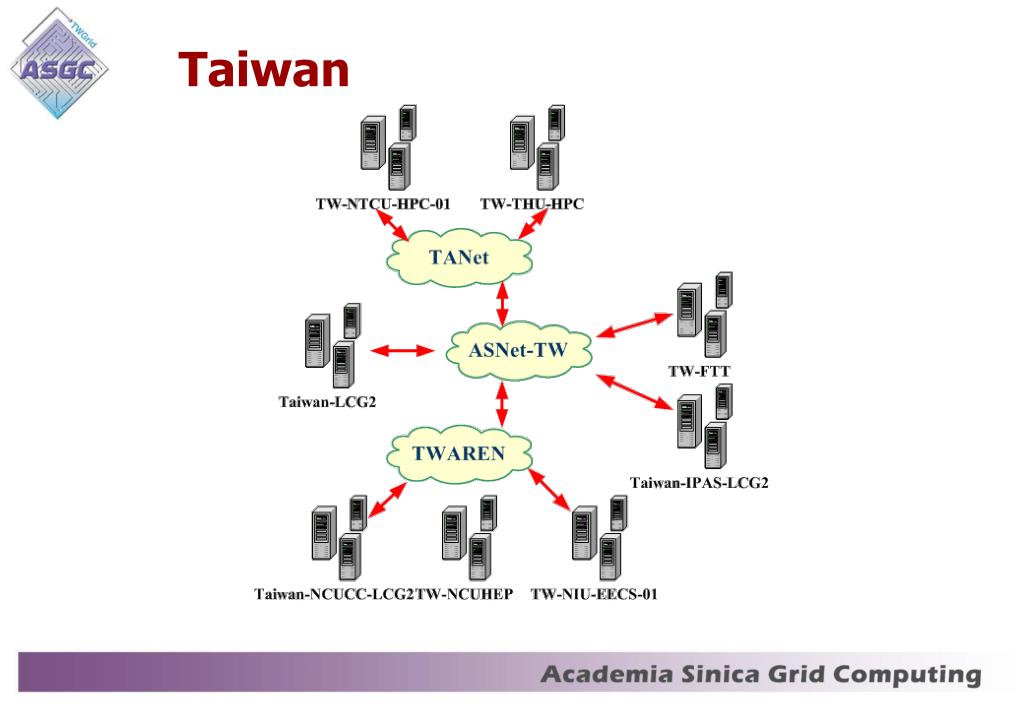

  14. Taiwan-IPAS-LCG2: < 1 ms TW-FTT: < 1 ms TW-NIU-EECS-01: 9 ms Taiwan-NCUCC-LCG2: 17 ms TW-NCUHEP: 11 ms TW-NTCU-HPC-01: 5 ms TW-THU-HPC: 5 ms Taiwan domestic Daytime

  15. Network monitoring • Monitoring tools • Smokeping -- latency measurement tool • Nagios -- host, service and network monitoring program • MRTG • WeatherMap • Evaluation • PerfSonar: http://www.perfsonar.net/ • IEPM: http://www-iepm.slac.stanford.edu/

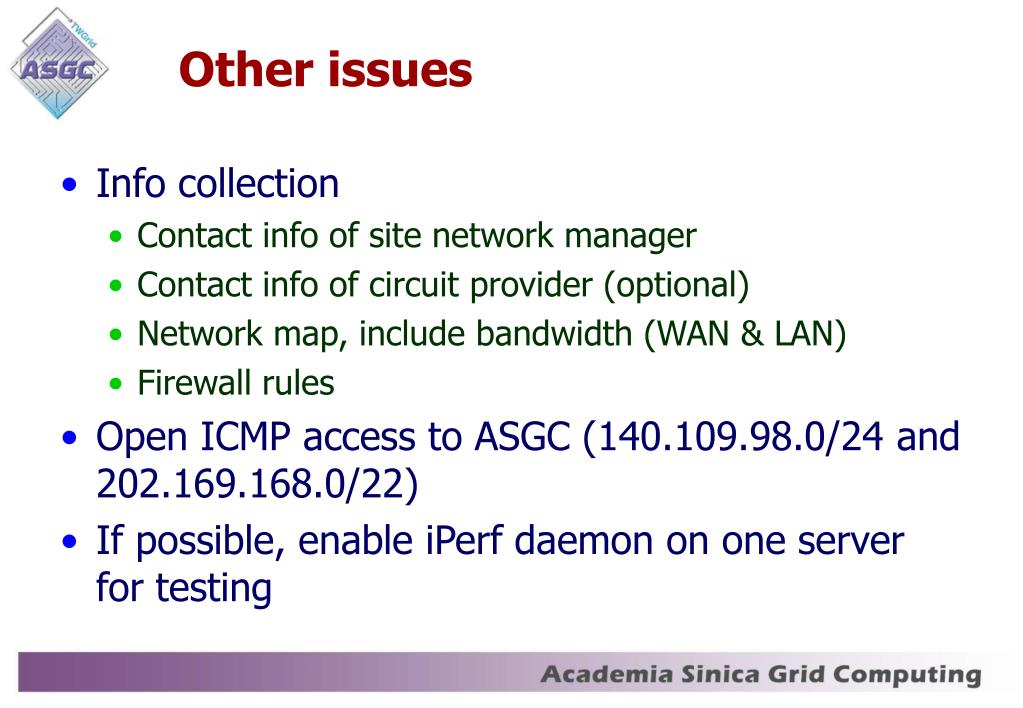

  16. Other issues • Info collection • Contact info of site network manager • Contact info of circuit provider (optional) • Network map, include bandwidth (WAN & LAN) • Firewall rules • Open ICMP access to ASGC (140.109.98.0/24 and 202.169.168.0/22) • If possible, enable iPerf daemon on one server for testing

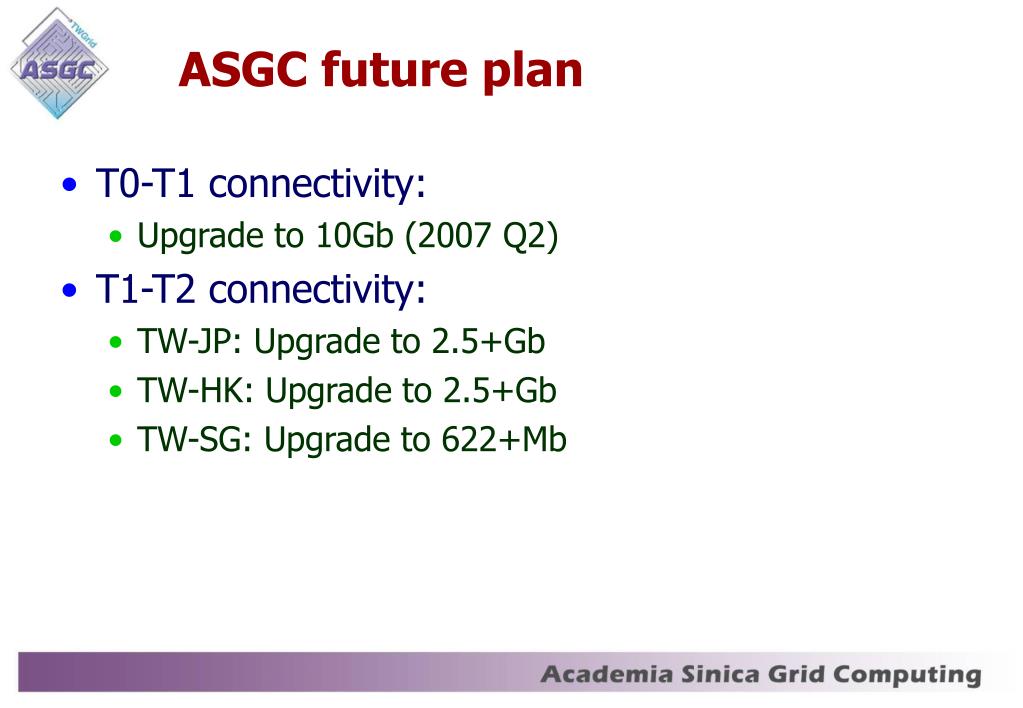

  17. ASGC future plan • T0-T1 connectivity: • Upgrade to 10Gb (2007 Q2) • T1-T2 connectivity: • TW-JP: Upgrade to 2.5+Gb • TW-HK: Upgrade to 2.5+Gb • TW-SG: Upgrade to 622+Mb

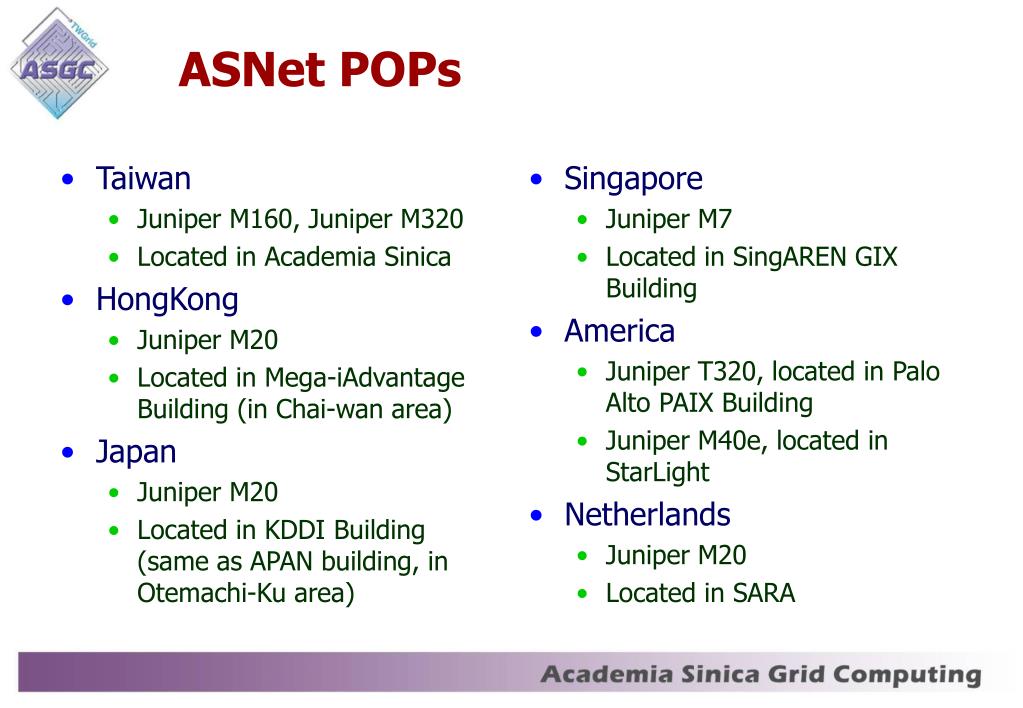

  18. Taiwan Juniper M160, Juniper M320 Located in Academia Sinica HongKong Juniper M20 Located in Mega-iAdvantage Building (in Chai-wan area) Japan Juniper M20 Located in KDDI Building (same as APAN building, in Otemachi-Ku area) Singapore Juniper M7 Located in SingAREN GIX Building America Juniper T320, located in Palo Alto PAIX Building Juniper M40e, located in StarLight Netherlands Juniper M20 Located in SARA ASNet POPs

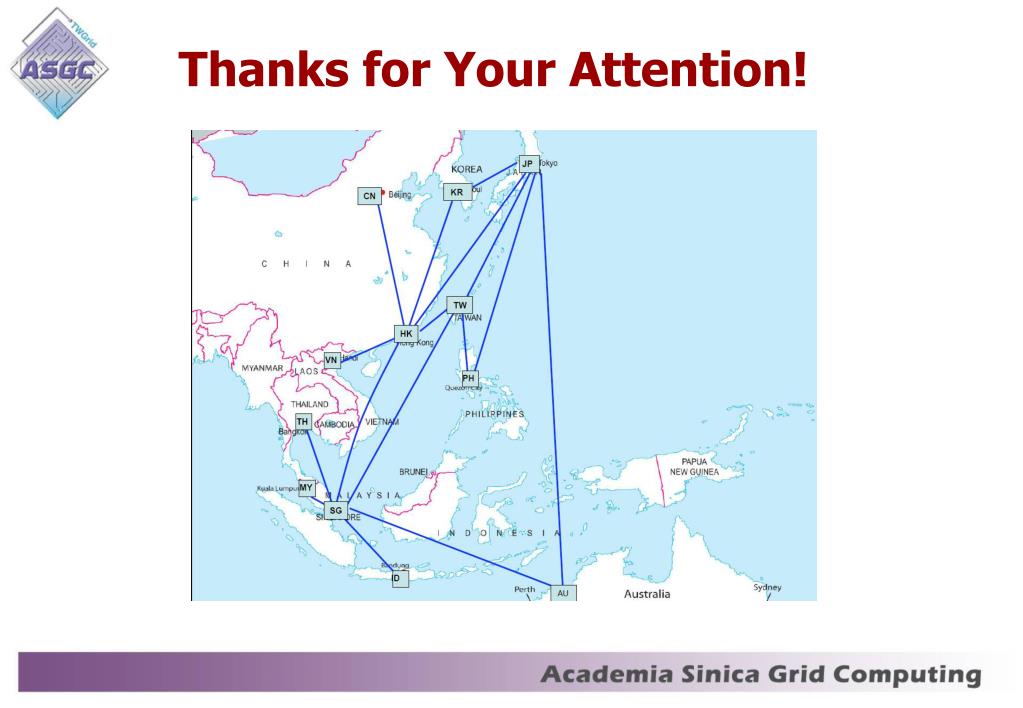

  19. Thanks for Your Attention!

  20. Reference • ASGC Smokeping: • http://osadm.grid.sinica.edu.tw/smokeping/ • Smokeping: • http://oss.oetiker.ch/smokeping/index.en.html • Nagios: • http://www.nagios.org/ • MRTG: • http://oss.oetiker.ch/mrtg/ • WeatherMap: • http://netmon.grnet.gr/weathermap/
