  1. Suffix Trees and Suffix Arrays

  2. OUTLINE • Suffix trees • Suffix arrays

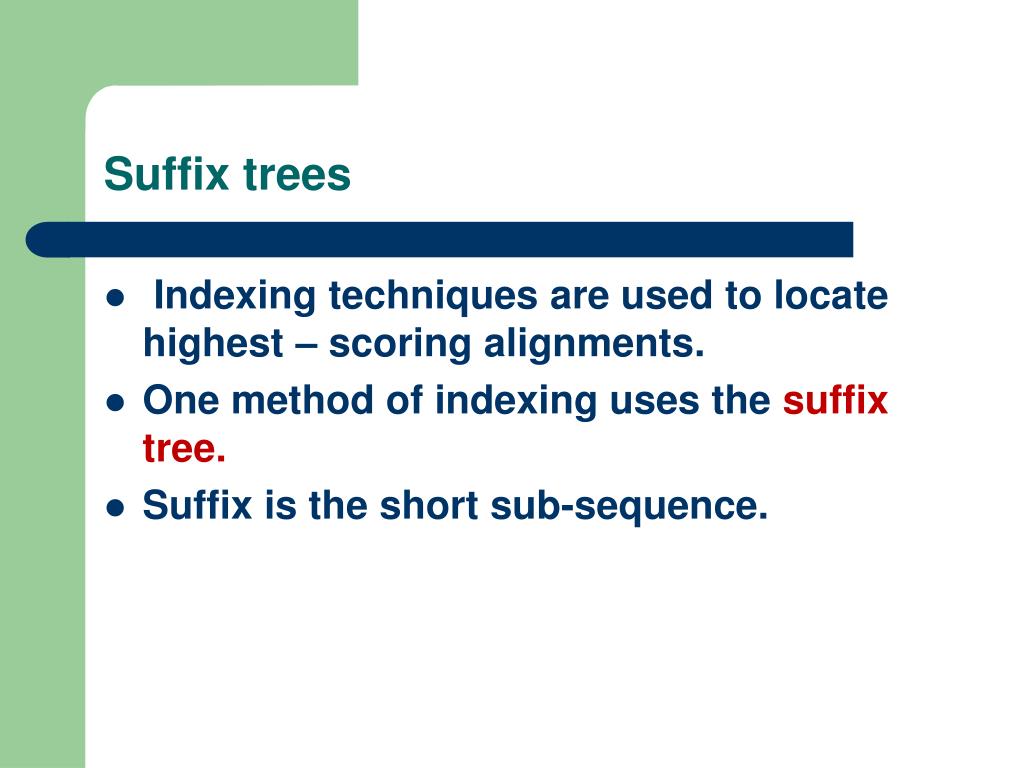

  3. Suffix trees • Indexing techniques are used to locate highest – scoring alignments. • One method of indexing uses the suffix tree. • Suffix is the short sub-sequence.

  4. Suffix trees • Problems: • Given a pattern P (sub-sequence) find all occurances of P in text S. • Given two strings find their longest common sub-string

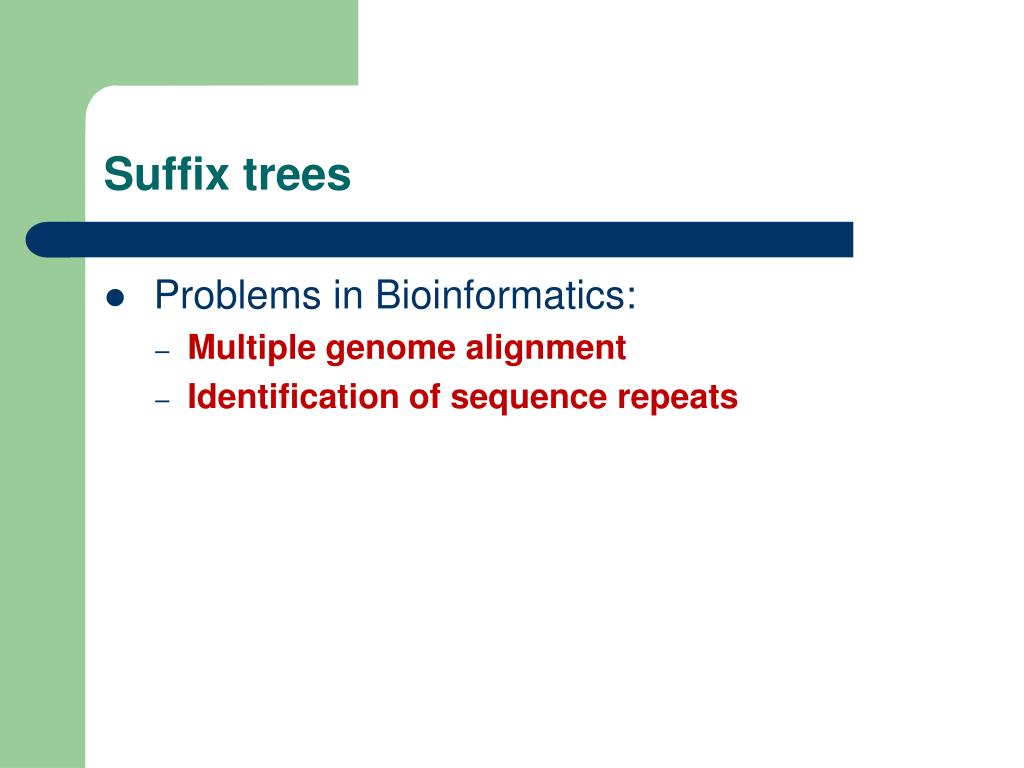

  5. Suffix trees • Problems in Bioinformatics: • Multiple genome alignment • Identification of sequence repeats

  6. Suffix trees • Suffix tree: • For example: • S: abdfrg (length:6) • S has 6 suffixes: g, rg, frg, dfrg, bdfrg, abdfrg

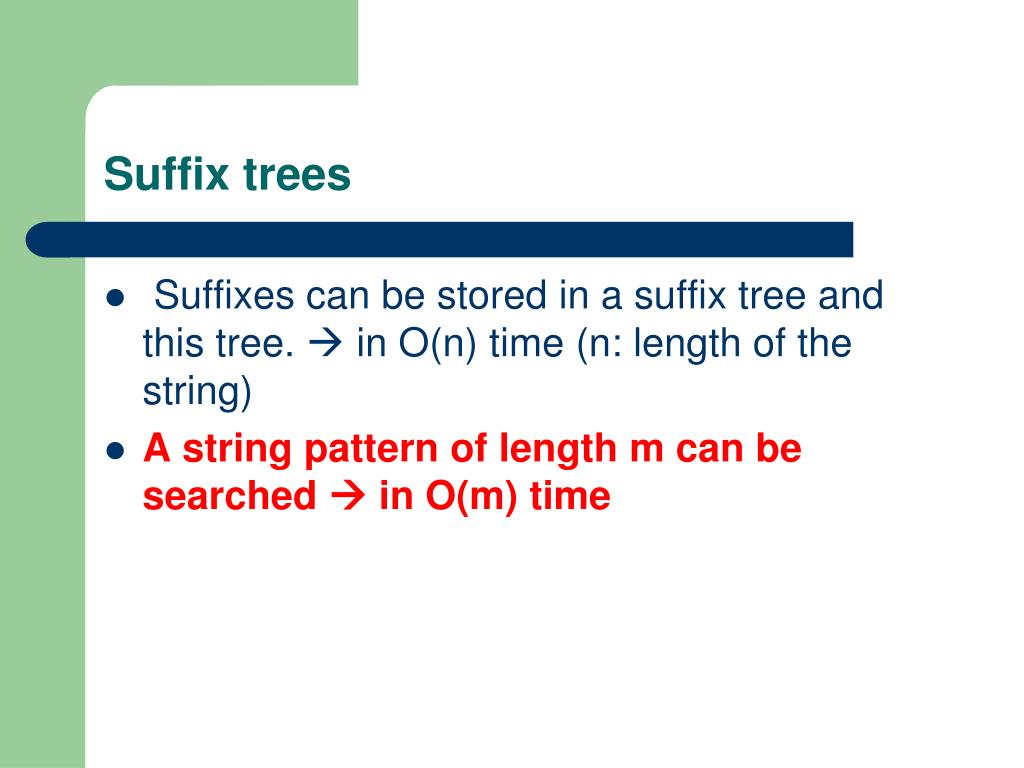

  7. Suffix trees • Suffixes can be stored in a suffix tree and this tree.  in O(n) time (n: length of the string) • A string pattern of length m can be searched  in O(m) time

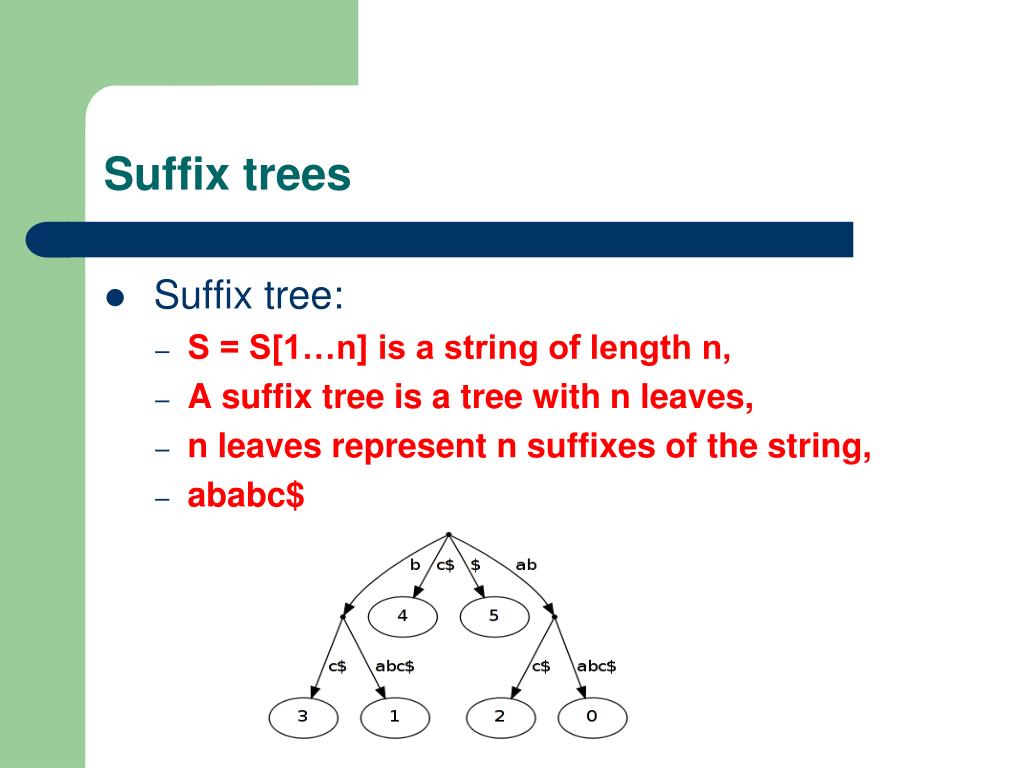

  8. Suffix trees • Suffix tree: • S = S[1…n] is a string of length n, • A suffix tree is a tree with n leaves, • n leaves represent n suffixes of the string, • ababc$

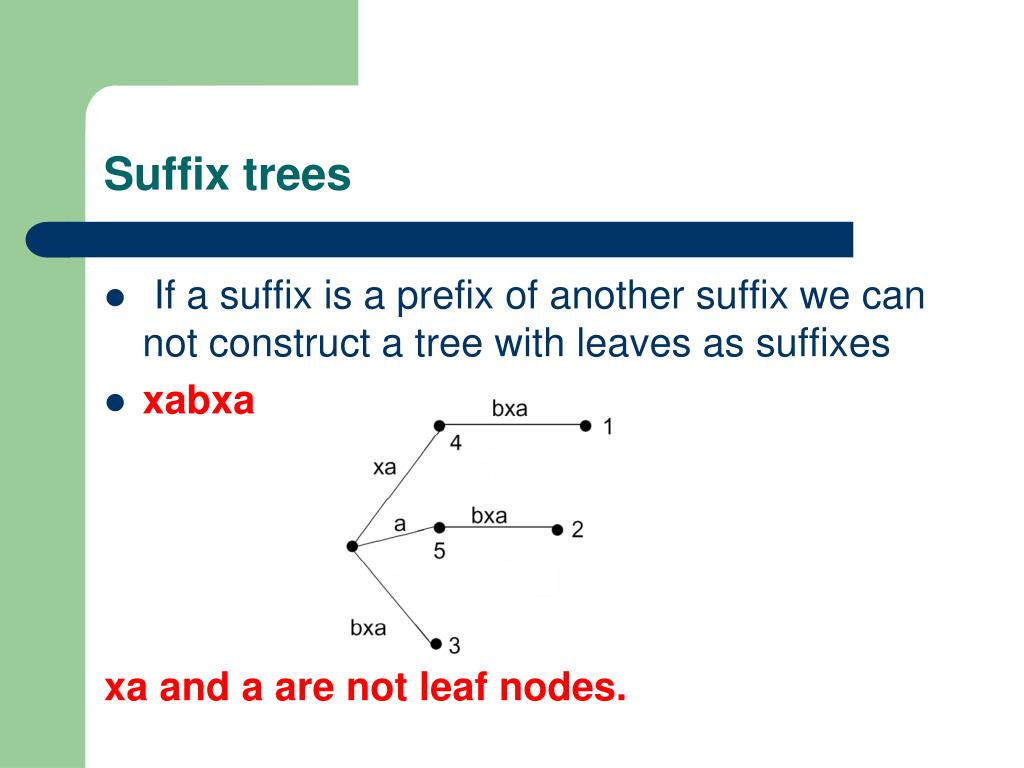

  9. Suffix trees • If a suffix is a prefix of another suffix we can not construct a tree with leaves as suffixes • xabxa xa and a are not leaf nodes.

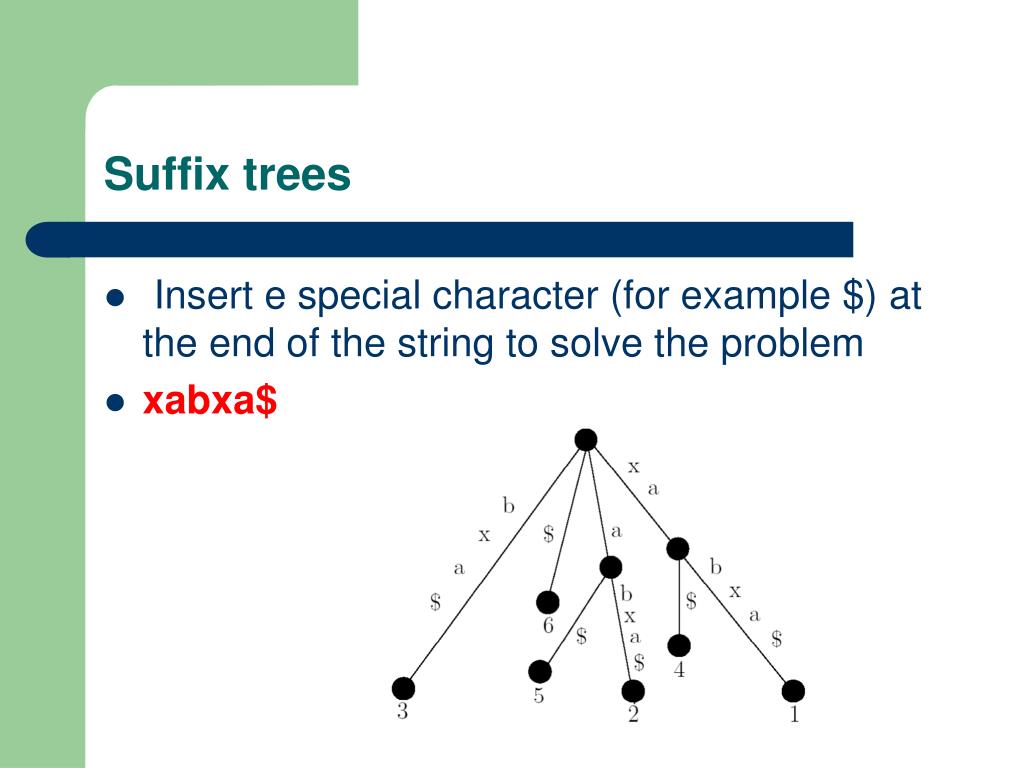

  10. Suffix trees • Insert e special character (for example $) at the end of the string to solve the problem • xabxa$

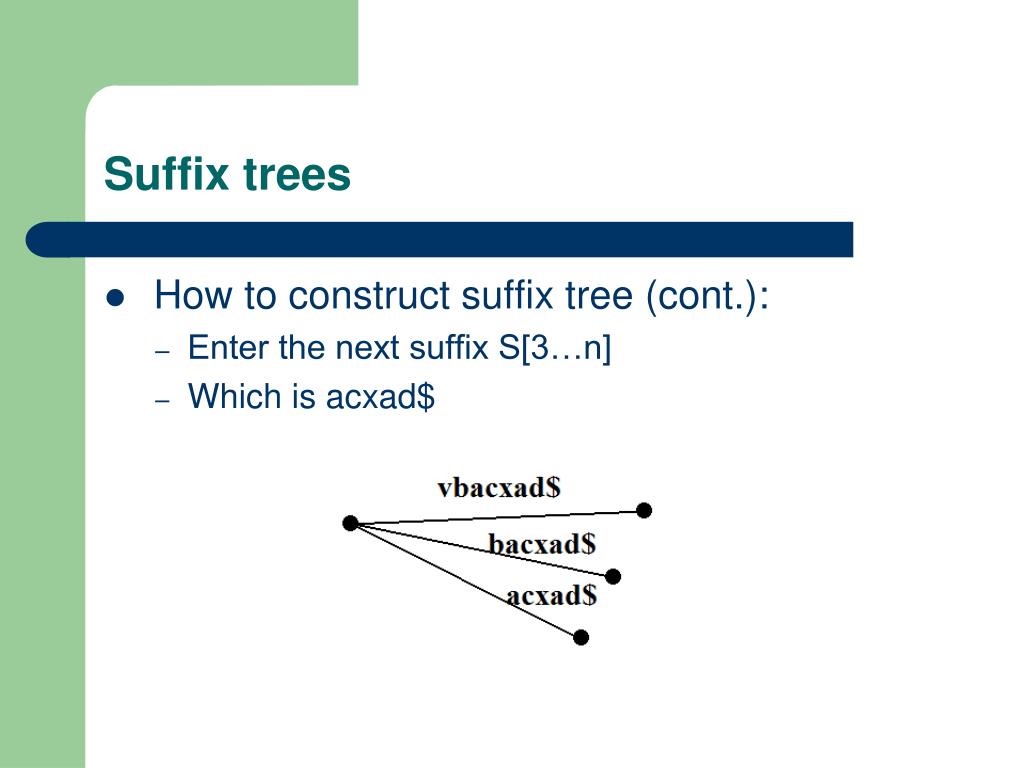

  11. Suffix trees • How to construct suffix tree: • Assume we have a string S[1…n] • Start from the suffix S • For example consdier vbacxad$

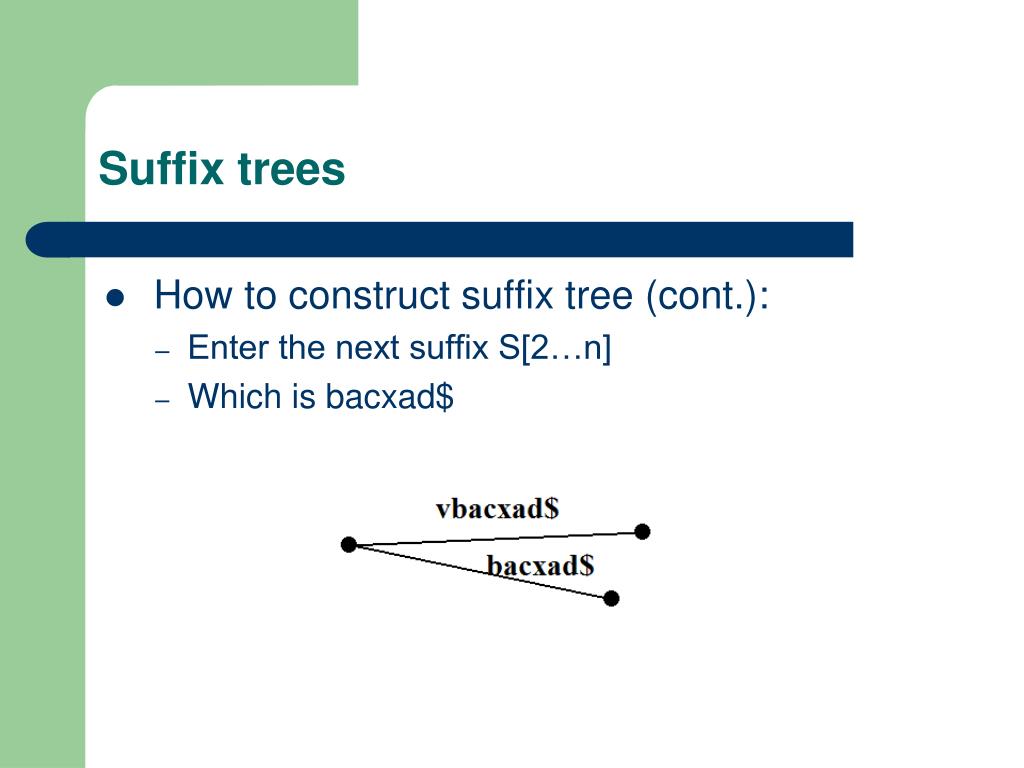

  12. Suffix trees • How to construct suffix tree (cont.): • Enter the next suffix S[2…n] • Which is bacxad$

  13. Suffix trees • How to construct suffix tree (cont.): • Enter the next suffix S[3…n] • Which is acxad$

  14. Suffix trees • How to construct suffix tree (cont.): • Enter the next suffix • Which is cxad$

  15. Suffix trees • How to construct suffix tree (cont.): • Enter the next suffix • Which is xad$

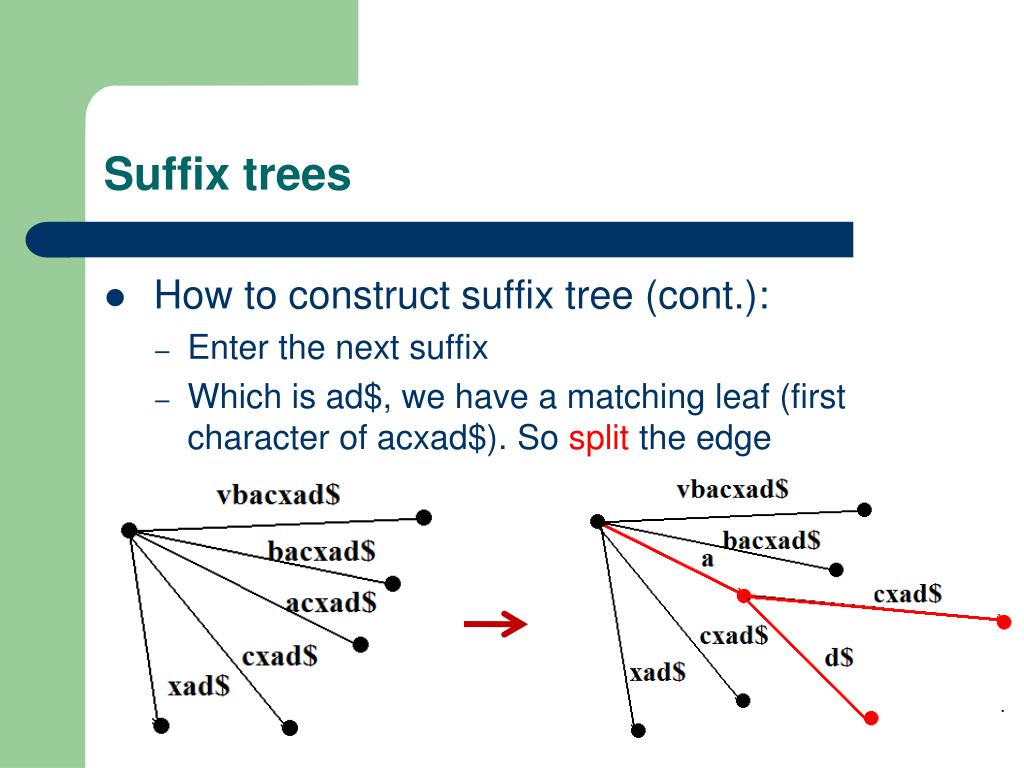

  16. Suffix trees • How to construct suffix tree (cont.): • Enter the next suffix • Which is ad$, we have a matching leaf (first character of acxad$). So split the edge

  17. Suffix trees • How to construct suffix tree (cont.): • Enter the next suffix • Which is ad$, we have a matching leaf (first character of acxad$). So split the edge

  18. Suffix trees • How to construct suffix tree (cont.): • Enter the next suffix • Which is ad$, we have a matching leaf (first character of acxad$). So split the edge

  19. Suffix trees • How to construct suffix tree (cont.): • Enter the next suffix • Which is d$

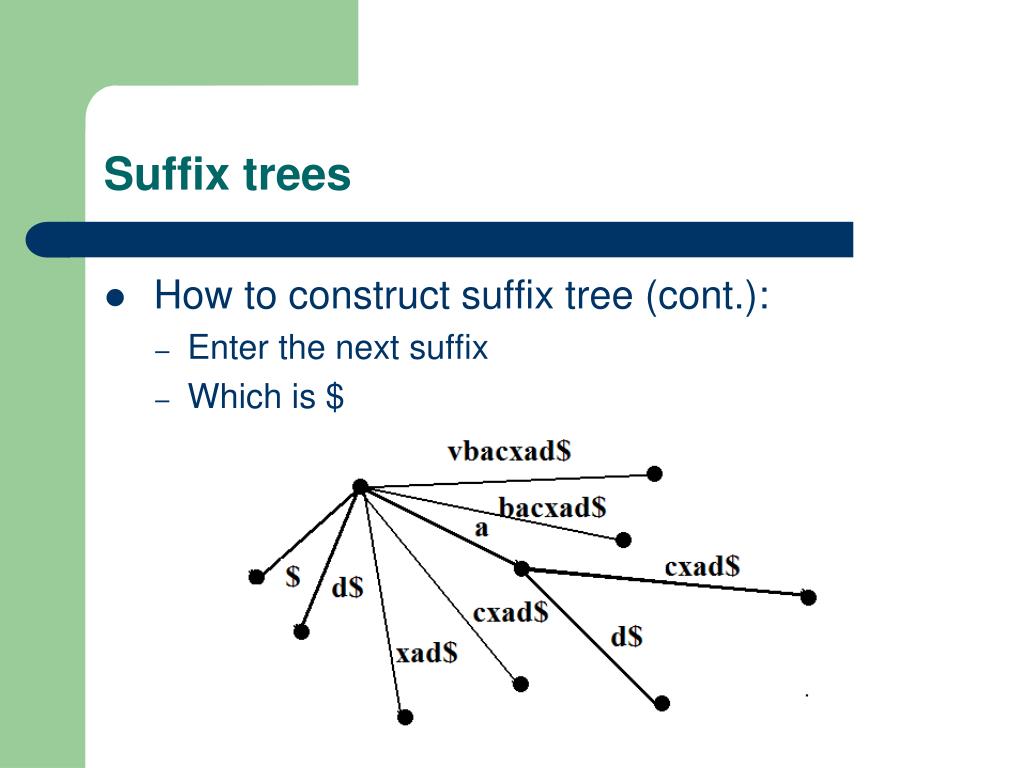

  20. Suffix trees • How to construct suffix tree (cont.): • Enter the next suffix • Which is $

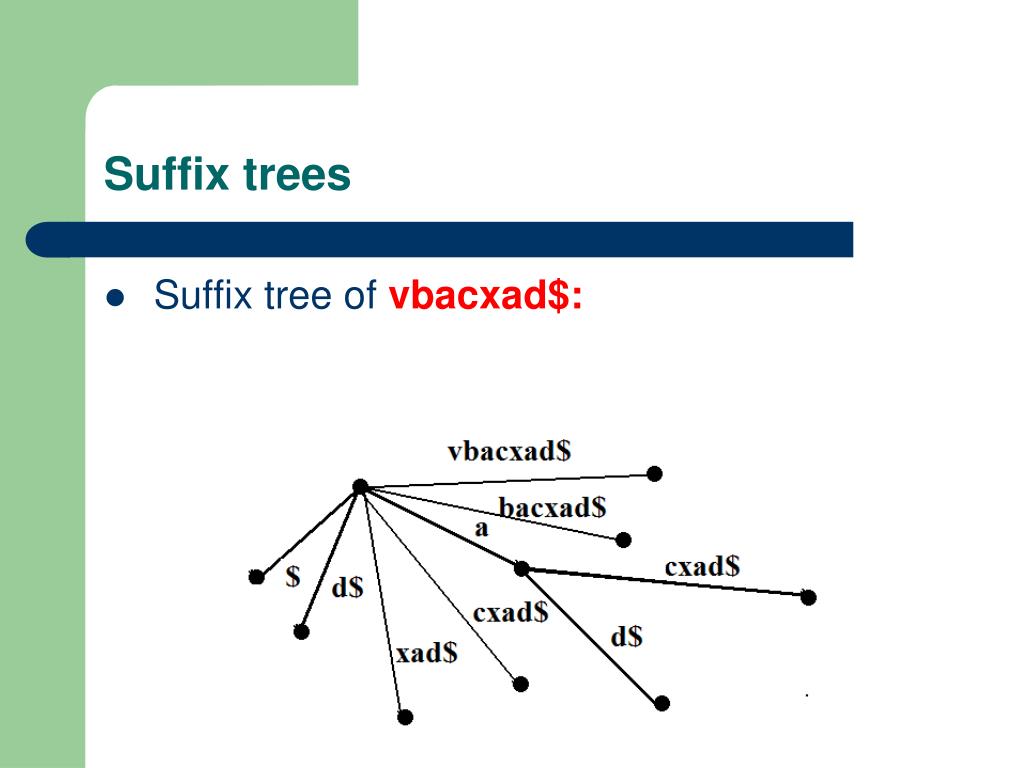

  21. Suffix trees • Suffix tree of vbacxad$:

  22. Suffix trees • Pattern match using suffix trees: • Try to match a pattern on a path, starting from the root: • The pattern does not match, • The match ends in a node u of the tree, • The match ends inside an edge.

  23. Suffix trees • Example: (considervbacxad$ ) • Suffixes: • vbacxad$ • bacxad$ • acxad$ • cxad$ • xad$ • ad$ • d$ • $

  24. Suffix trees • Example: (considervbacxad$ ) • Suffixes: • vbacxad$ • bacxad$ • acxad$ • cxad$ • xad$ • ad$ • d$ • $ • Search for: • cxa • a • xdb

  25. Suffix arrays • Considerthestring: • Thesuffixarray:

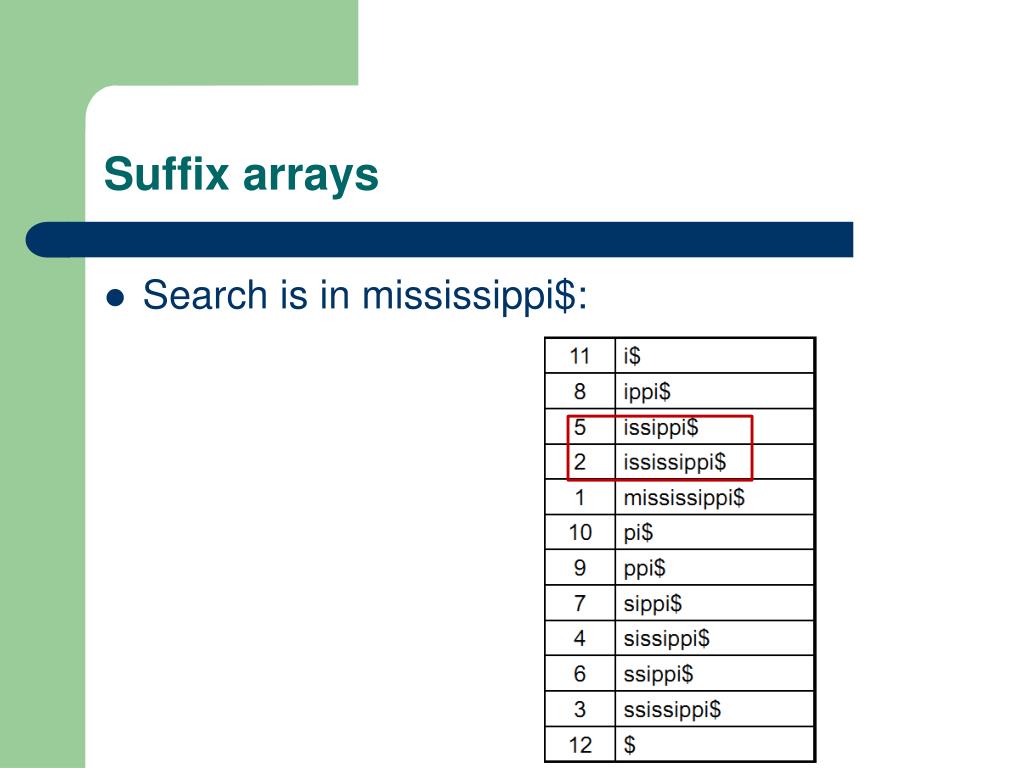

  26. Suffix arrays • Search is in mississippi$:

  27. References • M. Zvelebil, J. O. Baum, “Understanding Bioinformatics”, 2008, Garland Science • Andreas D. Baxevanis, B.F. Francis Ouellette, “Bioinformatics: A practical guide to the analysis of genes and proteins”, 2001, Wiley.
