  1. Chapter 12 Review Brett Solberg AHS ‘11-’12

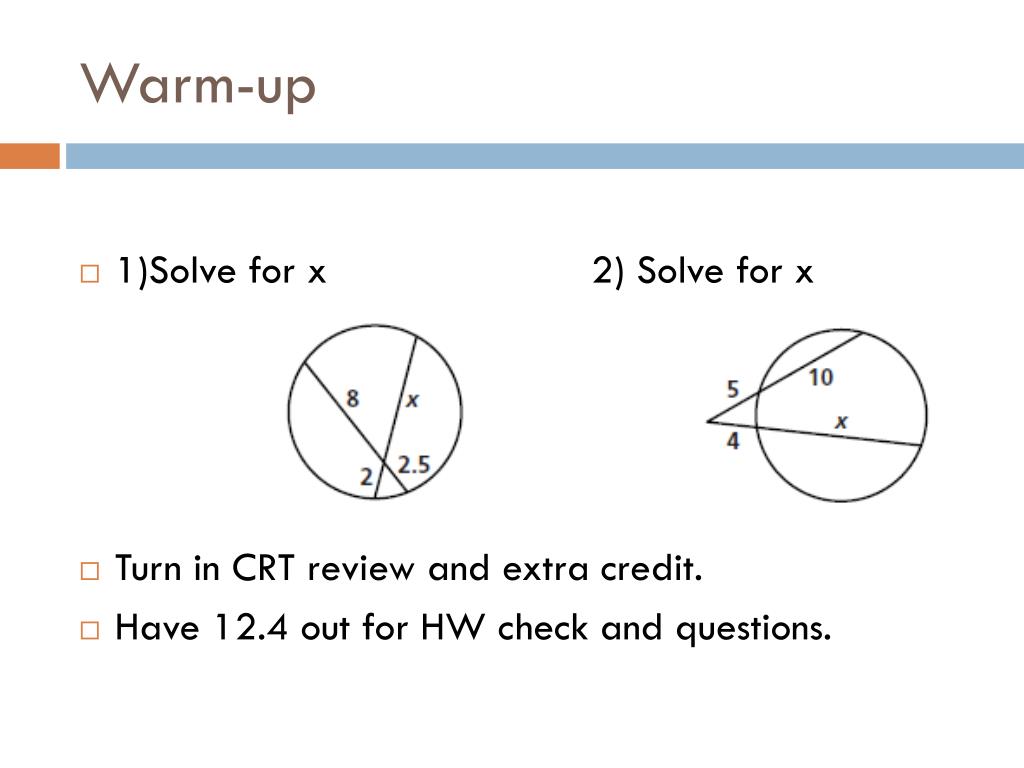

  2. Warm-up • 1)Solve for x 2) Solve for x • Turn in CRT review and extra credit. • Have 12.4 out for HW check and questions.

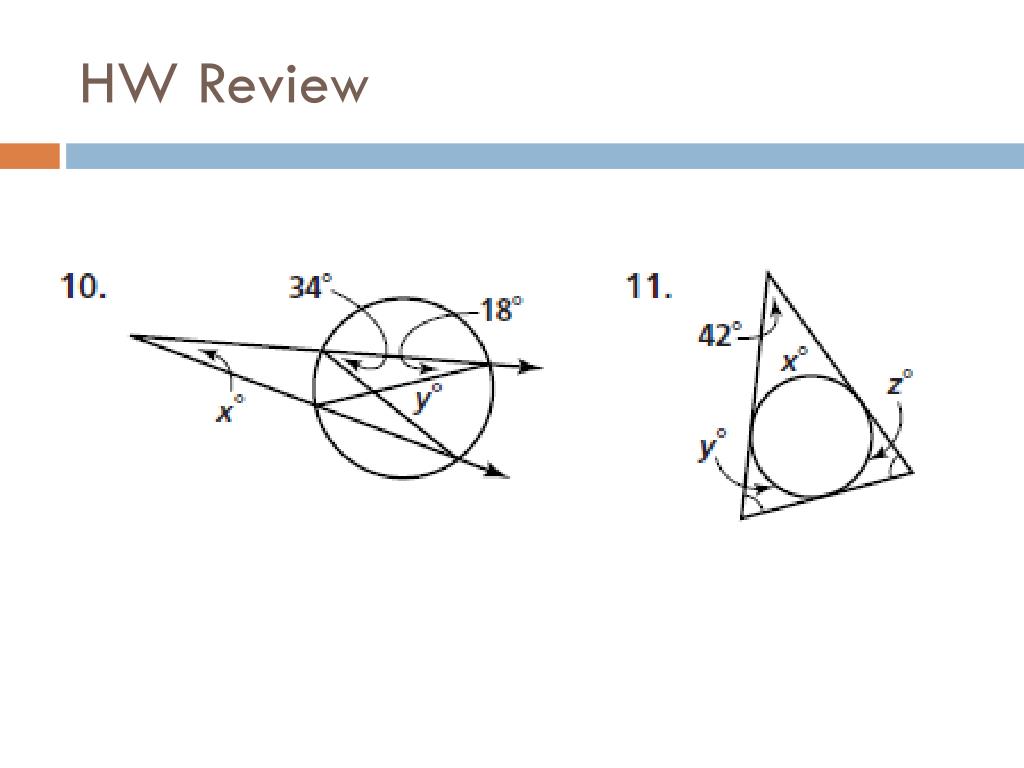

  3. HW Review

  4. Today’s Agenda • CH 12 Review • What you need to know for the test • Ch 12 Test • 14 Questions • EC WS

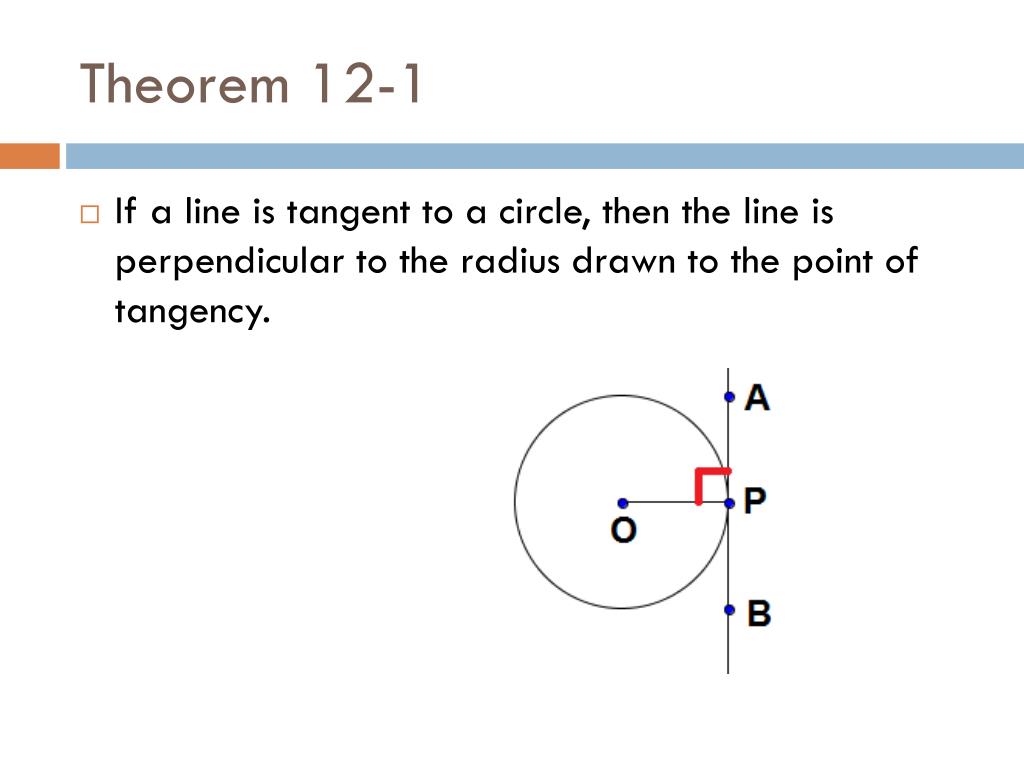

  5. Theorem 12-1 • If a line is tangent to a circle, then the line is perpendicular to the radius drawn to the point of tangency.

  6. Example 1 • BA is tangent to Circle C at point A. The measure of angle B is 22˚. Find the value of x.

  7. Example • ML and MN are tangent to circle O. Find the value of x.

  8. Inscribed/Circumscribed • Inscribed Circle – A circle which is tangent to all the sides of a polygon. • Circumscribed Circle – A circle which is tangent to all the vertices of a triangle.

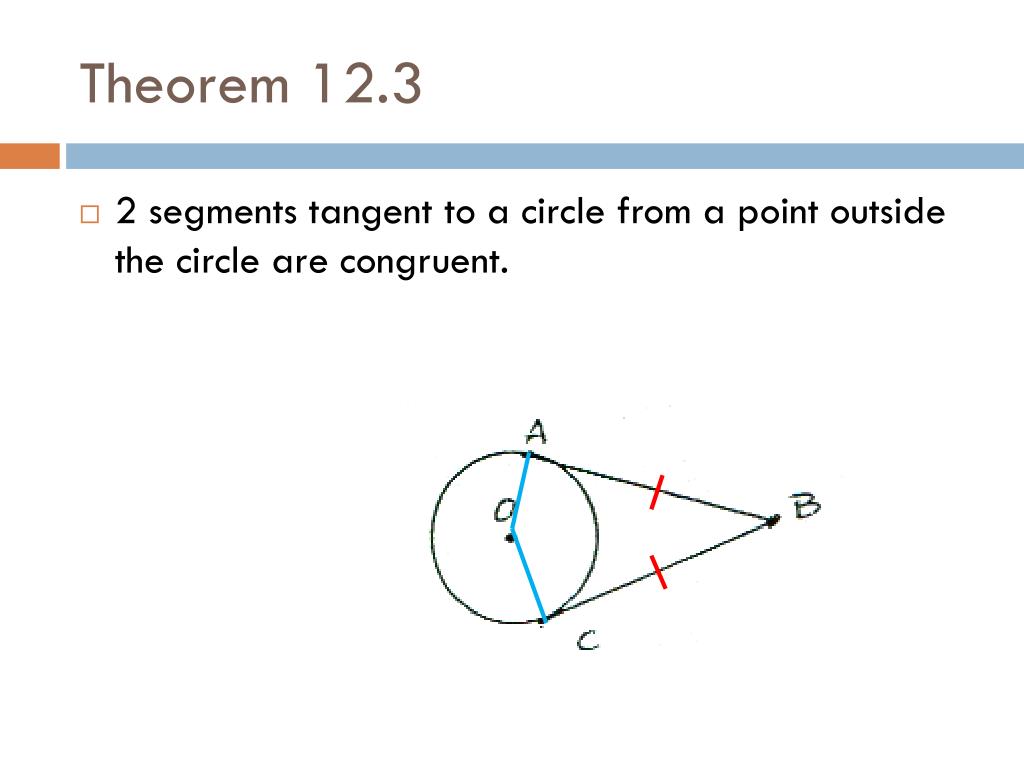

  9. Theorem 12.3 • 2 segments tangent to a circle from a point outside the circle are congruent.

  10. Example • Circle C is inscribed by XYZW. Find the perimeter of XYZW.

  11. Theorem 12.6 • In a circle, a diameter that is perpendicular to a chord bisects the chord and its arc.

  12. Example 4 • Solve for the missing side length.

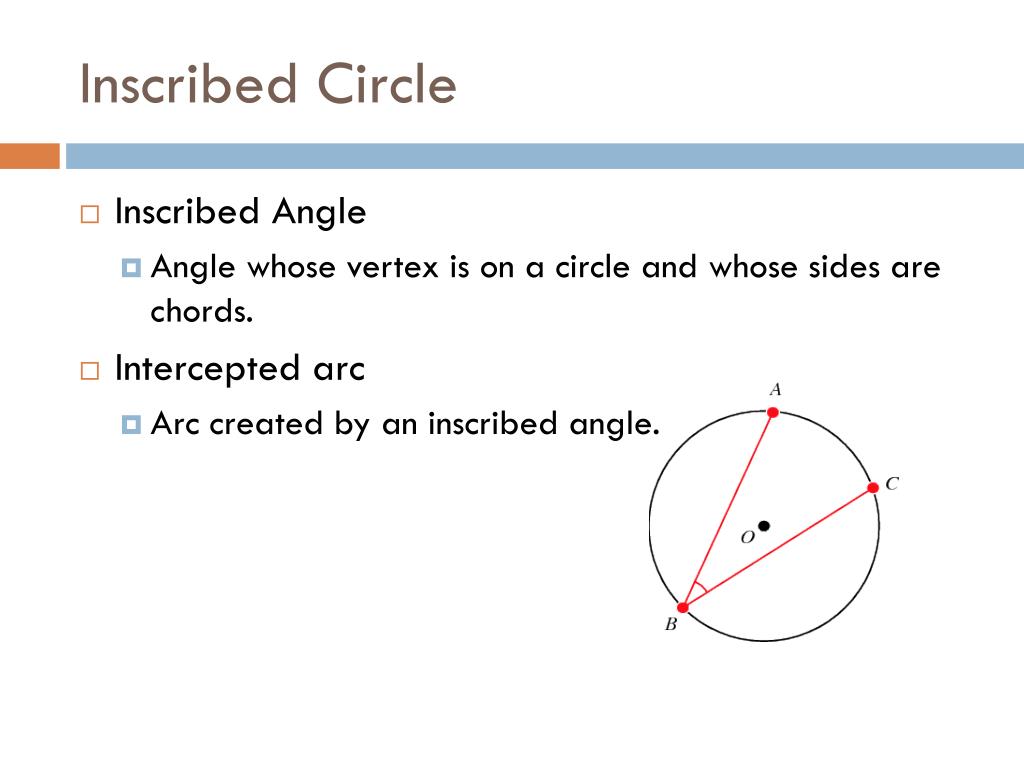

  13. Inscribed Circle • Inscribed Angle • Angle whose vertex is on a circle and whose sides are chords. • Intercepted arc • Arc created by an inscribed angle.

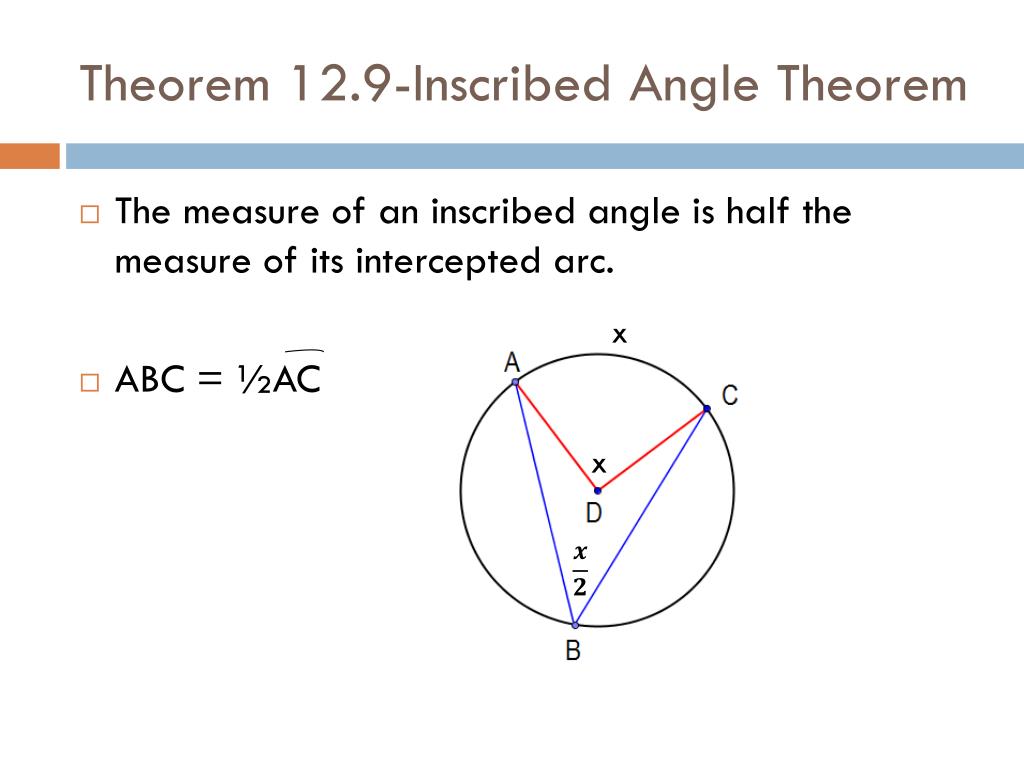

  14. Theorem 12.9-Inscribed Angle Theorem • The measure of an inscribed angle is half the measure of its intercepted arc. • ABC = ½AC x x

  15. Example 2 • Find the measure of arc PT and angle R.

  16. Example 2 • Find the measure of angle G and angle D.

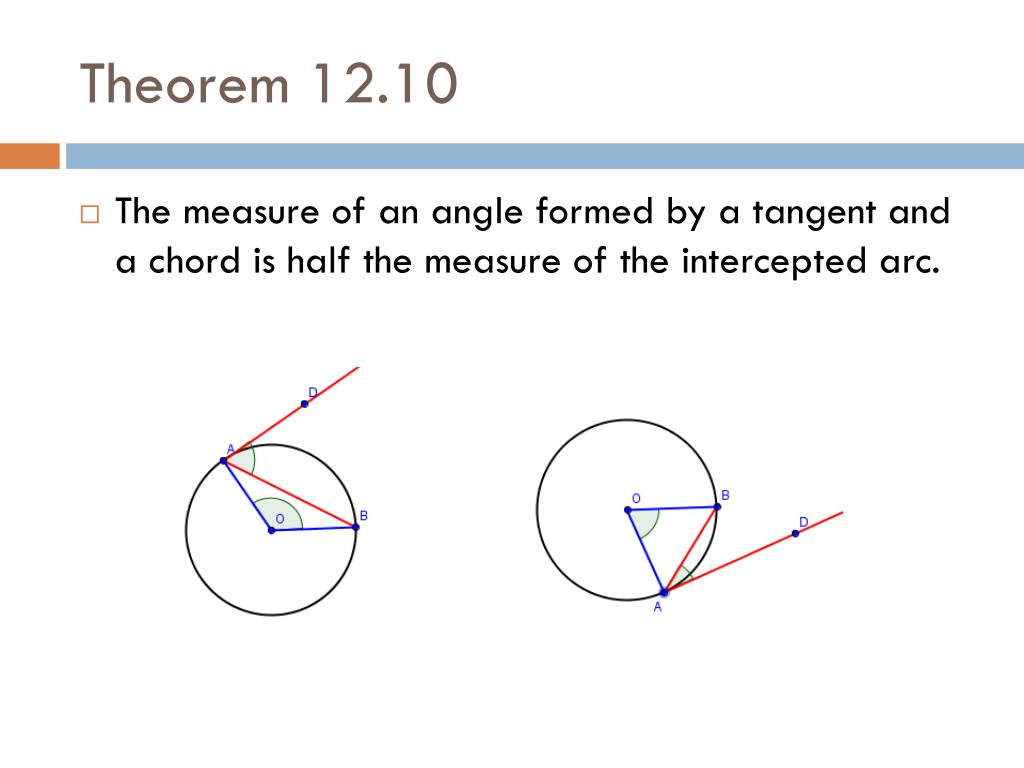

  17. Theorem 12.10 • The measure of an angle formed by a tangent and a chord is half the measure of the intercepted arc.

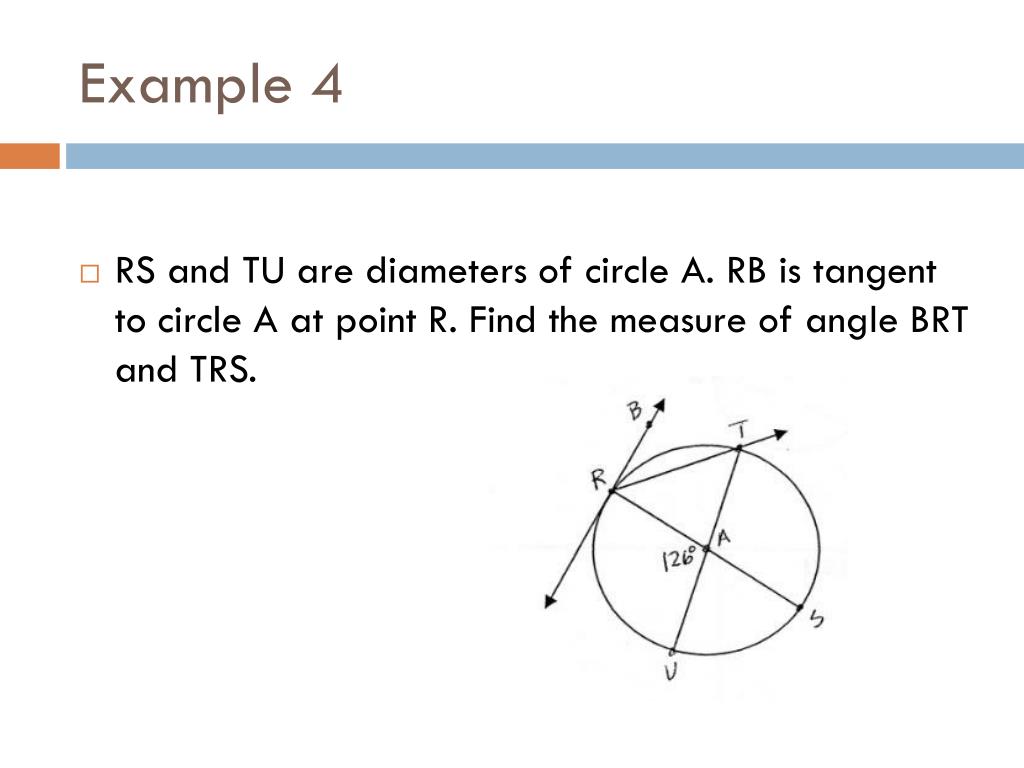

  18. Example 4 • RS and TU are diameters of circle A. RB is tangent to circle A at point R. Find the measure of angle BRT and TRS.

  19. Theorem 12.11 Part 1 • The measure of an angle formed by 2 lines that intersect inside a circle is the average of the 2 arcs. • angle 1 =

  20. Example • Find the value of x.

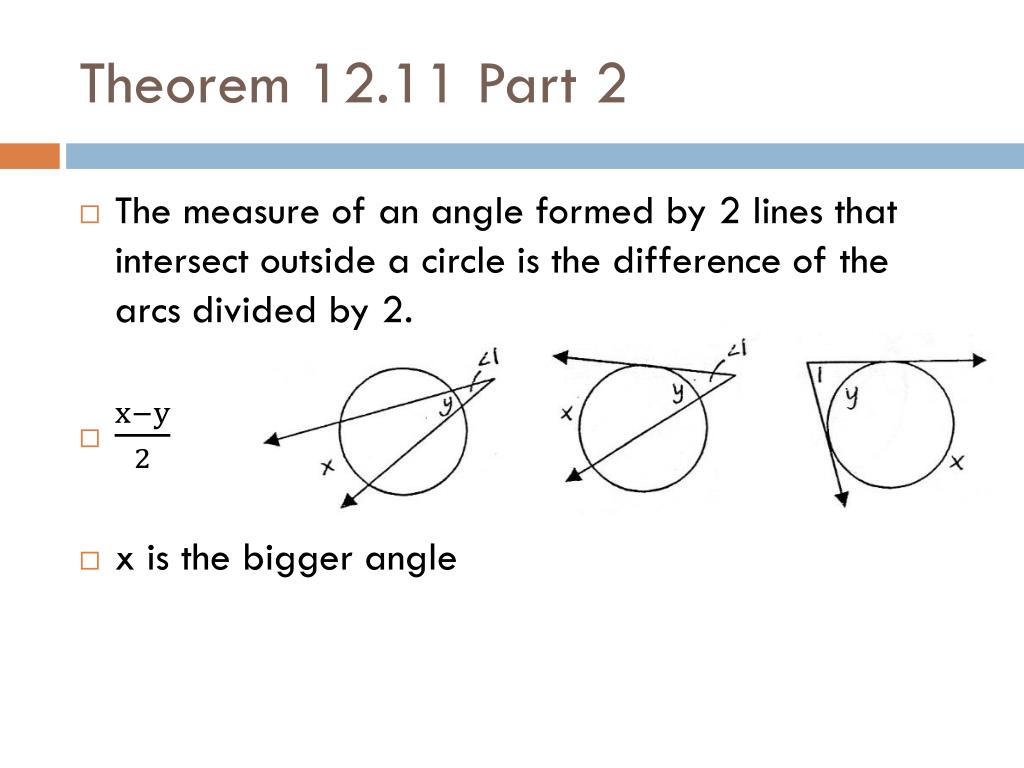

  21. Theorem 12.11 Part 2 • The measure of an angle formed by 2 lines that intersect outside a circle is the difference of the arcs divided by 2. • x is the bigger angle

  22. Example • Find the value of x.

  23. Theorem 12.12 Part 1 • If two chords intersect, then .

  24. Example • Find the value of x.

  25. Theorem 12.2 Part 2 • If 2 secant segments intersect, then (w + x)w = (z + y)y

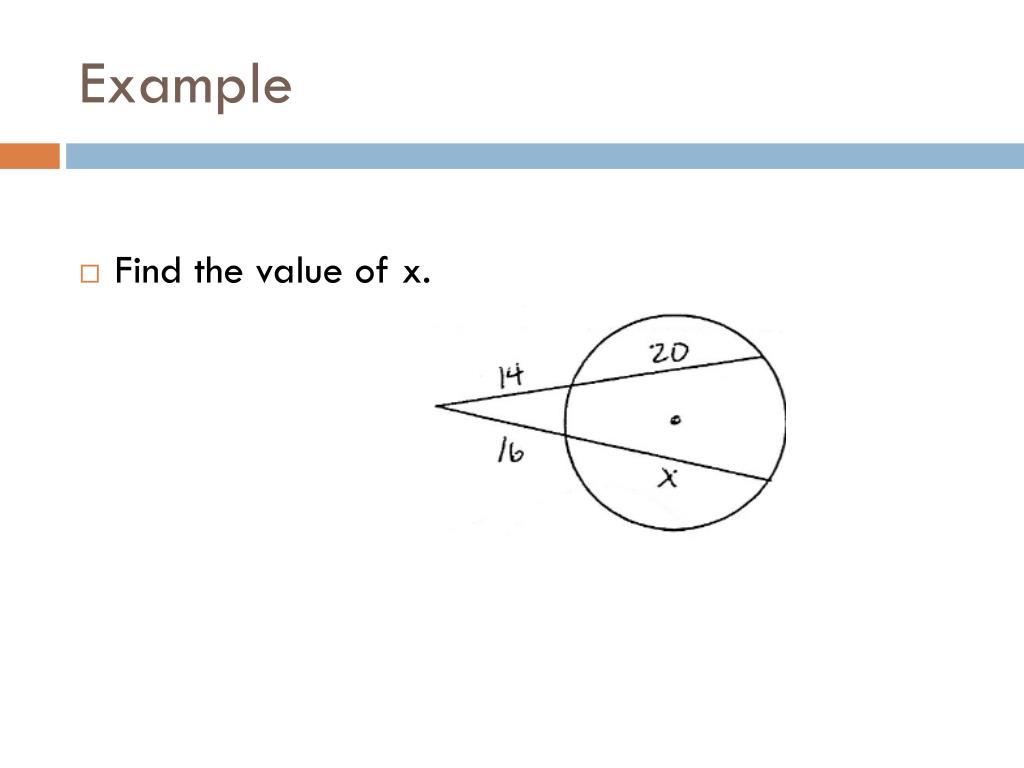

  26. Example • Find the value of x.

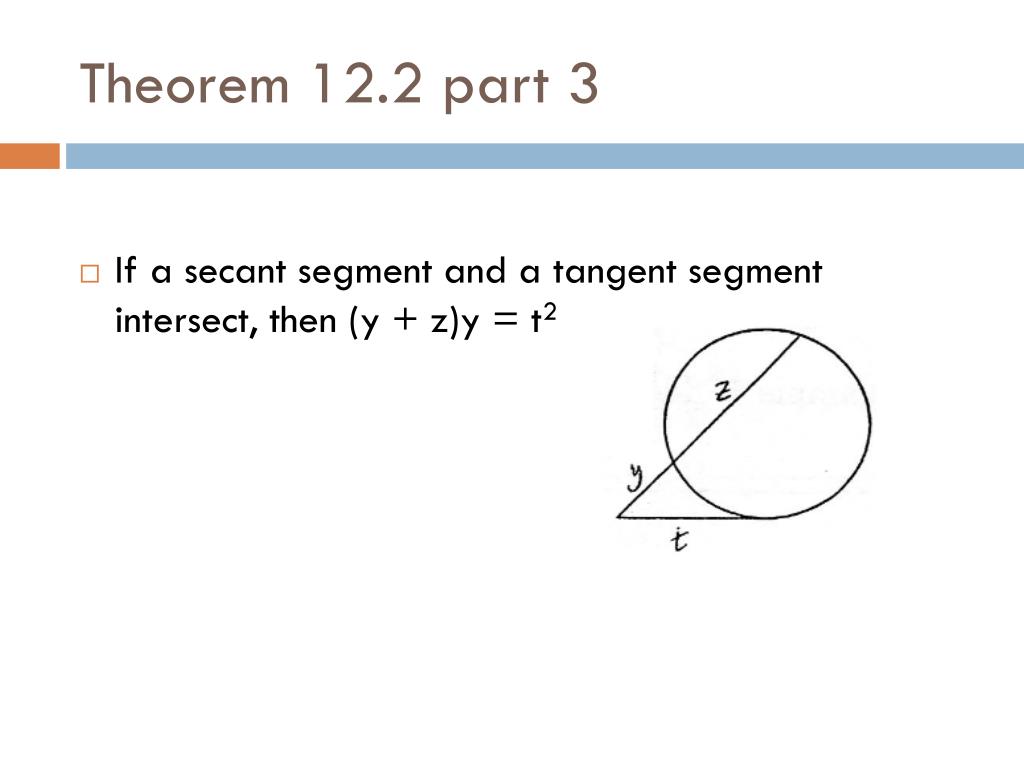

  27. Theorem 12.2 part 3 • If a secant segment and a tangent segment intersect, then (y + z)y = t2

  28. Example • Find the value of z.

  29. Test • Good Luck!
