PSAT – Question of the day

PSAT – Question of the day. (B) 8. Finding angle measures using clocks. Segment and angle addition. The length of a segment can be found two ways. Counting spaces Subtracting (We are finding distance so we take the difference) Find the length of segment AB. B – A = 4 – (-2) = 6

braith
Download Presentation

PSAT – Question of the day

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. PSAT – Question of the day (B) 8

  2. Finding angle measures using clocks

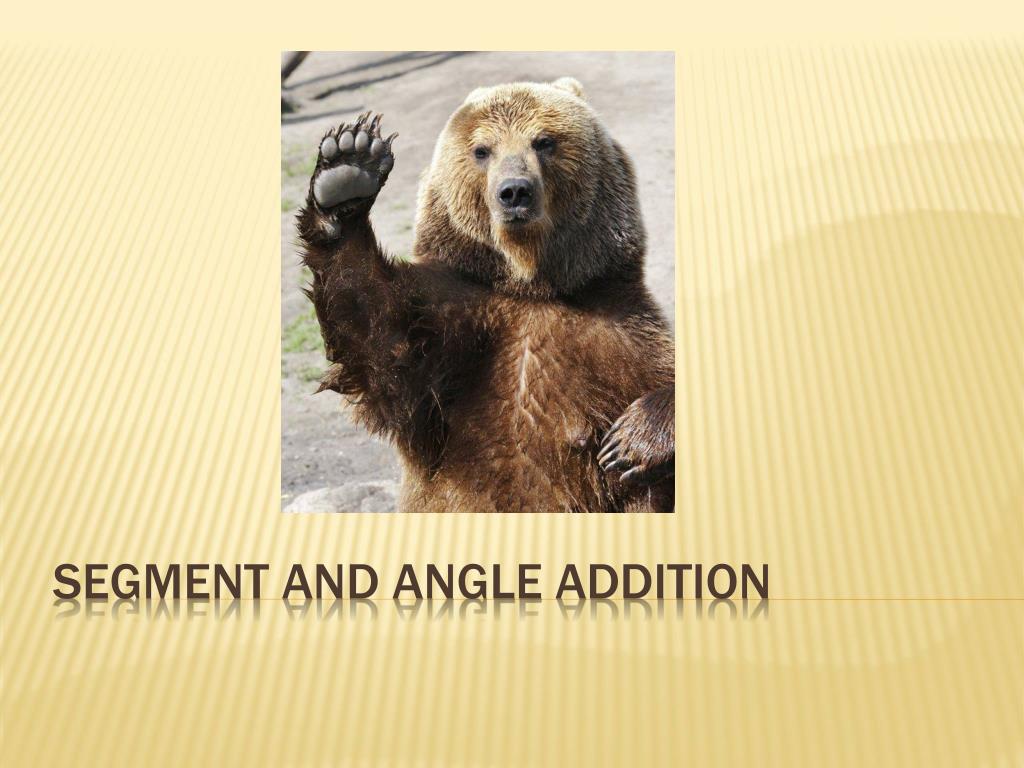

  3. Segment and angle addition

  4. The length of a segment can be found two ways. Counting spaces Subtracting (We are finding distance so we take the difference) Find the length of segment AB. B – A = 4 – (-2) = 6 There is no such thing as a negative distance. Length of a segment

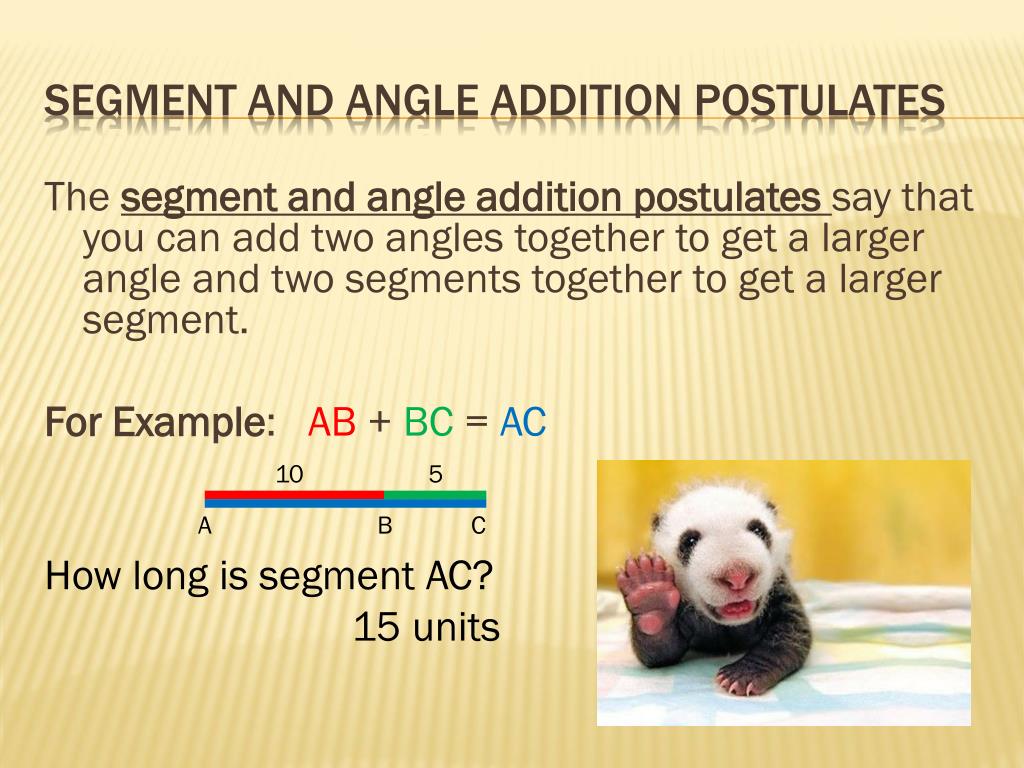

  5. The segment and angle addition postulates say that you can add two angles together to get a larger angle and two segments together to get a larger segment. For Example: AB + BC = AC How long is segment AC? 15 units Segment and Angle addition postulates 10 5 A B C

  6. <AOB = 43 and <BOC = 15 What is the measure of <AOC? <AOB + <BOC = <AOC 43 + 15 = <AOC 58 = <AOC Segment and Angle addition postulates

  7. XZ = 17 and YZ = 11 What is the length of segment XY? XY + YZ = XZ XY + 11 = 17 XY = 6 Segment and Angle addition postulates

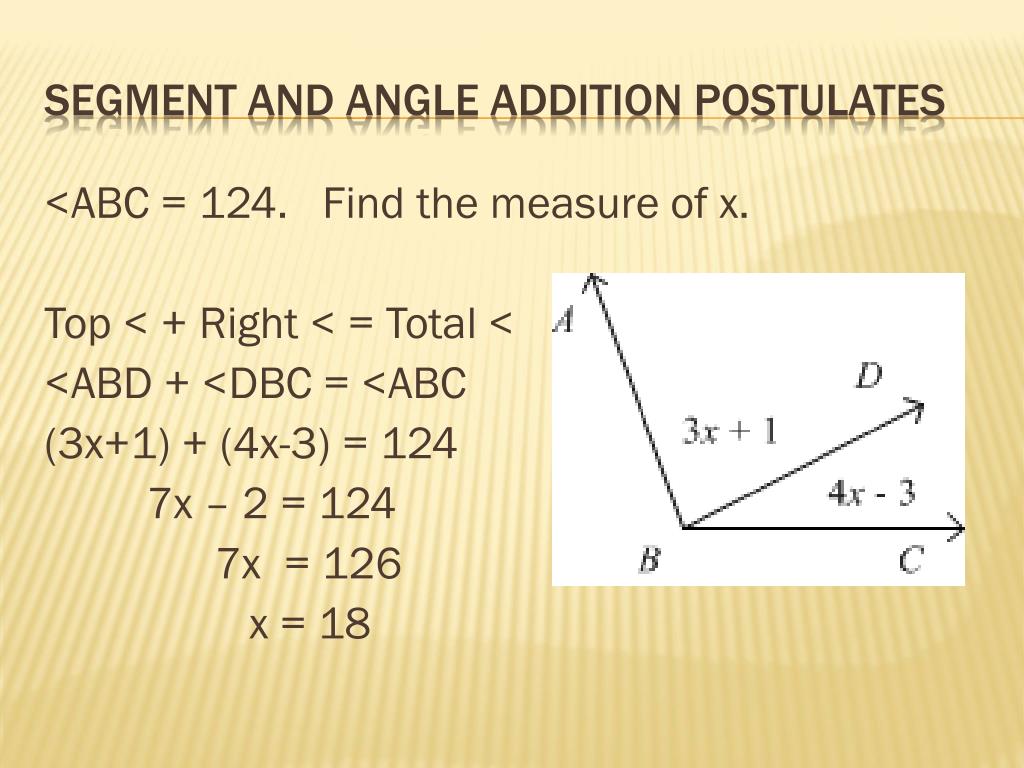

  8. <ABC = 124. Find the measure of x. Top < + Right < = Total < <ABD + <DBC = <ABC (3x+1) + (4x-3) = 124 7x – 2 = 124 7x = 126 x = 18 Segment and Angle addition postulates

  9. A midpoint of a segment is a point that divides a segment into two equal pieces. Small dash marks are used to show that the two halves are equal. Midpoints

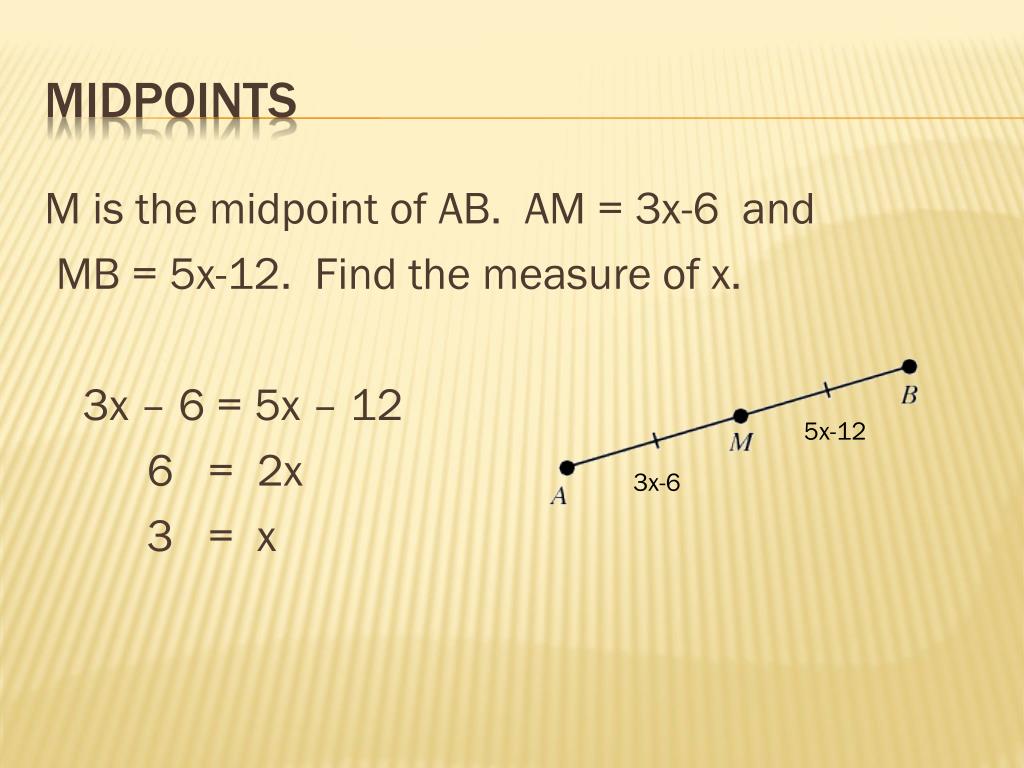

  10. M is the midpoint of AB. AM = 3x-6 and MB = 5x-12. Find the measure of x. 3x – 6 = 5x – 12 6 = 2x 3 = x Midpoints 5x-12 3x-6

  11. Geometry: Pg 29 (1,8-13,17,27-30,33,43,45,65,70) Honors Geometry: Pg 29 (1,8-13,17,27-30,33,65,70,71,75-78) Homework

  12. In Pairs, work on the following problems: Pg 32 (75-78). Please draw the picture and label it for each problem. Honors Geometry
