Development of the nervous system

Development of the nervous system. Develop from ectoderm Neural plate – appears at beginning of 3 rd week Thickened ectodermal layer in mid dorsal line Neural groove Formed from the folding plate Neural folds Elevated sides of neural groove Neural tube Fusion of neural folds

brinly
Download Presentation

Development of the nervous system

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Development of the nervous system • Develop from ectoderm • Neural plate – appears at beginning of 3rd week • Thickened ectodermal layer in mid dorsal line • Neural groove • Formed from the folding plate • Neural folds • Elevated sides of neural groove • Neural tube • Fusion of neural folds • Neural Crest cells • Migrate on either side of neural tube • diagram

  2. Neural Plate • Originally single layer of columnar cells • Rapidly becomes pseudostratified • Neuroepithelial cells of the pseudostratified layer continue to divide & differentiate into different zones of the neural tube • Neuroblast • Spongioblast

  3. Neuroepithelial cells • Neuroblasts • Apolar • Bipolar • Multipolar • Pseudo-unipolar

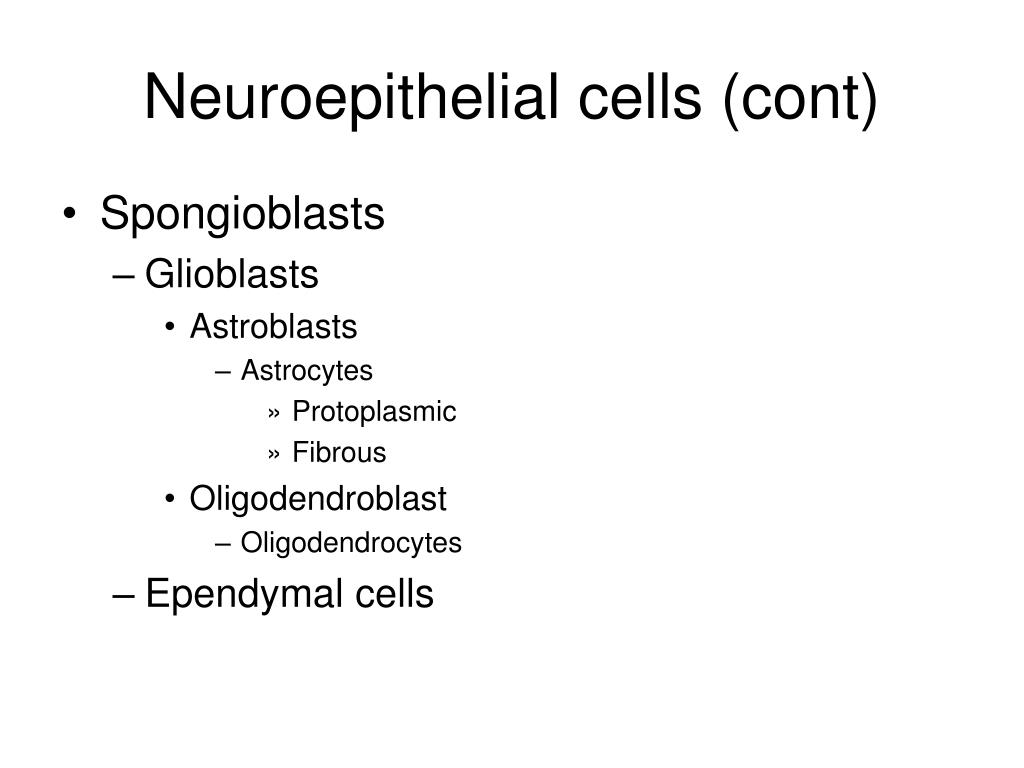

  4. Neuroepithelial cells (cont) • Spongioblasts • Glioblasts • Astroblasts • Astrocytes • Protoplasmic • Fibrous • Oligodendroblast • Oligodendrocytes • Ependymal cells

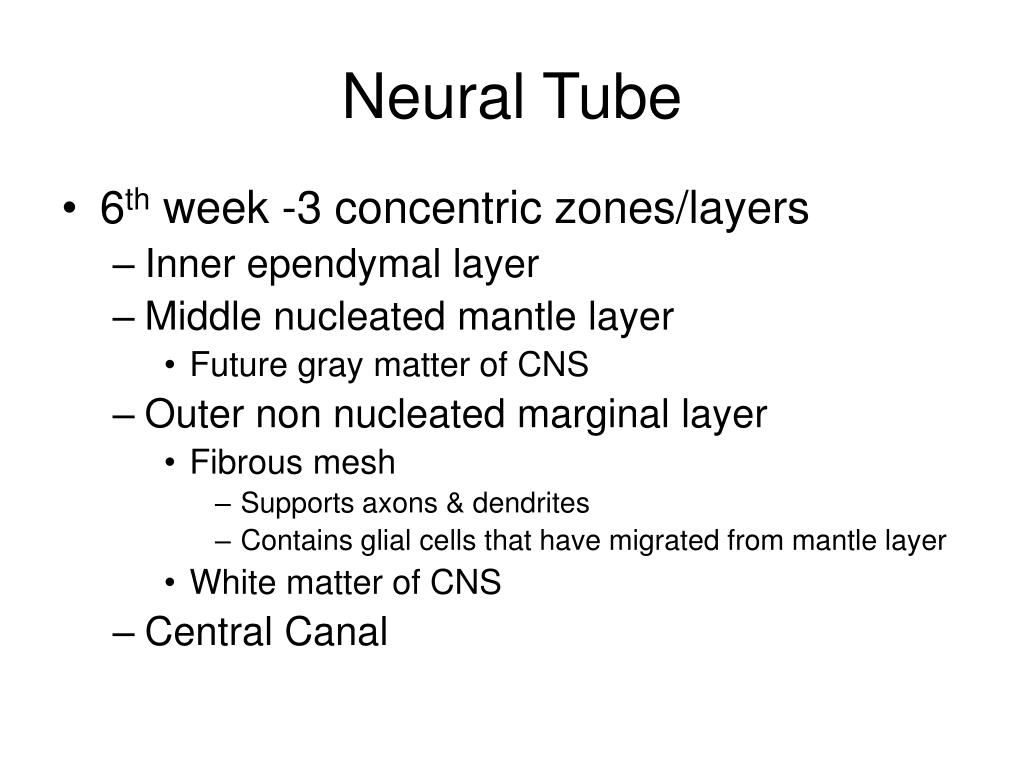

  5. Neural Tube • 6th week -3 concentric zones/layers • Inner ependymal layer • Middle nucleated mantle layer • Future gray matter of CNS • Outer non nucleated marginal layer • Fibrous mesh • Supports axons & dendrites • Contains glial cells that have migrated from mantle layer • White matter of CNS • Central Canal

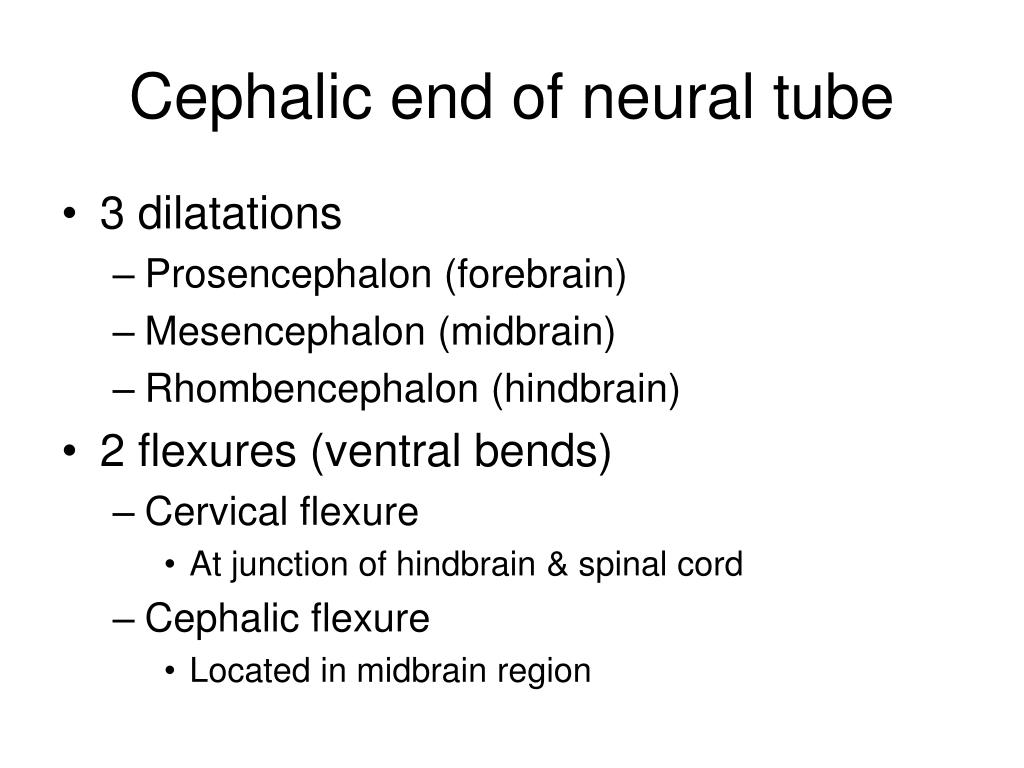

  6. Cephalic end of neural tube • 3 dilatations • Prosencephalon (forebrain) • Mesencephalon (midbrain) • Rhombencephalon (hindbrain) • 2 flexures (ventral bends) • Cervical flexure • At junction of hindbrain & spinal cord • Cephalic flexure • Located in midbrain region

  7. 3 dilatations (at 5 weeks) • Prosencephalon  • Anterior portion (telencephalon or endbrain) • Formed by a mid portion and two lateral out pocketings  primative cerbral hemispheres • Posterior portion (diencephalon) • Characterized by outgrowth of the optic vesicles • Mesencephalon  has undergone little  • Rhombencephalon  • Anterior portion (metencephalon) • Later forms the pons and cerebellum • Posterior portion (myelencephalon) • Later become the medulla oblongata

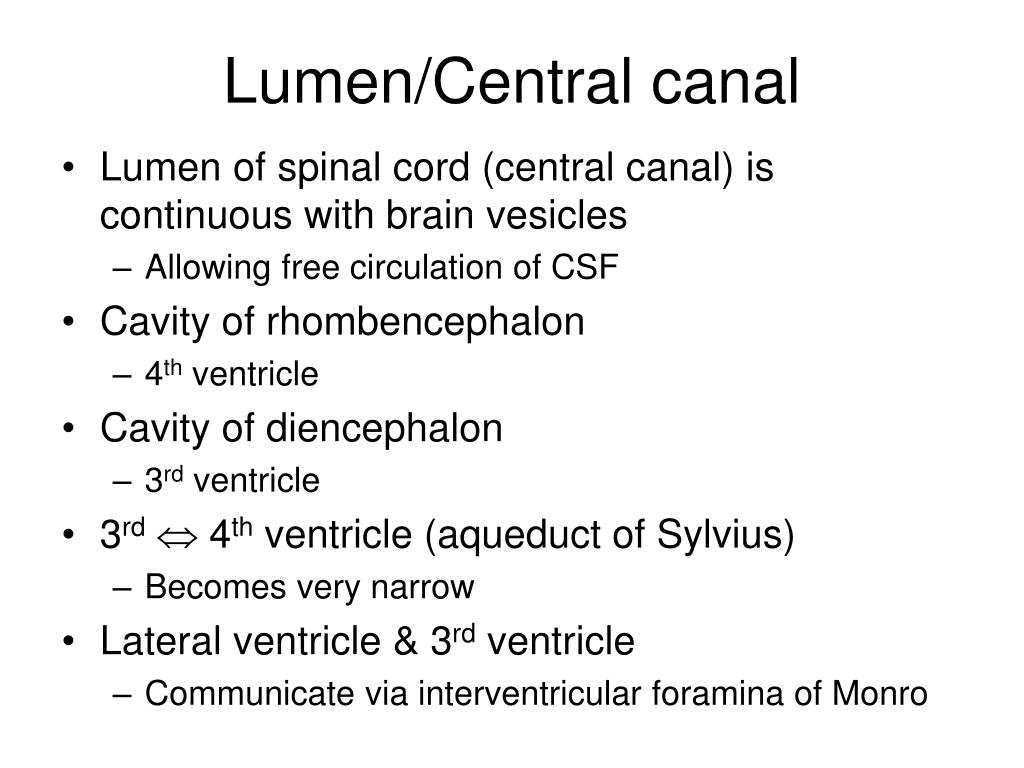

  8. Lumen/Central canal • Lumen of spinal cord (central canal) is continuous with brain vesicles • Allowing free circulation of CSF • Cavity of rhombencephalon • 4th ventricle • Cavity of diencephalon • 3rd ventricle • 3rd 4th ventricle (aqueduct of Sylvius) • Becomes very narrow • Lateral ventricle & 3rd ventricle • Communicate via interventricular foramina of Monro

  9. Neural tube-spinal cord level • Rhomboid shaped-4 longitudinal grooves • Dorsal sulcus (SD) • Roof plate is above (only ependymal layer) • Ventral sulcus (SV) • Floor plate is below (only ependymal layer) • 2 lateral sulci • Sulcus limitans (SL) • Alar plate between SL & roof plate (all 3 layers) • Sensory neurons & ascending pathways • Basal plate between SL & floor plate (all 3 layers) • Motor neurons & descending pathways • Central canal still lined by neuroepithelium

  10. Development of Spinal Cord (SC) • Wall of neural tube thickens quickly • In 4th week typical three layers are present • Continued growth causes narrowing of central canal • Alar plate thickens, roof plate is obliterated • Ependymal layers unite  dorsal median septum • Reduces extent of central canal • Basal plate thickens but do not fuse  ventral median fissure

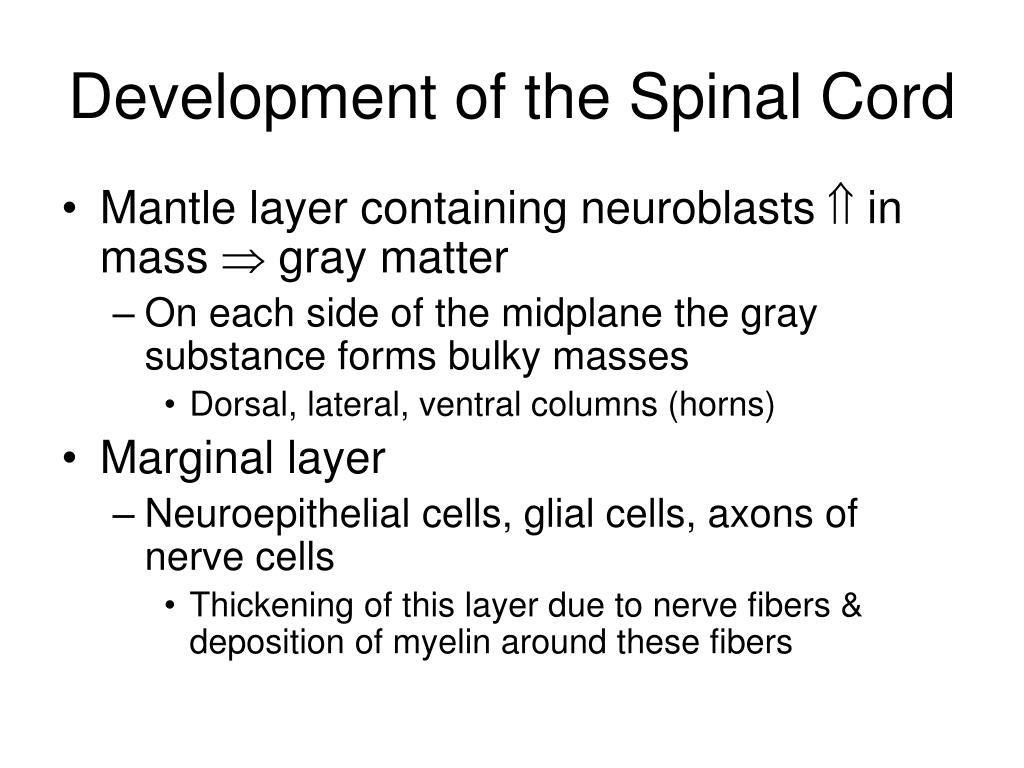

  11. Development of the Spinal Cord • Mantle layer containing neuroblasts  in mass  gray matter • On each side of the midplane the gray substance forms bulky masses • Dorsal, lateral, ventral columns (horns) • Marginal layer • Neuroepithelial cells, glial cells, axons of nerve cells • Thickening of this layer due to nerve fibers & deposition of myelin around these fibers

  12. Spinal Ganglia • Pseudo-unipolar neurons in spinal ganglia are derived from the neural crest cells • Each neural crest cell develops two processes  bipolar neuroblast • Two processes grow & fuse at base forming a T shaped structure with a central process (axon) & peripheral process (dendrite) • Central branches enter spinal cord (dorsal roots of spinal N)

  13. Positional changes of SC • In 3rd month the SC extends the entire length of the embryo & spinal nerves pass through the IVF at level of origin. • Vertebral column & meninges grow faster than SC, the above relationship does not last • Terminal end of SC gradually shifts to a higher level • At 6th month the end of SC is at level of S1 • At birth the end of SC is at L2-3 • In adult the end of SC is at lower end of L1

  14. Myelencephalon • Lies between pontine & cervical flexure • Forms medulla oblongata • Transitions from SC; differences • Lateral walls everted • Loss of serially segmented repetition of cord • Addition of lateral rows of cranial nerves • V, VII, IX, X, XI • Loss of sharp demarcation btw. gray & white • Nerve fibers crossing break up gray matter • This mixture  reticular formation • figure

  15. Myelencephalon • Some areas form discrete nuclei • Roof Plate • Stretched into broad thin layer of ependymal cells • Vascular pia + ependymal roof  tela choroidea • Rostrally tela choroidea infolds as vascular tuft • Project into the 4th ventricle  choroid plexus (produces CSF) • 3 foramina formed due to reabsorption • Lateral pair  Luschka • Medial  Madendie • Floor Plate • Ependymal cells elongate  septum-like raphe

  16. Myelencephalon (cont) • Alar Plate (sensory) • Sensory nerves enter from CN VII, IX, X • Collect into solitary tract located in marginal layer • Alar plate neuroblasts form 3 sensory nuclei • Somatic afferent (lateral) • Receive input from ear (CN VIII) & head (CN V) • Special visceral afferent (intermediate) • Receive input from taste buds via facial N (CN VII) • General visceral afferent (medial) • Receive input from GI tract, heart via vagus N (CN X) • Olivary n migrate to basal plate area • Receive afferent input from various sources & project output to the cerebellum

  17. Myelencephalon (cont) • Basal Plate (motor) Differentiates before alar • Basal plate neuroblasts form 3 motor nuclei • General visceral efferent (lateral) • Parasympathetic • Dorsal motor nucleus of vagus (CN X) • Inferior salvitory nucleus (CN IX) • Special visceral efferent (intermediate) (CN IX, X, XI) • Nucleus Ambiguus • Supply muscles of 3rd & 4th pharyngeal/branchial arches • Somatic efferent (medial) • Hypoglossal Nucleus • Supply muscles of tongue (CN XII) • Decending corticospinal fibers  pyramids

  18. Metencephalon • Extends from isthmus  pontine flexure • Similar to Myelencephalon with addition of • Cerebellum dorsally • Chief coordination center of unconscious stimuli related to body position & movement • Pons ventrally • Main conduction pathway between spinal cord & cerebral & cerebellar cortices

  19. Metencephalon (cont) • Roof plate • Rostral to cerebellum • Superior medullary velum • Thin sheet of white substance • Caudal to cerebellum • Inferior medullary velum • Ependymal cells • Balance lost in substance of cerebellum • Floor Plate • Ependymal cells elongate  septum-like raphe

  20. Metencephalon (cont) • Alar Plates • Become very prominent & forms cerebellum • Somatic afferent (lateral) • Sensory nuclei receive fibers from • Trigeminal (CN V) • Small portion of Vestibulocochlear (CN VIII) • Special visceral afferent (intermediate) • General visceral afferent (medial)

  21. Metencephalon (cont) • Basal Plate (motor) • General visceral efferent (lateral) • Axons supply submandibular & sublingual glands • Special visceral efferent (intermediate) • Contain N of trigeminal (CN V) & facial (CN VII) • Supply muscles of 1st & 2nd pharygeal/branchial arches • Somatic efferent (medial) • Gives rise to N of abducens (CN VI) • Marginal layer expands extensively Pons • Many fibers pass uninterrupted through pons • Pyramidal tracts

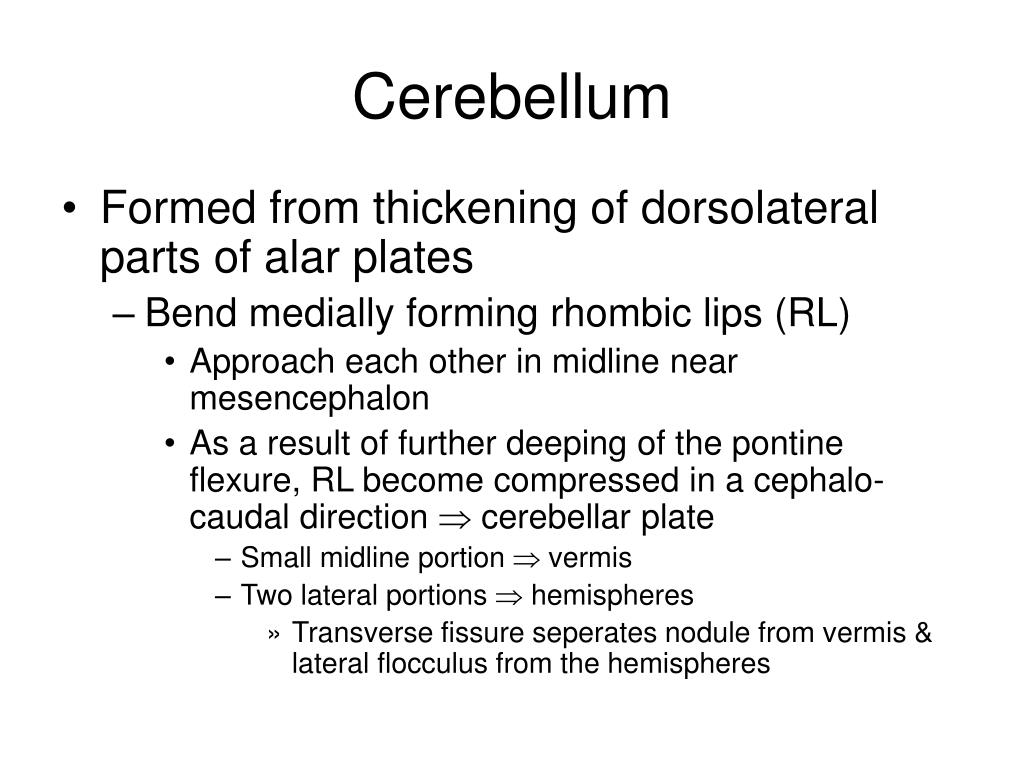

  22. Cerebellum • Formed from thickening of dorsolateral parts of alar plates • Bend medially forming rhombic lips (RL) • Approach each other in midline near mesencephalon • As a result of further deeping of the pontine flexure, RL become compressed in a cephalo-caudal direction  cerebellar plate • Small midline portion  vermis • Two lateral portions  hemispheres • Transverse fissure seperates nodule from vermis & lateral flocculus from the hemispheres

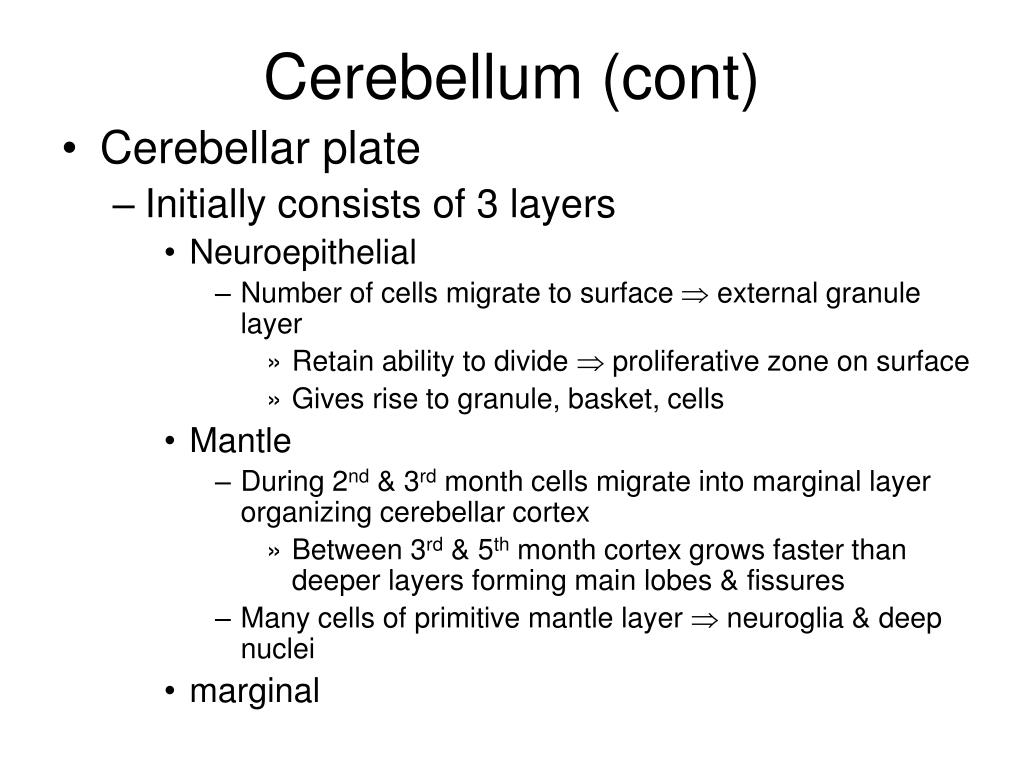

  23. Cerebellum (cont) • Cerebellar plate • Initially consists of 3 layers • Neuroepithelial • Number of cells migrate to surface  external granule layer • Retain ability to divide  proliferative zone on surface • Gives rise to granule, basket, cells • Mantle • During 2nd & 3rd month cells migrate into marginal layer organizing cerebellar cortex • Between 3rd & 5th month cortex grows faster than deeper layers forming main lobes & fissures • Many cells of primitive mantle layer  neuroglia & deep nuclei • marginal

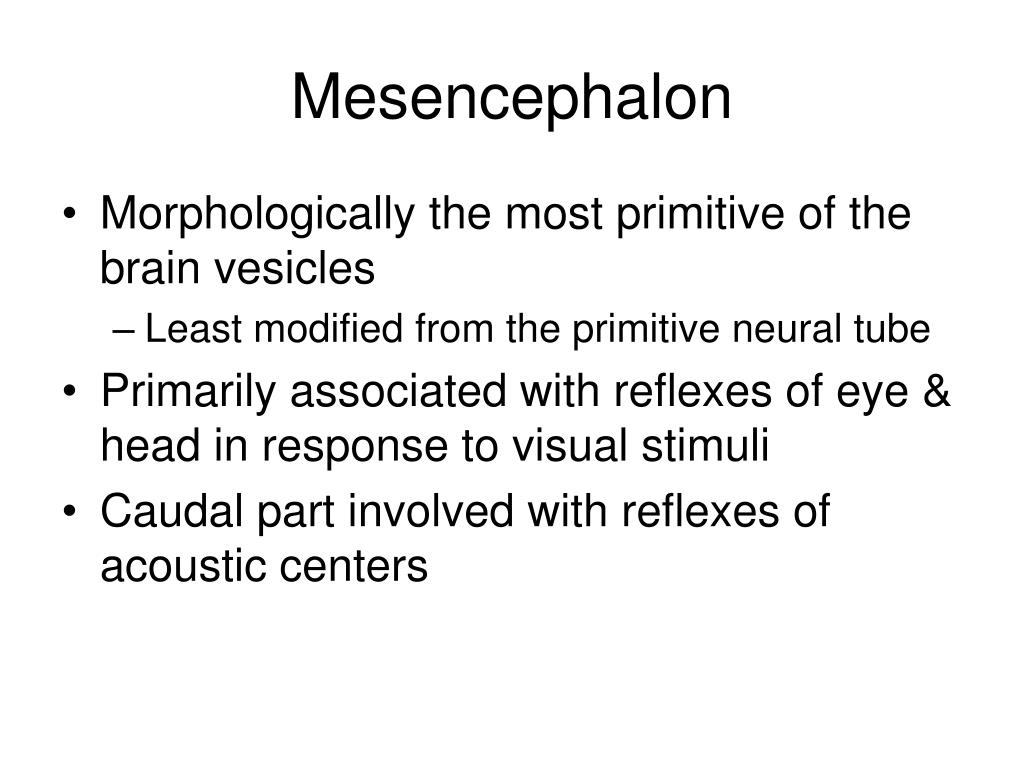

  24. Mesencephalon • Morphologically the most primitive of the brain vesicles • Least modified from the primitive neural tube • Primarily associated with reflexes of eye & head in response to visual stimuli • Caudal part involved with reflexes of acoustic centers

  25. Mesencephalon (cont) • Alar Plate • 2 longitudinal elevations divided by transverse groove • 2 Superior/anterior colliculi (visual reflexes) • 2 Inferior/posterior colliculi (auditory relay) • Colliculi formed by waves of neuroblasts migrating into overlying marginal zone  become stratified

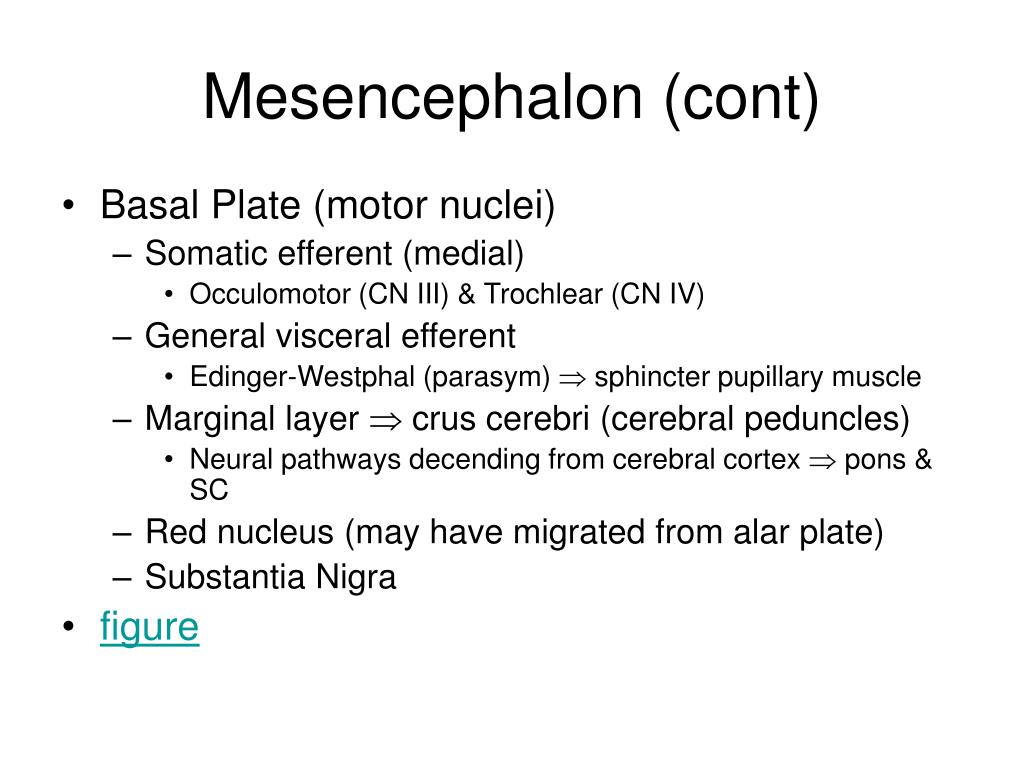

  26. Mesencephalon (cont) • Basal Plate (motor nuclei) • Somatic efferent (medial) • Occulomotor (CN III) & Trochlear (CN IV) • General visceral efferent • Edinger-Westphal (parasym)  sphincter pupillary muscle • Marginal layer  crus cerebri (cerebral peduncles) • Neural pathways decending from cerebral cortex  pons & SC • Red nucleus (may have migrated from alar plate) • Substantia Nigra • figure

  27. Diencephalon • Caudal portion of prosencephalon (forebrain) • Develops from the primitive roof & alar plates • (no basal plates) • Surrounds third ventricle • Roof plate ( thin plate of ependymal cells) • Ependymal cells + pia mater  choroid plexus • Forms part of epithalamus • Synaptic region for correlation of olfactory impulses • Habenular nuclei • Caudal to choroid plexus evagination (7th week)  epiphysis/pineal body (pineal gland)

  28. Diencephalon • Alar Plate • Dorsal part  balance of epithalamus • Contain a group of nuclei  habenular nuclei • Lateral part  Thalamus • Each thalamus contains a # of nuclei • Relay sensory signals to cerebral cortex • Ventral part  hypothalamus • Differentiate into a # of nuclear areas • Visceral functions • Downward extension of hypothalamus (infundibulum) contributes to formation of pituitary gland (neurohypopysis/stalk & posterior lobe) • Neuroglia cells & nerve fibers from hypothalamus

  29. Pituitary/Hypophysis • Develops from two different sources • Ectodermal outpocketing of the stomodeum • Rathke’s Pouch • Appears around 3rd week & grows dorsally • By end of 2nd month it loses connection with stomodeum & lies close to the infundibulum • Gives rise primarily to the anterior lobe (adenohypophysis) • Downward extension of the hypothalamus • Indundibulum gives rise to stalk & posterior lobe

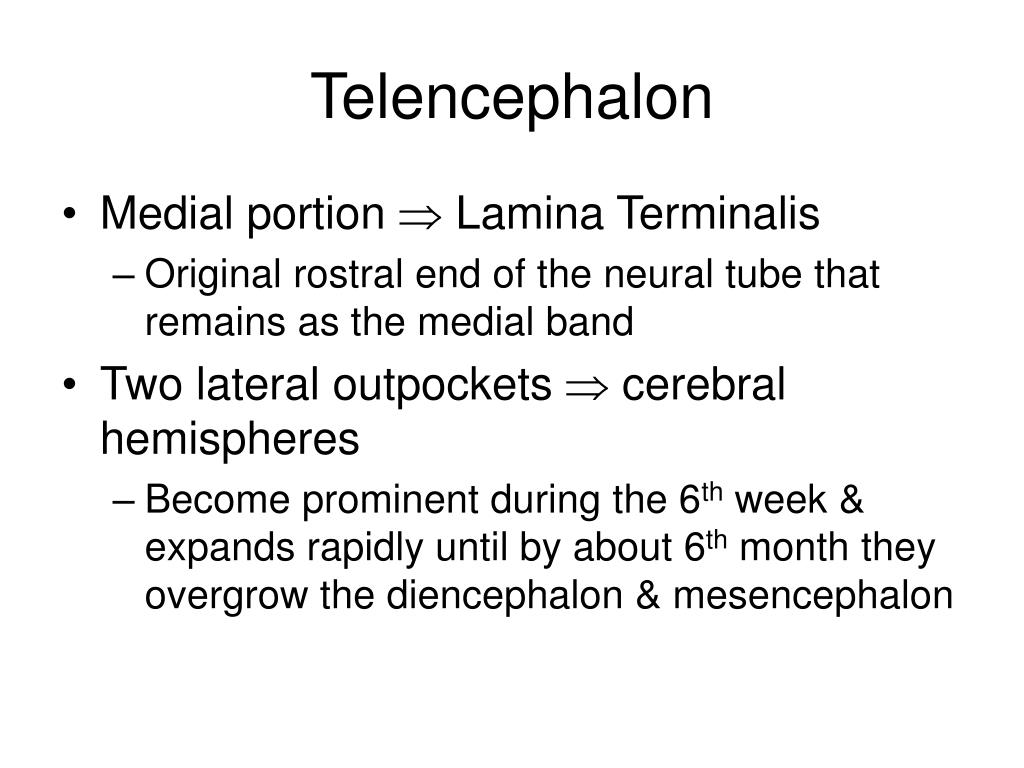

  30. Telencephalon • Medial portion  Lamina Terminalis • Original rostral end of the neural tube that remains as the medial band • Two lateral outpockets  cerebral hemispheres • Become prominent during the 6th week & expands rapidly until by about 6th month they overgrow the diencephalon & mesencephalon

  31. Telencephalon • Divisible into three portions • Corpus Striatum • Continuous with the thalamus • Rhinencephalon • Paleopallium • Archipallium • Hippocampal formation • Neopallium • Largest part & represented primarily by what’s visible externally

  32. Corpus Striatum • Appears during the 6th week as a prominent swelling in floor of each hemisphere • Due to proliferating mantle layer cells  caudate & lentiform nuclei • These nuclei are seperated by band like tract of fibers called the internal capsul • Elongates as cerebral hemispheres grow • Caudal portion forms tail of the caudate • Will eventually form the basal ganglia

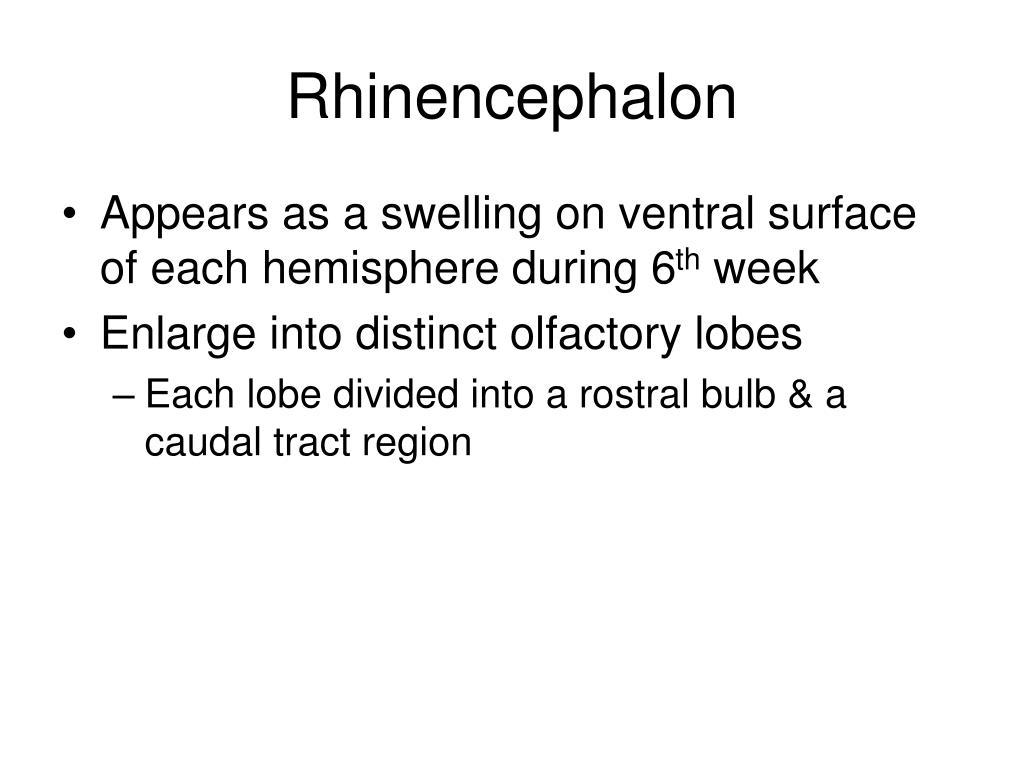

  33. Rhinencephalon • Appears as a swelling on ventral surface of each hemisphere during 6th week • Enlarge into distinct olfactory lobes • Each lobe divided into a rostral bulb & a caudal tract region

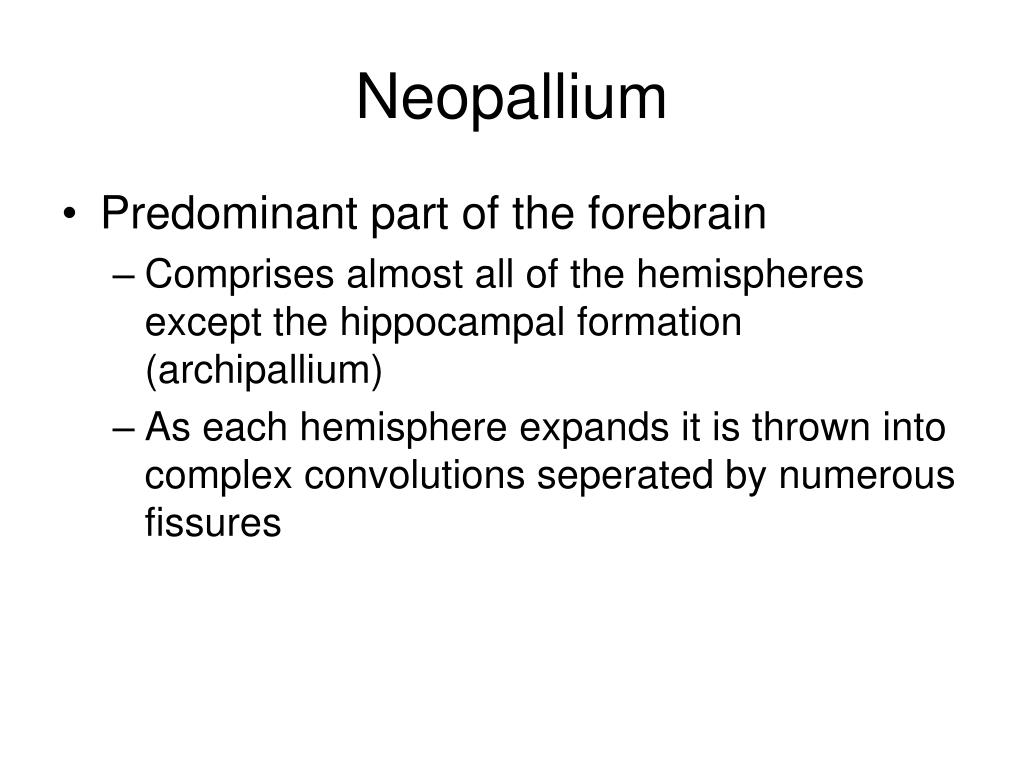

  34. Neopallium • Predominant part of the forebrain • Comprises almost all of the hemispheres except the hippocampal formation (archipallium) • As each hemisphere expands it is thrown into complex convolutions seperated by numerous fissures

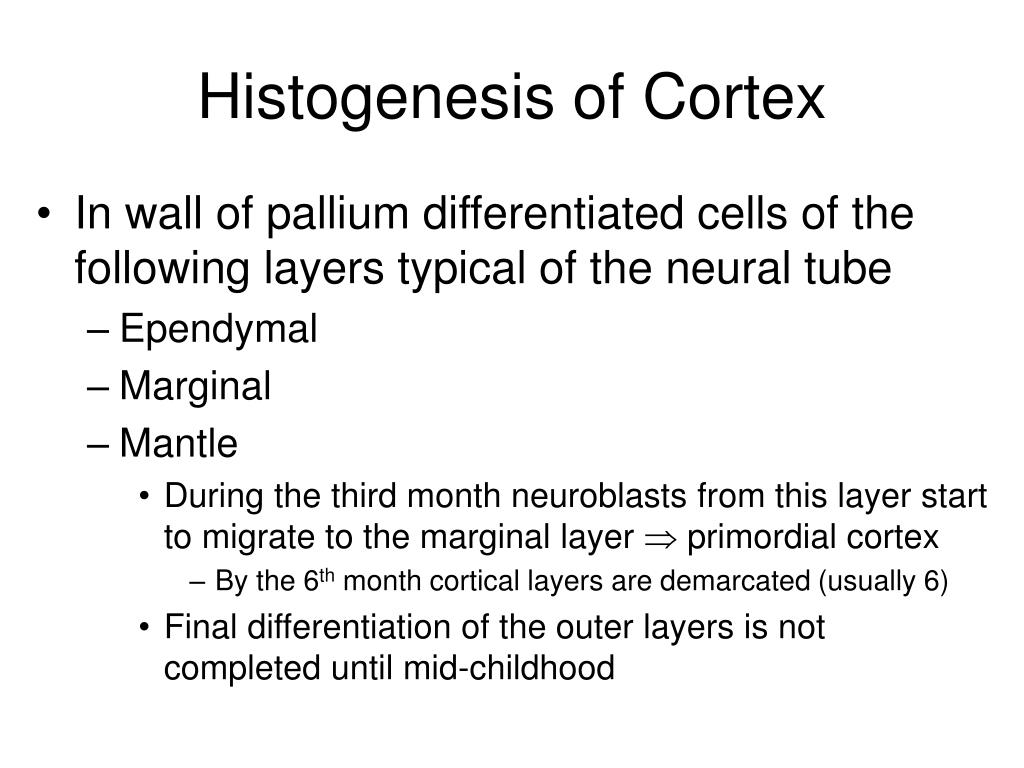

  35. Histogenesis of Cortex • In wall of pallium differentiated cells of the following layers typical of the neural tube • Ependymal • Marginal • Mantle • During the third month neuroblasts from this layer start to migrate to the marginal layer  primordial cortex • By the 6th month cortical layers are demarcated (usually 6) • Final differentiation of the outer layers is not completed until mid-childhood

  36. Congenital Malformations • Cranium Bifidum • Hydrocephaly • Agenesis of Corpus Callosum • Holoprosencephaly • Macrocephaly • Microcephaly

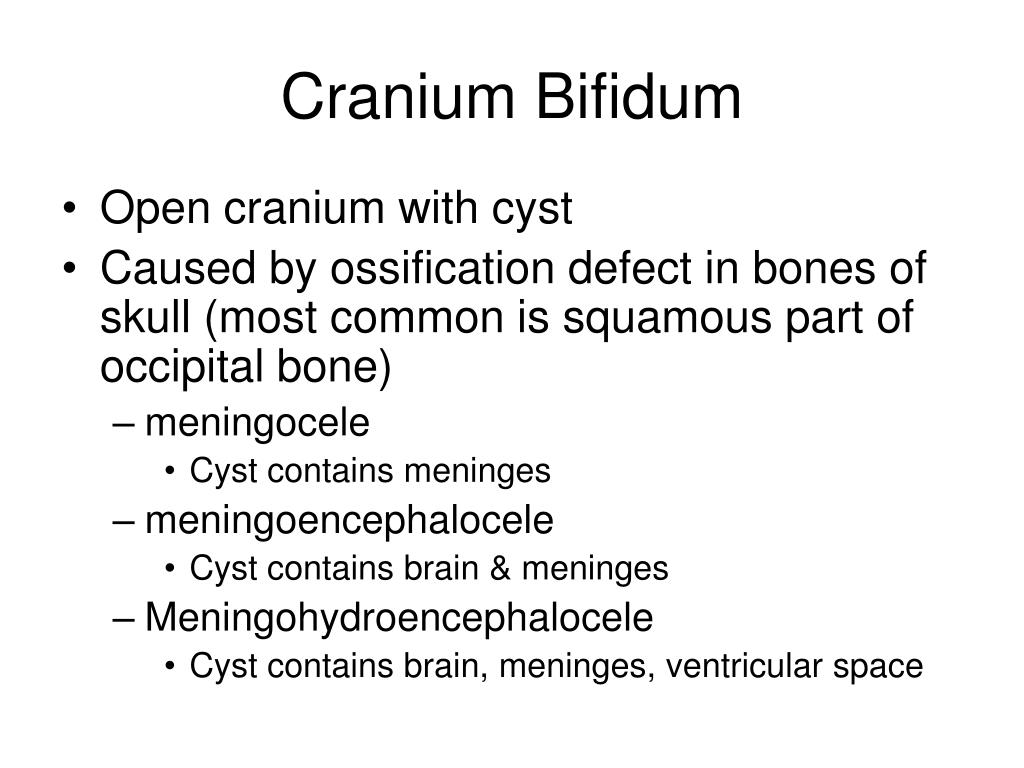

  37. Cranium Bifidum • Open cranium with cyst • Caused by ossification defect in bones of skull (most common is squamous part of occipital bone) • meningocele • Cyst contains meninges • meningoencephalocele • Cyst contains brain & meninges • Meningohydroencephalocele • Cyst contains brain, meninges, ventricular space

  38. Hydrocephaly • Abnormal accumulation of cerebralspinal fluid within the ventricular system • Majority of cases is due to obstruction of the aqueduct of Sylvius (aqueductal stenosis) • Fluid buildup in lateral & 3rd ventricles • Reduces volume of brain tissue in anterior & middle fossa

  39. Arnold-Chiari malformation • Caudal displacement & herniation of cerebellar structures through the foramen magnum • Defect occurs in virtually every case of spina bifida cystica & is usually accompanied by hydrocephalus
