Spatial Water Budget Model

Spatial Water Budget Model. 3 main components - Soil element water balance - From from soil element to a stream - Water balance of streams. Technical characteristics: - Empirical, distributed parameter model - Programmed in Avenue; 100% GIS embedded

britain
Download Presentation

Spatial Water Budget Model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

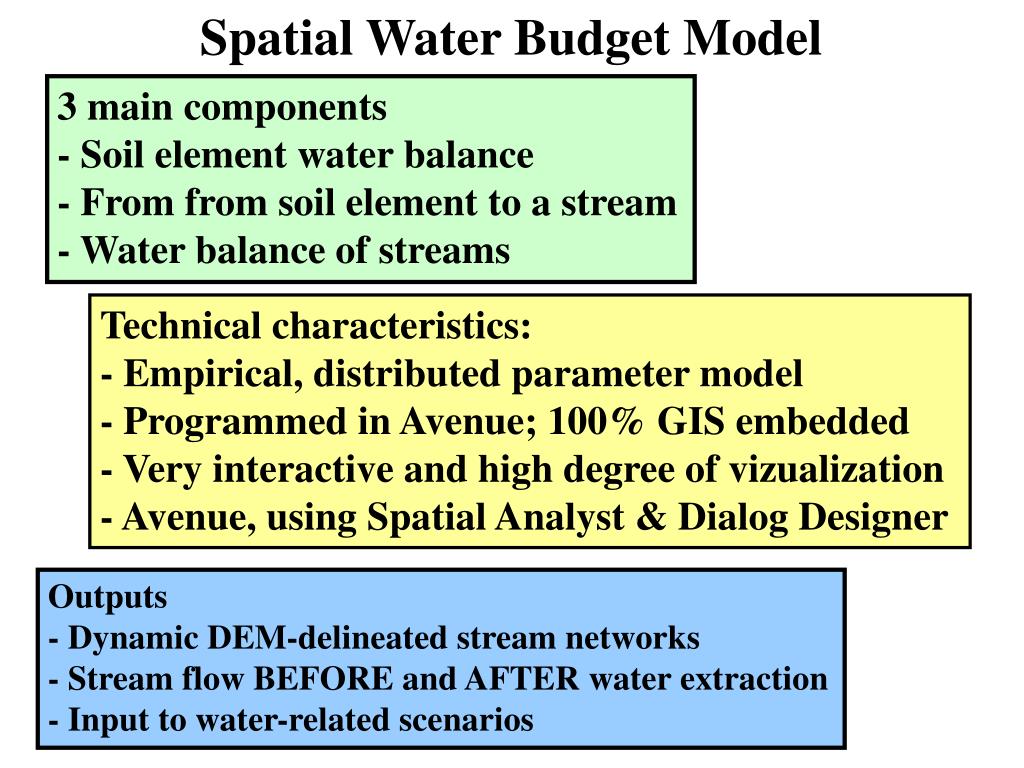

  1. Spatial Water Budget Model 3 main components - Soil element water balance - From from soil element to a stream - Water balance of streams Technical characteristics: - Empirical, distributed parameter model - Programmed in Avenue; 100% GIS embedded - Very interactive and high degree of vizualization - Avenue, using Spatial Analyst & Dialog Designer Outputs - Dynamic DEM-delineated stream networks - Stream flow BEFORE and AFTER water extraction - Input to water-related scenarios

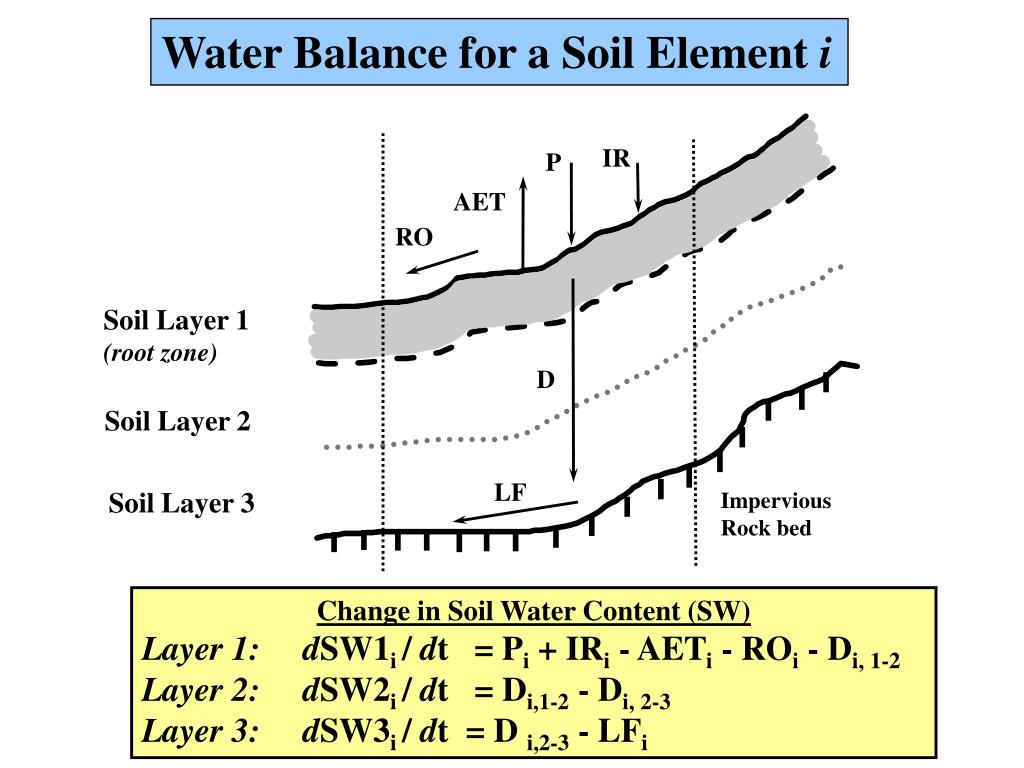

  2. IR P AET RO Soil Layer 1 (root zone) D Soil Layer 2 LF Soil Layer 3 Impervious Rock bed Water Balance for a Soil Element i Change in Soil Water Content (SW) Layer 1: dSW1i / dt = Pi + IRi - AETi - ROi - Di, 1-2 Layer 2: dSW2i / dt = Di,1-2 - Di, 2-3 Layer 3: dSW3i / dt = D i,2-3 - LFi

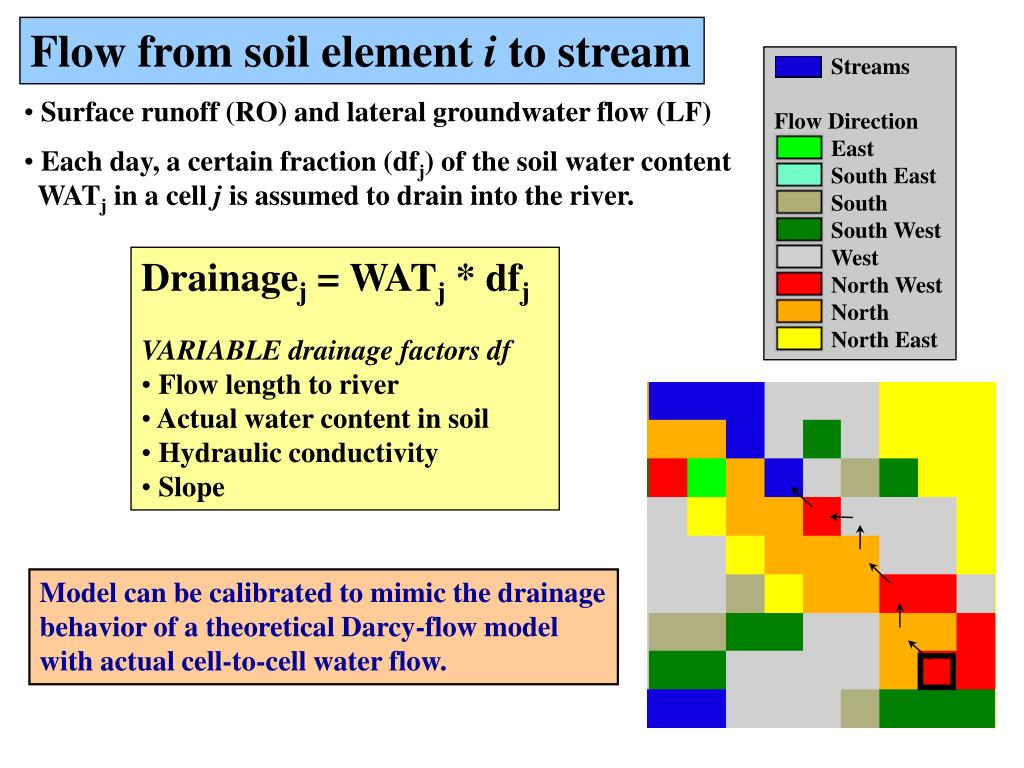

  3. Streams Flow Direction East South East South South West West North West North North East Flow from soil element i to stream • Surface runoff (RO) and lateral groundwater flow (LF) • Each day, a certain fraction (dfj) of the soil water content • WATj in a cell j is assumed to drain into the river. • Drainagej = WATj * dfj • VARIABLE drainage factors df • Flow length to river • Actual water content in soil • Hydraulic conductivity • Slope Model can be calibrated to mimic the drainage behavior of a theoretical Darcy-flow model with actual cell-to-cell water flow.

  4. Vj-1,j VLF,j VST,j Vj,j+1 VUSE,j Water Balance for a Stream Element j VRO,j Vj, j+1 = Vj-1, j + VRO, j + VLF, j - VUSE, j - dVST, j VRO, j = accum. surface runoff; VLF, j = accum. lateral flow; VUSE, j = water used; dVST, j = change in water storage
