2G BBULBE PASS Instructions-5 Replacement of Heater

2G BBULBE PASS Instructions-5 Replacement of Heater. Heater. Instructions. 1. Take off water inlet and outlet fittings. 2. Deflate spa. 4. Remove the air pipe. 3. Remove cord grip with screwdriver. Instructions. 5. Take out control box from spa pool. 6. Remove the foam.

brock
Download Presentation

2G BBULBE PASS Instructions-5 Replacement of Heater

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 2G BBULBE PASS Instructions-5 Replacement of Heater

  2. Heater

  3. Instructions 1. Take off water inlet and outlet fittings 2. Deflate spa 4. Remove the air pipe 3. Remove cord grip with screwdriver

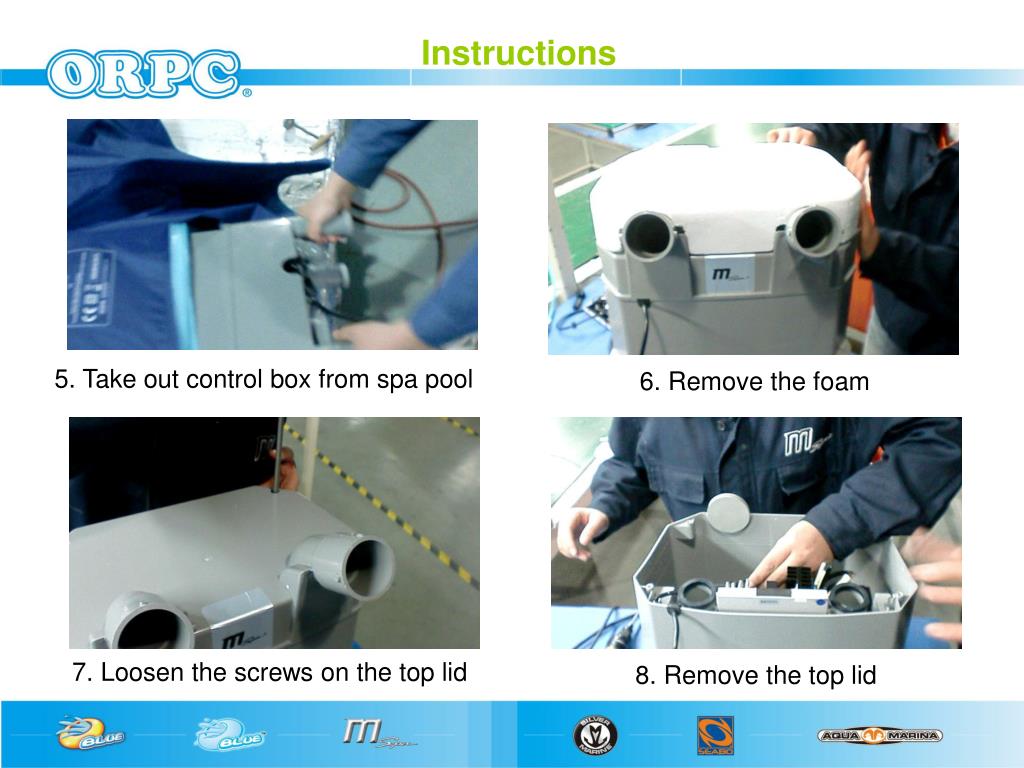

  4. Instructions 5. Take out control box from spa pool 6. Remove the foam 7.Loosen the screws on the top lid 8. Remove the top lid

  5. Instructions Filter Transformer output Bubble Power input 2 PIN -Sensor Transformer input 3 PIN- water switch Heater

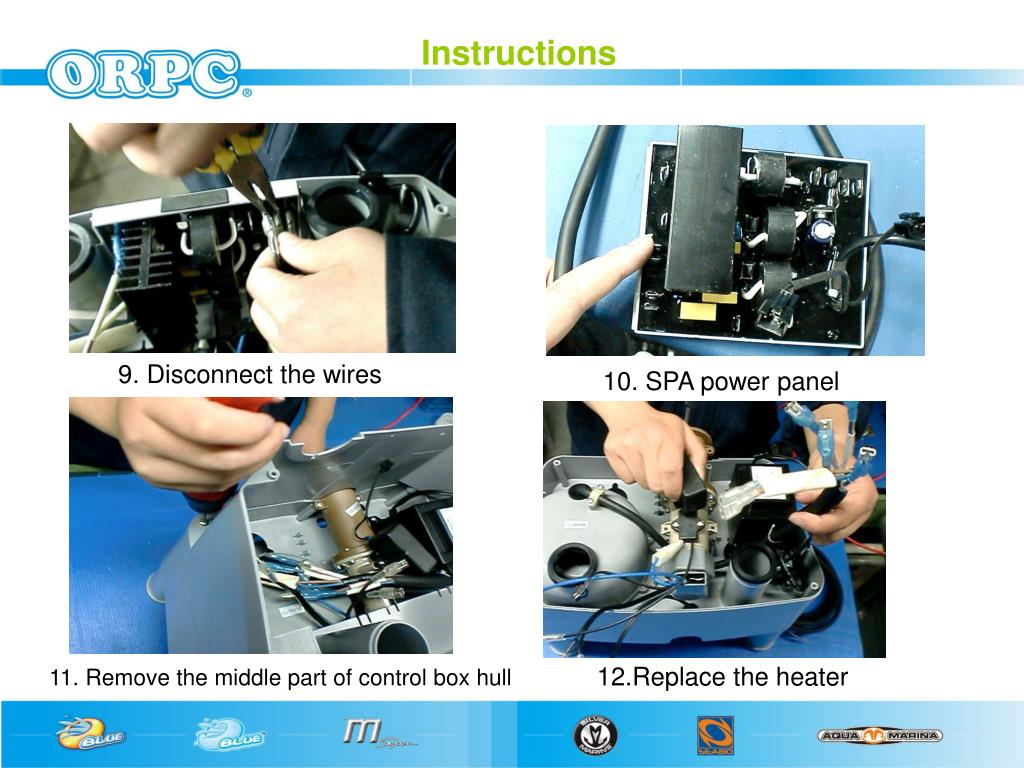

  6. Instructions 9. Disconnect the wires 10. SPA power panel 12.Replace the heater 11. Remove the middle part of control box hull

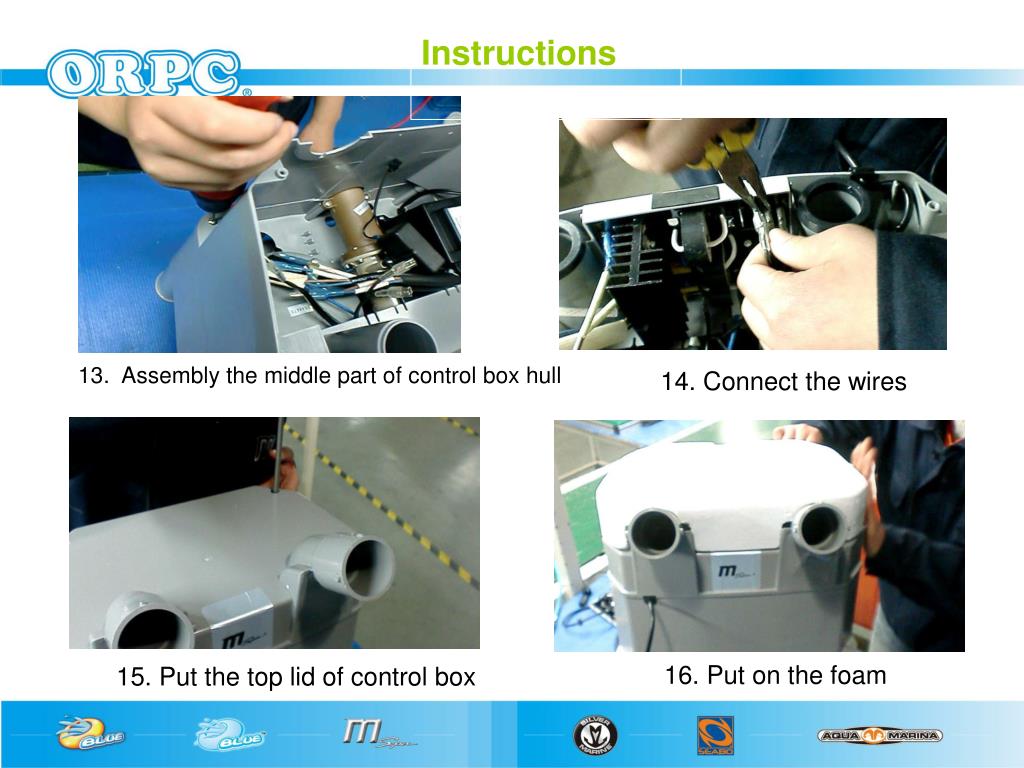

  7. Instructions 13. Assembly the middle part of control box hull 14. Connect the wires 16. Put on the foam 15. Put the top lid of control box

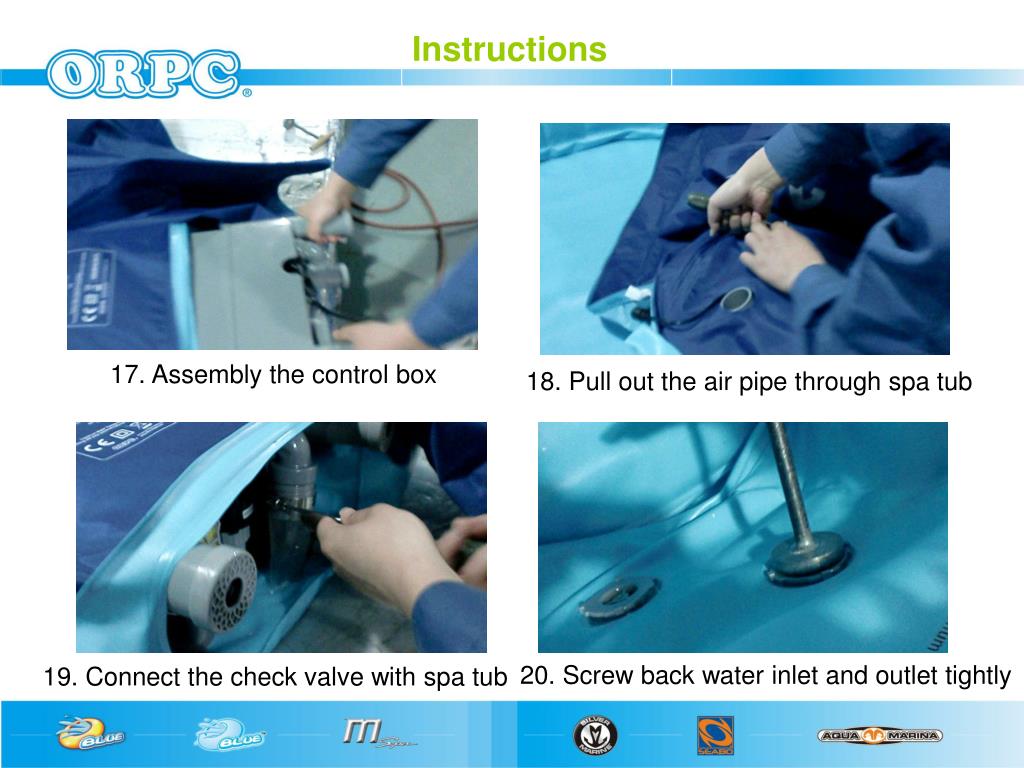

  8. Instructions 17. Assembly the control box 18. Pull out the air pipe through spa tub 20. Screw back water inlet and outlet tightly 19. Connect the check valve with spa tub
