Integrated Rainwater Management Strategies: Hydrology and Hydrological Modeling

Rainwater management for resilient livelihoods. Rationale For Integrated Rainwater Management Strategies (RMS) want to know: what works, where and wh y? This requires basic biophysical understanding: how much rain falls & where does the water go?

brooks
Download Presentation

Integrated Rainwater Management Strategies: Hydrology and Hydrological Modeling

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

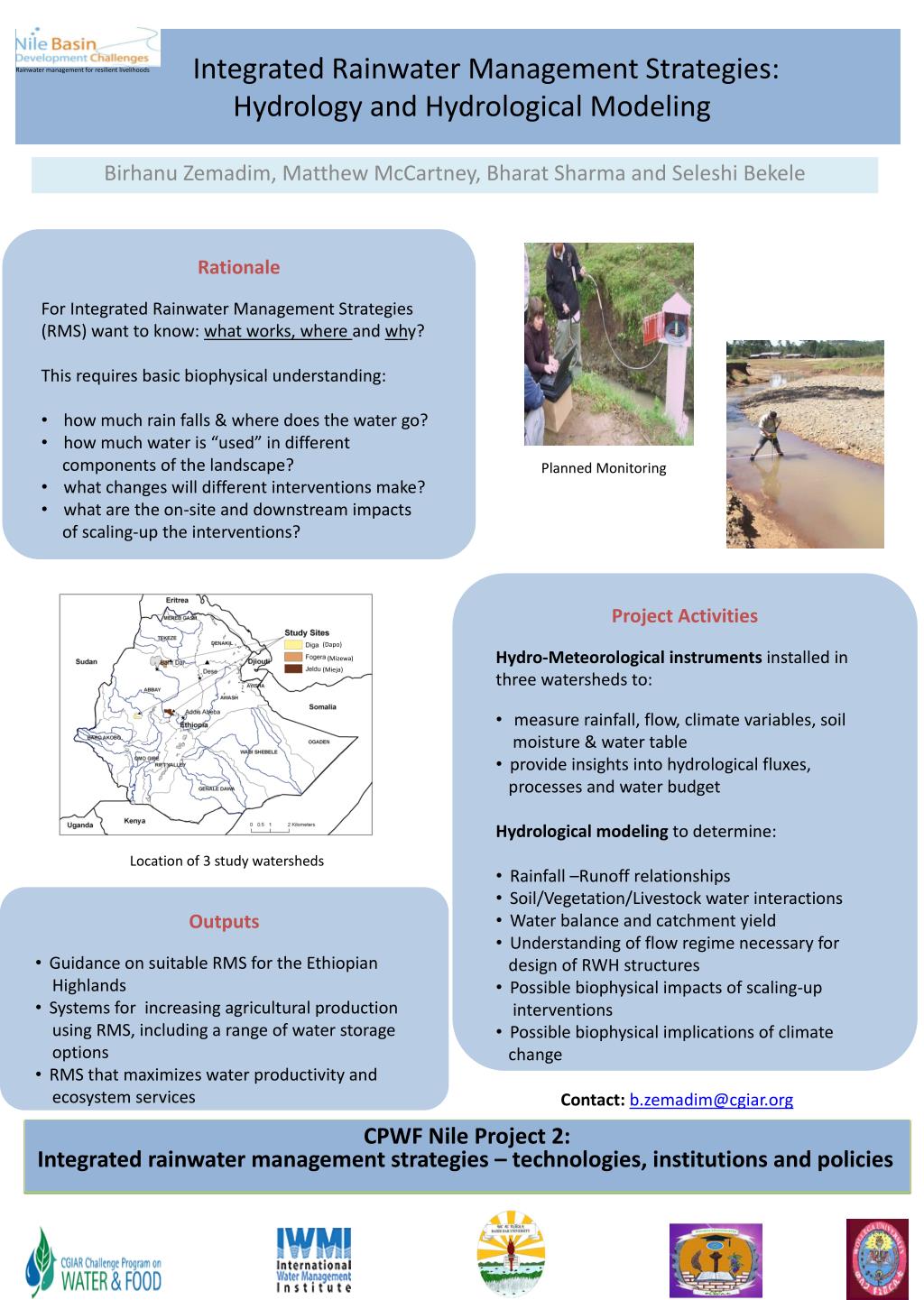

  1. Rainwater management for resilient livelihoods • Rationale For Integrated Rainwater Management Strategies (RMS) want to know: what works, where and why? This requires basic biophysical understanding: • how much rain falls & where does the water go? • how much water is “used” in different • components of the landscape? • what changes will different interventions make? • what are the on-site and downstream impacts • of scaling-up the interventions? Integrated Rainwater Management Strategies: Hydrology and Hydrological Modeling Planned Monitoring • Project Activities • Hydro-Meteorological instruments installed in three watersheds to: • measure rainfall, flow, climate variables, soil • moisture & water table • provide insights into hydrological fluxes, • processes and water budget • Hydrological modeling to determine: • Rainfall –Runoff relationships • Soil/Vegetation/Livestock water interactions • Water balance and catchment yield • Understanding of flow regime necessary for • design of RWH structures • Possible biophysical impacts of scaling-up • interventions • Possible biophysical implications of climate • change (Dapo) (Mizewa) (Mieja) Birhanu Zemadim, Matthew McCartney, Bharat Sharma and Seleshi Bekele Location of 3 study watersheds • Outputs • Guidance on suitable RMS for the Ethiopian • Highlands • Systems for increasing agricultural production • using RMS, including a range of water storage • options • RMS that maximizes water productivity and • ecosystem services Contact: b.zemadim@cgiar.org CPWF Nile Project 2: Integrated rainwater management strategies – technologies, institutions and policies

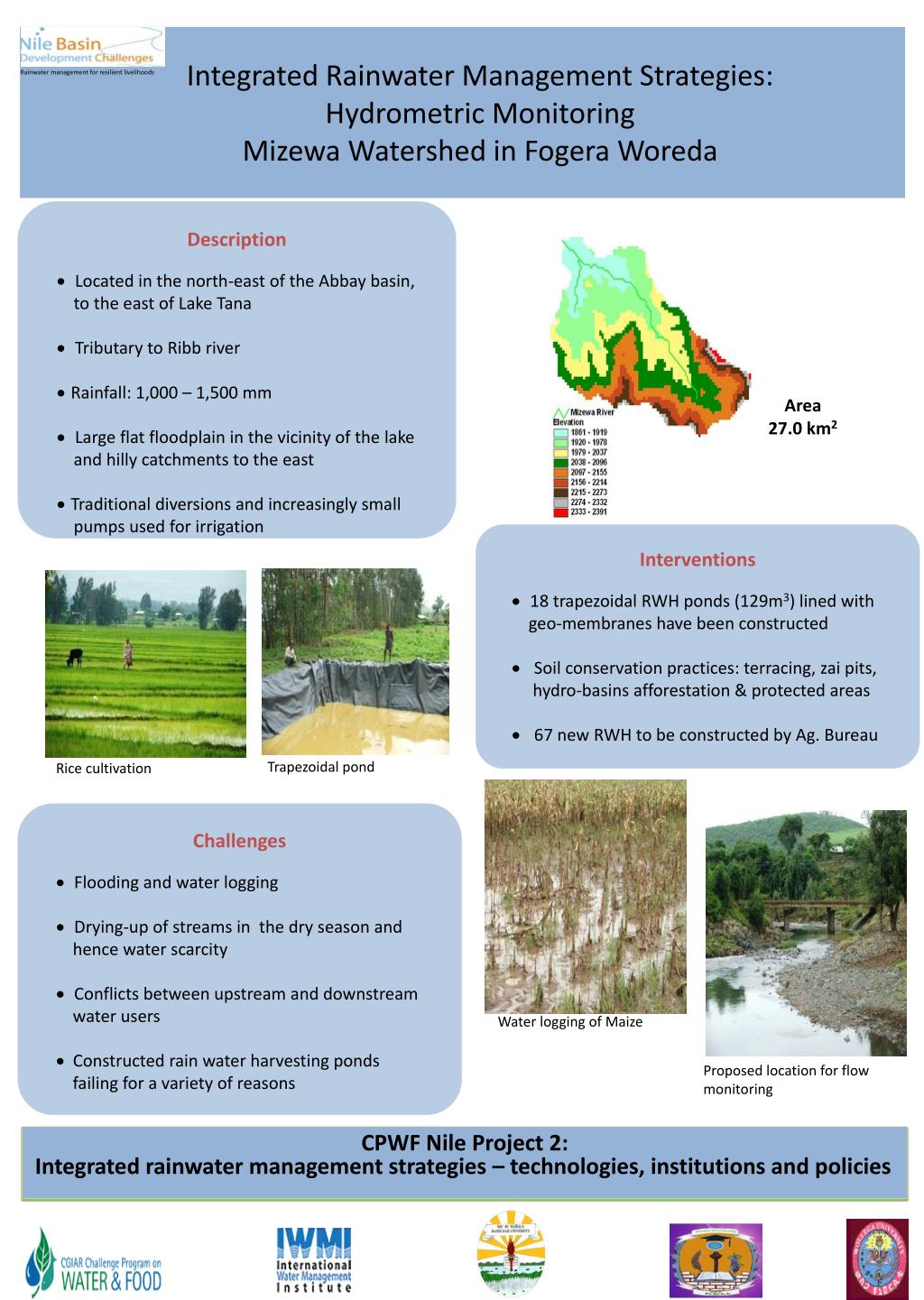

  2. Integrated Rainwater Management Strategies: HydrometricMonitoring Mizewa Watershed in FogeraWoreda Rainwater management for resilient livelihoods • Description • Located in the north-east of the Abbay basin, • to the east of Lake Tana • Tributary to Ribb river • Rainfall: 1,000 – 1,500 mm • Large flat floodplain in the vicinity of the lake • and hilly catchments to the east • Traditional diversions and increasingly small • pumps used for irrigation Area 27.0 km2 • Interventions • 18 trapezoidal RWH ponds (129m3) lined with • geo-membranes have been constructed • Soil conservation practices: terracing, zai pits, • hydro-basins afforestation & protected areas • 67 new RWH to be constructed by Ag. Bureau Trapezoidal pond Rice cultivation • Challenges • Flooding and water logging • Drying-up of streams in the dry season and • hence water scarcity • Conflicts between upstream and downstream • water users • Constructed rain water harvesting ponds • failing for a variety of reasons Water logging of Maize Proposed location for flow monitoring CPWF Nile Project 2: Integrated rainwater management strategies – technologies, institutions and policies

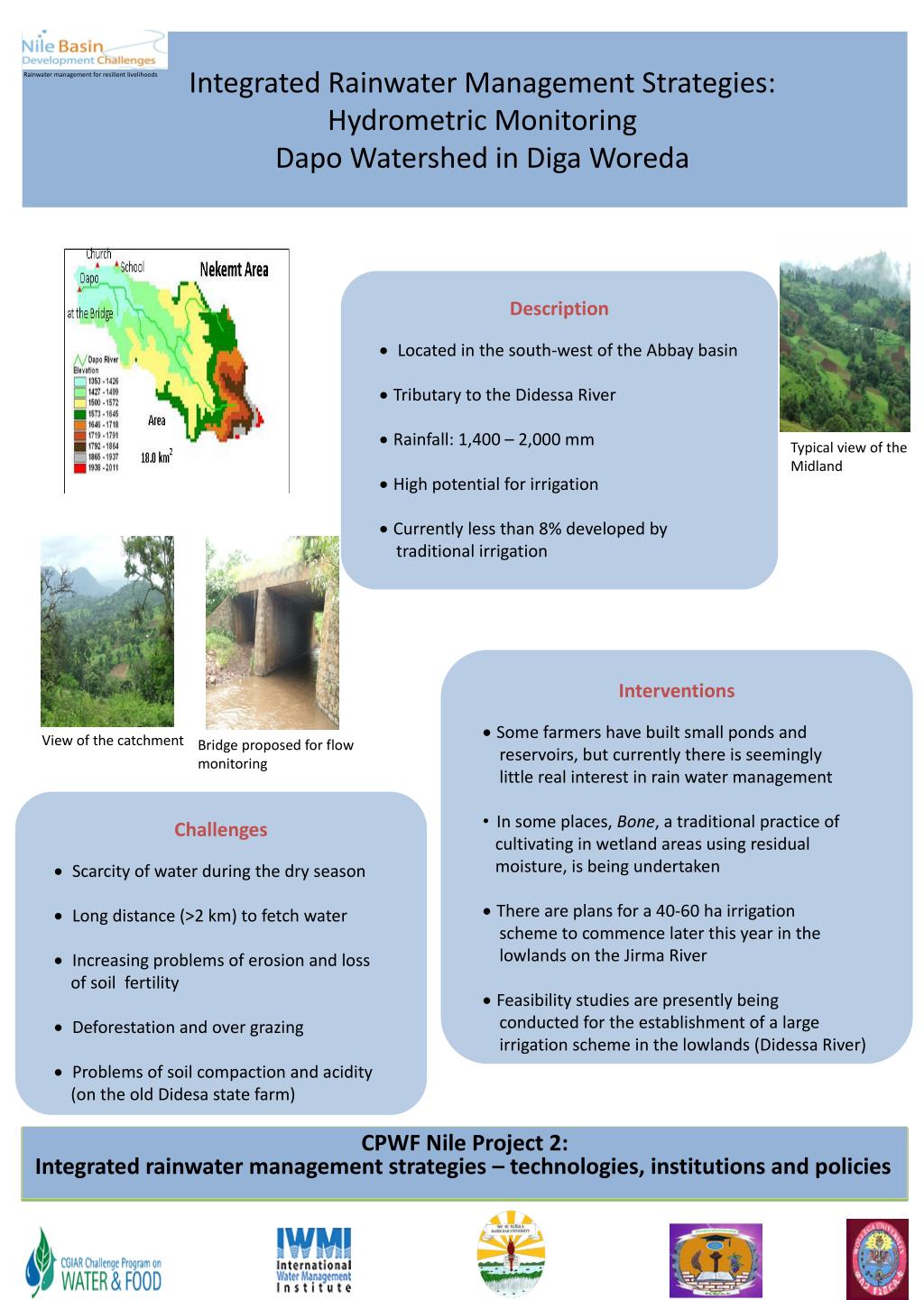

  3. Integrated Rainwater Management Strategies: HydrometricMonitoring Dapo Watershed in DigaWoreda Rainwater management for resilient livelihoods • Description • Located in the south-west of the Abbay basin • Tributary to the Didessa River • Rainfall: 1,400 – 2,000 mm • High potential for irrigation • Currently less than 8% developed by • traditional irrigation Typical view of the Midland • Interventions • Some farmers have built small ponds and • reservoirs, but currently there is seemingly • little real interest in rain water management • In some places, Bone, a traditional practice of • cultivating in wetland areas using residual • moisture, is being undertaken • There are plans for a 40-60 ha irrigation • scheme to commence later this year in the • lowlands on the Jirma River • Feasibility studies are presently being • conducted for the establishment of a large • irrigation scheme in the lowlands (Didessa River) View of the catchment Bridge proposed for flow monitoring • Challenges • Scarcity of water during the dry season • Long distance (>2 km) to fetch water • Increasing problems of erosion and loss • of soil fertility • Deforestation and over grazing • Problems of soil compaction and acidity • (on the old Didesa state farm) CPWF Nile Project 2: Integrated rainwater management strategies – technologies, institutions and policies

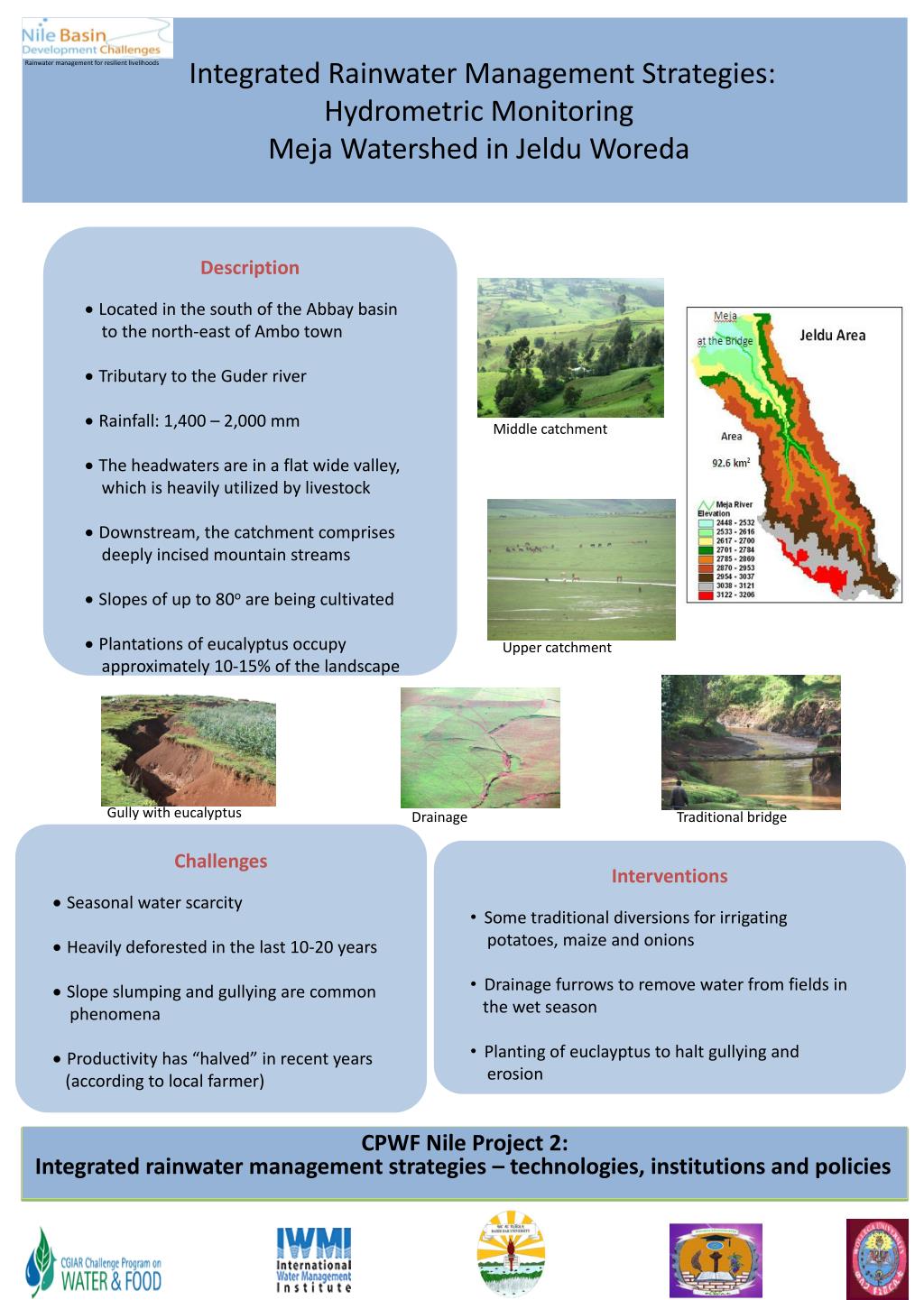

  4. Integrated Rainwater Management Strategies: HydrometricMonitoring Meja Watershed in JelduWoreda Rainwater management for resilient livelihoods • Description • Located in the south of the Abbay basin • to the north-east of Ambo town • Tributary to the Guder river • Rainfall: 1,400 – 2,000 mm • The headwaters are in a flat wide valley, • which is heavily utilized by livestock • Downstream, the catchment comprises • deeply incised mountain streams • Slopes of up to 80o are being cultivated • Plantations of eucalyptus occupy • approximately 10-15% of the landscape Middle catchment Upper catchment Gully with eucalyptus Drainage Traditional bridge • Challenges • Seasonal water scarcity • Heavily deforested in the last 10-20 years • Slope slumping and gullying are common • phenomena • Productivity has “halved” in recent years • (according to local farmer) • Interventions • Some traditional diversions for irrigating • potatoes, maize and onions • Drainage furrows to remove water from fields in • the wet season • Planting of euclayptus to halt gullying and • erosion CPWF Nile Project 2: Integrated rainwater management strategies – technologies, institutions and policies
