  1. Digital Machinegun Optic (DMO) Enhancing Crew Served Weapons (M2HB) (Model:IDMO-100) Patented Design & Technology Proprietary Information

  2. Problems with Current Sights • IT&T sold thousands red dot sights to US and NATO forces • Red dot sights require that shooters to position behind a sight, exposing their bodies to potential enemy fires during target acquisition and engagement. • Users need one sight for the M2HB, M240, Minigun and M249. There are NO universal machine gun sights • More accuracy • Not sufficient range selections from 200m-2000m. • Range selection in 100m increments (More choices) • Quickly deployable a 3x or 5x magnification device for better target identification Patented Design & Technology

  3. Solution- The Digital Machine gun Optic(Model: IDMO-100) The DMO with a bullet drop compensation wheel ensures that every round is on target (pinpoint accuracy) to ultimately suppress enemies faster, reduce collateral damages, and conserve ammunitions. The IDMO offers shooters the accuracy of sights plus additional protection and safety by minimizing body exposure during engagement with enemies. It is developed to minimize casualties! Users of the IDMO are not required to position their bodies behind the sight. Using a HMD mounted on a helmet, shooters can quickly acquire targets, and deliver a firepower with a pinpoint accuracy enhancing shooters confidence in the field. This high performance digital sight will take your shooting ability to the next level offering superior protection. Patented Design & Technology

  4. Applications with Various Platforms • This high performance Digital Sight has demanding applications for the armed forces. • Armored Vehicles • Helicopters • Sea(Patrol Boats) Patented Design & Technology

  5. Main Components • The DMO-1 consists of the following modules: • The Universal Machinegun Mount (UMM) • Bullet Compensation Wheel (7.62 or12.7mm) • Rails • Digital Module • Rugged camera • Laser illuminator • Control box • Battery • Cables • Switches • Displays • HMD • Mini DVR Monitor Patented Design & Technology

  6. Digital Module Laser illuminator Camera • The DMO comes with a rugged camera with up to 3x digital zoom capability • With a built-in laser illuminator, it allows gunners to operate during day and night. The laser illuminator will be automatically activated for low-light target identification and precise shot placement. • The laser illuminator will bring the light of day upon dark and uncertain situations!! • The IR detector installed with the DMO detects a laser beam (wavelength from 500nm to 900nm). • The IR detector will provide an early warning to DMO users for possible enemy fires. • Using a control box, the shooter can focus up to 3x for better identification of an area of interest. • The DMO allows the shooter to stay under or behind a crew served infantry weapon during battlefield conditions. Patented Design & Technology

  7. The Universal Machinegun Mount (UMM) A bullet drop compensation wheel (7.62 or 12.7 mm) UMM • A bullet drop compensation wheel (7.62 or 12.7mm) • It can be easily installed into the DMO • A user can select a desired caliber setting (e.g., 7.62mm or 12.7mm) just by installing the right wheel. • A bullet drop compensation wheel may be used to compensate in 100m increments 200, 300, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300, 1400, 1500 in the case of 7.62mm caliber arms (with an effective range=800m, Max=1200m). • In the case of the 12.7mm caliber, it may be used for 200,300, 400, 500,600, 700 800, 900, 1000, 1100, 1200, 1300, 1400, 1600, 1800, 2000 (in meters). • Total =16 settings • The DMO may include additional bullet drop compensation wheels to accommodate other calibers, such as 5.56mm, 20mm, and others. • A bullet drop compensation wheel corresponds to one set of caliber and is exchangeable with another bullet drop compensation wheel corresponding to a different caliber. Patented Design & Technology

  8. Why Use the Universal Machinegun Mount?Model number: UMM-1 It is designed to work with any sights!! Patented Design & Technology

  9. Digital Machinegun Optic(IDMO-100) Option Digital Module + = Universal Machinegun Mount Digital Machinegun Optic Patented Design & Technology

  10. Option: Universal Machinegun Sight Optical Module + Universal Machinegun Sight Universal Machinegun Mount Patented Design & Technology

  11. Control Box and HMD • The DMO with a built in camera, it captures and displays real-time video on the user’s eye-piece or head mounted display (HMD). • The DMO also Day and Night sight with a built in laser illuminator • The DMO is designed and developed to accommodate 3 reticles. It offers reticles for: -Ground Force application -Maritime application -Helicopter application • Our HMD displays for hands free access to situational awareness (SA) data and High Definition Video. A soldier views real-time video using a HMD. • The Mini DVR monitor can also display real time videos • The control box can be used to select 1x-3x magnification Patented Design & Technology

  12. Integrated Digital Machinegun Optic Control Box Module HMD Option Mini DVR Monitor by 2.5”LCD with Flash Memory slot to use Video Recording/Playback) Digital Machinegun Optic Patented Design & Technology

  13. Option: 2 Mil-Std-1913 Rail System 1 • The unit comes with 2 additional rails to install: • Infrared Laser Pointer • Flash light • LRF • Laser Ocular Disrupter • Others 2 • 2.5 inch Portable TFT LCD Monitor • Small • Very light • Video connection with DMO • Included Wrist band to use straps onto your Arm Patented Design & Technology

  14. Why upgrade with the DMO? • Benefits for Armored vehicles or Tank Gunners • Gunners operating light, medium and heavy caliber weapons installed on ground combat vehicles have a very limited protection against enemy fire power. • Typically, the gunner must expose his upper-body in order to position behind a crew served weapon. Retrofitting a crew served with the DMO allows a gunner to remain in the relative protection of the vehicle. • Like a remote weapon station, the DMO provides gunners the ability to acquire and engage targets while staying under an armored shield or protected armor. • The DMMO provides Gunners a superior protection!! Patented Design & Technology

  15. Why upgrade with the DMO? • Benefits for Helicopter Gunners • The Door Gunner position requires manning a machine gun in the open door of a helicopter. • Today, helicopters (UH-60) have two machine guns and gunners are still firing from an open cabin door. • Door Gunners were normally restrained for safety within the aircraft by using a standard seat lap belt to prevent them from falling out of the helicopter if they leaned outward on the helicopter skids, to get a better firing angle. • Equipping machine guns such as the M240, or M2HB, or M134 Minigun with the DMO will eliminate the need to lean outward on the helicopter skids to get a better firing angle. • Door gunners can remain inside the helicopter skids and still effectively target and engage enemies using our HMD. • Door gunners will always get the best firing angle sitting comfortable and safely inside the helicopter. In addition, the DMO will also allow gunners aim and engage targets in the front and the rear of the helicopter. Patented Design & Technology

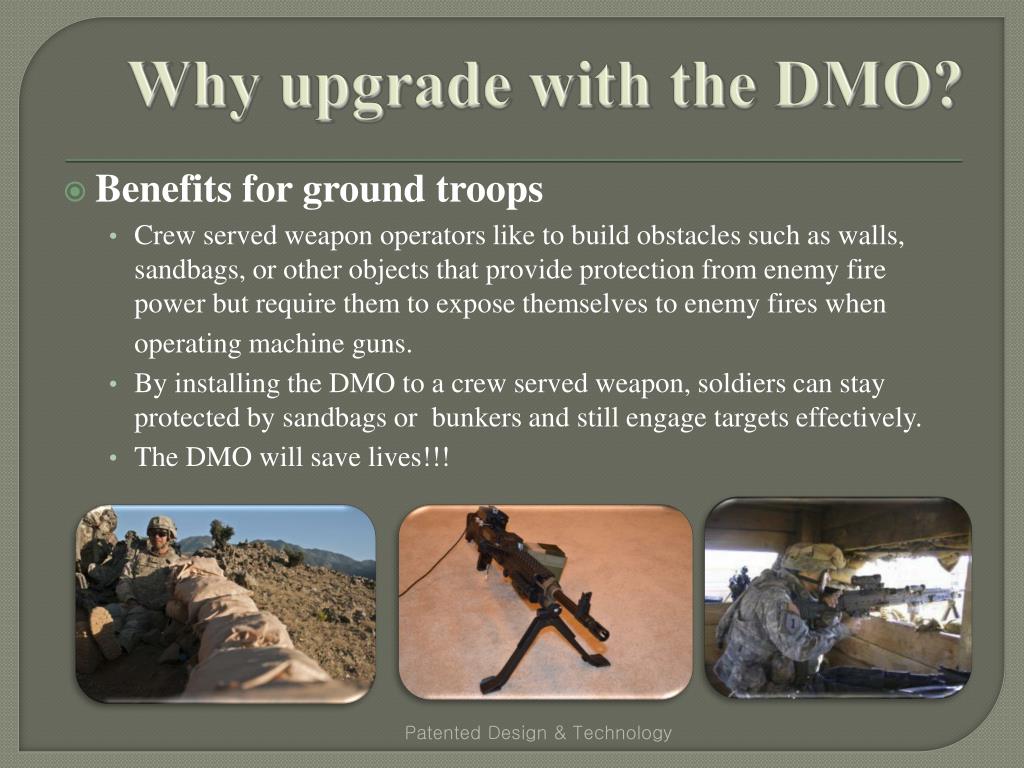

  16. Why upgrade with the DMO? • Benefits for ground troops • Crew served weapon operators like to build obstacles such as walls, sandbags, or other objects that provide protection from enemy fire power but require them to expose themselves to enemy fires when operating machine guns. • By installing the DMO to a crew served weapon, soldiers can stay protected by sandbags or bunkers and still engage targets effectively. • The DMO will save lives!!! Patented Design & Technology

  17. Patented Design & Technology

  18. Patented Design & Technology

  19. Worldwide Sales Office 6619 Ivy Hill Dr., McLean, VA 22101 Tel: 703-929-0595 * sg@inter2t.com
