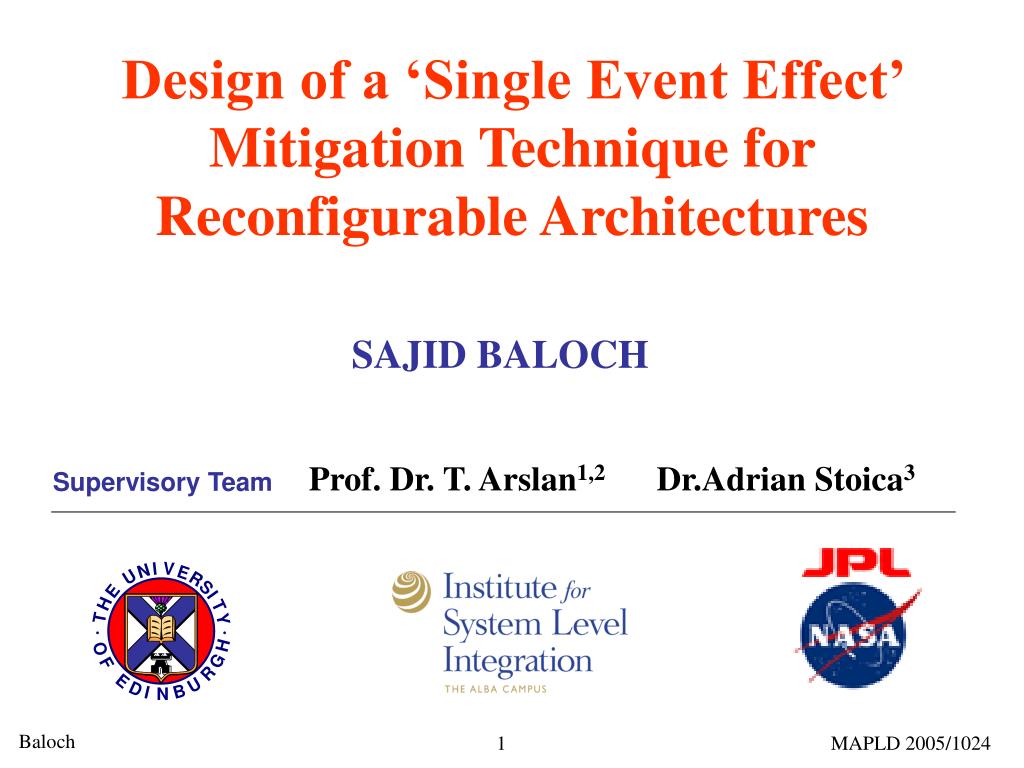

  1. Design of a ‘Single Event Effect’ Mitigation Technique for Reconfigurable Architectures SAJID BALOCH Prof. Dr. T. Arslan1,2 Dr.Adrian Stoica3 Supervisory Team

  2. ACRONYMES • SEU (Single Event Effect) • SET (Single Event Transient) • SEB (Single Event Burnout) • SEL (Single Event Latch-up) • Cfg (Configuration) • EDAC (Error Detection and Correction) • SoC (System on Chip) • FPGA (Field Programmable Gate Array) • DEU (Double Event Upset) • TEU (Triple Event Upset ) • MEU (Multiple Event Upsets)

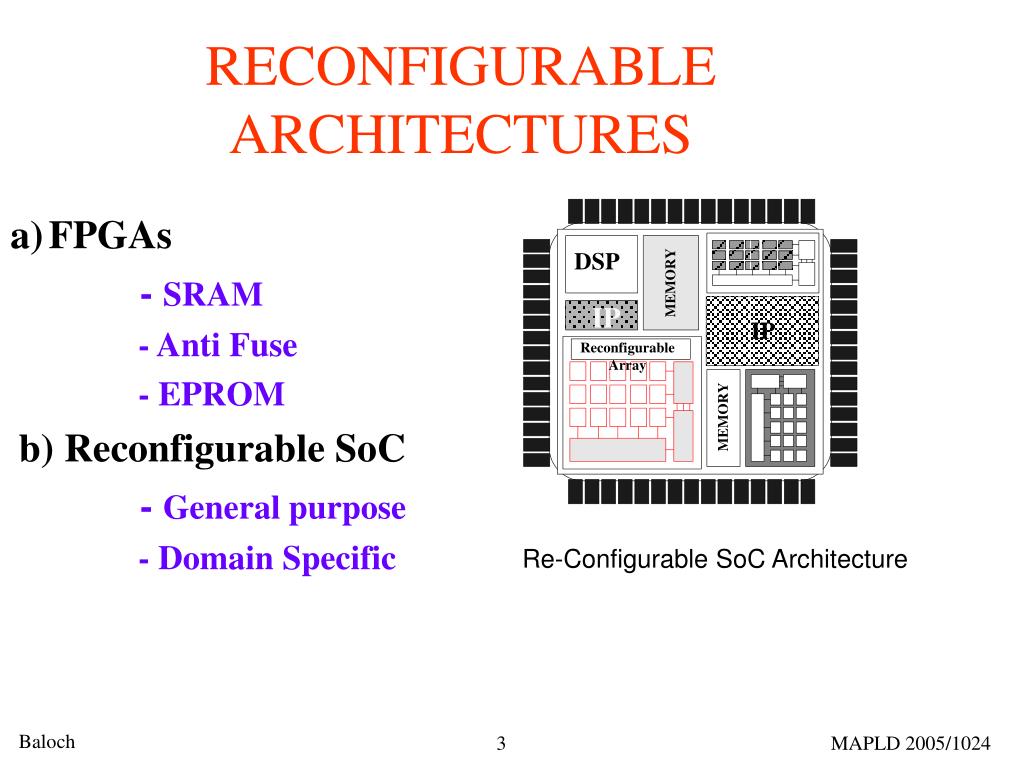

  3. RECONFIGURABLE ARCHITECTURES a) FPGAs - SRAM - Anti Fuse - EPROM b) Reconfigurable SoC - General purpose - Domain Specific Re-Configurable SoC Architecture

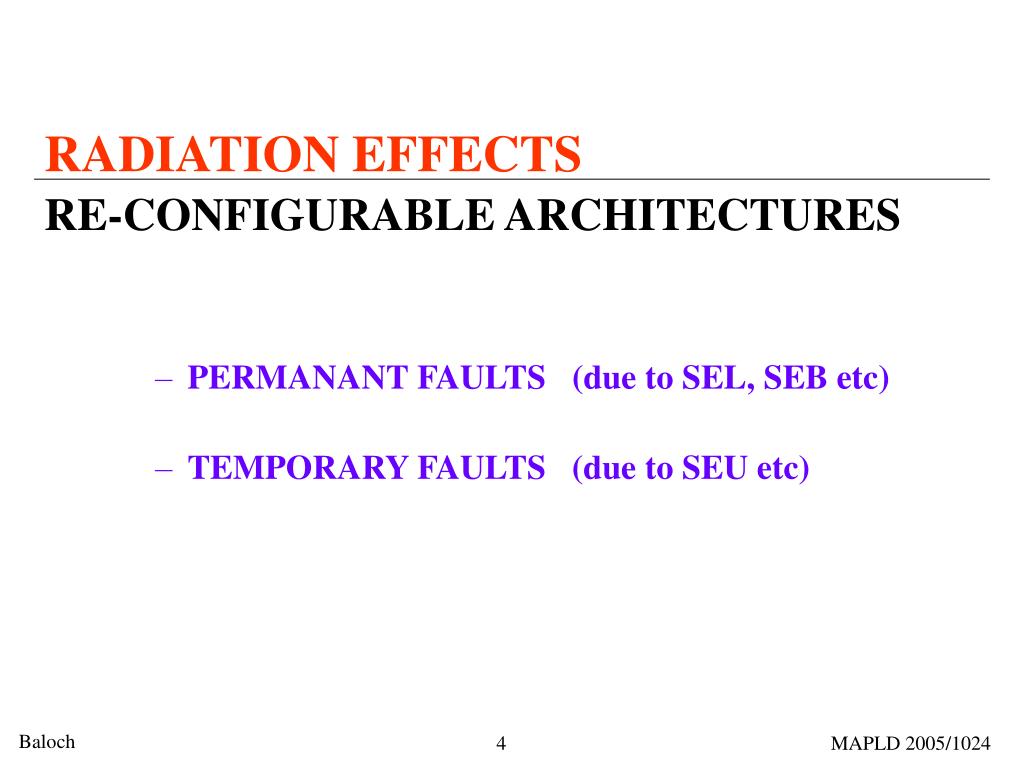

  4. RADIATION EFFECTSRE-CONFIGURABLE ARCHITECTURES • PERMANANT FAULTS (due to SEL, SEB etc) • TEMPORARY FAULTS (due to SEU etc)

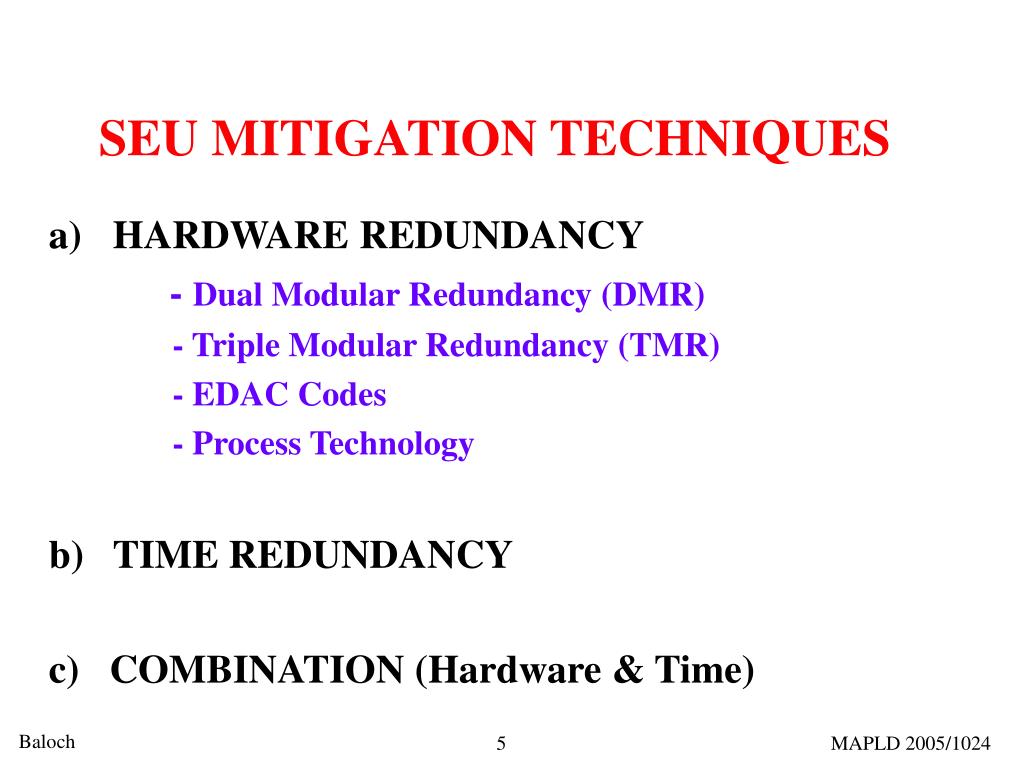

  5. SEU MITIGATION TECHNIQUES a) HARDWARE REDUNDANCY - Dual Modular Redundancy (DMR) - Triple Modular Redundancy (TMR) - EDAC Codes - Process Technology b) TIME REDUNDANCY c) COMBINATION (Hardware & Time)

  6. Radiation HardeningSEU EFFECTS • TRANSIENT FAULTS (Data Memory etc) • PERMANANT FAULTS (Cfg. Memory)

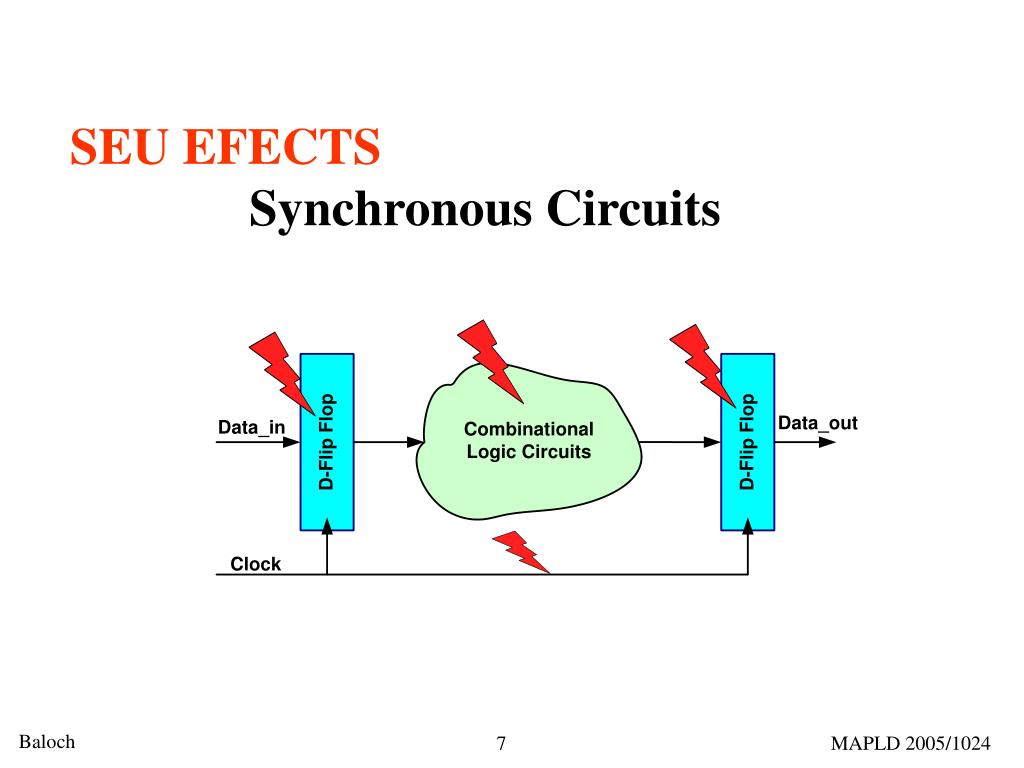

  7. SEU EFECTS Synchronous Circuits

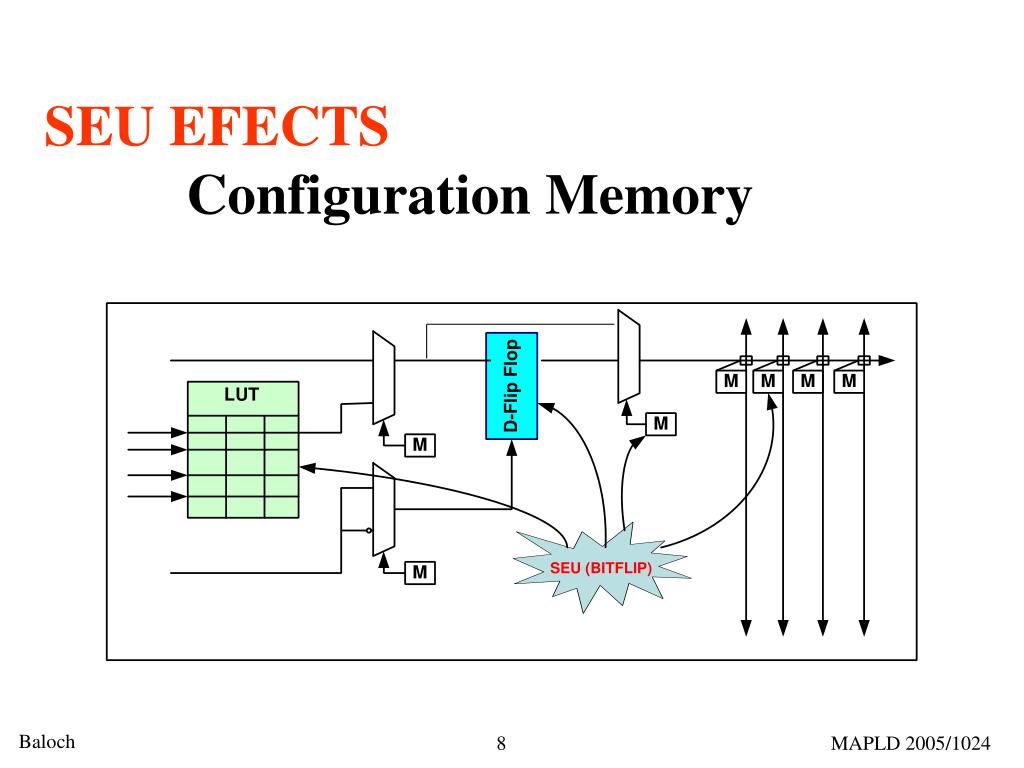

  8. SEU EFECTS Configuration Memory

  9. SEU EFECTS ROUTING OF A SIGNAL

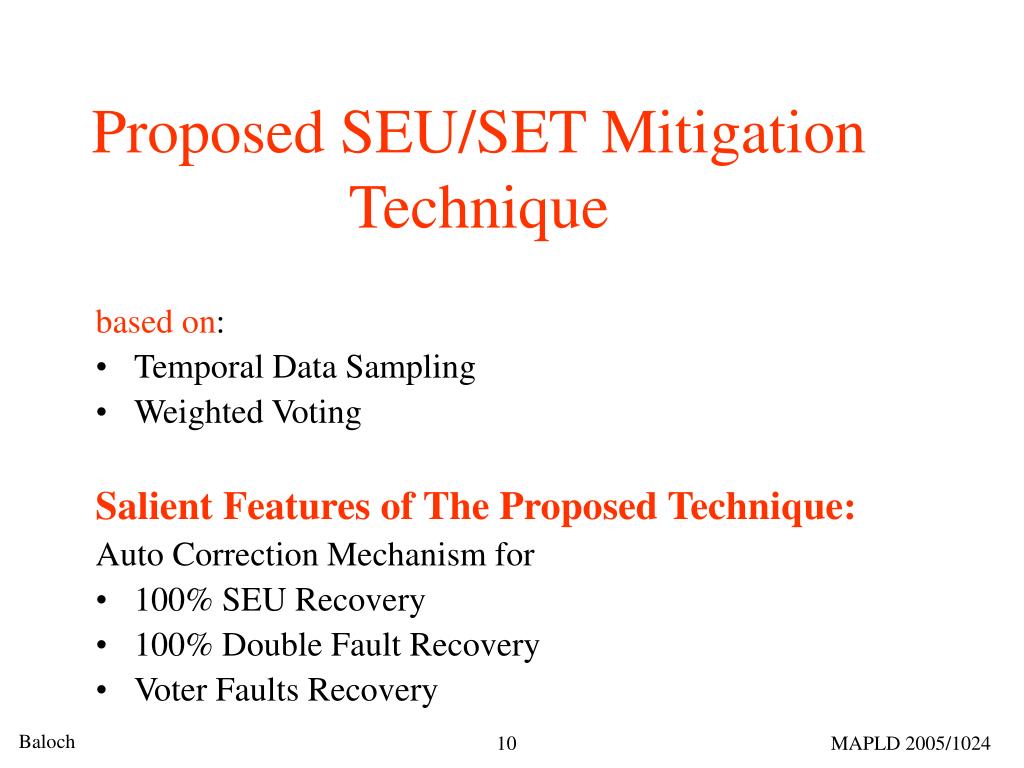

  10. Proposed SEU/SET MitigationTechnique based on: • Temporal Data Sampling • Weighted Voting Salient Features of The Proposed Technique: Auto Correction Mechanism for • 100% SEU Recovery • 100% Double Fault Recovery • Voter Faults Recovery

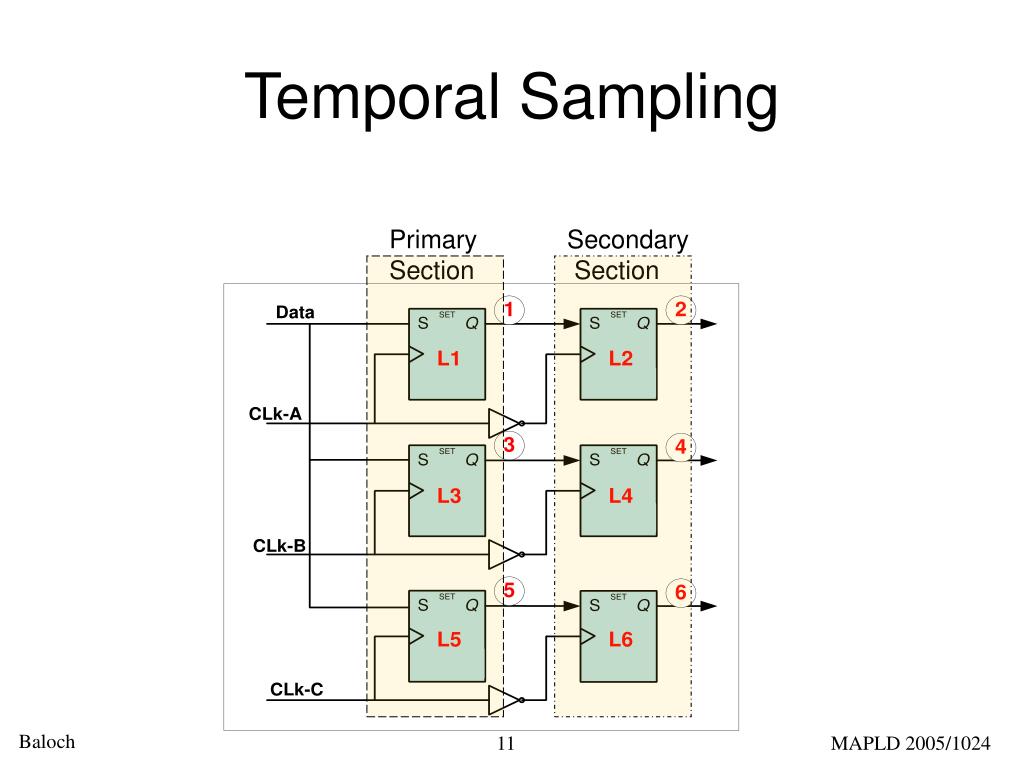

  11. Temporal Sampling Primary Section Secondary Section

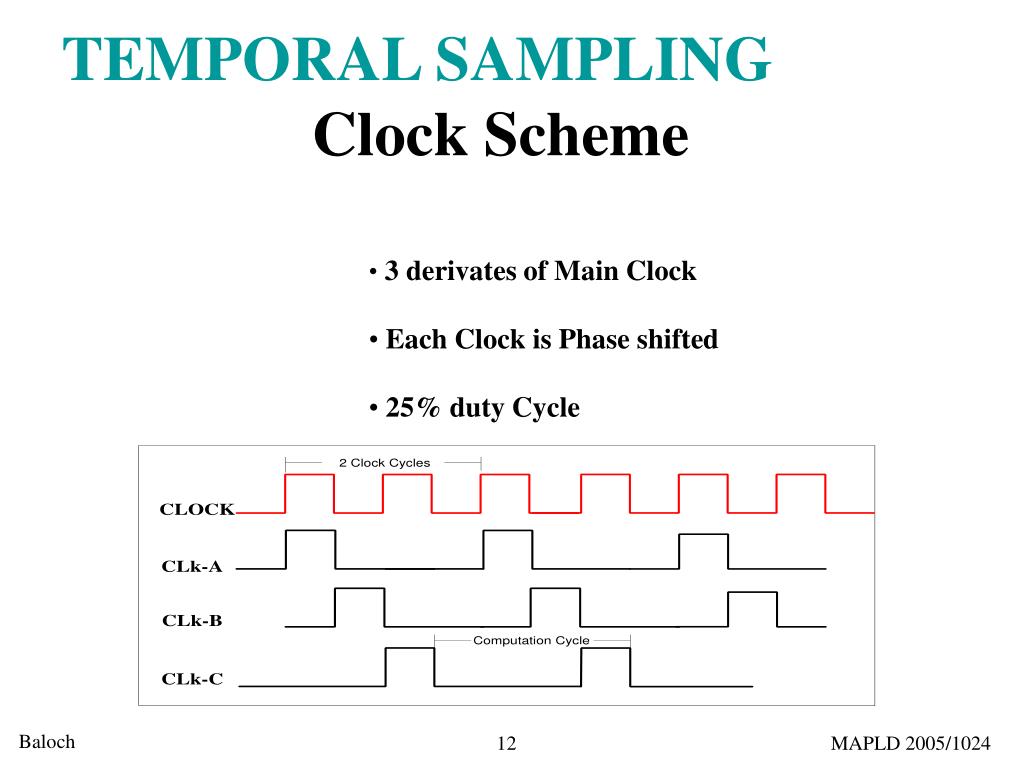

  12. TEMPORAL SAMPLING Clock Scheme • 3 derivates of Main Clock • Each Clock is Phase shifted • 25% duty Cycle

  13. Minimized TermX4.X3.X0 + X5.X3.X0 + X5.X4.X0 + X4.X3.X1 + X5.X3.X1 + X5.X4.X1 + X4.X3.X2 + X5.X3.X2 + X5.X4.X2 + X5.X4.X3 + X3.X2.X1.X0 + X4.X2.X1.X0 + X5.X2.X1.X0 Weighted Voter Circuit

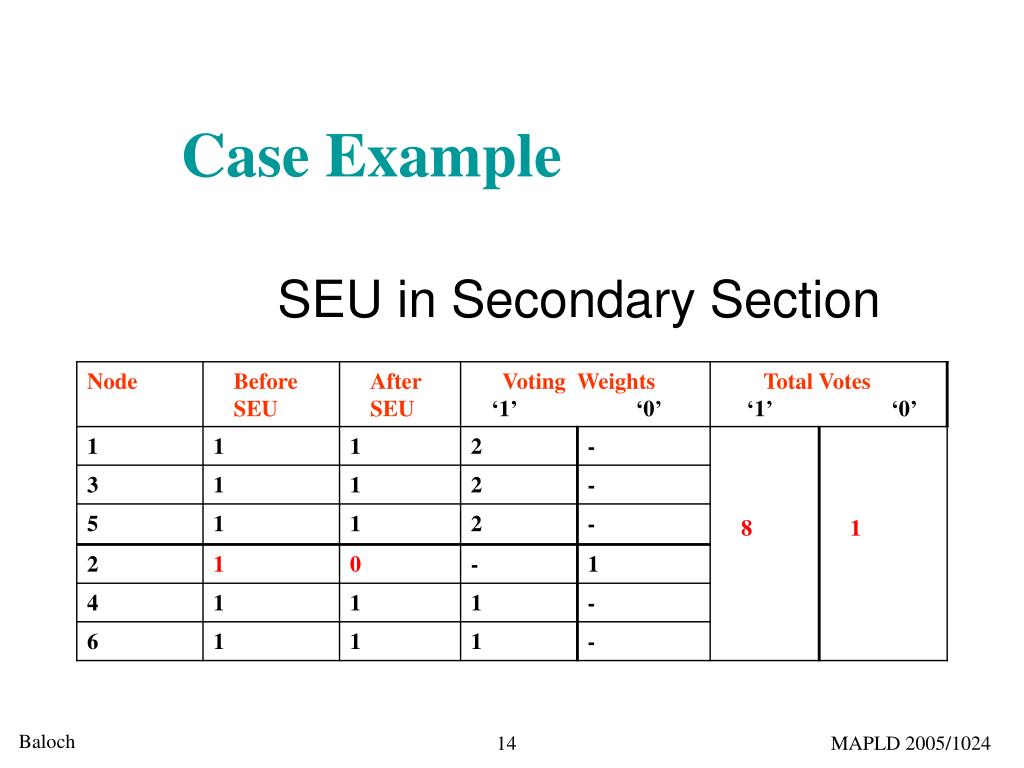

  14. SEU in Secondary Section Case Example

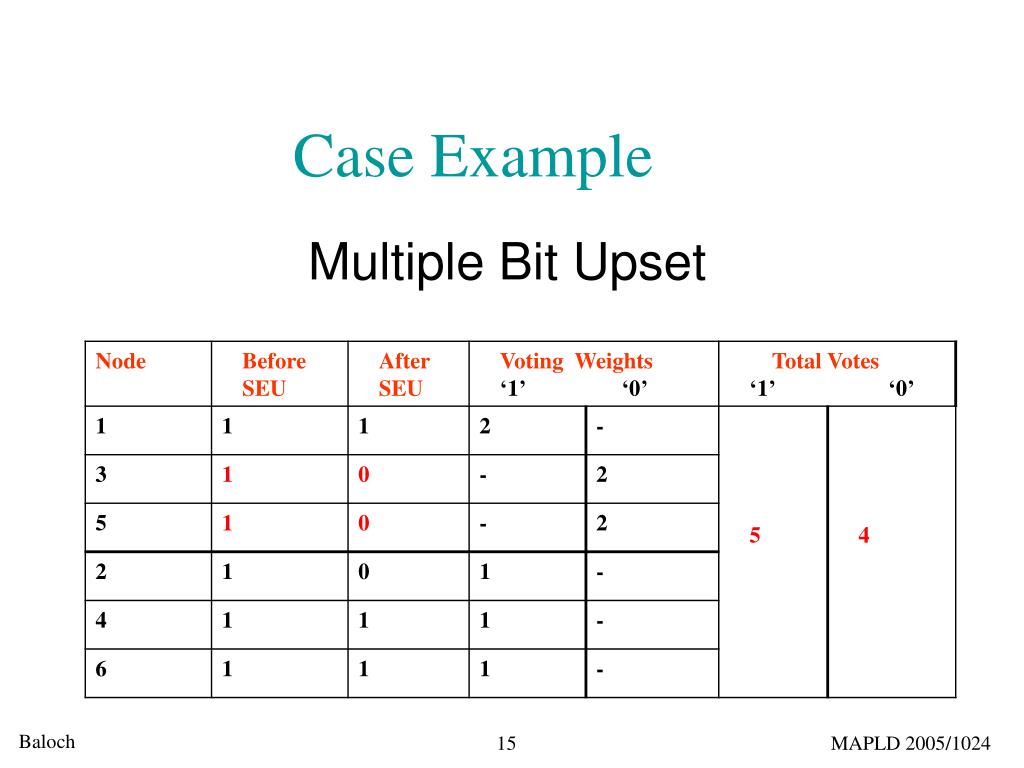

  15. Multiple Bit Upset Case Example

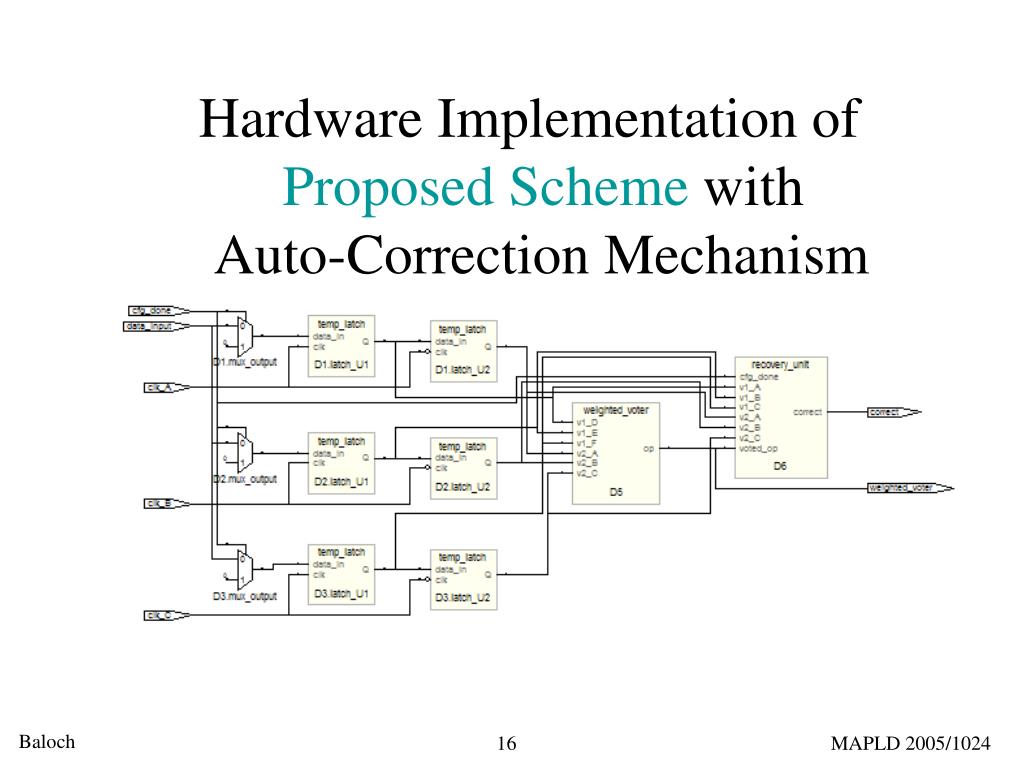

  16. Hardware Implementation of Proposed Scheme with Auto-Correction Mechanism

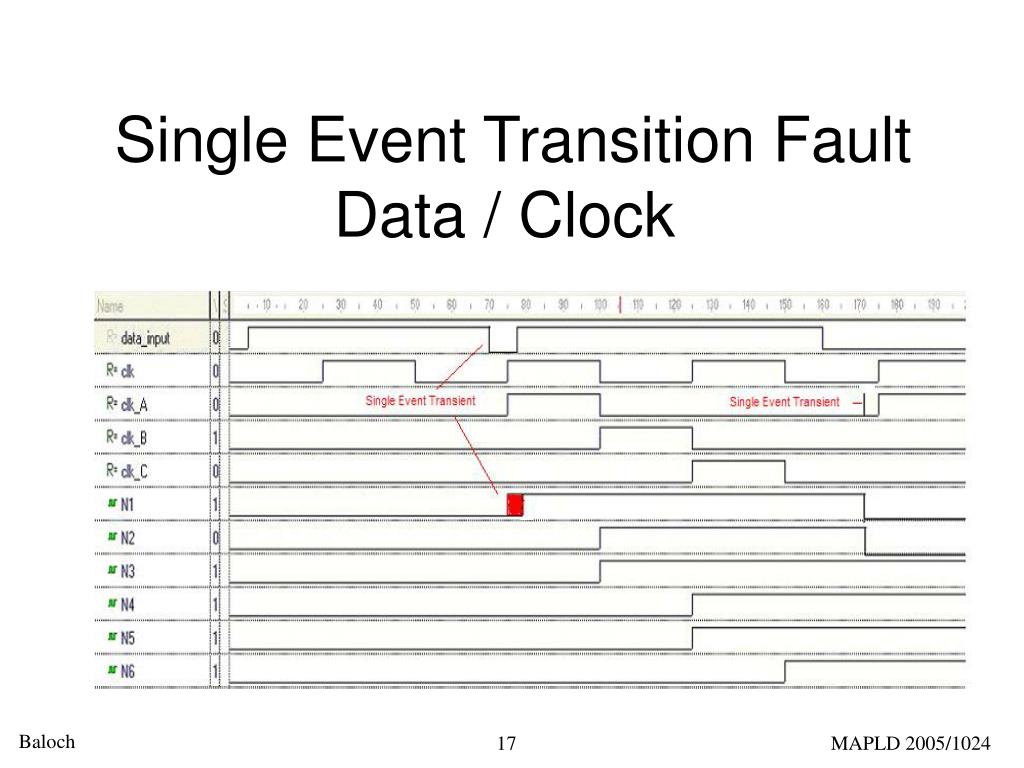

  17. Single Event Transition FaultData / Clock

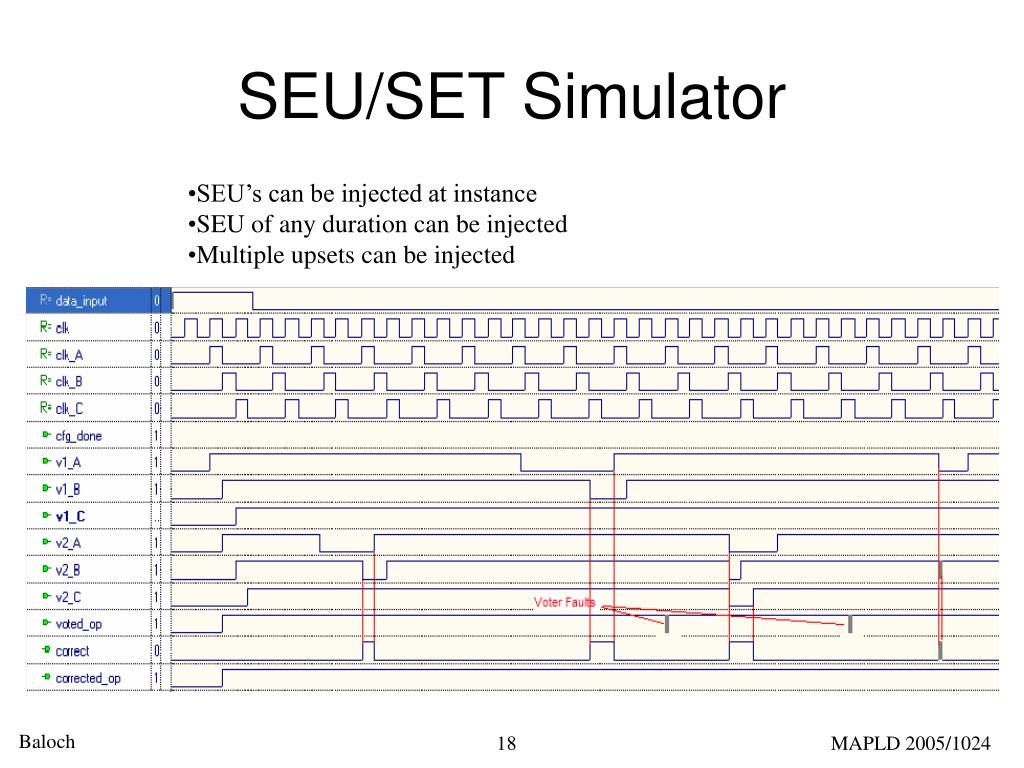

  18. SEU/SET Simulator • SEU’s can be injected at instance • SEU of any duration can be injected • Multiple upsets can be injected

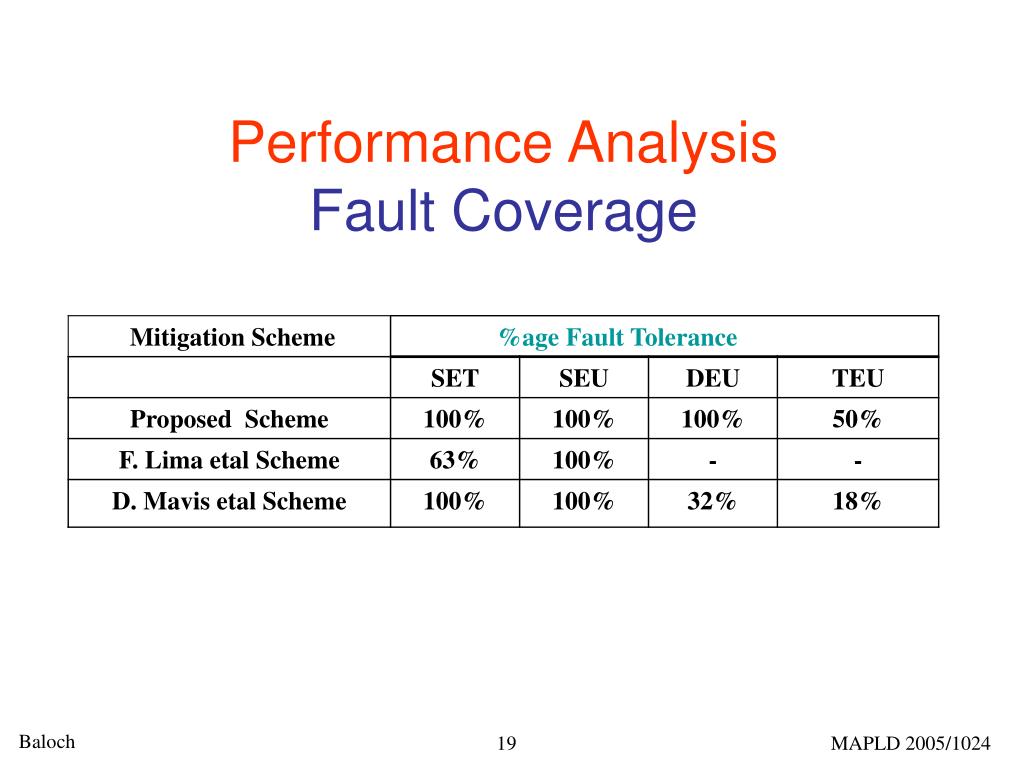

  19. Performance AnalysisFault Coverage

  20. Performance AnalysisArea Overhead Results are based on: 0.13µm CMOS technology
