  1. Electric Field

  2. Electric Field – The space around an electrically charged body which exerts a force on a charge placed within the field. The field exerts the force.

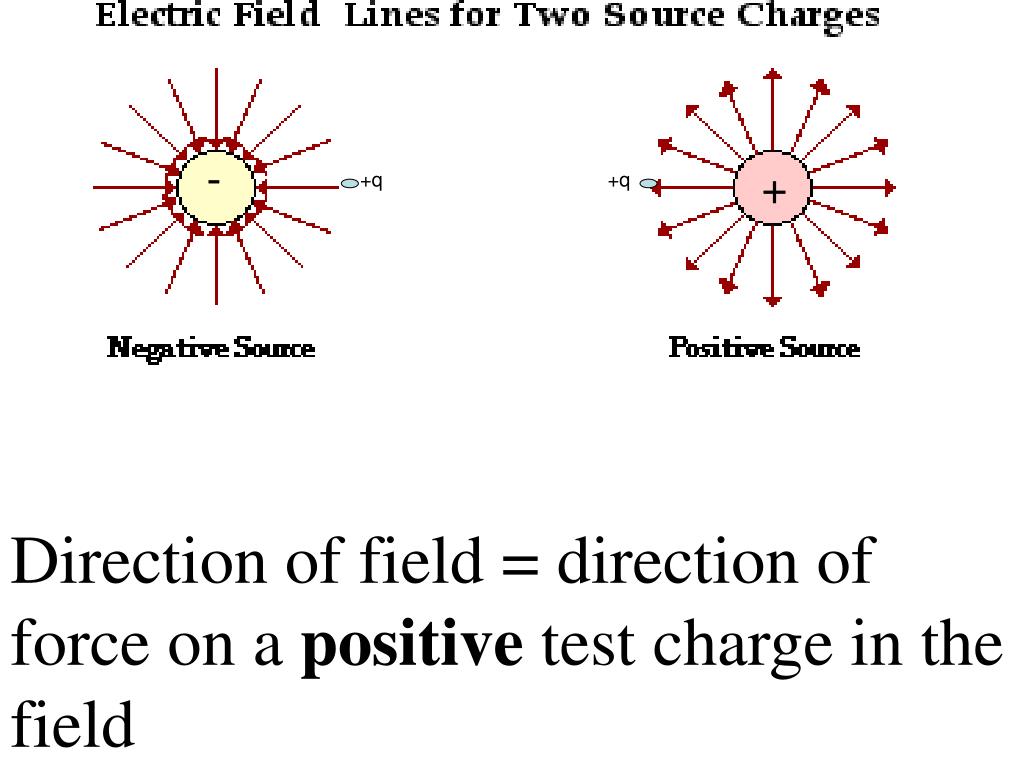

  3. - + +q +q Direction of field = direction of force on a positive test charge in the field

  4. Electric Field Strength – force exerted per unit charge in the field E = Fon q/q units: N/C E does not depend on the test charge; only on the charges producing the field

  5. E due to a single point charge = kQ/r2 =(kqQ/r2)/q E = F/q = (1/(4Πε0))Q/r2 Fon q = qE direction: same as field for +q opposite field for -q

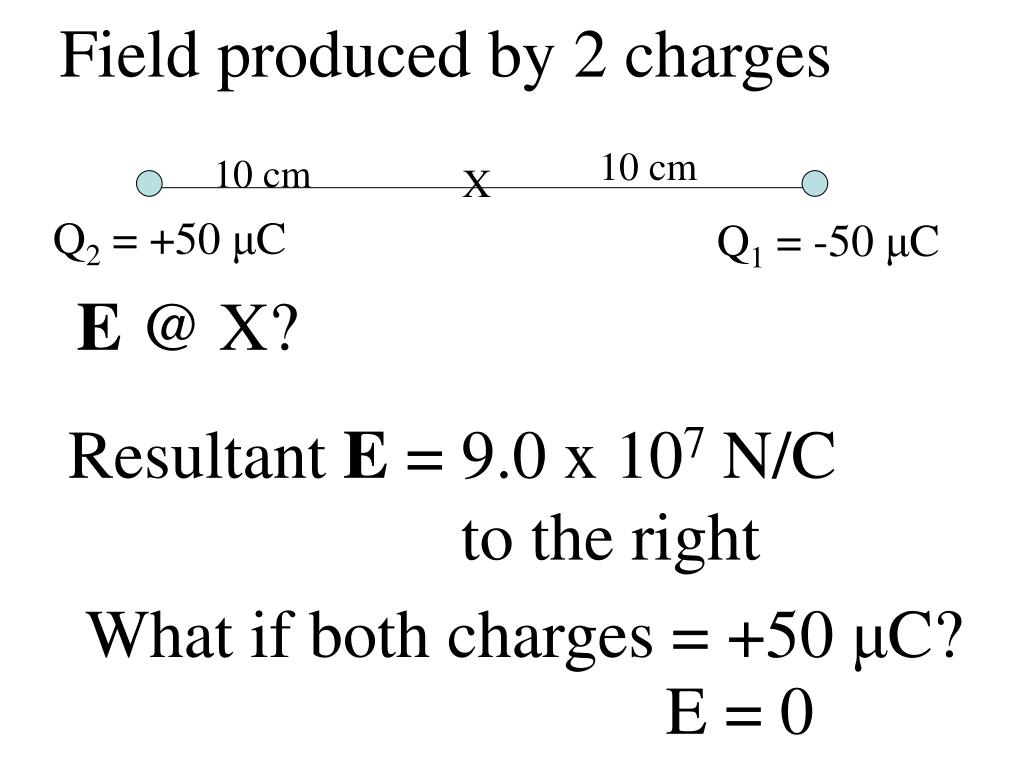

  6. Field produced by 2 charges 10 cm 10 cm X Q2 = +50 μC Q1 = -50 μC E @ X? Resultant E = 9.0 x 107 N/C to the right What if both charges = +50 μC? E = 0

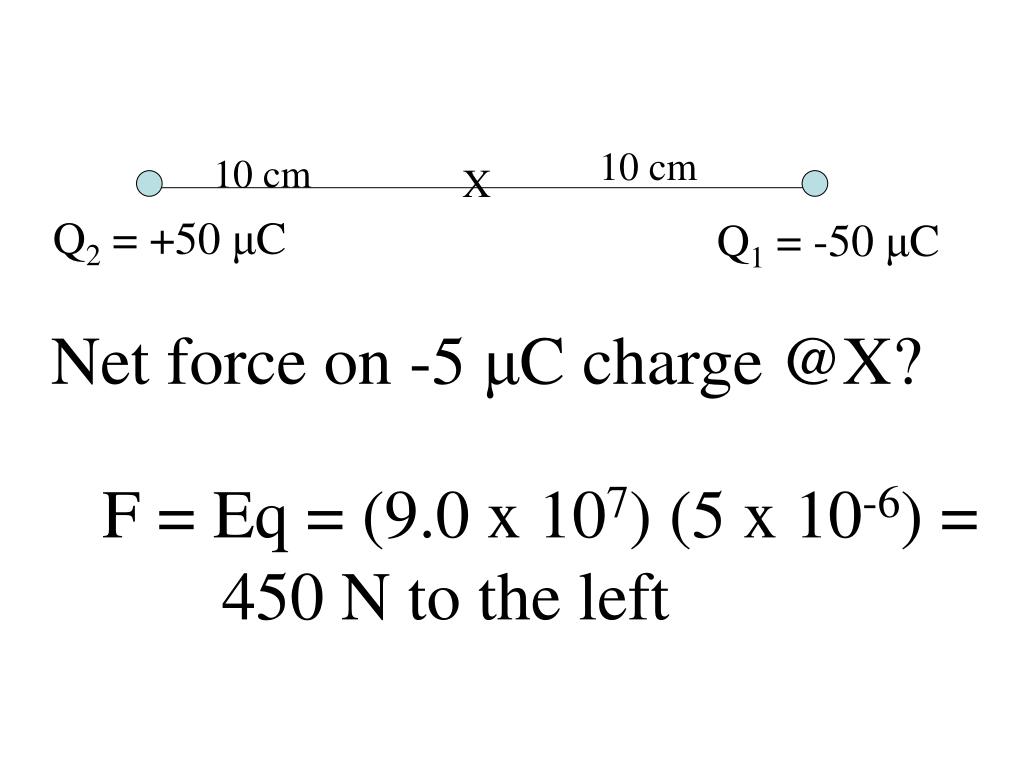

  7. 10 cm 10 cm X Q2 = +50 μC Q1 = -50 μC Net force on -5 μC charge @X? F = Eq = (9.0 x 107) (5 x 10-6) = 450 N to the left

  8. Q2 = +50 μC 10 cm Q1 = -50 μC 10 cm E @ origin? 6.4 x 107 N/C @ 45° down from +x axis

  9. +Q d +Q d (√2) kQ/d2 @ 45° down from –x axis E @ origin? If put –q charge @ origin, force on this charge? (√2) kQq/d2 @ 45° up from +x axis

  10. X s s +Q +Q s E @ X?

  11. +Q s s +Q +Q s E @ center of triangle?
