  1. Bayesian network for gene regulatory network construction Jin Chen CSE891-001 2012 Fall

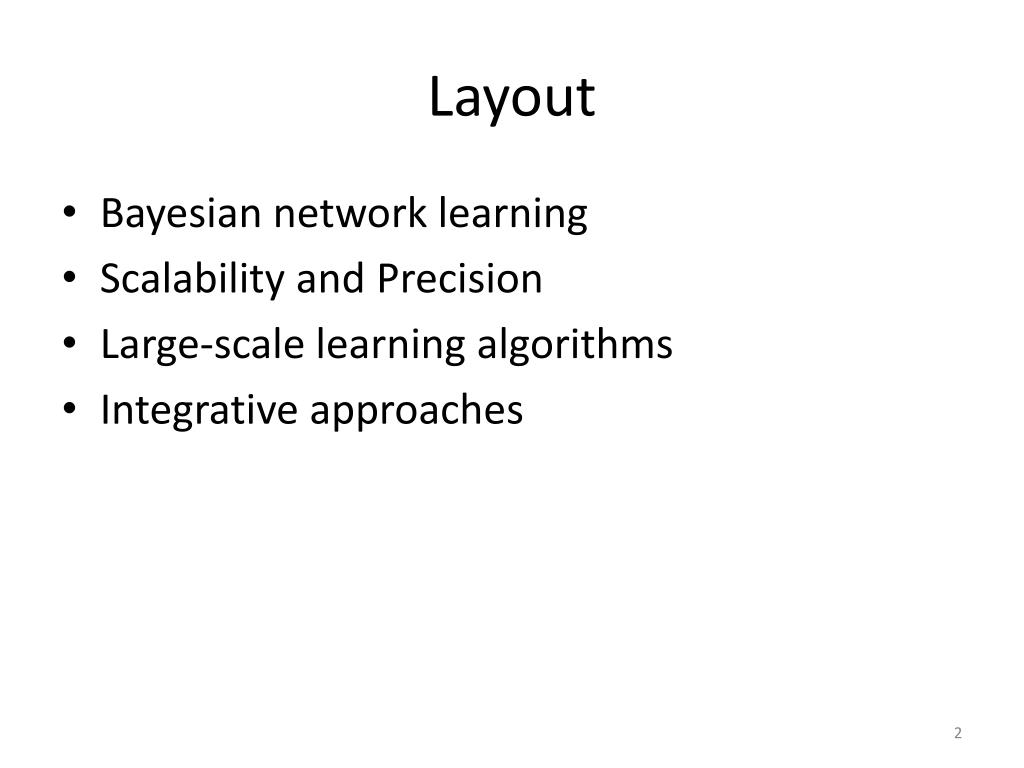

  2. Layout • Bayesian network learning • Scalability and Precision • Large-scale learning algorithms • Integrative approaches

  3. Bayesian network - concept • A Bayesian network X is a probabilistic graphical model that represents a set of random variables and their conditional dependencies via a directed acyclic graph • nodes  variable; edges  conditional dependency • Disconnected nodes  variables are conditionally independent of each other • Each node is associated with a probability function that takes as input a set of values for the node's parent and gives the probability of the variable represented by the node adopted from Wikipedia

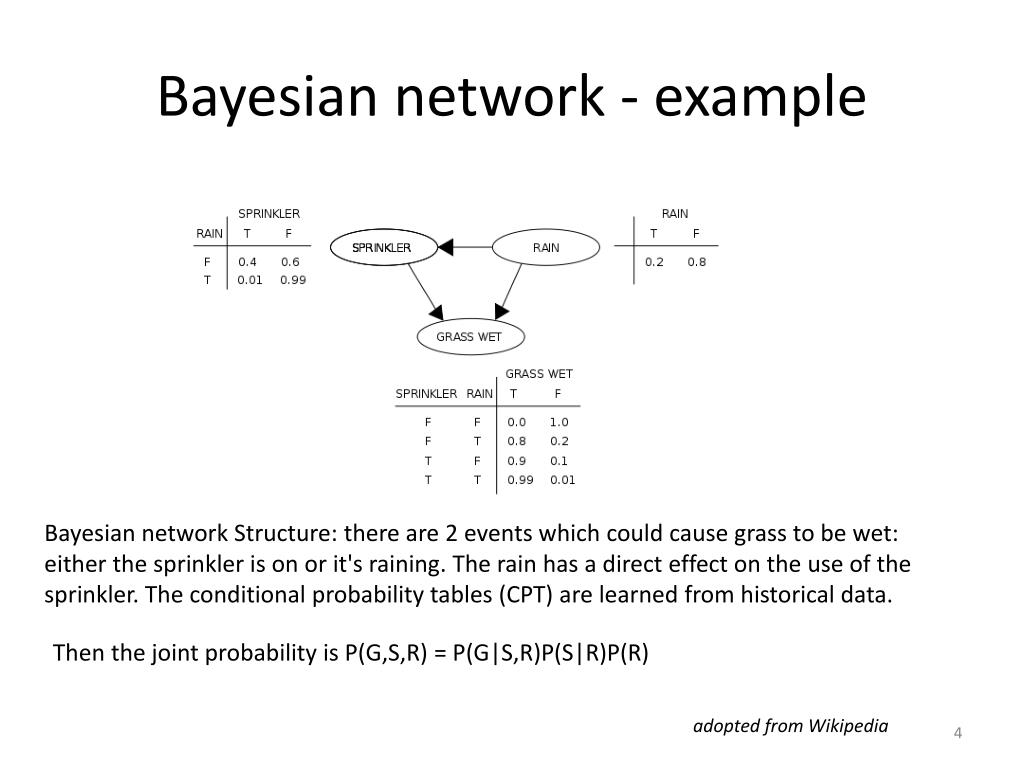

  4. Bayesian network - example Bayesian network Structure: there are 2 events which could cause grass to be wet: either the sprinkler is on or it's raining. The rain has a direct effect on the use of the sprinkler. The conditional probability tables (CPT) are learned from historical data. Then the joint probability is P(G,S,R) = P(G|S,R)P(S|R)P(R) adopted from Wikipedia

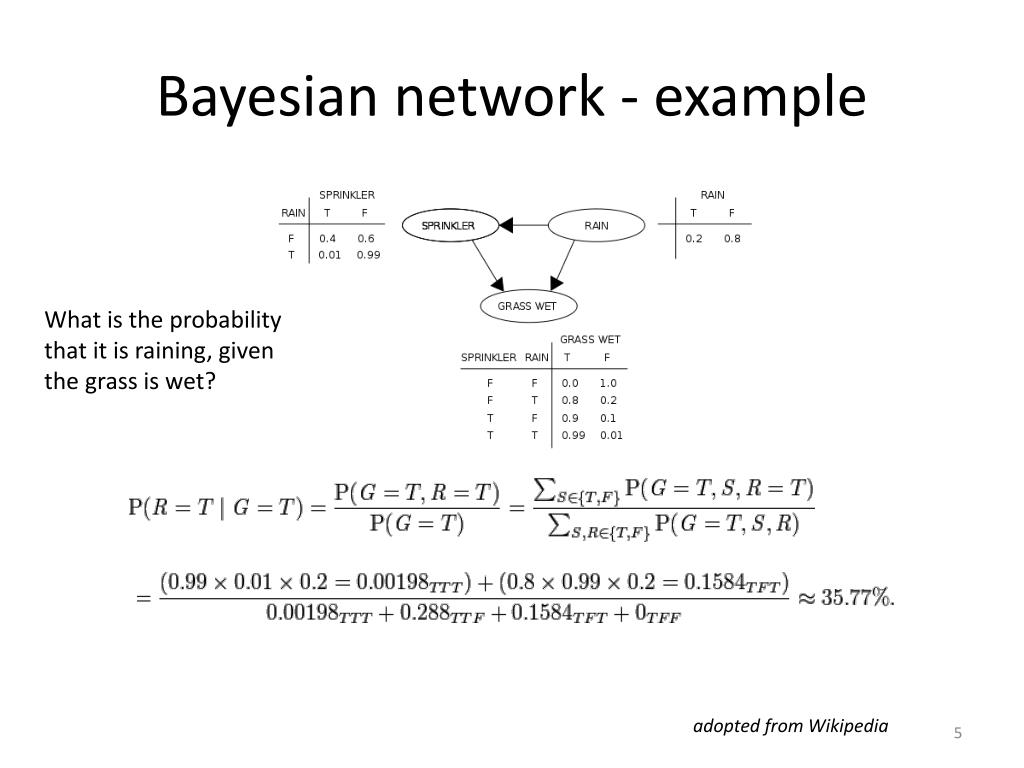

  5. Bayesian network - example What is the probability that it is raining, given the grass is wet? adopted from Wikipedia

  6. Bayesian network – structure learning • In the simplest case, a Bayesian network structure is specified by an expert and is then used to perform inference • In the cases that the task of defining the network structure is too complex for humans, the network structure and the parameters of the local distributions must be learned from data • Automatically learning the structure of a Bayesian network is a challenge pursued within machine learning • Methods of structural learning usually uses optimization based search, which requires a scoring function and a search strategy • The time requirement of an exhaustive search returning back a structure that maximizes the score is super-exponential in the number of variables

  7. Bayesian network learning for gene regulatory networks • Bayesian networks are well suited to model relationships between genes because: • BN uses an acyclic direct graph to denote the relationship between the variables of interest (genes), thus can naturally model causal relationships between genes • BN has a solid theoretical foundation and offers a probabilistic approach to accommodate the variations typically observed in microarray experiments • BN can accommodate missing data and incorporate prior knowledge through prior distribution of the parameters

  8. Gene regulatory network construction • Various GRN structure learning approaches • Pair-wise comparison • Differential equation estimation • Bayesian network learning • Common problem: only a relatively small number of genes were included into the network • Recent studies have been targeted at deriving the large-scale or even complete networks

  9. Gene regulatory network construction • Use a combination of scoring approaches and K2 algorithm to maximize the computational efficiency of network inference • Step 1. Construct an undirected network based on mutual information (MI). This allows us to search the best DAG in a reduced space • Step 2. Assign directions to the edges. The undirected network is split into sub-networks. Given the node ordering information, the sub-networks are trained with K2 algorithm sequentially. For each sub-network, the directions of edges can be identified based on the BDe score

  10. Constructing undirected networks • Construct undirected networks based on mutual information (MI). • MI between two variables X & Y, denoted by I(X; Y), is defined as the amount of information shared between the two variables. It is used to detect general dependencies in data where

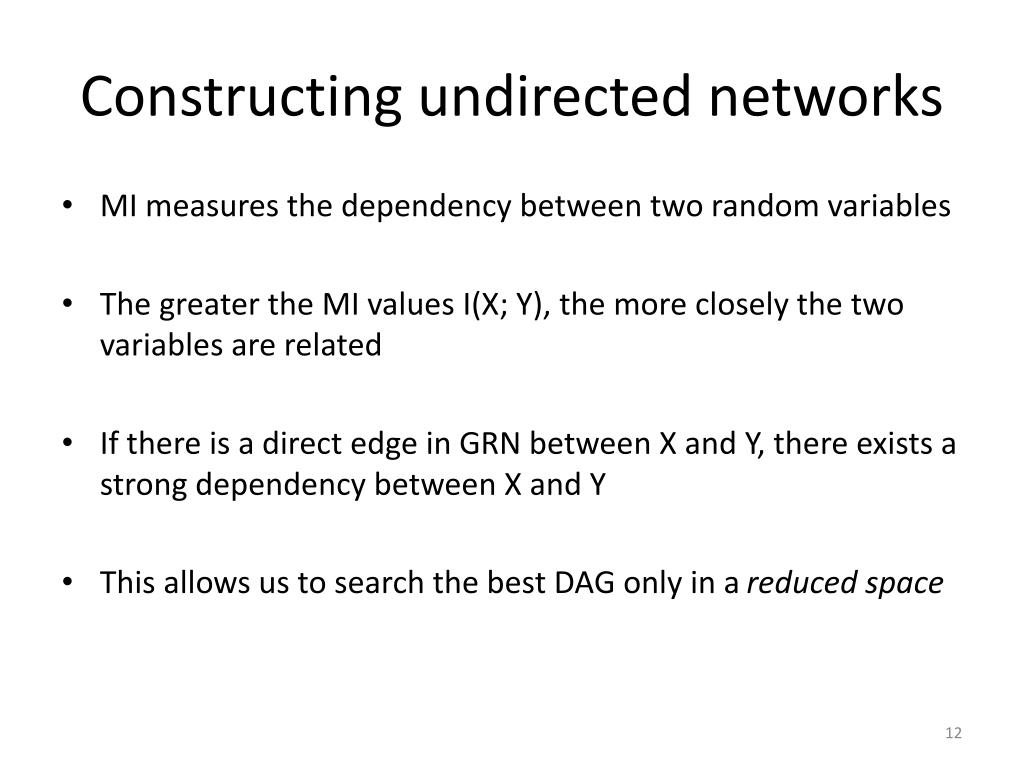

  11. Constructing undirected networks • MI measures the dependency between two random variables • The greater the MI values I(X; Y), the more closely the two variables are related • If there is a direct edge in GRN between X and Y, there exists a strong dependency between X and Y • This allows us to search the best DAG only in a reduced space

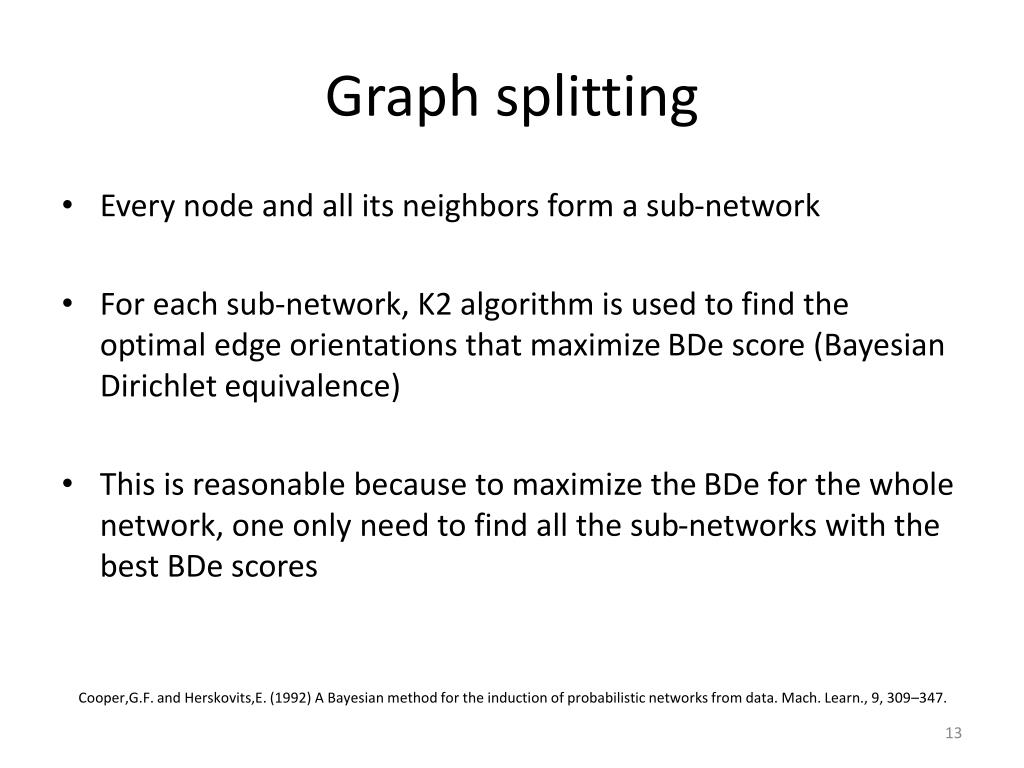

  12. Graph splitting • Every node and all its neighbors form a sub-network • For each sub-network, K2 algorithm is used to find the optimal edge orientations that maximize BDe score (Bayesian Dirichlet equivalence) • This is reasonable because to maximize the BDe for the whole network, one only need to find all the sub-networks with the best BDe scores Cooper,G.F. and Herskovits,E. (1992) A Bayesian method for the induction of probabilistic networks from data. Mach. Learn., 9, 309–347.

  13. Decide the order of sub-networks • In each sub-network, K2 algorithm is run to obtain the best directed sub-network structure • The K2 result of one sub-network may affect the topology of other sub-networks. Thus we need to decide the order of the sub-networks for K2 algorithm • Ordering: for each node in the whole undirected network, the number of edges connecting to it is counted; nodes are then sorted in descending order

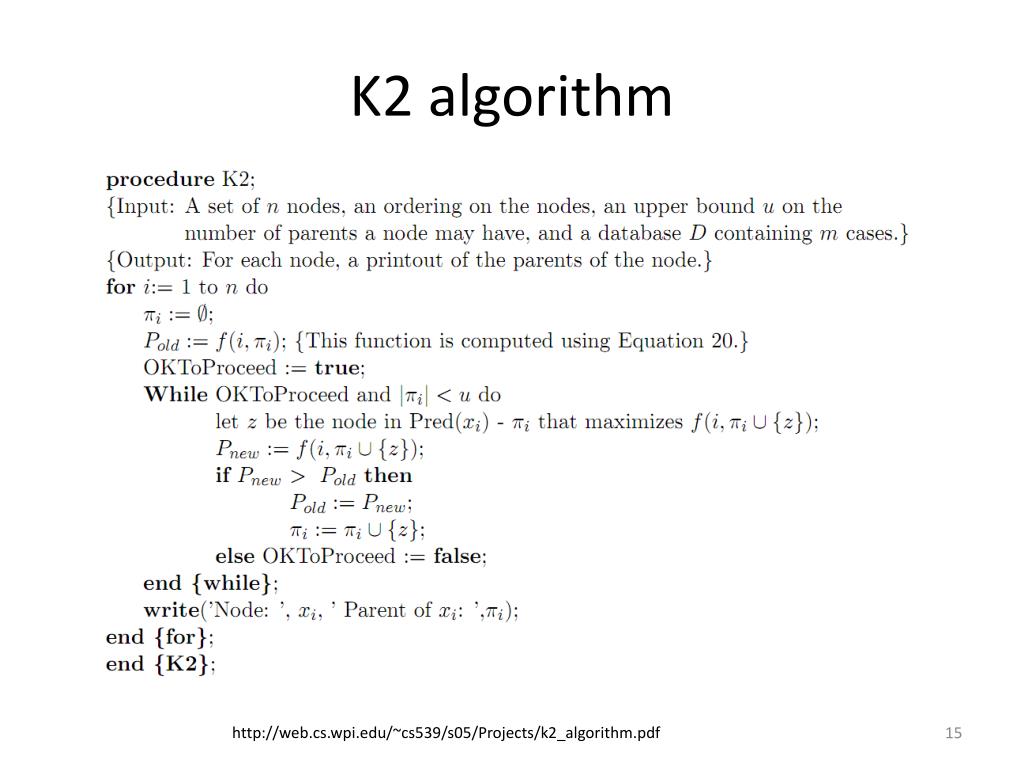

  14. K2 algorithm http://web.cs.wpi.edu/~cs539/s05/Projects/k2_algorithm.pdf

  15. Scoring function

  16. http://web.cs.wpi.edu/~cs539/s05/Projects/k2_algorithm.pdf

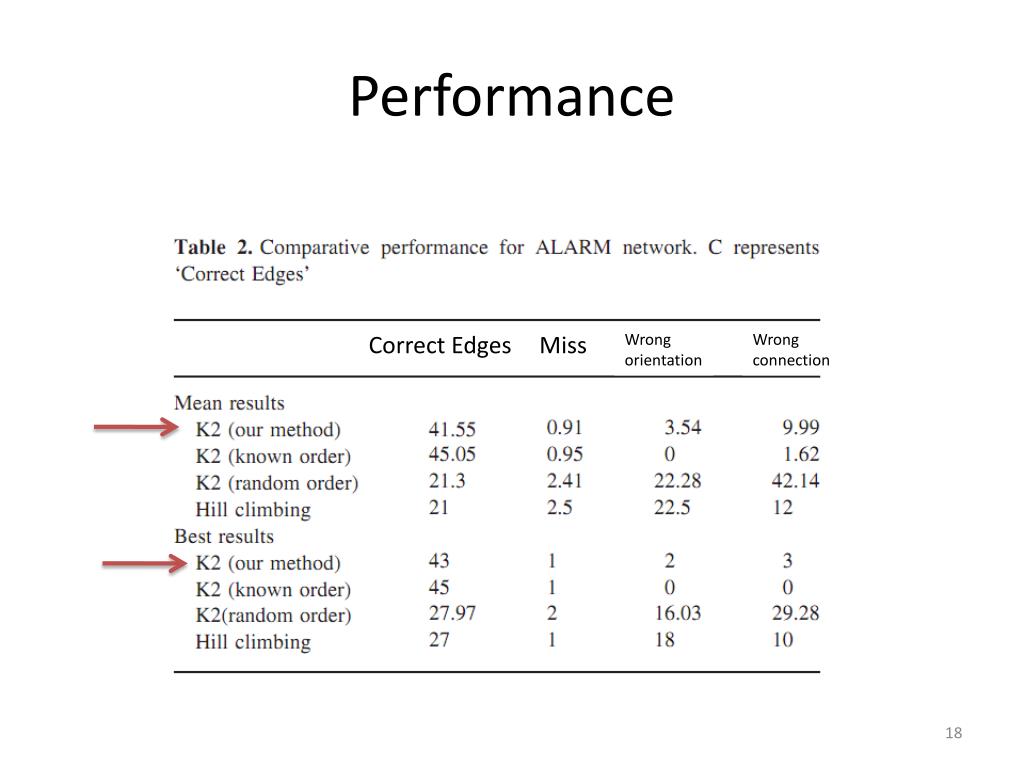

  17. Performance Wrong orientation Wrong connection Correct Edges Miss

  18. Small network

  19. Large network

  20. Further improvement • Ko et al further developed a new Bayesian network, in which Gaussian mixture models is used to describe continuous gene expression data and learn gene pathways • Data discretizationis often required since many approaches to learn network structures were developed for binary or discrete input data • The discretization of continuous values can result in loss of information and different discretizations can substantially change the input values and the inferred network Ko et al. Inference of Gene Pathways Using Gaussian Mixture Models. IEEE International Conference on Bioinformatics and Biomedicine. pp 362-367. 2007

  21. Integrative approaches Tamada et al. Bioinformatics Vol. 19 Suppl. 2 2003, pages ii227–ii236

  22. Dynamic approaches • Reconstruct gene regulatory networks from expression data using dynamic Bayesian network (DBN) Zou M, Conzen SD: A new dynamic Bayesian network (DBN) approach for identifying gene regulatory networks from time course microarray data. Bioinformatics 2005, 21(1):71-79.
