Windows Azure • Windows Azure is the foundation of Microsoft’s Cloud Platform • It is an “Operating System for the Cloud” and provides Essential Services for the Cloud • Virtualized Computation • Scalable Storage • Automatic Management • Developer SDK

Azure™ Services Platform • Windows Azure Storageand SQL Data Services are different storage offerings for the Azure Services Platform

Windows Azure Storage • The goal is to allow users and services • Anywhere at anytime access • Store data for any length of time • Scale to store any amount of data • Be confident that the data will not be lost • Pay for only what they use/store

Windows Azure Storage • Storage • Durable • Scalable (capacity and throughput) • Highly available • Rich storage concepts • Large user data items: blobs • Service state: tables • Service communication: queues • Simple and familiar programming interfaces • REST (HTTP and HTTPS) • .NET accessible

Windows Azure Storage Account • User creates a globally unique storage account name • Receive a 256 bit secret key when creating account • Geo-location and co-location coming soon • Can choose geo-location to host storage account • Example: “US Northwest”, “US Southwest” • Can co-locate storage account with compute account • Provides security for accessing the store • Use secret key to create a HMAC SHA256 signature for each request • Use signature to authenticate request at server

Fundamental Data Abstractions • Blobs – Provide a simple interface for storing named files along with metadata for the file • Tables – Provide structured storage. A Table is a set of entities, which contain a set of properties • Queues – Provide reliable storage and delivery of messages for an application

Account Container • Blob Blob Storage Concepts • IMG001.JPG • pictures • MOV1.AVI • IMG002.JPG • sally • movies

Storage Account and Blob Containers • Storage account • An account can have many blob containers • Container • A container is a set of blobs • Sharing policies are set at the container level • Public READ or Private • Associate metadata with container • Metadata is <name, value> pairs • Up to 8KB per container • List the blobs in a container

Blob Namespace • Blob URL http(s)://<Account>.blob.core.windows.net/<Container>/<BlobName> Example: • Account – sally • Container – music • BlobName – rock/rush/xanadu.mp3 • URL: http://sally.blob.core.windows.net/music/rock/rush/xanadu.mp3

Blob Features and Functions • Store large objects (up to 50GB for CTP) • Associate metadata with blob • Metadata is <name, value> pairs, up to 8KB per blob • Set/Get with or separate from blob data bits • Standard REST Interface • PutBlob • Inserts a new blob or overwrites the existing blob • GetBlob • Get whole blob or a specific range • DeleteBlob

REST PutBlob Account Container Blob Name • PUT • http://dvd.blob.core.windows.net/movies/TheBlob.wmv • HTTP/1.1 Content-Length: 10000000000 • Content-Type: binary/octet-stream • x-ms-meta-year:1958x-ms-meta-tagline:Beware%20of%20the%20Blob • Content-MD5: HUXZLQLMuI/KZ5KDcJPcOA== • x-ms-date: Mon, 27 Oct 2008 17:00:25 GMT • Authorization: SharedKeydvd:F5a+dUDvef+PfMb4T8Rc2jHcwfK58KecSZY+l2naIao= • ……… Blob Data Contents ………

REST GetBlob Get a range of the blob Get whole blob • GET • http://dvd.blob.core.windows.net/movies/TheBlob.wmv • HTTP/1.1 • Range: bytes=1024000-2048000 • GET • http://dvd.blob.core.windows.net/movies/TheBlob.wmv • HTTP/1.1 • Authorization: SharedKeydvd:RGllHMtzKMi4y/nedSk5Vn74IU6/fRMwiPsL+uYSDjY= • x-ms-date: Mon, 27 Oct 2008 17:00:25 GMT

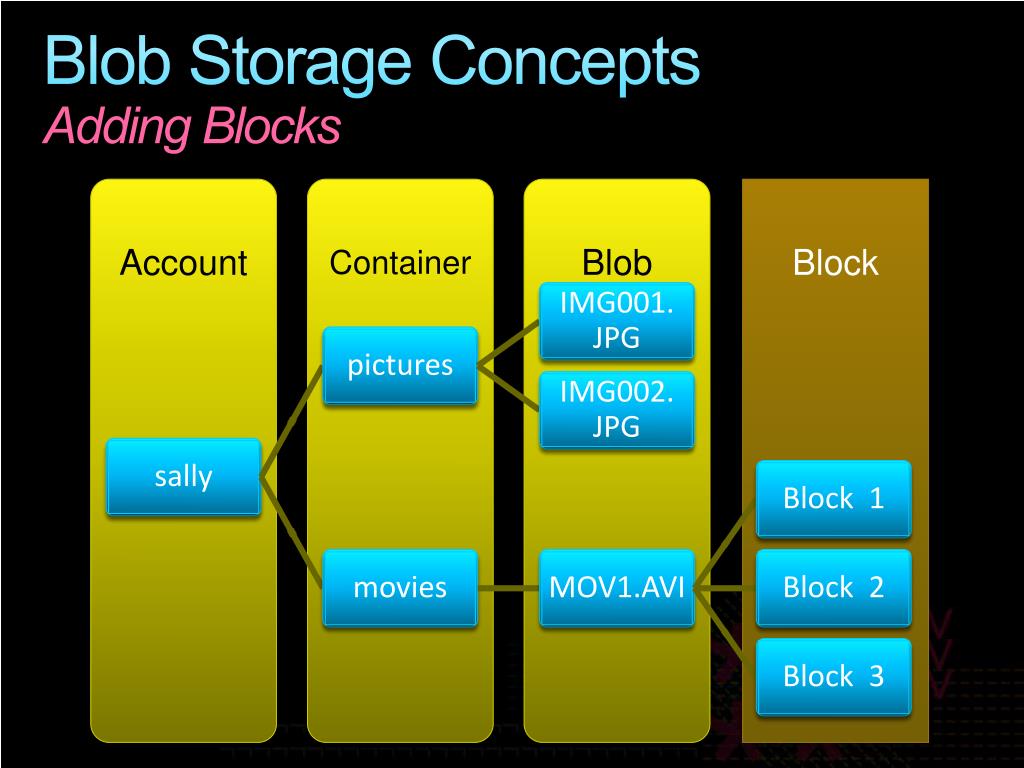

Account • Container • Blob • Block Blob Storage ConceptsAdding Blocks • IMG001.JPG pictures • IMG002.JPG • sally Block 1 movies MOV1.AVI Block 2 Block 3

Uploading a Blob Via Blocks • Uploading a large blob THE BLOB blobName = “TheBlob.wmv”; PutBlock(blobName, blockId1, block1Bits); PutBlock(blobName, blockId2, block2Bits); ………… PutBlock(blobName, blockIdN, blockNBits); PutBlockList(blobName, blockId1,…,blockIdN); 10 GB Movie Block Id 2 Block Id 1 Block Id 3 Block Id N Windows Azure Storage • Benefit • Efficient continuation and retry • Parallel and out of order upload of blocks TheBlob.wmv TheBlob.wmv

PutBlockList Example • Sequence of Operations • PutBlock(BlockId1) • PutBlock(BlockId3) • PutBlock(BlockId4) • PutBlock(BlockId2) • PutBlock(BlockId4) • PutBlockList(BlockId2, BlockId3, BlockId4) BlobName = ExampleBlob.wmv • Example uploading • Blocks out of order • Same block IDs • Unused blocks Block Id 1 Block Id 3 Block Id 2 Block Id 4 Block Id 4 Block Id 2 Block Id 3 Block Id 4 • Committed and readable version of blob

Block Details • Each Blob is a list of blocks • A Block can be up to 4MB each • Each block can be variable size • Each block has a 64 byte ID, scoped by blob name • Block operation • PutBlock • Puts an uncommitted block defined by the block ID for the blob • Block list operations • PutBlockList • Provide the list of blocks to comprise the readable version of the blob • Can use uncommitted blocks only • GetBlockList • Returns the list of committed blocks (not the block data) • Block ID and size of block are returned for each block

Blob Concurrency • Overlapping GET and PUT of same blob • Snapshot Isolation is provided • A GET will see a single version of the blob • Can get back a connection closed error if the blob changes during a long GET • Perform a conditional GET (to see if it changed) if you want to continue • Concurrent blob updates • First PutBlockList wins • Conditional PUT can be used for optimistic concurrency on commit

Choosing a Block ID • Block ID represents 64 bytes of metadata you can track for each block • Concurrent Blob Updates • For a given Block ID, the last one uploaded will be the one used for a PutBlockList • Use a unique hash of the block contents to represent the Block ID • Ranged GET with data integrity checks • Store data integrity hash as part of Block ID

Summary Of Windows Azure Blobs • Easy to use REST Put/Get/Delete interface • Can GET from any range of the blob • Conditional put and get blob • Blocks provide efficient upload and allows an association of an ID with every block • Max blob size for CTP • 50 GB using PutBlock and PutBlockList • 64 MB using PutBlob • Future features • Copy blob, update blob, and append blob

Fundamental Data Abstractions • Blobs – Provide a simple interface for storing named files along with metadata for the file • Tables – Provide structured storage. A table is a set of entities, which contain a set of properties • Queues– Provide reliable storage and delivery of messages for an application

Windows Azure Tables • Provides structured storage • Massively scalable tables • Billions of entities (rows) and TBs of data • Automatically scales across servers as traffic grows • Highly Available • Anywhere at Anytime access to your data • Durable • Data is replicated at least 3 times • Familiar and easy to use programming interfaces • ADO.NET Data Services – .NET 3.5 SP1 • .NET classes and LINQ • REST - with any platform or language

Table Storage Concepts • Account • Table • Entity • Name =… • Email = … • users • Name =… • Email = … • sally • Photo ID =… • Date =… • photo index • Photo ID =… • Date =…

Table Data Model • Table • A storage account can create many tables • Table name is scoped by account • Data is stored in tables • A table is a set of entities (rows) • An entity is a set of properties (columns) • Entity • Two “key” properties that together are the unique ID of the entity in the table • PartitionKey – enables scalability • RowKey – uniquely identifies the entity within the partition

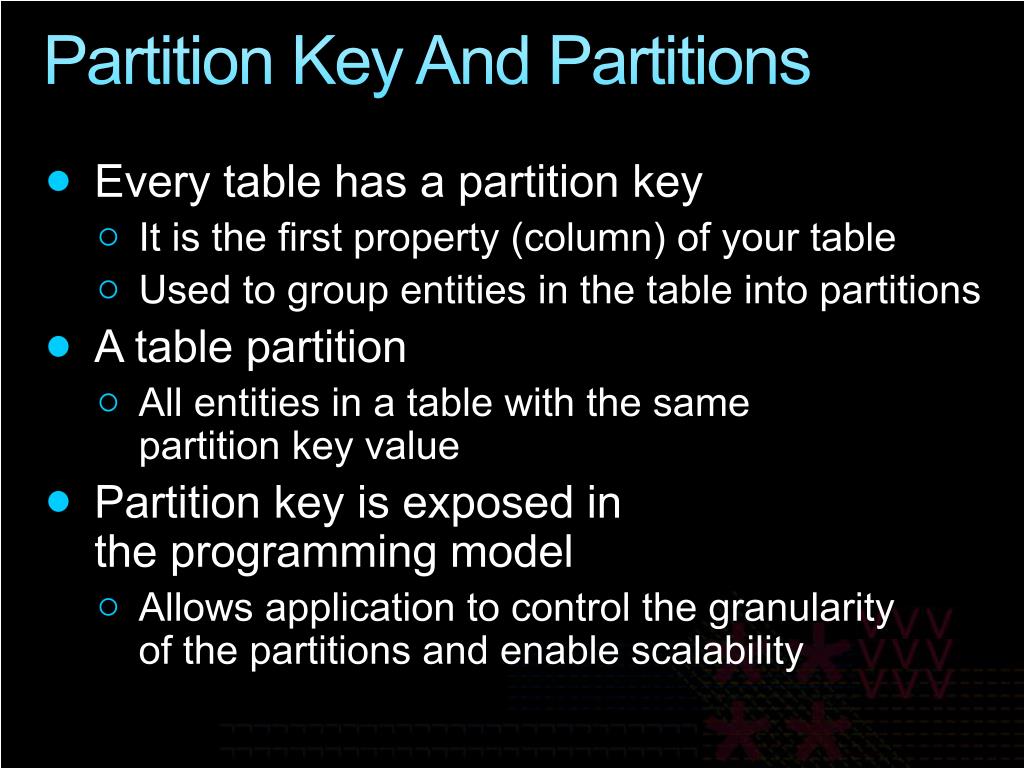

Partition Key And Partitions • Every table has a partition key • It is the first property (column) of your table • Used to group entities in the table into partitions • A table partition • All entities in a table with the same partition key value • Partition key is exposed in the programming model • Allows application to control the granularity of the partitions and enable scalability

Partition Example • Table Partition – all entities in tablewith same partition key value • Application controls granularity of partition Partition 1 Partition 2

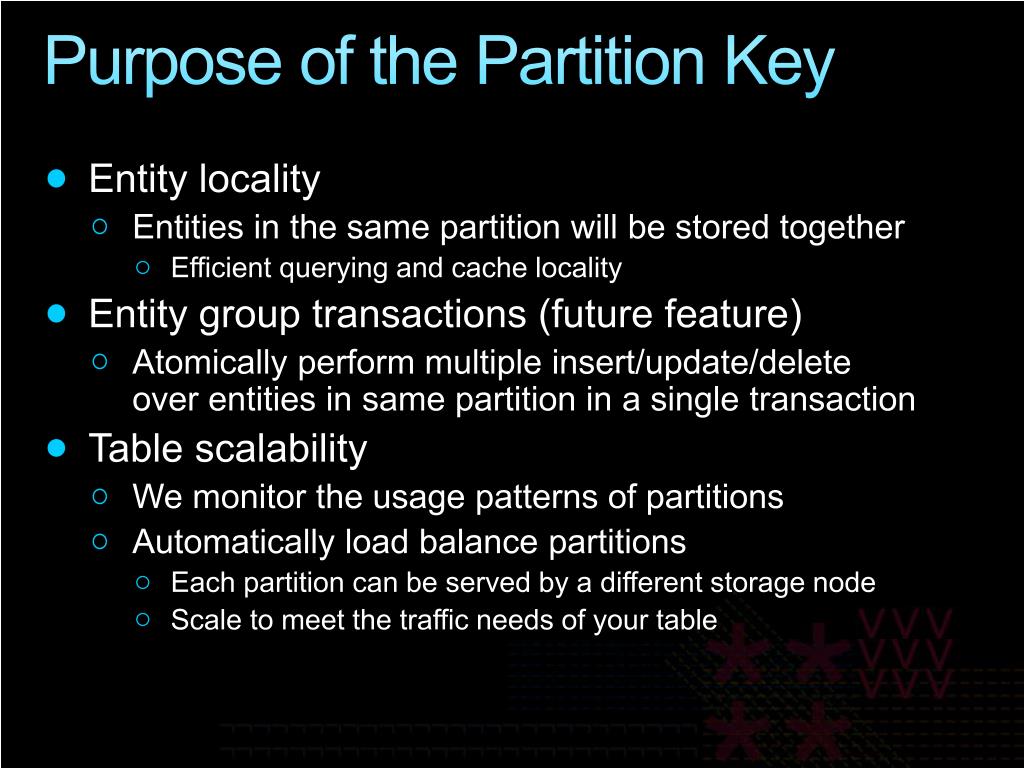

Purpose of the Partition Key • Entity locality • Entities in the same partition will be stored together • Efficient querying and cache locality • Entity group transactions (future feature) • Atomically perform multiple insert/update/delete over entities in same partition in a single transaction • Table scalability • We monitor the usage patterns of partitions • Automatically load balance partitions • Each partition can be served by a different storage node • Scale to meet the traffic needs of your table

Choosing a Partition Key • Granularity of entity group transactions • Make the partition key only as big as you need it for entity group transactions • Spread out load across partitions • More partitions – makes it easier to automatically balance load • Currently have one primary index • Important to use a partitionkey that is common in your queries • If partition key is part of query • Fast access to retrieve entities within a single partition • If partition key is not specified in a query • Then every partition has to be scanned

Table Entities and Properties • Each entity can have up to 255 properties • Mandatory properties for every entity in table • Partition key • Row key • All entities have a system maintained version • No fixed schema for rest of properties • Each property is stored as a <name, typed value> pair • No schema stored for a table • 2 entities within the same table can have different properties • Properties can be the standard .NET types • String, binary, bool, DateTime, GUID, int, int64, and double

Table Programming Model • Provide familiar and easy to use interfaces • Leverage your .NET expertise • Table entities are accessed as objects via ADO.NET Data Services – .NET 3.5 SP1 • LINQ – language Integrated query • RESTful access to table and entities • Insert/Update/Delete entities over the table • Query over tables • Get back a list of structured entities

Example Table Definition • Example using ADO.NET Data Services • Table entities are represented as class objects [DataServiceKey("PartitionKey", "RowKey")] public class Customer { // Partition key – Customer Last name public string PartitionKey { get; set;} // Row Key – Customer First name public string RowKey { get; set;} // User defined properties here public DateTimeCustomerSince { get; set; } public double Rating{ get; set; } public string Occupation { get; set; } }

Create and Insert Entity • Create a new customer and insert into table • Customer cust =new Customer( • “Lee”, // Partition Key = Last Name • “Geddy”, // Row Key = First NameDateTime.UtcNow, // Customer Since • 2.0, // Rating • “Engineer”// Occupation); // Service Uri is “http://<Account>.table.core.windows.net/” DataServiceContextcontext = new DataServiceContext(serviceUri); context.AddObject(“Customer”, cust); DataServiceResponseresponse = context.SaveChanges();

Query a Table • LINQ DataServiceContextcontext = new DataServiceContext(“http://myaccount.table.core.windows.net”); varcustomers = from o in context.CreateQuery<Customer>(“Customer”) where o.PartitionKey == “Lee” select o; foreach(Customer customerin customers) { } • REST GET http://myaccount.table.core.windows.net/Customer? $filter= PartitionKeyeq ‘Lee’

.NET and ADO.NET Perf Tips • Default .NET HTTP connections is set to 2 • ServicePointManager.DefaultConnectionLimit = X; • Turn off 100-continue (saves one round trip) • ServicePointManager.Expect100Continue = false; • Turn tracking off for query results that are not going to be modified • MergeOption = MergeOption.NoTracking • To improve performance of ADO.NET de-serialization • Name the entity class the same as the table name, or • Use DataServiceContext.ResolveType to return the type of the entity

Table Tips • Be prepared for partial results from your queries • Check for the continuation token • Storing different types of entities in same table • Have part of the RowKey represent the kind type • In a single query can retrieve all of the related objects of different kinds • When entity group transactions are supported • Can perform transactions across different typed entities in same partition

Summary of Windows Azure Tables • Built to provide massively scalable, highly available and durable structured storage • Automatic load balancing and scaling of tables • Partition key is exposed to the applicatio • Familiar and easy to use LINQ and REST programming interfaces via ADO.Net Data Services • Not a relational database • No joins, no maintenance of foreign keys, etc. • If you need relational DB capabilities, use SQL Data Services • Future features • Entity group transactions • Secondary indexes

Fundamental Data Abstractions • Blobs – Provide a simple interface for storing named files along with metadata for the file • Tables – Provide structured storage. A table is a set of entities, which contain a set of properties • Queues – Provide reliable storage and delivery of messages for an application

Web + Worker Role Pattern • Web role • Web farm that handles request from the internet • Push work items onto storage queue • Worker role • Process work item off storage queue Public internet n m Web role Worker role Q Load balancer Cloud storage (tables, blobs, queues)

Windows Azure Queues • Provide reliable message delivery • Simple, asynchronous work dispatch • Programming semantics ensure that a message can be processed at least once • Queues are highly available, durable and performance efficient • Access is provided via REST

Queue Storage Concepts • Account • Queue • Message • 128x128, http://… • thumbnail jobs • 256x256, http://… • sally • http://… • photo processing jobs • http://…

Account, Queues and Messages • An account can create many queues • Queue Name is scoped by the account • A Queue contains messages • No limit on number of messages stored in a queue • A message is stored for at most a week in a queue http://<Account>.queue.core.windows.net/<QueueName> • Messages • Message size <= 8 KB • To store larger data, store data in blob/entity storage, and the blob/entity name in the message

Queue Programming API • Queues • Create/Delete/Clear queues • Inspect queue length • Messages • Enqueue (QueueName, message) • Dequeue (QueueName, invisibility time T) • Returns the message with a MessageID • Makes the message invisible for time T • Delete(QueueName, MessageID)

Dequeue and Delete Messages Producers Consumers C1 P2 1. Dequeue(Q, 30 sec)  msg 1 1 2 4 3 3 2 2 1 1 C2 P1 2. Dequeue(Q, 30 sec)  msg 2

Dequeue and Delete Messages Producers Consumers 1 C1 P2 1. Dequeue(Q, 30 sec)  msg 1 5. C1 crashed 4 3 2 1 1 3 6. msg1 visible 30 seconds after Dequeue 2 C2 P1 • Benefit • Insures that every message can be processed at least once 2. Dequeue(Q, 30 sec)  msg 2 3. C2 consumed msg 2 4. Delete(Q, msg 2) 7. Dequeue(Q, 30 sec)  msg 1

Queue Best Practices • Make message processing idempotent • Need to deal with failures • No fixed order for dequeue messages • Invisible messages result in out of order processing • Use the queue length to scale your workers

Windows Azure Data Storage Concepts Container Blobs Account • Table Entities http://<account>.blob.core.windows.net/<container> Queue Messages http://<account>.table.core.windows.net/<table> http://<account>.queue.core.windows.net/<queue>

TakeawaysWindows Azure Storage • Enables developers to access storage • Massively scalable, durable, and available • Anywhere at anytime access • Automatically scale to meet peek traffic demands • Only pay for what the service uses • Easy to use REST and .NET Interfaces • Blobs, tables, and queues
