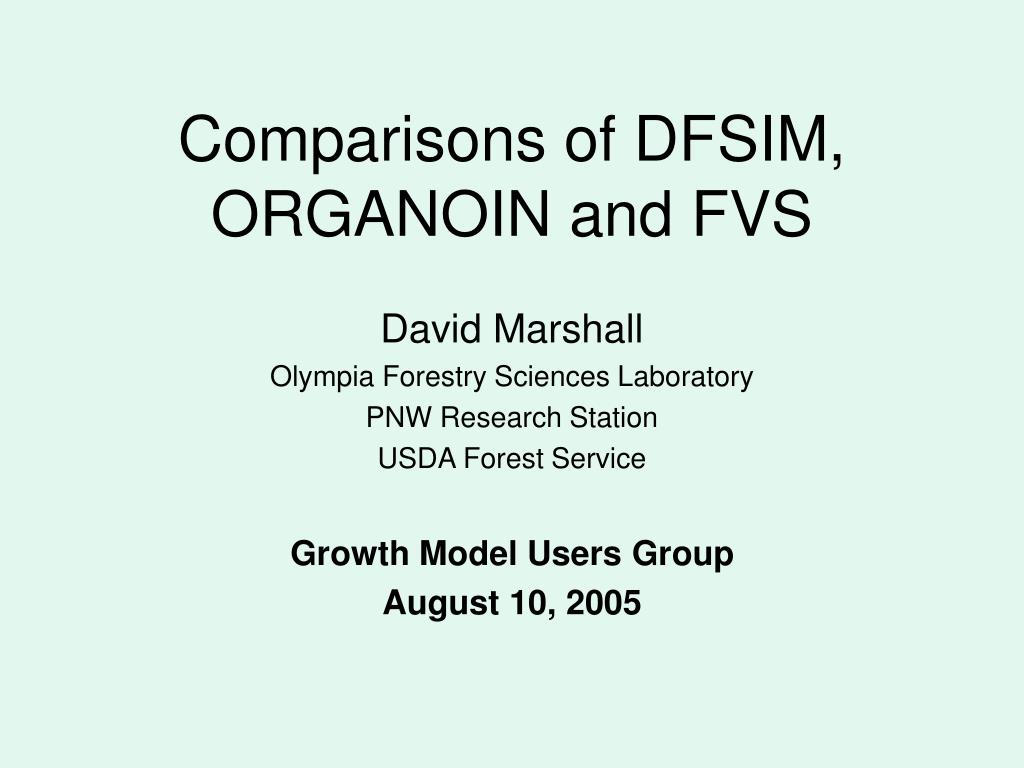

  1. Comparisons of DFSIM, ORGANOIN and FVS David Marshall Olympia Forestry Sciences Laboratory PNW Research Station USDA Forest Service Growth Model Users Group August 10, 2005

  2. Model Comparisons Based on work done while testing ORGANON version 8.

  3. Model Comparisons • Part 1 – “Out of the Box” • Part 2 – Plot Comparisons • Part 3 – Density Regimes

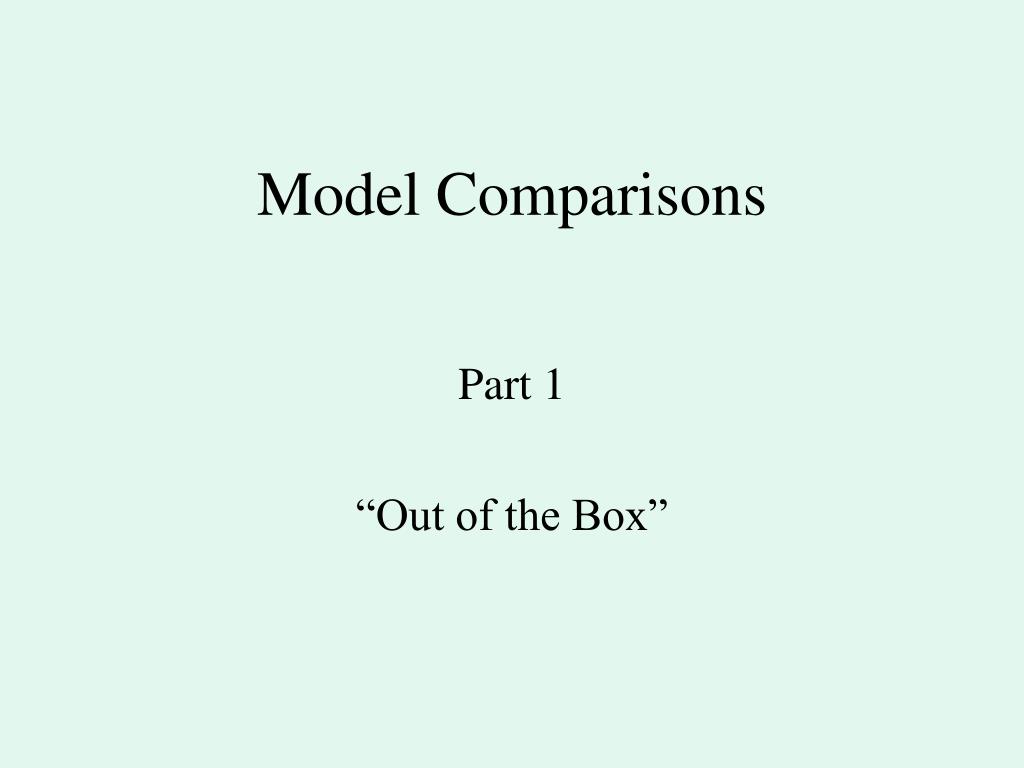

  4. Model Comparisons Part 1 “Out of the Box”

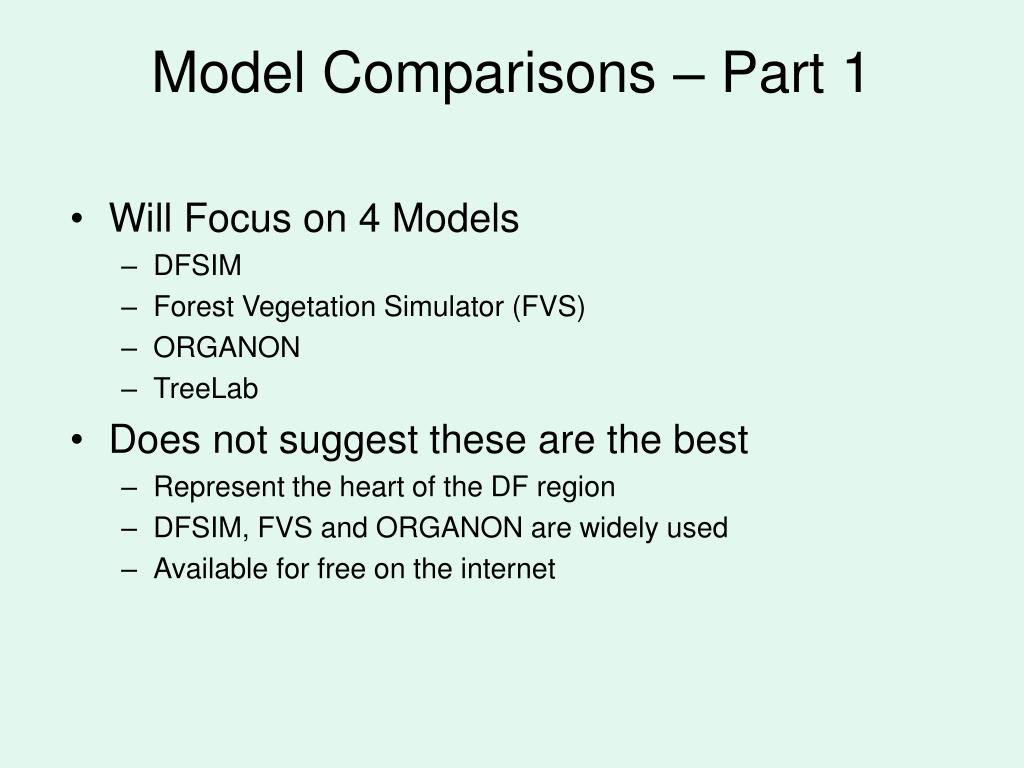

  5. Model Comparisons – Part 1 • Will Focus on 4 Models • DFSIM • Forest Vegetation Simulator (FVS) • ORGANON • TreeLab • Does not suggest these are the best • Represent the heart of the DF region • DFSIM, FVS and ORGANON are widely used • Available for free on the internet

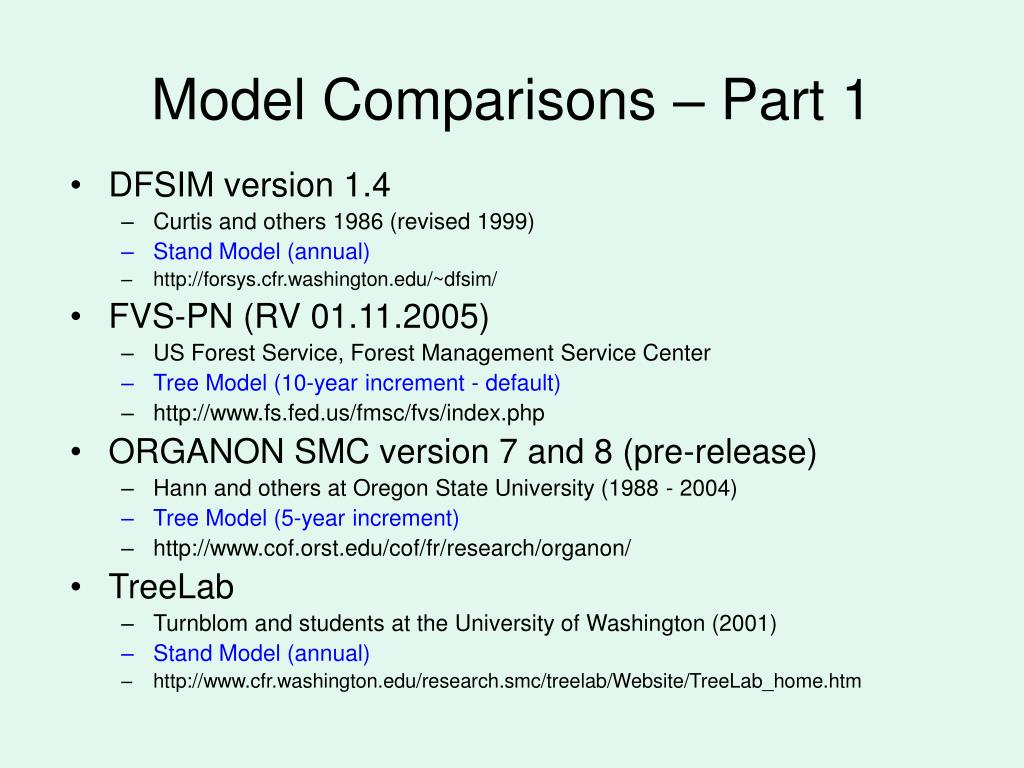

  6. Model Comparisons – Part 1 • DFSIM version 1.4 • Curtis and others 1986 (revised 1999) • Stand Model (annual) • http://forsys.cfr.washington.edu/~dfsim/ • FVS-PN (RV 01.11.2005) • US Forest Service, Forest Management Service Center • Tree Model (10-year increment - default) • http://www.fs.fed.us/fmsc/fvs/index.php • ORGANON SMC version 7 and 8 (pre-release) • Hann and others at Oregon State University (1988 - 2004) • Tree Model (5-year increment) • http://www.cof.orst.edu/cof/fr/research/organon/ • TreeLab • Turnblom and students at the University of Washington (2001) • Stand Model (annual) • http://www.cfr.washington.edu/research.smc/treelab/Website/TreeLab_home.htm

  7. Model Comparisons – Part 1“Out of the Box” • “Out of the Box” projections • Models • DFSIM • TreeLab • ORGANON • FVS • Site Index 121 feet • Planted to about 450 trees per acre • Trees List at 14 years • Growth to 64 years

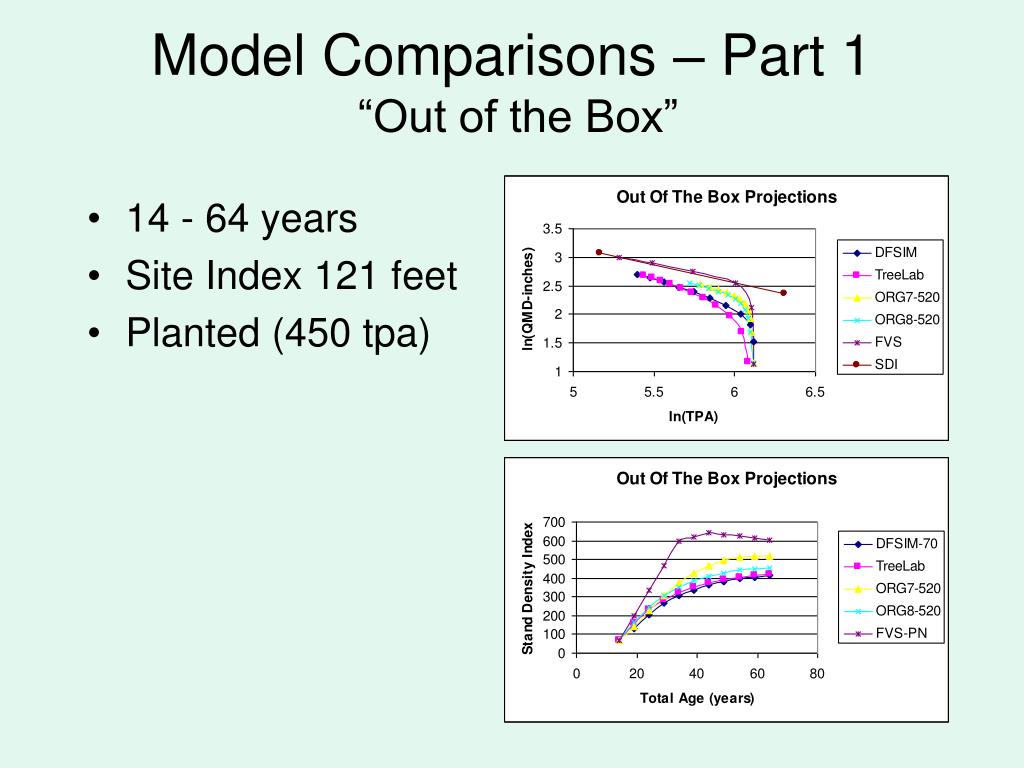

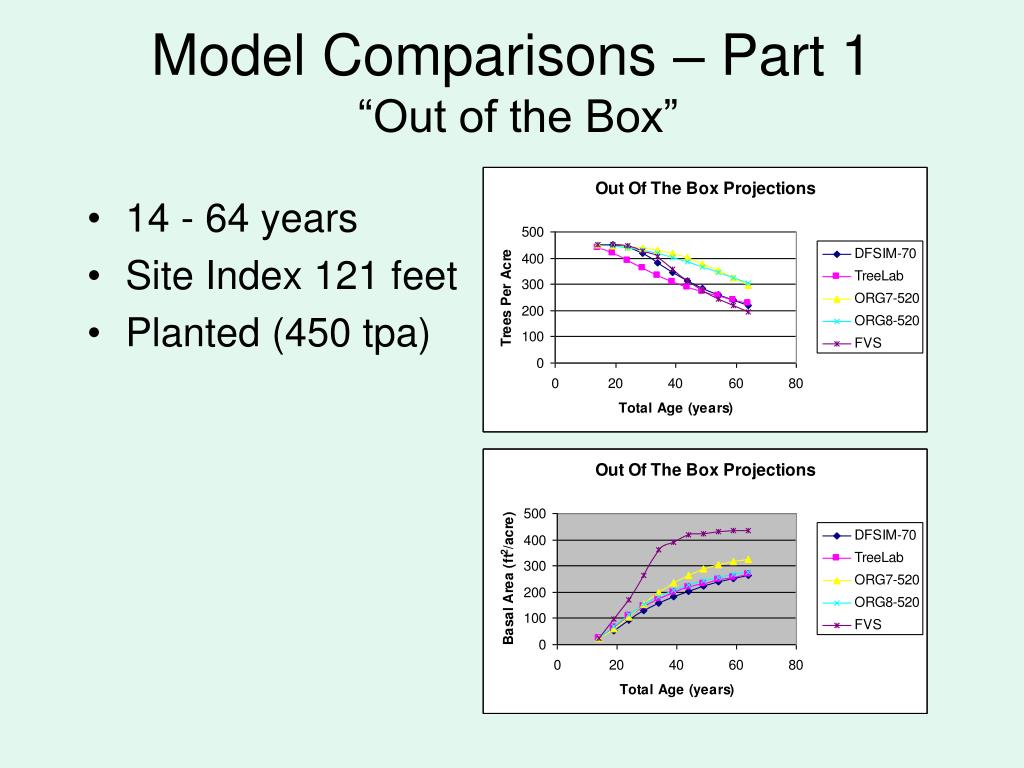

  8. Model Comparisons – Part 1 “Out of the Box” • 14 - 64 years • Site Index 121 feet • Planted (450 tpa)

  9. Model Comparisons – Part 1 “Out of the Box” • 14 - 64 years • Site Index 121 feet • Planted (450 tpa)

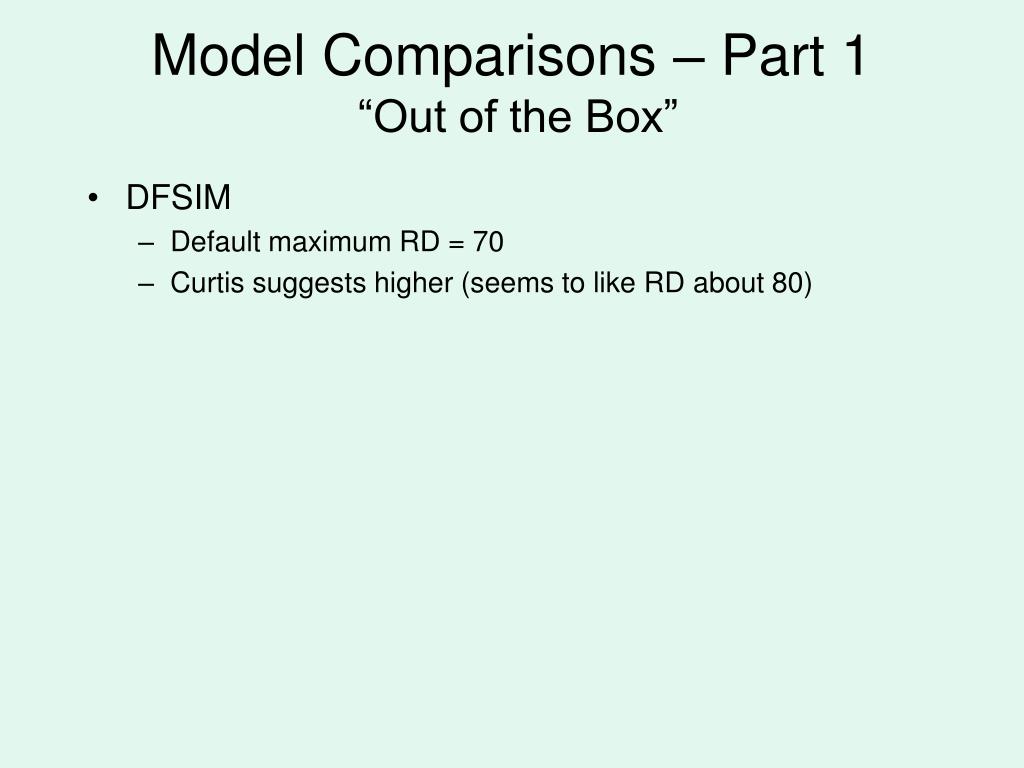

  10. Model Comparisons – Part 1 “Out of the Box” • DFSIM • Default maximum RD = 70 • Curtis suggests higher (seems to like RD about 80)

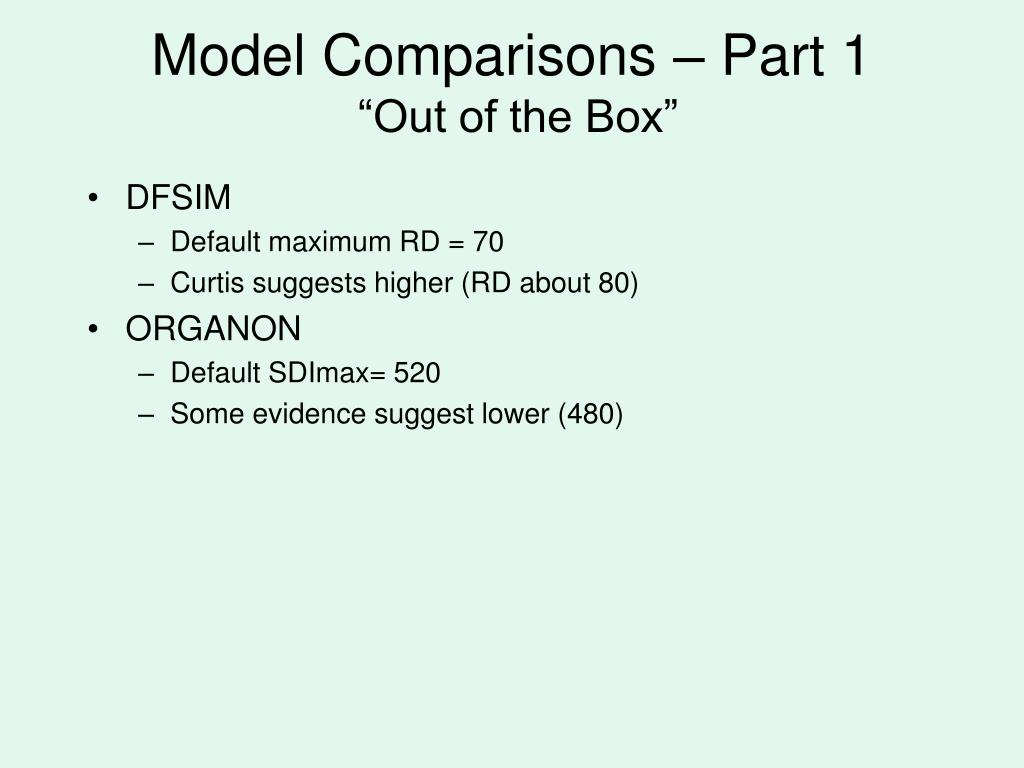

  11. Model Comparisons – Part 1 “Out of the Box” • DFSIM • Default maximum RD = 70 • Curtis suggests higher (RD about 80) • ORGANON • Default SDImax= 520 • Some evidence suggest lower (480)

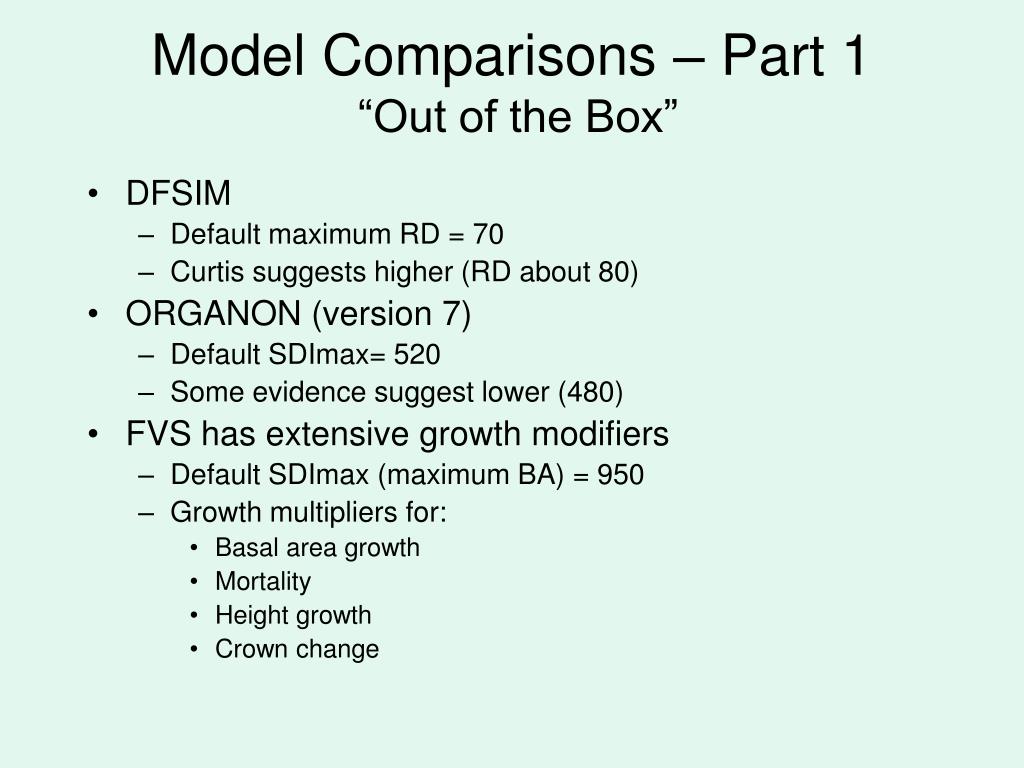

  12. Model Comparisons – Part 1 “Out of the Box” • DFSIM • Default maximum RD = 70 • Curtis suggests higher (RD about 80) • ORGANON (version 7) • Default SDImax= 520 • Some evidence suggest lower (480) • FVS has extensive growth modifiers • Default SDImax (maximum BA) = 950 • Growth multipliers for: • Basal area growth • Mortality • Height growth • Crown change

  13. Model Comparisons – Part 1FVS Adjustments

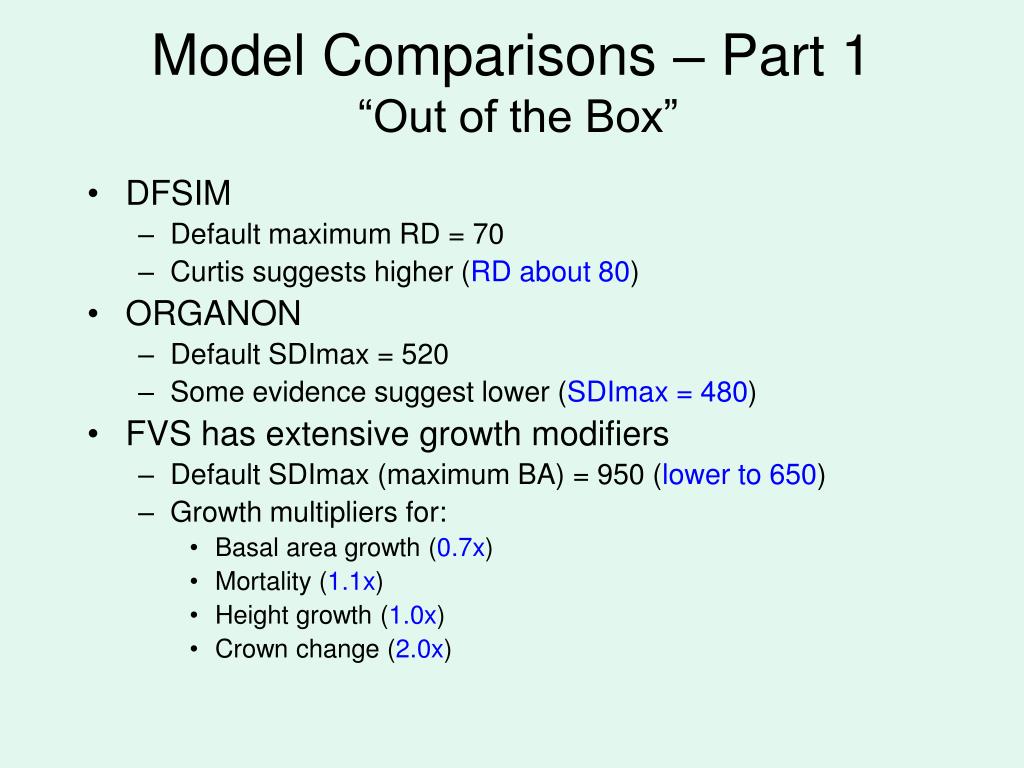

  14. Model Comparisons – Part 1 “Out of the Box” • DFSIM • Default maximum RD = 70 • Curtis suggests higher (RD about 80) • ORGANON • Default SDImax = 520 • Some evidence suggest lower (SDImax = 480) • FVS has extensive growth modifiers • Default SDImax (maximum BA) = 950 (lower to 650) • Growth multipliers for: • Basal area growth (0.7x) • Mortality (1.1x) • Height growth (1.0x) • Crown change (2.0x)

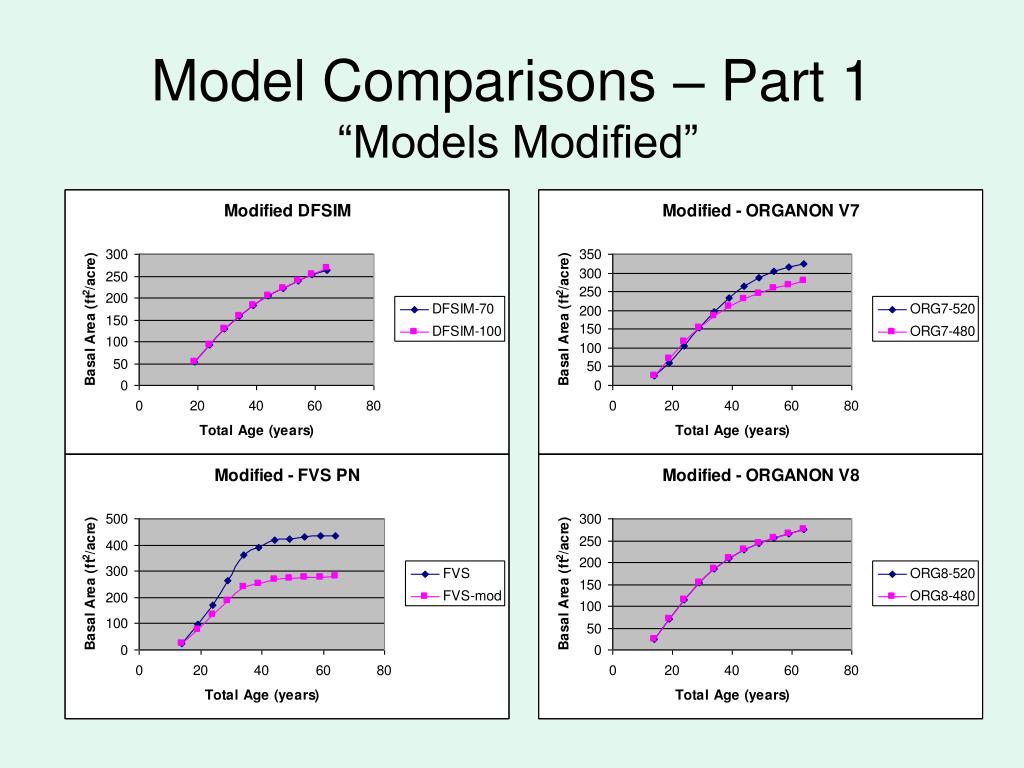

  15. Model Comparisons – Part 1 “Models Modified”

  16. Model Comparisons – Part 1 “Models Modified”

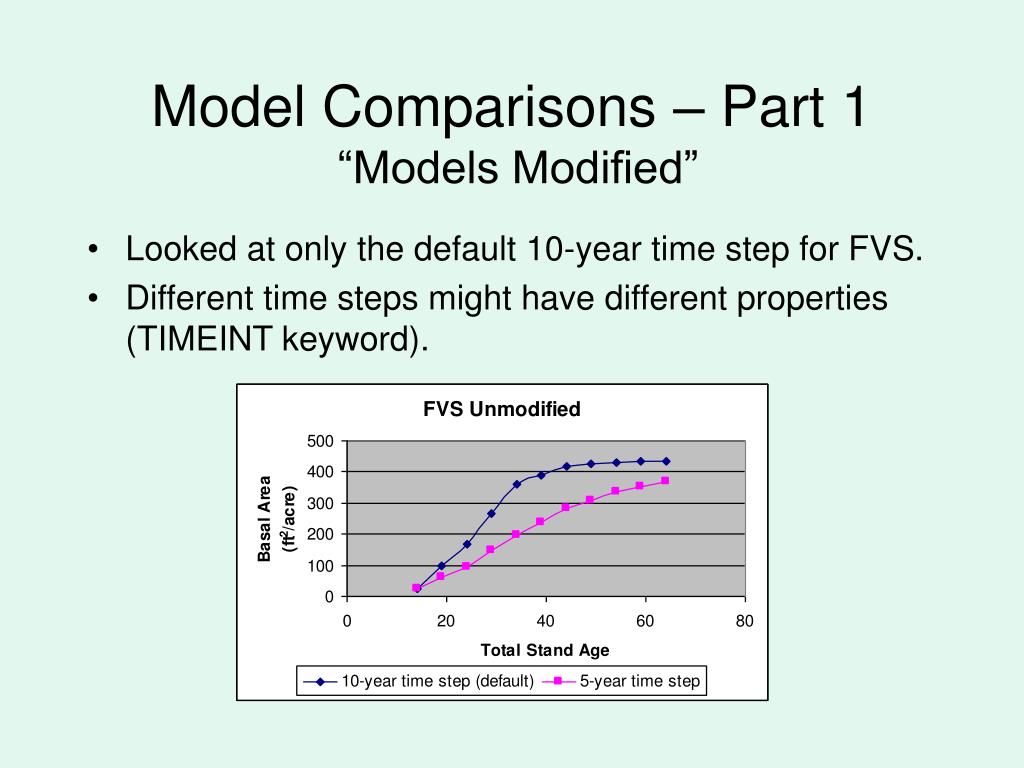

  17. Model Comparisons – Part 1 “Models Modified” • Looked at only the default 10-year time step for FVS. • Different time steps might have different properties (TIMEINT keyword).

  18. Model Comparisons Part 2 “Plot Comparisons”

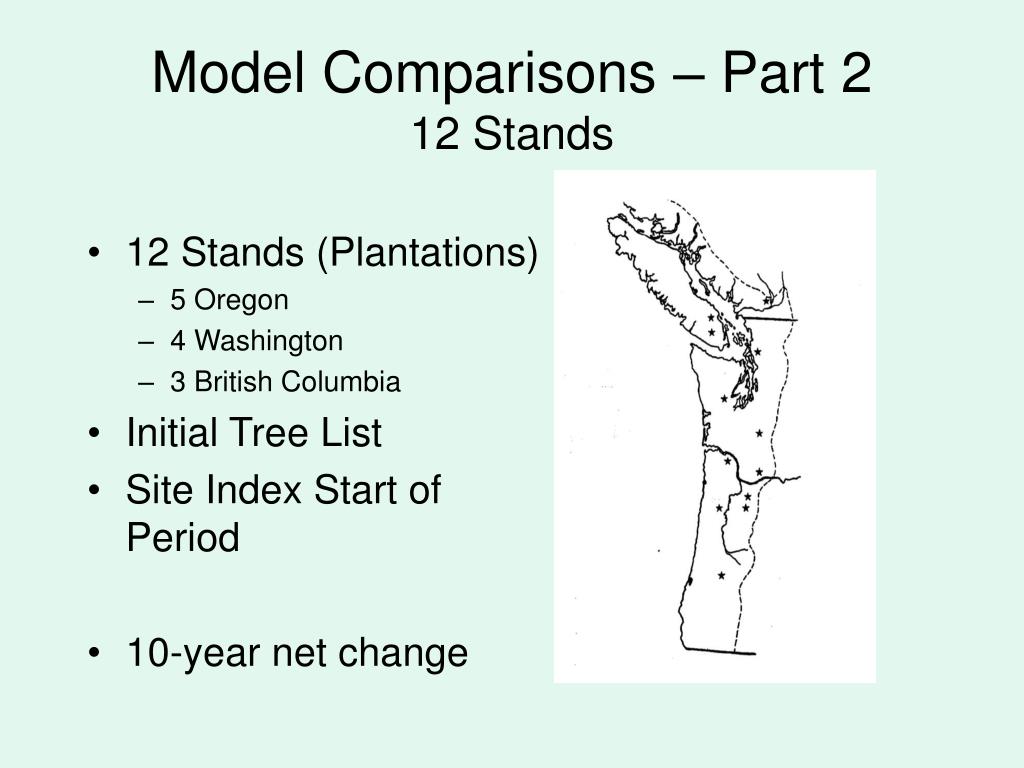

  19. Model Comparisons – Part 2 12 Stands • 12 Stands (Plantations) • 5 Oregon • 4 Washington • 3 British Columbia • Initial Tree List • Site Index Start of Period • 10-year net change

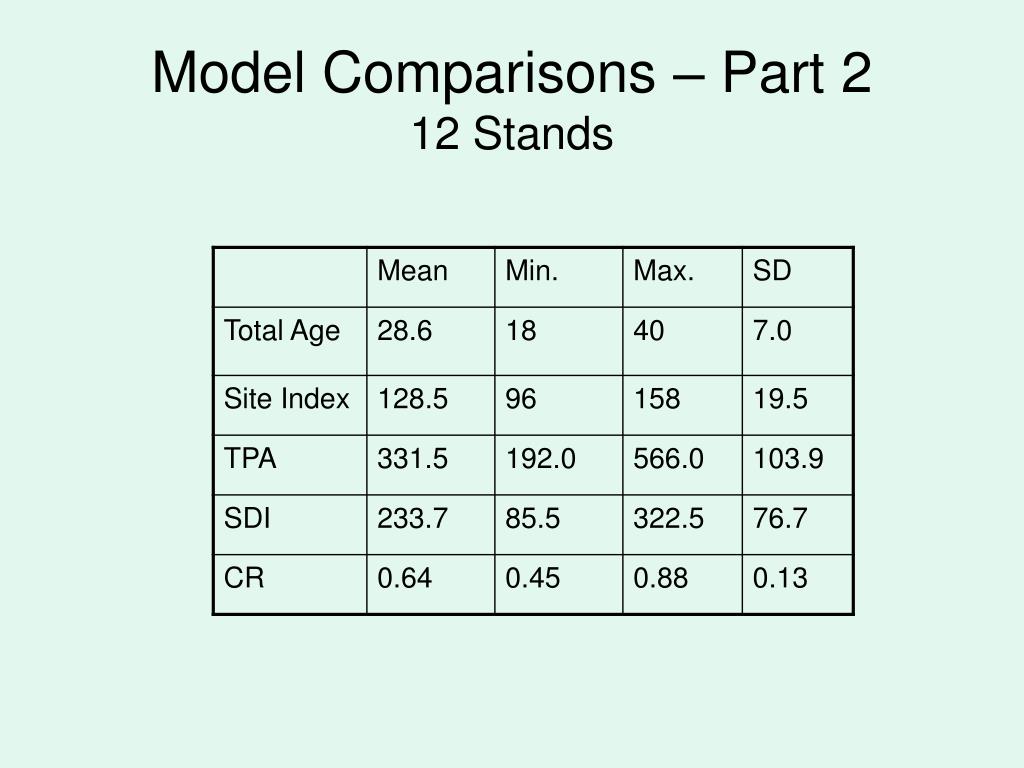

  20. Model Comparisons – Part 2 12 Stands

  21. Model Comparisons – Part 212 Stands WARNING Because of the small number of plots, this should not be considered a validation of the models.

  22. Model Comparisons – Part 212 Stands - TPA = under predict mortality - BA/AC = over predict net growth

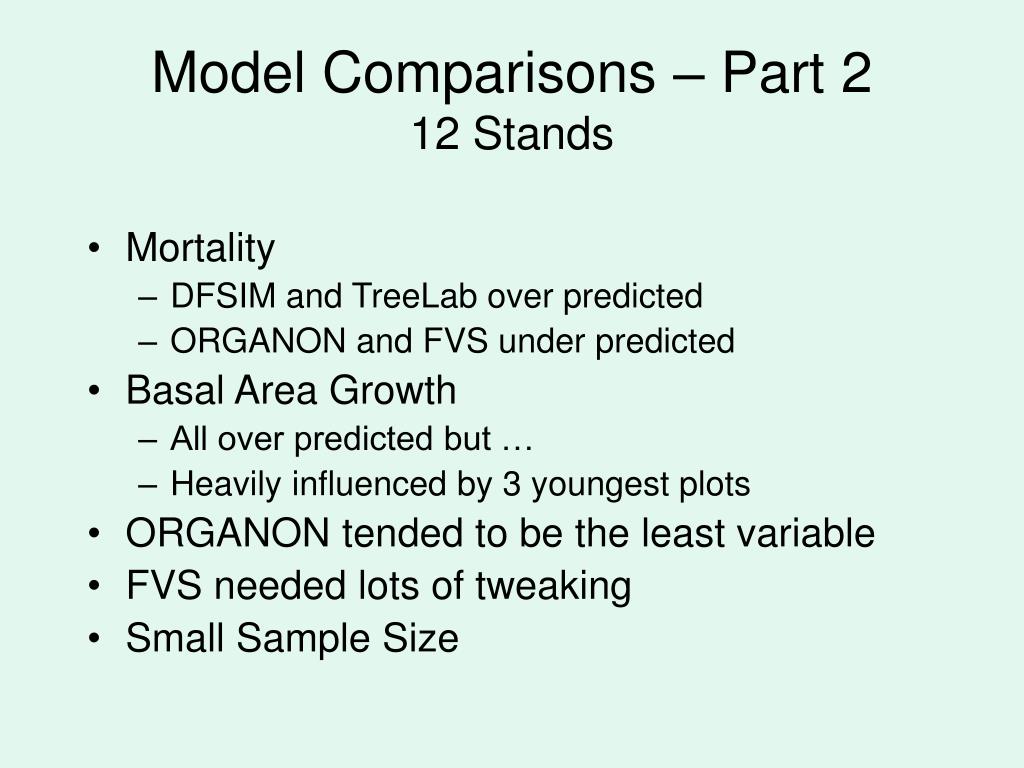

  23. Model Comparisons – Part 212 Stands • Mortality • DFSIM and TreeLab over predicted • ORGANON and FVS under predicted • Basal Area Growth • All over predicted but … • Heavily influenced by 3 youngest plots • ORGANON tended to be the least variable • FVS needed lots of tweaking • Small Sample Size

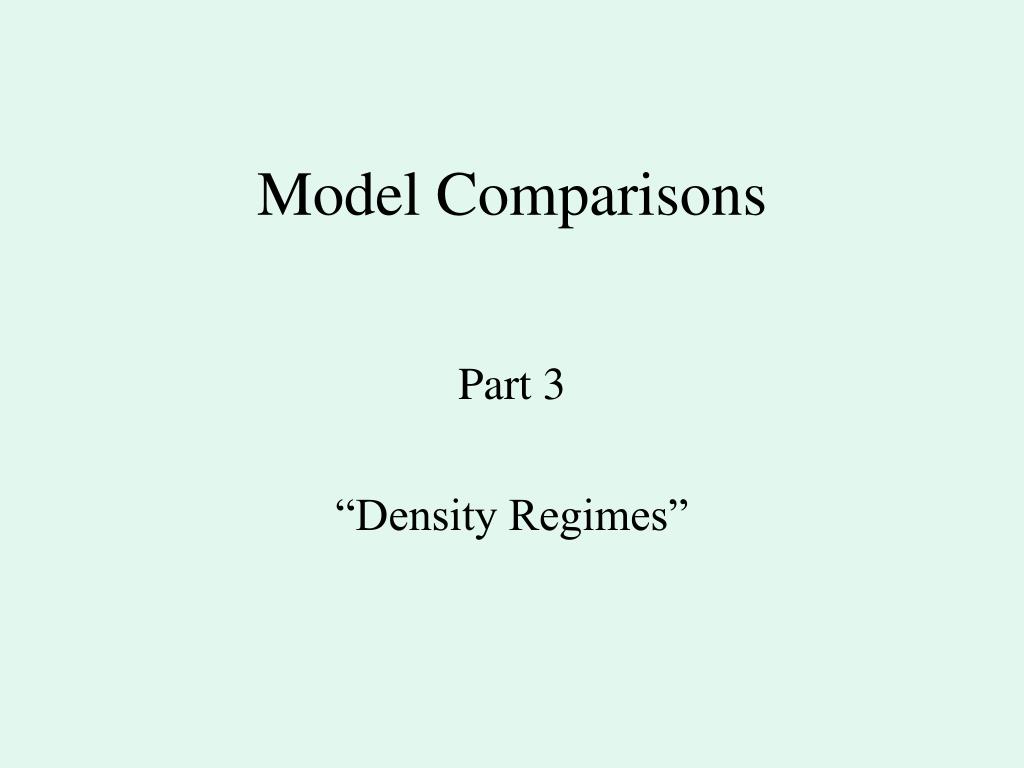

  24. Model Comparisons Part 3 “Density Regimes”

  25. Models DFSIM TreeLab ORGANON (SDImax=480) FVS-PN FVS-PN modified Model Comparisons – Part 3Density Management Projections

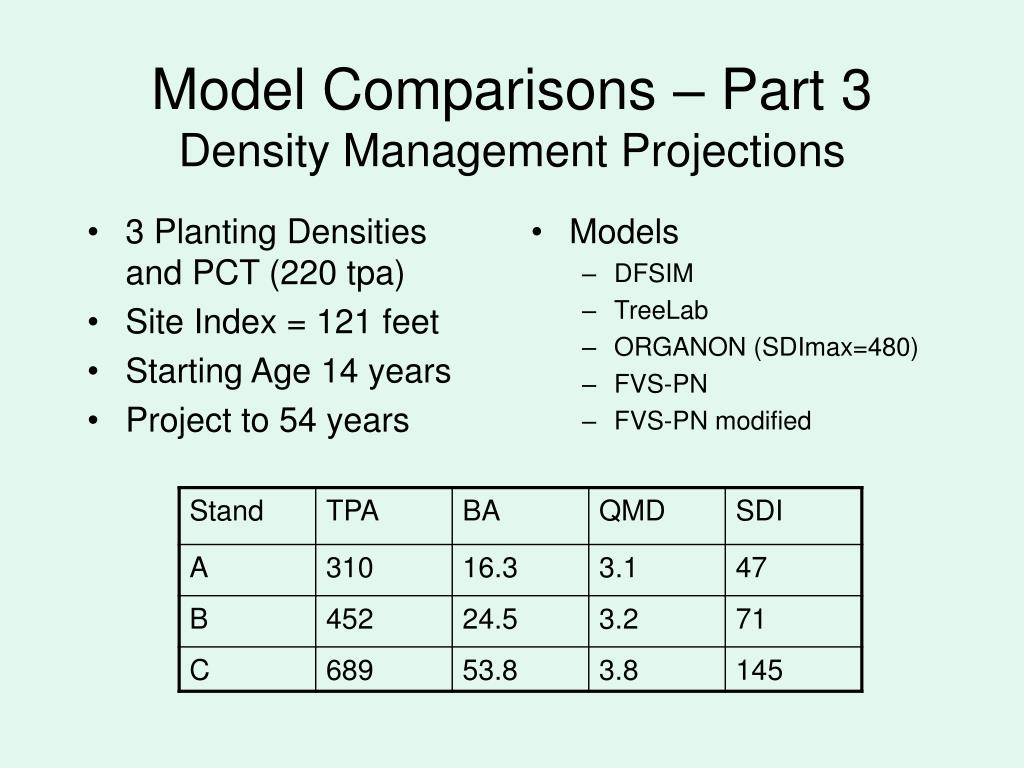

  26. 3 Planting Densities and PCT (220 tpa) Site Index = 121 feet Starting Age 14 years Project to 54 years Models DFSIM TreeLab ORGANON (SDImax=480) FVS-PN FVS-PN modified Model Comparisons – Part 3Density Management Projections

  27. Model Comparisons – Part 3Density Management Projections

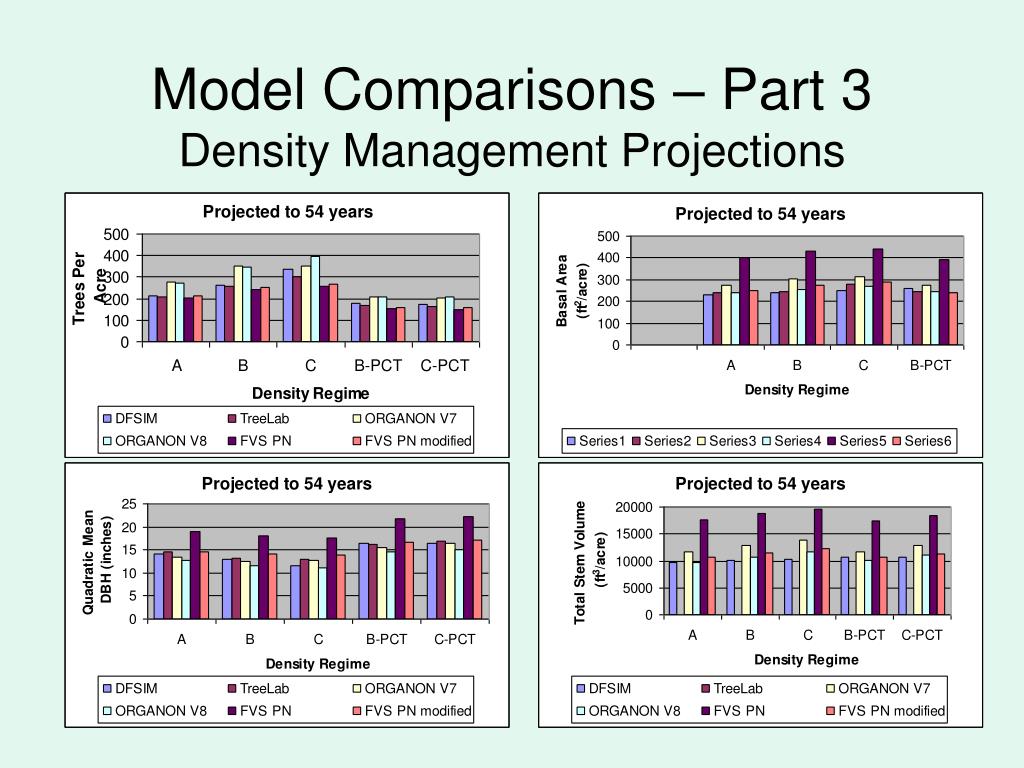

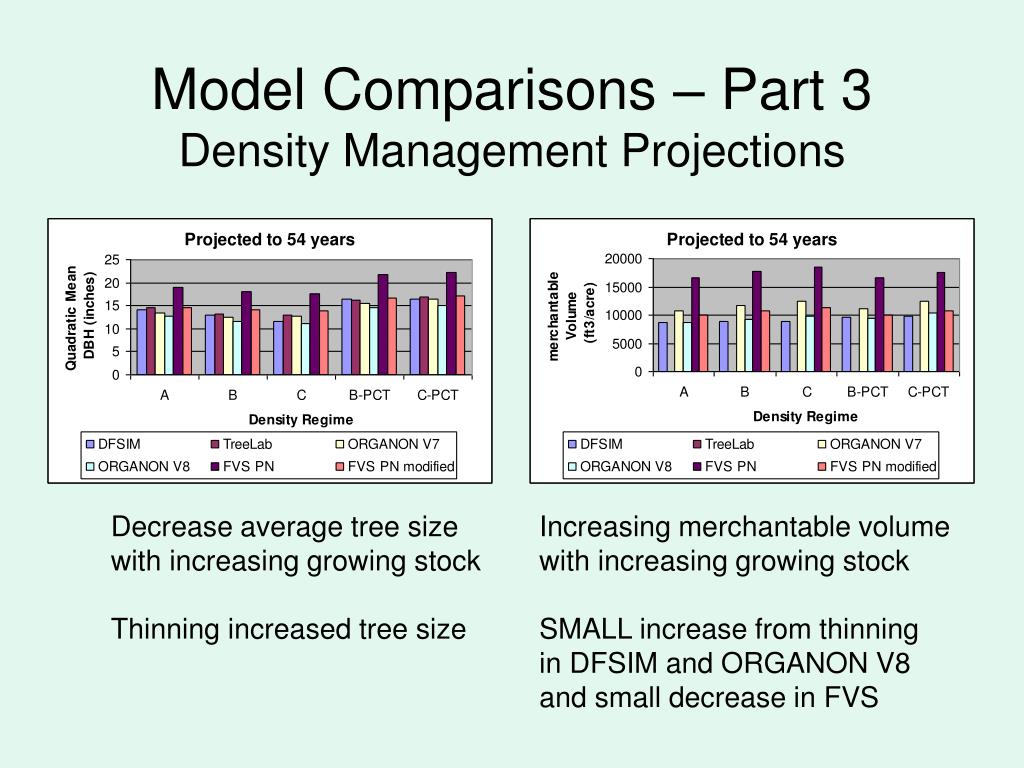

  28. Model Comparisons – Part 3Density Management Projections Decrease average tree size with increasing growing stock Thinning increased tree size Increasing merchantable volume with increasing growing stock SMALL increase from thinning in DFSIM and ORGANON V8 and small decrease in FVS

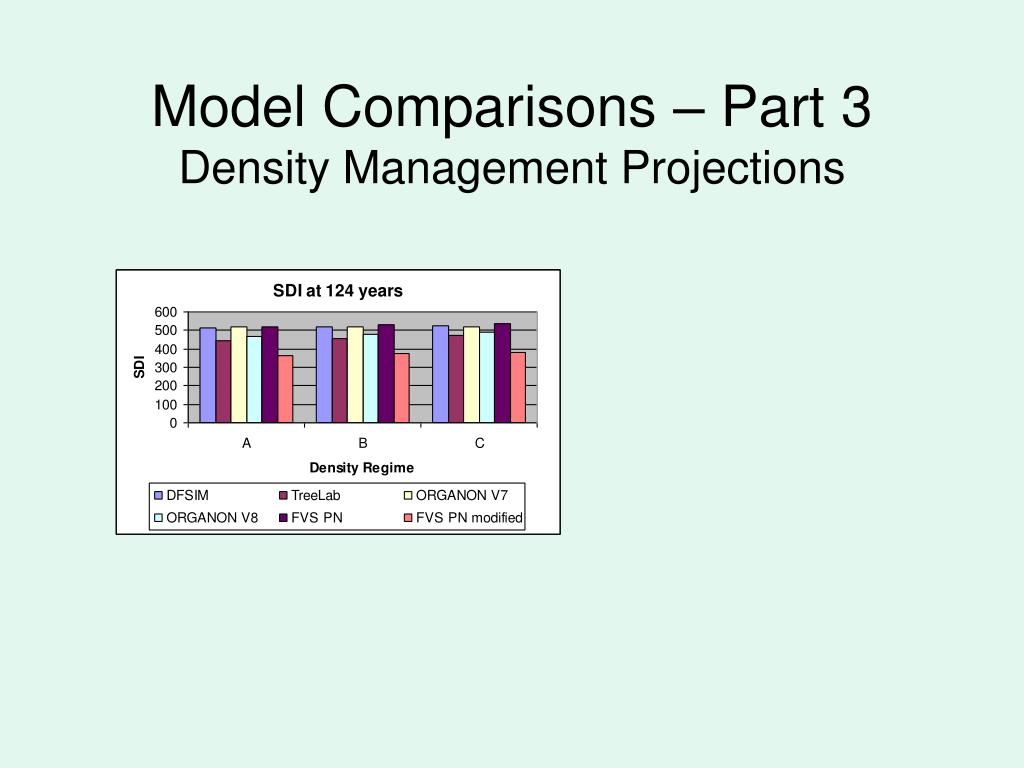

  29. Model Comparisons – Part 3 Density Management Projections

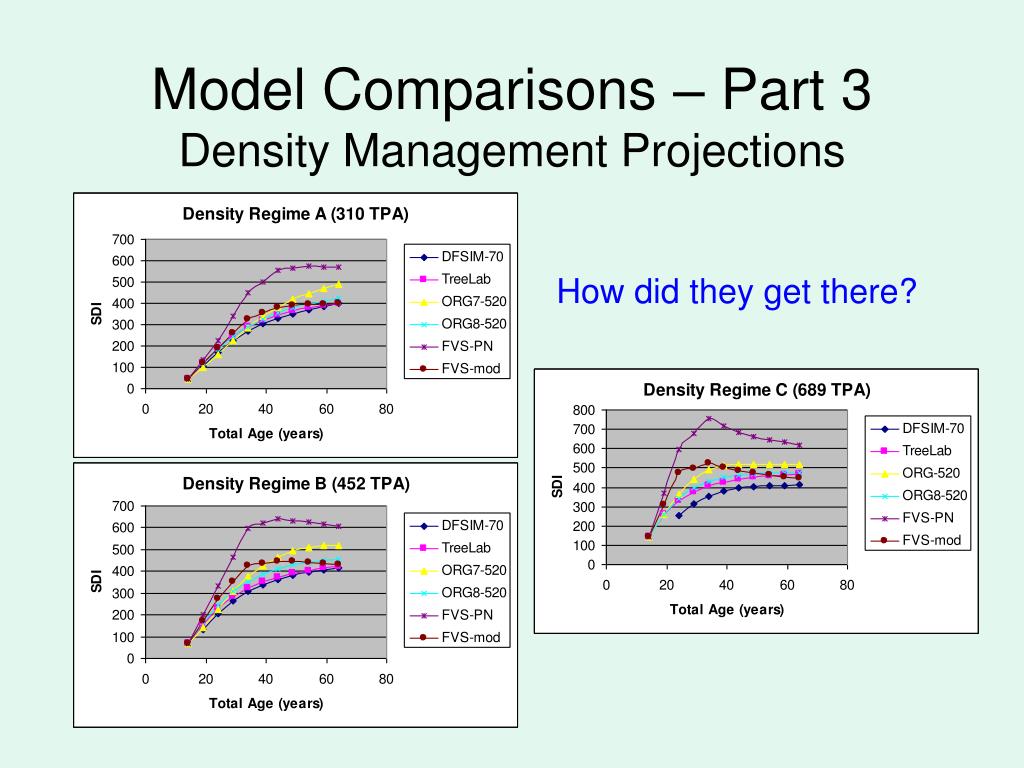

  30. Model Comparisons – Part 3Density Management Projections How did they get there?

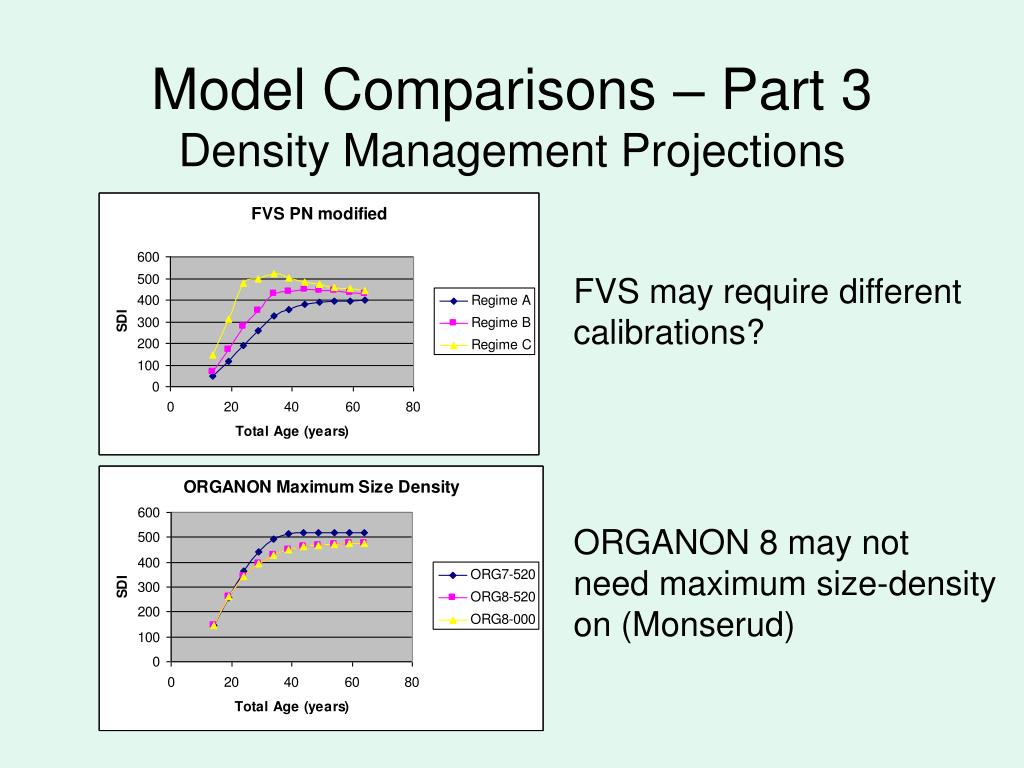

  31. Model Comparisons – Part 3Density Management Projections FVS may require different calibrations? ORGANON 8 may not need maximum size-density on (Monserud)

  32. Model Comparisons – Part 3Density Management Projections

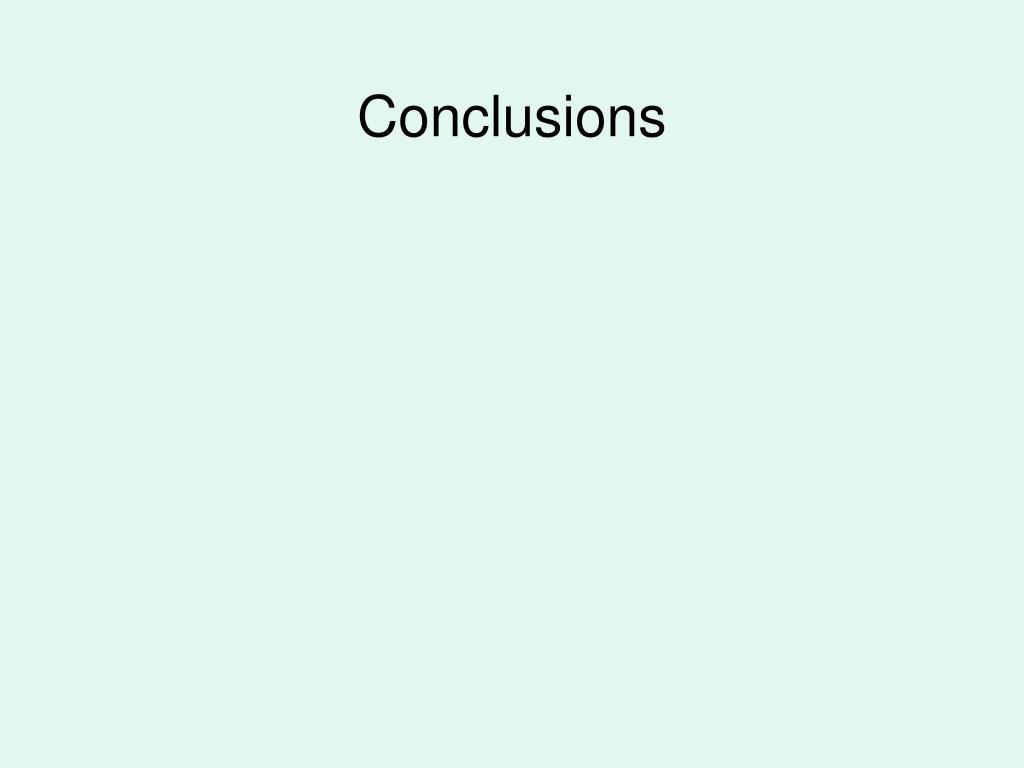

  33. Conclusions

  34. The End
