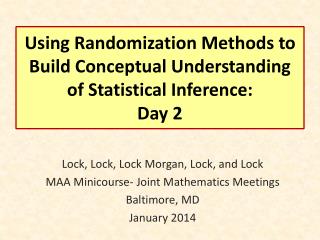

  1. Using Randomization Methods to Build Conceptual Understanding of Statistical Inference:Day 2 Lock, Lock, Lock Morgan, Lock, and Lock MAA Minicourse- Joint Mathematics Meetings Baltimore, MD January 2014

  2. Schedule: Day 2 • Saturday, 1/18, 1:00 – 3:00 pm • 5. More on Randomization Tests • How do we generate randomization distributions for various statistical tests? • How do we assess student understanding when using this approach? • 6. Connecting Intervals and Tests • 7. Connecting Simulation Methods to Traditional • 8. Technology Options • Other software for simulatiions (Minitab, Fathom, R, Excel, ...) • Bascis summary stats/graphs with StatKey • A more advanced randmization with StatKey • 9. Wrap-up • How has this worked in the classroom? • Participant comments and questions • 10. Evaluations

  3. Cocaine Addiction • In a randomized experiment on treating cocaine addiction, 48 people were randomly assigned to take either Desipramine (a new drug), or Lithium (an existing drug) • The outcome variable is whether or not a patient relapsed • Is there convincing evidence to conclude that Desipramine is better than Lithium at treating cocaine addiction?

  4. R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R 1. Randomly assign units to treatment groups Desipramine Lithium R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R

  5. 2. Observe relapse counts in each group 3. Compare the proportions who relapse R = Relapse N = No Relapse 1. Randomly assign units to treatment groups Desipramine Lithium R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R N R R N R R R R R R R R R R R R N R R N N N N N N N N N R R R R R R R R R R R R N N N N N N N N N N N N N N N N N N N N N N N N 10 relapse, 14 no relapse 18 relapse, 6 no relapse Is this convincing evidence?

  6. Randomization Test • Assume the null hypothesis is true • Simulate new randomizations • For each, calculate the statistic of interest • Find the proportion of these simulated statistics that are as extreme as your observed statistic

  7. R R R R R R R R R R R R R R R R N N R R R R R R N N N N N N R R R R R R N N N N N N N N N N N N 10 relapse, 14 no relapse 18 relapse, 6 no relapse

  8. R R R R R R R R R R R R R R R R N N R R R R R R N N N N N N R R R R R R N N N N N N N N N N N N Simulate another randomization Desipramine Lithium R N R N N N N R R R R R R R N R R N N N R N R R R N N R N R R N R N N N R R R N R R R R 16 relapse, 8 no relapse 12 relapse, 12 no relapse

  9. Simulate another randomization Desipramine Lithium R R R R R R R R R R R R R N R R N N R R R R R R R R N R N R R R R R R R R N R N R R N N N N N N 17 relapse, 7 no relapse 11 relapse, 13 no relapse

  10. Physical Simulation • Start with 48 cards (Relapse/No relapse) to match the original sample. • Shuffle all 48 cards, and rerandomize them into two groups of 24 (new drug and old drug) • Count “Relapse” in each group and find the difference in proportions, . • Repeat (and collect results) to form the randomization distribution. • How extreme is the observed statistic of 0.33?

  11. Cocaine Addiction • A randomization sample must: • Use the data that we have • (That’s why we didn’t change any of the results on the cards) • AND • Match the null hypothesis • (That’s why we assumed the drug didn’t matter and combined the cards)

  12. StatKey Distribution of Statistic Assuming Null is True Proportion as extreme as observed statistic observed statistic The probability of getting results as extreme or more extreme than those observed if the null hypothesis is true, is about .02. p-value

  13. How can we do a randomization test for a correlation?

  14. Is the number of penalties given to an NFL team positively correlated with the “malevolence” of the team’s uniforms?

  15. Ex: NFL uniform “malevolence” vs. Penalty yards r = 0.430 n = 28 Is there evidence that the population correlation is positive?

  16. Key idea: Generate samples that are(a) consistent with the null hypothesis (b) based on the sample data. H0 :  = 0 r = 0.43, n = 28 How can we use the sample data, but ensure that the correlation is zero?

  17. Randomization by Scrambling Original sample Scrambled sample

  18. Randomize one of the variables!Let’s look at StatKey.

  19. Traditional Inference 1. Which formula? 4. Which theoretical distribution? 5. df? 6. find p-value 2. Calculate numbers and plug into formula 3. Plug into calculator 0.01 < p-value < 0.02

  20. How can we do a randomization test for a mean?

  21. Example: Mean Body Temperature Is the average body temperature really 98.6oF? H0:μ=98.6 Ha:μ≠98.6 Data: A random sample of n=50 body temperatures. n = 50 98.26 s = 0.765 Data from Allen Shoemaker, 1996 JSE data set article

  22. Key idea: Generate samples that are(a) consistent with the null hypothesis (b) based on the sample data. How to simulate samples of body temperatures to be consistent with H0: μ=98.6?

  23. Randomization Samples How to simulate samples of body temperatures to be consistent with H0: μ=98.6? • Add 0.34 to each temperature in the sample (to get the mean up to 98.6). • Sample (with replacement) from the new data. • Find the mean for each sample (H0 is true). • See how many of the sample means are as extreme as the observed 98.26.

  24. Let’s try it on StatKey.

  25. Playing with StatKey! See the orange pages in the folder.

  26. Choosing a Randomization Method Example: Word recall H0: μA=μB vs. Ha: μA≠μB Reallocate Option 1: Randomly scramble the A and B labels and assign to the 24 word recalls. Resample Option 2: Combine the 24 values, then sample (with replacement) 12 values for Group A and 12 values for Group B.

  27. How do we assess student understanding of these methods (even on in-class exams without computers)? See the blue pages in the folder.

  28. Connecting CI’s and Tests Randomization body temp means when μ=98.6 Bootstrap body temp means from the original sample What’s the difference?

  29. Fathom Demo: Test & CI

  30. What about Traditional Methods?

  31. Transitioning to Traditional Inference AFTER students have seen lots of bootstrap distributions and randomization distributions… • Students should be able to • Find, interpret, and understand a confidence interval • Find, interpret, and understand a p-value

  32. Bootstrap and Randomization Distributions Correlation: Malevolent uniforms Slope :Restaurant tips All bell-shaped distributions! What do you notice? Mean :Body Temperatures Diff means: Finger taps Proportion : Owners/dogs Mean : Atlanta commutes

  33. The students are primed and ready to learn about the normal distribution!

  34. Transitioning to Traditional Inference • Introduce the normal distribution (and later t) • Introduce “shortcuts” for estimating SE for proportions, means, differences, slope… Confidence Interval: Hypothesis Test:

  35. Confidence Intervals 95% -z* z*

  36. Hypothesis Tests 95% Area is p-value Test statistic

  37. Yes! Students see the general pattern and not just individual formulas! Confidence Interval: Hypothesis Test:

  38. Other Technology Options • Your binder includes information for doing several simulation examples using • Minitab (macros) • R (defined functions) • Excel (PopToolsad-in) • Fathom (drag/drop/menus) • Matlab (commands) • SAS (commands)

  39. More StatKey Basic Statistics/Graphics

  40. Sampling Distribution Capture Rate

  41. Example: Sandwich Ants Experiment: Place pieces of sandwich on the ground, count how many ants are attracted. Does it depend on filing? Favourite Experiments: An Addendum to What is the Use of Experiments Conducted by Statistics Students? Margaret Mackisack http://www.amstat.org/publications/jse/v2n1/mackisack.supp.html

  42. Student Preferences • Which way of doing inference gave you a better conceptual understanding of confidence intervals and hypothesis tests?

  43. Student Preferences • Which way did you prefer to learn inference (confidence intervals and hypothesis tests)?

  44. Student Behavior • Students were given data on the second midterm and asked to compute a confidence interval for the mean • How they created the interval:

  45. A Student Comment " I took AP Stat in high school and I got a 5.  It was mainly all equations, and I had no idea of the theory behind any of what I was doing.Statkey and bootstrapping really made me understand the concepts I was learning, as opposed to just being able to just spit them out on an exam.” - one of Kari’s students

  46. Thank you for joining us! More information is available on www.lock5stat.com Feel free to contact any of us with any comments or questions.
