  1. Presentation 2: Data Warehouse Design Discussion Crimewatch Consulting Firm AdwaitMulye, Yuga Pawar, Floyd J. Srubar, VidyasagarVelamala

  2. Brief Review of Business Needs • “Value You’ll See Consulting” provides decision support services to clientele from various industries. • City of Houston– Staffing and Resource Planning • Realtors – Neighborhood Crime Statistics • School Districts – Land Purchases • Business Owners – Location Decisions

  3. Brief Review of Business Needs • Additionally, the use of a data warehouse allows our firm to compile and re-assemble raw publicly available crime data into specific decision supporting material tailored to our clients’ information needs.

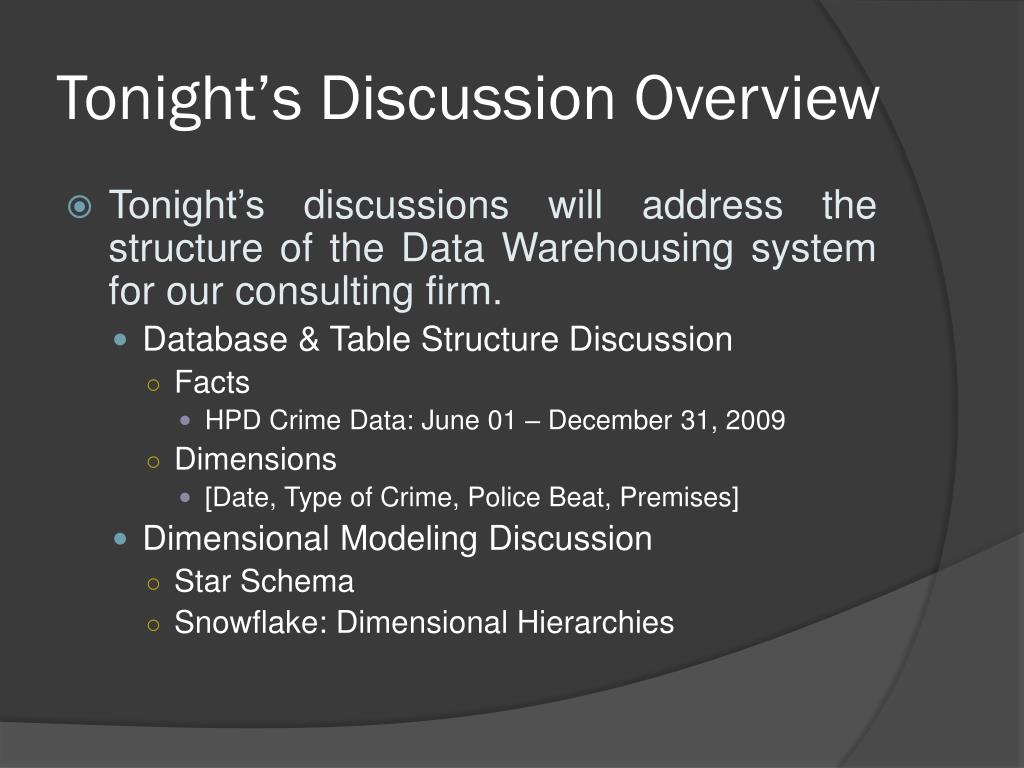

  4. Tonight’s Discussion Overview • Tonight’s discussions will address the structure of the Data Warehousing system for our consulting firm. • Database & Table Structure Discussion • Facts • HPD Crime Data: June 01 – December 31, 2009 • Dimensions • [Date, Type of Crime, Police Beat, Premises] • Dimensional Modeling Discussion • Star Schema • Snowflake: Dimensional Hierarchies

  5. Database and Table Structures

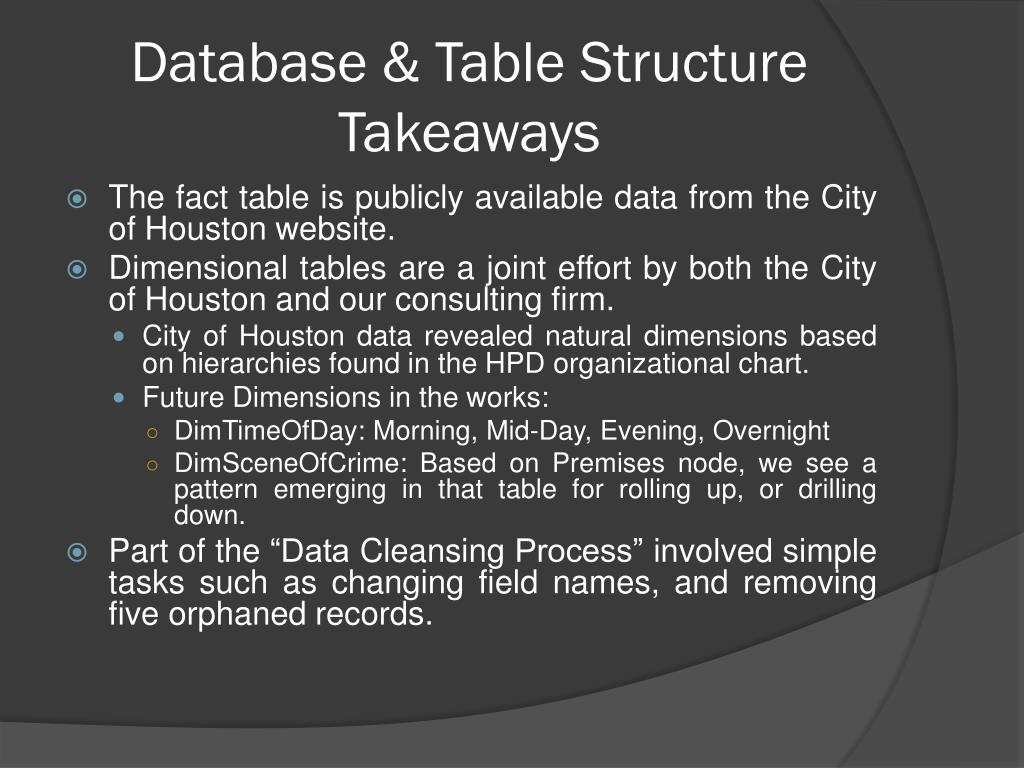

  6. Database & Table Structure Takeaways • The fact table is publicly available data from the City of Houston website. • Dimensional tables are a joint effort by both the City of Houston and our consulting firm. • City of Houston data revealed natural dimensions based on hierarchies found in the HPD organizational chart. • Future Dimensions in the works: • DimTimeOfDay: Morning, Mid-Day, Evening, Overnight • DimSceneOfCrime: Based on Premises node, we see a pattern emerging in that table for rolling up, or drilling down. • Part of the “Data Cleansing Process” involved simple tasks such as changing field names, and removing five orphaned records.

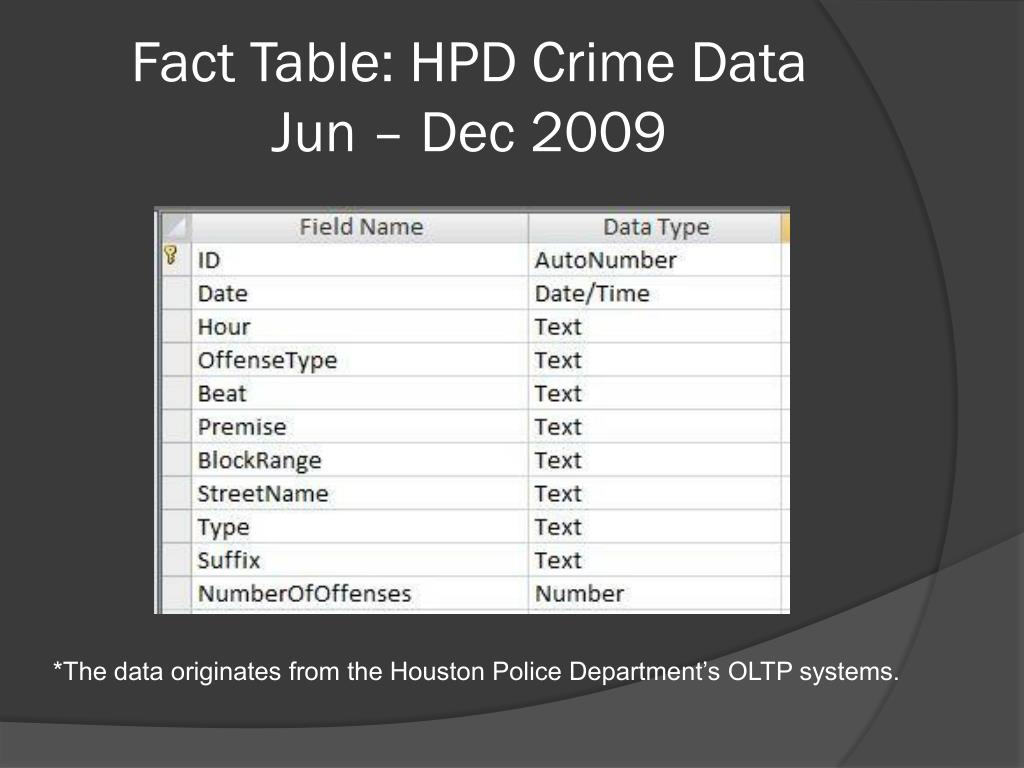

  7. Fact Table: HPD Crime Data Jun – Dec 2009 *The data originates from the Houston Police Department’s OLTP systems.

  8. Fact Table: HPD Crime Data Jun – Dec 2009 *The data originates from the Houston Police Department’s OLTP systems.

  9. Dimension Table: Police Beats

  10. Dimension Table: Police Beats

  11. Dimension Table: DimOffenseTypes

  12. Dimension Table: DimOffenseTypes

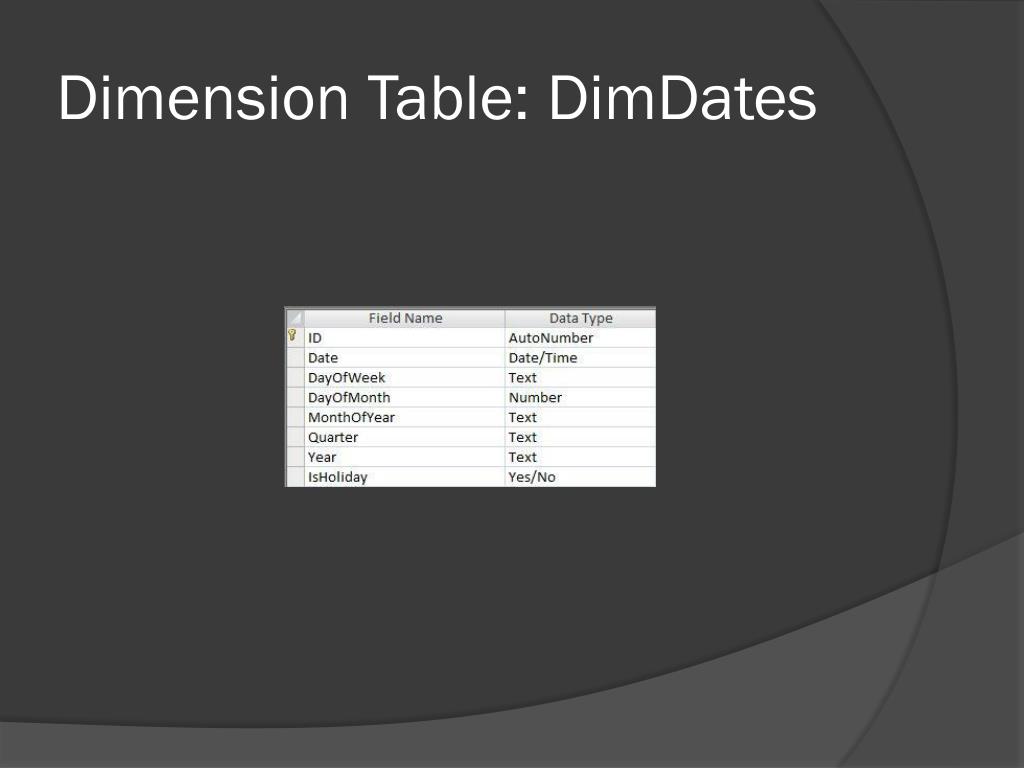

  13. Dimension Table: DimDates

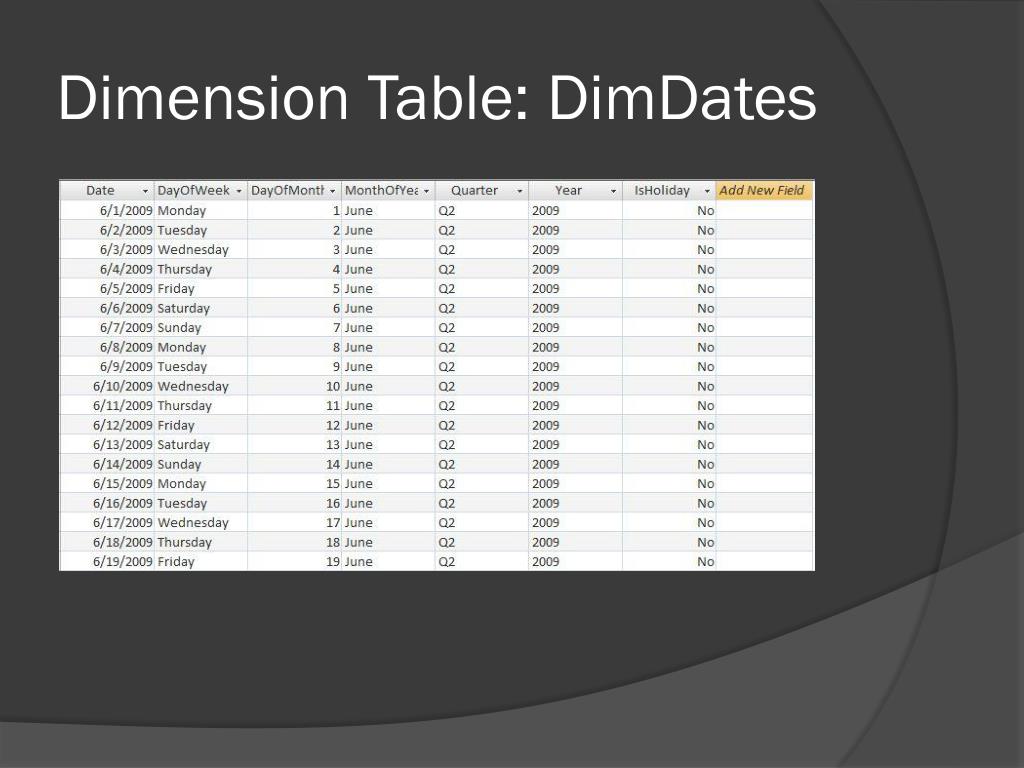

  14. Dimension Table: DimDates

  15. Dimension Table: DimPremisesCodes

  16. Dimension Table: DimPremisesCodes

  17. Dimensional Modeling

  18. Snowflake Schema

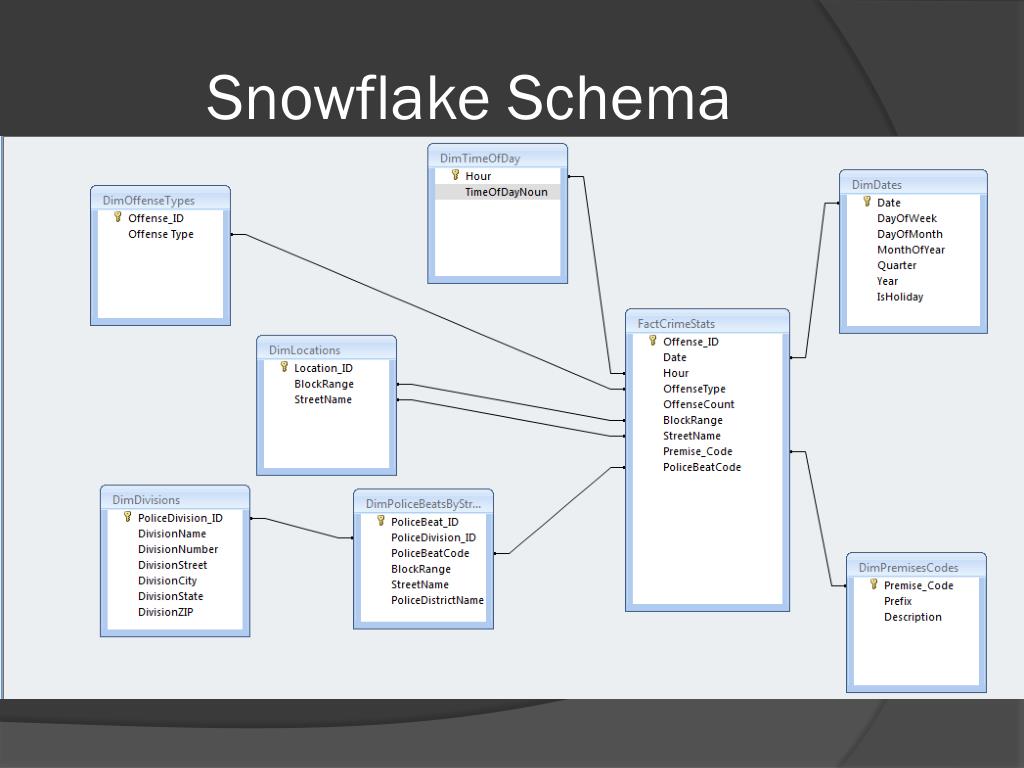

  19. Snowflake Schema

  20. Dimensional Hierarchies

  21. Police Beat Hierarchy • Structure is similar to the HPD organizational chart. • Divisions: Treat these as Police Station Locations, as this trend emerges from the fact tables, and later discovered on the HPD website. (see map) • Districts: A Division can have authority over multiple Districts. (e.g. Airport Division covers Hobby and Bush Airport districts. • Police Beats: A District has jurisdictional authority over many police patrol beats.
