  1. Virtual Studio For Everywhere Darim Vision Co., Ltd. http://darim.com

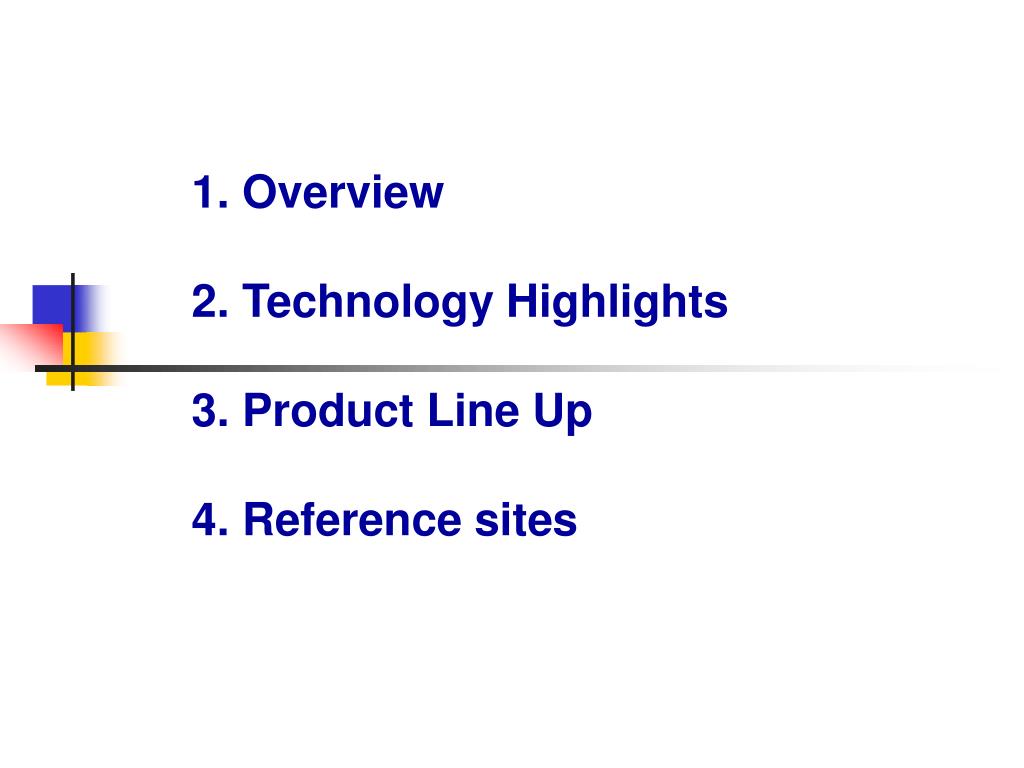

  2. 1. Overview 2. Technology Highlights 3. Product Line Up 4. Reference sites Contents : Virtual Studio

  3. Overview: What is Darim Virtual Studio? • Fully integrated real time 3D virtual set System • Hybrid (Tracking & trackless) cameras Support • Built-in advanced color keying modules • Real time 3D graphics rendering and mixing • Multiple live video feeds with A/B switching • Exchangeable images, movies, animations • Free-hand animation of virtual cameras and other 3D objects with joysticks • Progressive and interlaced HD cameras

  4. Conventional & DARIM VS Chormakey: 2ch Chormakey:Controller Back Ground Renderer Forground Renderer Turn Key One Operator Mixer Audio Delayer Video player 1r Video player 2

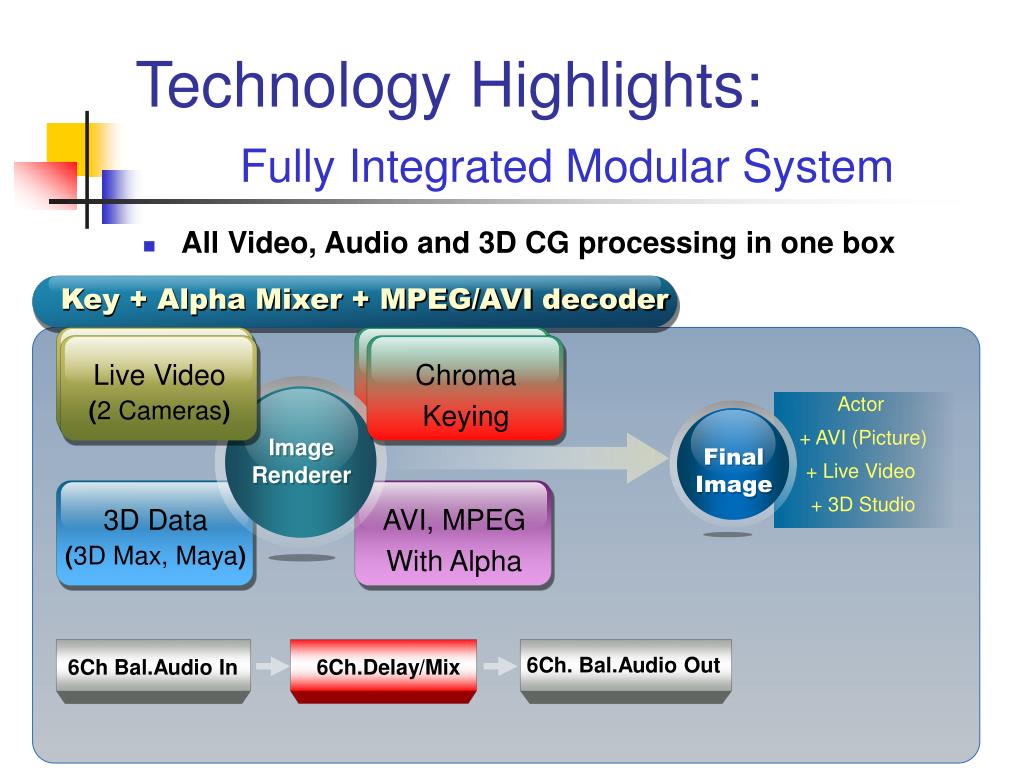

  5. Key + Alpha Mixer + MPEG/AVI decoder Chroma Keying Chroma Keying 3D Data (3D Max, Maya) Image Renderer Final Image Live Video (2 Cameras) Live Video (2 Cameras) 6Ch. Bal.Audio Out 6Ch.Delay/Mix Technology Highlights:Fully Integrated Modular System • All Video, Audio and 3D CG processing in one box Actor + AVI (Picture) + Live Video + 3D Studio AVI, MPEG With Alpha 6Ch Bal.Audio In

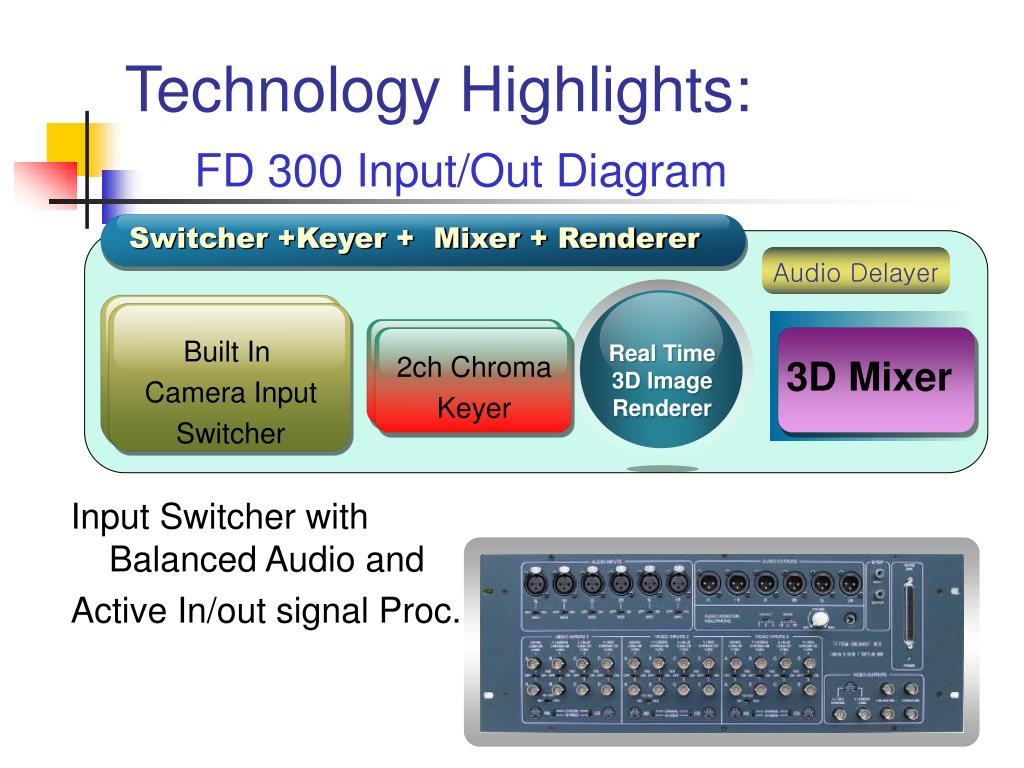

  6. Switcher +Keyer + Mixer + Renderer 2ch Chroma Keyer 2ch Chroma Keyer Real Time 3D Image Renderer Built In Camera Input Switcher Built In Camera Input Switcher Technology Highlights:FD 300 Input/Out Diagram Audio Delayer 3D Mixer Input Switcher with Balanced Audio and Active In/out signal Proc.

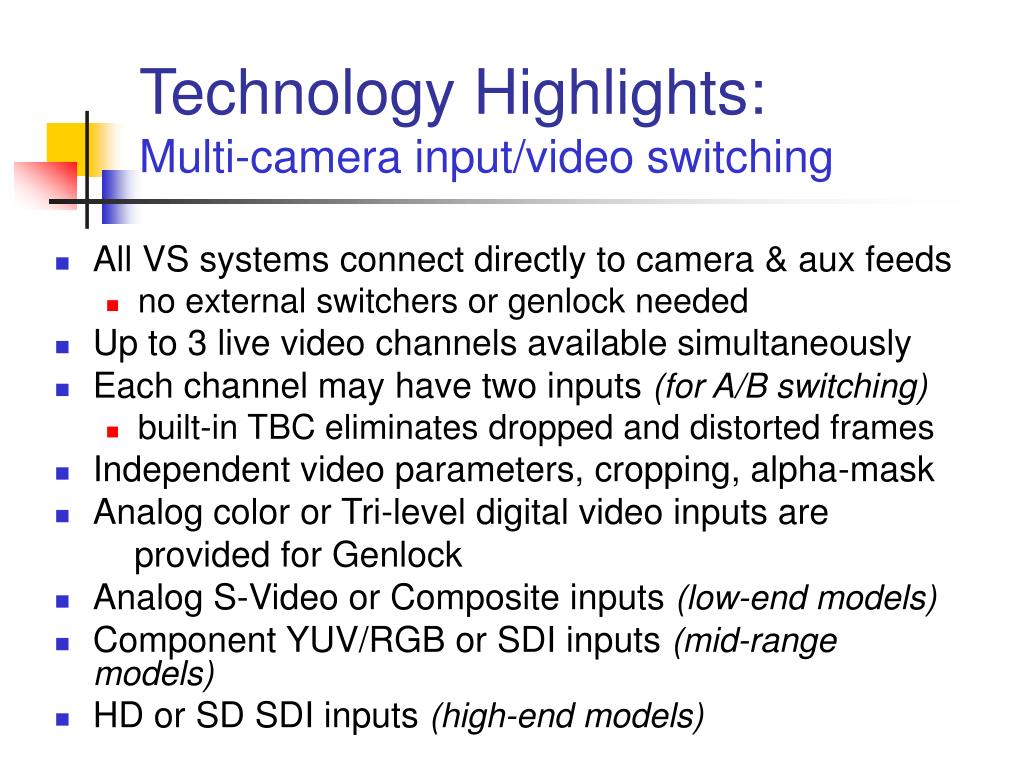

  7. Technology Highlights:Multi-camera input/video switching • All VS systems connect directly to camera & aux feeds • no external switchers or genlock needed • Up to 3 live video channels available simultaneously • Each channel may have two inputs (for A/B switching) • built-in TBC eliminates dropped and distorted frames • Independent video parameters, cropping, alpha-mask • Analog color or Tri-level digital video inputs are provided for Genlock • Analog S-Video or Composite inputs (low-end models) • Component YUV/RGB or SDI inputs (mid-range models) • HD or SD SDI inputs (high-end models)

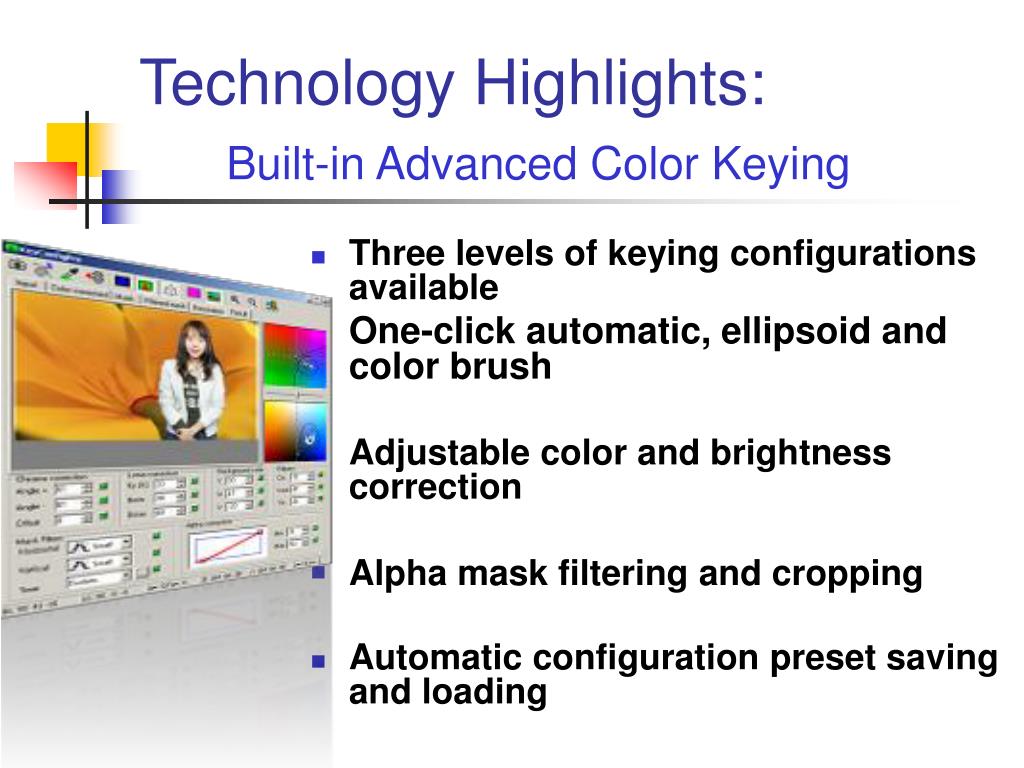

  8. Technology Highlights:Built-in Advanced Color Keying • Three levels of keying configurations available • One-click automatic, ellipsoid and color brush • Adjustable color and brightness correction • Alpha mask filtering and cropping • Automatic configuration preset saving and loading

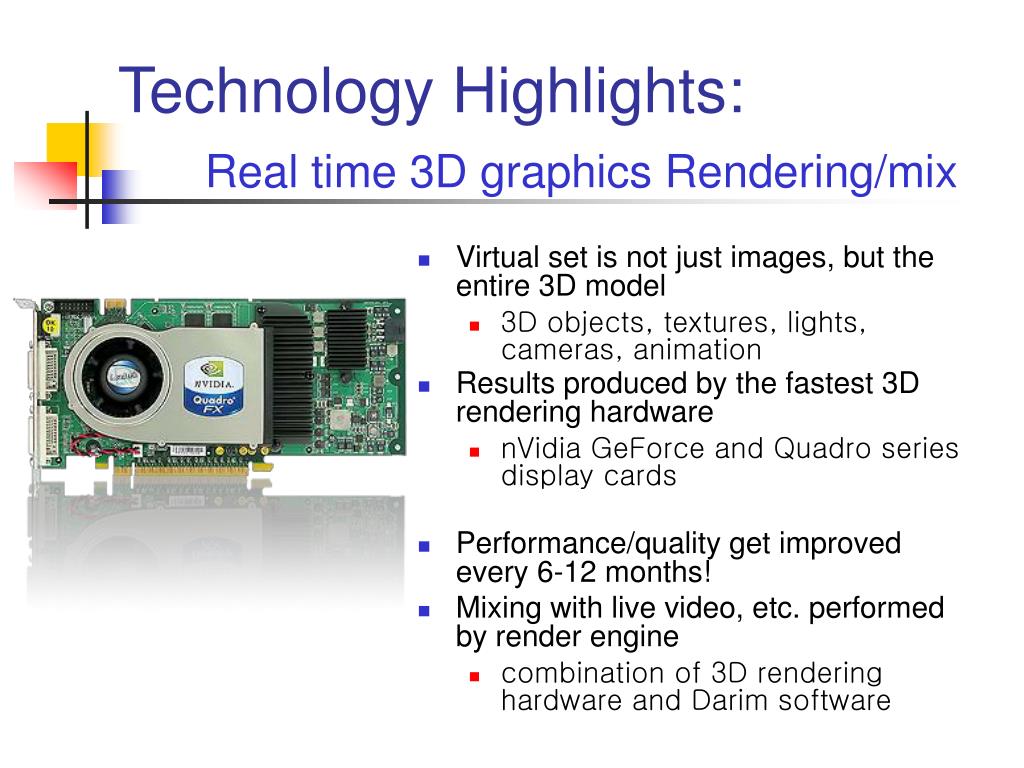

  9. Technology Highlights:Real time 3D graphics Rendering/mix • Virtual set is not just images, but the entire 3D model • 3D objects, textures, lights, cameras, animation • Results produced by the fastest 3D rendering hardware • nVidia GeForce and Quadro series display cards • Performance/quality get improved every 6-12 months! • Mixing with live video, etc. performed by render engine • combination of 3D rendering hardware and Darim software

  10. Technology Highlights:Virtual camera animation • Real camera remains fixed during virtual set production • no camera tracks, cranes or position/zoom sensors needed • Trackless concept allows to use any camera anywhere • Camera motion and zoom changes are done virtually • virtual cameras can be pre-animated by set designers • free-hand animation is available at anytime using joysticks • Animation can be played forward and backwards

  11. JPEC, BMP, TIFF, TGA, etc. Still Image Any type of AVI, MPEG, WMV Movie Clip PPT, XLS, DOC, etc. Document Etc. SWF(Flash), HTML(Web page), Other PC(via LAN), Sound Clip Technology Highlights:Embedded rich multimedia content

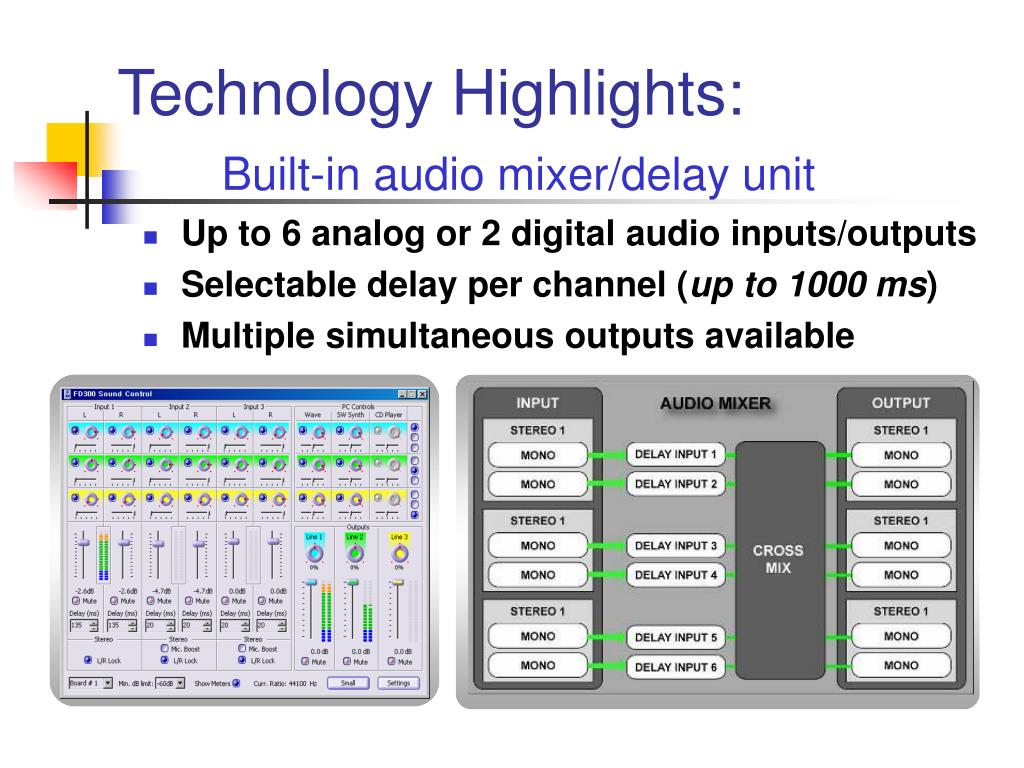

  12. Technology Highlights:Built-in audio mixer/delay unit • Up to 6 analog or 2 digital audio inputs/outputs • Selectable delay per channel (up to 1000 ms) • Multiple simultaneous outputs available

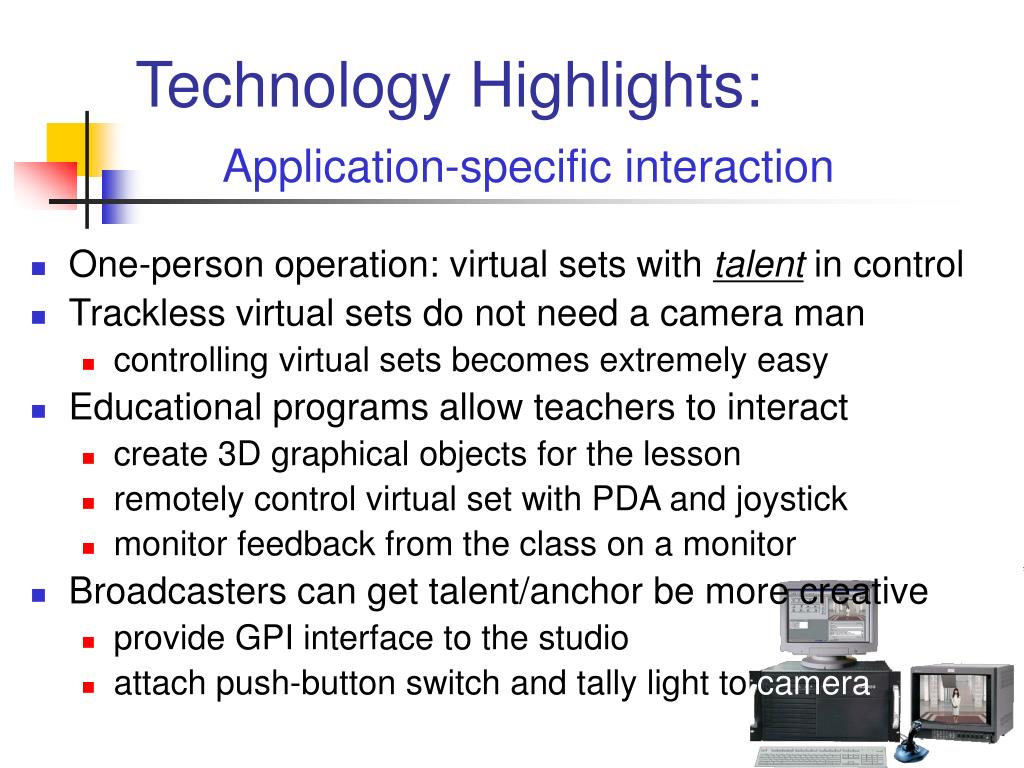

  13. Technology Highlights:Application-specific interaction • One-person operation: virtual sets with talent in control • Trackless virtual sets do not need a camera man • controlling virtual sets becomes extremely easy • Educational programs allow teachers to interact • create 3D graphical objects for the lesson • remotely control virtual set with PDA and joystick • monitor feedback from the class on a monitor • Broadcasters can get talent/anchor be more creative • provide GPI interface to the studio • attach push-button switch and tally light to camera

  14. Technology Highlights:Max. 3HD video Streams with Alpha 1 HD Live with Alpha From 2Ch Live RealTime Mixing 1 HD Live with Alpha From 2Ch Live Output HD 1 HD File AVI with Alpha From Hard 3D Data and Many SD Video/Flash Textures

  15. Technology Highlights:CameraTracking solution • Enables to link between physical pan/tilt movements and the virtual set images • Provides infinitely adjustable perfect balance throughout the tilt range • Gives comprehensive line of robotic camera positioning - Any Robotic Camera Sensorscan be integrated with VS4000 SDK

  16. Thank you Darim Vision

  17. AVI Playback (Optional Live) Technology Highlights:Trackless mode Diagram Studio Output Real and Virtual Cameras 3D Max Step 1 Step 3 3D Rendering Virtual Camera View output Real Camera No Tracking Chroma Key Step 2 Video Texturing on the object in 3D Data..

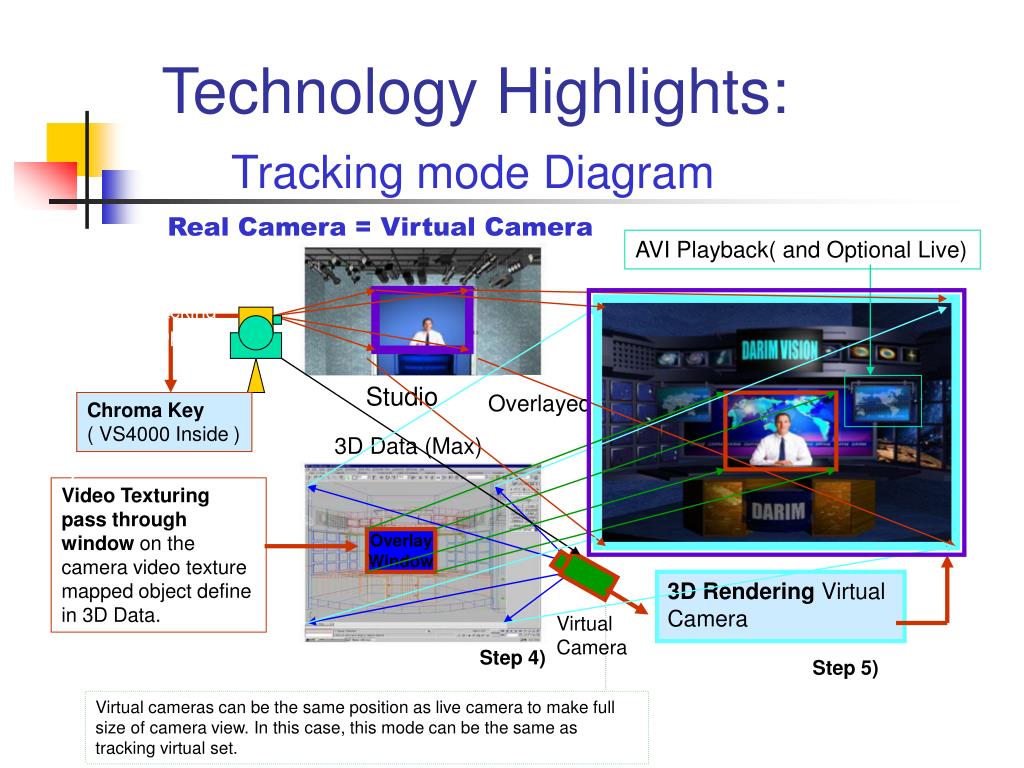

  18. Technology Highlights:Tracking mode Diagram Real Camera = Virtual Camera Step 1) AVI Playback( and Optional Live) Real Camera with tracking ( option) Step 2) Studio Overlayed Chroma Key ( VS4000 Inside ) 3D Data (Max) Step 3) Video Texturing pass through window on the camera video texture mapped object define in 3D Data. Overlay Window 3D Rendering Virtual Camera Virtual Camera Step 4) Step 5) Virtual cameras can be the same position as live camera to make full size of camera view. In this case, this mode can be the same as tracking virtual set.

  19. Hot Action - Basic Simple 3D Background (SET) Wireframe scene Rendered scene Camera 01 Camera 02 Actor (Live video surf) Background Surfaces Desk Live video from real camera applied to flat surfaces (green) Virtual cameras can be move to any position independent on real.

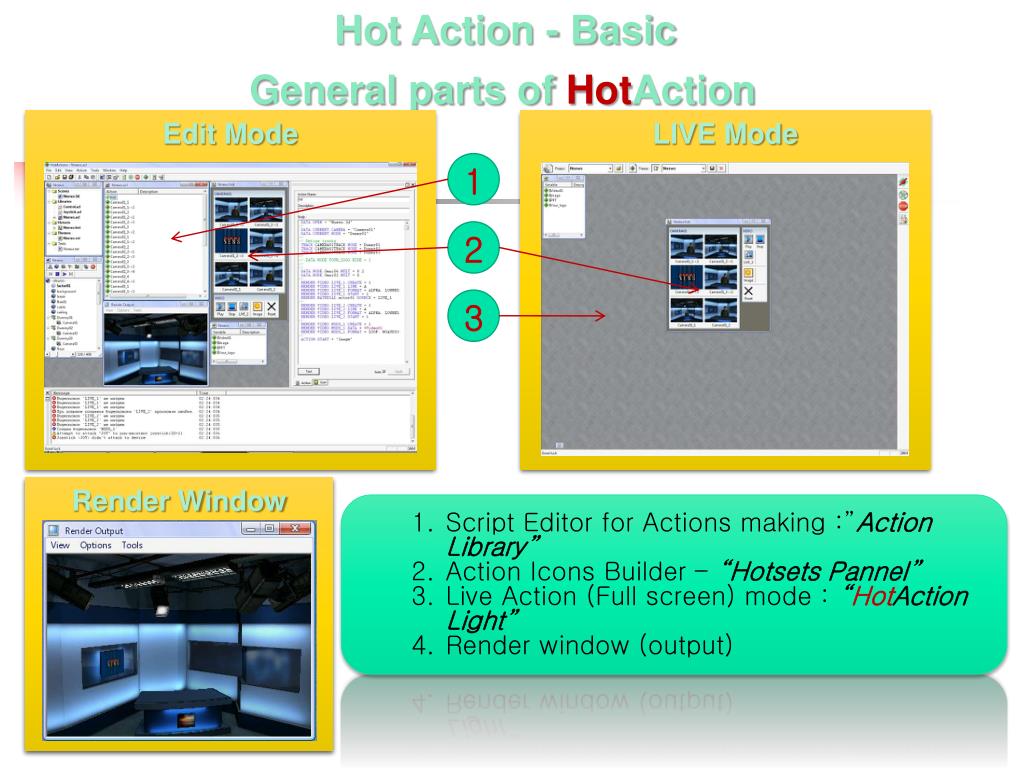

  20. Hot Action - Basic General parts of HotAction Edit Mode LIVE Mode 1 2 3 Render Window • Script Editor for Actions making :”Action Library” • Action Icons Builder – “HotsetsPannel” • Live Action (Full screen) mode : “HotAction Light” • Render window (output)

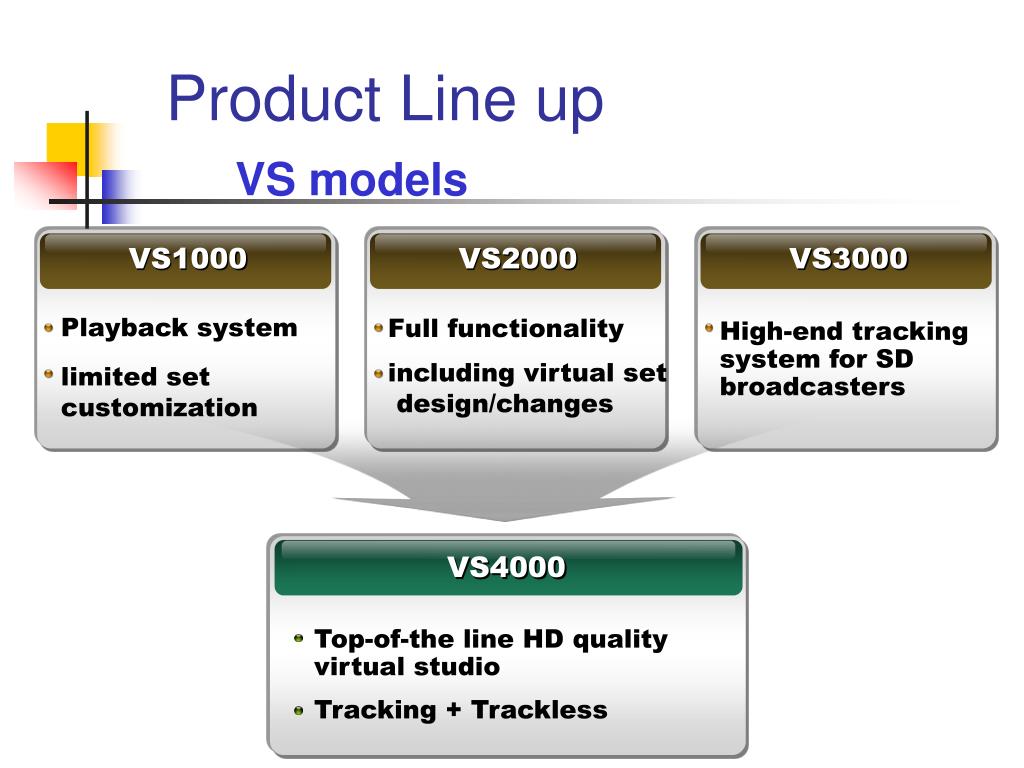

  21. VS4000 Top-of-the line HD quality virtual studio Tracking + Trackless Product Line upVS models VS1000 VS2000 VS3000 Playback system limited set customization Full functionality including virtual set design/changes High-end tracking system for SD broadcasters

  22. Darim Vision
