Routing and Wavelength Assignment Approaches for Wavelength-Routed Optical WDM Networks

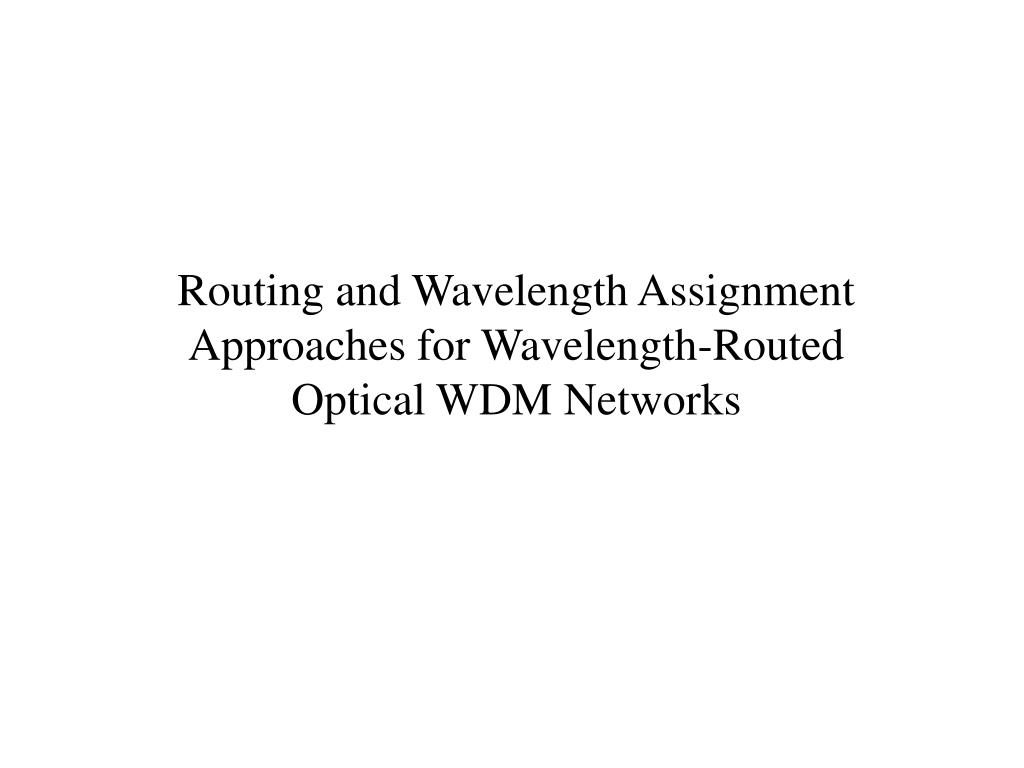

1. Routing and Wavelength Assignment Approaches for Wavelength-Routed Optical WDM Networks

2. Agenda • Introduction • Routing Assignment • Wavelength Assignment • Distributed Relative Capacity Loss(DRCL) • Conclusion

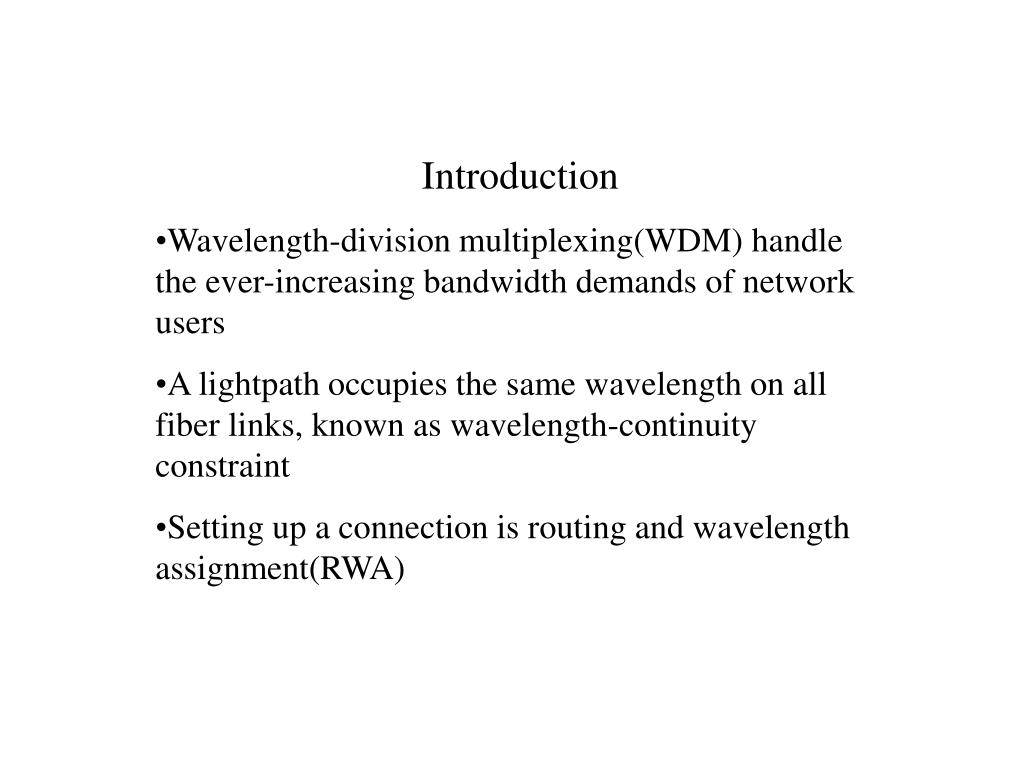

3. Introduction • Wavelength-division multiplexing(WDM) handle the ever-increasing bandwidth demands of network users • A lightpath occupies the same wavelength on all fiber links, known as wavelength-continuity constraint • Setting up a connection is routing and wavelength assignment(RWA)

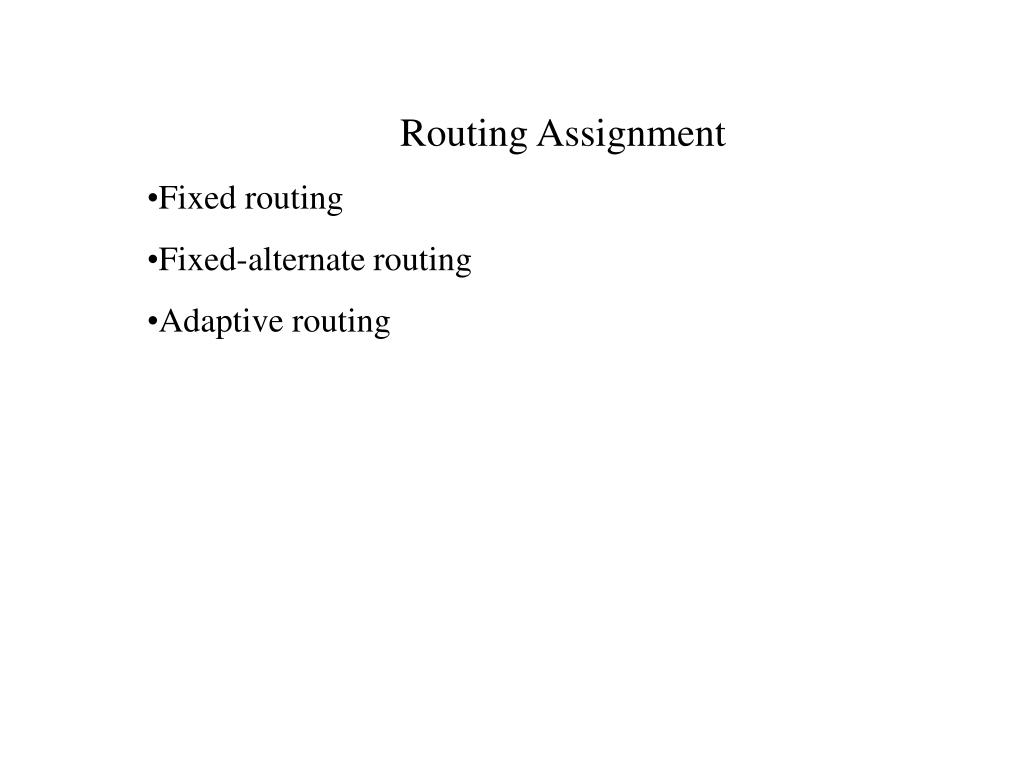

4. Routing Assignment • Fixed routing • Fixed-alternate routing • Adaptive routing

5. Wavelength Assignment • Random Assignment • First-Fit • Least-Used/SPREAD • Most-Used/PACK • Min-Product • Least Loaded • MAX-SUM • Relative Capacity Loss(RCL) • Wavelength Resevation • Protecting Threshold • Distributed Relative Capacity Loss(DRCL)

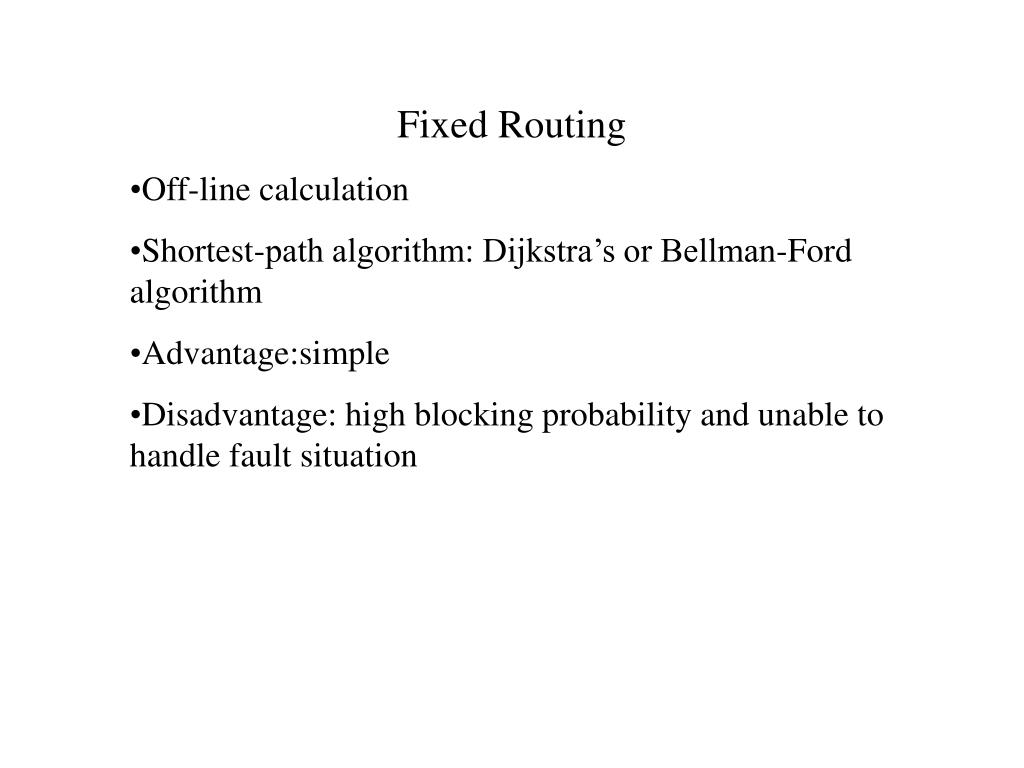

6. Fixed Routing • Off-line calculation • Shortest-path algorithm: Dijkstra’s or Bellman-Ford algorithm • Advantage:simple • Disadvantage: high blocking probability and unable to handle fault situation

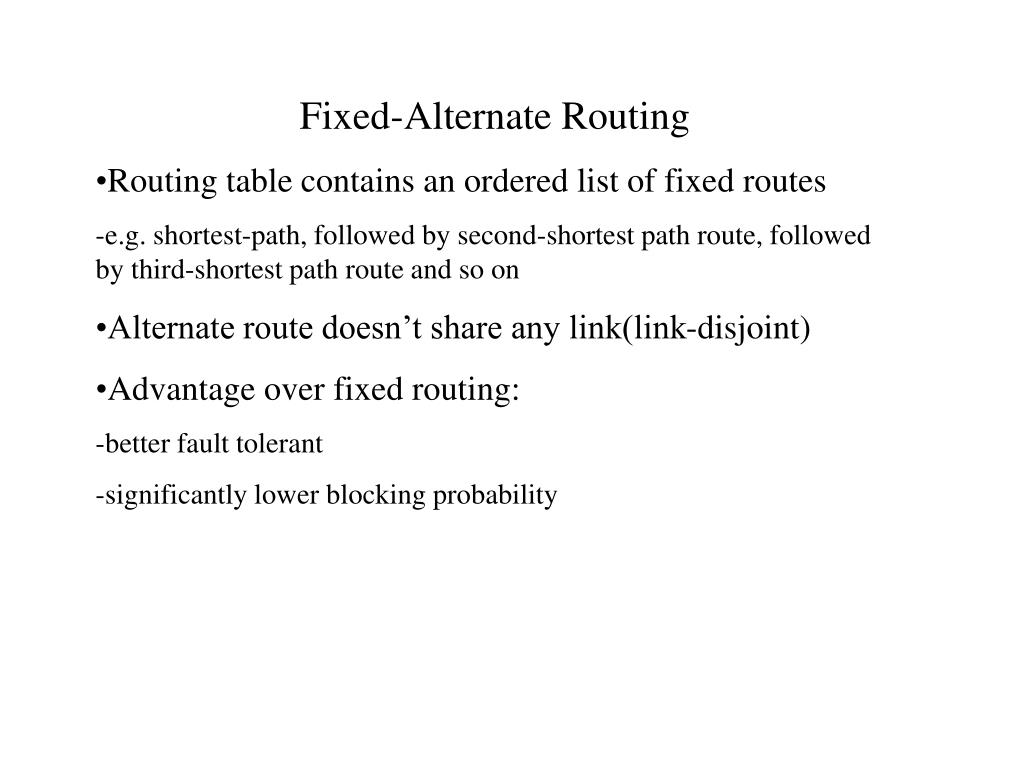

7. Fixed-Alternate Routing • Routing table contains an ordered list of fixed routes • -e.g. shortest-path, followed by second-shortest path route, followed by third-shortest path route and so on • Alternate route doesn’t share any link(link-disjoint) • Advantage over fixed routing: • -better fault tolerant • -significantly lower blocking probability

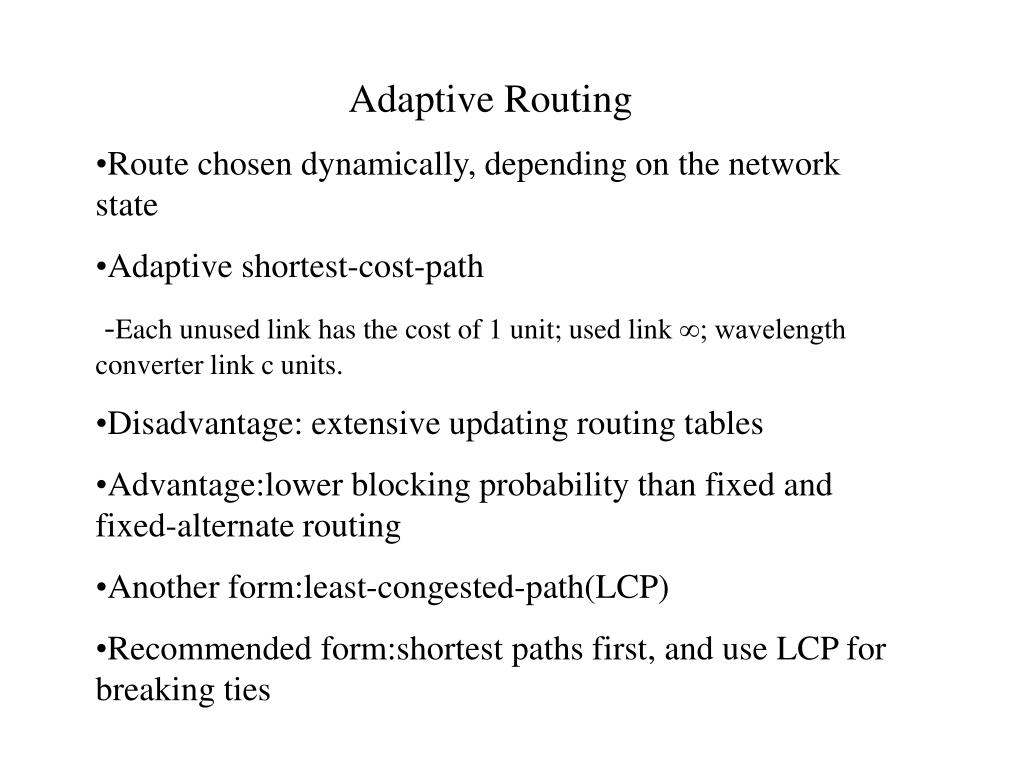

8. Adaptive Routing • Route chosen dynamically, depending on the network state • Adaptive shortest-cost-path • -Each unused link has the cost of 1 unit; used link ∞; wavelength converter link c units. • Disadvantage: extensive updating routing tables • Advantage:lower blocking probability than fixed and fixed-alternate routing • Another form:least-congested-path(LCP) • Recommended form:shortest paths first, and use LCP for breaking ties

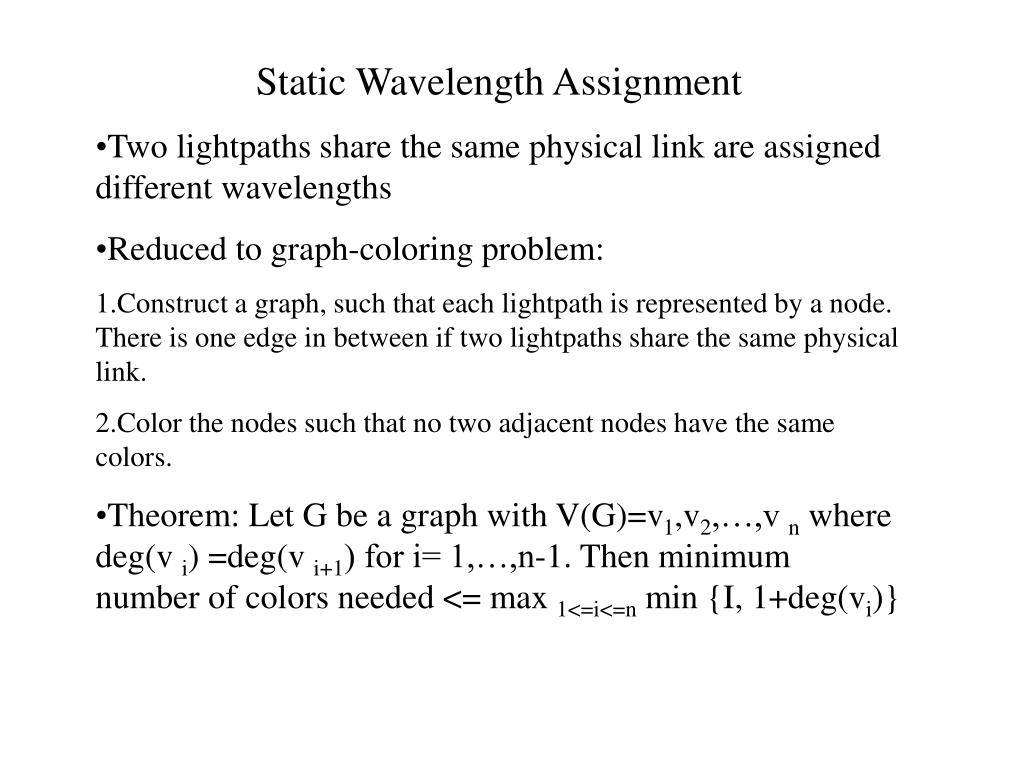

9. Static Wavelength Assignment • Two lightpaths share the same physical link are assigned different wavelengths • Reduced to graph-coloring problem: • 1.Construct a graph, such that each lightpath is represented by a node. There is one edge in between if two lightpaths share the same physical link. • 2.Color the nodes such that no two adjacent nodes have the same colors. • Theorem: Let G be a graph with V(G)=v1,v2,…,v n where deg(v i) =deg(v i+1) for i= 1,…,n-1. Then minimum number of colors needed <= max 1<=i<=n min {I, 1+deg(vi)}

10. Random Wavelength Assignment • Randomly chosen available wavelength • Uniform probablity • No global information needed

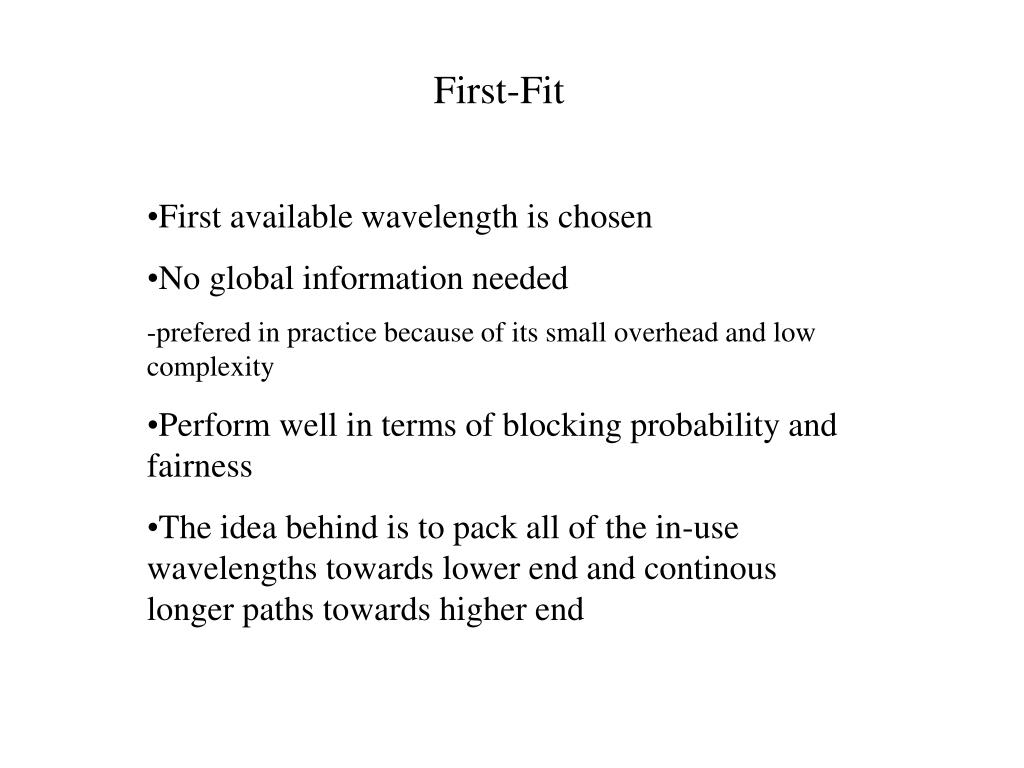

11. First-Fit • First available wavelength is chosen • No global information needed • -prefered in practice because of its small overhead and low complexity • Perform well in terms of blocking probability and fairness • The idea behind is to pack all of the in-use wavelengths towards lower end and continous longer paths towards higher end

12. Least-Used(LU) Wavelength Assignment • Least used in the network chosen first • Balance load through all the wavelength • Break the long wavelength path quickly • Worse than Random: • -global information needed • -additional storage and computation cost • -not preferred in practice

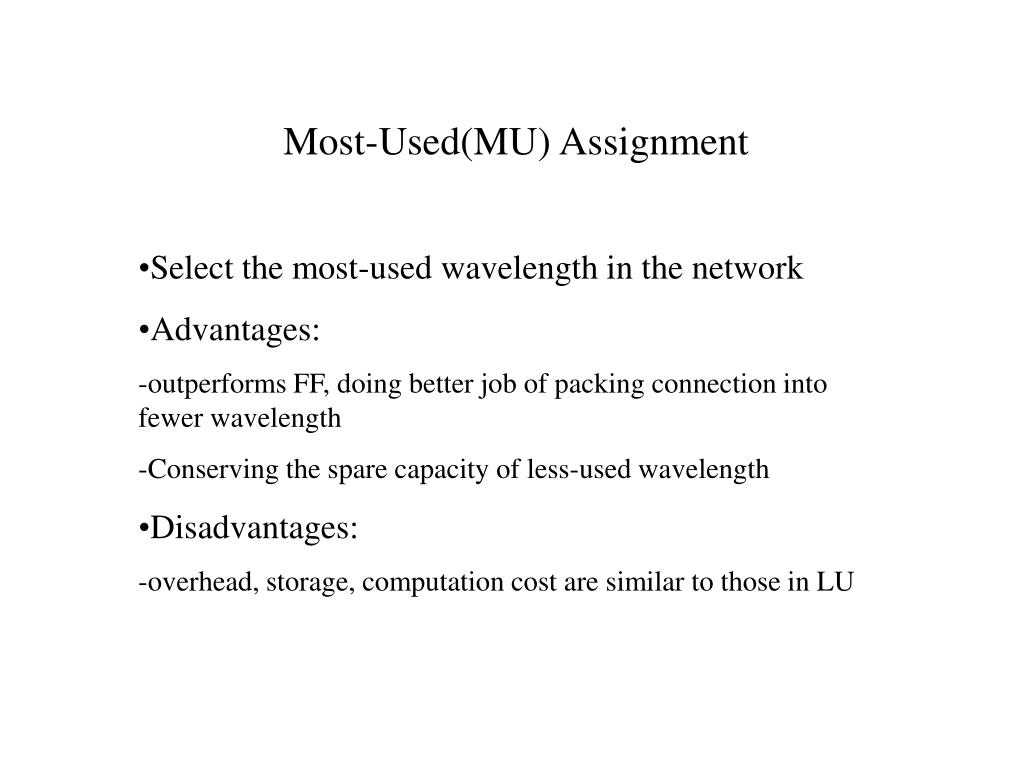

13. Most-Used(MU) Assignment • Select the most-used wavelength in the network • Advantages: • -outperforms FF, doing better job of packing connection into fewer wavelength • -Conserving the spare capacity of less-used wavelength • Disadvantages: • -overhead, storage, computation cost are similar to those in LU

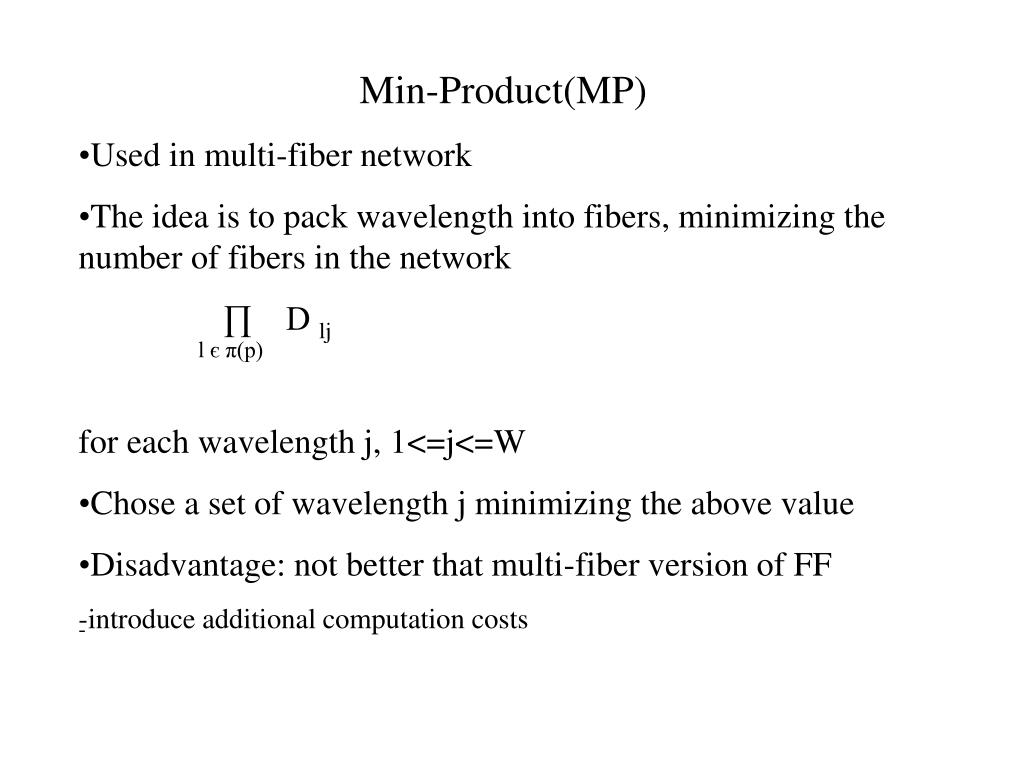

14. Min-Product(MP) • Used in multi-fiber network • The idea is to pack wavelength into fibers, minimizing the number of fibers in the network • ∏ D lj • l є π(p) • for each wavelength j, 1<=j<=W • Chose a set of wavelength j minimizing the above value • Disadvantage: not better that multi-fiber version of FF • -introduce additional computation costs • -

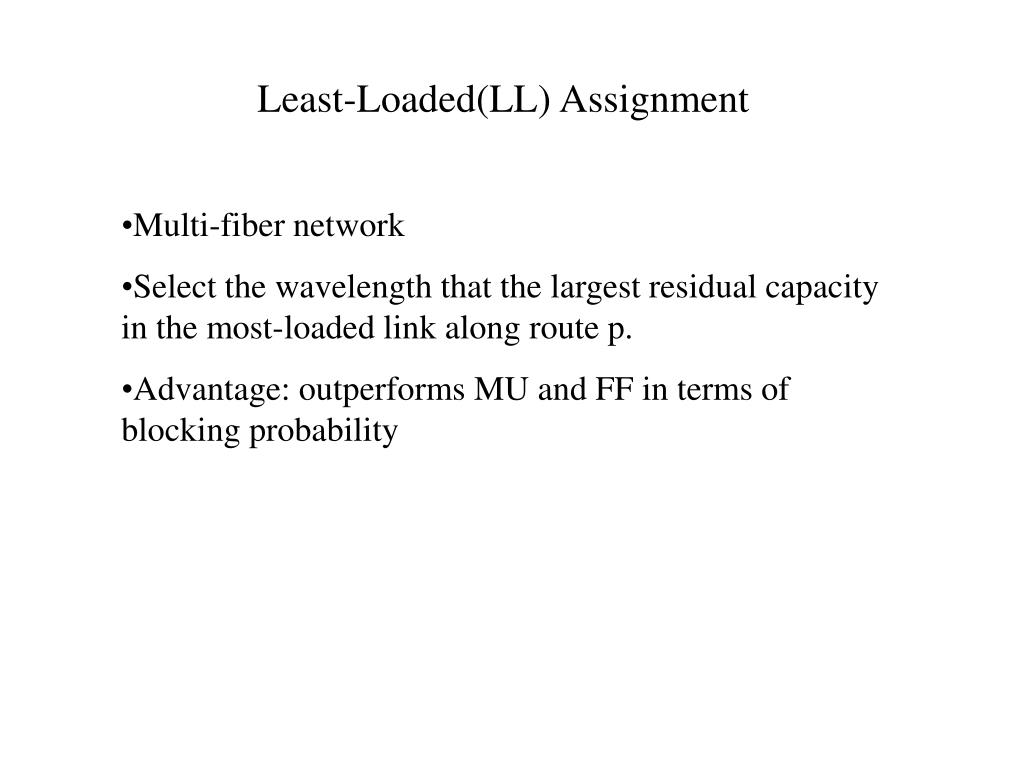

15. Least-Loaded(LL) Assignment • Multi-fiber network • Select the wavelength that the largest residual capacity in the most-loaded link along route p. • Advantage: outperforms MU and FF in terms of blocking probability

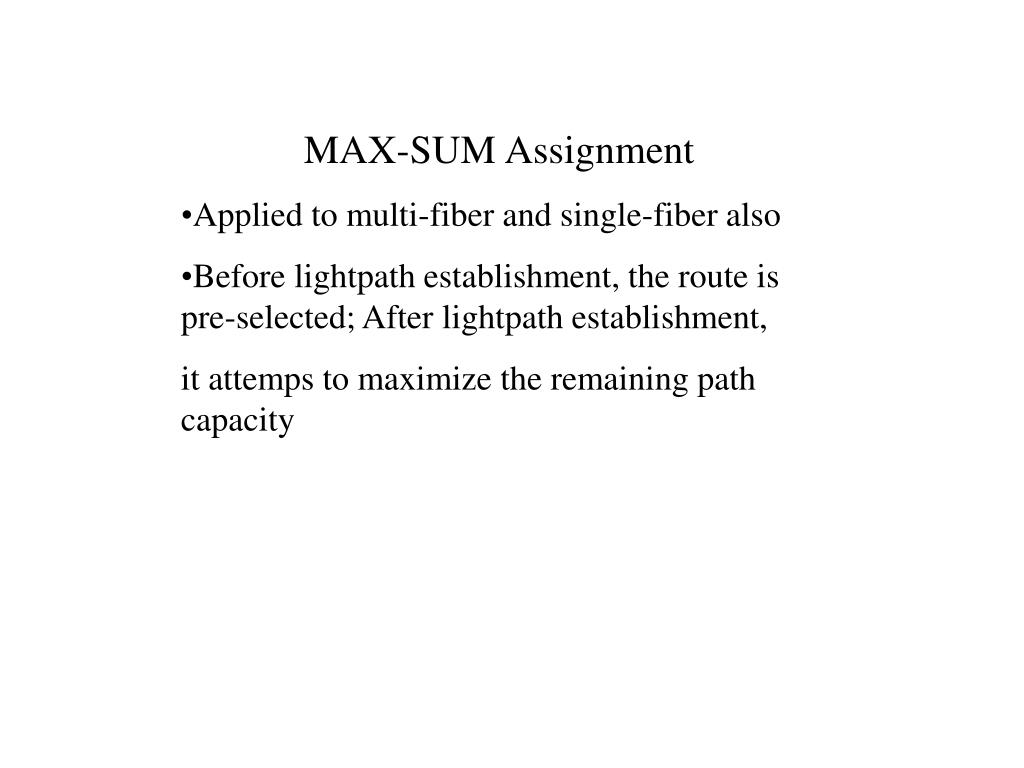

16. MAX-SUM Assignment • Applied to multi-fiber and single-fiber also • Before lightpath establishment, the route is pre-selected; After lightpath establishment, • it attemps to maximize the remaining path capacity

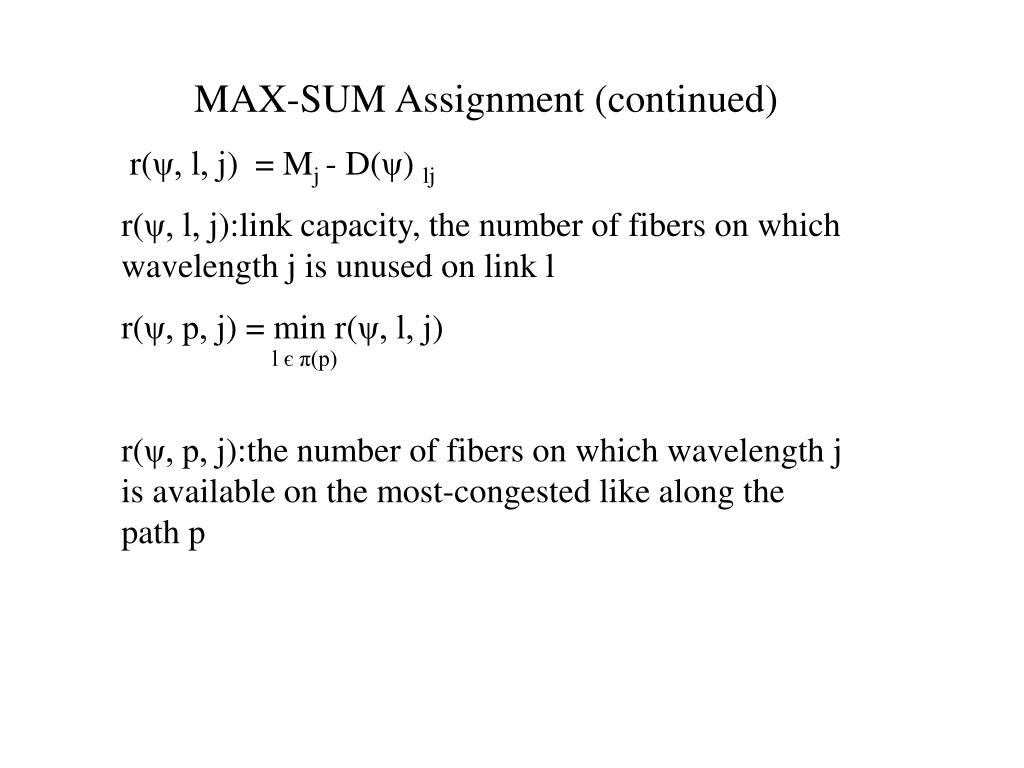

17. MAX-SUM Assignment (continued) r(ψ, l, j) = Mj - D(ψ) lj r(ψ, l, j):link capacity, the number of fibers on which wavelength j is unused on link l r(ψ, p, j) = min r(ψ, l, j) l є π(p) r(ψ, p, j):the number of fibers on which wavelength j is available on the most-congested like along the path p

18. MAX-SUM Assignment(continued) w R(ψ,p) = Σ min r(ψ, l, j) j=1l є π(p) At last, chose the wavelength j that maximizes the quantity: Σ R(ψ’(j) ,p) pєP ψ’(j) be the next state of the network if j is assigned P is all the potential paths for the connection

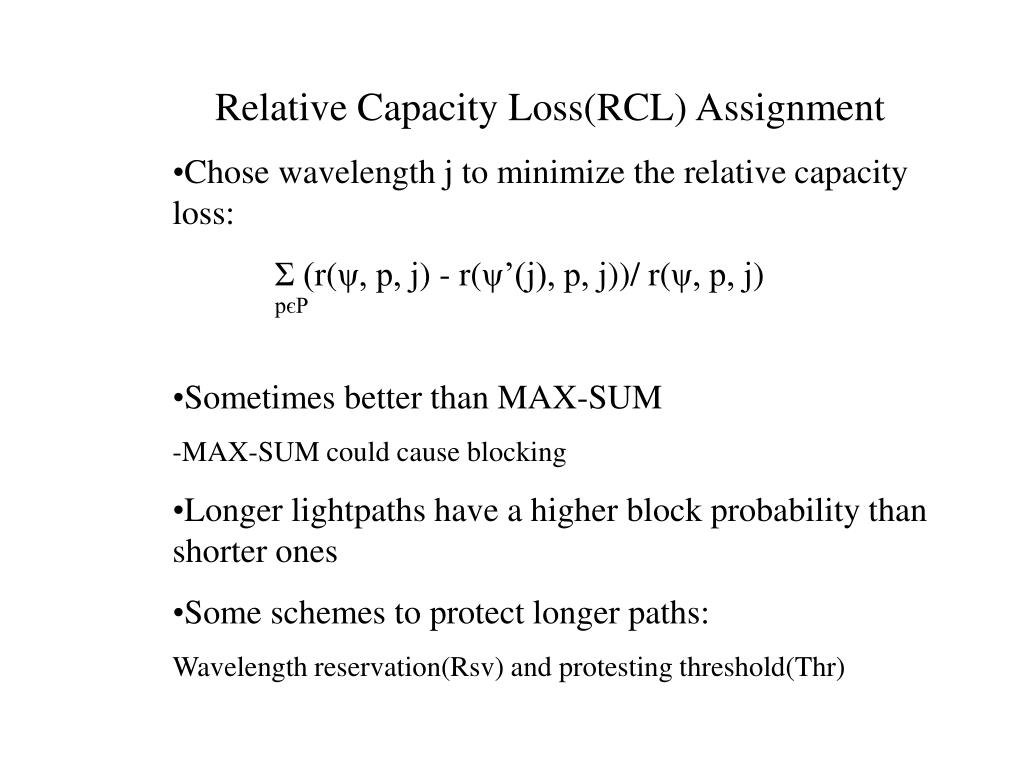

19. Relative Capacity Loss(RCL) Assignment • Chose wavelength j to minimize the relative capacity loss: • Σ (r(ψ, p, j) - r(ψ’(j), p, j))/ r(ψ, p, j) • pєP • Sometimes better than MAX-SUM • -MAX-SUM could cause blocking • Longer lightpaths have a higher block probability than shorter ones • Some schemes to protect longer paths: • Wavelength reservation(Rsv) and protesting threshold(Thr)

20. Distributed Relative Capacity Loss(DRCL) • Using Bellman-Ford algorithm to exchange information between nodes • Routing table as well as RCL table to be exchanged • Calculate the rcl(w,d) value for all the paths from the source node to every other node, excluding the destination node • Choose the wavelength that minimizes the sum of rcl(w,d) over all possible destinations d

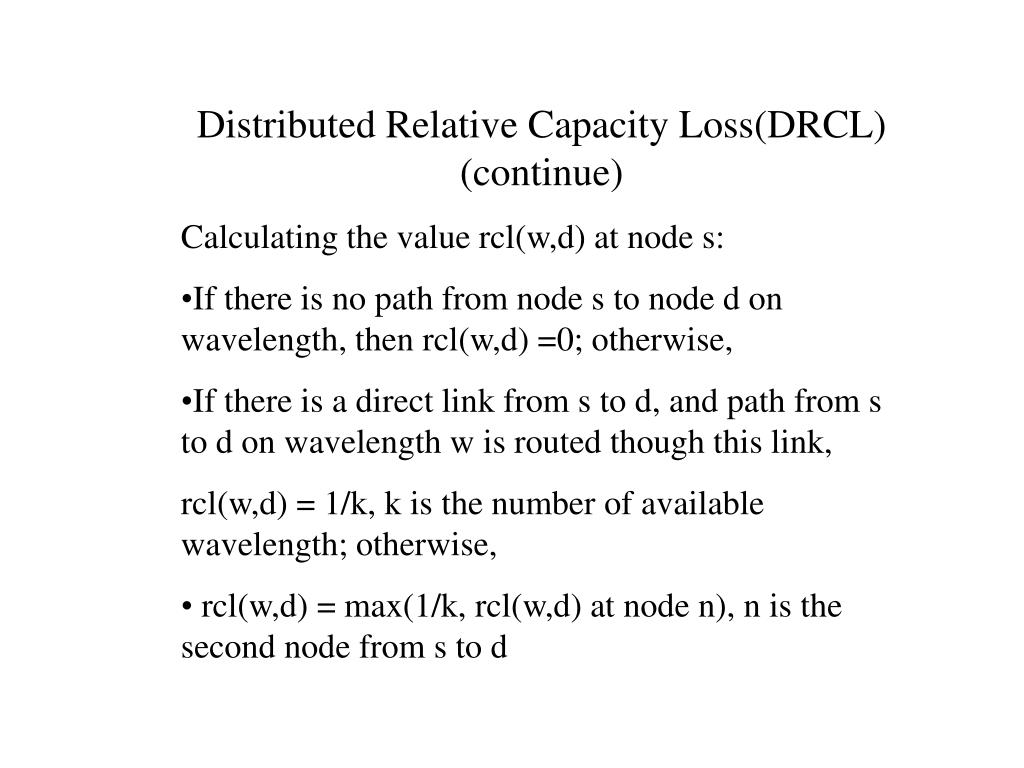

21. Distributed Relative Capacity Loss(DRCL) (continue) • Calculating the value rcl(w,d) at node s: • If there is no path from node s to node d on wavelength, then rcl(w,d) =0; otherwise, • If there is a direct link from s to d, and path from s to d on wavelength w is routed though this link, • rcl(w,d) = 1/k, k is the number of available wavelength; otherwise, • rcl(w,d) = max(1/k, rcl(w,d) at node n), n is the second node from s to d

22. Calculation in DRCL (example) Path p1: (2,4) Wavelength is used

23. Calculation in DRCL (example) (continue) λ3 is chosen

24. Conclusion • Adaptive routing has lower blocking probability in routing assignment • Max-Sum and RCL provide lower blocking probability in wavelength assignment, but rely on fixed routing • DRCL based on both RCL and adaptive routing, having better performance • Routing algorithm play a significant role
