ANIMAL EVOLUTION AND DIVERSITY

Figure 18.1A. ANIMAL EVOLUTION AND DIVERSITY. 18.1 What is an animal? Animals are eukaryotic, multicellular heterotrophs That ingest their food. 18.2 The ancestor of animals was probably a colonial, flagellated protist Cells in these protists Gradually became more specialized and layered.

cili
Download Presentation

ANIMAL EVOLUTION AND DIVERSITY

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Figure 18.1A ANIMAL EVOLUTION AND DIVERSITY • 18.1 What is an animal? • Animals are eukaryotic, multicellular heterotrophs • That ingest their food

  2. 18.2 The ancestor of animals was probably a colonial, flagellated protist • Cells in these protists • Gradually became more specialized and layered Somaticcells Digestive cavity Reproductivecells 2Hollow sphere of unspecialized cells (shown in cross section) 3Beginning of cell specialization (cross section) 4Infolding (cross section) 1Colonial protist, an aggregate of identical cells 5Gastrula-like “proto-animal” (cross section) Figure 18.2A

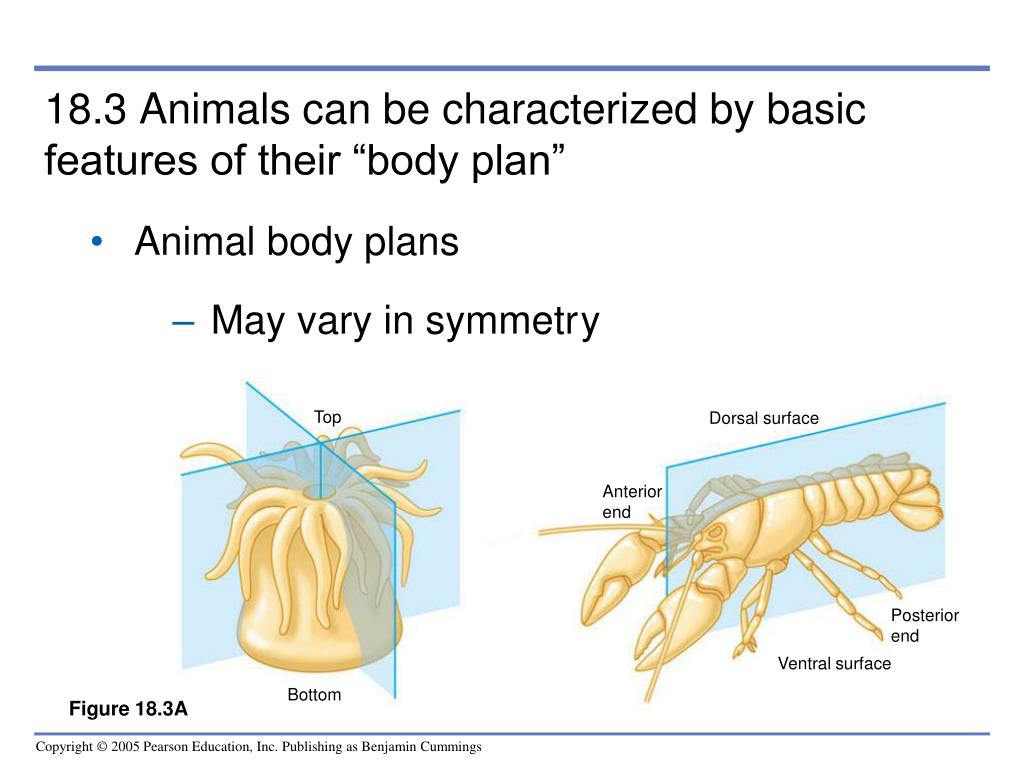

  3. Top Dorsal surface Anterior end Posterior end Ventral surface Bottom Figure 18.3A • 18.3 Animals can be characterized by basic features of their “body plan” • Animal body plans • May vary in symmetry

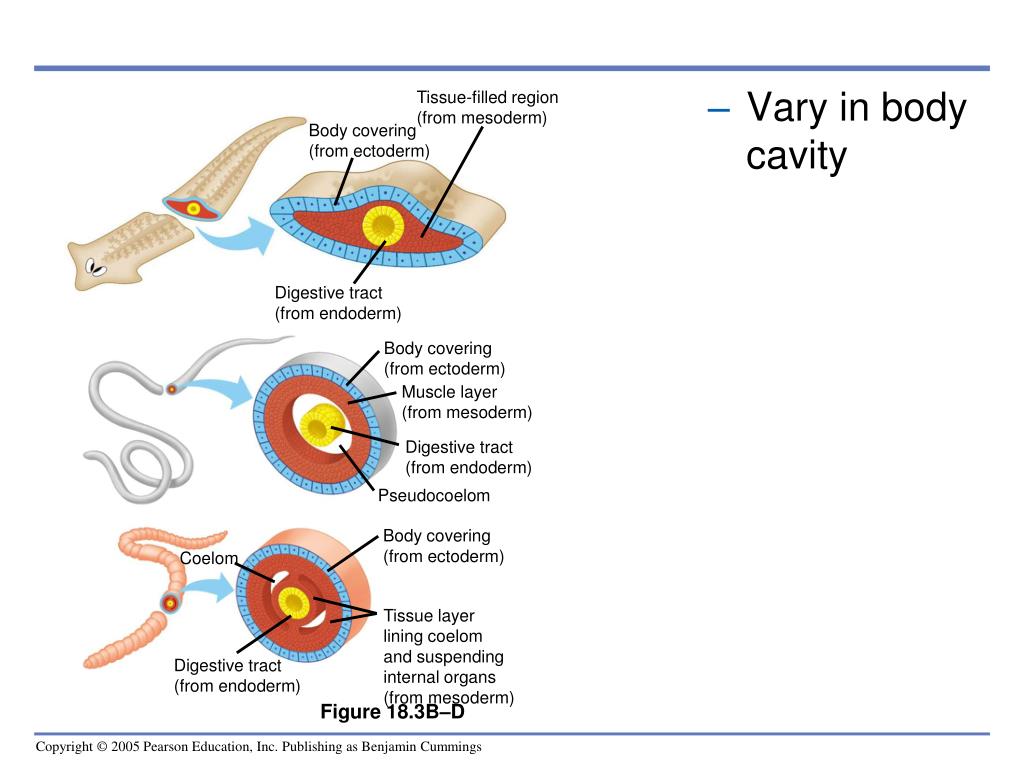

  4. Tissue-filled region (from mesoderm) Body covering (from ectoderm) Digestive tract (from endoderm) Body covering (from ectoderm) Muscle layer (from mesoderm) Digestive tract (from endoderm) Pseudocoelom Body covering (from ectoderm) Coelom Tissue layer lining coelomand suspendinginternal organs(from mesoderm) Digestive tract(from endoderm) • Vary in body cavity Figure 18.3B–D

  5. Development as either protostomes or deuterostomes

  6. Molluscs Annelids Sponges Flatworms Chordates Arthropods Cnidarians Nematodes Echinoderms Deuterostomes Protostomes Bilaterians Radial symmetry Bilateral symmetry Eumetazoans No true tissues True tissues Figure 18.4 Ancestral colonial protist • 18.4 The body plans of animals can be used to build phylogenetic trees • One hypothesis of animal phylogeny • Is based on morphological comparisons

  7. Figure 18.5A–C INVERTEBRATES • 18.5 Sponges have a relatively simple, porous body • Sponges, phylum Porifera • Are the simplest animals and have no true tissues

  8. Pores Choanocyte Amoebocyte Waterflow Skeletalfiber Centralcavity Flagella Choanocytein contactwith anamoebocyte Figure 18.5D • Flagellated choanocytes • Filter food from the water passing through the porous body

  9. 18.6 Cnidarians are radial animals with tentacles and stinging cells • Cnidarians, phylum Cnidaria • Have true tissues and radial symmetry

  10. Figure 18.6A–C • 18.6 Cnidarians are radial animals with tentacles and stinging cells • phylum Cnidaria • Have true tissues and radial symmetry • Their two body forms are • Polyps, such as hydra • Medusae, the jellies • They have a gastrovascular cavity • And cnidocytes on tentacles that sting prey

  11. Gastrovascularcavity Nerve cords Mouth Eyespots Nervoustissueclusters Figure 18.7A Bilateral symmetry • 18.7 Flatworms are the simplest bilateral animals: phylum Platyhelminthes • Are bilateral animals with no body cavity, and a simple nervous system

  12. Units withreproductivestructures Scolex(anteriorend) HooksSucker Colorized SEM 80 Flukes and tapeworms Are parasitic flatworms with complex life cycles Figure 18.7B

  13. Muscle tissue Trichinella juvenile Mouth Colorized SEM 400 LM 350 Figure18.8A, B • 18.8 Nematodes have a pseudocoelom and a complete digestive tract • Nematodes, phylum Nematoda • Have a pseudocoelom and a complete digestive tract • Are covered by a protective cuticle & free living

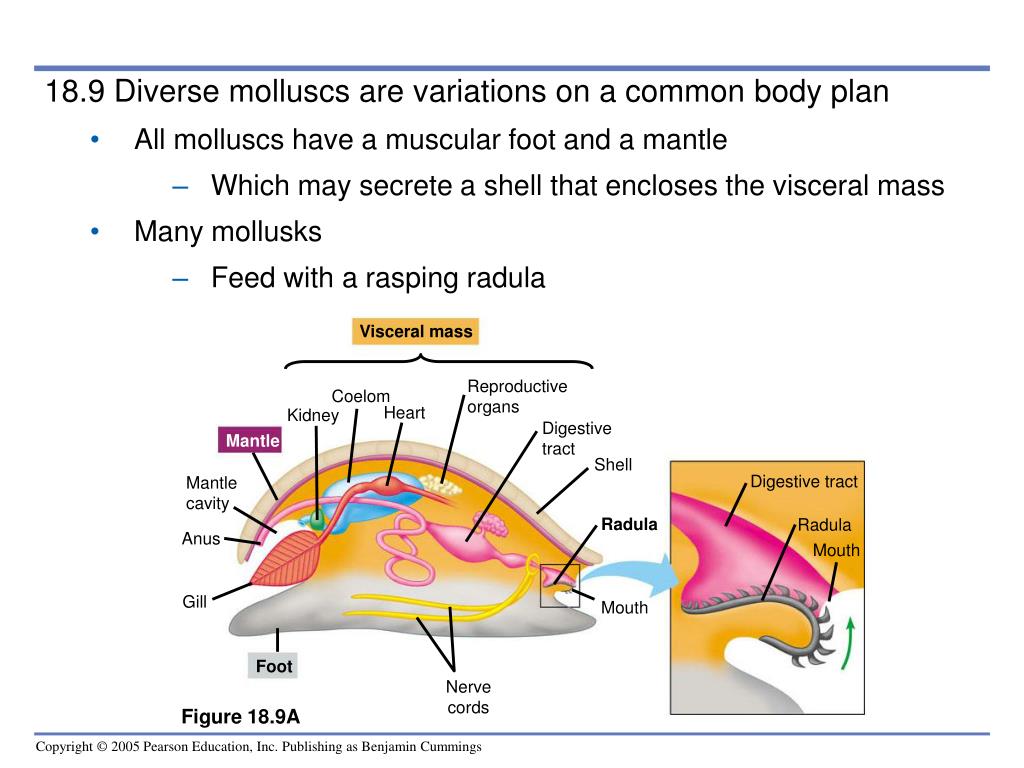

  14. Visceral mass Reproductive organs Coelom Heart Kidney Digestive tract Mantle Shell Digestive tract Mantle cavity Radula Radula Anus Mouth Gill Mouth Foot Nerve cords Figure 18.9A • 18.9 Diverse molluscs are variations on a common body plan • All molluscs have a muscular foot and a mantle • Which may secrete a shell that encloses the visceral mass • Many mollusks • Feed with a rasping radula

  15. Figure 18.9B, C • Gastropods • Gastropods are the largest group of molluscs • And include the snails and slugs

  16. Figure 18.9D • Bivalves • The bivalves have shells divided into two halves • And include clams, oysters, mussels, and scallops

  17. Figure 18.9E, F • Cephalopods • Cephalopods are adapted to be agile predators • And include squids and octopuses

  18. 18.10 Annelids are segmented worms • The segmented bodies of phylum Annelida • Give them added mobility for swimming and burrowing

  19. Epidermis Anus Circular muscle Segment wall (partition between segments) Segment wall Longitudinal muscle Dorsal vessel Excretory organ Mucus-secreting organ Intestine Bristles Bristles Dorsal vessel Coelom Nerve cord Ventral vessel Excretory organ Digestive tract Brain Segment wall Blood vessels Giant Australian earthworm Mouth Nerve cord Pumping segmental vessels • Earthworms and Their Relatives • Earthworms • Eat their way through soil • Have a closed circulatory system Figure 18.10A

  20. Figurer 18.10D Figure 18.10B, C • Annelids: Segmented Worms • PolychaetesForm the largest group of annelids Search for prey on the seafloor or live in tubes and filter food particles

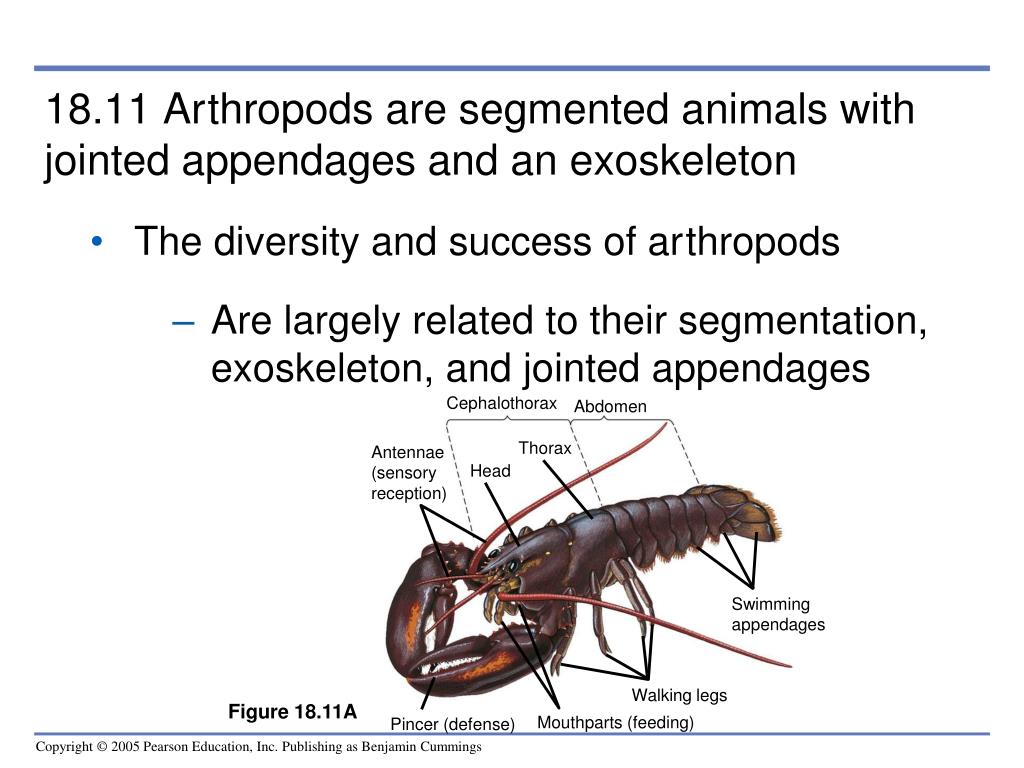

  21. Cephalothorax Abdomen Thorax Antennae (sensory reception) Head Swimming appendages Walking legs Figure 18.11A Mouthparts (feeding) Pincer (defense) • 18.11 Arthropods are segmented animals with jointed appendages and an exoskeleton • The diversity and success of arthropods • Are largely related to their segmentation, exoskeleton, and jointed appendages

  22. Colorized SEM 900 A black widow spider (about 1 cm wide) A dust mite (about 420 µm long) A scorpion (about 8 cm long) Figure 18.11B, C • Chelicerates • Chelicerates include • Horseshoe crabs • Arachnids, such as spiders, scorpions, mites, and ticks

  23. Figure 18.11D • Millipedes and Centipedes • Millipedes and centipedes • Are identified by the number of jointed legs per body segment

  24. Figure 18.11E • Crustaceans • The crustaceans • Are nearly all aquatic • Include crabs, shrimps, and barnacles

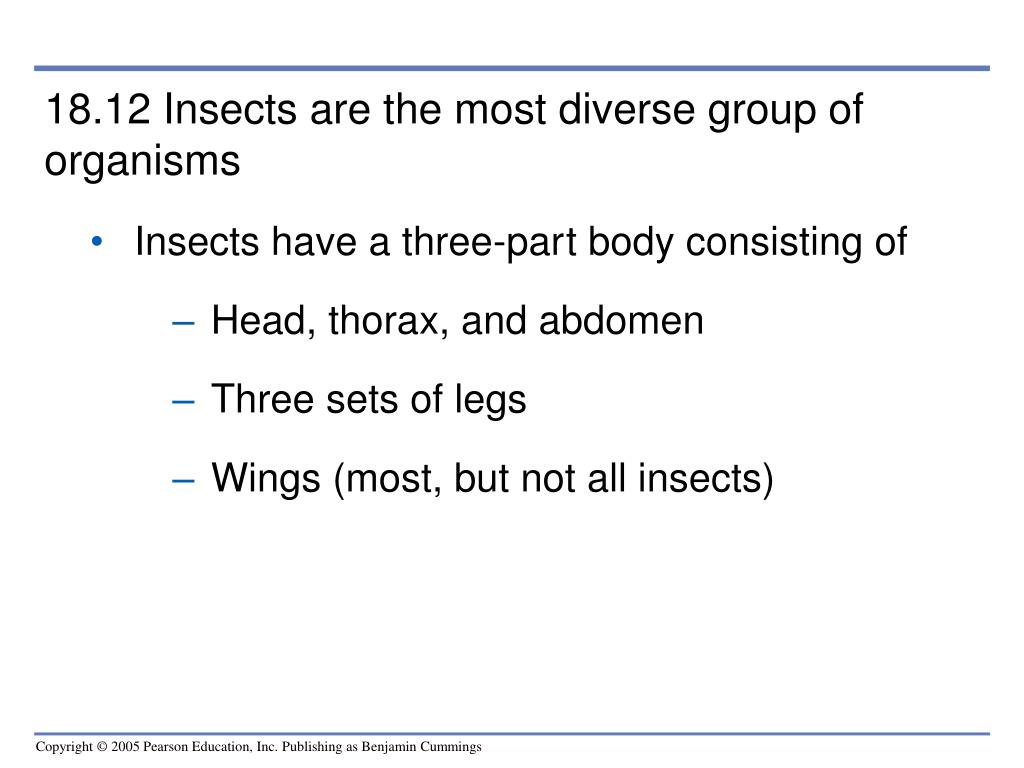

  25. 18.12 Insects are the most diverse group of organisms • Insects have a three-part body consisting of • Head, thorax, and abdomen • Three sets of legs • Wings (most, but not all insects)

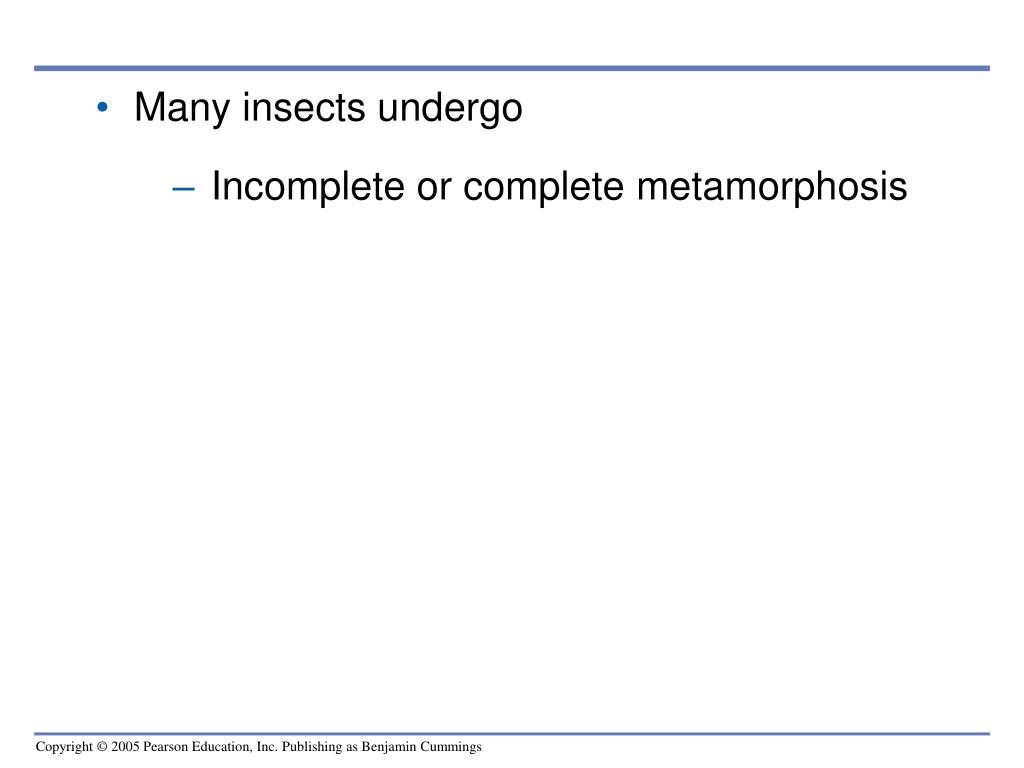

  26. Many insects undergo • Incomplete or complete metamorphosis

  27. Abdomen Head Thorax Antenna Forewing Eye Mouthparts Hindwing • A. Order Orthoptera • The order orthoptera includes • Grasshoppers, crickets, katydids, and locusts Figure 18.12A

  28. Figure 18.12B • B. Order Odonata • The order odonata includes • Dragonflies and damselflies

  29. Figure 18.12C • C. Order Hemiptera • The order hemiptera includes • Bedbugs, plant bugs, stinkbugs, and water striders

  30. Figure 18.12D • D. Order Coleoptera • The order coleoptera includes • Beetles

  31. Figure 18.12E • E. Order Lepidoptera • The order lepidoptera includes • Moths and butterflies

  32. Haltere Figure 18.12F • F. Order Diptera • The order Diptera includes • Flies, fruit flies, houseflies, gnats, and mosquitoes

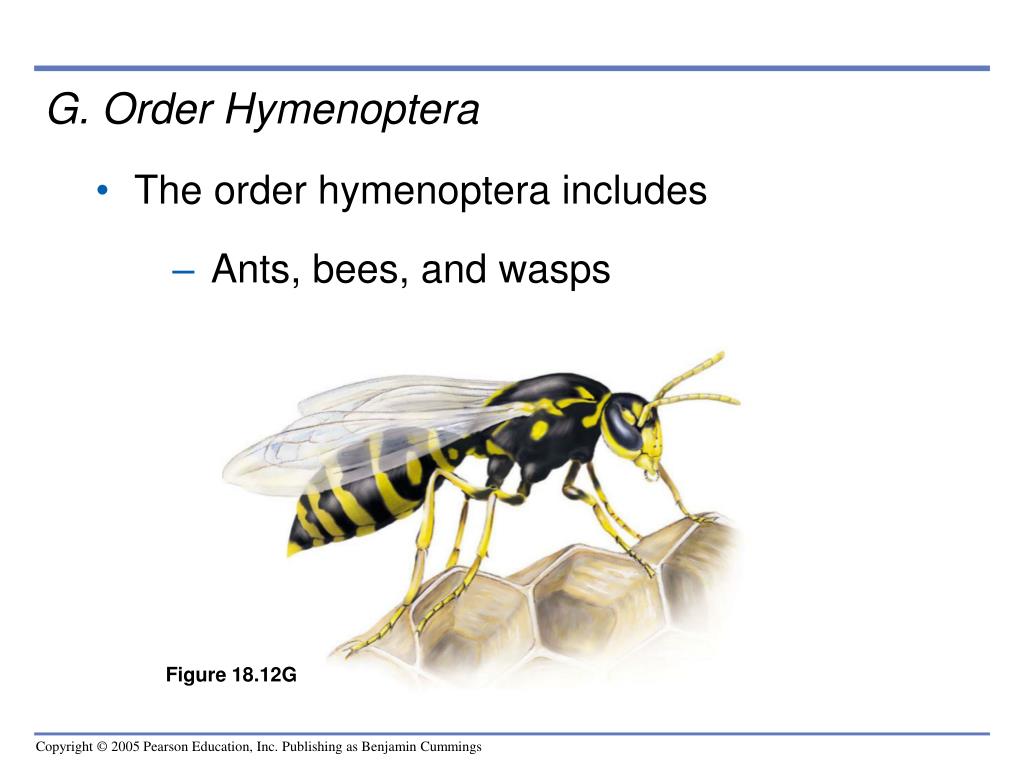

  33. Figure 18.12G • G. Order Hymenoptera • The order hymenoptera includes • Ants, bees, and wasps

  34. Tube foot • 18.13 Echinoderms have spiny skin, an endoskeleton, and a water vascular system for movement • Echinoderms, phylum Echinodermata • Includes organisms such as sea stars and sea urchins • Are radially symmetrical as adults Tube foot Spine Figure 18.13B, C

  35. Anus Spines Stomach Tube feet Canals Figure 18.13A • The water vascular system • Has suction cup–like tube feet used for respiration and locomotion

  36. 18.14 Our own phylum, Chordata, is distinguished by four features • Chordates, phylum Chordata have • A dorsal hollow nerve cord • A stiff notochord • Pharyngeal slits • A muscular post-anal tail

  37. Excurrent siphon Post-anal tail Dorsal, hollow nerve cord Head Pharyngeal slits Notochord Mouth Mouth Muscle segments Pharynx Dorsal, hollow nerve cord Pharyngeal slits Notochord Digestive tract Water exit Post-anal tail Adult (about 3 cm high) Larva Segmental muscles Anus Figure 18.14A, B • The simplest chordates are tunicates and lancelets • Marine invertebrates that use their pharyngeal slits for suspension feeding

  38. Chordates Craniates Vertebrates Jawed vertebrates Tetrapods Amniotes Lobe-fins Reptiles Lancelets Mammals Hagfishes Tunicates Lampreys Amphibians Milk Sharks, rays Ray-finned fishes Amniotic egg Legs Lobed fins Lungs or lung derivatives Jaws Vertebral column Head Brain Ancestral chordate VERTEBRATES • 18.15 Derived characters define the major clades of chordates • A chordate phylogenetic tree is based on a sequence of derived characters Figure 18.15

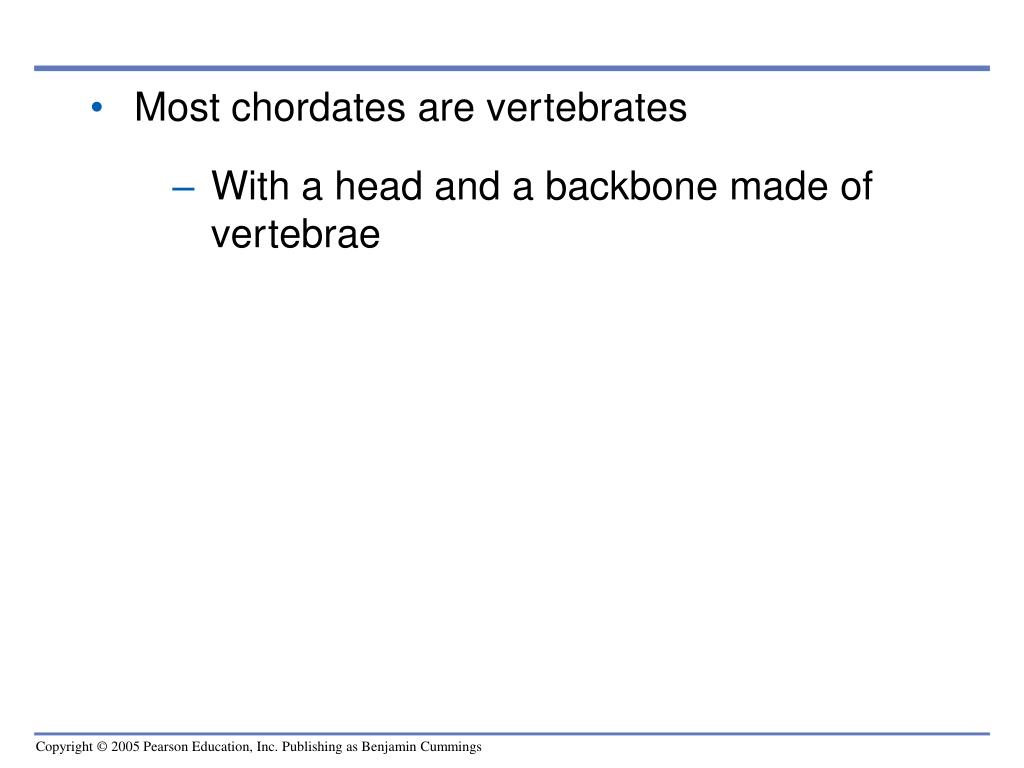

  39. Most chordates are vertebrates • With a head and a backbone made of vertebrae

  40. Figure 18.16A • 18.16 Lampreys are vertebrates that lack hinged jaws • Lampreys lack hinged jaws and paired fins

  41. Skeletal rods Skull Gill slits Mouth Figure 18.16B • Most vertebrates have hinged jaws • Which may have evolved from skeletal supports of the gill slits

  42. 18.17 Jawed vertebrates with gills and paired fins include sharks, ray-finned fishes, and lobe-fins • Three lineages of jawed vertebrates with gills and paired fins • Are commonly called fishes

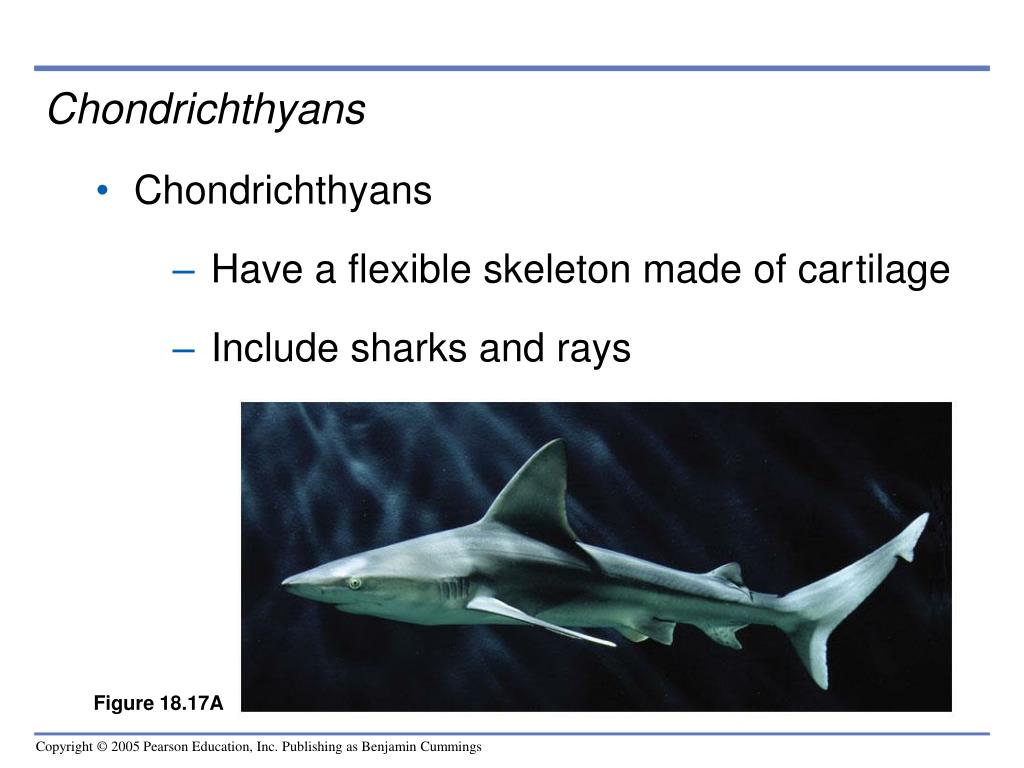

  43. Figure 18.17A • Chondrichthyans • Chondrichthyans • Have a flexible skeleton made of cartilage • Include sharks and rays

  44. Bony skeleton Dorsal fin Gills Anal fin Operculum Swim bladder Pectoral fin Pelvic fin Heart Rainbow trout, a ray-fin Figure 18.17B • Ray-finned Fishes • The ray-finned fishes have • A skeleton reinforced with a hard matrix of calcium phosphate • Operculi that move water over the gills • A buoyant swim bladder

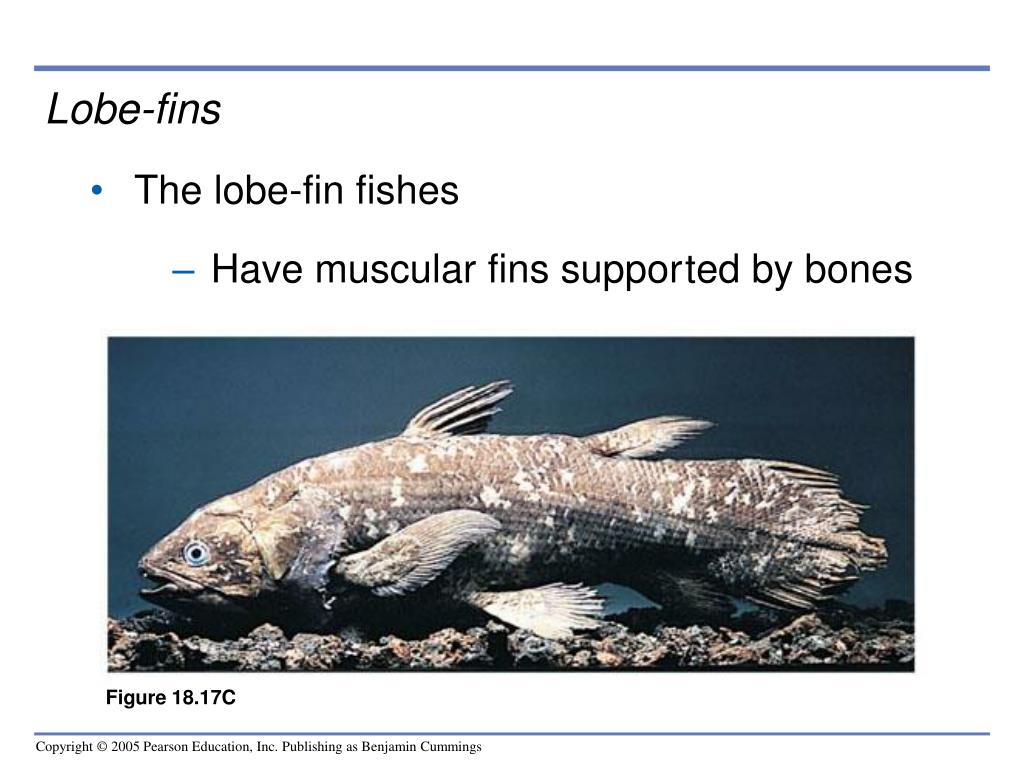

  45. Figure 18.17C • Lobe-fins • The lobe-fin fishes • Have muscular fins supported by bones

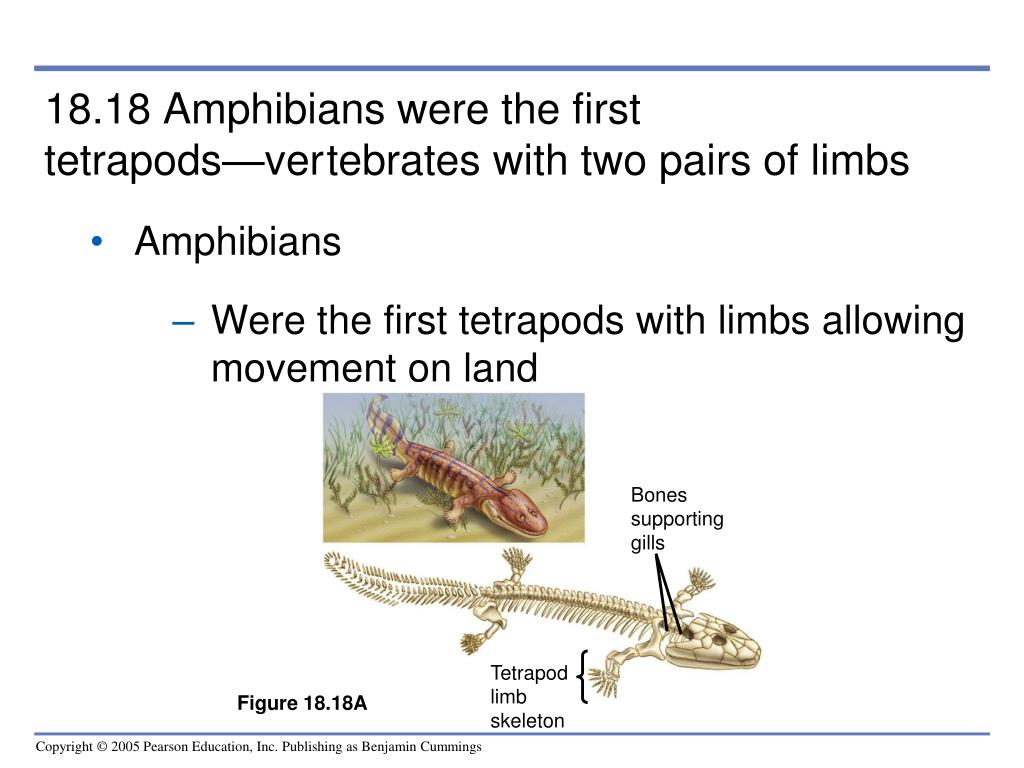

  46. Bones supporting gills Tetrapod limb skeleton Figure 18.18A • 18.18 Amphibians were the first tetrapods—vertebrates with two pairs of limbs • Amphibians • Were the first tetrapods with limbs allowing movement on land

  47. Figure 18.18B–D • Include frogs, toads, salamanders, and caecilians

  48. Most amphibian embryos and larvae • Still must develop in water

  49. Figure 18.19A, B • 18.19 Reptiles are amniotes—tetrapods with a terrestrially adapted egg • Terrestrial adaptations of reptiles include • Waterproof scales • A shelled, amniotic egg

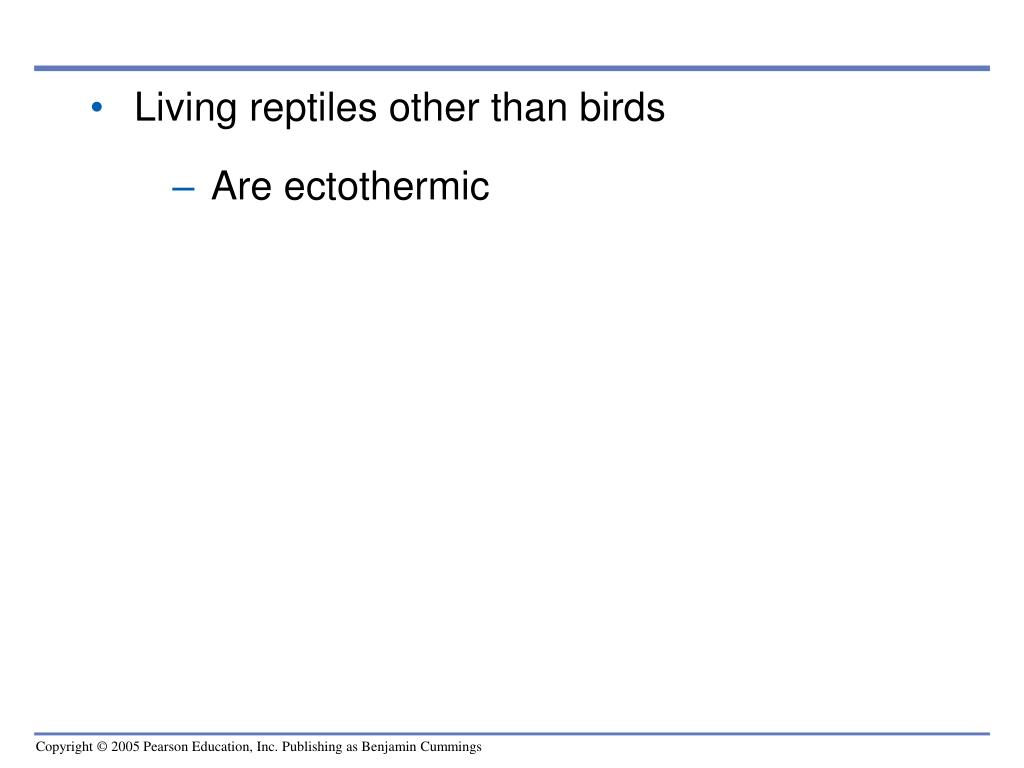

  50. Living reptiles other than birds • Are ectothermic
