Presentation Transcript

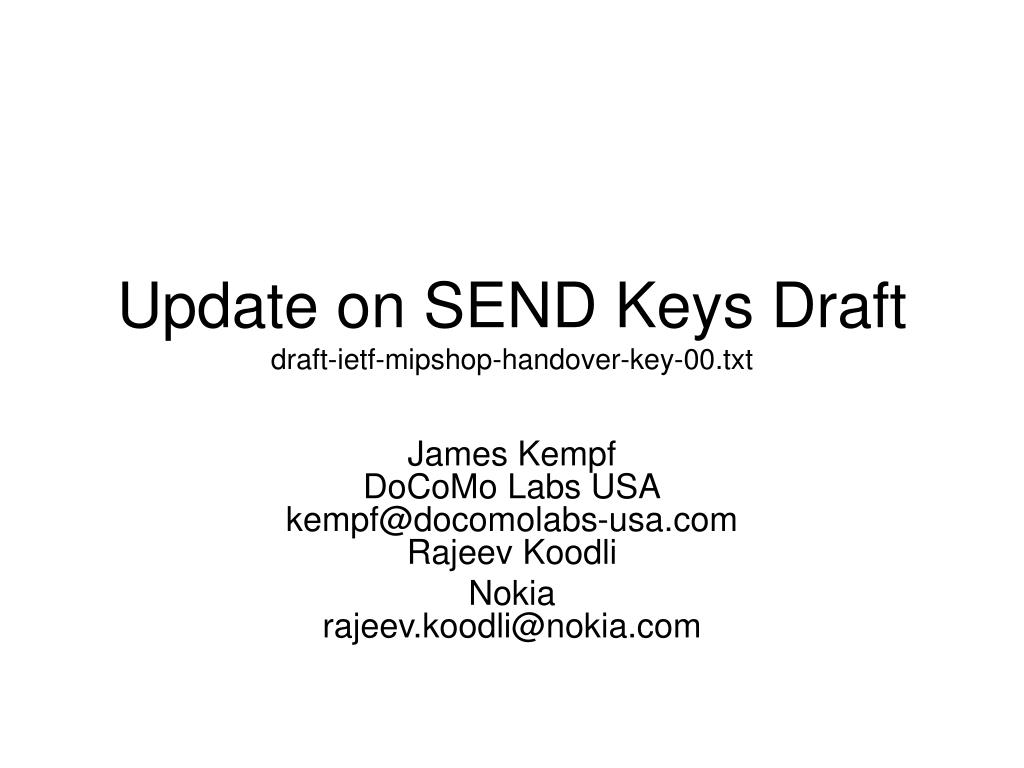

  1. Update on SEND Keys Draftdraft-ietf-mipshop-handover-key-00.txt James KempfDoCoMo Labs USAkempf@docomolabs-usa.comRajeev Koodli Nokiarajeev.koodli@nokia.com

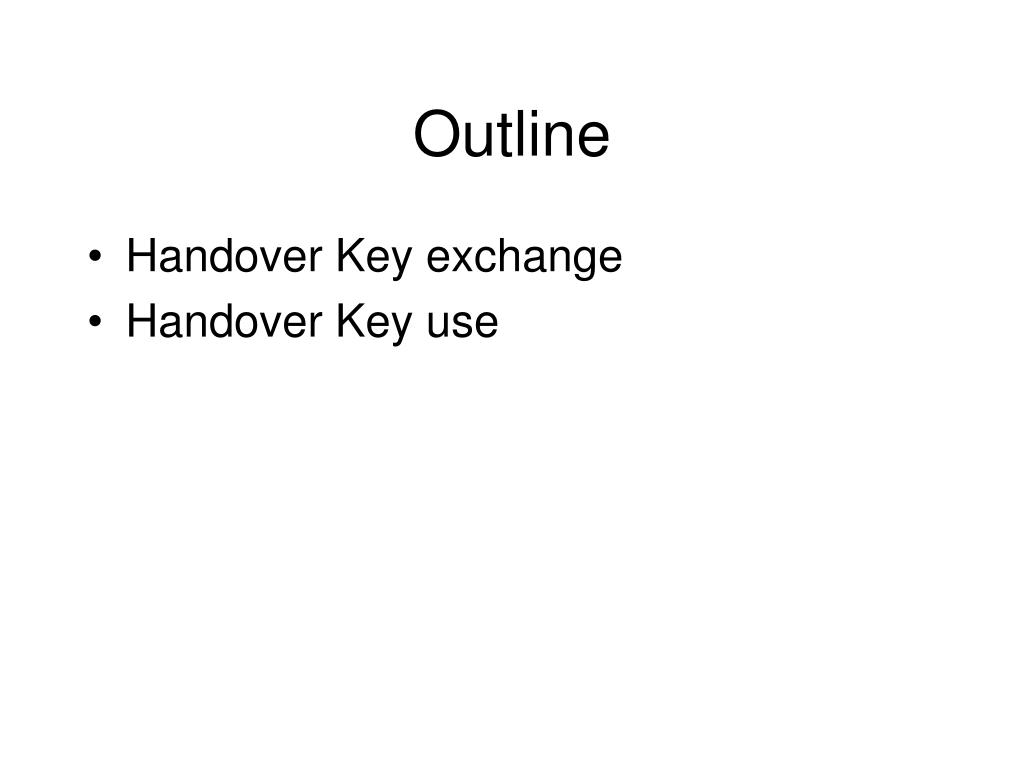

  2. Outline • Handover Key exchange • Handover Key use

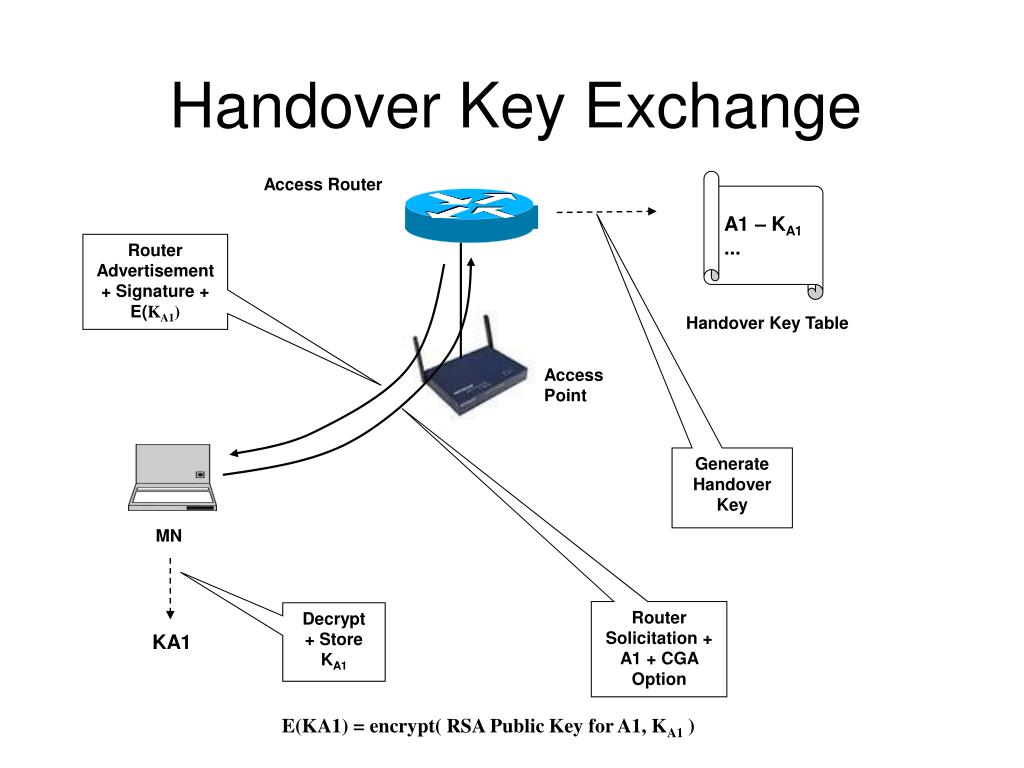

  3. Router Advertisement + Signature + E(KA1) Generate Handover Key MN Router Solicitation + A1 + CGA Option Decrypt + Store KA1 KA1 Handover Key Exchange Access Router A1 – KA1 ... Handover Key Table Access Point E(KA1) = encrypt( RSA Public Key for A1, KA1 )

  4. Changes • MN uses a separate RSA key (Kpub-h) for handover key exchange (SEND has its pair for CGA purposes) • MN sends the RSA public key (Kpub-h) in RtSolPr/RS • Router verifies CGA, and creates (or looks up) a handover secret key (Ksec-h) • Router encrypts handover secret key (Ksec-h) using RSA public key (Kpub-h) and sends it in PrRtAdv/RA • MN verifies CGA, decrypts the option and uses handover key (Ksec-h) to compute the MAC for BADF

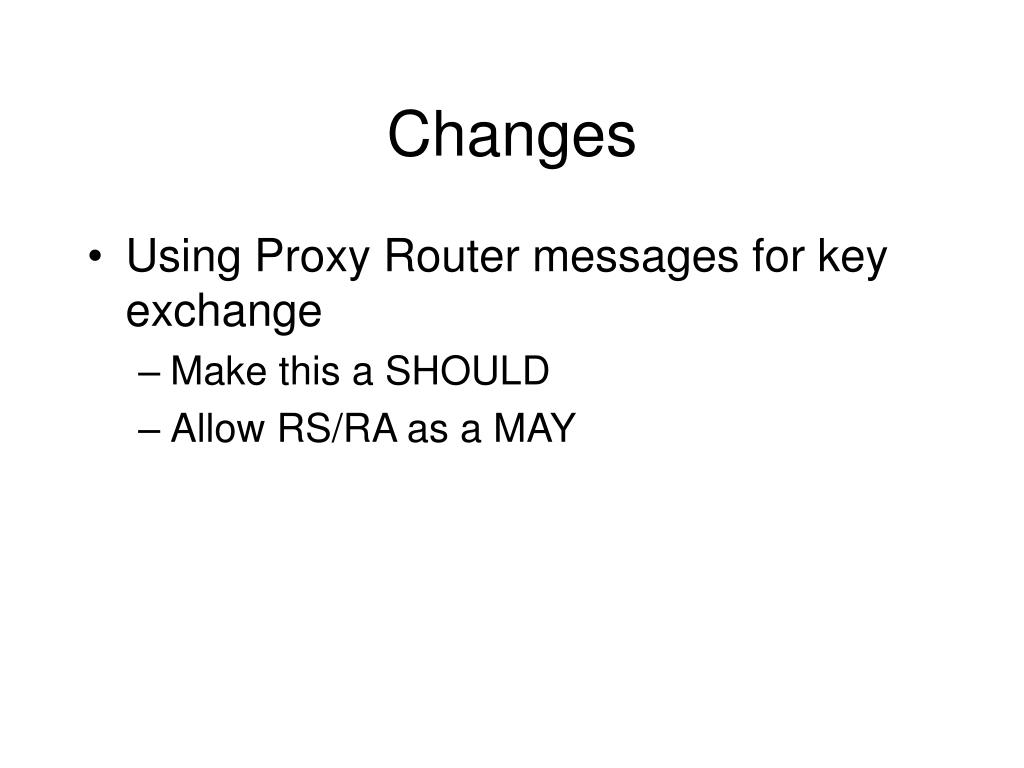

  5. Changes • Using Proxy Router messages for key exchange • Make this a SHOULD • Allow RS/RA as a MAY
