  1. Watershed Parameters for Water Rights in the Trinity River Basin Melissa Figurski CE 394K

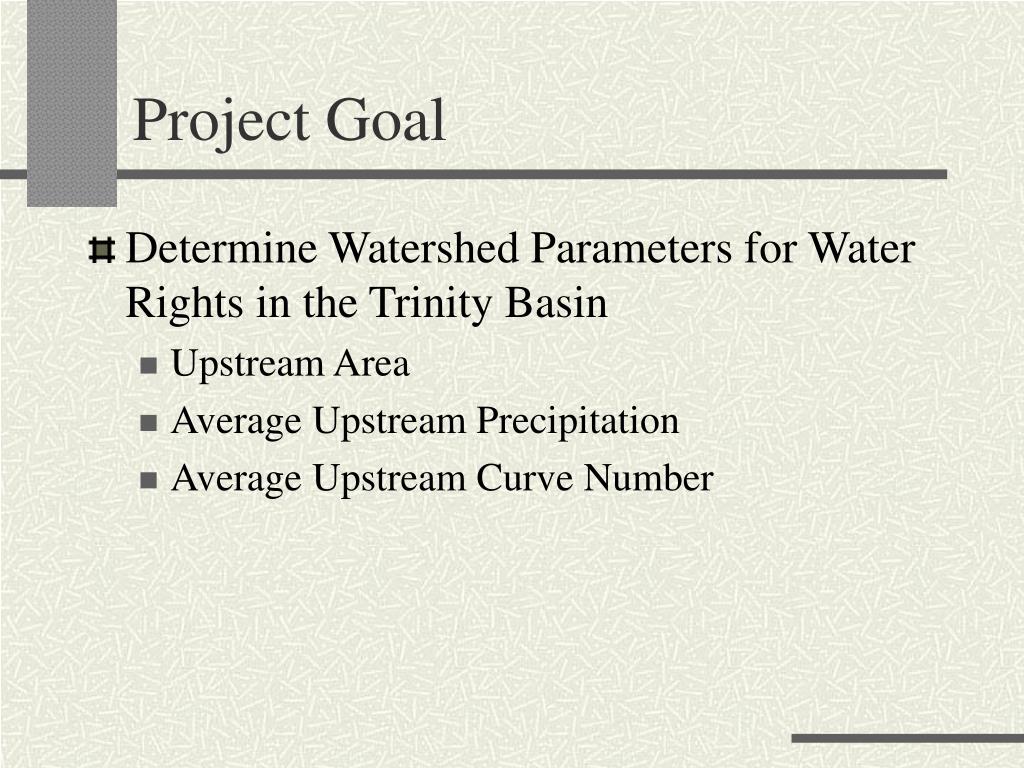

  2. Project Goal • Determine Watershed Parameters for Water Rights in the Trinity Basin • Upstream Area • Average Upstream Precipitation • Average Upstream Curve Number

  3. Purpose • Water Availability Modeling • State Mandated • Resource Planning and Management • TNRCC, CRWR, and Contractor

  4. Data Requirements • 30-meter Digital Elevation Model (DEM) • Stream Network • Water Right Locations • Curve Number Grid • Precipitation Grid

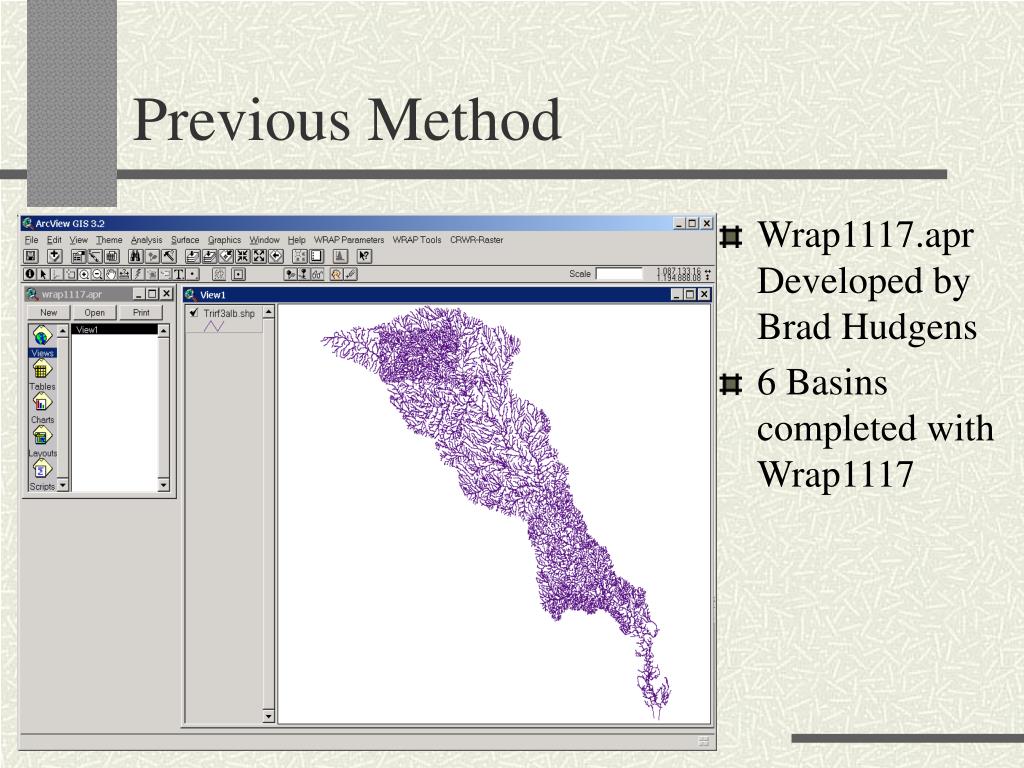

  5. Previous Method • Wrap1117.apr Developed by Brad Hudgens • 6 Basins completed with Wrap1117

  6. Trinity River Basin

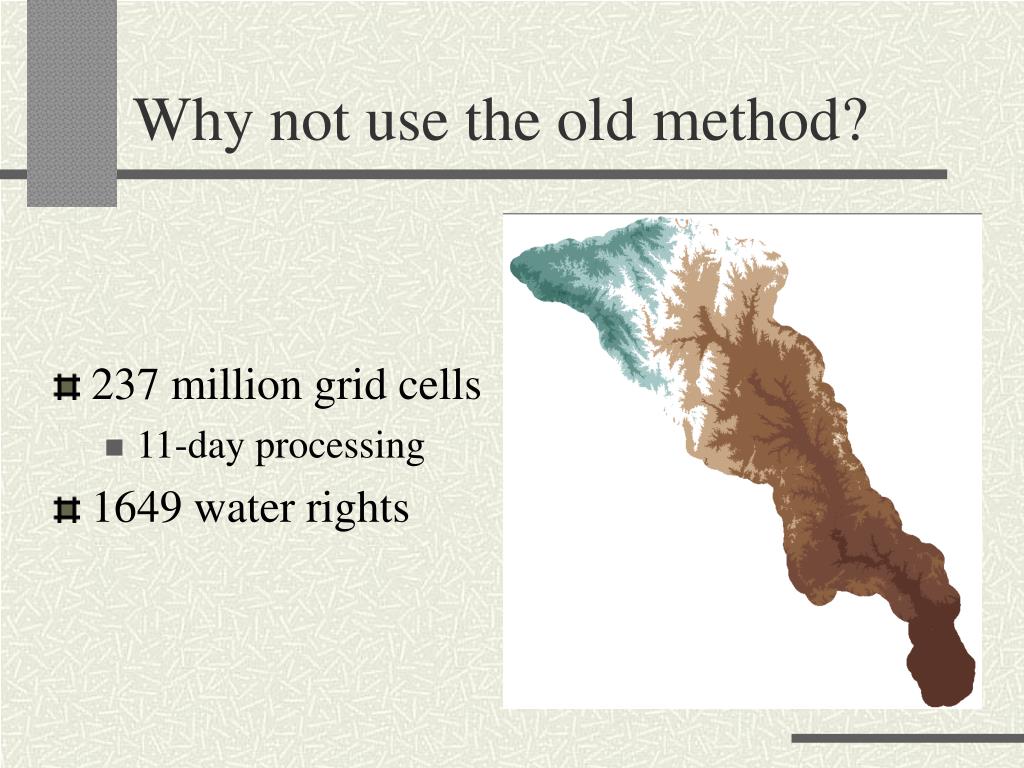

  7. Why not use the old method? • 237 million grid cells • 11-day processing • 1649 water rights

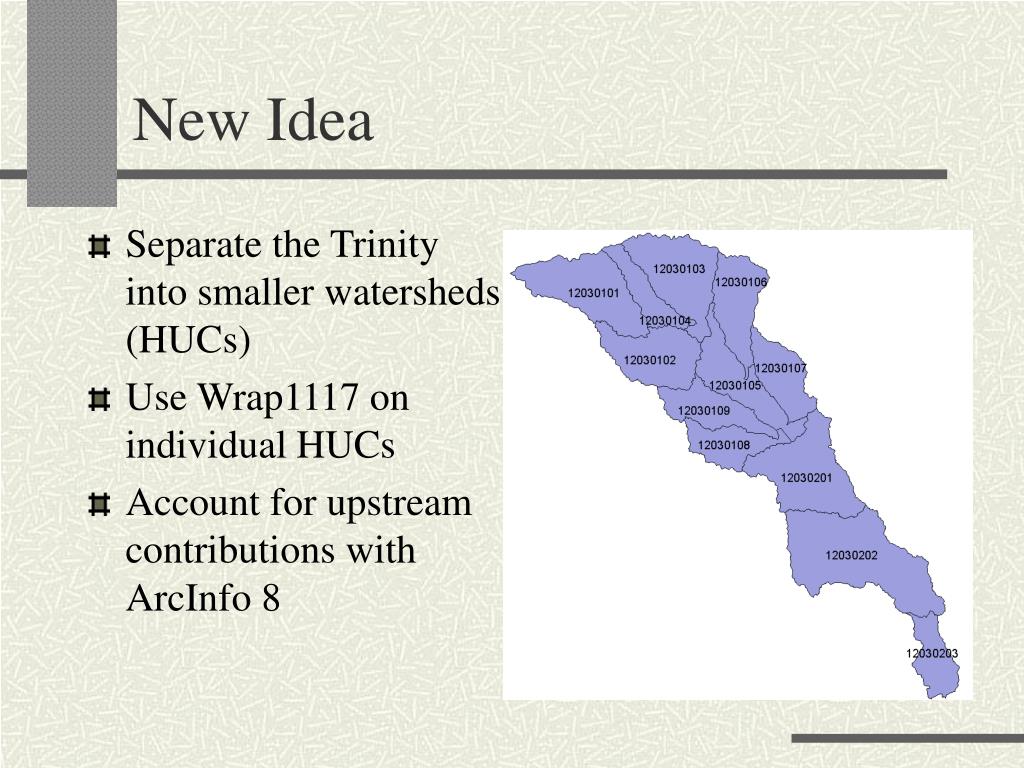

  8. New Idea • Separate the Trinity into smaller watersheds (HUCs) • Use Wrap1117 on individual HUCs • Account for upstream contributions with ArcInfo 8

  9. Procedure

  10. Delineate HUC Watersheds • Burn stream network into DEM • Locate outlet points for each HUC • Buffer each HUC • Clip burned DEM to buffered HUC • Run ArcInfo workstation ‘fill’, ‘flowaccumulation’, and ‘watershed’ commands on each buffered HUC

  11. Outlet Points • Locate Outlet Points for each HUC

  12. 5000 meter buffer Clipped DEM Buffer HUCs and Clip DEM

  13. ArcInfo Workstation Functions • Fill burned DEM • Determine flow direction and flow accumulation • Delineate HUC watershed Flow Direction + Outlet Cells = Watershed

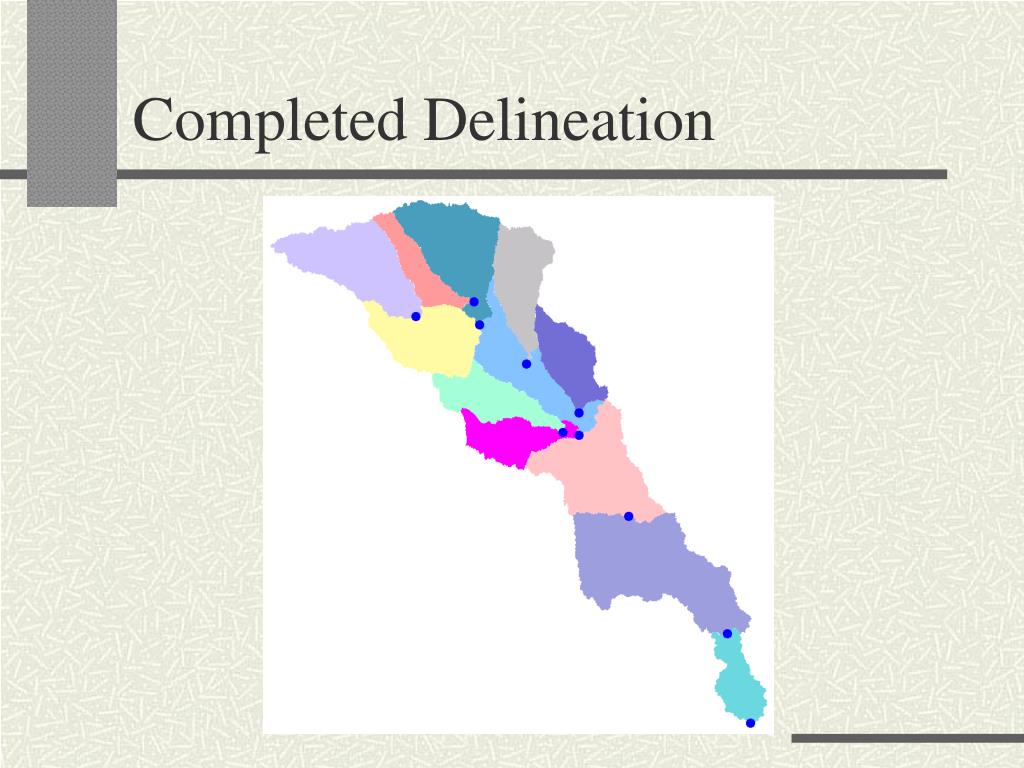

  14. Completed Delineation

  15. Delineation Problems

  16. Select water rights and stream network in HUC 12030102 Gather Data

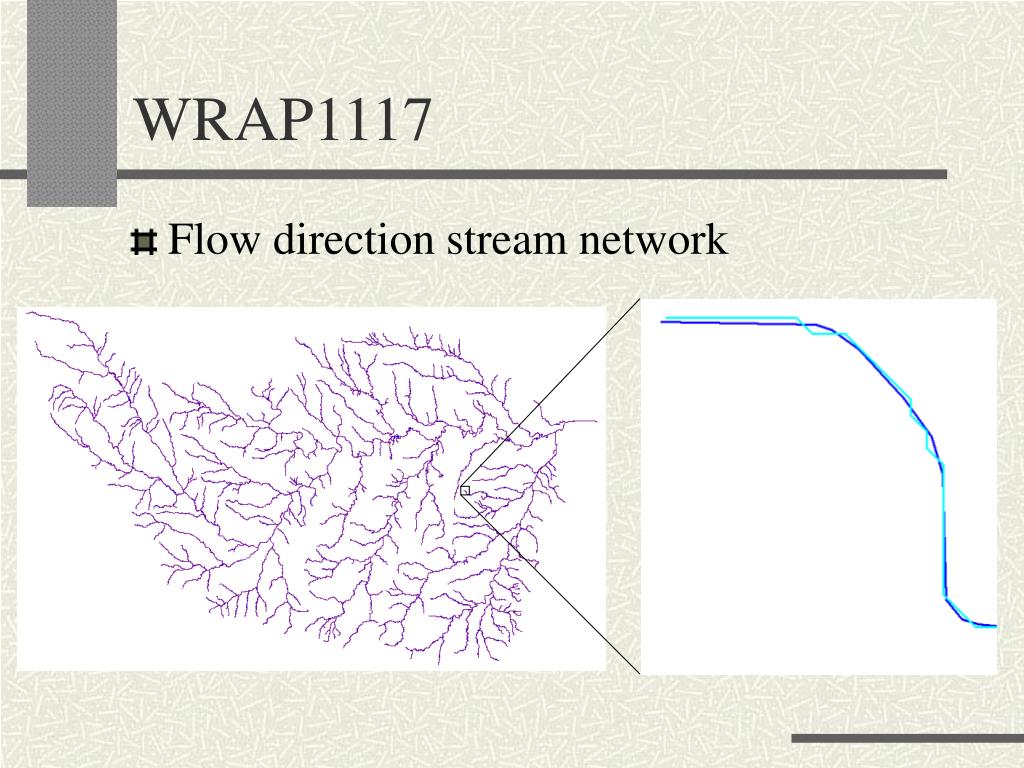

  17. WRAP1117 • Flow direction stream network

  18. WRAP1117 • Snap Points to Stream Network

  19. Average Precipitation Average Curve Number WRAP1117

  20. WRAP1117 • Create Network Schematic

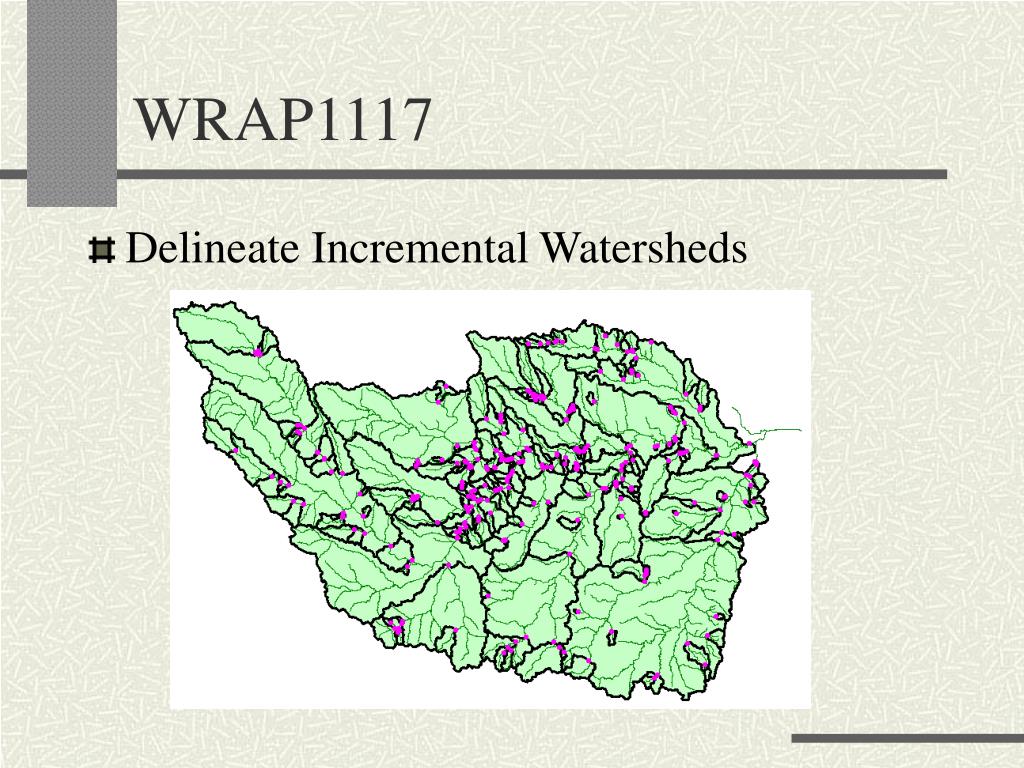

  21. WRAP1117 • Delineate Incremental Watersheds

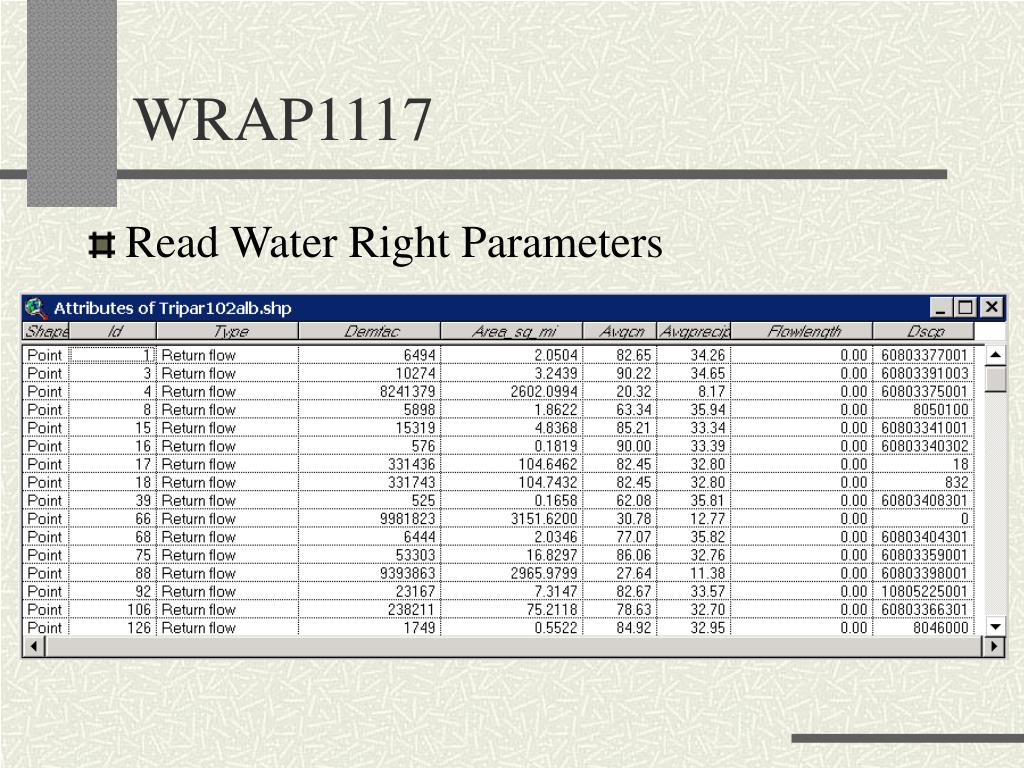

  22. WRAP1117 • Read Water Right Parameters

  23. Future Work

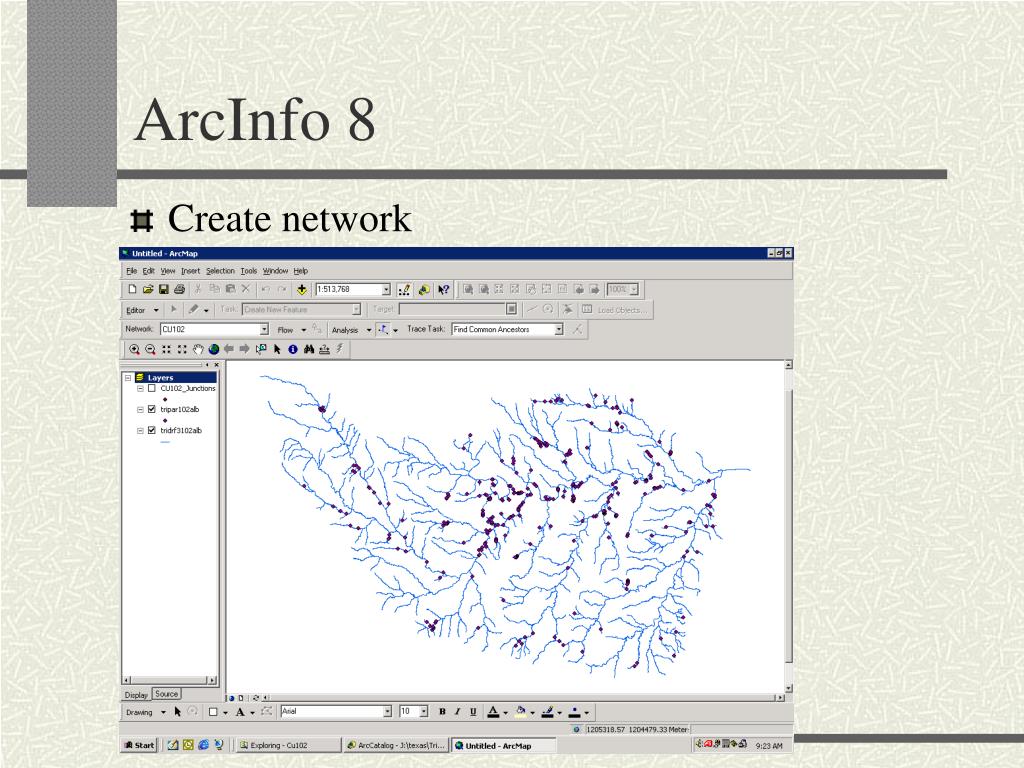

  24. ArcInfo 8 • Create network

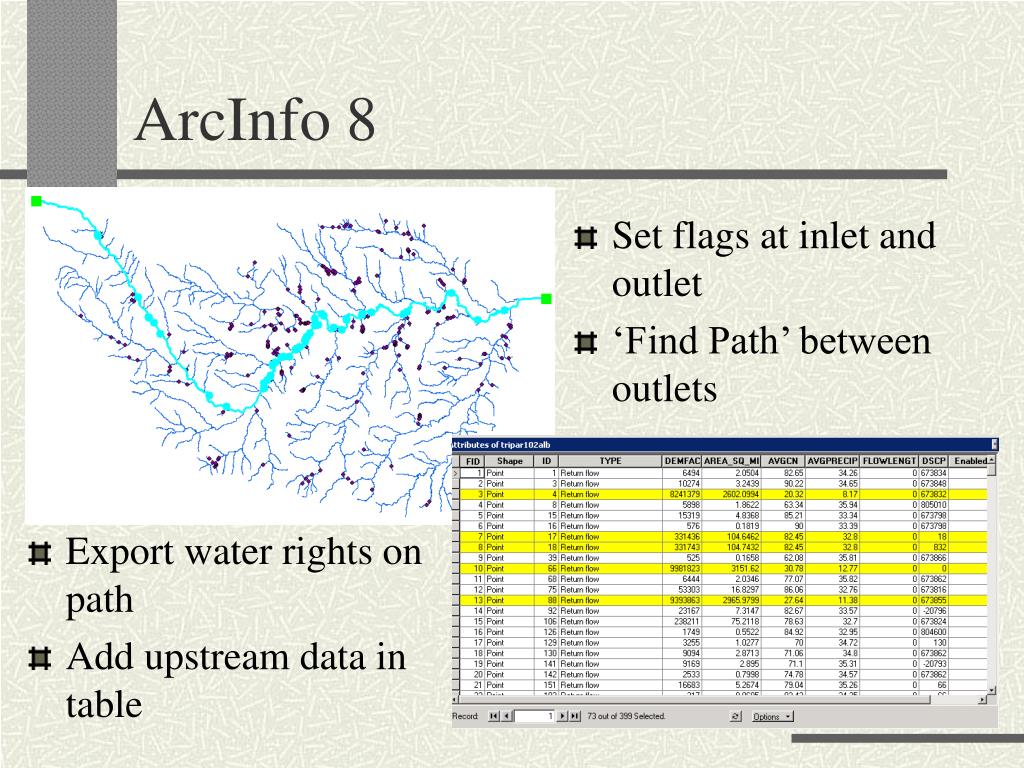

  25. ArcInfo 8 • Set flags at inlet and outlet • ‘Find Path’ between outlets • Export water rights on path • Add upstream data in table

  26. Summary • New method needed • Segment basin into HUC units • Run Wrap1117 on individual HUCs • Use ArcInfo 8 to account for upstream data

  27. Questions?
