  1. Shakarganj Mills Limited Steps Towards Advance Technology “LPS, GIS & SMS SYSTEM” ( LPS = Loading Point System GIS=Geographical Information System SMS = Short Message Service) By: Manzoor Hussain Malik Senior Vice President (Agri.)

  2. Shakarganj Mills Limited • We are using advance technologies like LPS, GIS and SMS in Shakarganj Mills. • LPS System is used at Check Posts to identify the Sugarcane Loaded Vehicle with GPS Position. • GIS System is used for Grower Wise Survey with Field Pictures and GPS position. • SMS System is used to check the Current Yard Balance, Crushing & Recovery etc.

  3. HOW LPS WORK • Following technologies are required for this system :- • GSM – Group Special Mobile (Telenor) • GPS – Global Positioning System • GPRS – General Packet Radio Service • (Mobile Internet) • 4. Java Supported Symbian Mobile (Nokia C5-03)

  4. HOW LPS WORK • Following Items must be checked before the start of Software :- • Time/Date must be correct • Operator Signals must be available • Mobile Internet must be enabled on SIM • Mobile must be configured for Internet

  5. SOFTWARE FUNCTIONS FOR LPS & GIS SYSTEM • LPS & GIS • SYSTEM • New Registration • Check Registration • Configuration • 0 Pending Photos • Powered by Shakarganj Feedback of submitted record To submit new record To define Company and Area Captured Images waiting to Upload

  6. LPS SYSTEM

  7. Snap of Vehicle Registration These snaps are taken at Check Post and Send to SML Server through Software with a unique code.

  8. Snap of Vehicle with Driver

  9. Snaps of Vehicle

  10. Verification The snaps and unique code are verified at Token-I

  11. Verification The snaps and unique code are verified at Token-I

  12. GIS SYSTEM

  13. SNAPING PROCESS STEP-1: Identification Image-1 : Data of Board

  14. SNAPING PROCESS STEP-1: Identification Image-2 : Grower or CNIC Image

  15. SNAPING PROCESS STEP-1: Identification Image-3 : Growers Home Image

  16. SNAPING PROCESS STEP-2: Field Side - I Image-1 : Data of Board

  17. SNAPING PROCESS STEP-2: Field Side - I Image-2 : Field Close

  18. SNAPING PROCESS STEP-2: Field Side - I Image-3 : Field Overall

  19. SNAPING PROCESS STEP-3: Field Side - II Image-1 : Data of Board

  20. SNAPING PROCESS STEP-3: Field Side - II Image-2 : Field 2nd Side Close

  21. SNAPING PROCESS STEP-3: Field Side - II Image-3 : Field 2nd Side Overall

  22. SNAPING PROCESS STEP-4,5,6: If needed (Separate Site) Image-1 : Data of Board Image-2 : Field Close Image-3 : Field Overall (Repeat step 3)

  23. Complete Set of Pictures with Relevant Data

  24. GEOGRAPHICAL LOCATION OF GROWER Sugarcane Plot Marked

  25. SMS SYSTEM

  26. Following Equipments are required for SMS System A GSM modem is a specialized type of modem which accepts a SIM card, and operates over a subscription to a mobile operator, just like a mobile phone. A Subscriber identification module (SIM) is used with GSM Modem to Send and Receive SMS.

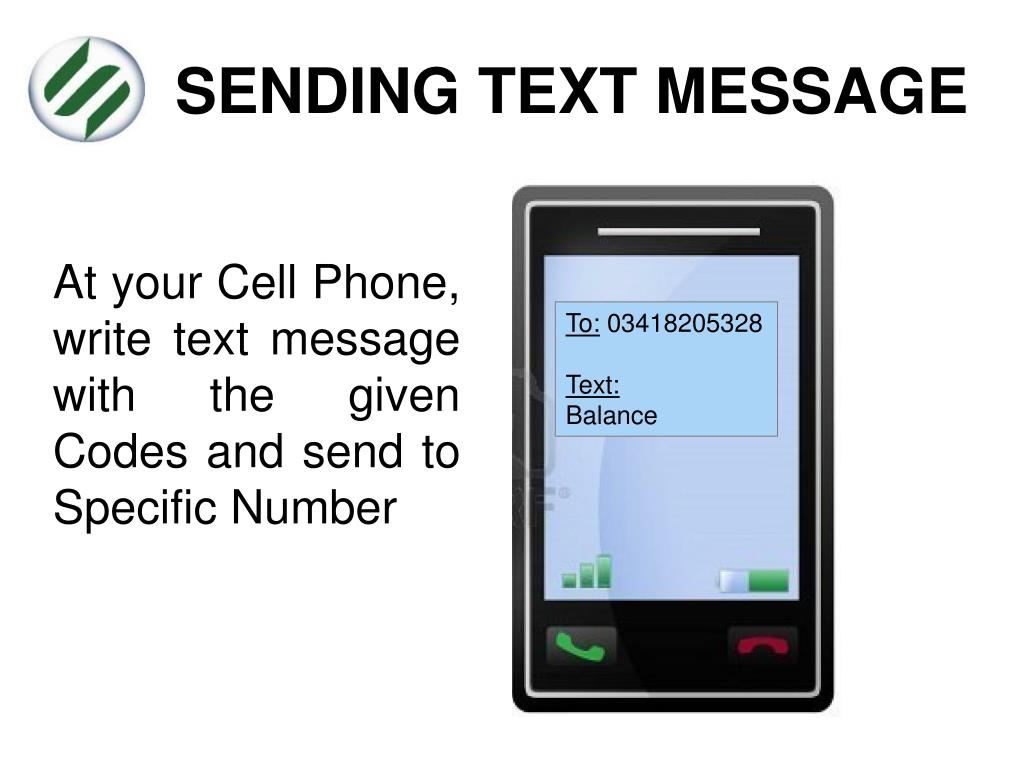

  27. SENDING TEXT MESSAGE At your Cell Phone, write text message with the given Codes and send to Specific Number To: 03418205328 Text: Balance

  28. RECEIVING TEXT MESSAGE System will automatically read the message and send back required information after verification of Sender Number. From: 03418205328 Text: Yard Balance = 258 Crushing = 9,750 Recovery = 9.73

  29. THANKS
