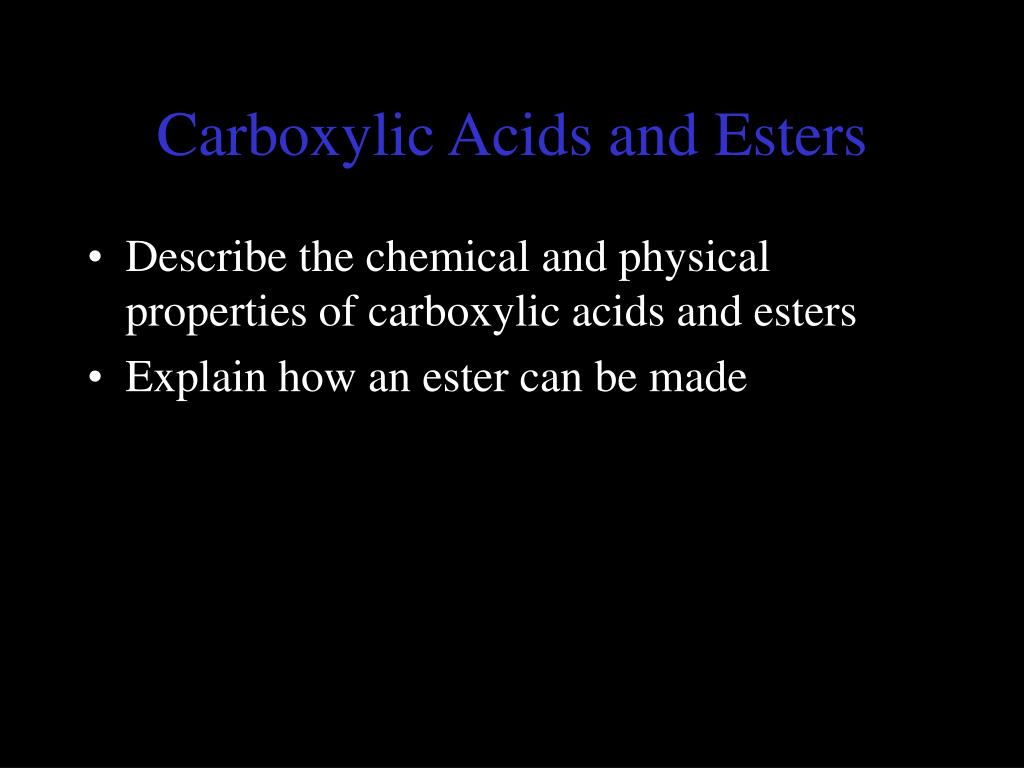

  1. Carboxylic Acids and Esters • Describe the chemical and physical properties of carboxylic acids and esters • Explain how an ester can be made

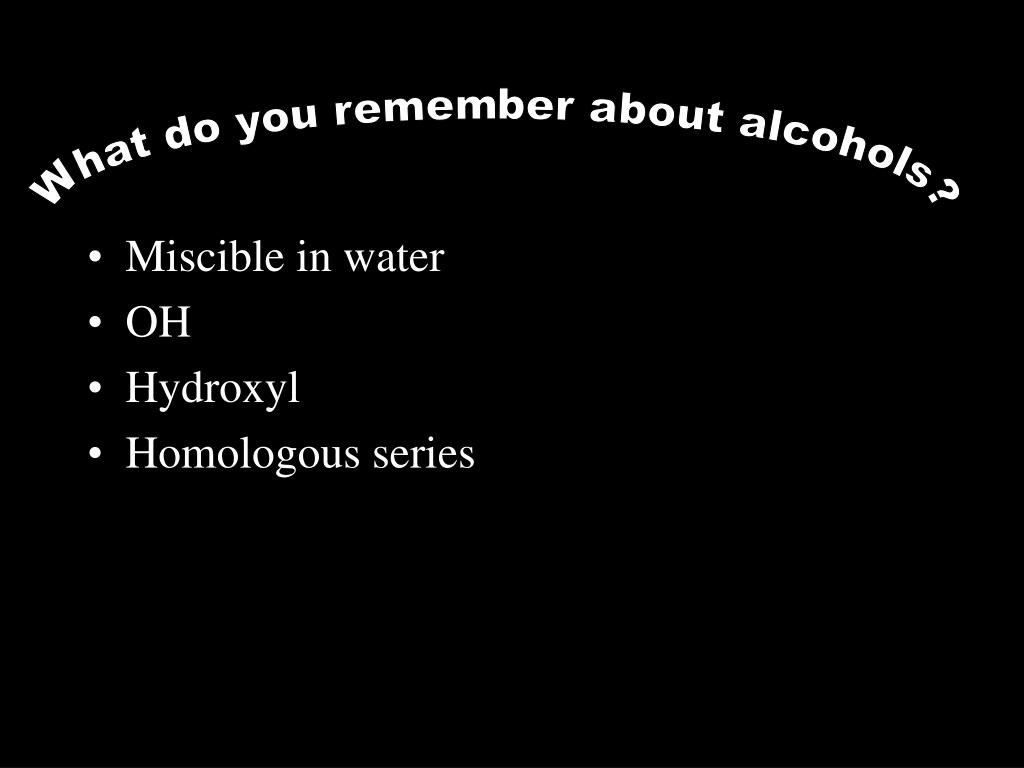

  2. What do you remember about alcohols? • Miscible in water • OH • Hydroxyl • Homologous series

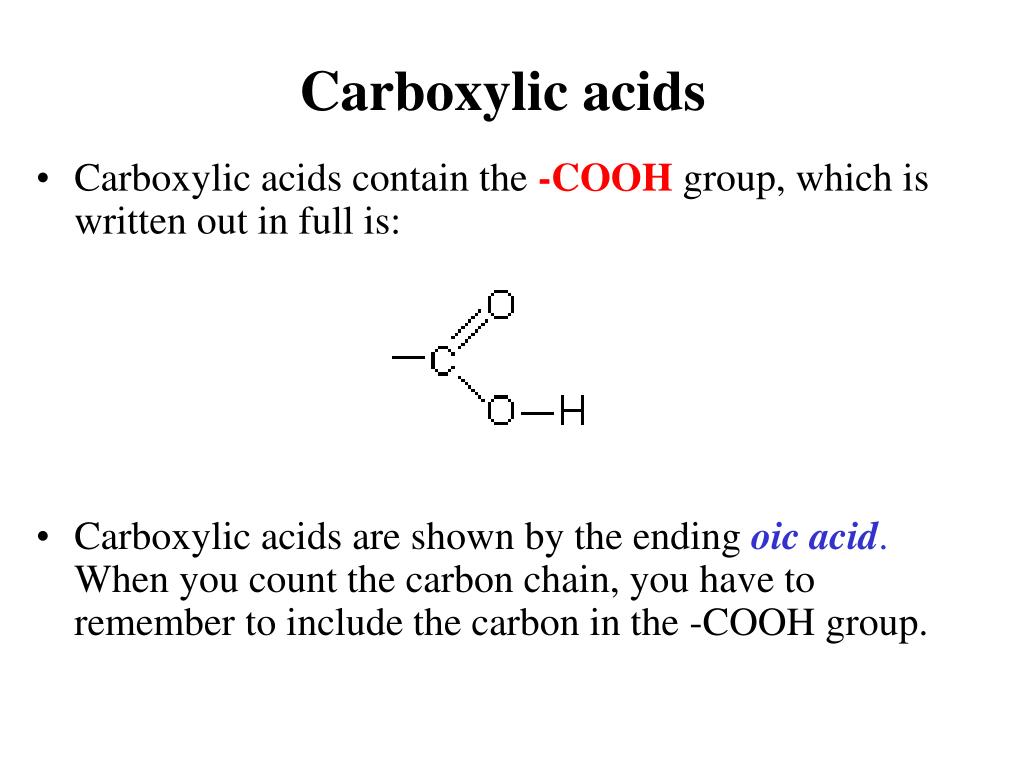

  3. Carboxylic acids • Carboxylic acids contain the -COOH group, which is written out in full is: • Carboxylic acids are shown by the ending oic acid. When you count the carbon chain, you have to remember to include the carbon in the -COOH group.

  4. Alcohols Carboxylic Acids

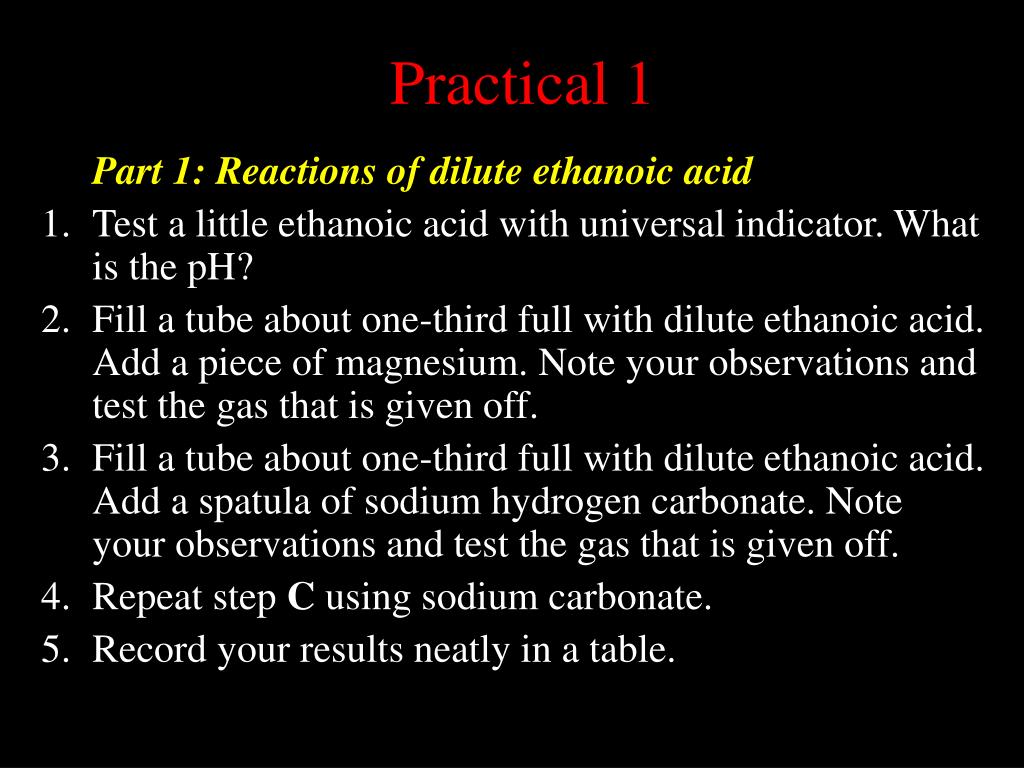

  5. Practical 1 Part 1: Reactions of dilute ethanoic acid • Test a little ethanoic acid with universal indicator. What is the pH? • Fill a tube about one-third full with dilute ethanoic acid. Add a piece of magnesium. Note your observations and test the gas that is given off. • Fill a tube about one-third full with dilute ethanoic acid. Add a spatula of sodium hydrogen carbonate. Note your observations and test the gas that is given off. • Repeat step C using sodium carbonate. • Record your results neatly in a table.

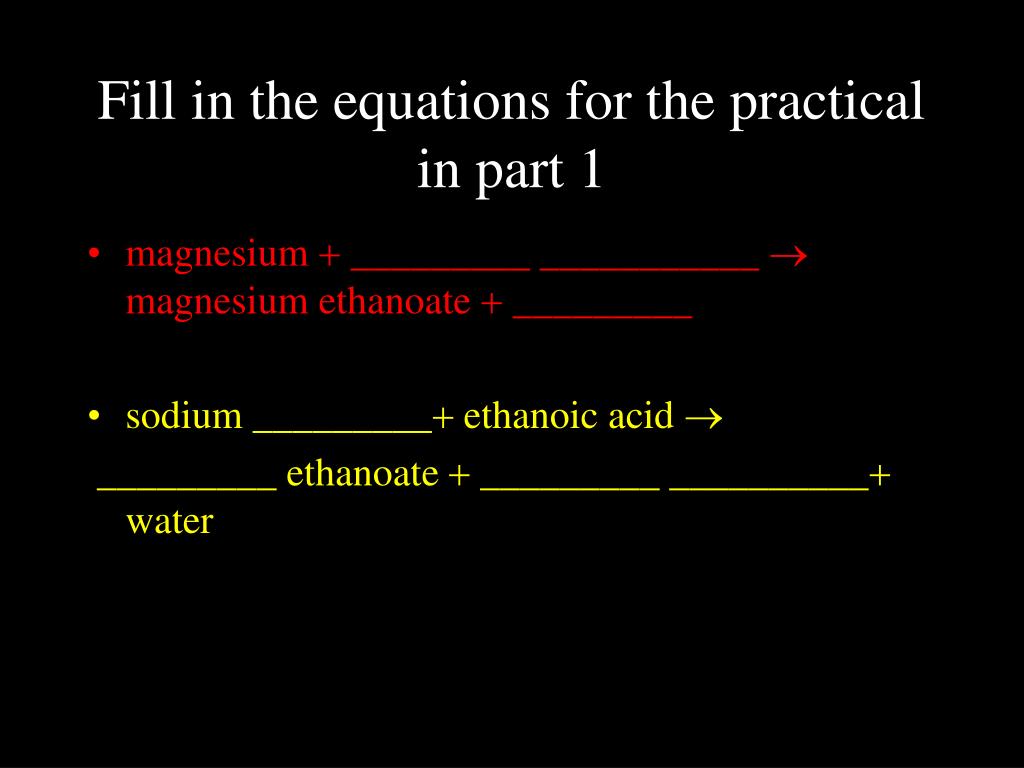

  6. Fill in the equations for the practical in part 1 • magnesium  _________ ___________  magnesium ethanoate  _________ • sodium _________ ethanoic acid  _________ ethanoate  _________ __________ water

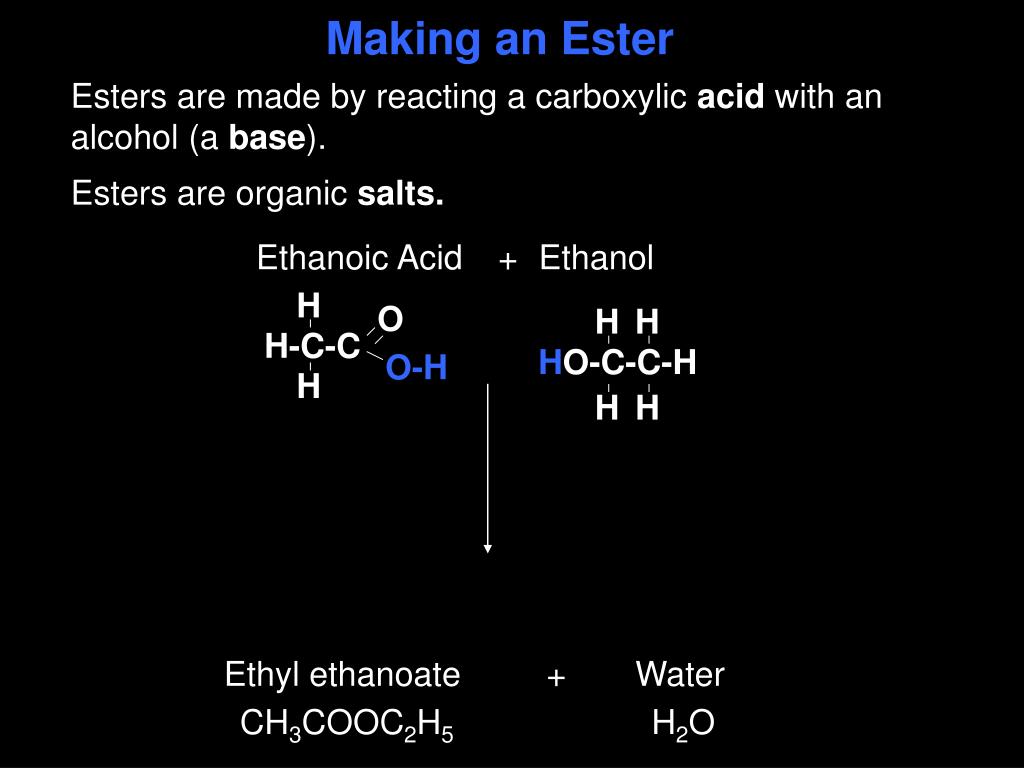

  7. H H H O H-C-C O-C-C-H H H H Making an Ester Esters are made by reacting a carboxylic acid with an alcohol (a base). Esters are organic salts. Ethanoic Acid + Ethanol H O-H Ethyl ethanoate + Water CH3COOC2H5 H2O

  8. Practical 2 Practical 2 Part 2: Making an ester • Pour some boiling water into a 250 cm3 beaker. • Put about 2 cm3 of ethanol into a test tube. • Go to the fume cupboard and ask your teacher to add 1 cm3 of concentrated ethanoic acid and three drops of concentrated sulphuric acid to your tube. • Stand your tube in the beaker of hot water for about 5 minutes. • While you are waiting, collect a 100 cm3 beaker and fill it about half full with sodium hydrogen carbonate solution. • After 5 minutes, carefully tip the liquid from the test tube into the beaker and stir well. • Carefully smell the product in the beaker.

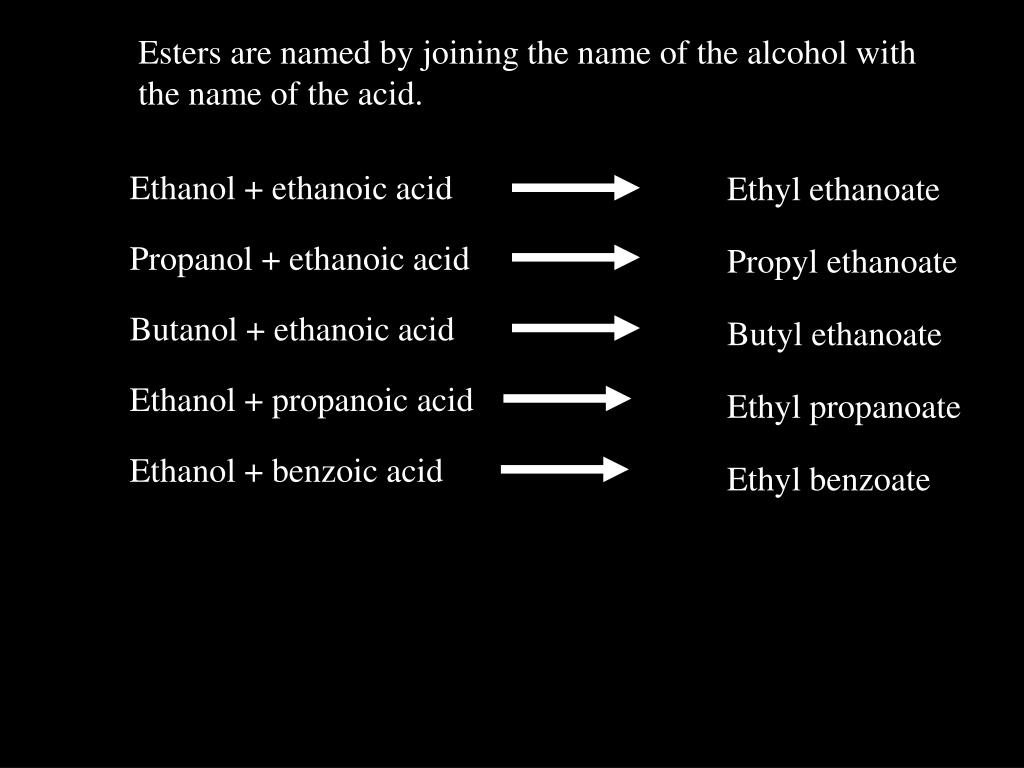

  9. Ethanol + ethanoic acid Propanol + ethanoic acid Butanol + ethanoic acid Ethanol + propanoic acid Ethanol + benzoic acid Esters are named by joining the name of the alcohol with the name of the acid. Ethyl ethanoate Propyl ethanoate Butyl ethanoate Ethyl propanoate Ethyl benzoate

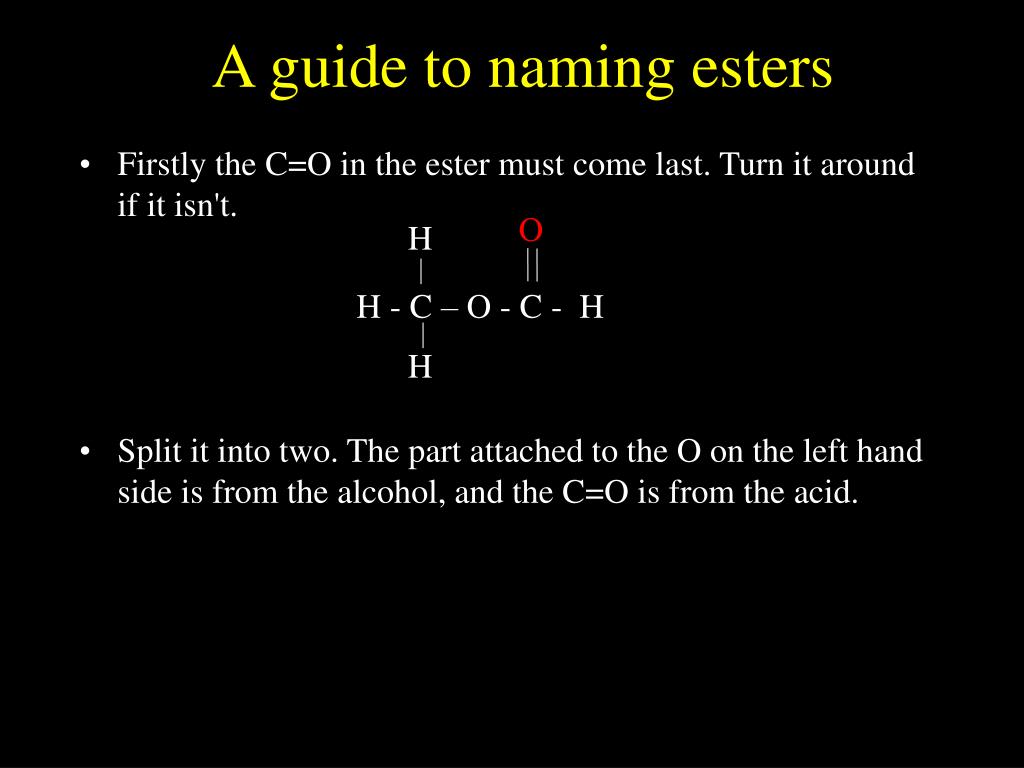

  10. O H H - C – O - C - H H A guide to naming esters • Firstly the C=O in the ester must come last. Turn it around if it isn't. • Split it into two. The part attached to the O on the left hand side is from the alcohol, and the C=O is from the acid.

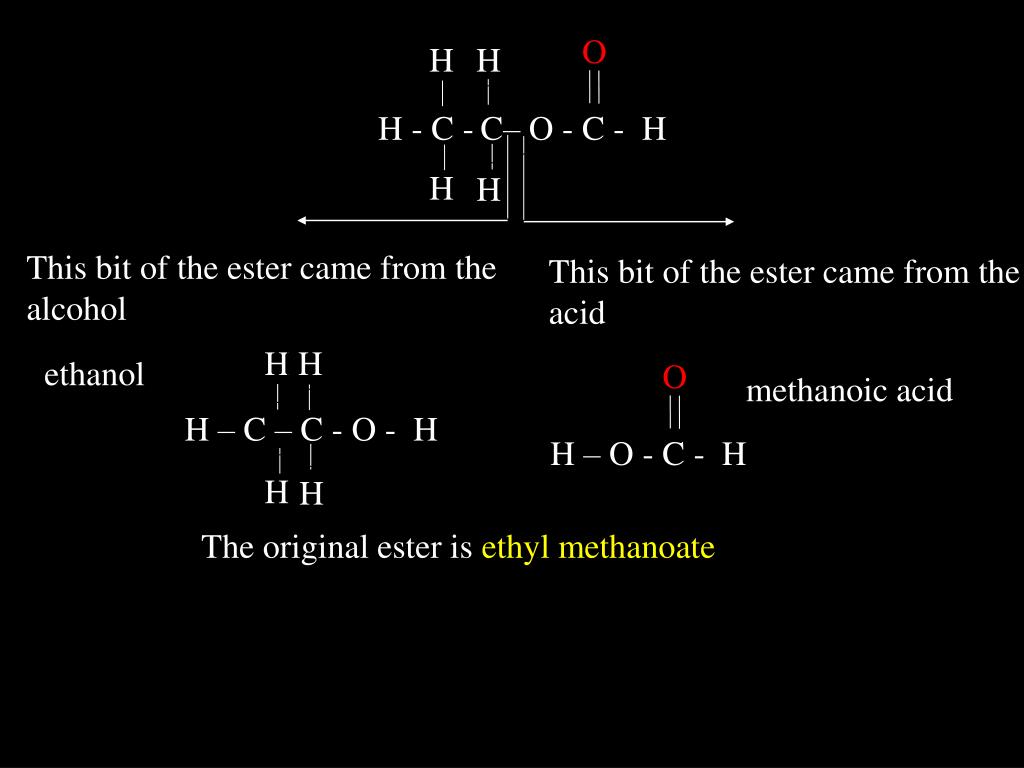

  11. O H H H - C - C– O - C - H H H H H ethanol H – C – C - O - H This bit of the ester came from the alcohol This bit of the ester came from the acid H H methanoic acid O H – O - C - H The original ester is ethyl methanoate

  12. Whichalcohols and carboxylic acids were these esters formed from?
