Paediatric Airways

Paediatric Airways. Upper Airway Anatomy. Large head Large tongue High anterior larynx Infant epiglottis long, floppy & U shaped Funnel shaped larynx Narrow trachea. Airway Differences. Respiratory Physiology. Not mature until 8 years Deadspace volume very small

damisi
Download Presentation

Paediatric Airways

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Paediatric Airways

  2. Upper Airway Anatomy • Large head • Large tongue • High anterior larynx • Infant epiglottis long, floppy & U shaped • Funnel shaped larynx • Narrow trachea

  3. Airway Differences

  4. Respiratory Physiology • Not mature until 8 years • Deadspace volume very small • Higher airflow resistance • Higher chest wall compliance • Higher ventilation-perfusion mismatch • Higher oxygen consumption for weight • Infant diaphragms lack slow muscle fibres • Decreased respiratory reserve

  5. Area difference = 12 fold prior to pathology Flow difference = 120 fold prior to pathology Flow  r 4 = 400 fold following pathology

  6. Down Syndrome • Relatively large tongue • Small mandible • Possible Cx spine instability • OSA is common • Possibly smaller ETT • Difficult intubation

  7. Pierre Robin Syndrome

  8. URTI • Bronchospasm • Mucous plugging • ? Early pneumonia • Laryngospasm • Stridor • Cough

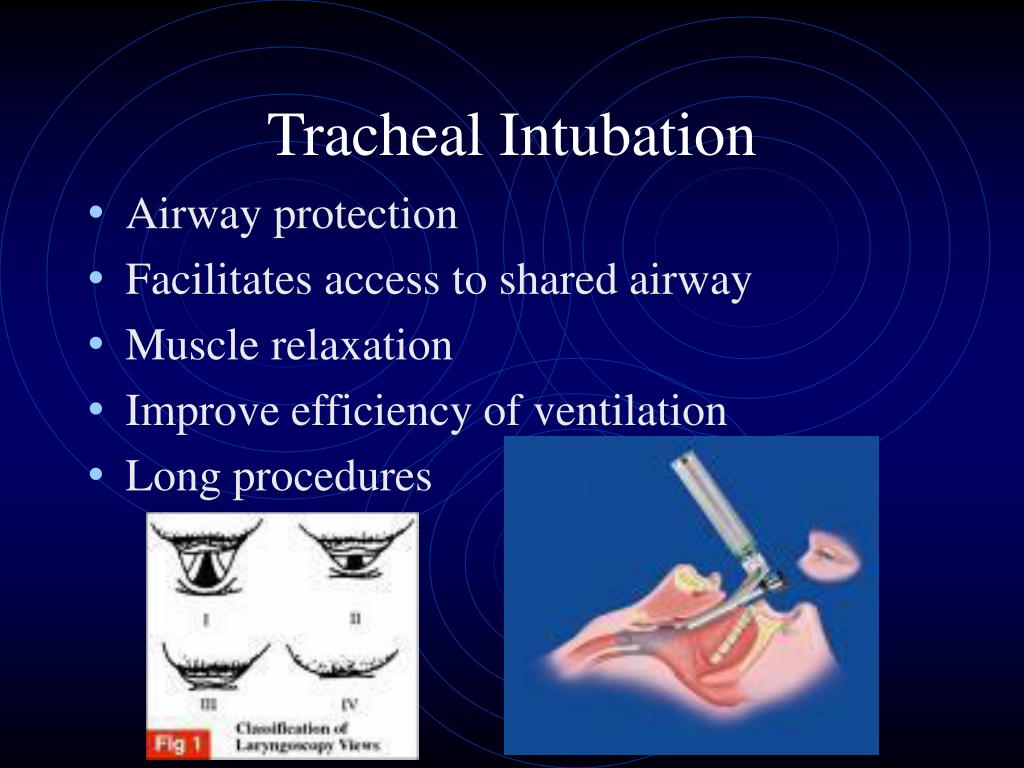

  9. Tracheal Intubation • Airway protection • Facilitates access to shared airway • Muscle relaxation • Improve efficiency of ventilation • Long procedures

  10. ETT • Diameter • Oral ETT age/4 + 4 • Neonate 3.0-3.5mm • Nasal under 6 years same, over 6 years half to one size smaller • Length • Oral ETT age/2 + 12 • Nasal ETT age/2 + 15

  11. Cuffed ETT ? • Postintubation croup? • Recent studies little difference • 2-3% cuffed or uncuffed post surgery • 15% cuffed or uncuffed post PICU • Less need to replace tube • Better airway protection ? relevance • No gas leak – good for staff and IPPV • Smaller diameter tube – higher resistance

  12. LMA • As a face mask alternative • Not with potential full stomach • Possible for some dental/ENT work with minimal expected soiling • Anaesthetist preference

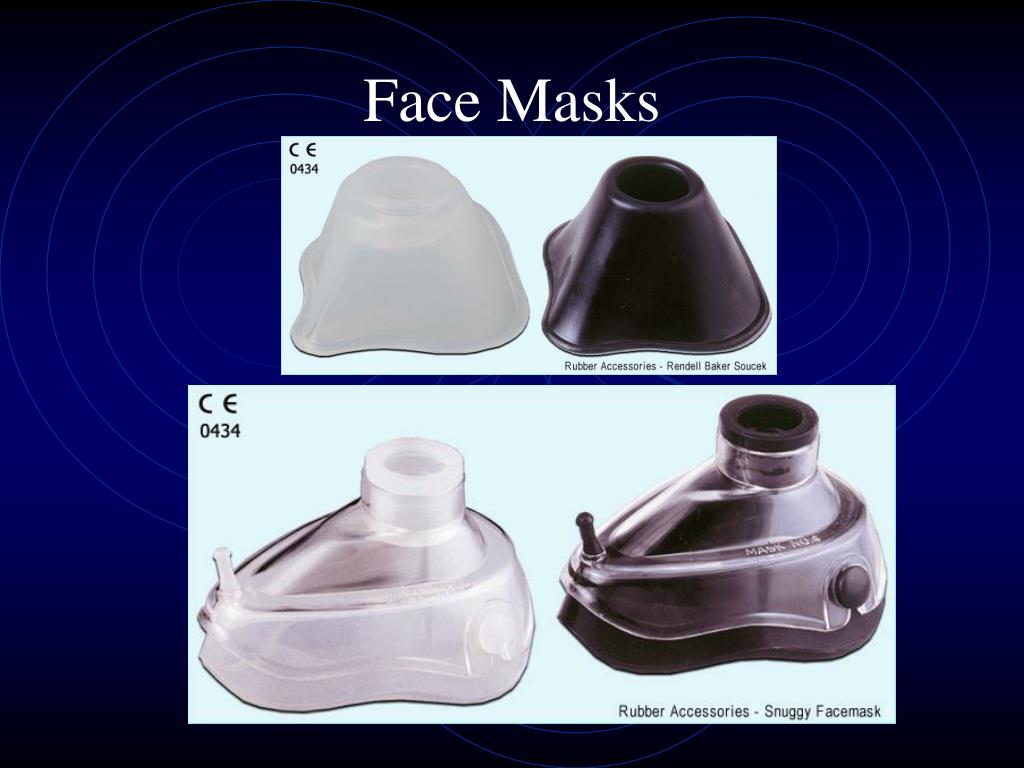

  13. Face Masks

  14. Laryngeal Spasm • Avoid • CPAP & Oxygen • Clear airway judiciously • Deepen anaesthesia • Topical lignocaine • Very low dose Sux (¼ usual) • Intubate/reintubate if needed

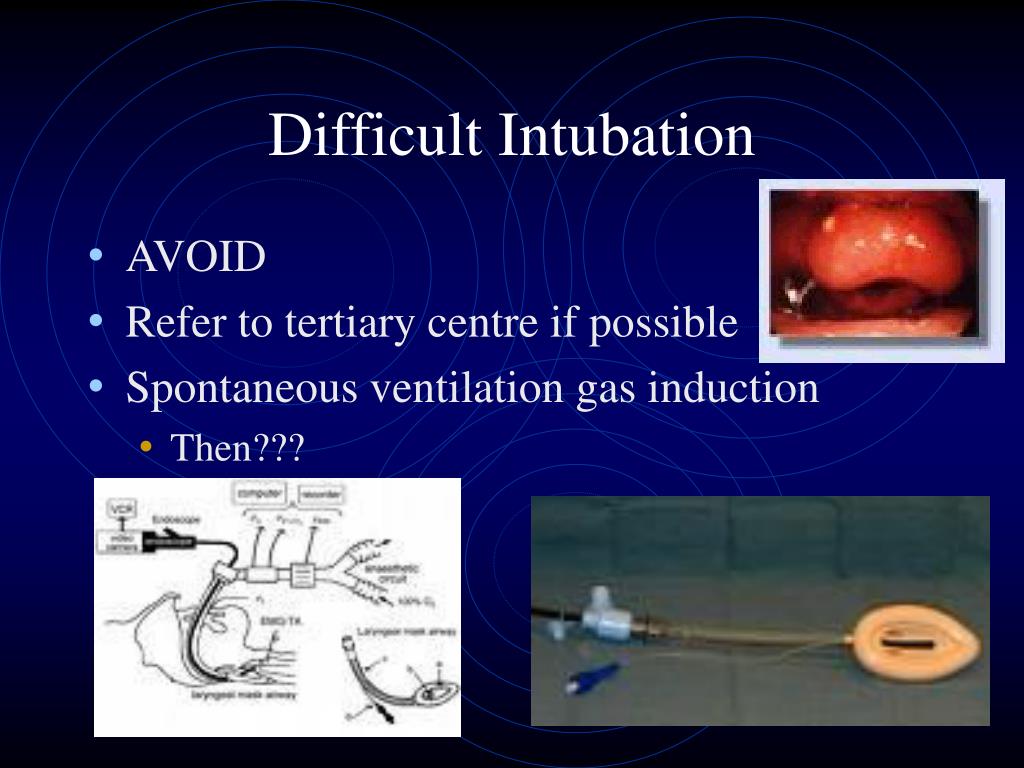

  15. Difficult Intubation • AVOID • Refer to tertiary centre if possible • Spontaneous ventilation gas induction • Then???

  16. Shikani
