  1. Access Control Lists CSCI283-172 Fall 2008 GWU Sources: Memon’s notes, Brooklyn Poly Bishop’s Text, Chapter 15 Bishop’s slides, Chapter 15 Text by Pfleeger and Pfleeger, Chapter 4

  2. Access Control Mechanisms • Access Control Matrix • Access Control List • Capability based access control • Lock and Key based access control. • Rings-based access control CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  3. Access Control Lists • Instead of using ACM, Access Control List (ACL). Essentially store each column of ACM with the object it represents. • Definition: Let S be set of subjects and R the set of rights of a system. An access control list l is a set of pairs l = {(s, r): s S, r  R} Let acl be a function that determines the access control list associated with a particular object o. Acl(o) = {(si, ri) : 1  i  n} means that subject si may access o using any right in ri. CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  4. Access Control Lists: example Columns of access control matrix file1file2file3 Andy rx r rwo Betty rwxo r Charlie rx rwo w ACLs: • file1: { (Andy, rx) (Betty, rwxo) (Charlie, rx) } • file2: { (Andy, r) (Betty, r) (Charlie, rwo) } • file3: { (Andy, rwo) (Charlie, w) } CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  5. Abbreviated ACL’s • Although same amount of storage, it is now distributed. • To further reduce storage, one can abbreviate ACL’s as in UNIX. • One can also assign default access to groups of subjects as well as specific rights to individual subjects. • Two ways of doing this: 1) What is not prohibited is permitted 2) What is not permitted is prohibited. Latter always better!! CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  6. Default Permissions • Normal: if not named, no rights over file • Principle of Fail-Safe Defaults • If many subjects, may use groups or wildcards in ACL • UNICOS: entries are (user, group, rights) • If user is in group, has rights over file • ‘*’ is wildcard for user, group • (holly, *, r): holly can read file regardless of her group • (*, gleep, w): anyone in group gleep can write file CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

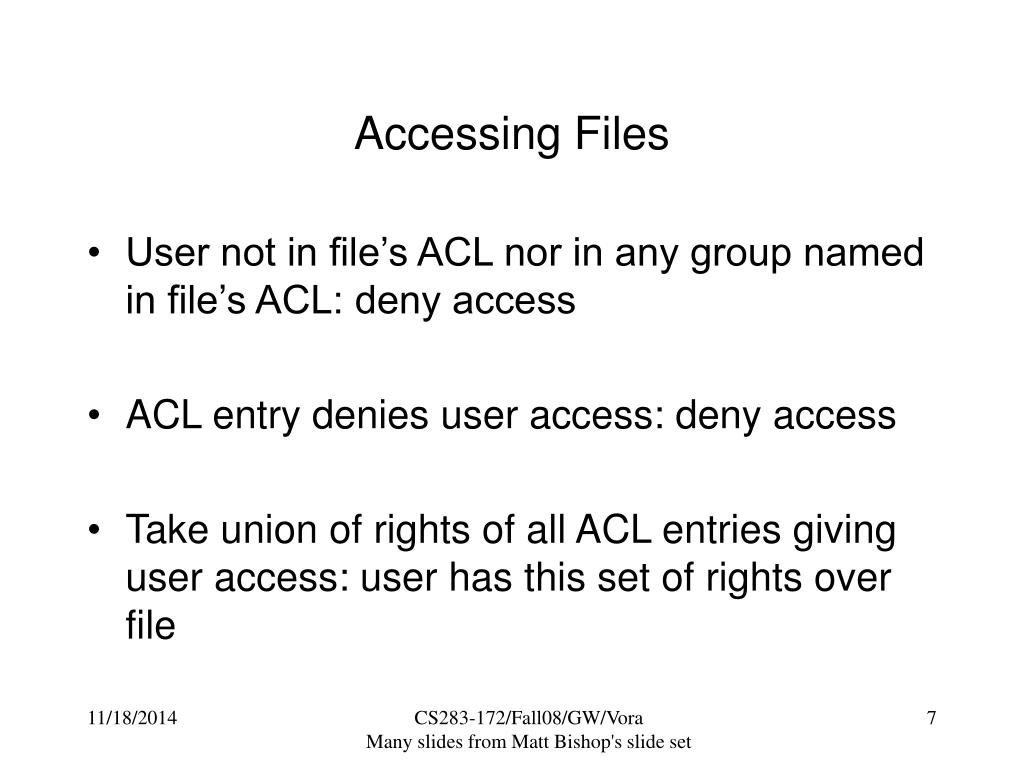

  7. Accessing Files • User not in file’s ACL nor in any group named in file’s ACL: deny access • ACL entry denies user access: deny access • Take union of rights of all ACL entries giving user access: user has this set of rights over file CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  8. Example - File Protection in Unix UNIX - allow read, write, execute, delete to each of the individual groups - owner, group, world. Difficult for users in different groups to share files, since each file may belong to exactly one group. rwxrwxrwx owner group rest CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  9. Temporary Privilege Elevation: UNIX Unix set userid (suid) allows another user to temporarily acquire the protection level of a file’s owner. • While executing the program to change their own password, Unix users actually acquire temporary modify access to the systems password file, but in a controlled way using suid. CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  10. Unix special users • Special user with extra privileges –root. • UID is 0. • Can do (almost) anything!! • Holy grail of hackers! • Other special users • daemon or sys – handles some network services • ftp – used for anonymous FTP access. • uucp – manages UUCP (Unix to Unix Copy) system. • guest – used for site visitors. • lp - used by printer system • Etc. CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  11. Unix Groups • Every user belongs to one or more groups. • The GID of primary group the user belongs to is stored in passwd file. • Groups useful for access control features. • /etc/groups contains a list of all groups in the system along with GID’s. • Some special groups – • wheel - group of administrators • uucp, lp, etc. – groups corresponding to special users. CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  12. Unix file access control • Each file entry in a directory is a pointer to a data structure called inode. CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  13. Unix file permission bits • Two examples of file permissions obtained by ls –l command • -rw------- • drwxr-xr-x • First character indicates type of file • - plain file • d directory • c character device (tty or printer) • b block device • l symbolic link • Etc. CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  14. File permission bits (contd.) • Next nine characters taken in groups of three indicate who can do what with the file • R – Permission to read • W – Permission to write • X – Permission to execute • The three classes of permission correspond respectively to • Owner • Group • Other CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  15. File permission bits – special cases • File permission bits do not apply to symbolic links. • If you have x access but no r access you can execute the program without reading it (not on linux). • Execute permission in a directory means you can change to the directory. Secret Files! • File permission bits also commonly specified in octal notation. 0777 mean -rwxrwxrwx, 0600 means -r_x------, etc. CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  16. Umask and default permissions • umask (User file creation mode mask) is a four digit octal number used to determine file permissions for newly created files. • It defines permission you do not want to be given (the bit-wise complement of the permission you want a file to have by default). • 0666 – default mode means 0222 umask. • 0077 umask means … 0022 means … • Set up at log in time in environment variables. CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

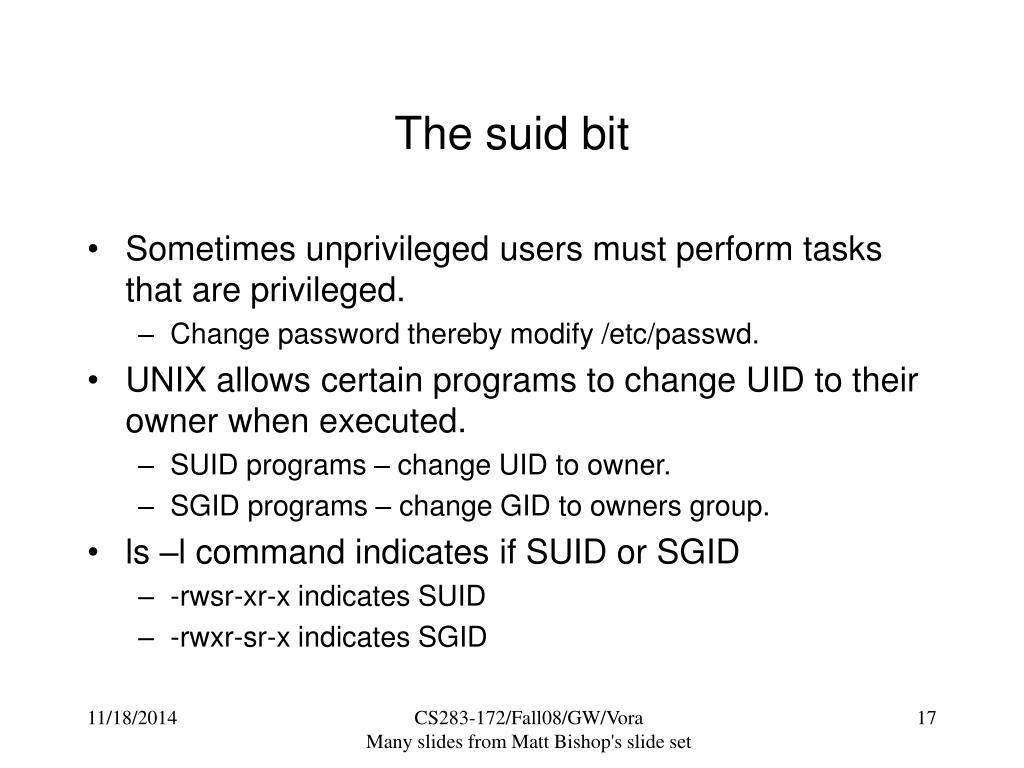

  17. The suid bit • Sometimes unprivileged users must perform tasks that are privileged. • Change password thereby modify /etc/passwd. • UNIX allows certain programs to change UID to their owner when executed. • SUID programs – change UID to owner. • SGID programs – change GID to owners group. • ls –l command indicates if SUID or SGID • -rwsr-xr-x indicates SUID • -rwxr-sr-x indicates SGID CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  18. Limitations of UNIX file permission system • Abbreviated ACL’s in general and UNIX in particular may not be flexible enough for many circumstances. • Consider the following example: • 5 users, Anne, Beth, Caroline, Della and Elizabeth. • Anne wants Beth to read her file and nothing else. • She wants Caroline to write • Della to only read and write • Elizabeth to only execute Above not possible with Unix file permission bits!! CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  19. ACLs + Abbreviations • Augment abbreviated lists with ACLs • Intent is to shorten ACL • ACLs override abbreviations • Exact method varies • Example: IBM AIX • Base permissions are abbreviations, extended permissions are ACLs with user, group • ACL entries can add rights, but on deny, access is denied CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  20. Augmenting abbreviated ACL’s AIX (IBM Unix) uses extended permissions to augment base permissions. attributes: base permissions: owner (bishop): rw- group (sys): r— others: --- extended permissions enabled permit -w- u:nelson, g=sys permit rw- u:levitt deny -w- u:heberlei, g=faculty CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  21. Issues to consider while designing an ACL based system • Which subject can modify an object in ACL? • Does ACL apply to privileged user (root), if any? • Does ACL support groups or wildcards? • How are contradictory permissions handled? • If default permissions allowed, do ACL’s modify it? Or is default used only when subject not explicitly mentioned in ACL? CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  22. ACL Modification • Who can do this? • Creator is given own right that allows this • Some systems provide a grant modifier (like a copy flag) allowing a right to be transferred, so ownership not needed • Transferring right to another modifies ACL • Do ACLs apply to privileged users (root)? • Solaris: abbreviated lists do not, but full-blown ACL entries do • Other vendors: varies CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  23. Groups and Wildcards Classic form: no; in practice, usually • AIX: base perms gave group sys read only permit -w- u:heidi, g=sys line adds write permission for heidi when in that group • UNICOS: • holly : gleep : r • user holly in group gleep can read file • holly : * : r • user holly in any group can read file • * : gleep : r • any user in group gleep can read file CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  24. Conflicts • Deny access if any entry would deny access • AIX: if any entry denies access, regardless of rights given so far, access is denied • Apply first entry matching subject • Cisco routers: run packet through access control rules (ACL entries) in order; on a match, stop, and forward the packet; if no matches, deny • Note default is deny so honors principle of fail-safe defaults CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  25. Handling Default Permissions • Apply ACL entry, and if none use defaults • Cisco router: apply matching access control rule, if any; otherwise, use default rule (deny) • Augment defaults with those in the appropriate ACL entry • AIX: extended permissions augment base permissions CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  26. Revocation Question • How do you remove subject’s rights to a file? • Owner deletes subject’s entries from ACL, or rights from subject’s entry in ACL • What if ownership not involved? • Depends on system • System R: restore protection state to what it was before right was given • May mean deleting descendent rights too … CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set

  27. Windows NT ACLs Different sets of rights • Basic: read, write, execute, delete, change permission, take ownership • Generic: no access, read (read/execute), change (read/write/execute/delete), full control (all), special access (assign any of the basics) • Directory: no access, read (read/execute files in directory), list, add, add and read, change (create, add, read, execute, write files; delete subdirectories), full control, special access CS283-172/Fall08/GW/Vora Many slides from Matt Bishop's slide set
