  1. Network Layer Functions CSE524: Lecture 11

  2. Exam

  3. Where we’re at… • Internet architecture and history • Internet protocols in practice • Application layer • Transport layer • Network layer • Network-layer functions • Specific network layer protocols (IP) and devices • Data-link layer • Physical layer

  4. Important functions: Addressing: address assignment Delivery semantics: unicast, multicast, anycast, broadcast, ordering Security: provide privacy, authentication, etc. at the network layer Fragmentation: break-up packets based on data-link layer properties Quality-of-service: provide predictable performance Routing: path selection and packet forwarding network data link physical network data link physical network data link physical network data link physical network data link physical network data link physical network data link physical network data link physical Network layer functions • Transport packet from sending to receiving hosts • Network layer protocols in every host, router application transport network data link physical application transport network data link physical

  5. NL: Demux to upper layer • Sends payload to the next layer in protocol stack • Usually transport layer • Can be other layers (recall tunneling discussion)

  6. NL: Error detection • Protection of data and/or header at the network layer • Provide extra protection on top of data-link layer and below transport layer • End-to-end principle • Is this necessary? • IPv6 answer =>No

  7. NL: Delivery semantics • Communication modes • Unicast (One source to one destination) • Anycast (One source to any of a set of destinations) • Multicast (One or more sources to a set of destinations) • Broadcast (One source to all destinations) • Ordering • In-order vs. out-of-order delivery • Recall ATM service models • If time permits, we will look at multicast at the end of the course.

  8. NL: Security • Secrecy • No eavesdropping • Integrity • No man-in-the-middle attacks • Authenticity • Ensure identity of source • If time permits, we will look at network security at the end of course…..

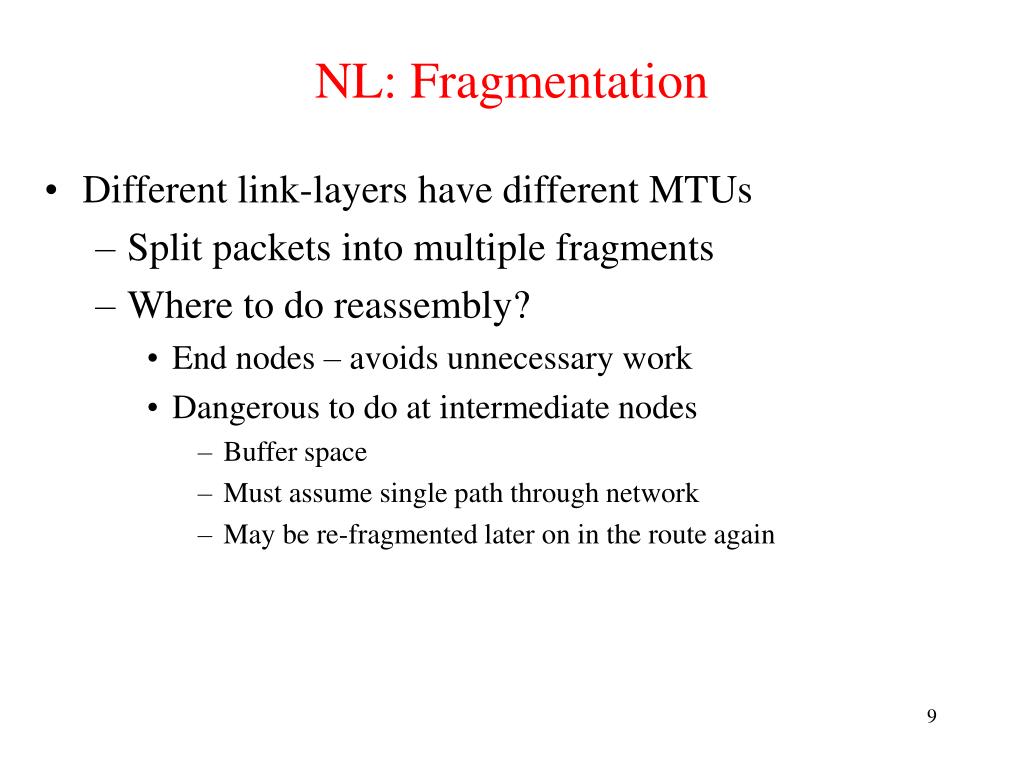

  9. NL: Fragmentation • Different link-layers have different MTUs • Split packets into multiple fragments • Where to do reassembly? • End nodes – avoids unnecessary work • Dangerous to do at intermediate nodes • Buffer space • Must assume single path through network • May be re-fragmented later on in the route again

  10. NL: Fragmentation is Harmful • Uses resources poorly • Forwarding costs per packet • Best if we can send large chunks of data • Worst case: packet just bigger than MTU • Poor end-to-end performance • Loss of a fragment • Reassembly is hard • Buffering constraints

  11. NL: Fragmentation • References • Characteristics of Fragmented IP Traffic on Internet Links. Colleen Shannon, David Moore, and k claffy -- CAIDA, UC San Diego. ACM SIGCOMM Internet Measurement Workshop 2001. http://www.aciri.org/vern/sigcomm-imeas-2001.program.html • C. A. Kent and J. C. Mogul, "Fragmentation considered harmful," in Proceedings of the ACM Workshop on Frontiers in Computer Communications Technology, pp. 390--401, Aug. 1988.http://www.research.compaq.com/wrl/techreports/abstracts/87.3.html

  12. NL: Fragmentation • Remove fragmentation from the network (IPv6) • Path MTU Discovery • Network layer does no fragmentation • Host does Path MTU discovery • ICMP message for oversized packets

  13. NL: Quality-of-Service Q: What service model for “channel” transporting packets from sender to receiver? • guaranteed bandwidth? • preservation of inter-packet timing (no jitter)? • loss-free delivery? • in-order delivery? • congestion feedback to sender? The most important abstraction provided by network layer: ? ? virtual circuit or datagram? ? service abstraction

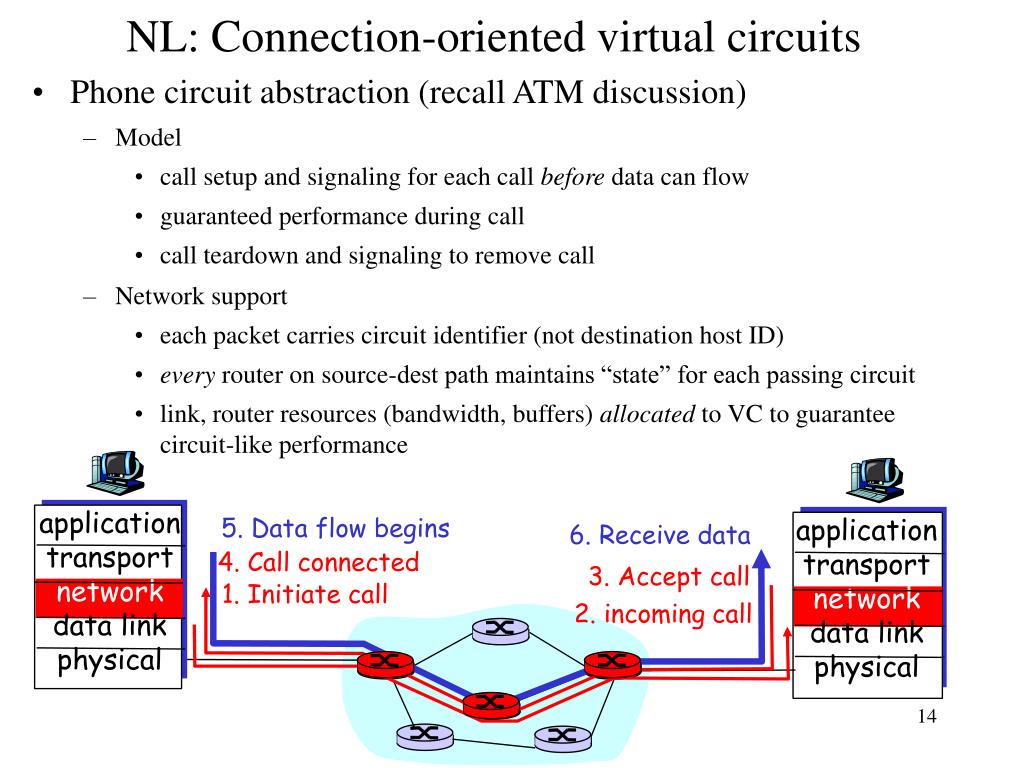

  14. NL: Connection-oriented virtual circuits • Phone circuit abstraction (recall ATM discussion) • Model • call setup and signaling for each call before data can flow • guaranteed performance during call • call teardown and signaling to remove call • Network support • each packet carries circuit identifier (not destination host ID) • every router on source-dest path maintains “state” for each passing circuit • link, router resources (bandwidth, buffers) allocated to VC to guarantee circuit-like performance application transport network data link physical 5. Data flow begins application transport network data link physical 6. Receive data 4. Call connected 3. Accept call 1. Initiate call 2. incoming call

  15. NL: Connectionless datagram service • Postal service abstraction (Internet) • Model • no call setup or teardown at network layer • no service guarantees • Network support • packets carry only destination host ID • no state within network on end-to-end connections • packets between same source-dest pair may take different paths application transport network data link physical application transport network data link physical 1. Send data 2. Receive data

  16. Adding circuits to the Internet • Intserv, Diffserv (at the end of course if time permits) • Chapter 6 in book • Start from scratch and redesign • ATM NL: Best of both worlds?

  17. NL: Addressing • Hierarchical vs. flat • Routing table size • Global vs. local • Applications (NAT) • Processing speed • Variable-length vs. fixed-length • Flexibility • Processing costs • Header size

  18. NL: Routing • The most complicated and important function the network layer provides • Directing data from source to destination • Routing algorithms and architectures • Link state algorithms • Distance vector algorithms • Routing hierarchies • Area routing • Landmark routing (at end of course time-permitting)

  19. Routing protocol 5 3 B C 5 2 A 2 F 1 3 1 2 D E 1 • “good” path: • typically means minimum cost path • other def’s possible NL: Routing algorithms Graph abstraction for routing algorithms: • graph nodes are routers • graph edges are physical links • link cost • Delay • $ cost • congestion level Goal: determine “good” path (sequence of routers) thru network from source to dest.

  20. Static or dynamic? Static: routes change slowly over time Dynamic: routes change more quickly periodic update in response to link cost changes NL: Routing algorithms Global or decentralized information? Global: • all routers have complete topology, link cost info • “link state” algorithms Decentralized: • router knows physically-connected neighbors, link costs to neighbors • iterative process of computation, exchange of info with neighbors • “distance vector” algorithms

  21. NL: What to look for in routing algorithms • Communication costs • Processing costs • Optimality • Stability • Convergence time • Loop freedom • Oscillation damping

  22. NL: Link state routing algorithms • Used in OSPF (intra-domain routing protocol) • Basic steps • Start condition • Each node assumed to know state of links to its neighbors • Step 1 • Each node broadcasts its local link states to all other nodes • Reliable flooding mechanism • Step 2 • Each node locally computes shortest paths to all other nodes from global state • Dijkstra’s shortest path tree (SPT) algorithm

  23. NL: Step 1 • Link State Packets (LSPs) to broadcast state to all nodes • Periodically, each node creates a link state packet containing: • Node ID • List of neighbors and link cost • Sequence number • Time to live (TTL) • Node outputs LSP on all its links

  24. NL: Step 1 • Reliable Flooding • When node J receives LSP from node K • If LSP is the most recent LSP from K that J has seen so far, J saves it in database and forwards a copy on all links except link LSP was received on • Otherwise, discard LSP • How to tell more recent • Use sequence numbers • Same method as sliding window protocols • Needed to avoid stale information from flood • Problem: sequence number wrap-around • Lollipop sequence space

  25. NL: Step 1 and wrapped sequence numbers • Wrapped sequence numbers • 0-N where N is large • If difference between numbers is large, assume a wrap • A is older than B if…. • A < B and |A-B| < N/2 or… • A > B and |A-B| > N/2 • What about new nodes or rebooted nodes that are out of sync with sequence number space? • Lollipop sequence (Perlman 1983)

  26. NL: Step 1 and lollipop sequence numbers • Divide sequence number space • Special negative sequence for recovering from reboot • New and rebooted nodes use negative sequence numbers • Upon receipt of negative number, other nodes inform these nodes of current “up-to-date” sequence number • A older than B if • A < 0 and A < B • A > 0, A < B and (B – A) < N/4 • A > 0, A > B and (A – B) > N/4 0 -N/2 N/2 - 1

  27. Notation: c(i,j): link cost from node i to j. cost infinite if not direct neighbors D(v): current value of cost of path from source to dest. V p(v): predecessor node along path from source to v, that is next v N: set of nodes whose least cost path definitively known NL: Step 2 A Link-state routing algorithm Dijkstra’s algorithm • all link costs on the network are known • all nodes have same info • computes least cost paths from one node (‘source”) to all other nodes • gives routing table for that node • iterative: after k iterations, know least cost path to k destinations

  28. NL: Step 2 (Dijkstra’s algorithm example) 1 Initialization: 2 N = {A} 3 for all nodes v 4 if v adjacent to A 5 then D(v) = c(A,v) 6 else D(v) = infinity 7 8 Loop 9 find w not in N such that D(w) is a minimum 10 add w to N 11 update D(v) for all v adjacent to w and not in N: 12 D(v) = min( D(v), D(w) + c(w,v) ) 13 /* new cost to v is either old cost to v or known 14 shortest path cost to w plus cost from w to v */ 15 until all nodes in N

  29. B C A F D E NL: Step 2 (Dijkstra’s algorithm example) 5 3 5 2 1 2 3 1 2 1 B C D E F

  30. B C A F D E NL: Step 2 (Dijkstra’s algorithm example) 5 3 5 2 1 2 3 1 2 1 B C D E F

  31. B C A F D E NL: Step 2 (Dijkstra’s algorithm example) 5 3 5 2 1 2 3 1 2 1 B C D E F

  32. B C A F D E NL: Step 2 (Dijkstra’s algorithm example) 5 3 5 2 1 2 3 1 2 1 B C D E F

  33. B C A F D E NL: Step 2 (Dijkstra’s algorithm example) 5 3 5 2 1 2 3 1 2 1 B C D E F

  34. B C A F D E NL: Step 2 (Dijkstra’s algorithm example) 5 3 5 2 1 2 3 1 2 1 B C D E F
