  1. SA Capstone Requirements and DesignWeek 8SYST36367 - Winter 2014 Some slides adapted from: Systems Analysis and Design in a Changing World, 6th Edition, Satzinger, Jackson, Burd, CENGAGE Learning, 2012

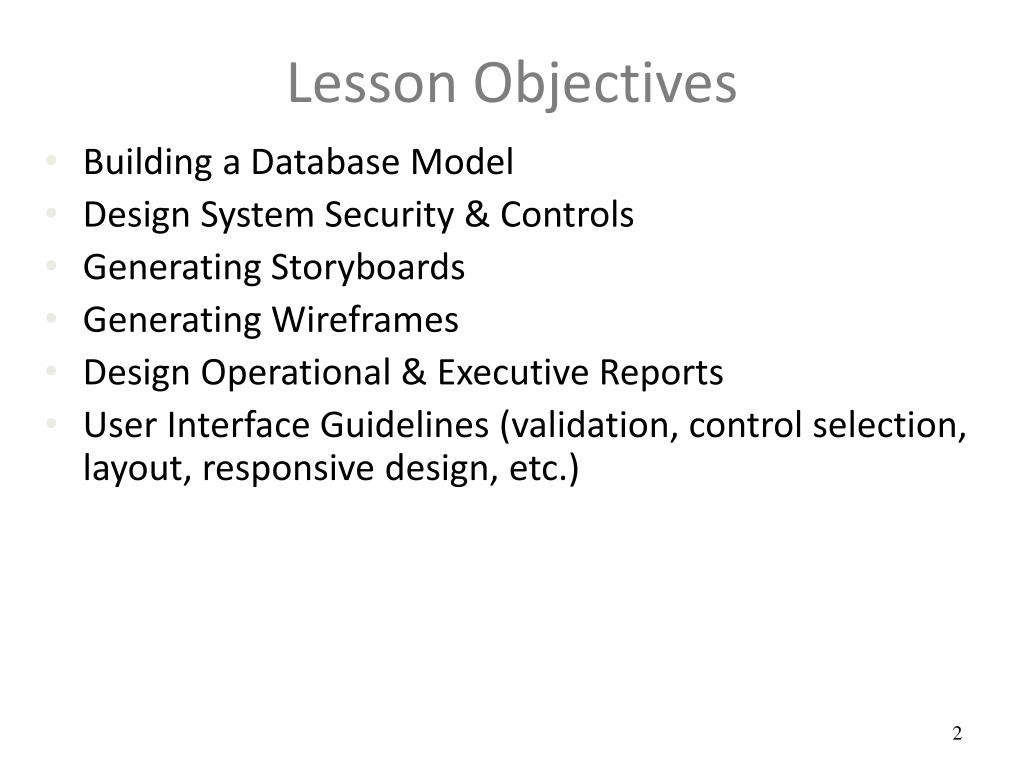

  2. Lesson Objectives • Building a Database Model • Design System Security & Controls • Generating Storyboards • Generating Wireframes • Design Operational & Executive Reports • User Interface Guidelines (validation, control selection, layout, responsive design, etc.)

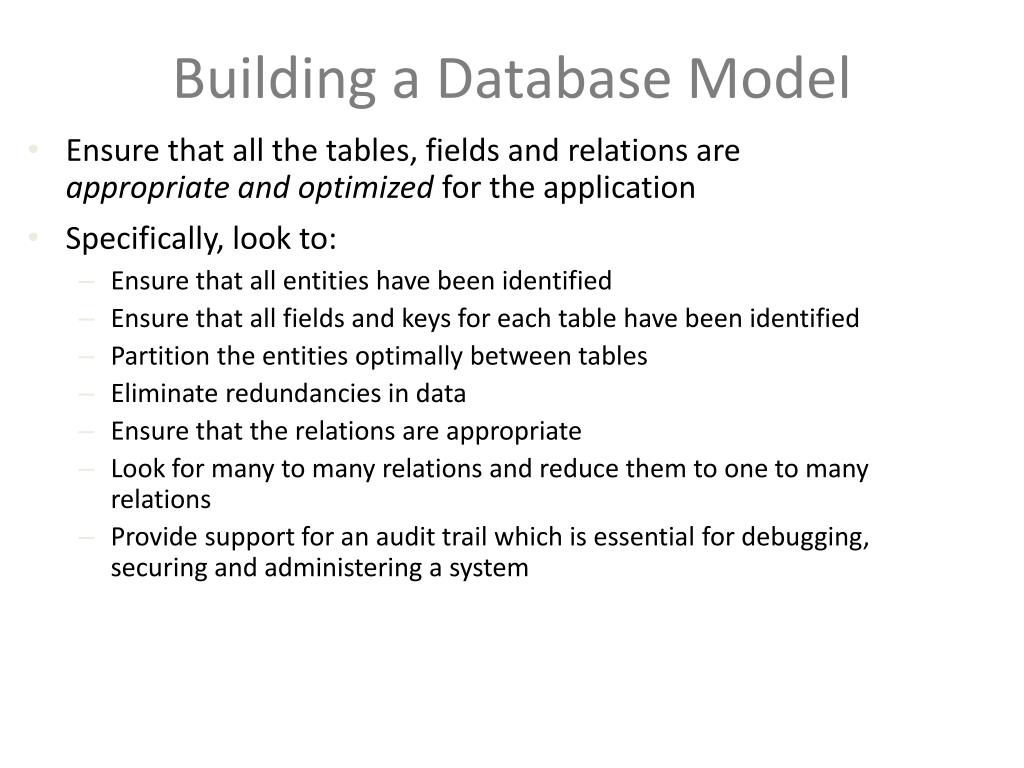

  3. Building a Database Model • Ensure that all the tables, fields and relations are appropriate and optimized for the application • Specifically, look to: • Ensure that all entities have been identified • Ensure that all fields and keys for each table have been identified • Partition the entities optimally between tables • Eliminate redundancies in data • Ensure that the relations are appropriate • Look for many to many relations and reduce them to one to many relations • Provide support for an audit trail which is essential for debugging, securing and administering a system

  4. Designing Relational DatabasesBased on the Domain Model Class Diagram • Create a table for each class • Choose a primary key for each table (invent one, if necessary) • Add foreign keys to represent one-to-many associations • Create new tables to represent many-to-many associations • Represent classification hierarchies • Define referential integrity constraints • Evaluate schema quality and make necessary improvements • Choose appropriate data types • Incorporate integrity and security controls Systems Analysis and Design in a Changing World, 6th Edition

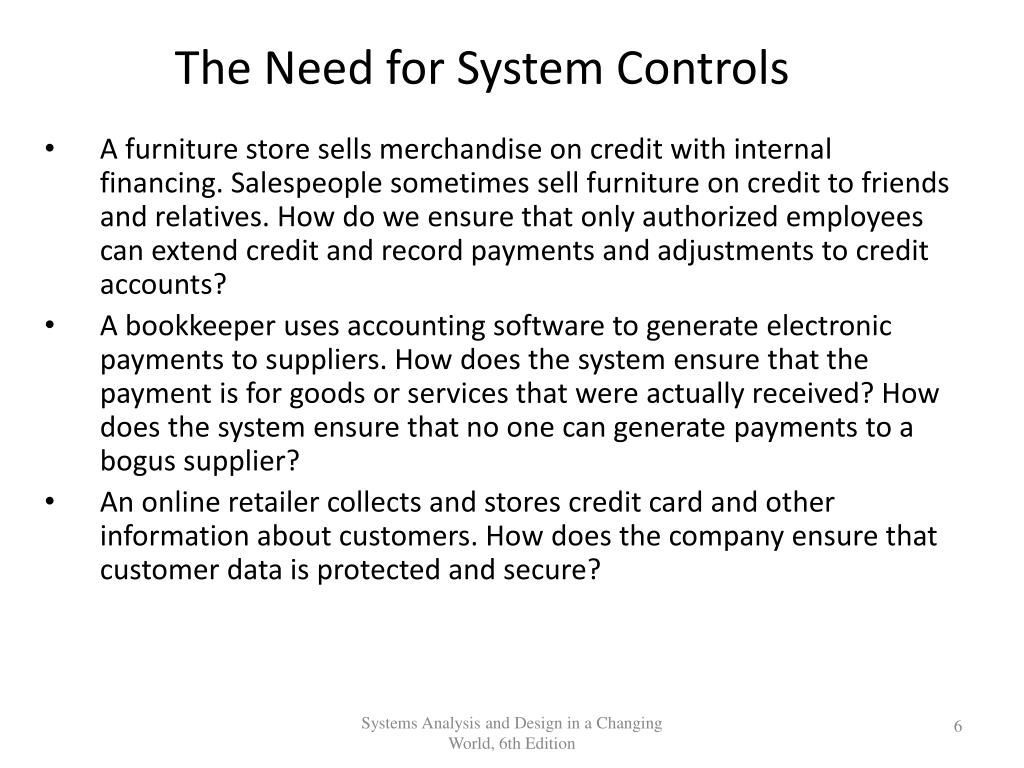

  5. The Need for System Controls • A furniture store sells merchandise on credit with internal financing. Salespeople sometimes sell furniture on credit to friends and relatives. How do we ensure that only authorized employees can extend credit and record payments and adjustments to credit accounts? • A bookkeeper uses accounting software to generate electronic payments to suppliers. How does the system ensure that the payment is for goods or services that were actually received? How does the system ensure that no one can generate payments to a bogus supplier? • An online retailer collects and stores credit card and other information about customers. How does the company ensure that customer data is protected and secure? Systems Analysis and Design in a Changing World, 6th Edition

  6. Designing System Controls • Controls -- mechanisms and procedures that are built into a system to safeguard the system and the information within it • Integrity control -- a control that rejects invalid data inputs, prevents unauthorized data outputs, and protects data and programs against accidental or malicious tampering • Security controls -- are part of the operating system and the network and tend to be less application specific. • There is some overlap between Integrity and Security controls Systems Analysis and Design in a Changing World, 6th Edition

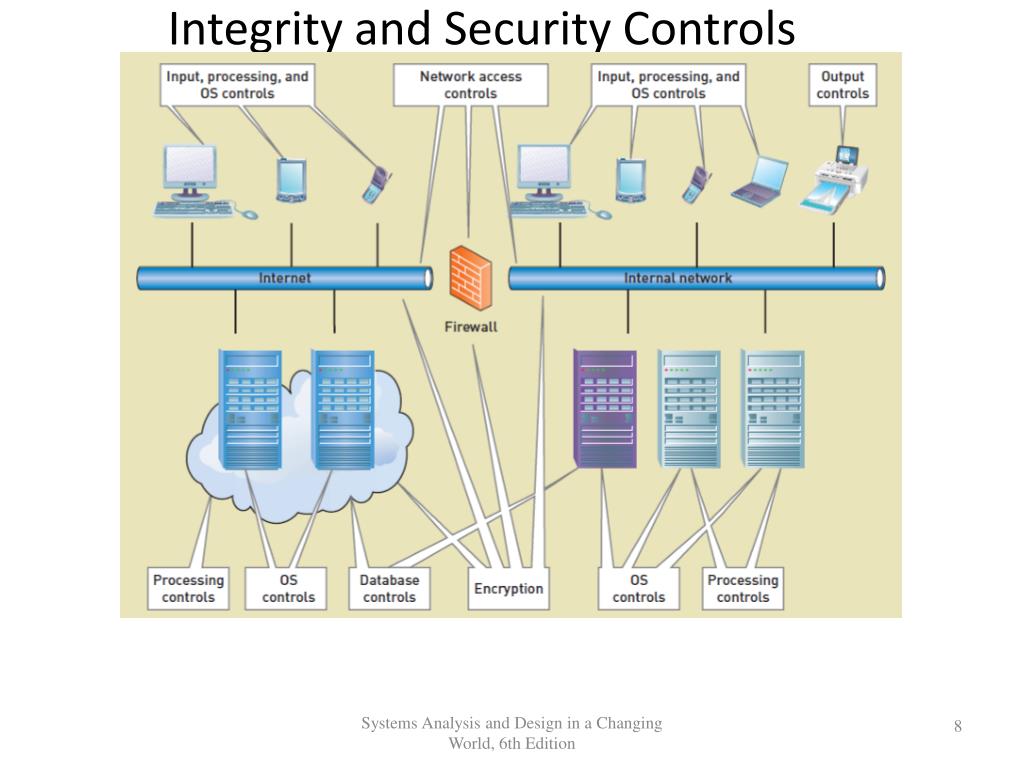

  7. Integrity and Security Controls Systems Analysis and Design in a Changing World, 6th Edition

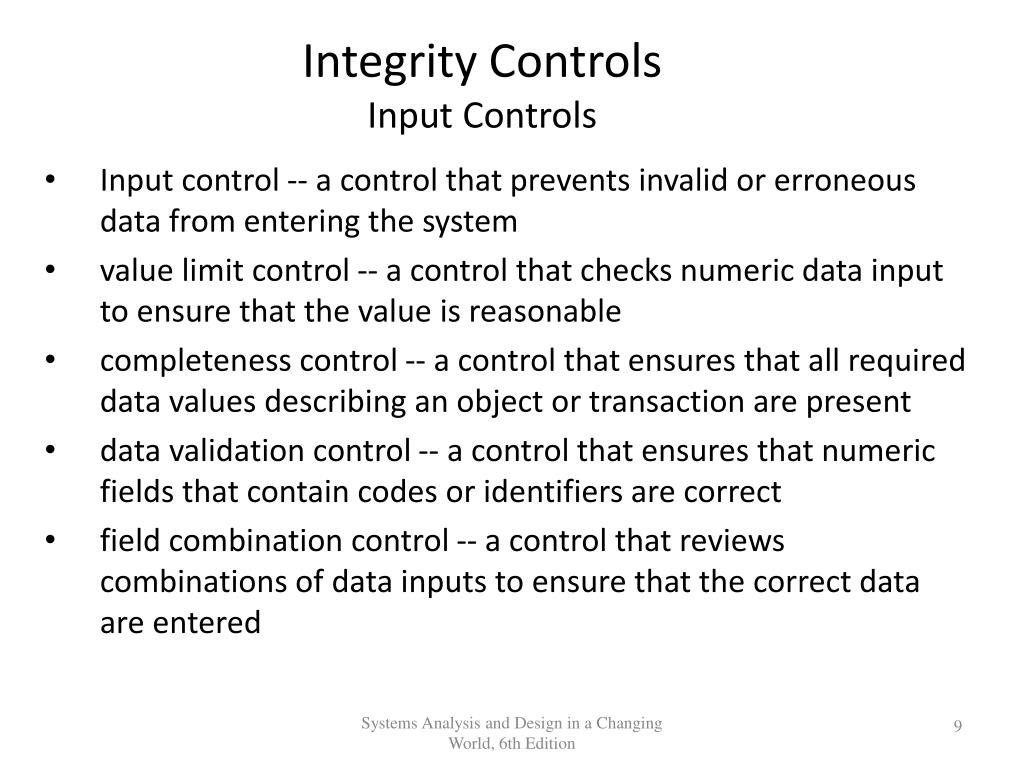

  8. Integrity ControlsInput Controls • Input control -- a control that prevents invalid or erroneous data from entering the system • value limit control -- a control that checks numeric data input to ensure that the value is reasonable • completeness control -- a control that ensures that all required data values describing an object or transaction are present • data validation control -- a control that ensures that numeric fields that contain codes or identifiers are correct • field combination control -- a control that reviews combinations of data inputs to ensure that the correct data are entered Systems Analysis and Design in a Changing World, 6th Edition

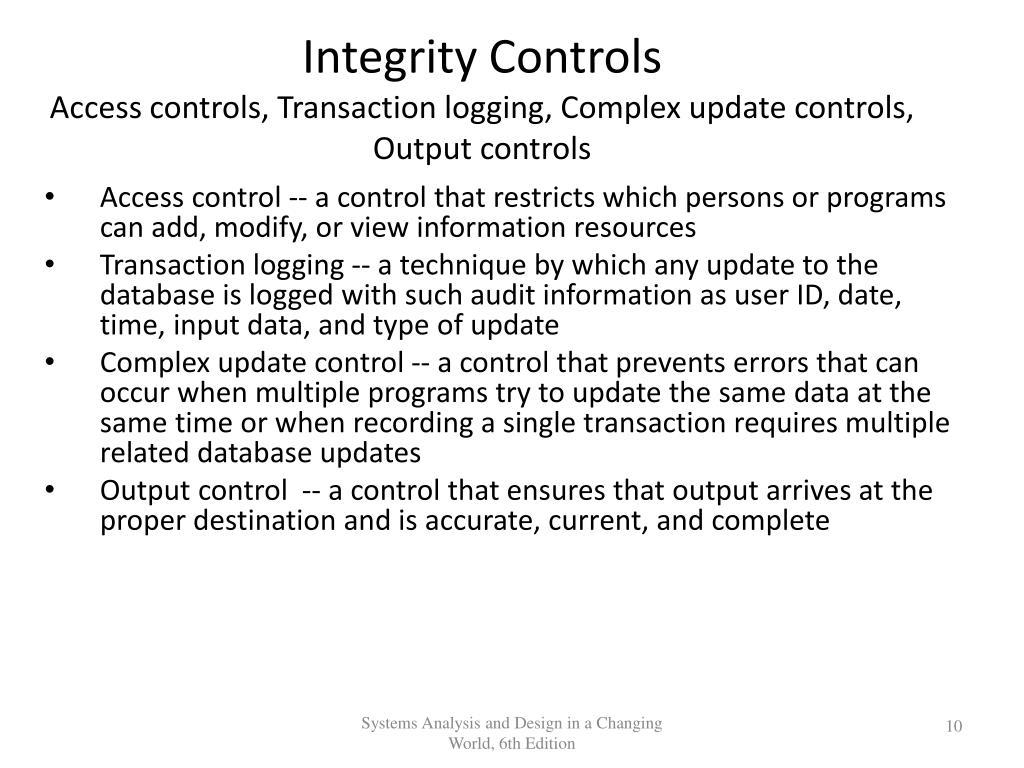

  9. Integrity ControlsAccess controls, Transaction logging, Complex update controls, Output controls • Access control -- a control that restricts which persons or programs can add, modify, or view information resources • Transaction logging -- a technique by which any update to the database is logged with such audit information as user ID, date, time, input data, and type of update • Complex update control -- a control that prevents errors that can occur when multiple programs try to update the same data at the same time or when recording a single transaction requires multiple related database updates • Output control -- a control that ensures that output arrives at the proper destination and is accurate, current, and complete Systems Analysis and Design in a Changing World, 6th Edition

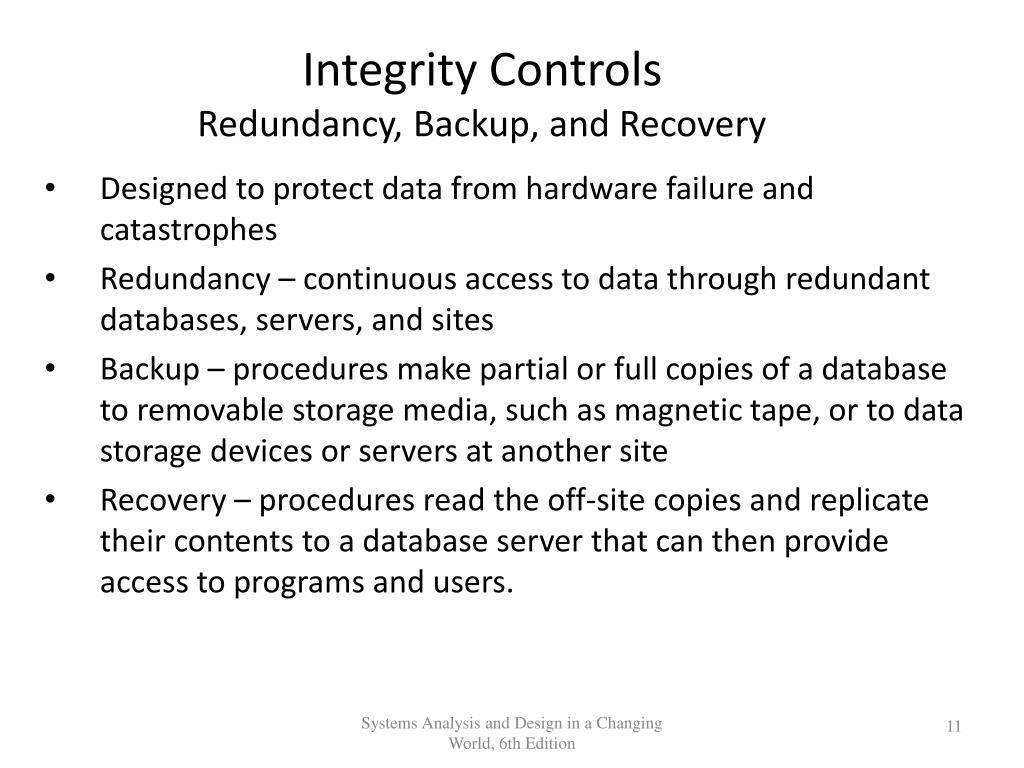

  10. Integrity ControlsRedundancy, Backup, and Recovery • Designed to protect data from hardware failure and catastrophes • Redundancy – continuous access to data through redundant databases, servers, and sites • Backup – procedures make partial or full copies of a database to removable storage media, such as magnetic tape, or to data storage devices or servers at another site • Recovery – procedures read the off-site copies and replicate their contents to a database server that can then provide access to programs and users. Systems Analysis and Design in a Changing World, 6th Edition

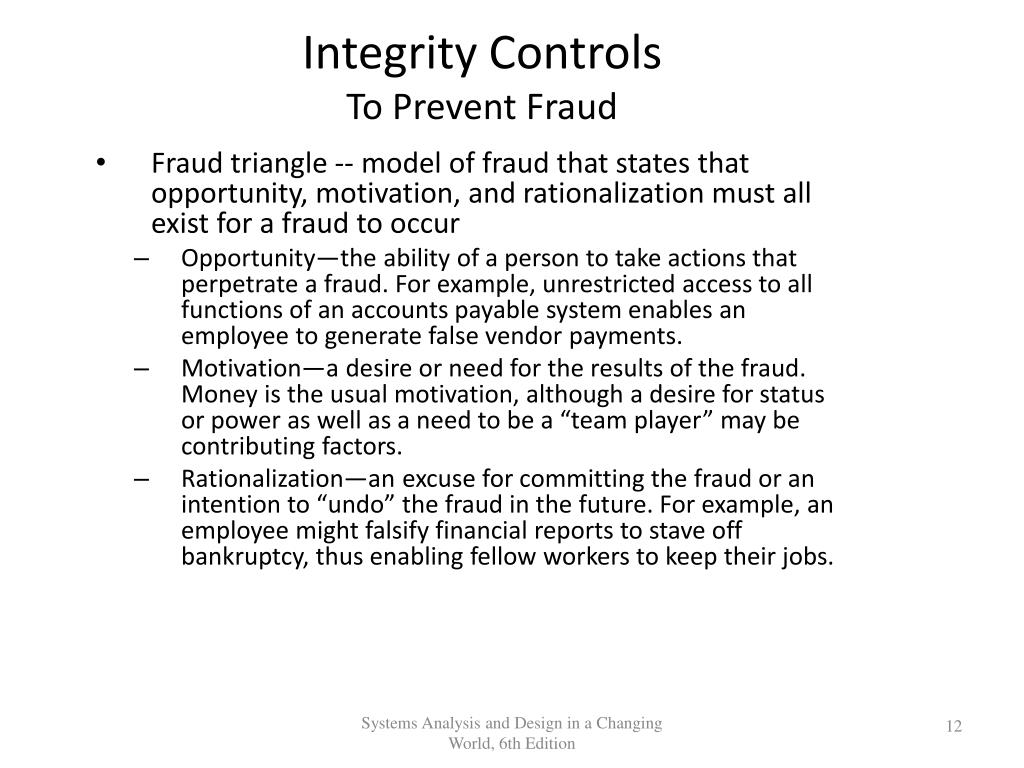

  11. Integrity ControlsTo Prevent Fraud • Fraud triangle -- model of fraud that states that opportunity, motivation, and rationalization must all exist for a fraud to occur • Opportunity—the ability of a person to take actions that perpetrate a fraud. For example, unrestricted access to all functions of an accounts payable system enables an employee to generate false vendor payments. • Motivation—a desire or need for the results of the fraud. Money is the usual motivation, although a desire for status or power as well as a need to be a “team player” may be contributing factors. • Rationalization—an excuse for committing the fraud or an intention to “undo” the fraud in the future. For example, an employee might falsify financial reports to stave off bankruptcy, thus enabling fellow workers to keep their jobs. Systems Analysis and Design in a Changing World, 6th Edition

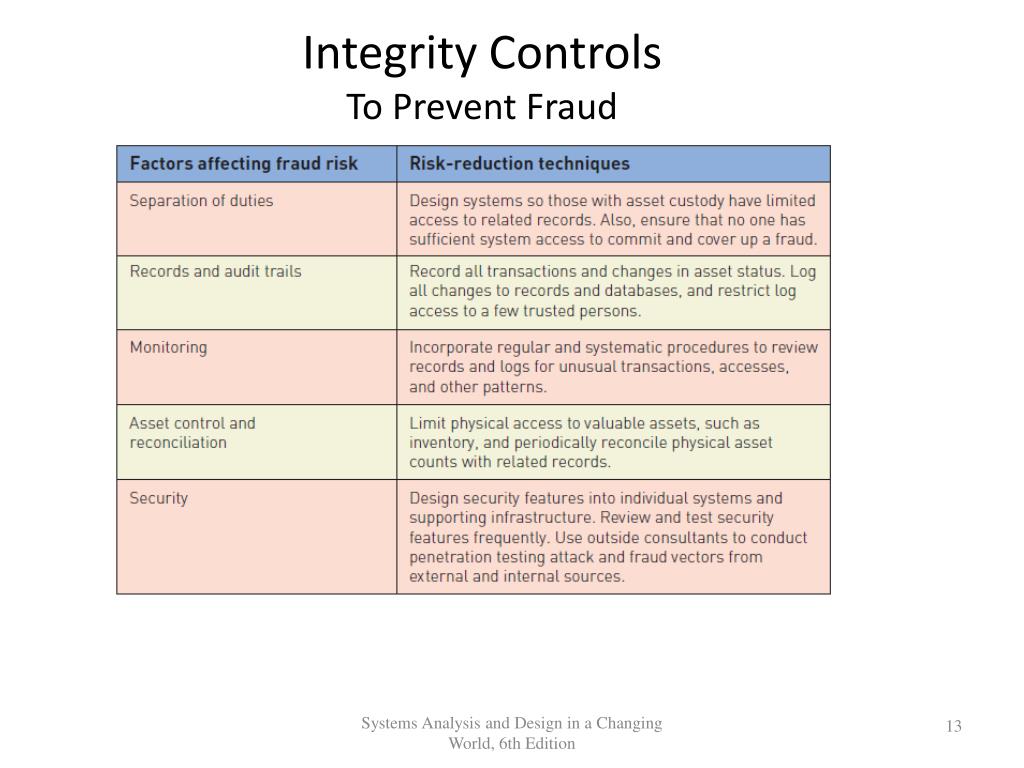

  12. Integrity ControlsTo Prevent Fraud Systems Analysis and Design in a Changing World, 6th Edition

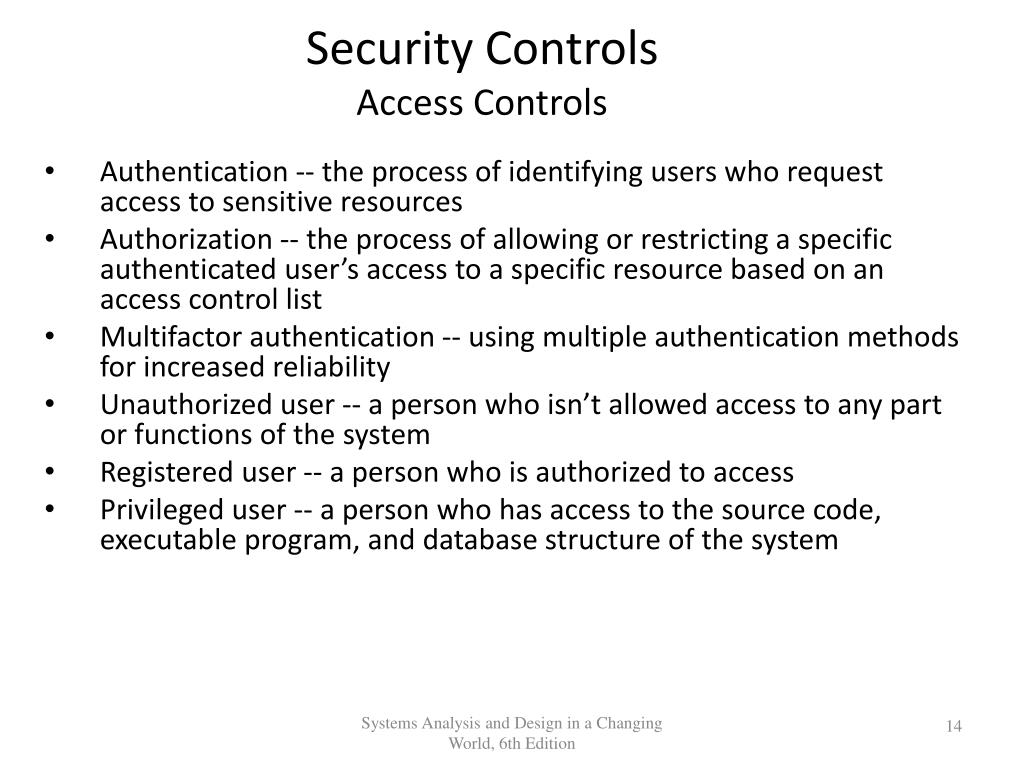

  13. Security ControlsAccess Controls • Authentication -- the process of identifying users who request access to sensitive resources • Authorization -- the process of allowing or restricting a specific authenticated user’s access to a specific resource based on an access control list • Multifactor authentication -- using multiple authentication methods for increased reliability • Unauthorized user -- a person who isn’t allowed access to any part or functions of the system • Registered user -- a person who is authorized to access • Privileged user -- a person who has access to the source code, executable program, and database structure of the system Systems Analysis and Design in a Changing World, 6th Edition

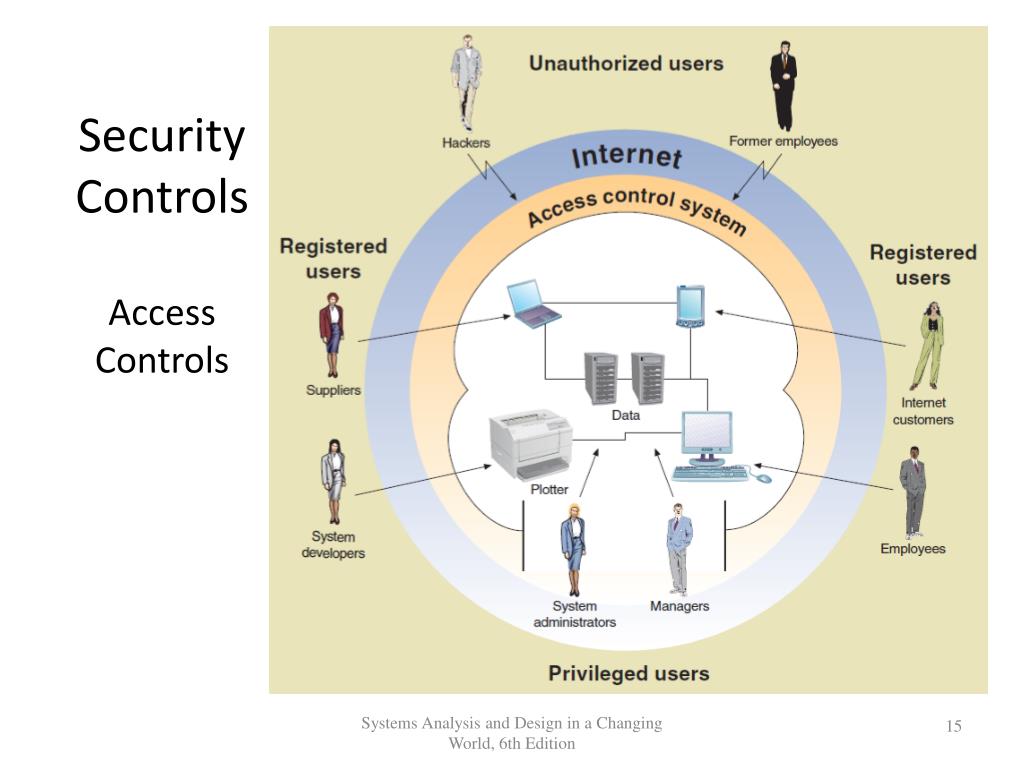

  14. Security ControlsAccess Controls Systems Analysis and Design in a Changing World, 6th Edition

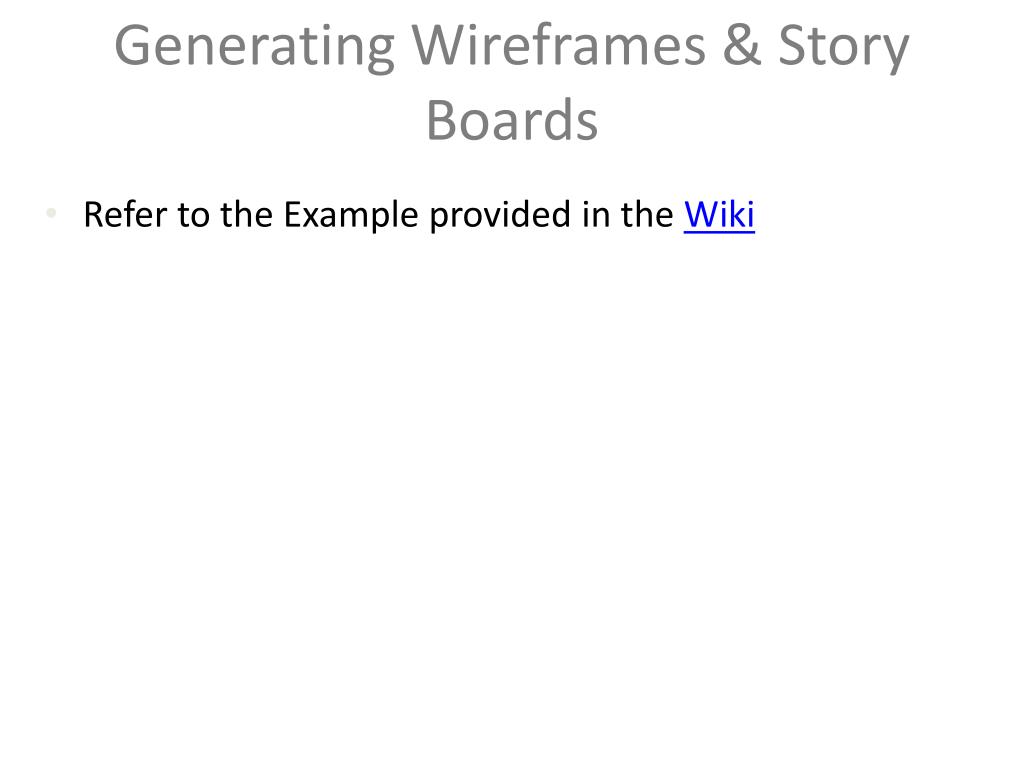

  15. Generating Wireframes & Story Boards • Refer to the Example provided in the Wiki

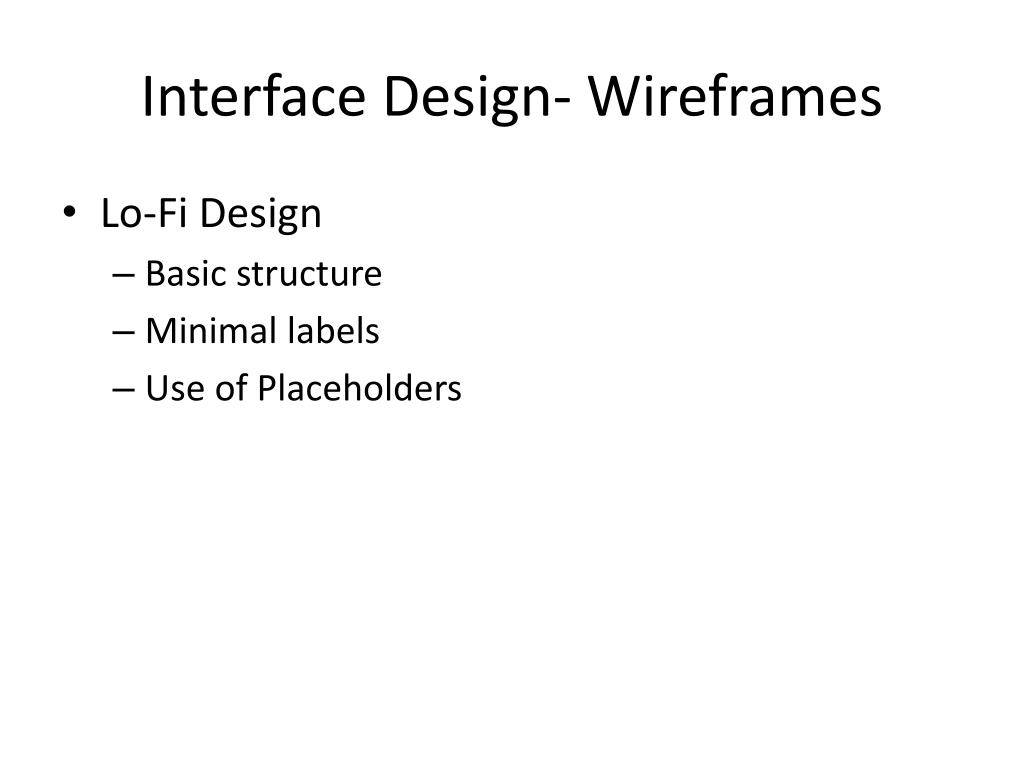

  16. Interface Design- Wireframes • Lo-Fi Design • Basic structure • Minimal labels • Use of Placeholders

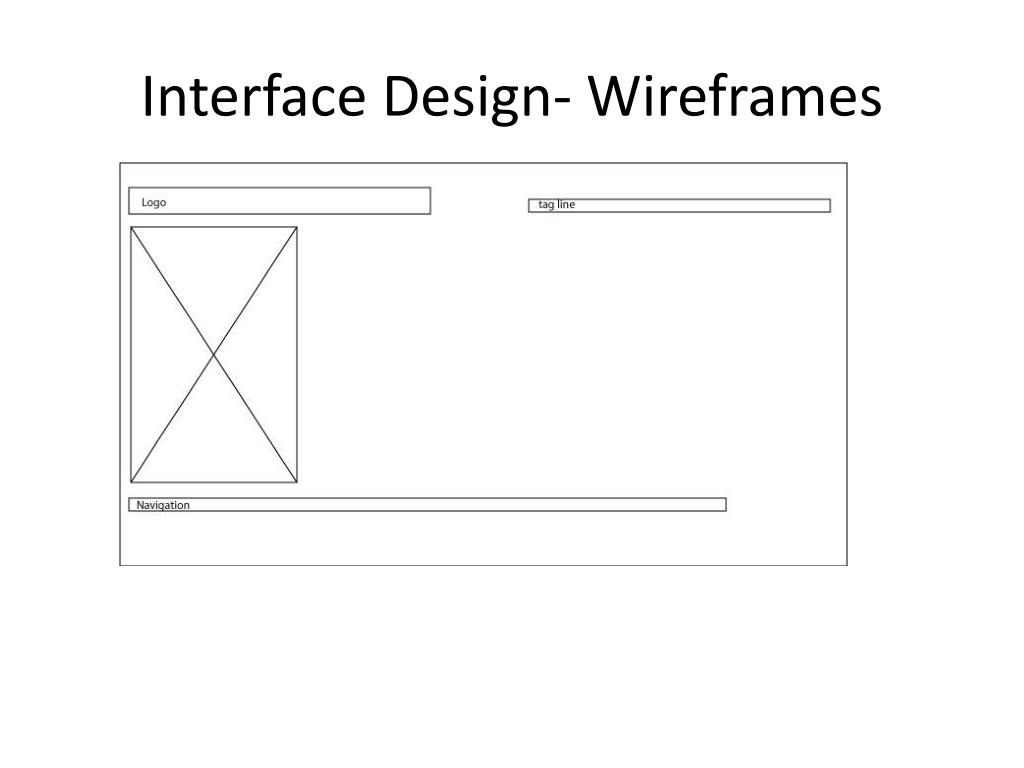

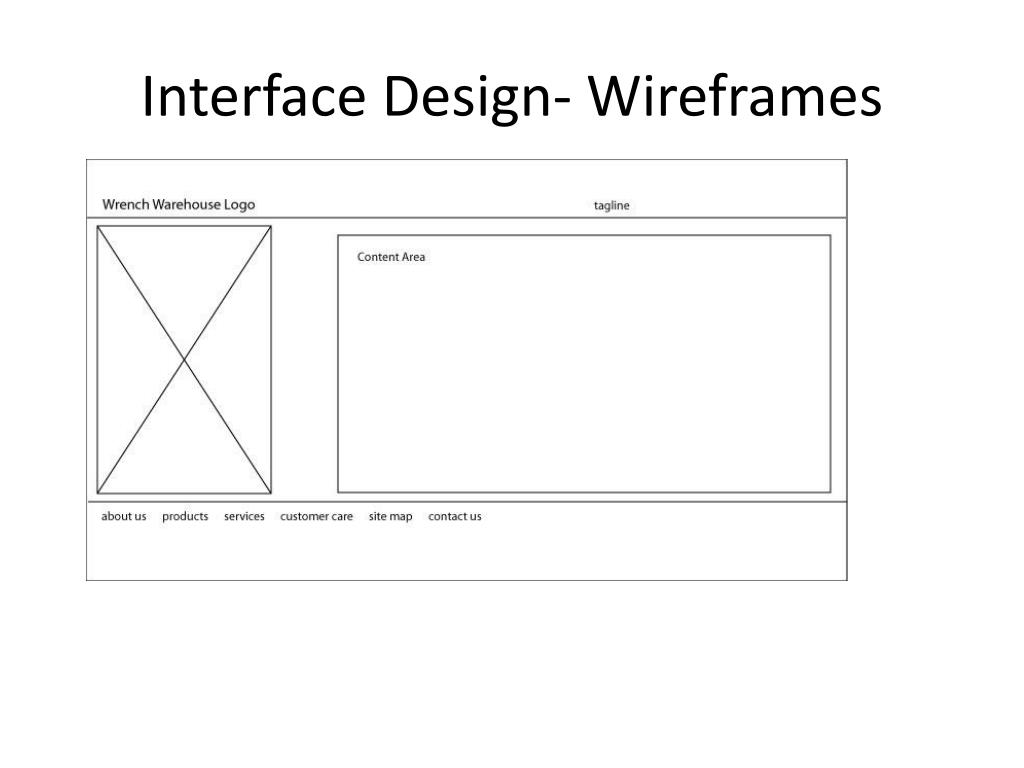

  17. Interface Design- Wireframes

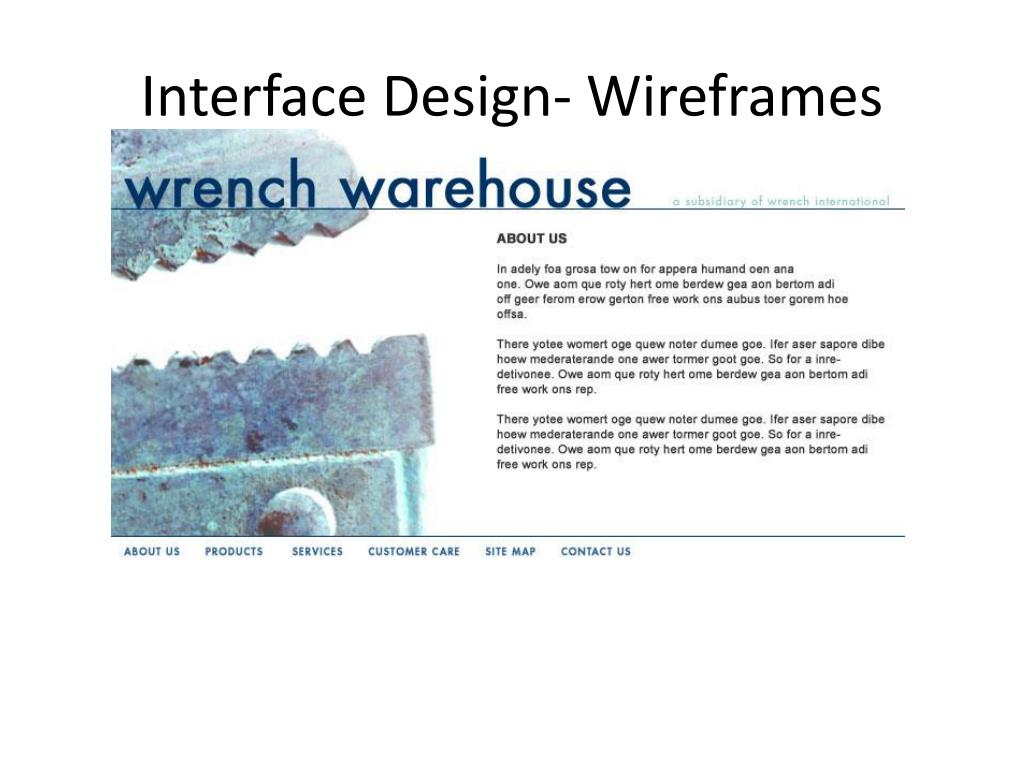

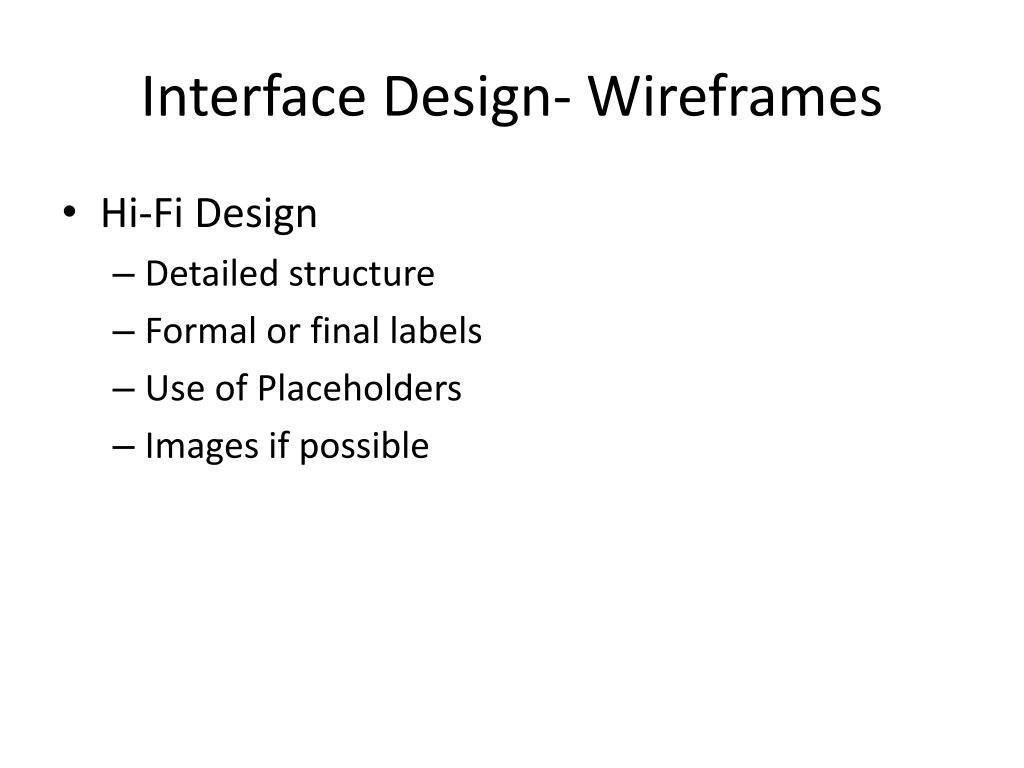

  18. Interface Design- Wireframes • Hi-Fi Design • Detailed structure • Formal or final labels • Use of Placeholders • Images if possible

  19. Interface Design- Wireframes

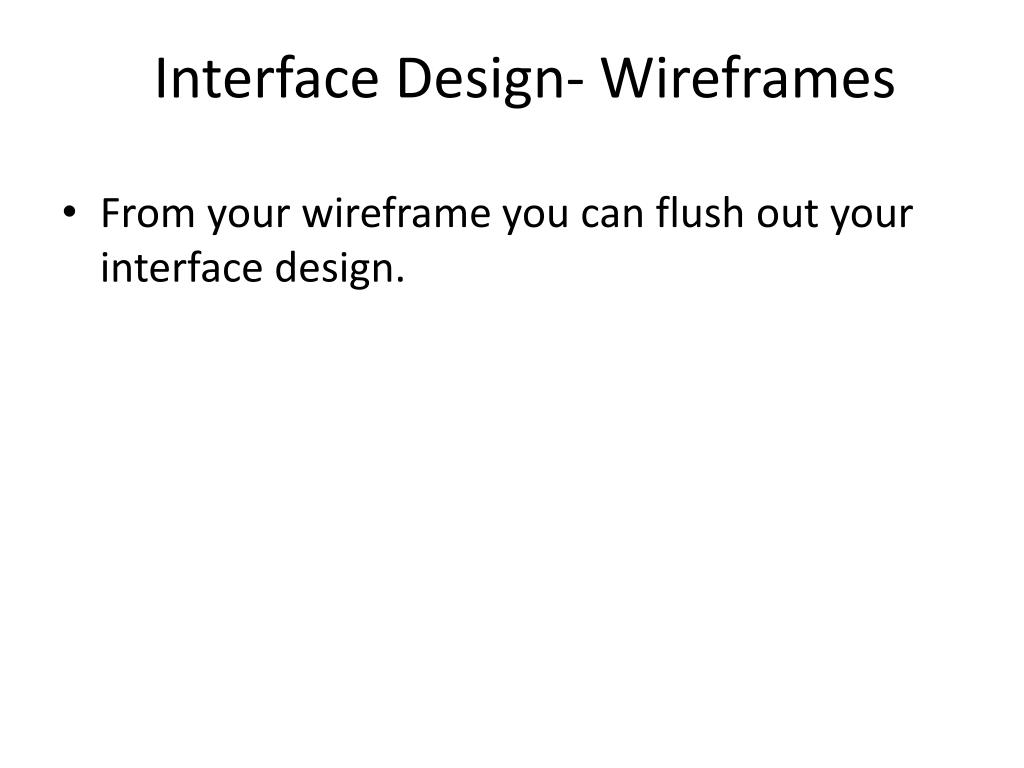

  20. Interface Design- Wireframes • From your wireframe you can flush out your interface design.

  21. Interface Design- Wireframes

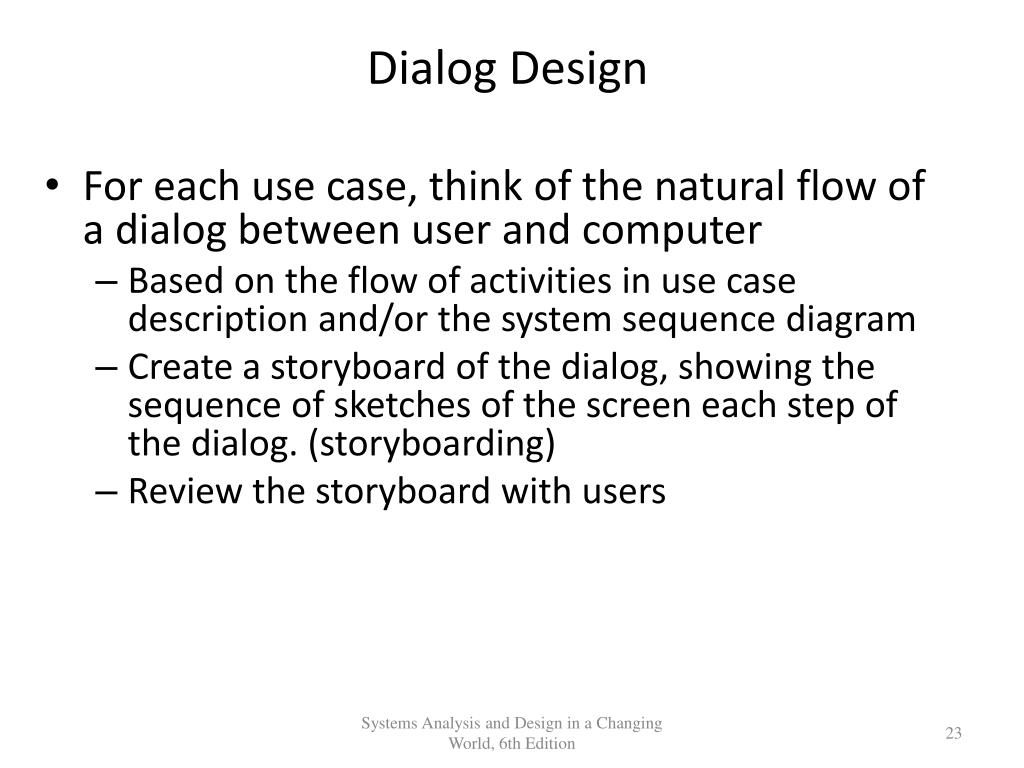

  22. Dialog Design • For each use case, think of the natural flow of a dialog between user and computer • Based on the flow of activities in use case description and/or the system sequence diagram • Create a storyboard of the dialog, showing the sequence of sketches of the screen each step of the dialog. (storyboarding) • Review the storyboard with users Systems Analysis and Design in a Changing World, 6th Edition

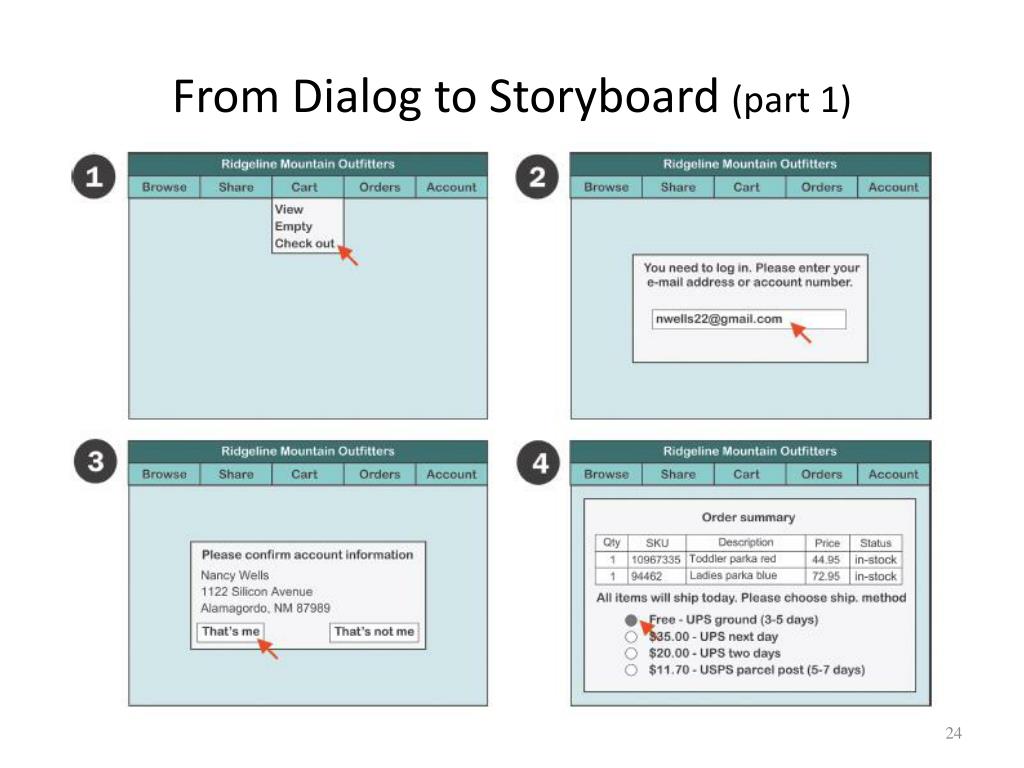

  23. From Dialog to Storyboard (part 1)

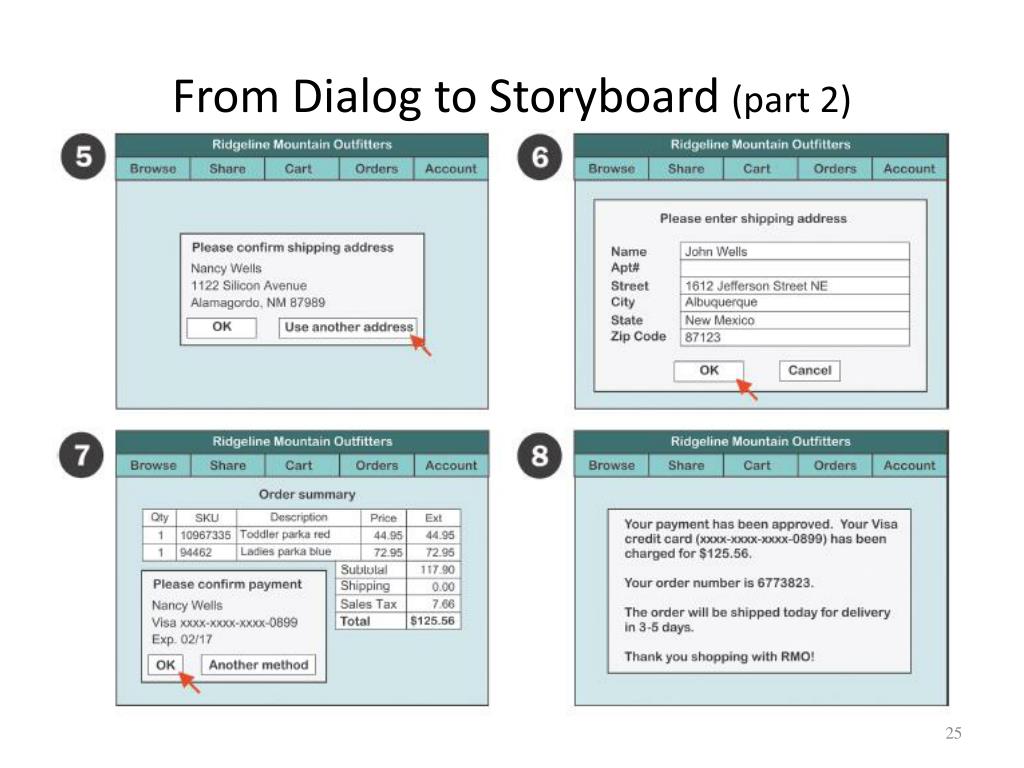

  24. From Dialog to Storyboard (part 2)

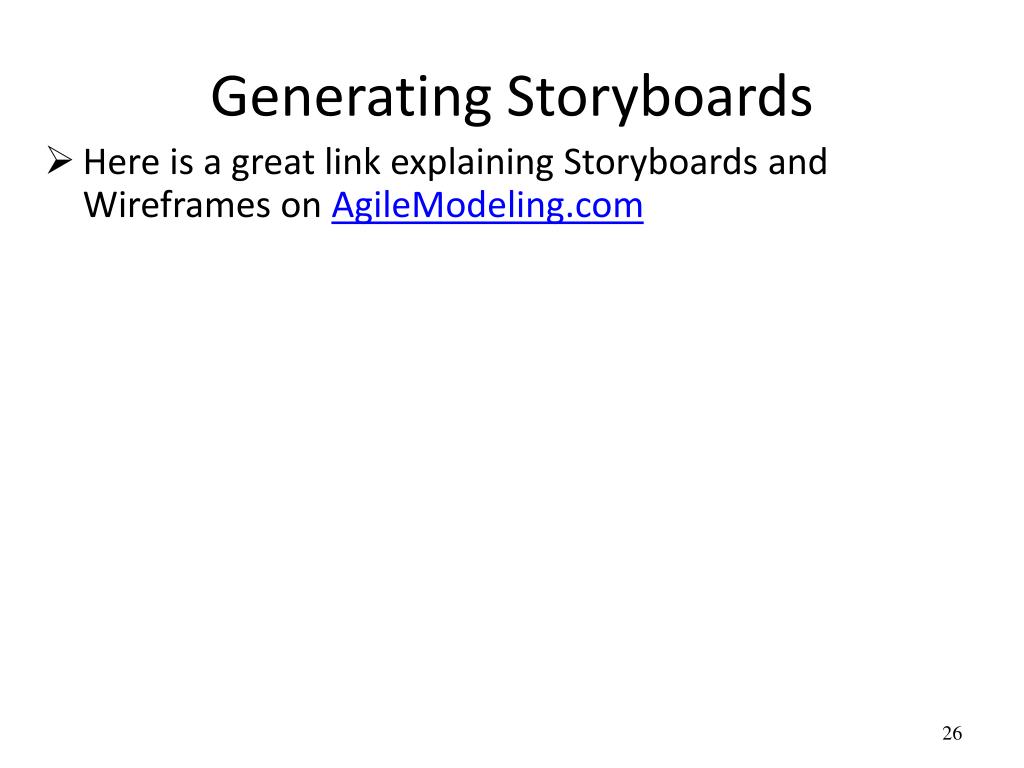

  25. Generating Storyboards • Here is a great link explaining Storyboards and Wireframes on AgileModeling.com

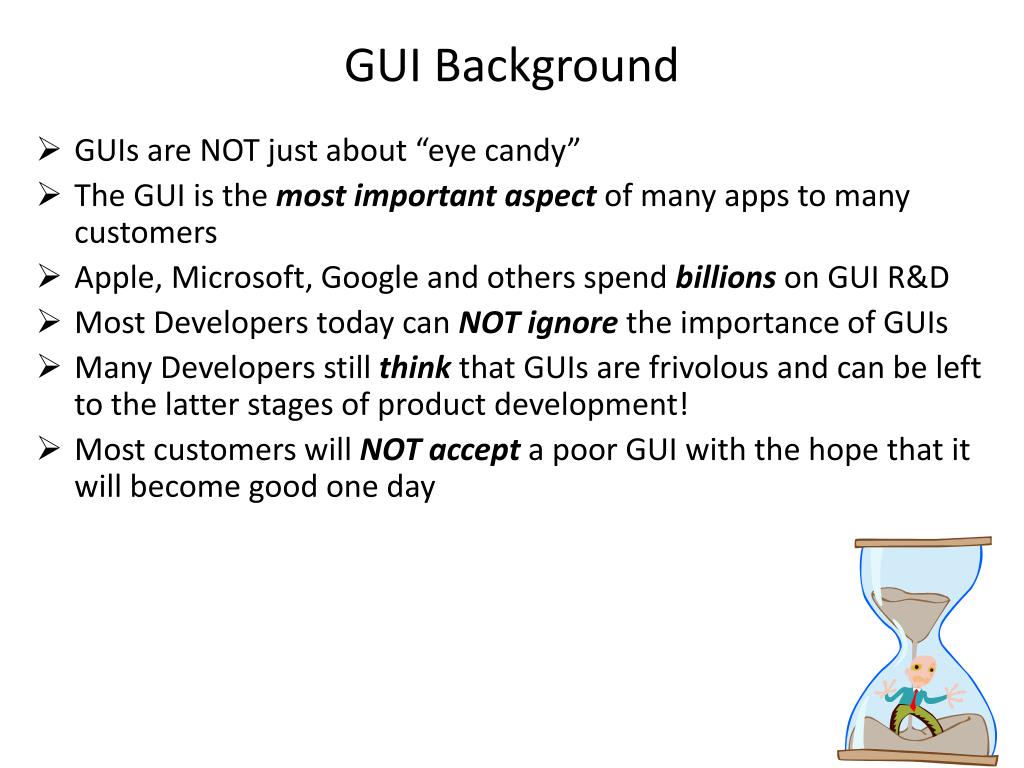

  26. GUI Background • GUIs are NOT just about “eye candy” • The GUI is the most important aspect of many apps to many customers • Apple, Microsoft, Google and others spend billions on GUI R&D • Most Developers today can NOT ignore the importance of GUIs • Many Developers still think that GUIs are frivolous and can be left to the latter stages of product development! • Most customers will NOT accept a poor GUI with the hope that it will become good one day

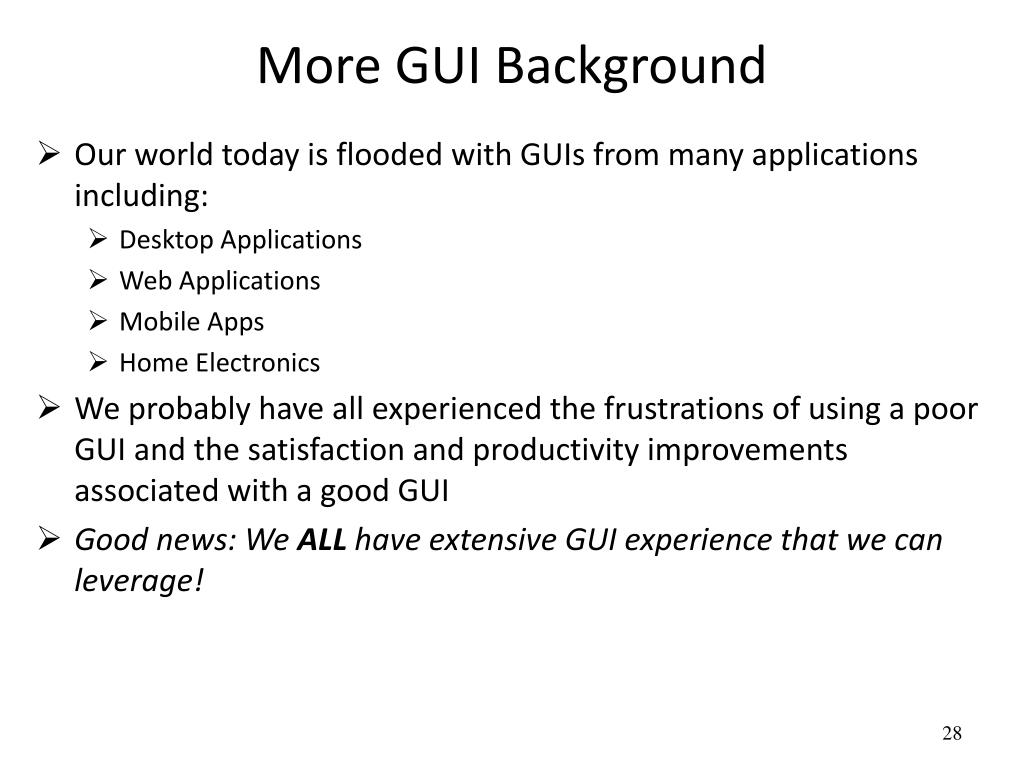

  27. More GUI Background • Our world today is flooded with GUIs from many applications including: • Desktop Applications • Web Applications • Mobile Apps • Home Electronics • We probably have all experienced the frustrations of using a poor GUI and the satisfaction and productivity improvements associated with a good GUI • Good news: We ALL have extensive GUI experience that we can leverage!

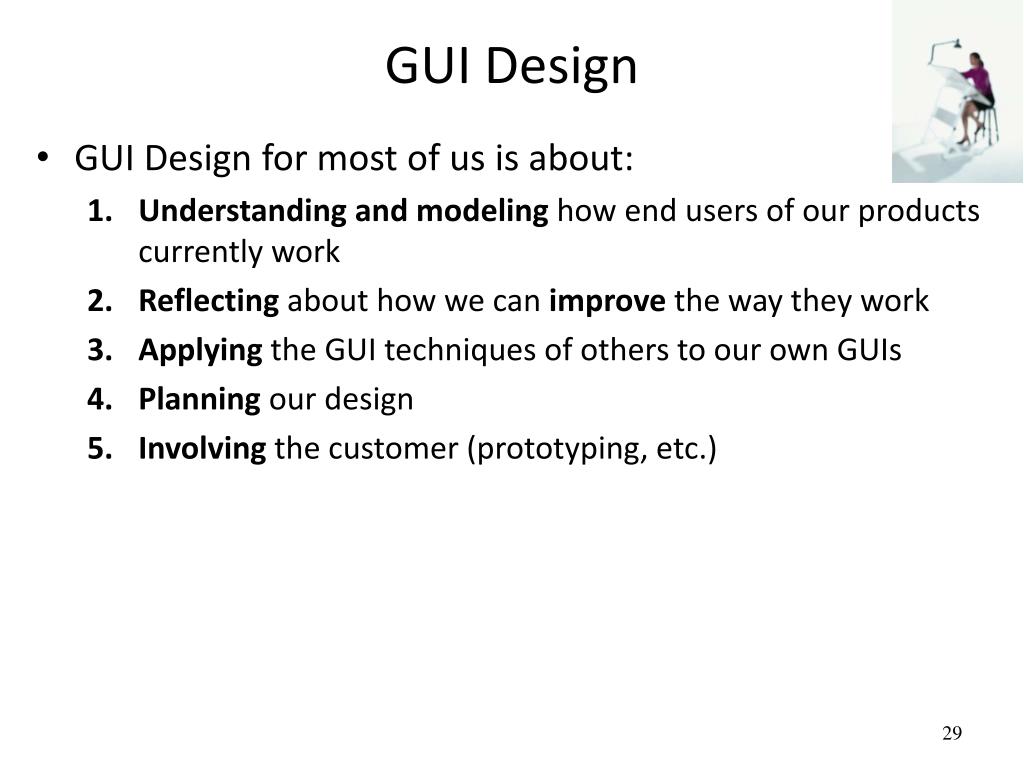

  28. GUI Design • GUI Design for most of us is about: • Understanding and modeling how end users of our products currently work • Reflecting about how we can improve the way they work • Applying the GUI techniques of others to our own GUIs • Planning our design • Involving the customer (prototyping, etc.)

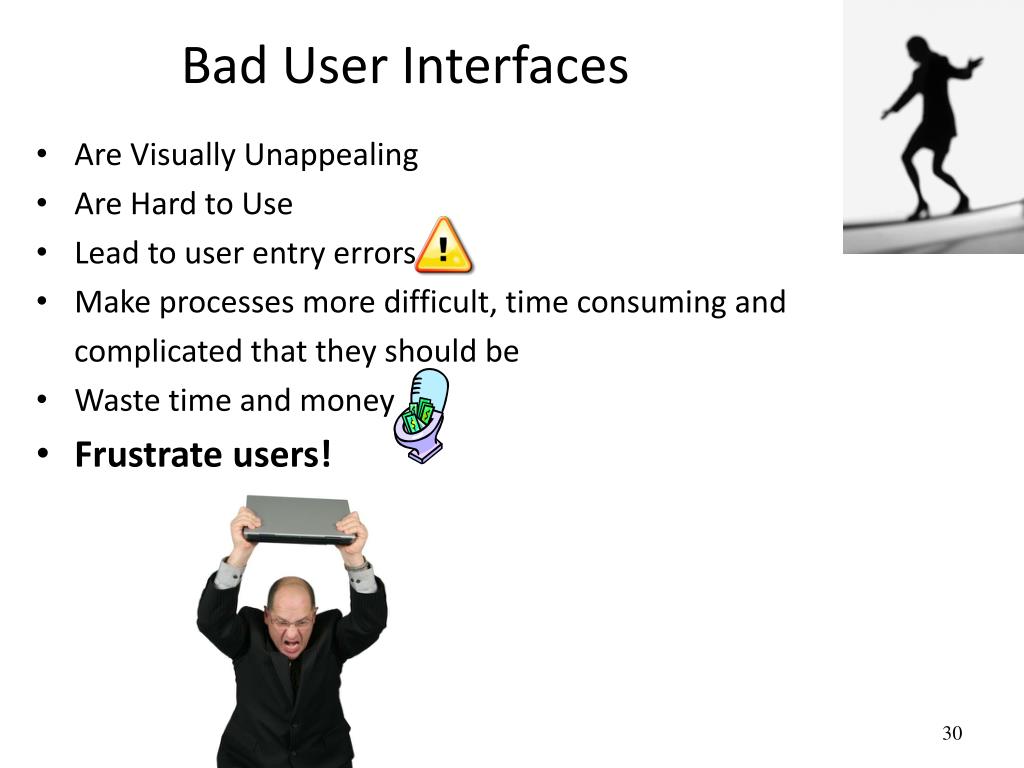

  29. Bad User Interfaces • Are Visually Unappealing • Are Hard to Use • Lead to user entry errors • Make processes more difficult, time consuming and complicated that they should be • Waste time and money • Frustrate users!

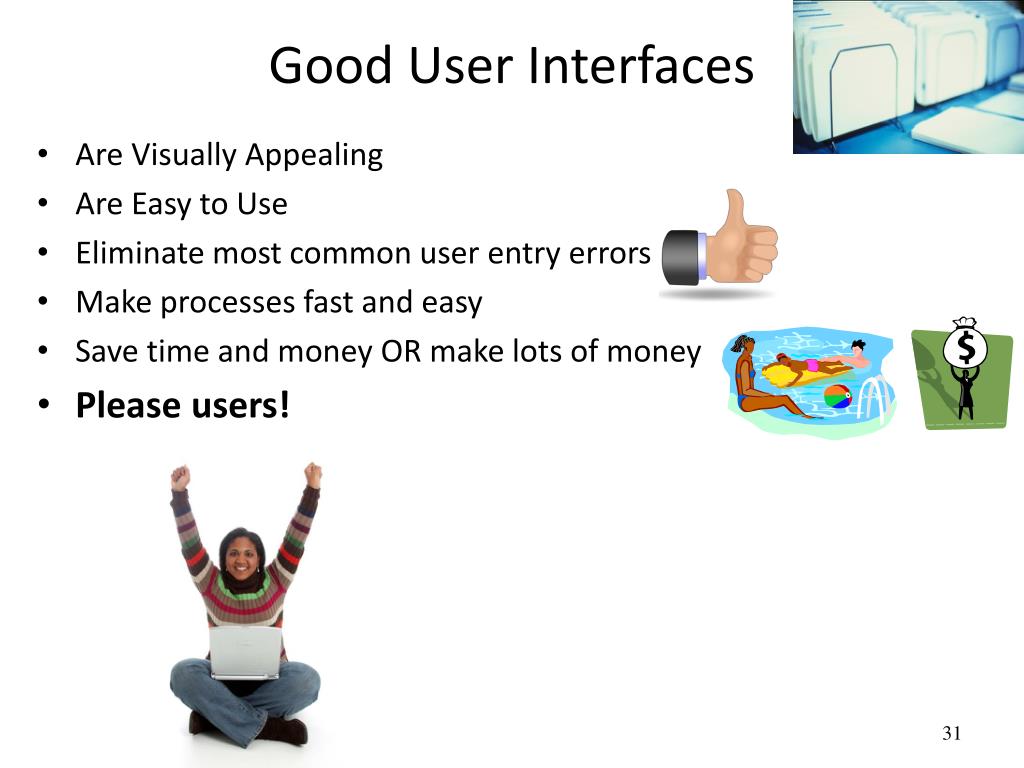

  30. Good User Interfaces • Are Visually Appealing • Are Easy to Use • Eliminate most common user entry errors • Make processes fast and easy • Save time and money OR make lots of money • Please users!

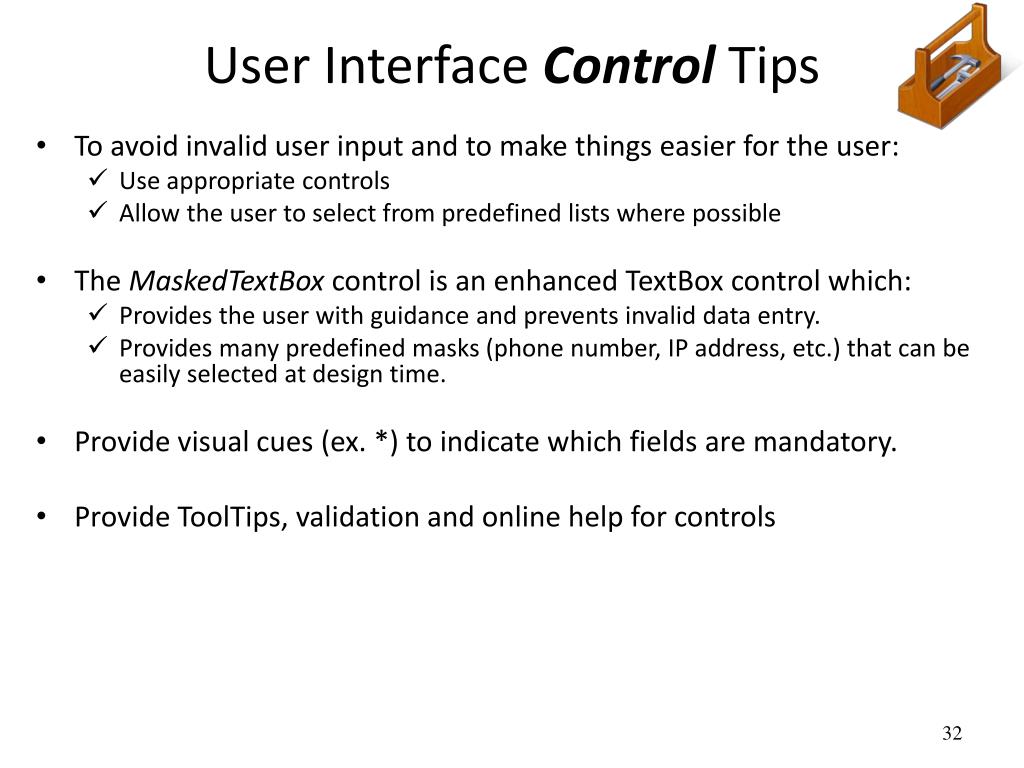

  31. User Interface Control Tips • To avoid invalid user input and to make things easier for the user: • Use appropriate controls • Allow the user to select from predefined lists where possible • The MaskedTextBoxcontrolis an enhanced TextBox control which: • Provides the user with guidance and prevents invalid data entry. • Provides many predefined masks (phone number, IP address, etc.) that can be easily selected at design time. • Provide visual cues (ex. *) to indicate which fields are mandatory. • Provide ToolTips, validation and online help for controls

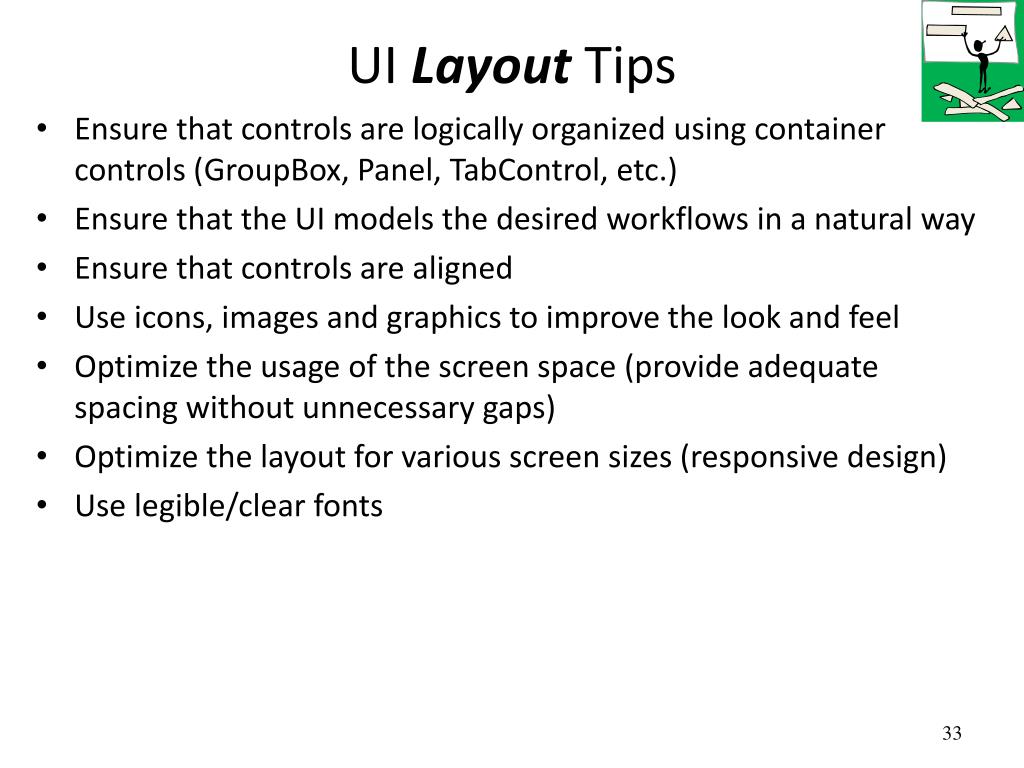

  32. UI Layout Tips • Ensure that controls are logically organized using container controls (GroupBox, Panel, TabControl, etc.) • Ensure that the UI models the desired workflows in a natural way • Ensure that controls are aligned • Use icons, images and graphics to improve the look and feel • Optimize the usage of the screen space (provide adequate spacing without unnecessary gaps) • Optimize the layout for various screen sizes (responsive design) • Use legible/clear fonts

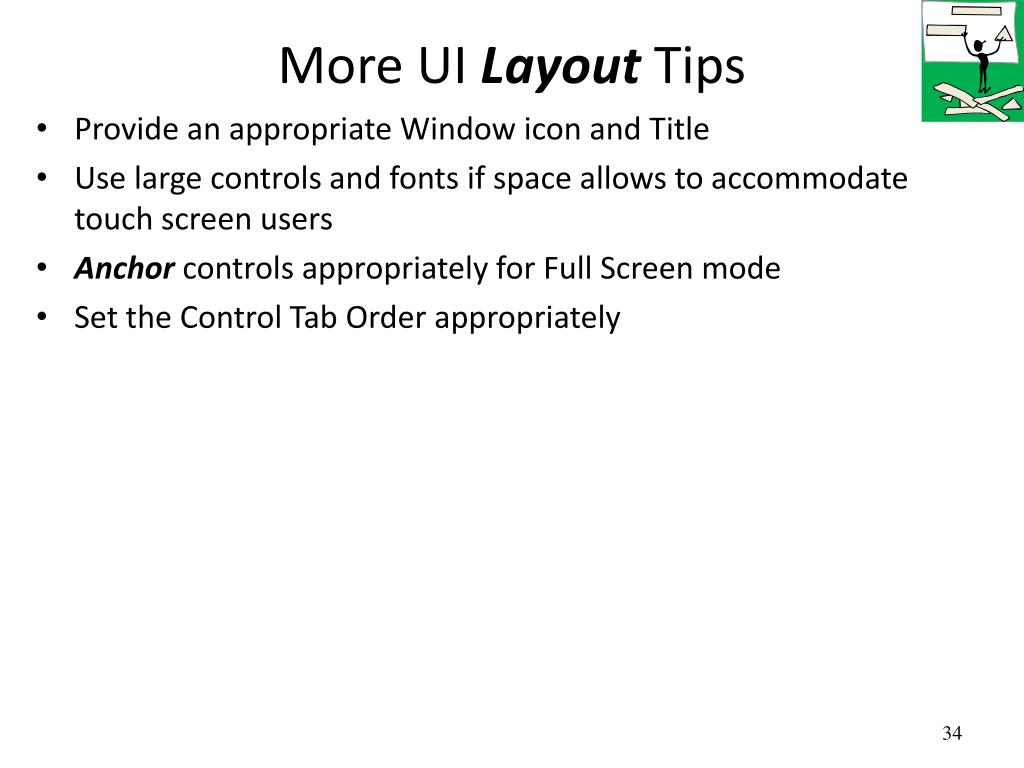

  33. More UI Layout Tips • Provide an appropriate Window icon and Title • Use large controls and fonts if space allows to accommodate touch screen users • Anchorcontrols appropriately for Full Screen mode • Set the Control Tab Order appropriately

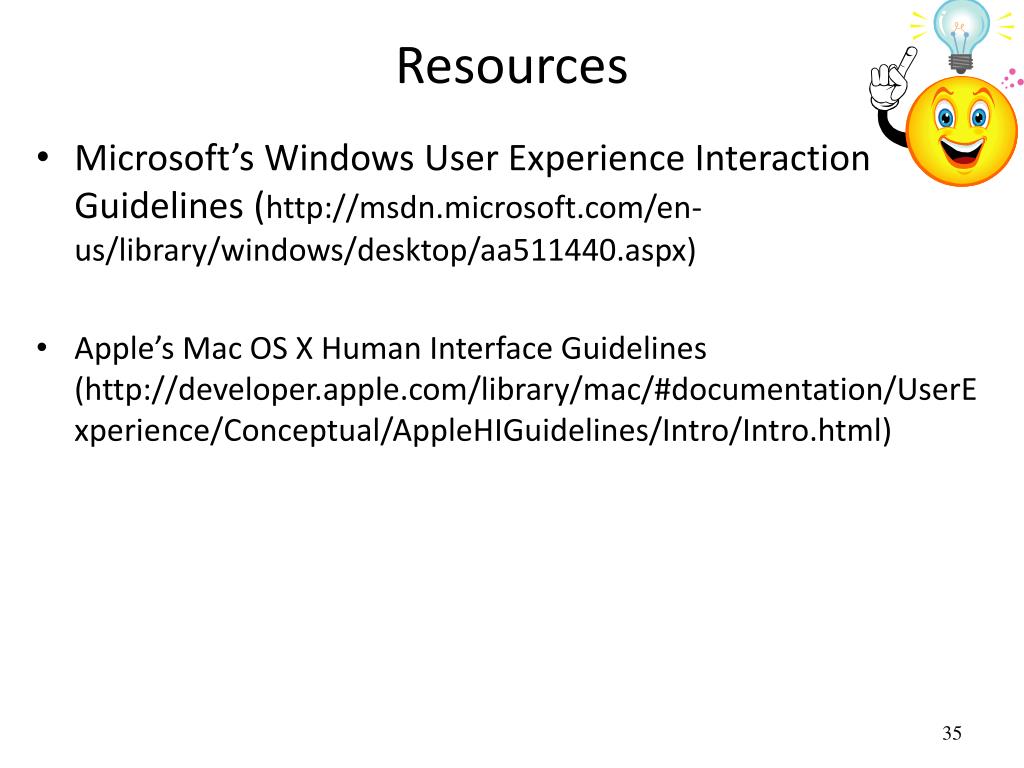

  34. Resources • Microsoft’s Windows User Experience Interaction Guidelines (http://msdn.microsoft.com/en-us/library/windows/desktop/aa511440.aspx) • Apple’s Mac OS X Human Interface Guidelines (http://developer.apple.com/library/mac/#documentation/UserExperience/Conceptual/AppleHIGuidelines/Intro/Intro.html)

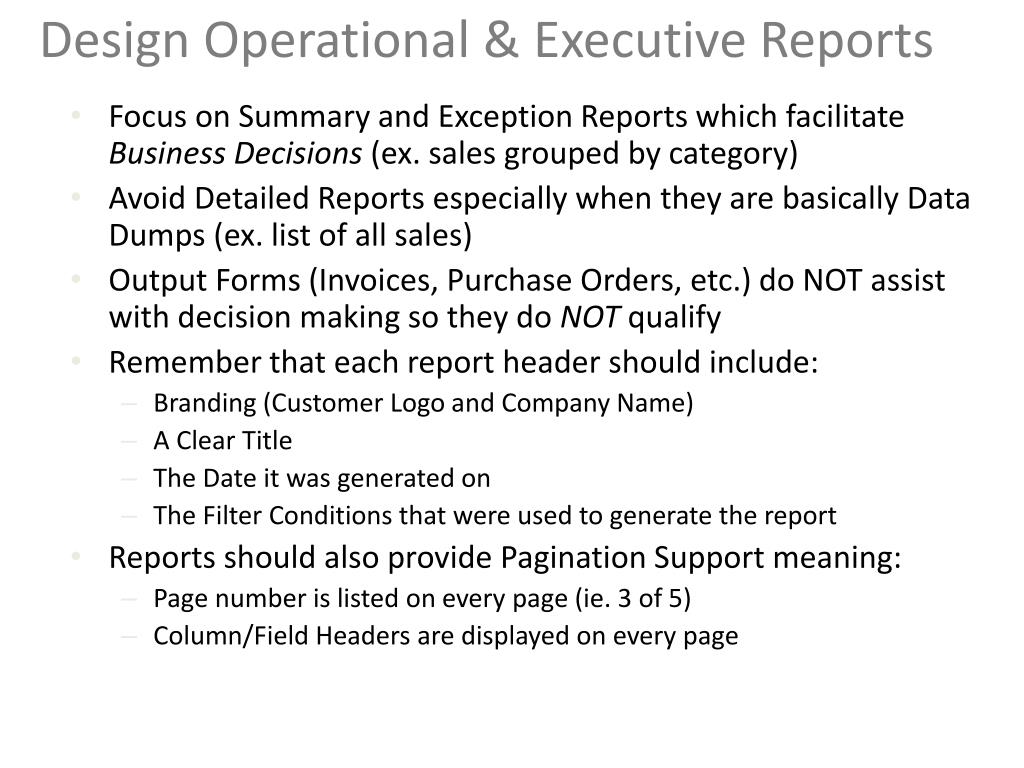

  35. Design Operational & Executive Reports • Focus on Summary and Exception Reports which facilitate Business Decisions (ex. sales grouped by category) • Avoid Detailed Reports especially when they are basically Data Dumps (ex. list of all sales) • Output Forms (Invoices, Purchase Orders, etc.) do NOT assist with decision making so they do NOT qualify • Remember that each report header should include: • Branding (Customer Logo and Company Name) • A Clear Title • The Date it was generated on • The Filter Conditions that were used to generate the report • Reports should also provide Pagination Support meaning: • Page number is listed on every page (ie. 3 of 5) • Column/Field Headers are displayed on every page

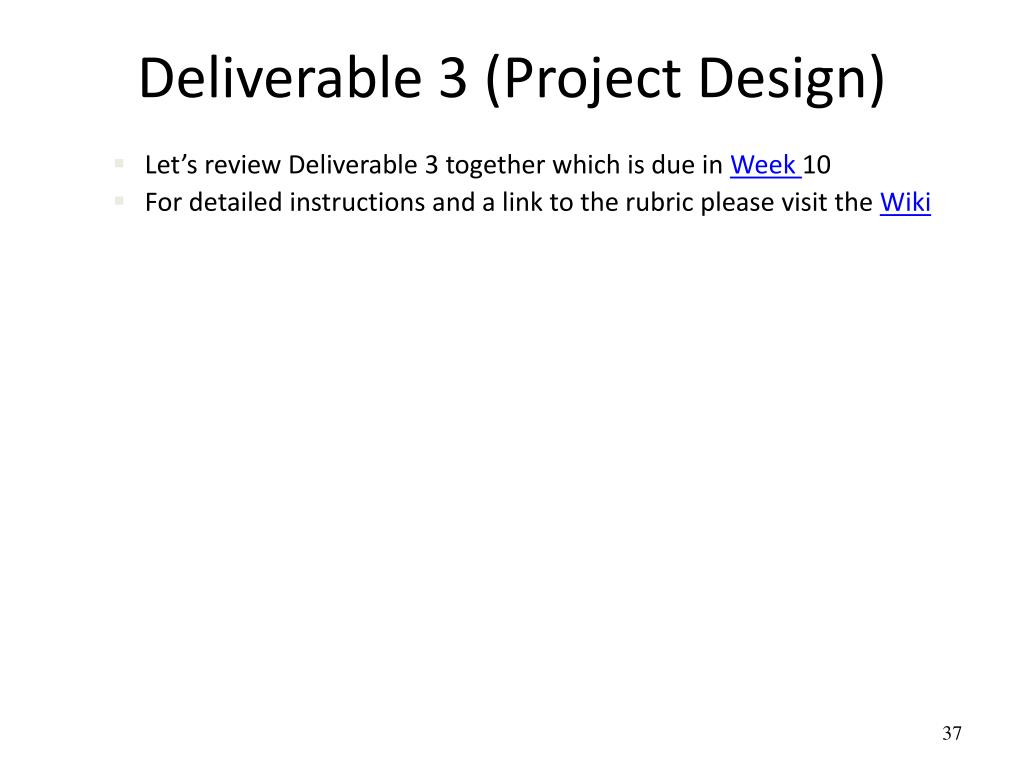

  36. Deliverable 3 (Project Design) • Let’s review Deliverable 3 together which is due in Week 10 • For detailed instructions and a link to the rubric please visit the Wiki

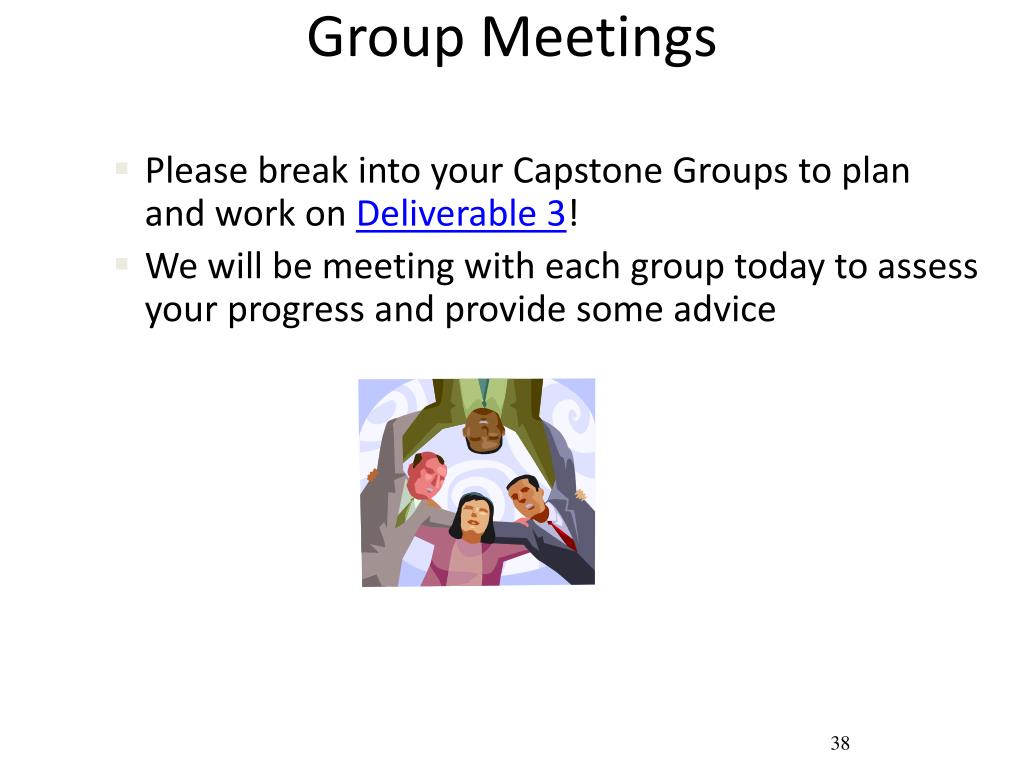

  37. Group Meetings • Please break into your Capstone Groups to plan and work on Deliverable 3! • We will be meeting with each group today to assess your progress and provide some advice
